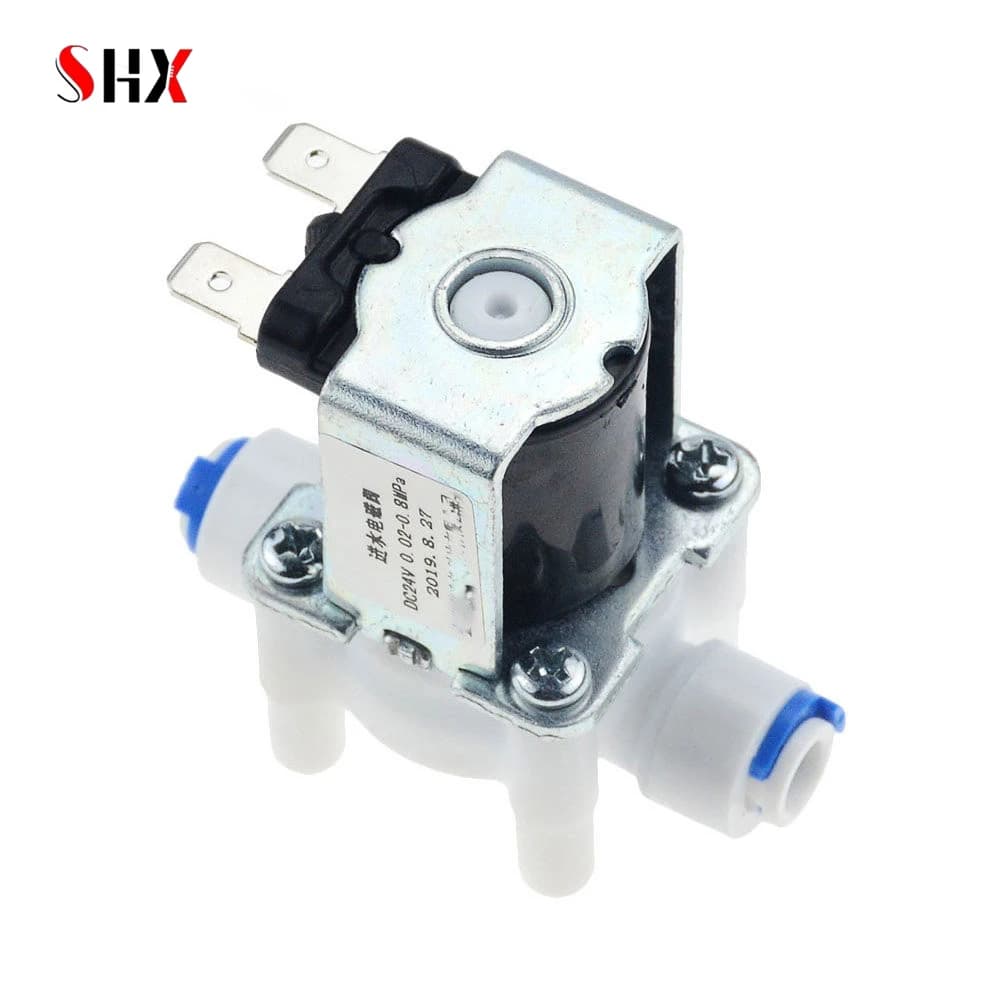

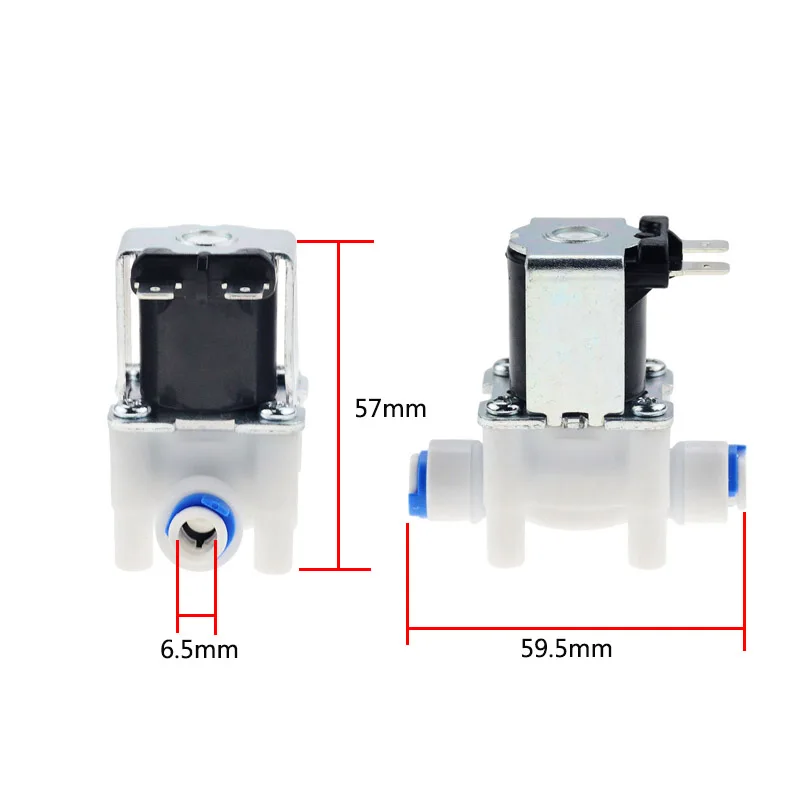

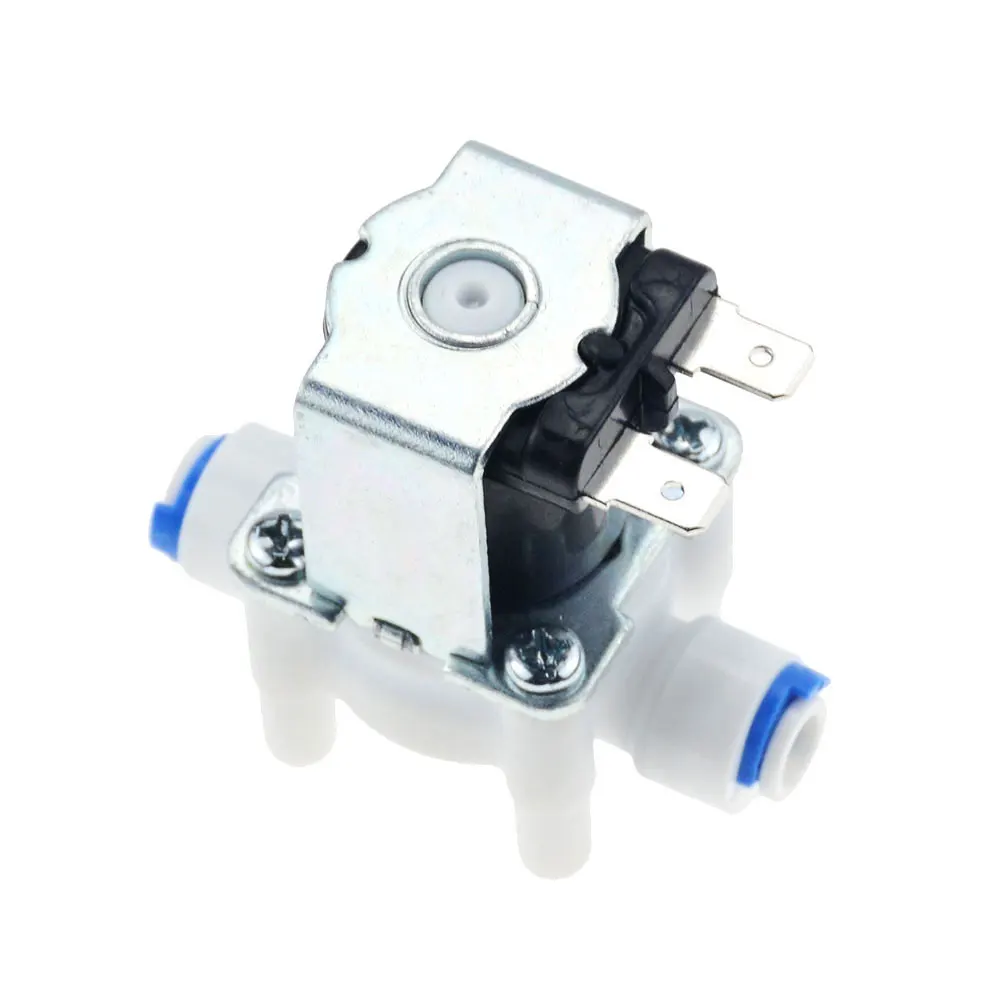

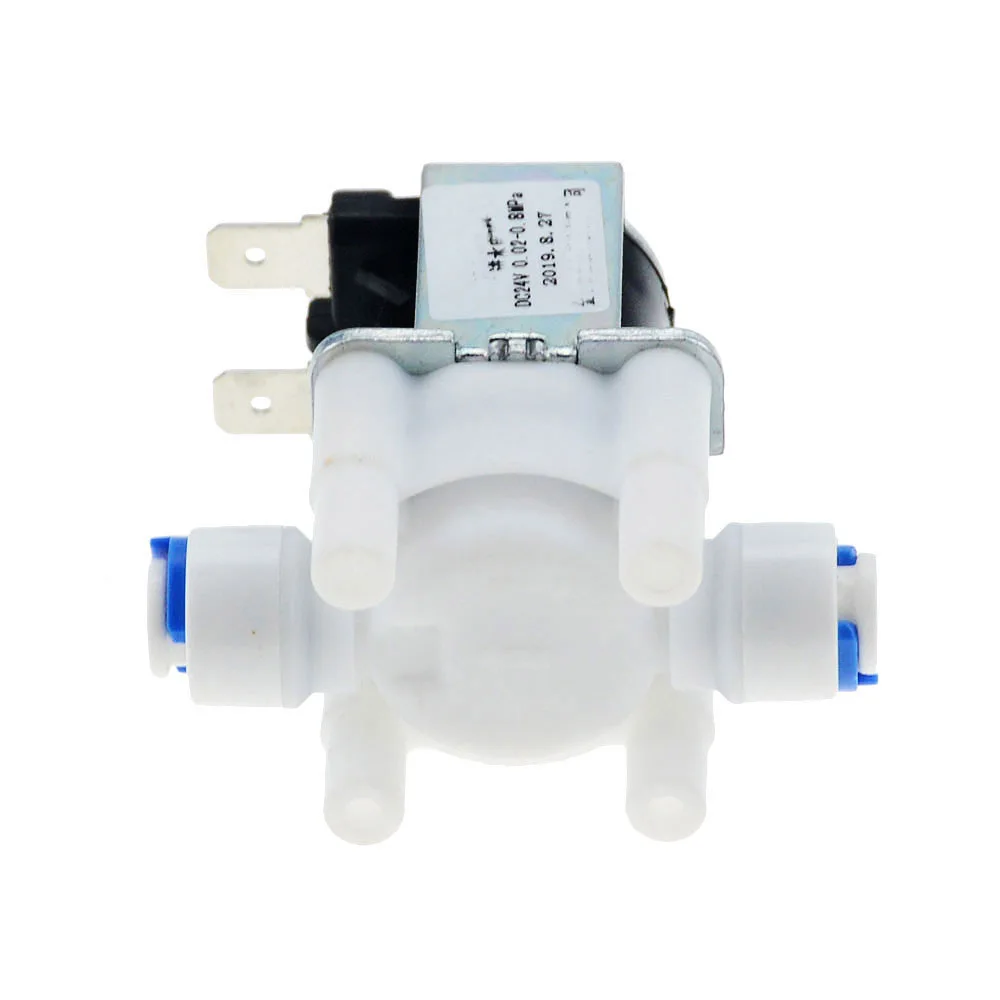

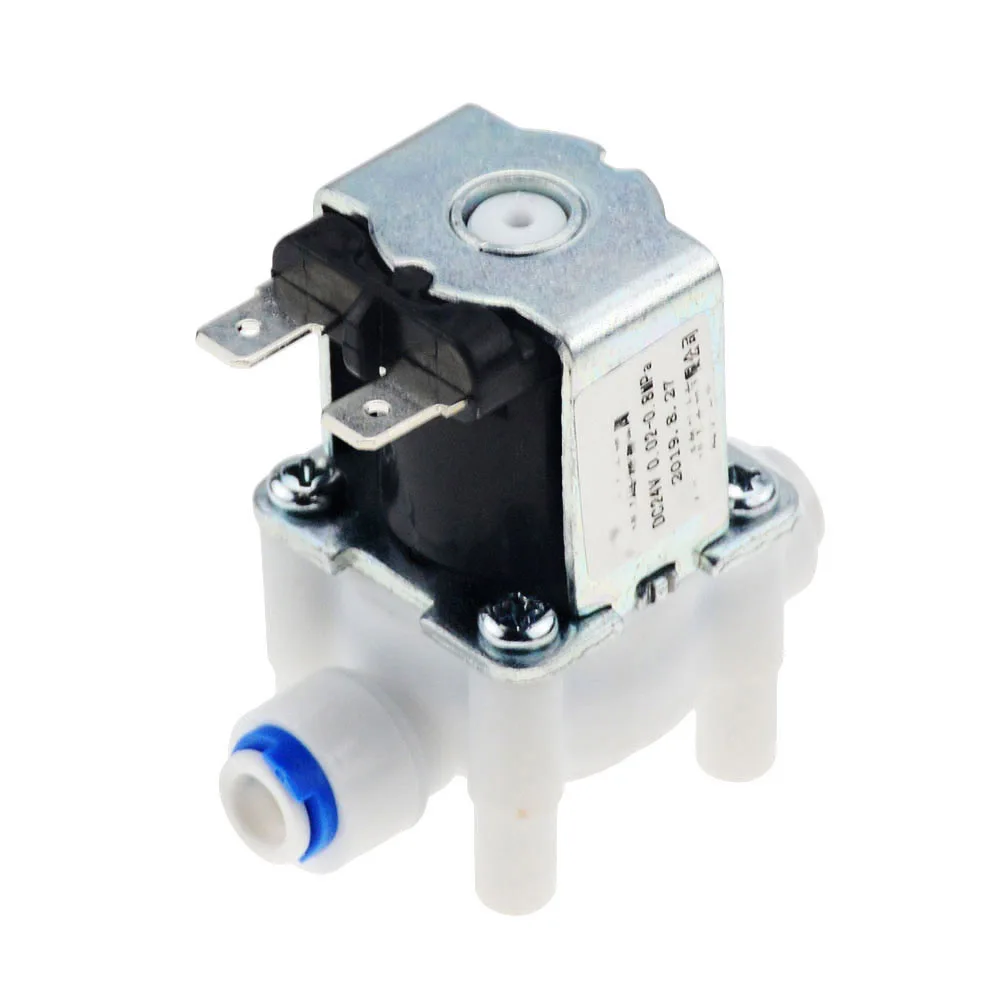

AC220V DC12V/24V Plastic Solenoid Valve 1/4'' Quick Contact Normally Closed Water Inlet Drain Valve

PRODUCT SPECIFICS:

Name: Quick access water solenoid valve Accessories Type :Water Purifier Valve Material: Copper POM housing Capacity :1 Model :1/4quick access Use location :outside Water Machine :Water Purifier Water Purifie Material: Metal + plastic Voltage:DC 12V Product Usage: ①water solenoid valve and high pressure water pump connected in parallel on the computer board. ② in the system of water or rinse, the water solenoid valve open at the same time high-pressure pump work; in standby, the water solenoid valve closed at the same time high-pressure pump to stop. ③the role of the water solenoid valve is in the water or rinse, open the water, and in the standby or power off when the closure of water,it can work in the pure water machine and not waste water. Technical Parameters: Rated voltage: DC24V Coil resistance :37Ω ± 0.25Ω (at 20 ° C) Switch type :DC continuous type Working pressure: 0Mpa-0.8Mpa / 0Mpa-0.5Mpa (send randomly ) Medium temperature :1 ° -75 ° Response time to open: ≤ 0.15s off ≤ 0.3s Electrical strength between the conductor and non-conductor should be able to withstand AC2500V voltage, 1min without breakdown and produce arcing and other phenomena Flow characteristics 0.02Mpa ≥ 3 L / min 0.1Mpa ≥ 12 L / min 0.8Mpa ≥ 35 L / min The number of coils is 2500 laps Life of 200,000 times Usage:water Please note it is not suitable for use with gravity fed systems
