Micro Self-priming Suction Water Pump DC 3.7V 5V 6V Mini 310 Motor Water Pump Small Diaphragm Air Water Pump DIY Tea Table

Specification:

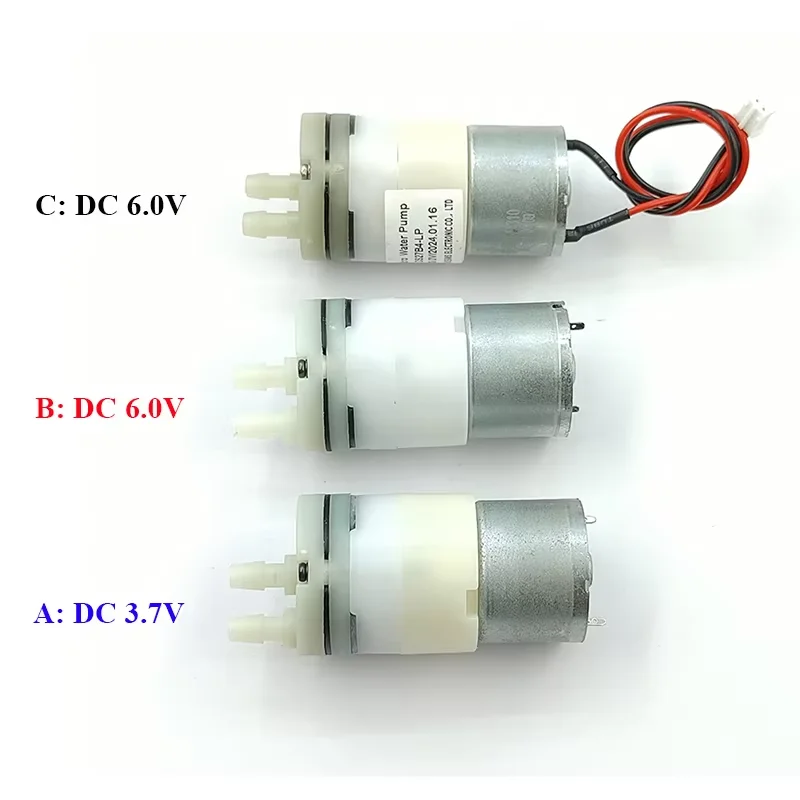

Model B: DC 6V Pump

1.Model B: RF-310 Motor Mini Pump

2.Type: Diaphragm Pump

3.Rated voltage: DC 6V

4.Test data:

Voltage:6.0V Current:150mA

5.Suitable voltage: DC 3.7V-7.4V

6.Suction lift: ≥ 1 meter

7.Lift: ≥ 2 meter

8.Weight: 40g

=========================

Package List:

Mini Pump x 1PCS

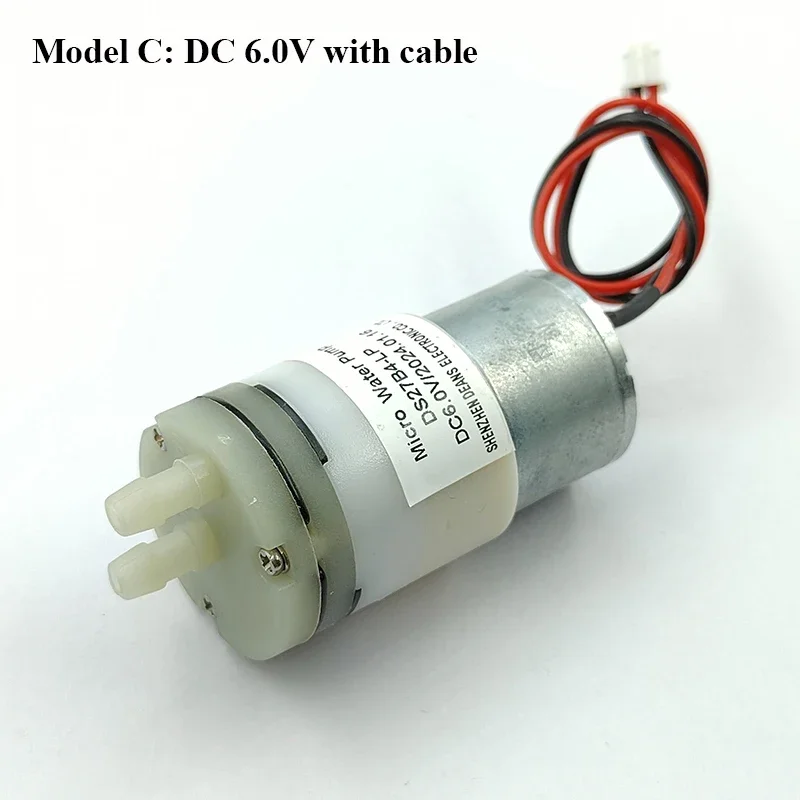

Model C: DC 6V Pump with cable

1.Model: Mini 320 Water Pump

2.Motor diameter: 24mm

3.Pump head diameter: 27mm

4.Pump height: 48mm

5.Water inlet/outlet diameter: 5mm

6.Weight: 42g

7.Cable length: 150mm

8.Rated voltage: DC 6V

9.Working current: 370mA

10.Flow: about 800mL/min

11.Suitable voltage: DC 3.0V-6.0V

12.Working current: 220mA-370mA

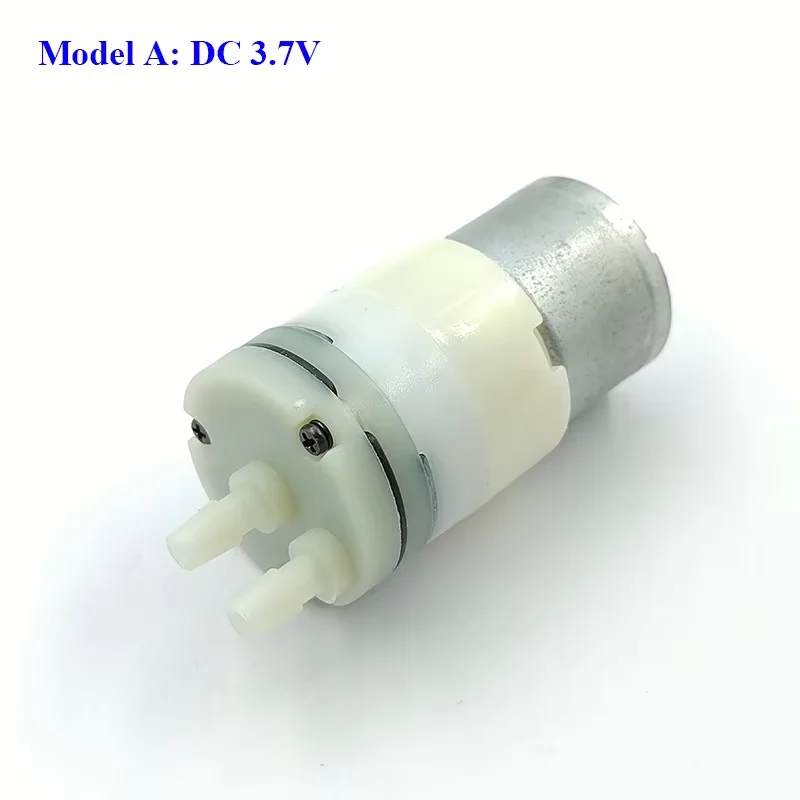

Model A: DC 3.7V Pump

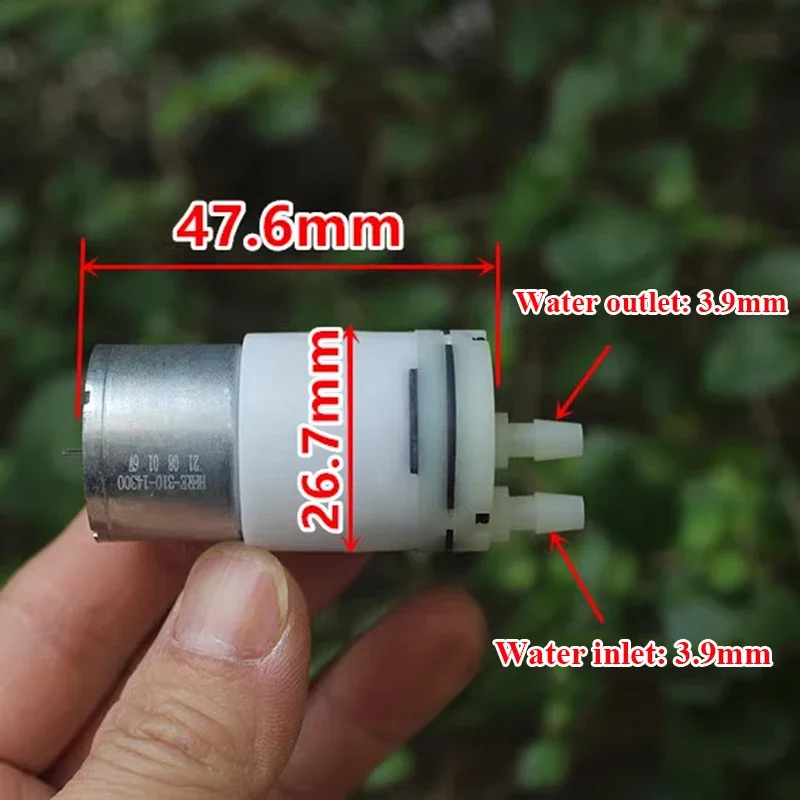

1.Model: Mini 310 Water Pump

2.Motor diameter: 24mm

3.Pump head diameter: 27mm

4.Pump height: 47.6mm

5.Water inlet/outlet diameter: 5mm

6.Weight: 40g

7.Rated voltage: DC 3.7V

8.Working current: 600mA

9.Flow: about 600mL/min

10.Suitable voltage: DC 3.0V-5.0V

11.Working current: 500mA-850mA
