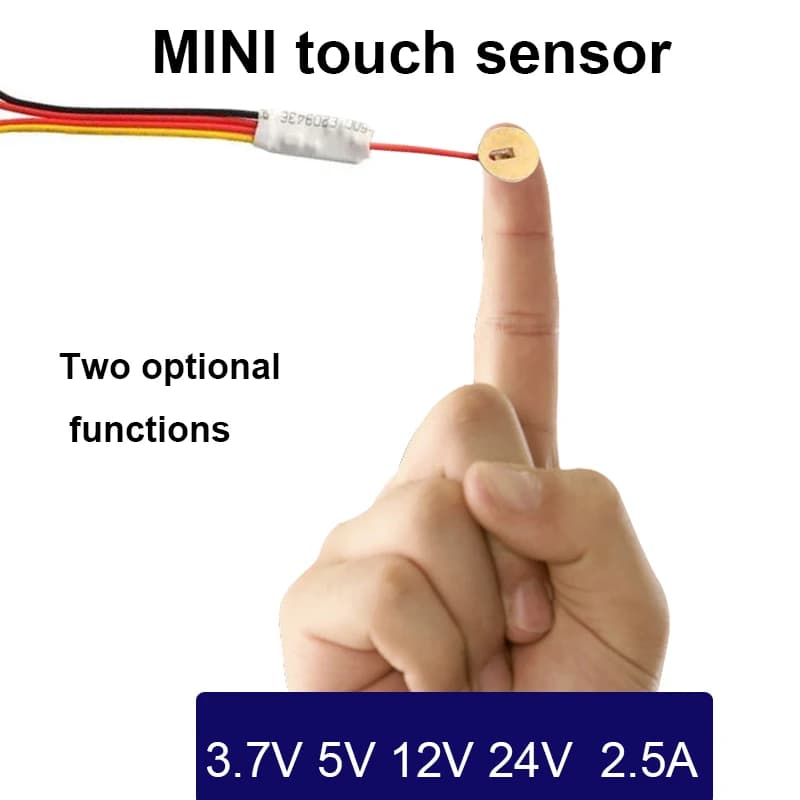

MINI Touch Sensor Switch 3.7-24V 2.5A, Dual Mode Touch Control, for LED Light/Water Level, 4mm Plastic/Glass Panel

MINI Touch Sensor Switch - Smart Dual-Mode Control Module

Product Overview

The MINI Touch Sensor is a versatile, compact switch module designed for intelligent control of LED lighting systems and water level monitoring applications. Operating at 3.7V–24V DC with a 2.5A max current, it offers two customizable modes (A/B) and features touch-sensitive activation through 0–4mm non-metallic surfaces (plastic/glass).

Key Features

✅ Three Operation Modes

Mode A: Touch to Turn ON, Release to Turn OFF

Ideal for momentary control (e.g., handheld lighting).

Mode B: Toggle ON/OFF with Tap + Hold for Stepless Dimming

Tap once to switch, long-press to adjust brightness smoothly.

Function Three Touch control, On/Off, Non-dimmable

It only turns on and off, with no dimming function

✅ Wide Compatibility

Works with constant voltage power supplies (e.g., LED drivers).

Supports LED strips, bulbs, and water level sensors.

✅ Non-Contact Sensing

Sensitive touch detection through 4mm-thick plastic/glass panels (e.g., embedded in enclosures).

✅ Safety & Durability

Reverse current protection (for stable performance).

Compact design with easy installation.

Applications

LED Lighting Control: Cabinets, desks, decorative lights.

Water Level Monitoring: Non-contact liquid detection.

DIY Projects: Smart home devices, interactive displays.

Installation Guide

Secure the Copper Sensor Pad

Attach the sensor pad firmly to the target surface (e.g., behind a plastic panel).

Ensure no movement or contact with other objects to avoid false triggers.

Power On

Connect to a constant voltage power source (3.7V–24V DC).

Never power on before fixing the sensor pad.

Mode Selection

Configure Mode A/B via internal jumper (instructions included).

⚠️ Critical Notes

Not for Motor/Inductive Loads!

Using with motors may cause reverse current damage. Contact us for customized motor-control solutions.

Avoid extending sensor wires excessively; secure them to prevent accidental triggers.

Compatible only with constant voltage LEDs/power supplies.

Specifications

Input Voltage: 3.7–24V DC

Max Load: 2.5A

Sensing Material: Plastic/glass (≤4mm thickness)

Package Includes

1× MINI Touch Sensor Module

1× Copper Touch Pad

Installation Manual

Upgrade your projects with effortless touch control! ✨

For bulk orders or custom requirements, contact our support team.
