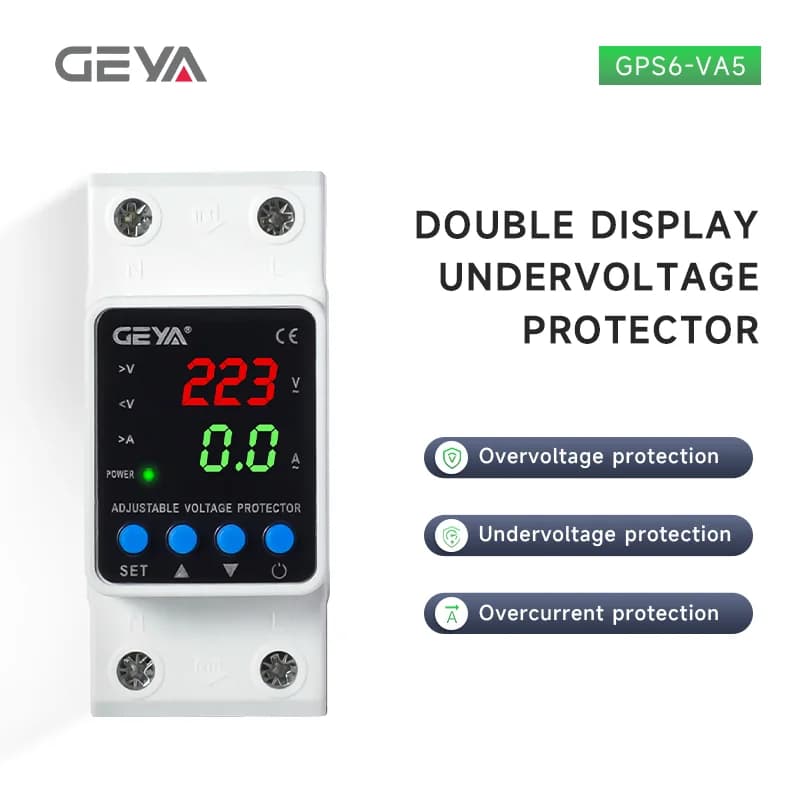

GEYA 40A/63A/80A Adjustable Over Voltage and Under Voltage Protective Device Protector Relay Limit With Over Current Protection

GPS6-VA5 Single Phase Overvoltage, Undervoltage, Overcurrent Protection

Functions:

1. Over-voltage protection

2. Over voltage protection AC130-300V (adjustable) DC130 - 300V

3. Over current protection 1A-63A (adjustable)

4. Reconnect time (delay on time): 1s-300s (adjustable)

5. Voltage meter

6. Ammeter

Rated voltage: 220V; Frequency: 50Hz/60HZ

Error in real-time current, voltage : < 1%

1. Under voltage protection 80V-210V (adjustable) DC85 - 210V

Descriptions:

1. Dual Display :The product features two displays that show the voltage and current levels, making it easy to monitor the circuit's health.

2. Adjustable :The device can be adjusted to protect against overvoltage, undervoltage, and other issues, ensuring that your circuit is safe and reliable.

3. Protective Device :This product is designed to protect your circuit from damage caused by power fluctuations, ensuring that your equipment stays safe and functional.

4. Relay :The relay feature of this product allows you to control the flow of power to your circuit, making it easy to troubleshoot and fix any issues.

Overvoltage protection

Undervoltage protection

Overcurrent protection

Continuous overcurrent counting

Wide voltage: overvoltage of 130-300V, undervoltage of 80-210V, always in protection mode when not set properly, fault light on

Fast protection for power failure: Abnormal ignition, power failure, and other protective device actions in the front-end power grid

Manual/Automatic Recovery: After manually protecting the output, it must be manually turned on.

When the protection function is turned off, the relay remains in its original state without any further action, but the switch button is still valid

Multi mode display: Switching between voltage, current, frequency, visible power, etc. according to the mode

Set lock: to prevent accidental modification of parameters

DC mode: When DC is used, the current/power is invalid

Energy saving mode: When the protector is not active, reduce the brightness of the digital tube to save energy

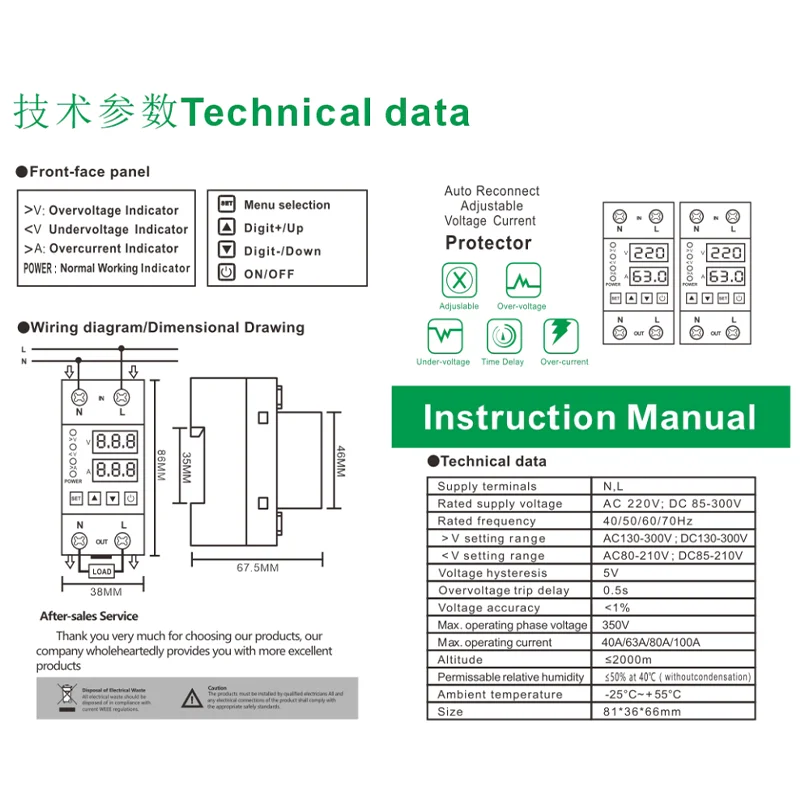

Product Parameters:

1. Power supply:AC220V 50/60Hz

2. Max. Loading power:1~40A Adjustable/1~63A Adjustable/1~80A Adjustable

3. Over-voltage protection value range:130V~300~OFF(default:270V)

4. Under-voltage protection value range:80V--210V --OFF(default:170V)

5. Over-current adjustment range:1-40A (default:40A) 1-63A (default:63A) 1-80A(default:80A)

6. Screen Refresh Rate:≥1000 Hz

7. Measurement Range:0.1-1.0 S

8. Over/Undervoltage Hysteresis: 5 V

9. Timing Range:1-999 S

10. Action Time:0.1-10.0 S

11. DC Effective Range :DC 80-300 V

Wide Voltage Range

Overvoltage range: 130-300V; Undervoltage range: 80-210V. If settings are incorrect, the device will stay in protection mode (fault light remains on).

Power Failure Rapid Protection

The protection activates instantly after power failure; the circuit breaker trips, and power must be restored manually.

Manual/Auto Recovery

When the protection function is disabled, the relay remains in its current state (no automatic operation), but the switch button remains functional.

Power-off Self-locking

Once the protection function is triggered, the device locks itself (no automatic reset; manual reset is required).

Multi-mode Display

Switch between voltage, current, and frequency displays via button operation.

Setting LockPrevents incorrect parameter modification (ensures the protection function operates as intended).

DC ModeCurrent/power functions are disabled when the device is used with DC power.

Energy-saving ModeReduces the digital tube brightness to save energy when the protection function is inactive.

Embedded RTOSImproves system performance, stability, and maintainability.
