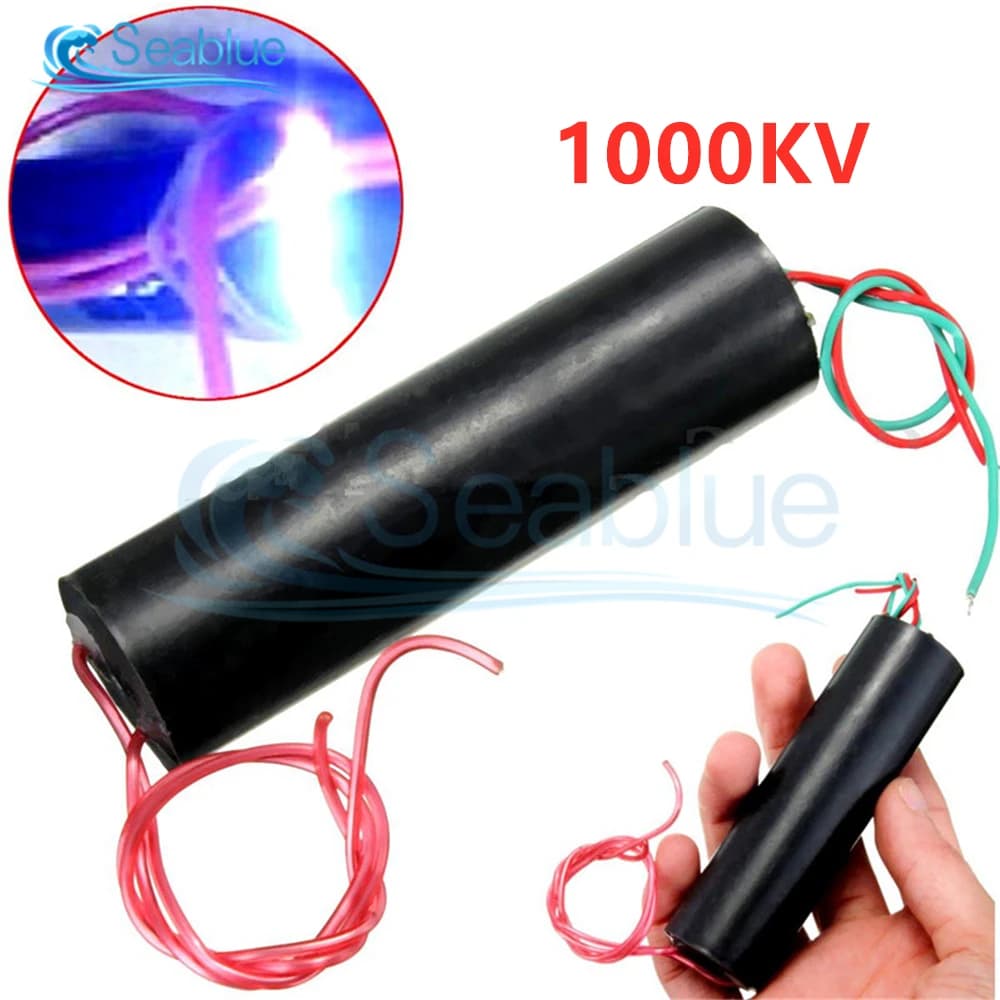

1000000V DC 3.7V-7.4V to 1000KV Boost Step up High-voltage Generator Ignition Coil Pulse Power Module Igniter Transformer

Specifications:

Module type: MC-901

Input voltage: 3.7V-7.4V

Input current: 0.5A-1A

Input wire length: 9 cm

High voltage type: pulse DC type

Output voltage: 800KV-1000KV (please pay attention to safety when using)

Output current: 0.5A-1A

Output length: approximately16 cm

High voltage bipolar discharge distance: 1.5 cm -2 cm

Size:88x26mm(LxD)

Module use note:

1, high voltage module should avoid the use of high voltage no-load, power must be

adjusted before the high voltage line end of the right distance, high voltage wire drawing

distance and the use of battery voltage and capacity is proportional to.

2, the test arc distance from short to long experiment, when the power is prohibited

beyond the longest arc distance, due to the high pressure energy can not be released,

very easy to damage the module.

3, the power of the module, the internal heat is not heat, so not a long time to work.

Package content

1 x 1000KV High Voltage Generator
