1P 2P 3P 4P DC 1000V MCB Solar Mini Circuit Breaker Overload Protection Switch 6A 10A 16A 20A 25A 32A 40A 50A 63A for PV System

Our factory can offer OEM/ODM Service,if you need to circuit breaker with your logo,

feel free to contact the seller!

Application

EACBDC-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage is 1000V for 1P 2P 3P 4P. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products. Products according IEC60898-1, GB14048.2 standard.

DC Circuit Breaker Features:

1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing

2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable

3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker

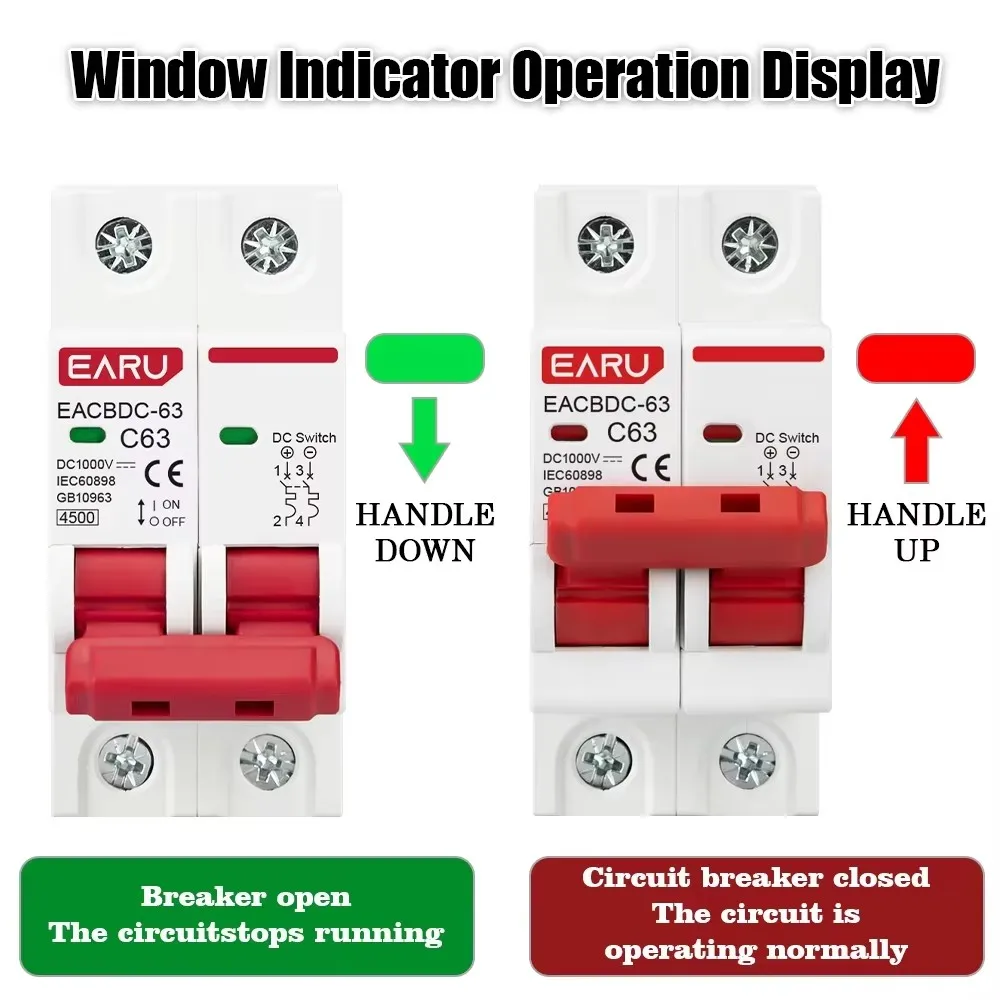

4. Safety handle, classic original design, ergonomic

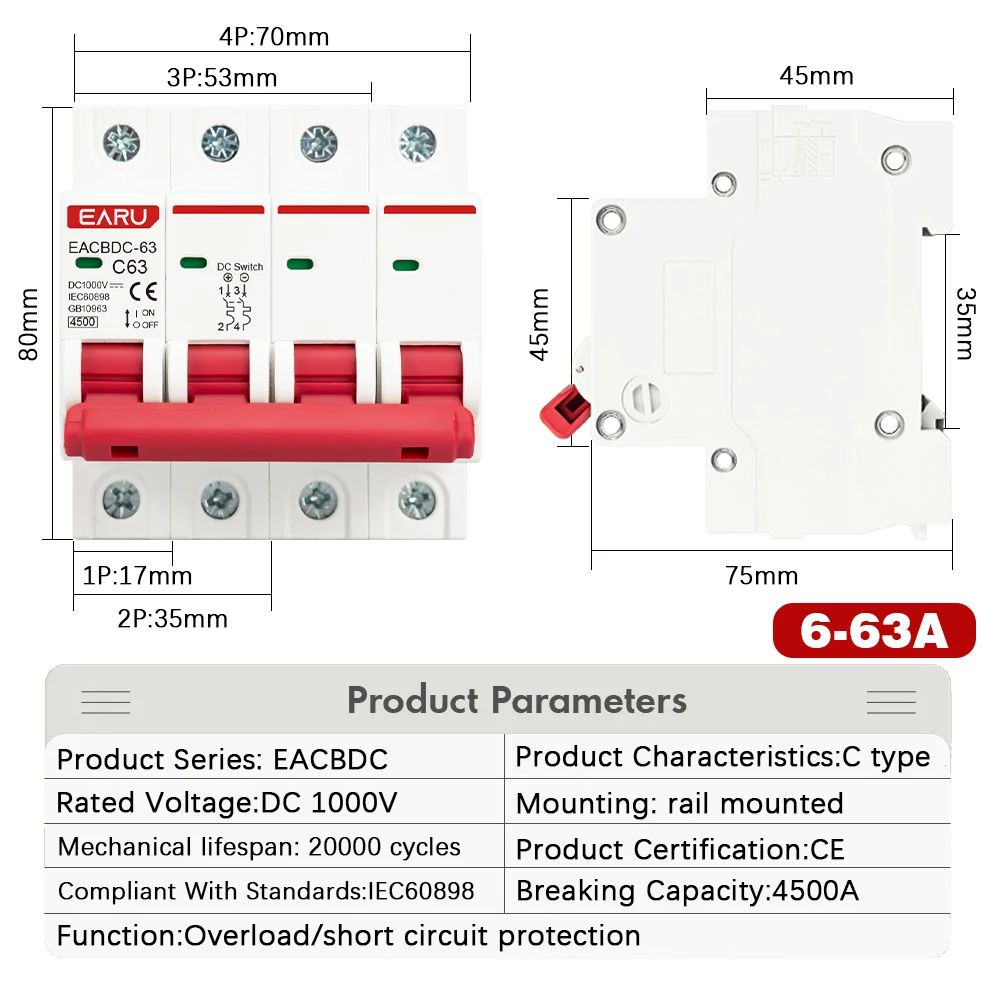

Specificaatios

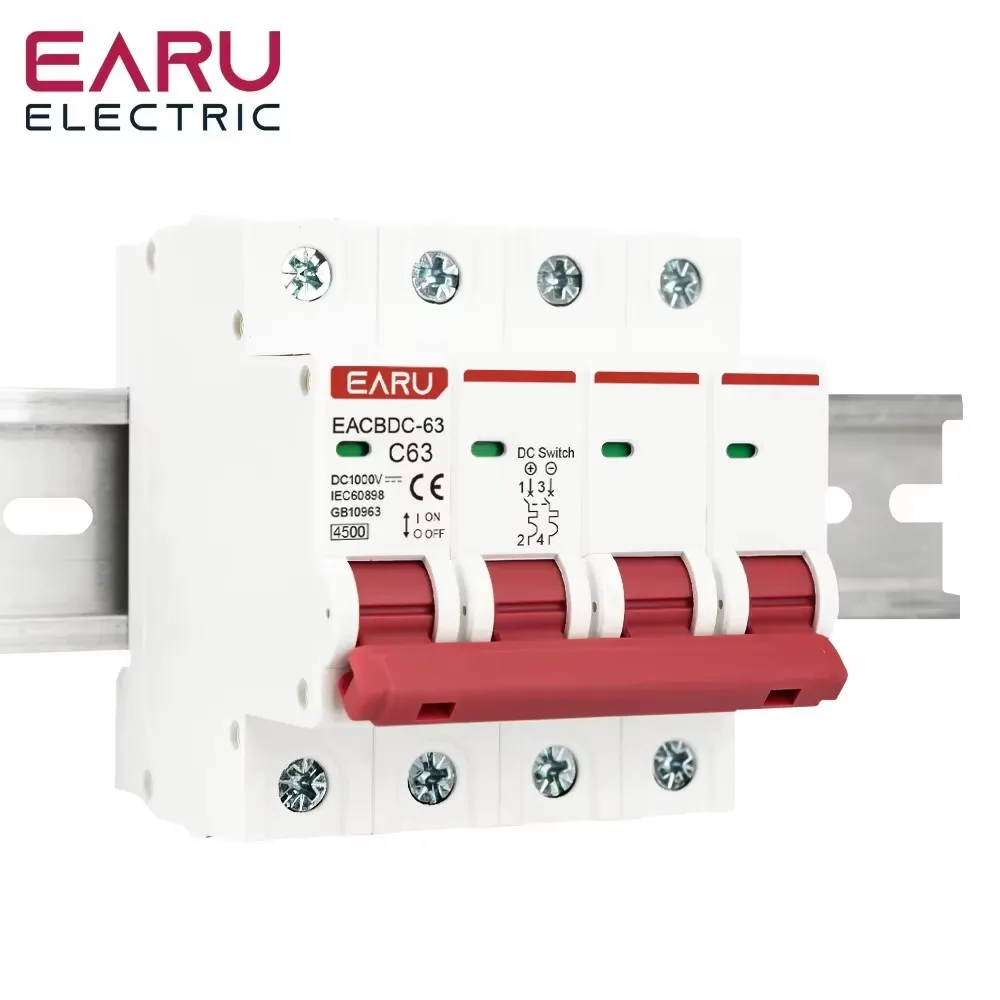

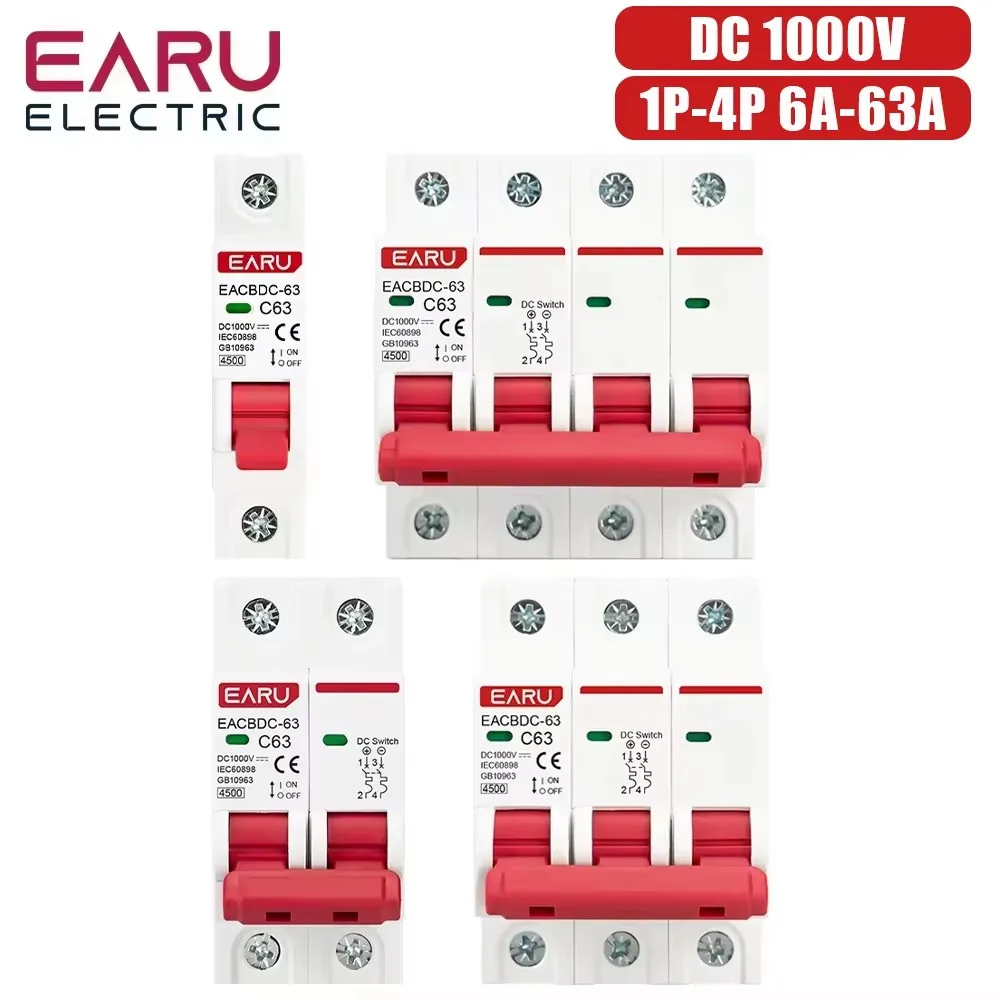

Pole:1P,2P.3P,4P

Rated Current:6A-63A

Rating Voltage:DC 1000V

Breaking Capacity:4500A

Rated Breaking Capacity:6.0kA IEC60898(0.5~63A)      6,10,15A IEC60947-2(0.5~63A)

Characteristic Curve:C

Max. fuse that can be connected to:100AgL(>10kA)

Electrical Life:Not less than 8000 times

Mechanical Life:Not less than 20000 times

Selective Grade:3

Working Ambient Temperature:-10℃~+40℃

Enclosed Protective Class:IP20
