EARU 1P 2P 3P 4P 40A 63A 100A 125A AC 230V 400V Isolator Disconnector Disconnecting Switch Main Knife Switch Breaker Din Rail

General

EADS1 Isolator is the main switch in the combination of electrical terminal apparatus, sultable for circuit of 50/60Hz, rated voltage 230V/400V,rated current up to 125A for isolating,it also can be used for infrequent on-and-off clrc-ult,and is widely used in industry,mine,high-building,commerce and household and so on.

Note：The switch can carry the (short circuit) current under the condition of abnormal circuit for a certain period of time, and it can not turn on and off the appropriate overload frequently, but it can not be used to break the fault current

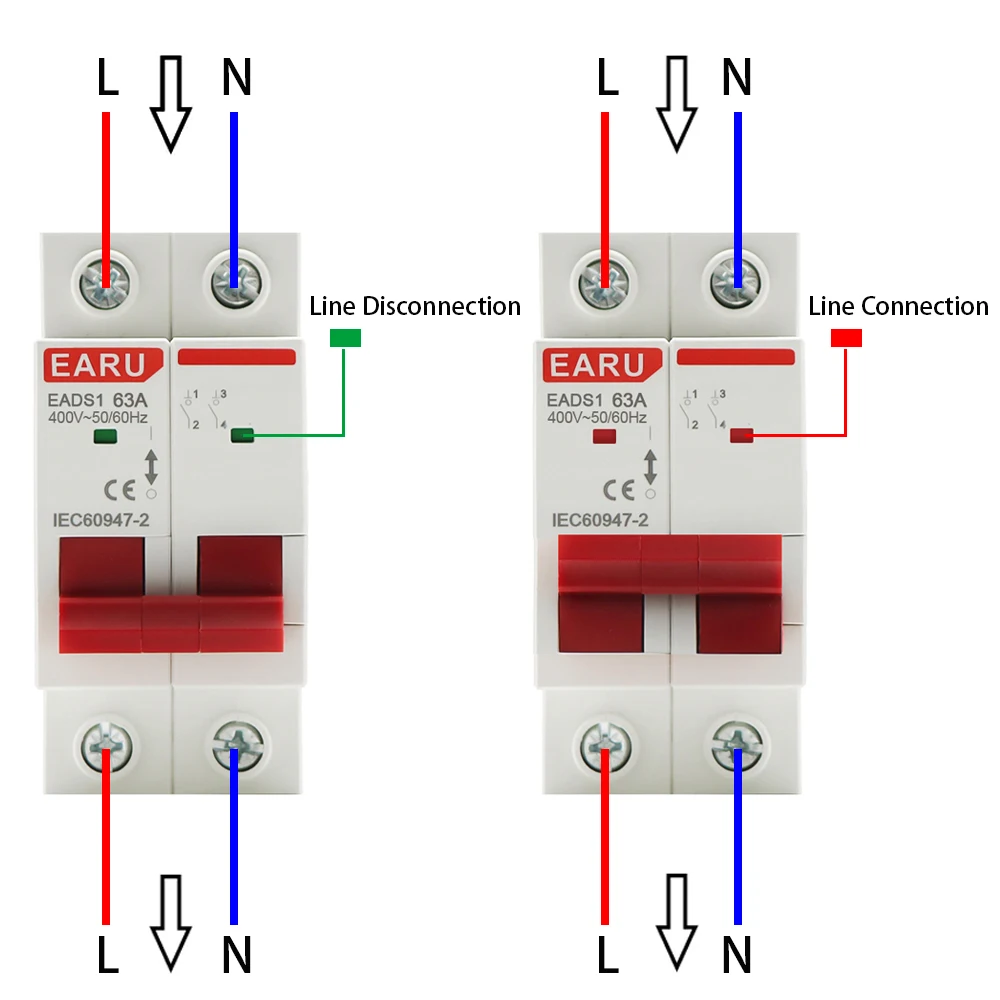

With indicator function in the contact position.

Transparent cover designed to carry label.

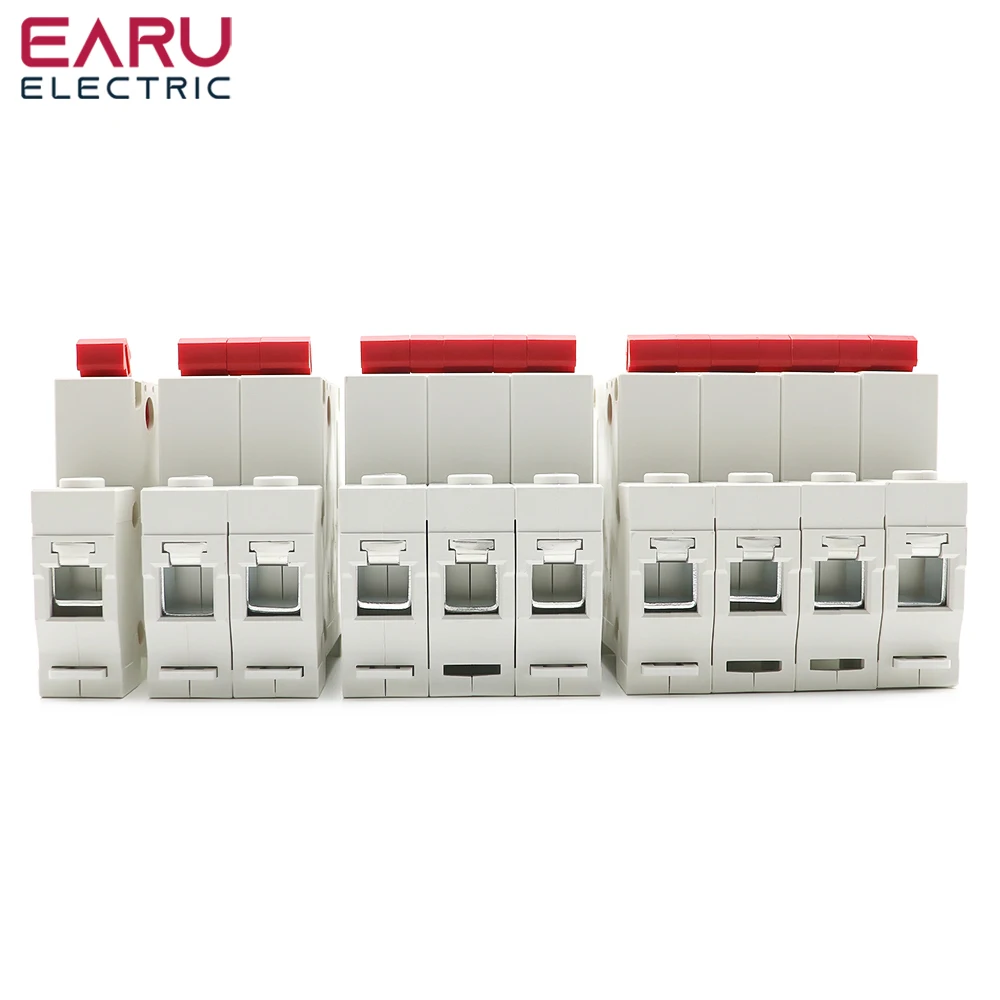

Bilateral busbar wiring capabilities to adapt to the wider use of premises.

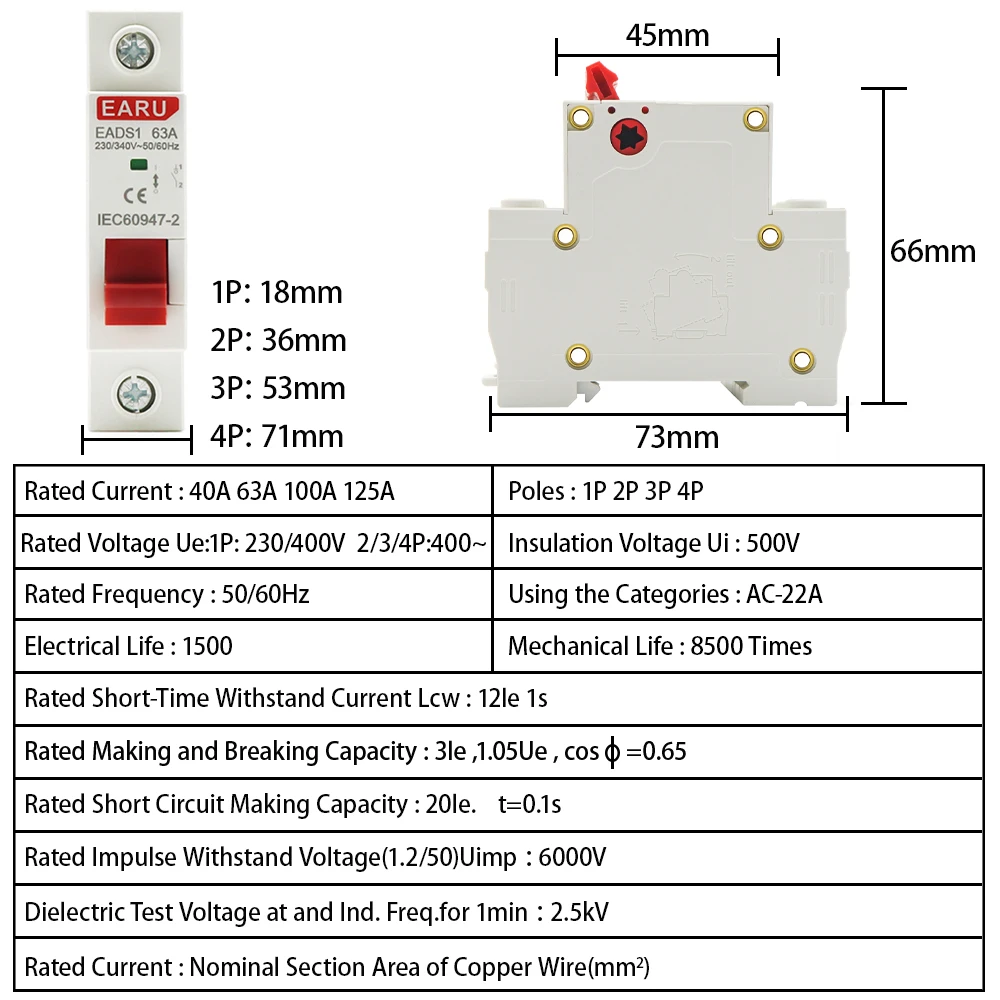

Maximum connecting ability of 50mm2, wiring torque 4N*m, applicable to a variety of installing equipment
