Mini Tiny 5mm/4.3mm Precision Planetary Gear Stepper Motor Micro 2-Phase 4-Wire Stepping Motor Linear Metal Screw Slider Camera

Specification:

Note: This motor is 2-phase 4-wire stepper motor, it requires an additional stepper driver and pulse signal to operate.

Brand new micro two phase four wire stepper motor with a precision planetary gearbox, which drives the driver's pole to push the metal slide and move up and down. This is very miniature and precisely controllable miniature linear motor designed for adjusting the lens on mobile phones.

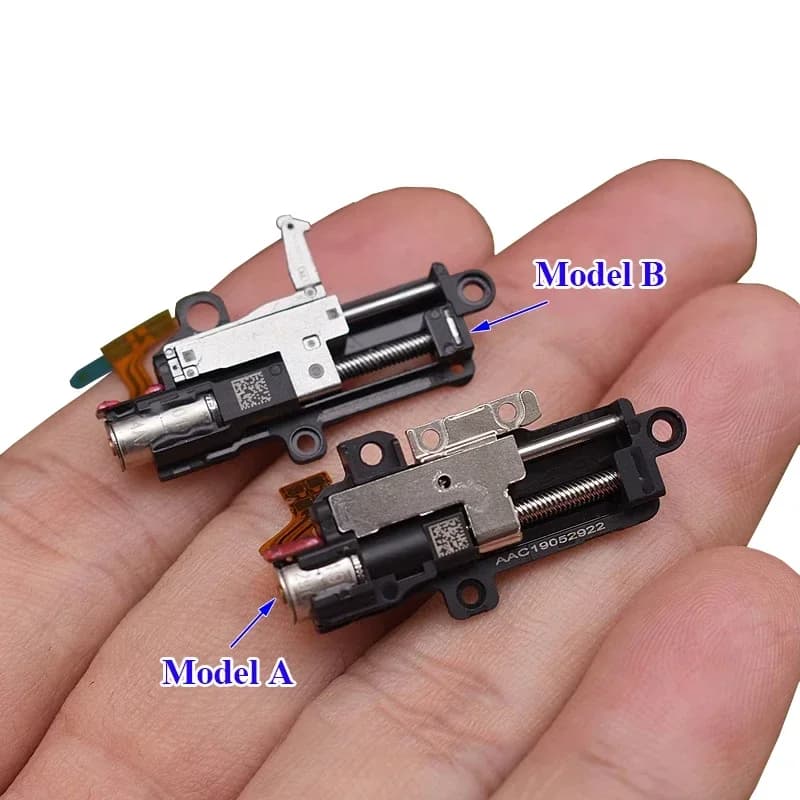

There are two models of stepper motors, the model A motor diameter is 5mm, motor height is 6.5mm.

The effective stroke of the slide is 8mm, and 2500 pulses are required to complete the stroke.

The model B motor diameter is 4.3mm, motor height is 8.3mm.

The effective stroke of the slide is 8mm, and 1750 pulses are required to complete the stroke.

At the top of the screw, there is a super miniature ball bearing.

=========================

Package List:

Motor x 1PCS

=======================

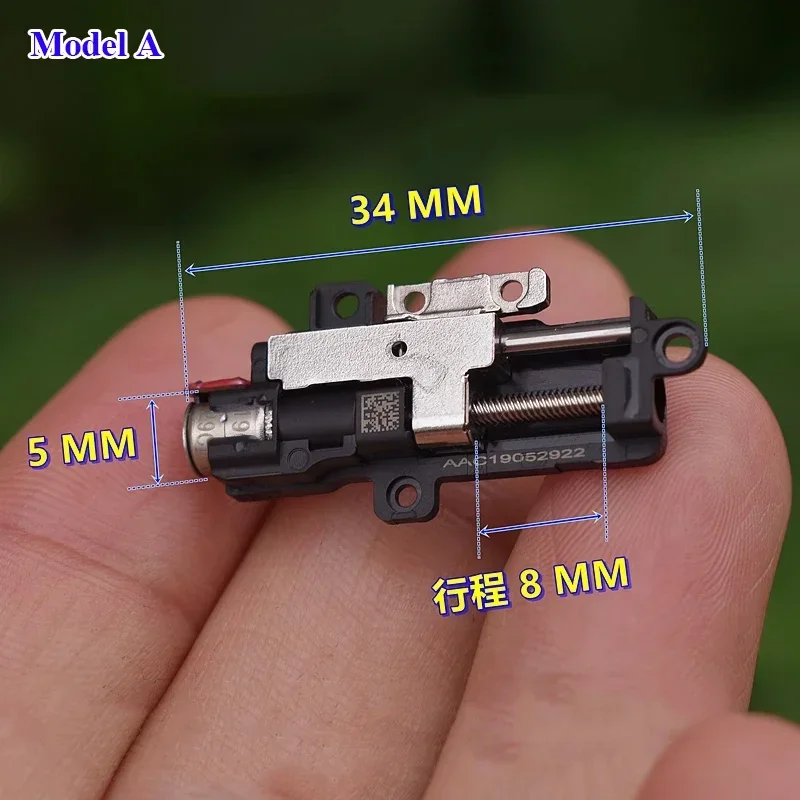

Model A:

1.Motor type: 2-phase 4-wire stepper motor

2.Motor diameter: 5mm

3.Motor height: 6.5mm

4.Motor phase resistance: 14.3 ohms

5.@5V short ciucuit current: 300mA

6.Slider stroke: 8mm

7.Approximately 2500 pulses complete the journey, and one pulse signal moves 0.0032 mm

8.Weight: 3.1g

=======================

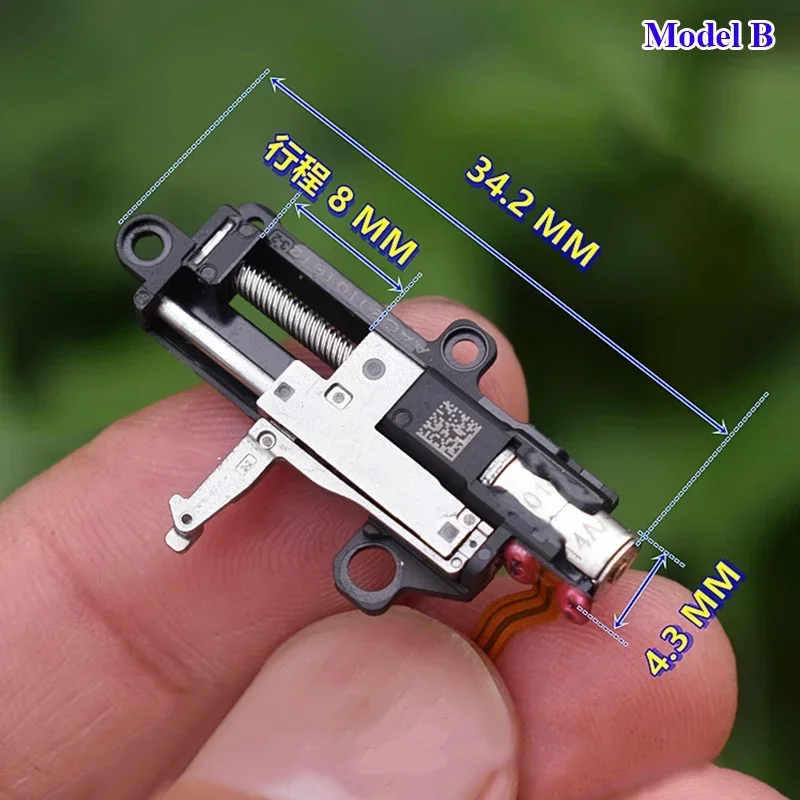

Model B:

1.Motor type: 2-phase 4-wire stepper motor

2.Motor diameter: 4.3mm

3.Motor height: 8.3mm

4.Motor phase resistance: 10 ohms

5.@5V short ciucuit current: 390mA

6.Slider stroke: 8mm

7.Approximately 1750 pulses complete the journey, and one pulse signal moves 0.0046 mm

8.Weight: 3g
