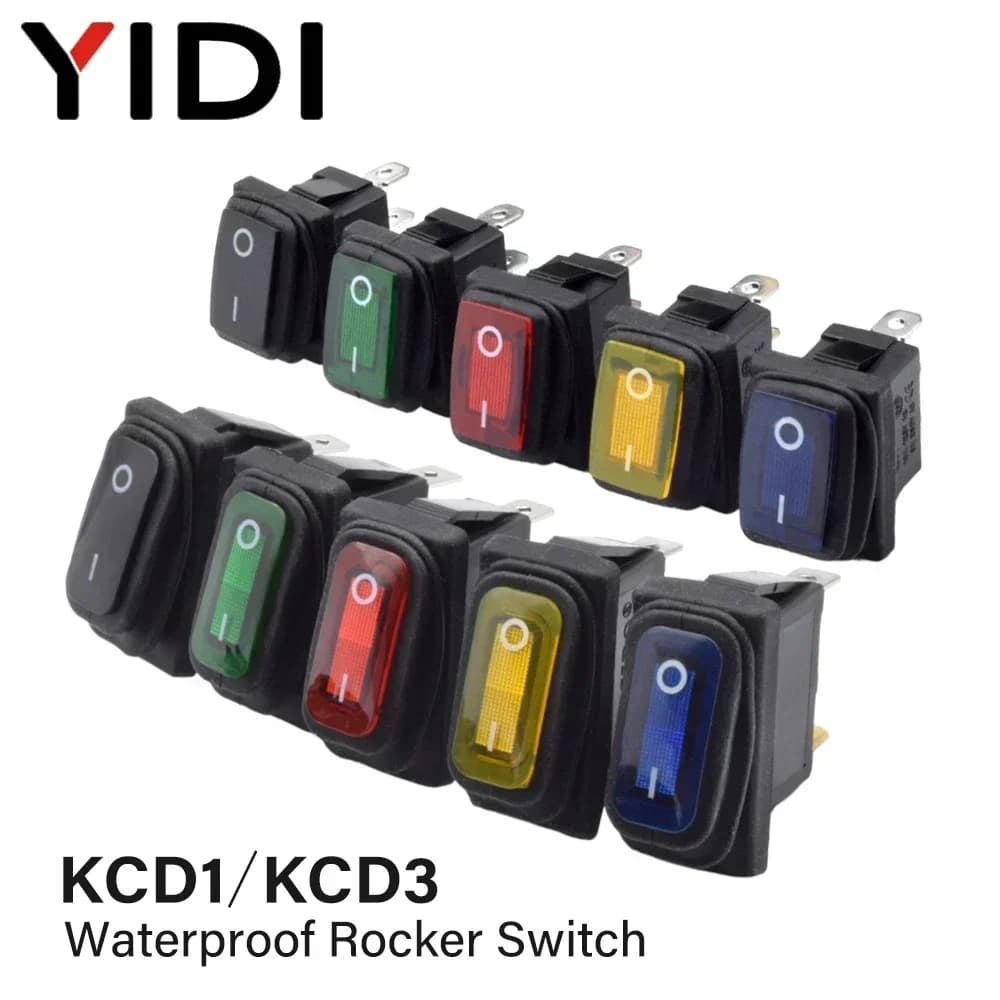

KCD1 KCD3 Waterproof 12V 24V 220V Light Button Switch Rocker Switch Red Blue Lamp 2/3 Pin SPST ON OFF Car Dashboard Boat Marine

YIDI Waterproof Illuminated Rocker Switch 12V 220V Light 2/3 Pin SPST ON OFF Car Dashboard Boat Marine KCD1 KCD3 Button Switch

Note: 12-24V lamp is LED bulb, 220V lamp is neon bulb. If need LED for 220V lamp, please help to contact us.

1.Specification:

Item No: KCD1
Mounting Hole Diameter: 20x13mm
Switch Function: ON-OFF
Rating: 6A/250VAC
Protection Level: IP45
Operation Temperature: T85
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥100MΩ
Dielectric Strength: 1500AC for 1min
Color: Red/Green/Blue/White/Yellow/Black NO Light
Lamp Voltage: 12-24V/220V

2.Specification:

Item No: KCD3
Mounting Hole Diameter: 28x10mm
Switch Function: ON-OFF
Rating: 15A/250VAC
Protection Level: IP45
Operation Temperature: T85
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥100MΩ
Dielectric Strength: 1500AC for 1min
Color: Red/Green/Blue/White/Yellow/Black NO Light
Lamp Voltage: 12-24V/220V

Packing: 1pc

If have any other needs, feel free to contact us.
