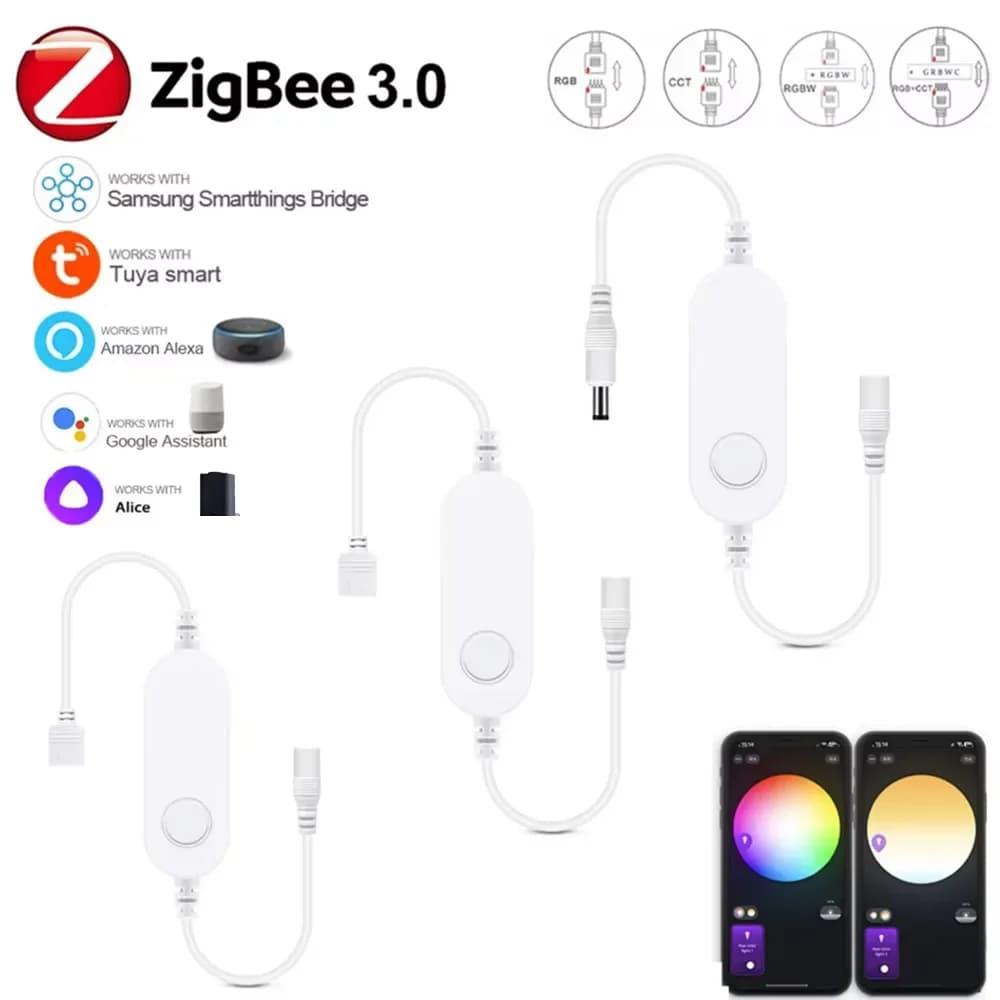

Zigbee 3.0 Smart LED Controller DC5V 12V 24V Dimmer Single Color CCT RGB RGBW RGBCCT LED Strip for Tuya Alexa SmartThings 2mqtt

Note:

1. ZigBee hub is required!

2. work with zigbee,Tuya Zigbee,Amazon ECHO Plus , O*sr*am,SmartThings, Home Assistant , Zigbee2MQTT ....Support voice control Alice,Alexa,google home.

3. Match method: long press the button until the led gradient flicker,or take on off the power 5 times.

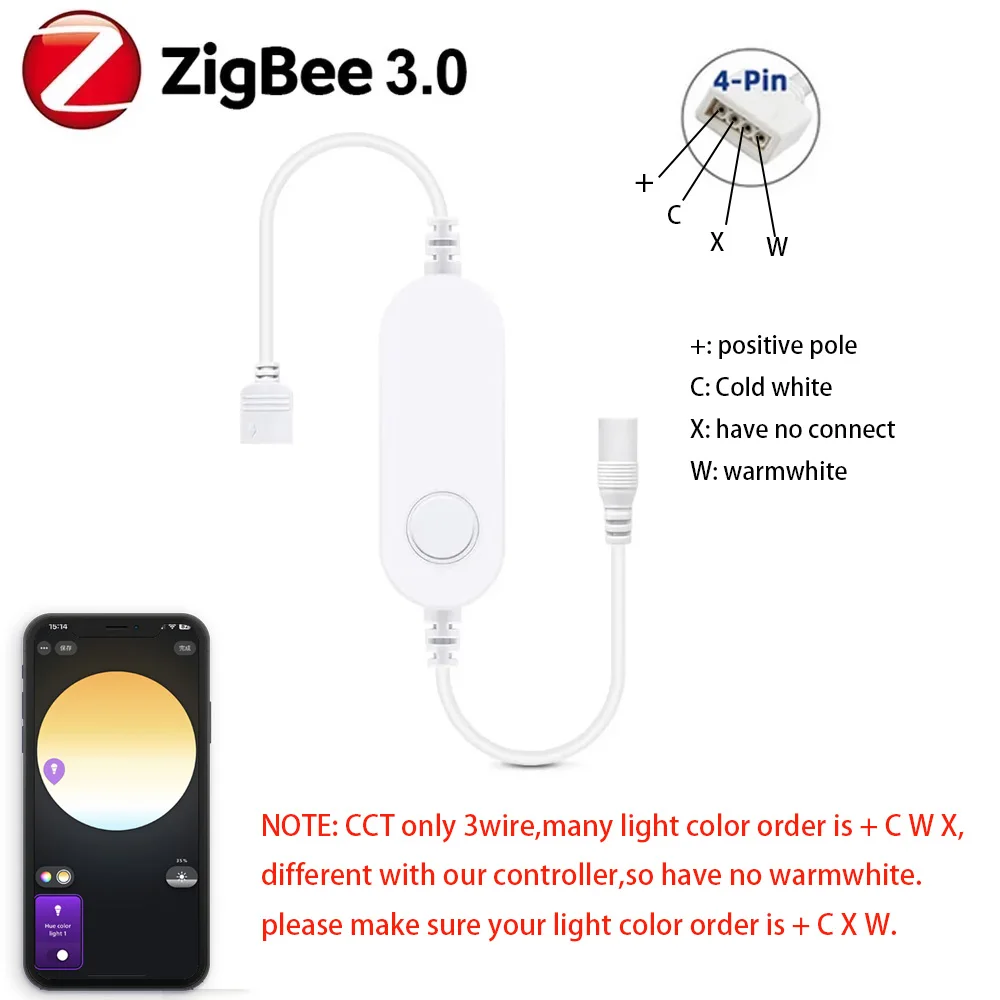

4. CCT color order is +C X W ,RGBCCT color order is + G R B W C ,you need check your light first.

ZIGEBB LED Controller:

Support 5V-24V input, maximum current 5A dual output

This new generation of Single color dimming /CCT/RGBW/RGBCCT controller

works with the ZigBee 3.0 standard and is therefore compatible with

many common ZigBee hubs/gateways,

With this controller all common

types of LED products operating on 5-24V Volt basis can be controlled.

This makes it suitable for LED strips, LED mounting beams, LED outdoor

or pool lighting.

RGB CCT Wirelessly dimmable.

16 Millions of colors to choose.

Voice control, Smartphone APP control.

Please kindly note that our zigbee devices require related gateways.

Specification:

Model No.:YSR-MINI-Z01

Voltage: DC5V-24V

Output: Max. 3A/Channel, Total output Max.5A

Product Name:ZIGBEE Strip Controller(Dimmer/CCT/RGB/RGBW/RGBCW)

Size:28*24*11.5mm

Weight: 50g

Operating Temperature:-20-60°

USB cable length : 0.5M

Support mobile: Android/IOS
