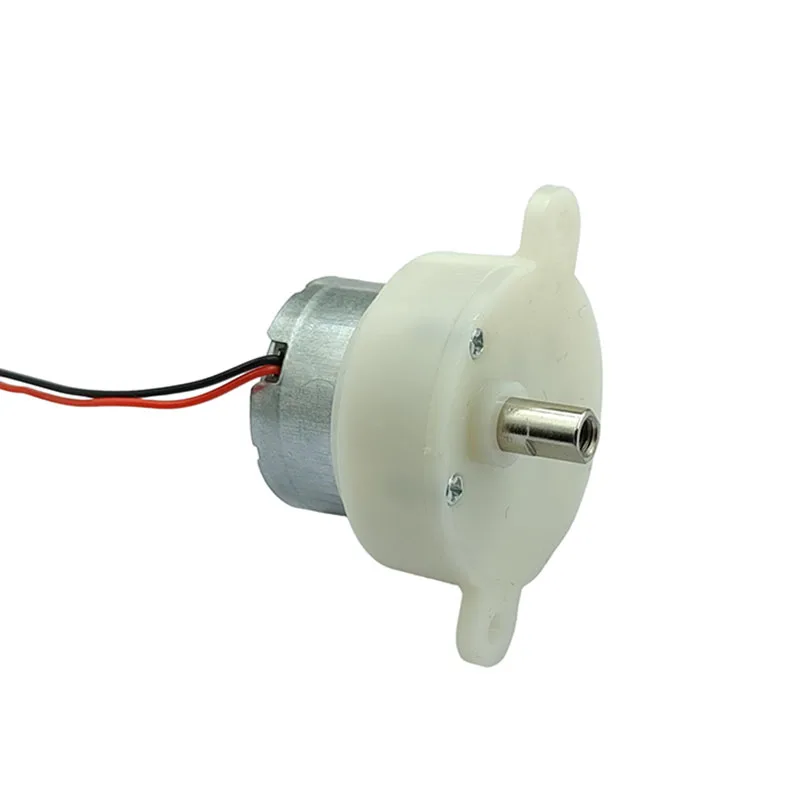

DC 3V-7.4V 5V 12RPM Slow Speed Mini 300 Gear Motor Micro 32mm Plastic Gearbox Gear Reduction Motor DIY Stage Lights Toy Model

Specification:

1.Model: Mini 300 Gearbox Gear Motor

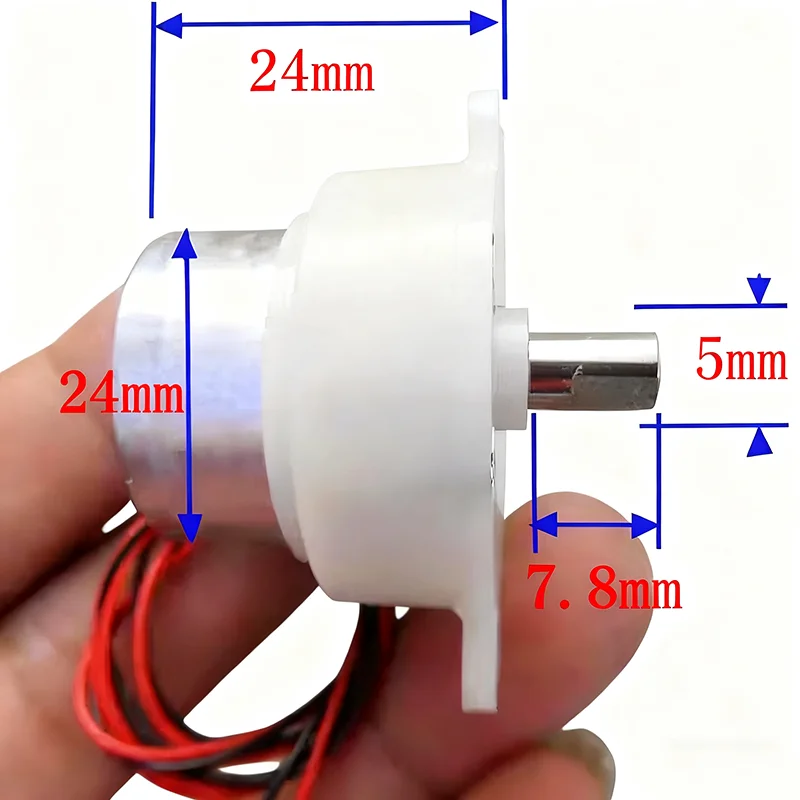

2.Gearbox diameter: 32mm

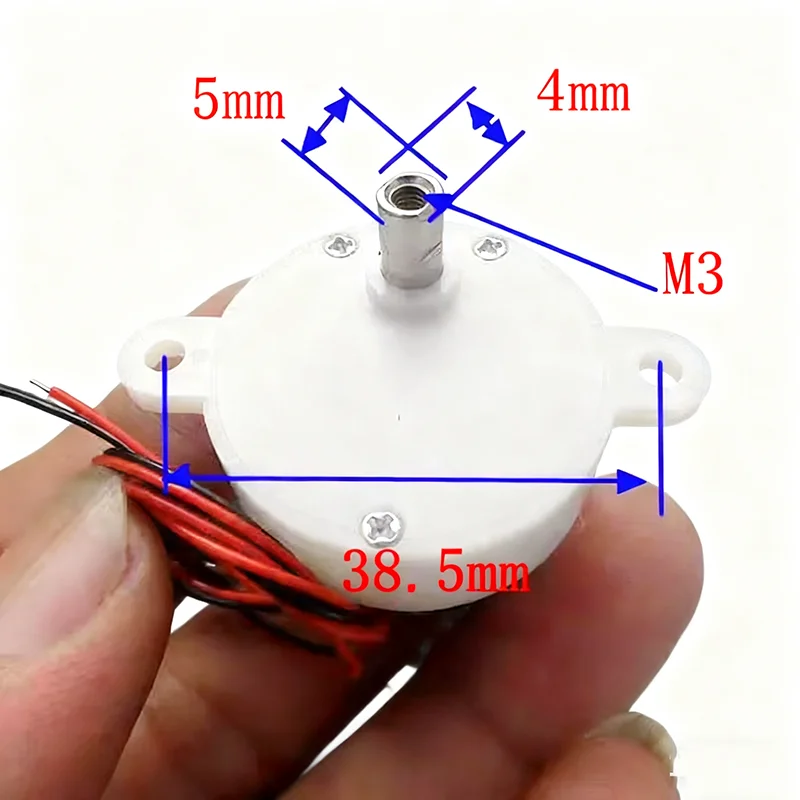

3.Output shaft diameter: 5mm (dual flat shaft 4mm)

4.Output shaft length: 5.5mm (not include step height)

5.Weight: 30g

6.Suitable voltage: DC 3.0V-7.4V

7.Test data:

   Voltage:3.7V  No-load speed:8.5RPM  Current:9mA

   Voltage:5.0V  No-load speed:12RPM  Current:11mA

   Voltage:7.4V  No-load speed:19RPM  Current:12mA

=========================

Package List:

Gear Motor x 1PCS
