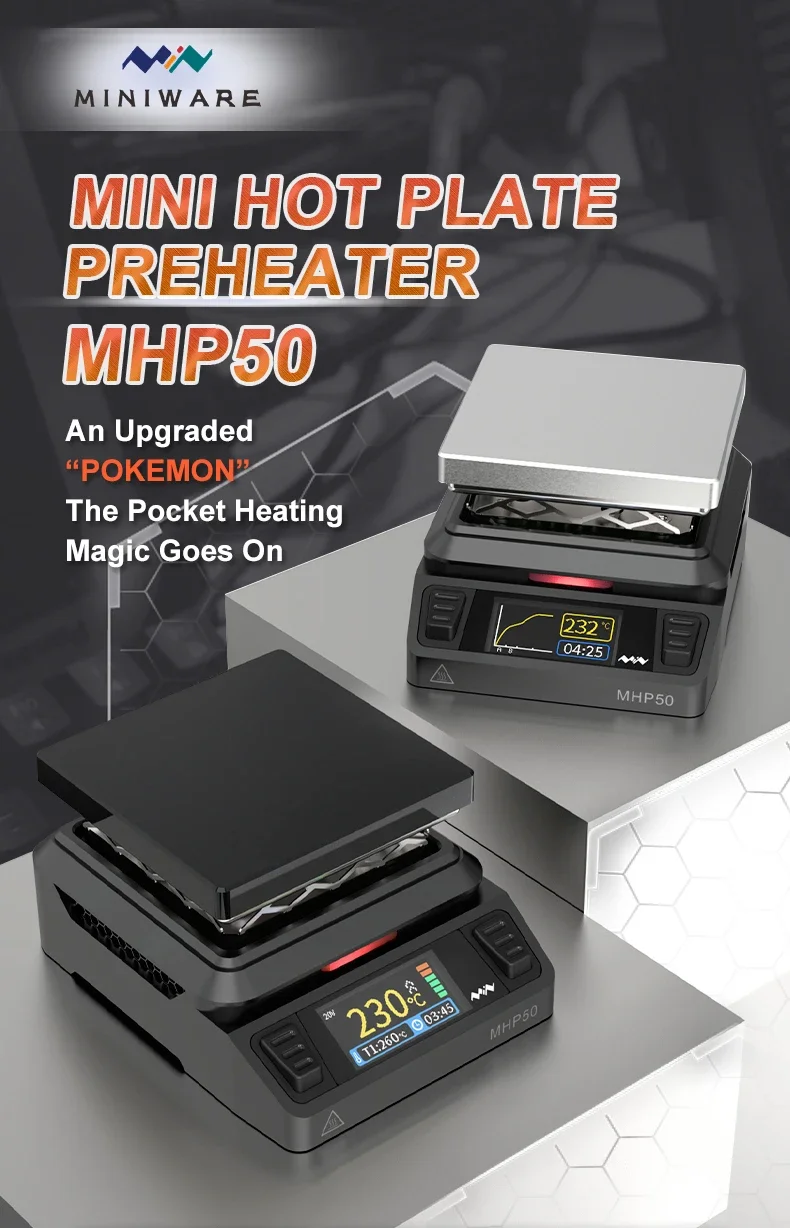

MINIWARE Offcial MHP50 Mini Hot Plate Preheater 50*50mm Heating Area Constant Temperature Heating Table 350℃ DIY Heating Tool

Product Features:

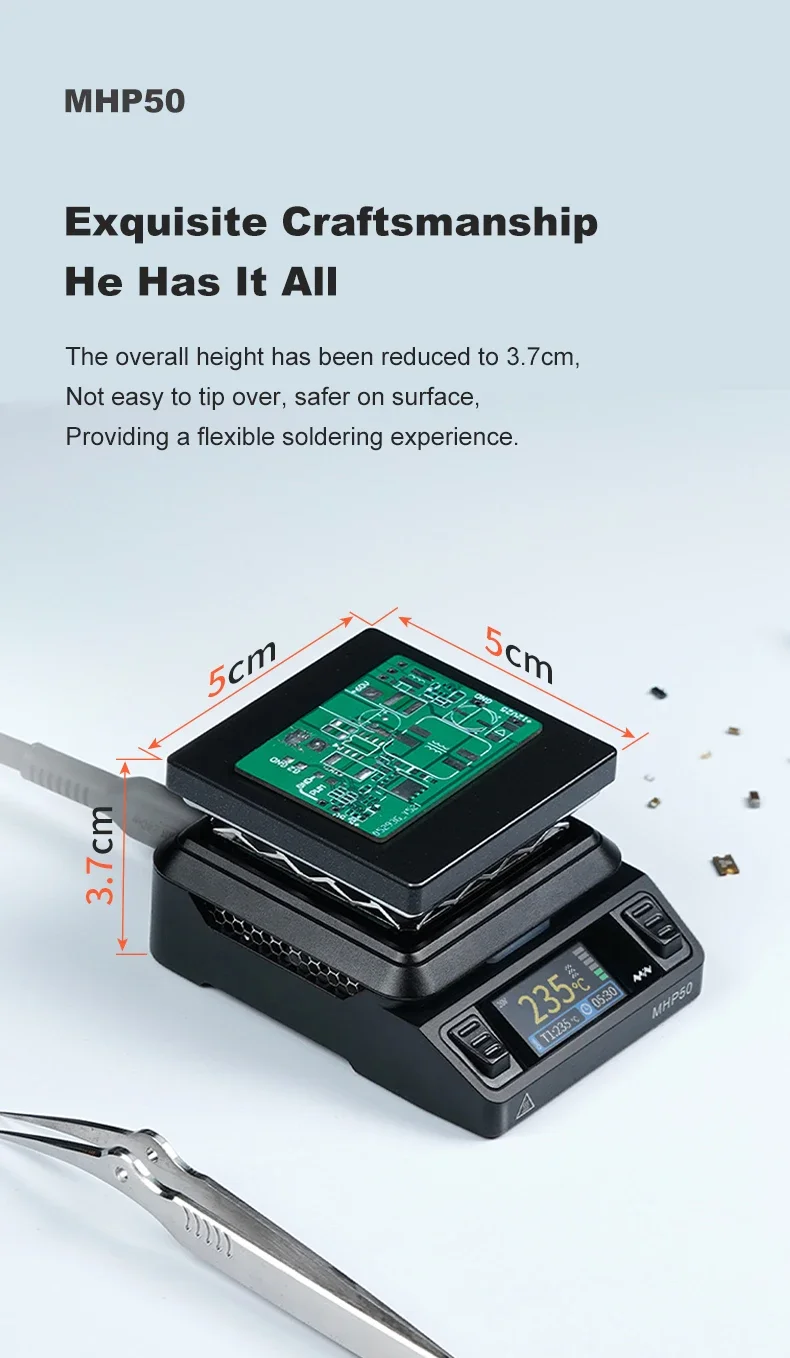

l 5cm*5cm heating area, 3.7cm height, mini pocket size, suitable for mobile soldering application scenarios;

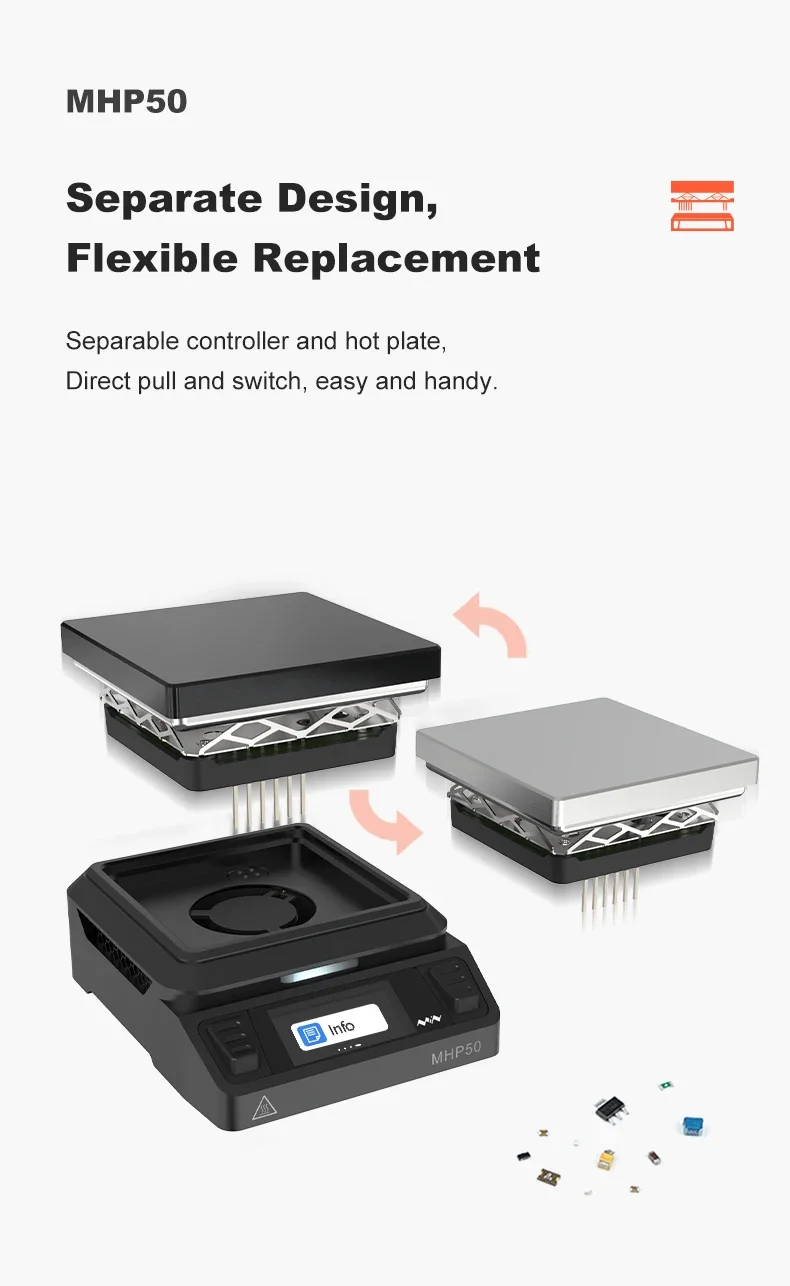

l Separable controllerand hot plate, flexible to replace;

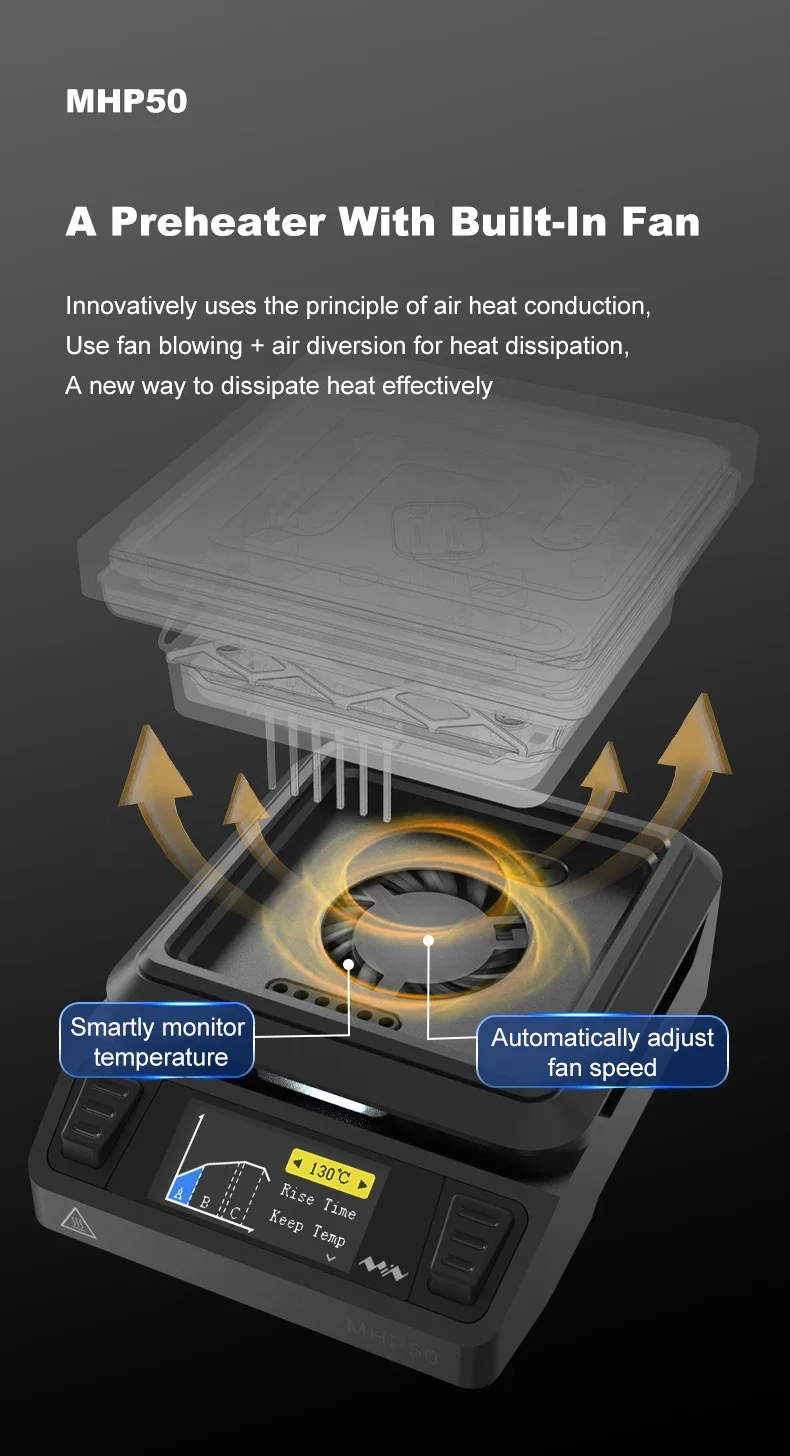

l Built-in high-speed cooling fan, which can automatically detect the temperature of the controller, intelligently adjust the fan speed, and accelerate heat dissipation;

l Innovative air deflector to effectively cut off heat transferring, protecting controller from thermal damage;

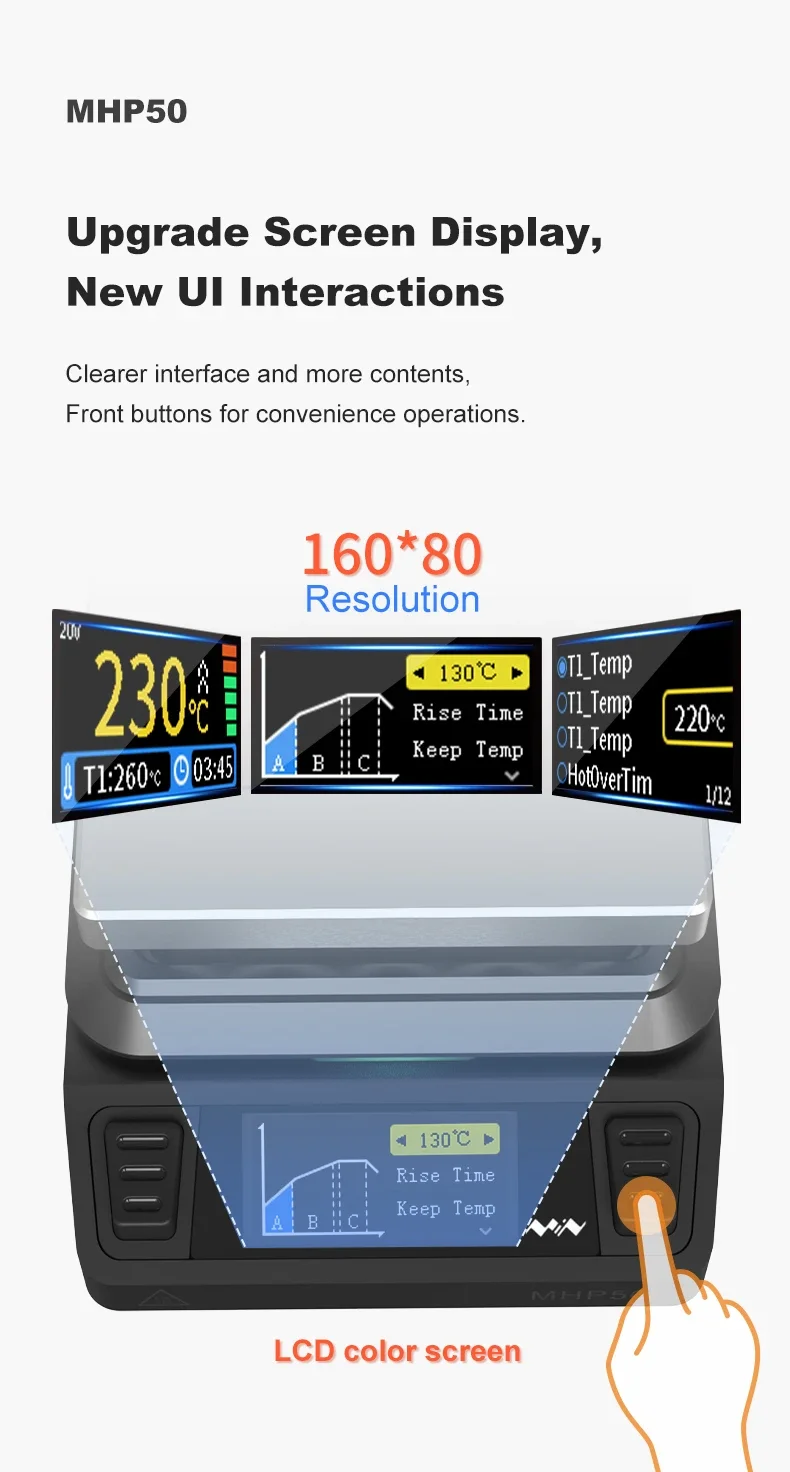

l 160*80 resolution color LCD display, clear and rich parameter display;

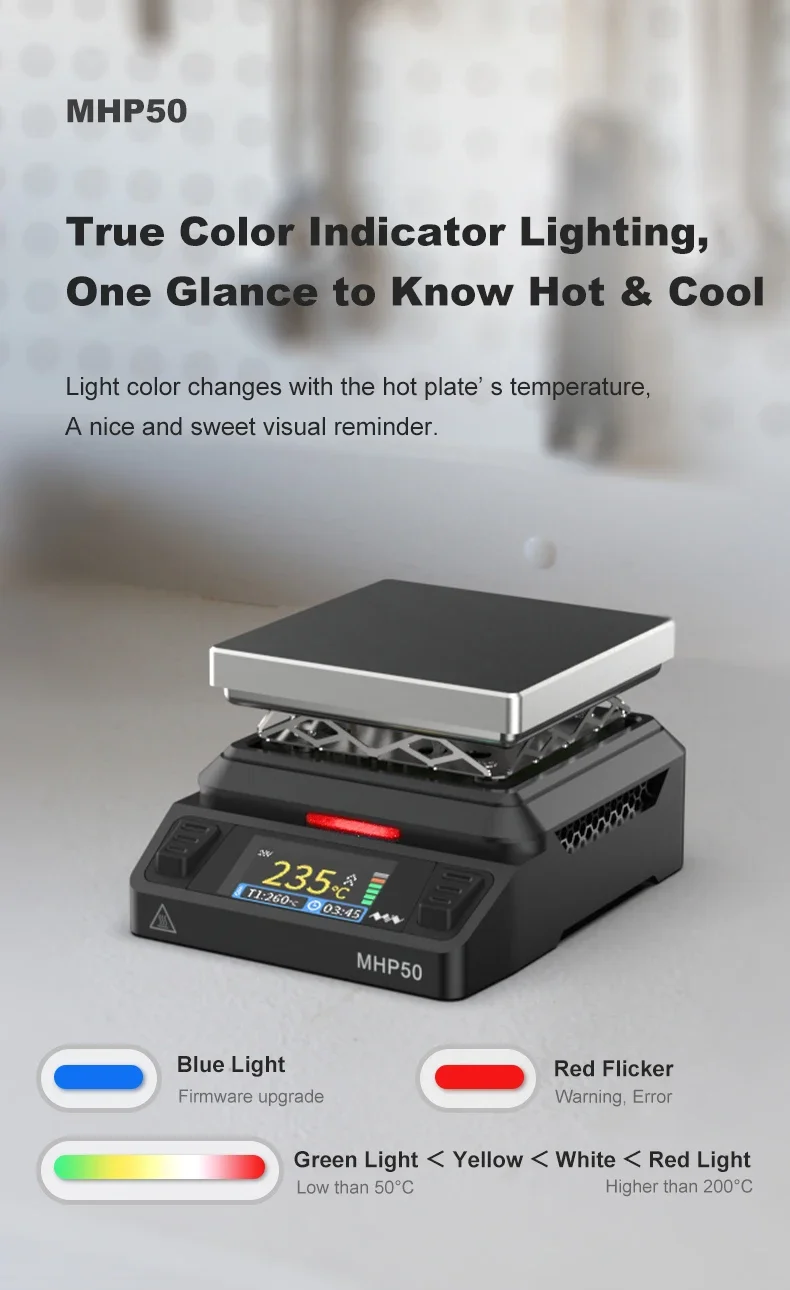

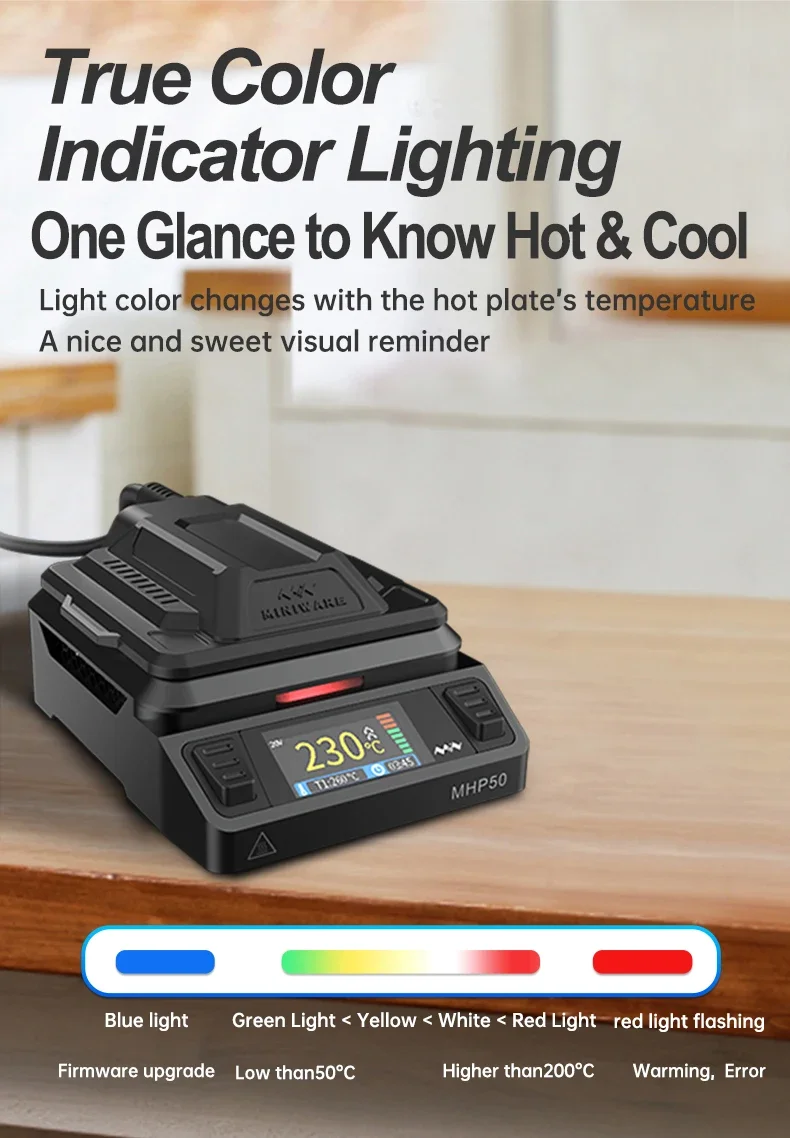

l Built-in OLED displayand true color LED, light color changes withheating temperature;

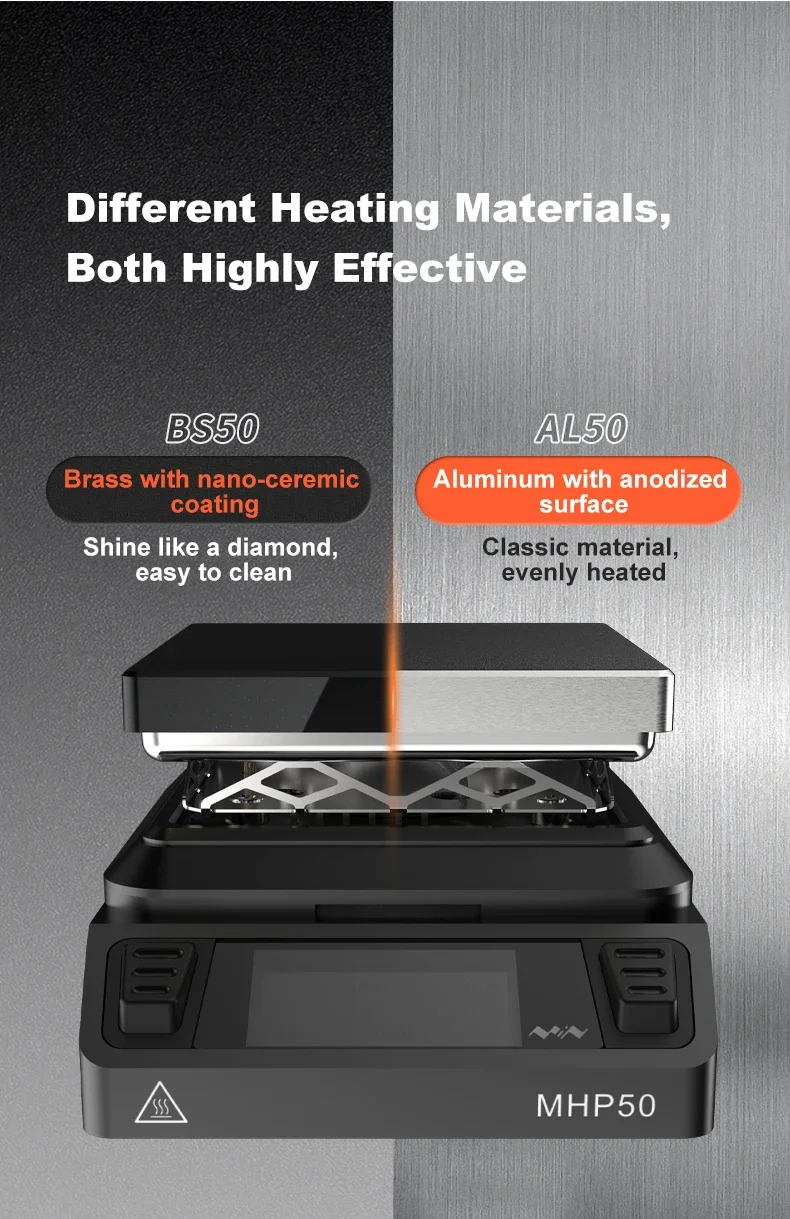

l Twohot plateswith differentheating materials for your choice: aluminum alloy and brass with nano-ceramic coating, each with its own heating strengths for yourneeds;

l Hot plate adopts a futuristic design stainless steel bracket, artistic and practical;

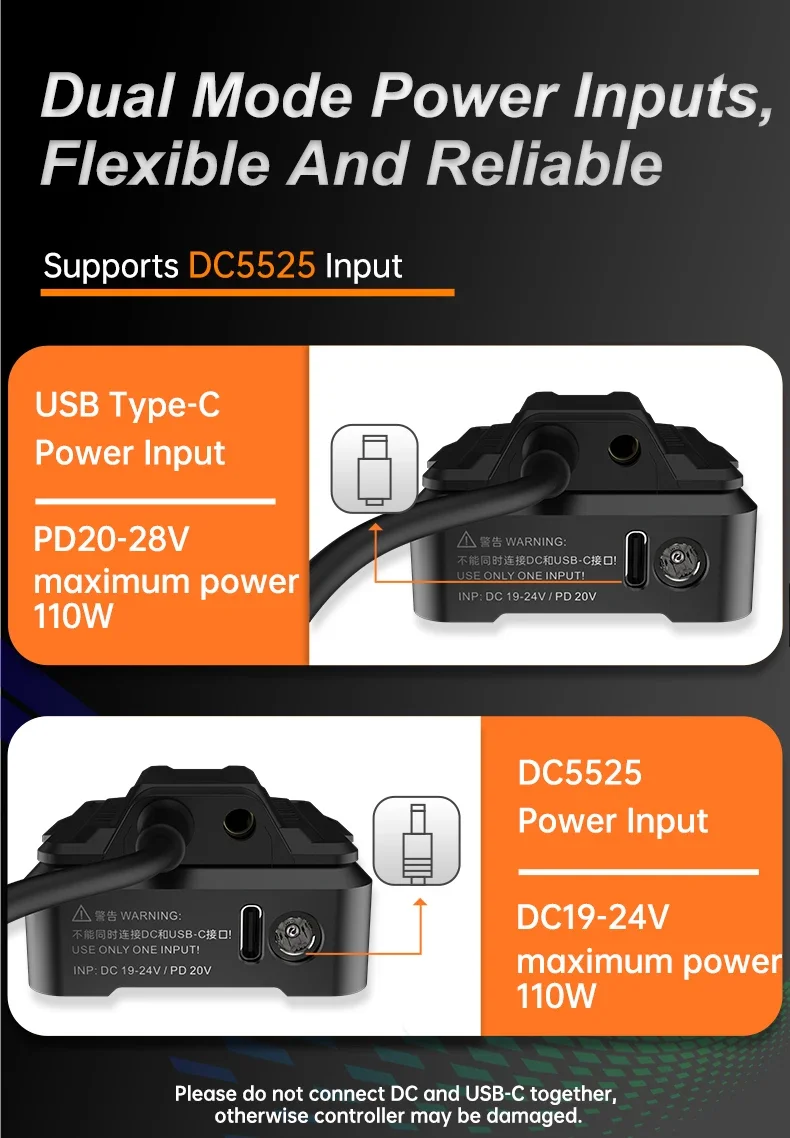

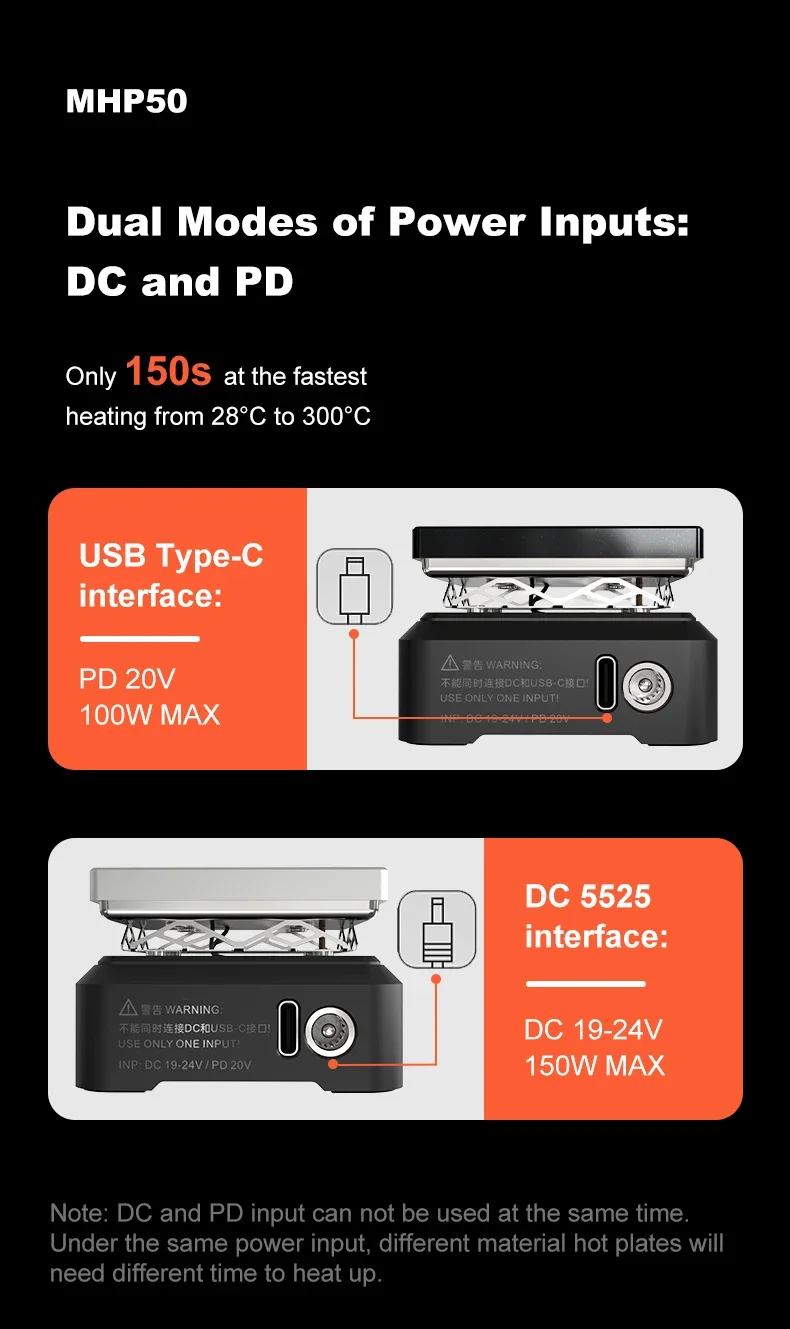

l Dual-mode power inputs: DC 5525 power jack for 19-24V input upto 150W; standard PD 20V power input to reach 100W;

l Takes only 150 seconds at the fastest heating from room temperature (28℃) to 300℃ (under DC 24V power input);

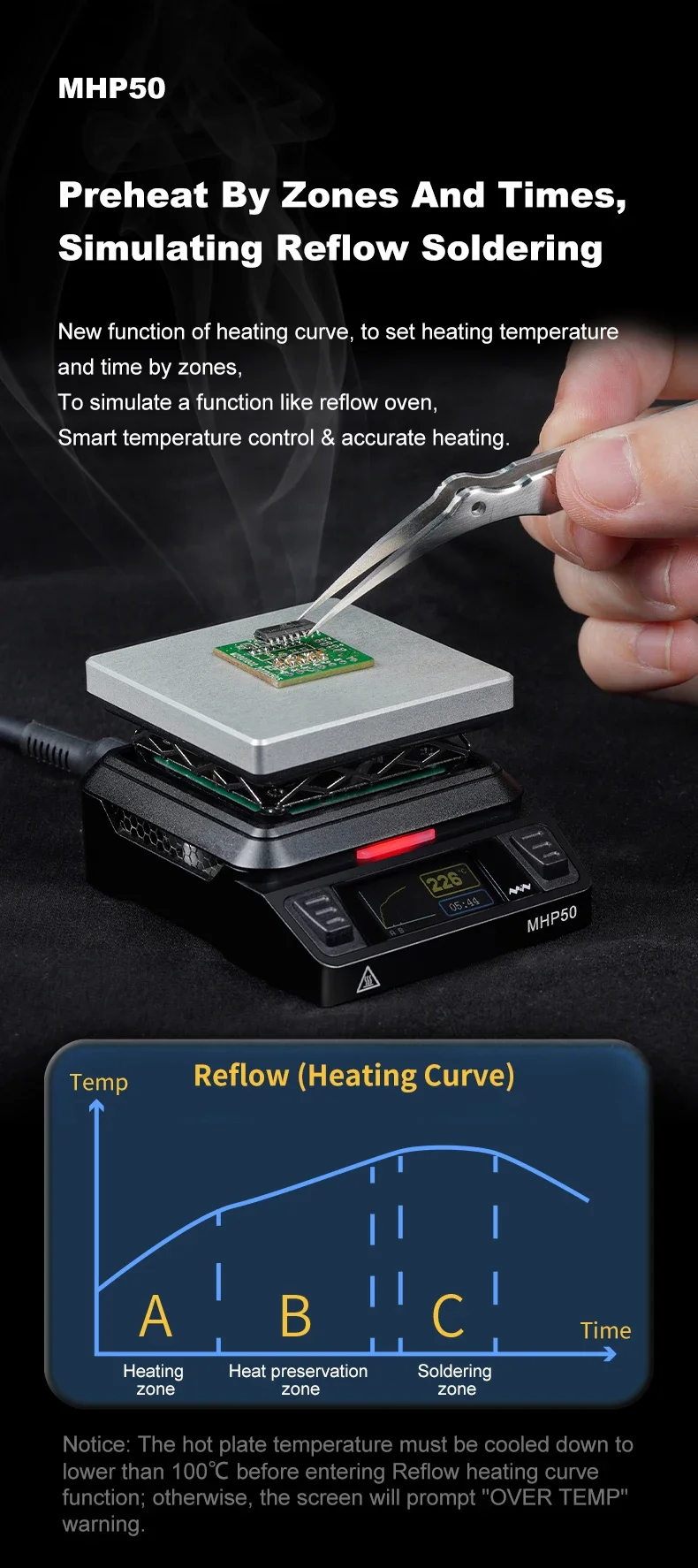

l Innovative heatingcurve function, you can customize the heating temperature and durationby sectionsto achieve similar reflow soldering effect;

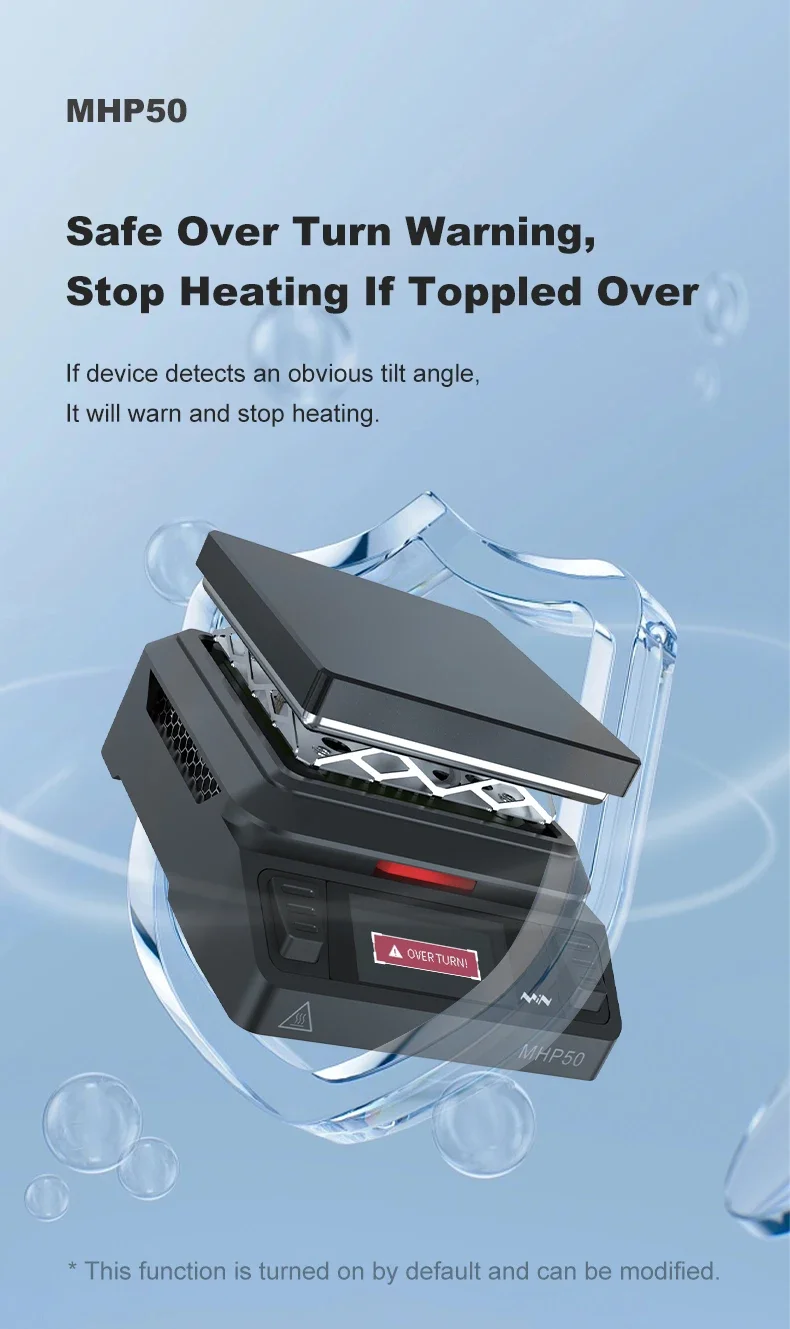

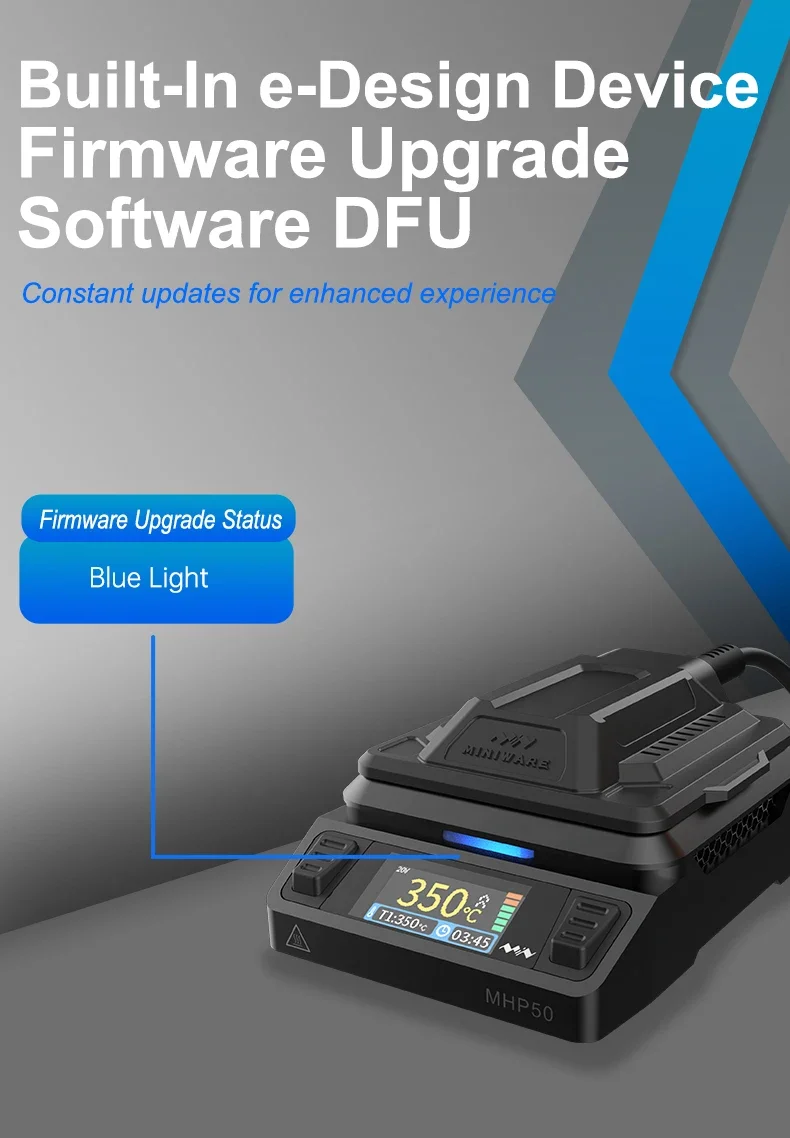

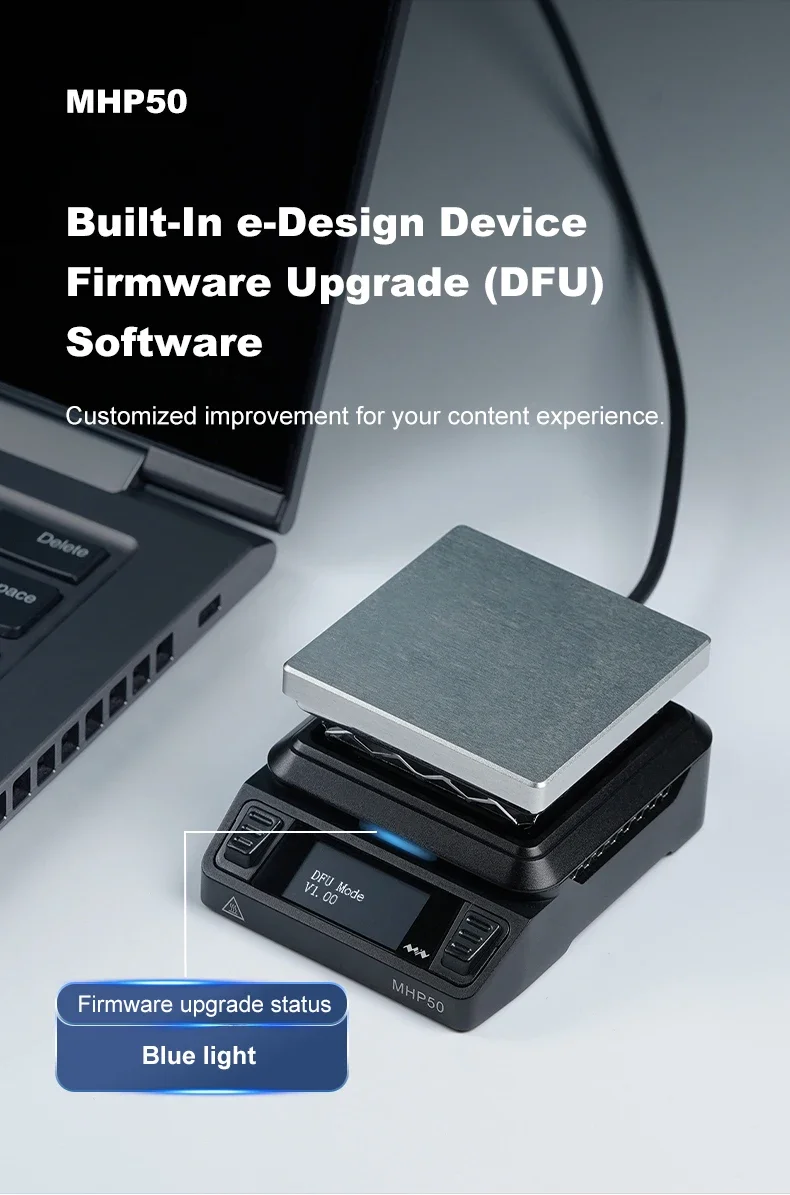

l Multiple intelligent functions: preset temperature, overturn protection, brightness adjustment, firmware upgrade;

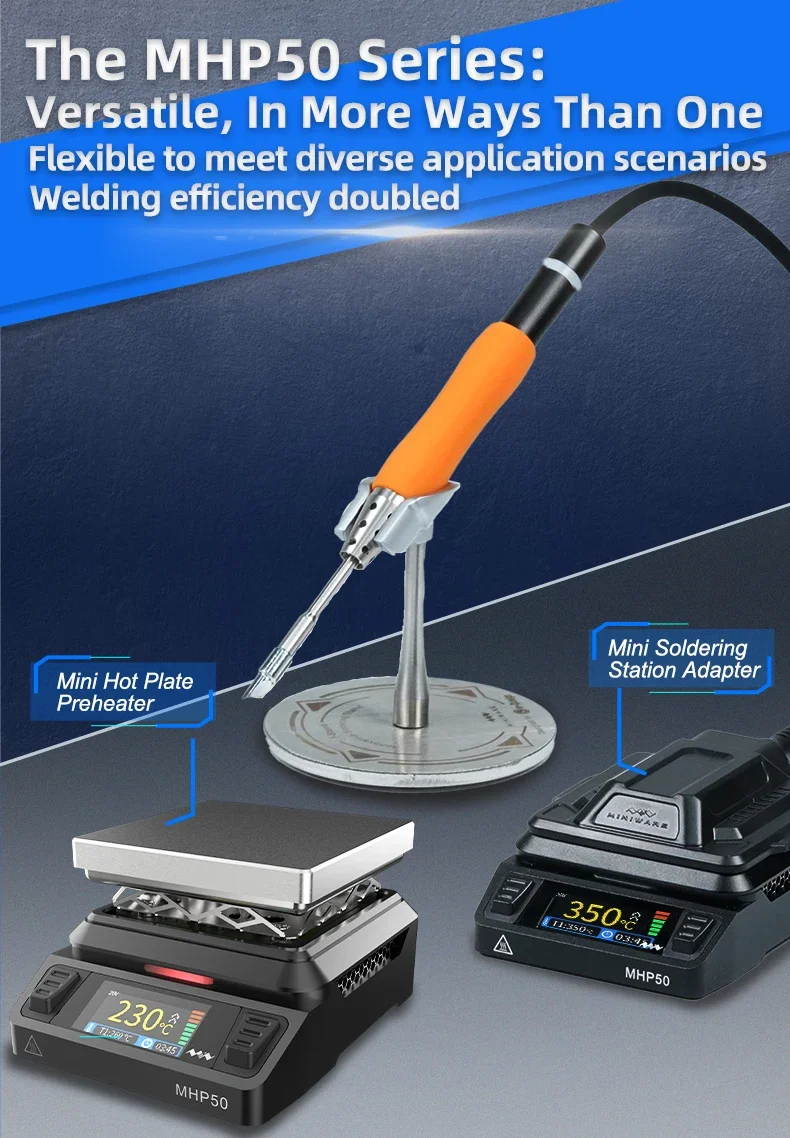

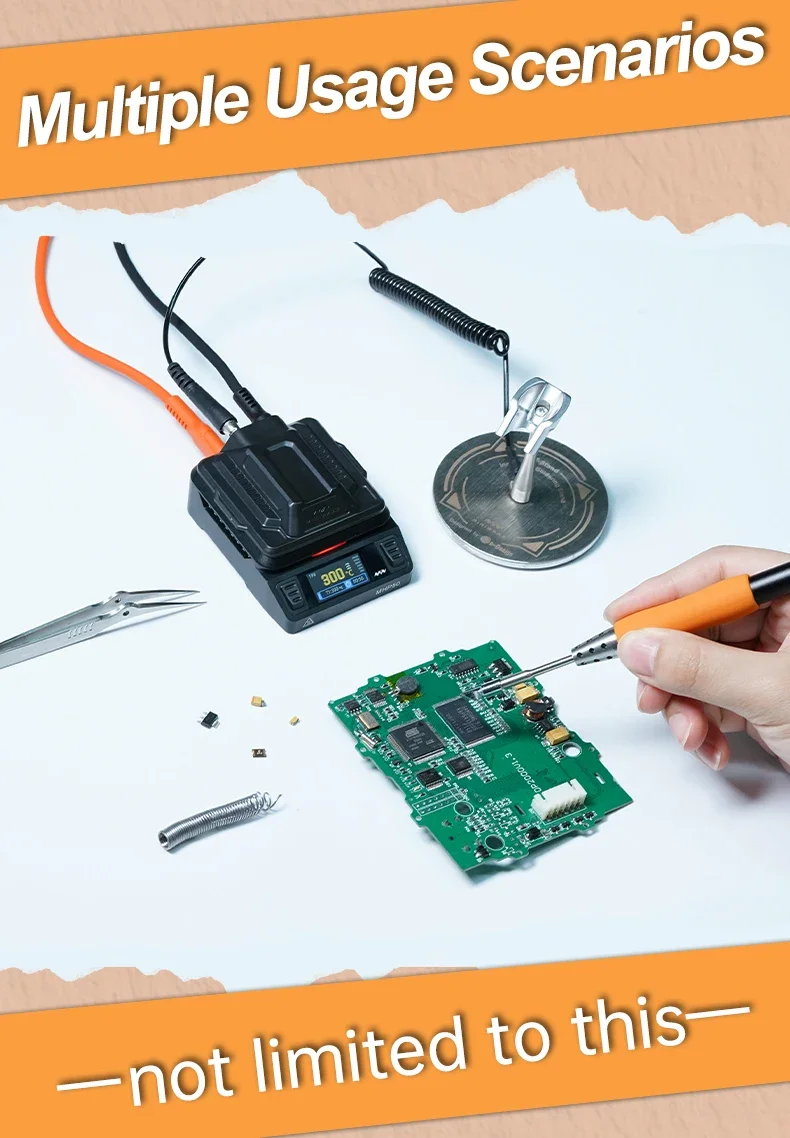

l Use scenarios: MHP50 Mini Hot Plate Preheater can be put into your pocket, for preheating, desoldering circuit boards, components, LED lamp beads, etc.

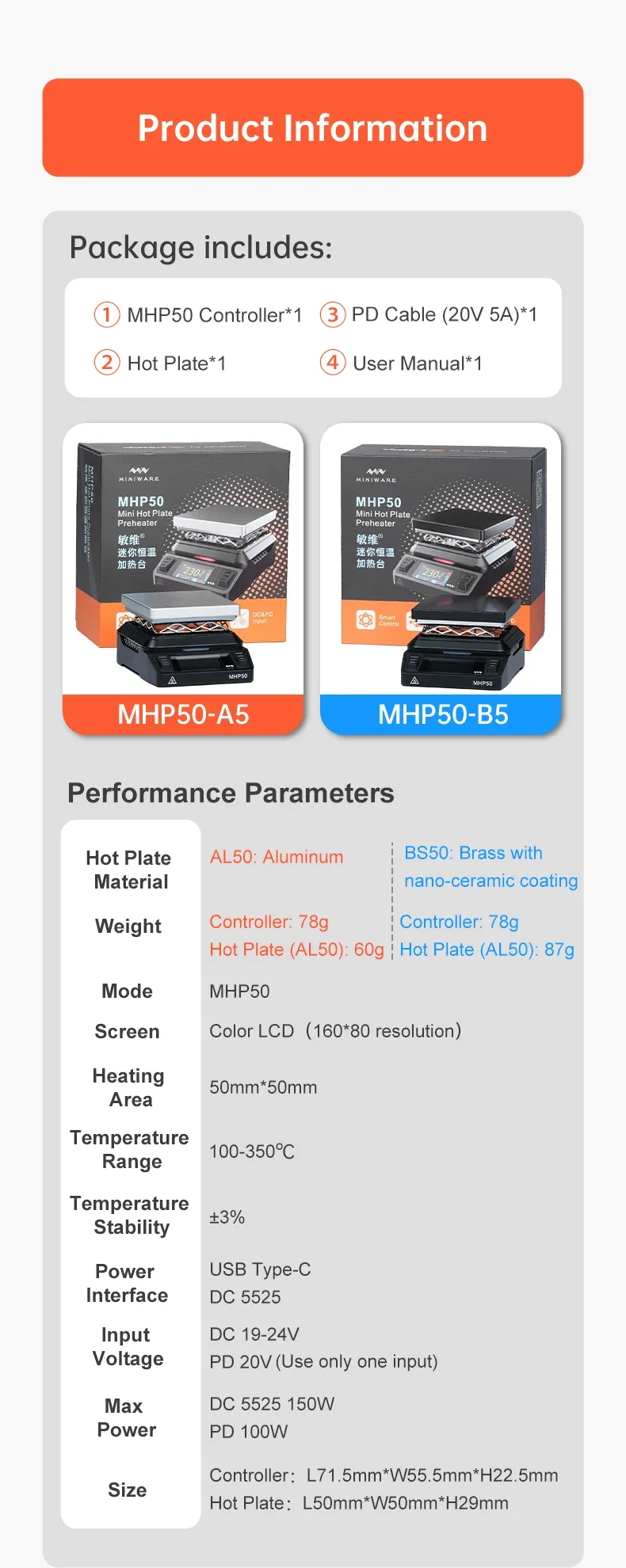

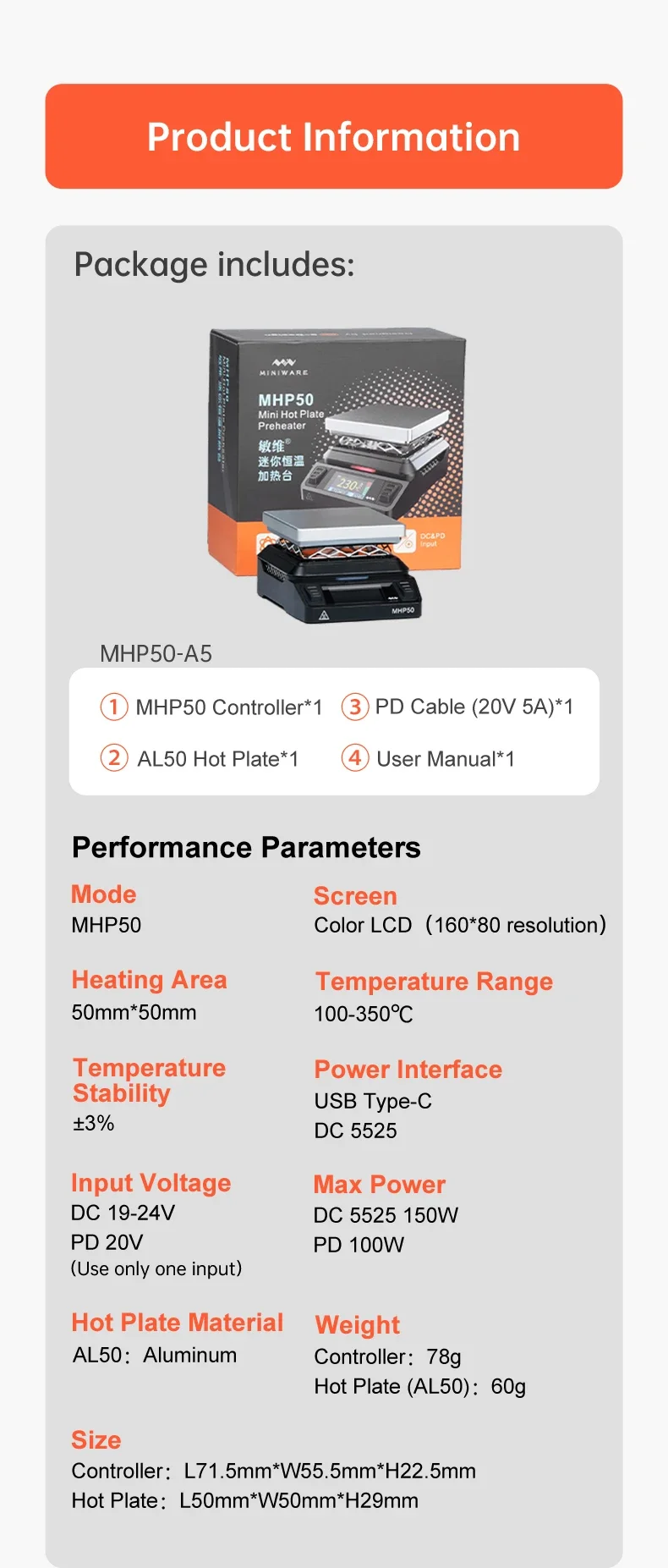

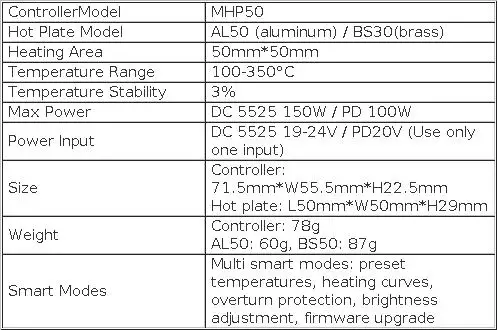

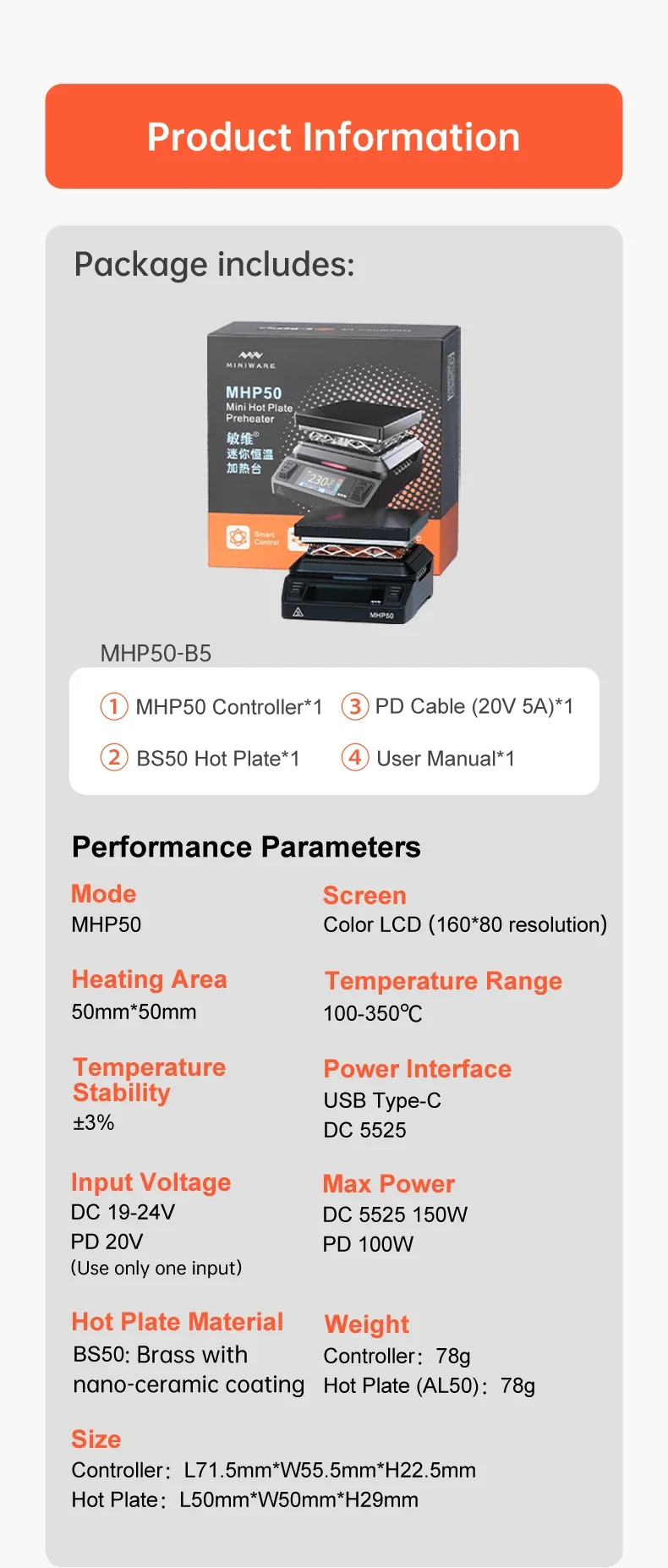

MHP50Specifications:

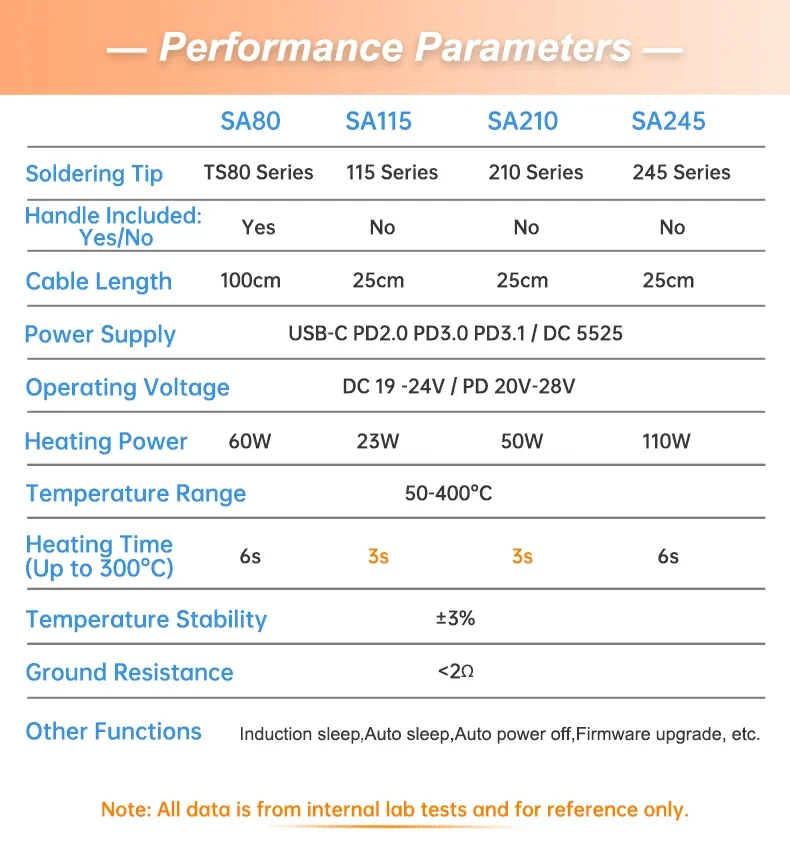

Note:

1.

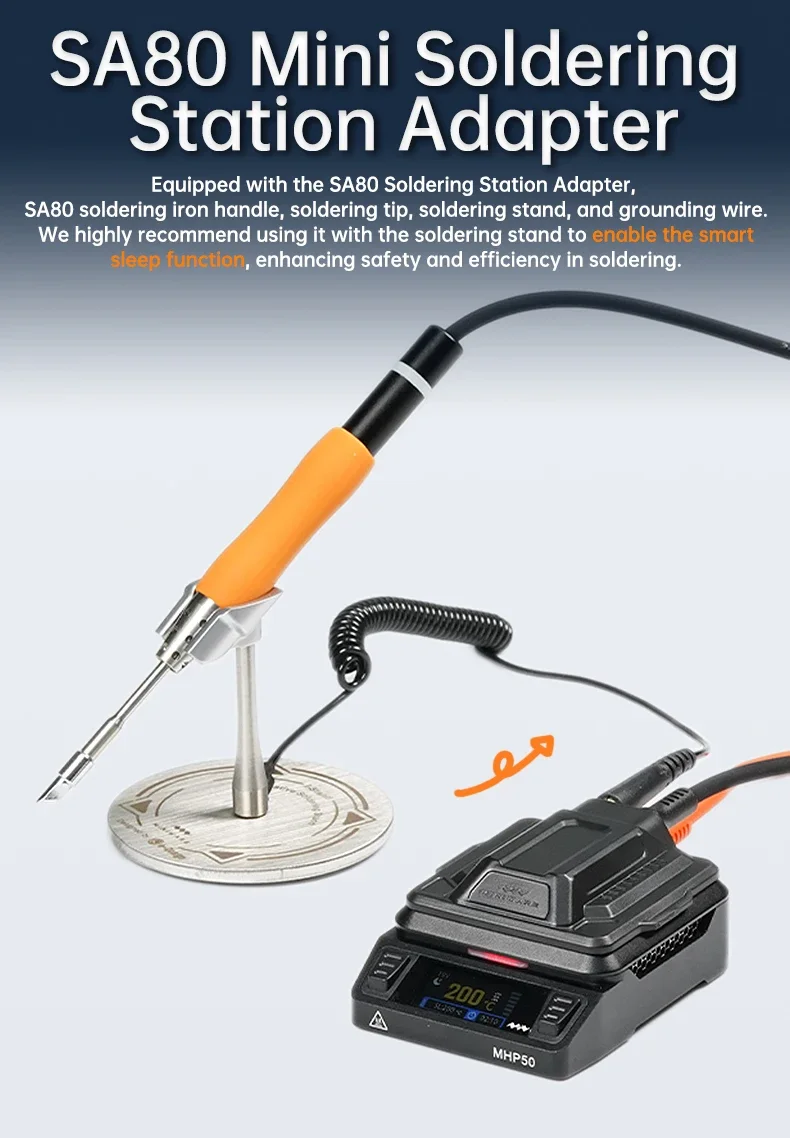

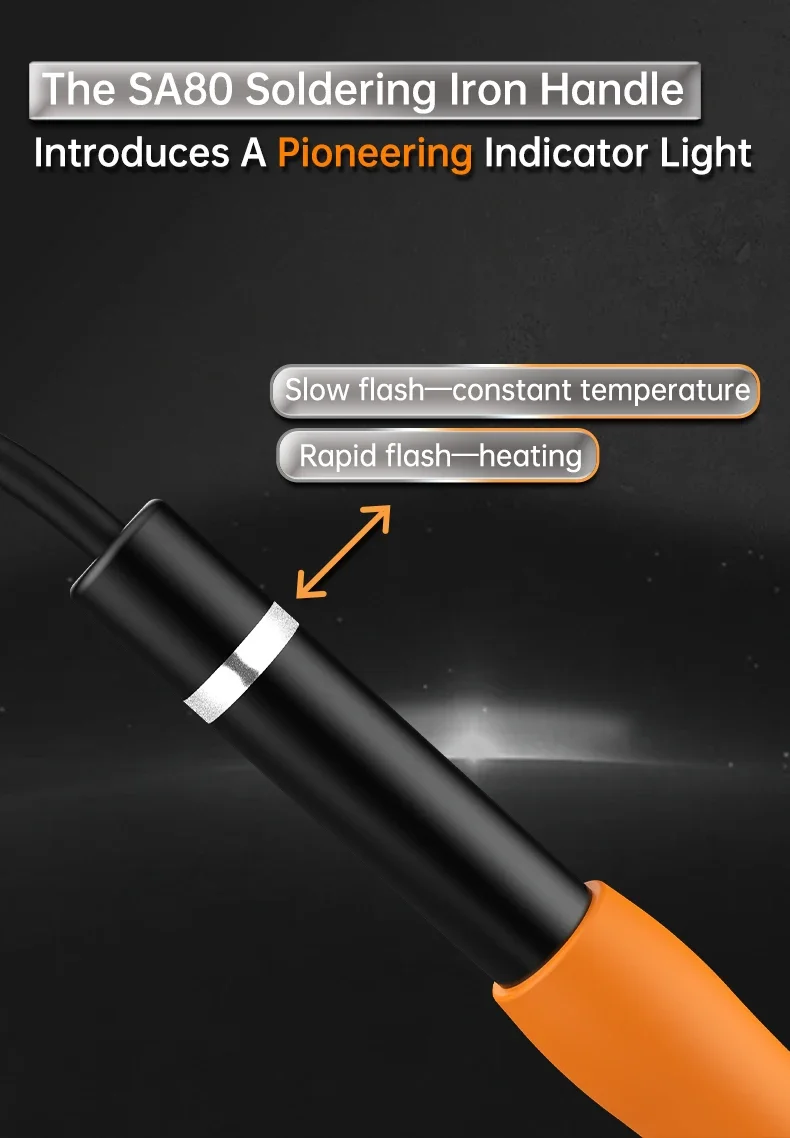

The SA80 Mini Soldering Adapter includes a soldering iron handle,

SA115, SA210, SA245 Mini Soldering Adapter do not include a soldering

iron handle;

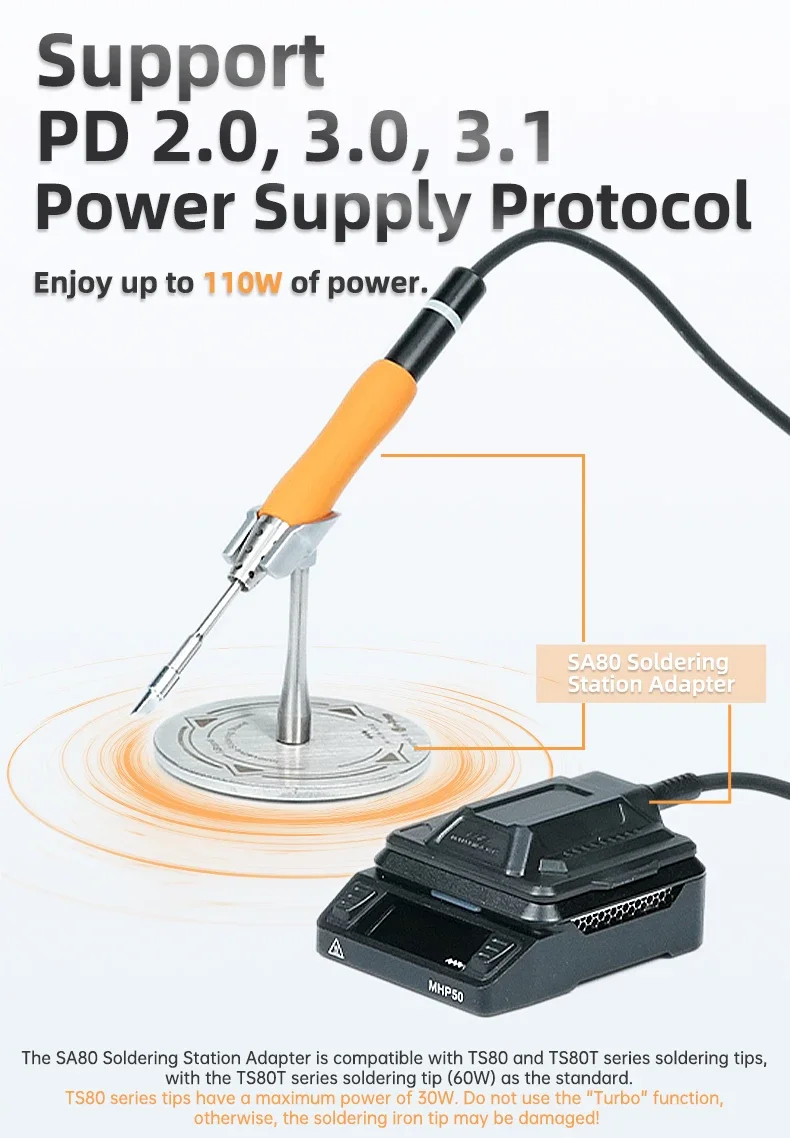

2. The SA80 handle adapter is compatible with TS80 and TS80T series soldering tips;

3.

The maximum power of the TS80 series soldering iron tip is 30W. Do not

use the "Turbo" function;Otherwise, the soldering iron tip may be

damaged!

4.

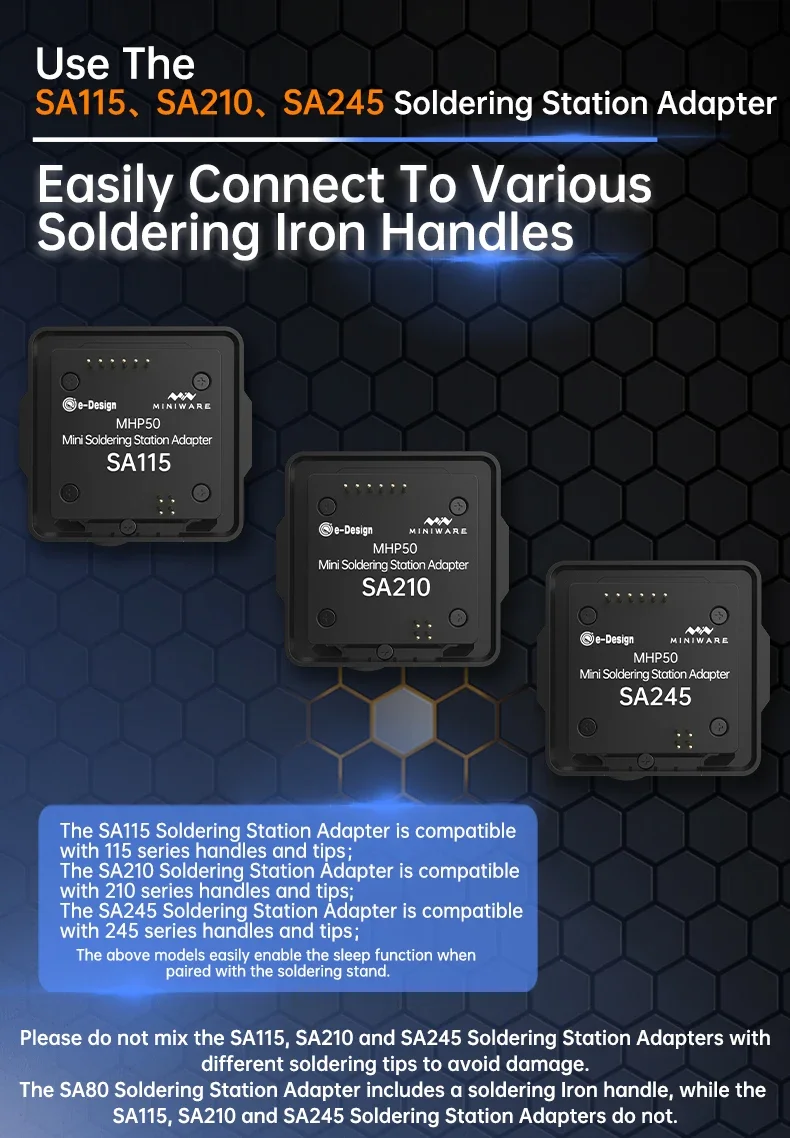

The SA115 handle adapter is compatible with the 115 series handles and

soldering tips. The SA210 handle adapter is compatible with the 210

series handles and soldering tips, and the SA245 handle adapter is

compatible with the 245 series handles and soldering tips;

5.

Please do not mix the SA115, SA210, and SA245 soldering station

adapters with different models of soldering tips to avoid damage to the

soldering tips.

6. Please do not connect DC and USB-C together, otherwise controller may be damaged!

7.

When using the soldering station adapter, do not plug or unplug the

adapter while it is powered on,as this may cause damage to the adapter

or other safety issues!

[package includes]

1MHP50 Mini Soldering Station Adapter SA80 model:

SA80 Mini Soldering Station Adapter ×1

Soldering tip (TS-K4T) ×1

Soldering stand ×1

Ground wire ×1

Non-slip rubber pad ×5

User instructions ×1

2MHP50 Mini Soldering Station Adapter SA115 model:

SA115 Mini Soldering Station Adapter ×1

Ground wire ×1

User instructions ×1

3MHP50 Mini Soldering Station Adapter SA210 model:

SA210 Mini Soldering Station Adapter ×1

Ground wire ×1

User instructions ×1

4MHP50 Mini Soldering Station Adapter SA245 model:

SA245 Mini Soldering Station Adapter ×1

Ground wire ×1

User instructions ×1
