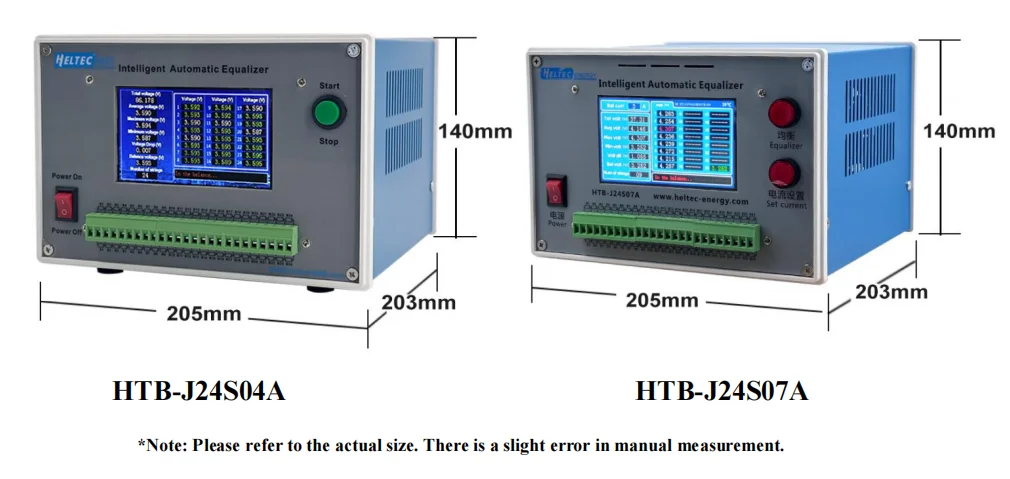

2-24S Smart Battery Equalizer HTB-J24S04A HTB-J24S07A 3A/4A/7A Discharge Balancer for NCM LFP LTO Battery Pack 2V-4.5V Cell Voltage Automatic Equalization Instrument 12V Power Supply Battery Cell Balancer Voltage Tester Repair Tool

1.HTB-J24S04A Introduction

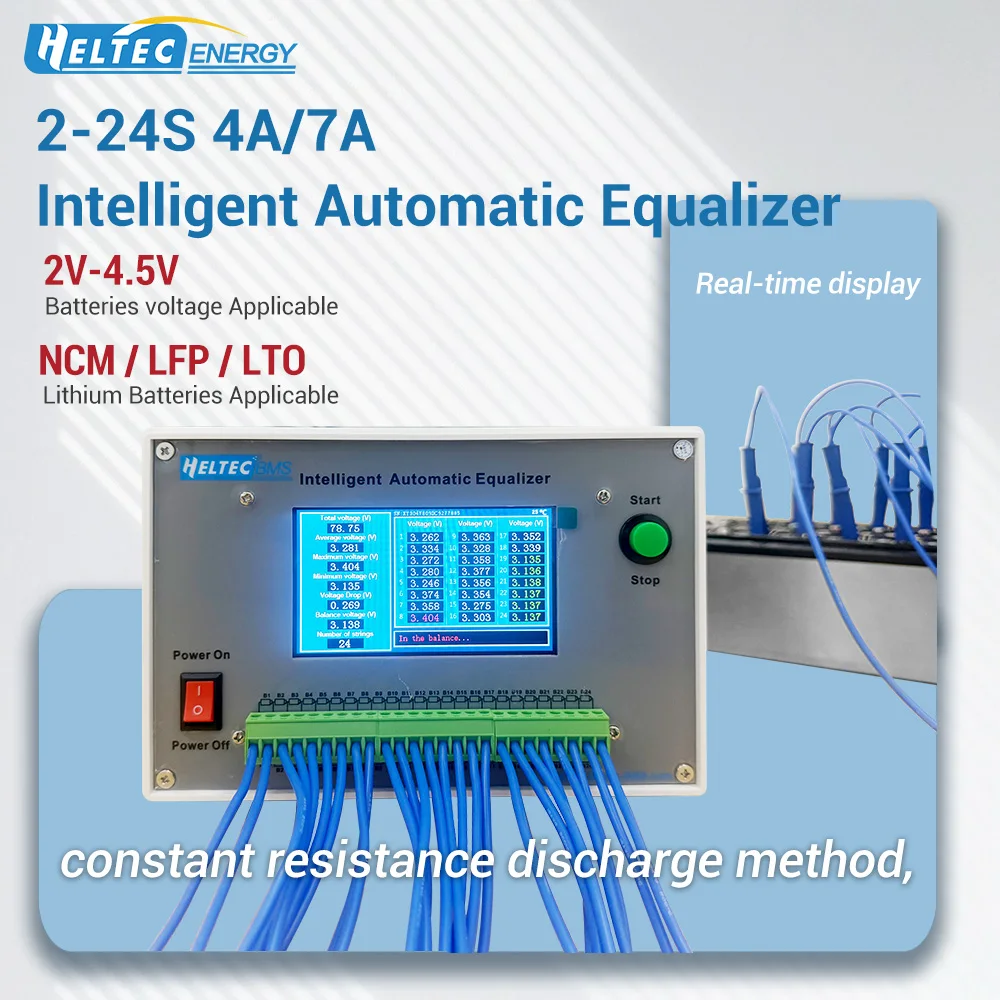

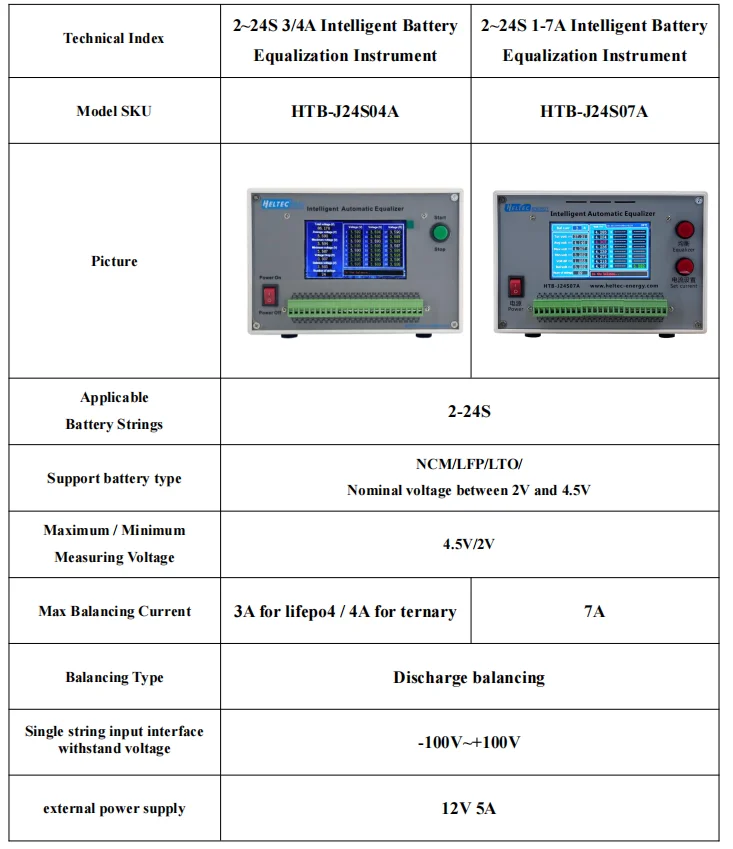

This product is applicable for 2-24S lithium batteries (NCM, LFP, LTO, or batteries with nominal voltage between 2V and 4.5V). The balanced voltage is automatically recognized as the lowest series voltage. It can automatically recognize the number of strings of battery pack. There are alarms for reverse connection, over voltage (4.5V), and low voltage (2V). When equalization is done, it will automatically stop working and alarm. The equalization instrument uses constant resistance discharge method, with a constant resistance value of 1 ohm. The maximum balance current of NCM can reach 4A, and the maximum balance current of LFP can reach 3A. The single-string battery input interface has voltage resistance (-100V~+100V), and the external power supply is 12V 5A.

HTB-J24S07A Introduction

Supports 2-24 series of lithium batteries (ternary lithium, lithium iron phosphate,lithium cobalt titanium, batteries with voltages between 2V and 4.5V);Automatically identify the balanced voltage as the lowest voltage string;Automatically identify the number of battery strings;There are reverse connection, over voltage (4.5V), and low-voltage (2V) alarms;After balancing is completed, it will automatically stop and sound an alarm;The equalizer belongs to PWM pulse discharge mode, with adjustable maximum current of 1A~7A and adjustable step size of 1A;Display content (balanced current, voltage per string, total voltage, average voltage, highest voltage, lowest voltage, maximum voltage difference, balanced voltage, number of battery strings, temperature);Foolish operation, simple and easy to use;Single string input interface withstand voltage (-100V~+100V); External power supply 12V 5A.

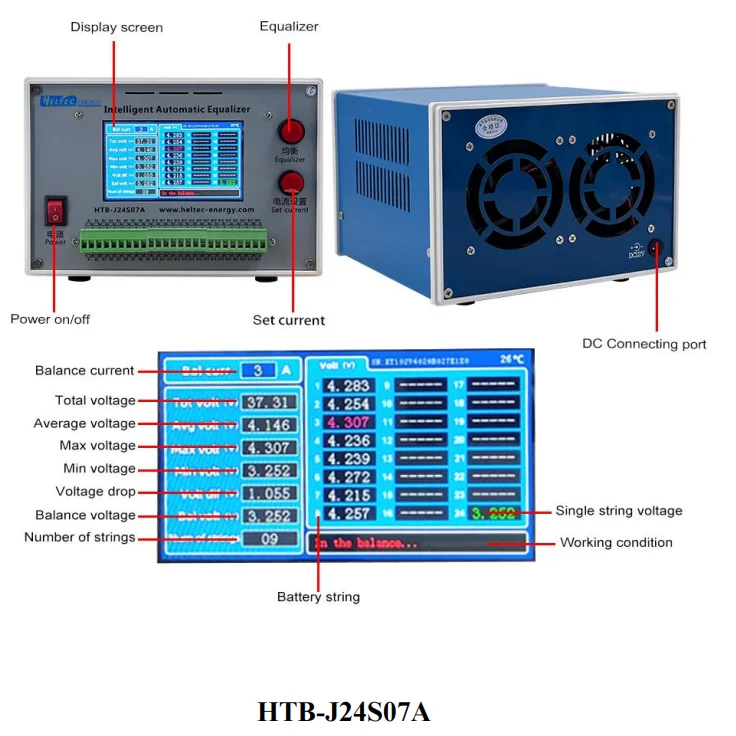

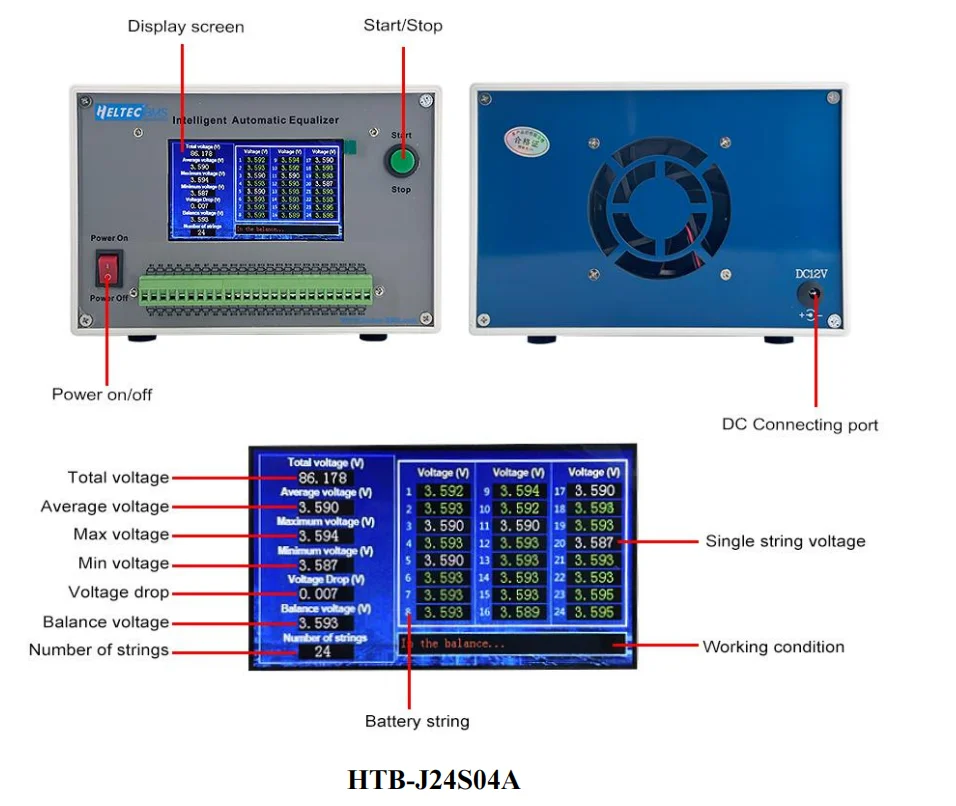

2. Display Content

Voltage of each cells;

The total voltage;

The average voltage;

The maximum voltage;

The minimum voltage;

The maximum voltage difference;

The balanced voltage;

Number of strings of the battery pack cells.

3. Operation Steps

1. Power on the instrument.

2. Wire the batteries according to the sequence of markings on the instrument or wiring board.

3. Check if the voltage and cell numbers displayed on the screen are correct. If not, check the wiring and battery again.

4. Start the equalization and check if the balance voltage is correct. After the equalization is completed, the instrument will automatically stop.

*Note:

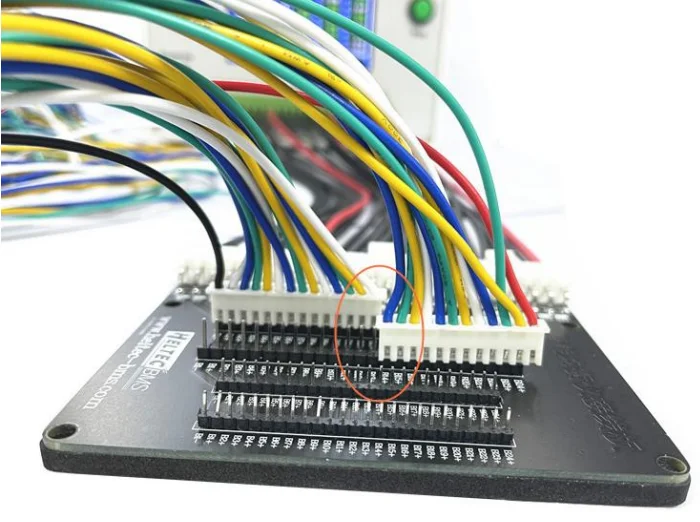

The wiring board has markings of sequence on it. Please note that repeated connection of the same pin will form a short circuit and damage the battery and instrument!

4. Battery Maintenance Steps

1. There is a faulty battery cell: replace the cell - fully charged - balance - fully

charged - battery maintenance is completed. 2. There is no faulty battery cells: fully charged - balance - fully charged - battery

maintenance is completed. 3. If one time equalization cannot achieve the desired effect, it can be repeated multiple times for better results.

5. Attention

1. Due to the large balancing current, the wires should be thick enough, otherwise it

may burn out or cause other problems. 2. B - refers to the negative pole of the battery pack, B1 is the first string from the

negative pole, and it is prohibited to connect more batteries during equalization. 3. When balancing, please be careful not to touch the battery with the wires

disconnected and do well insulation protection. 4. Please kindly confirm the multiple times before connecting to the instrument.

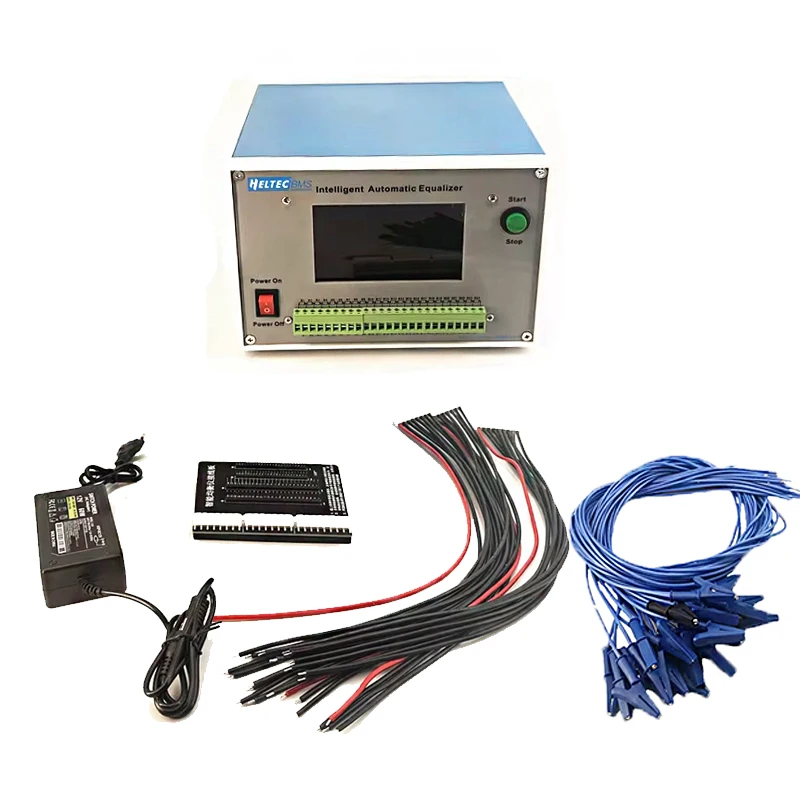

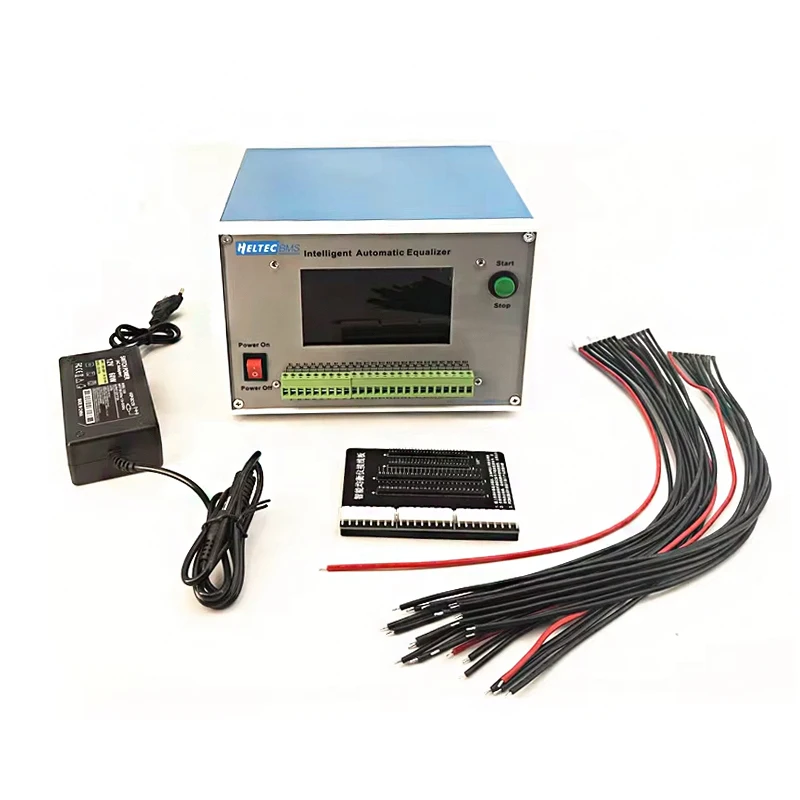

6. Packing List

*Note: the green wiring board has changed to black appearance.

24S 4A only

24S 4A equalizer with 16awg cable

（16awg silicone wire blue wire with crocodile clip 1M long 25 pieces (one of the crocodile clips is black)）

Battery maintenance steps:

There is a bad battery cell:

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed

There is a bad battery cell:

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed

Discharge method:

Advantage:

1. Don't charge the batteries, don't worry about overcharging problems

2. The speed of the whole equalization process is the same, and the equalization speed is fast

Disadvantages:

Since the equalization method is to discharge the high-voltage string energy until it is equal to the lowest voltage string, the excess energy is wasted.
