2Pcs SBR16 Linear Rail Guide 300 400 500 600 1000 1200 1500mm + 4pcs SBR16UU Linear Bearing Block Linear Rail Set

2 Set SBR16 16mm Linear Rail Guide 300 400 500 600 1000 1200 1500mm Fully Slide Support with 4pcs SBR16UU Linear Bearing Block


We can customize the lengh whatever you want, pls contact us before buying.
Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Because of point contact between ball and straight axis, so the load is small. The ball is spinning with the smallest friction, it can run a high precision and smooth motion.
Flange linear bearings can be divided into: round flange type, oval flange, guide wheel flange, guide the oval flange type, plus long round flange type.

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy.
The support rail unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.

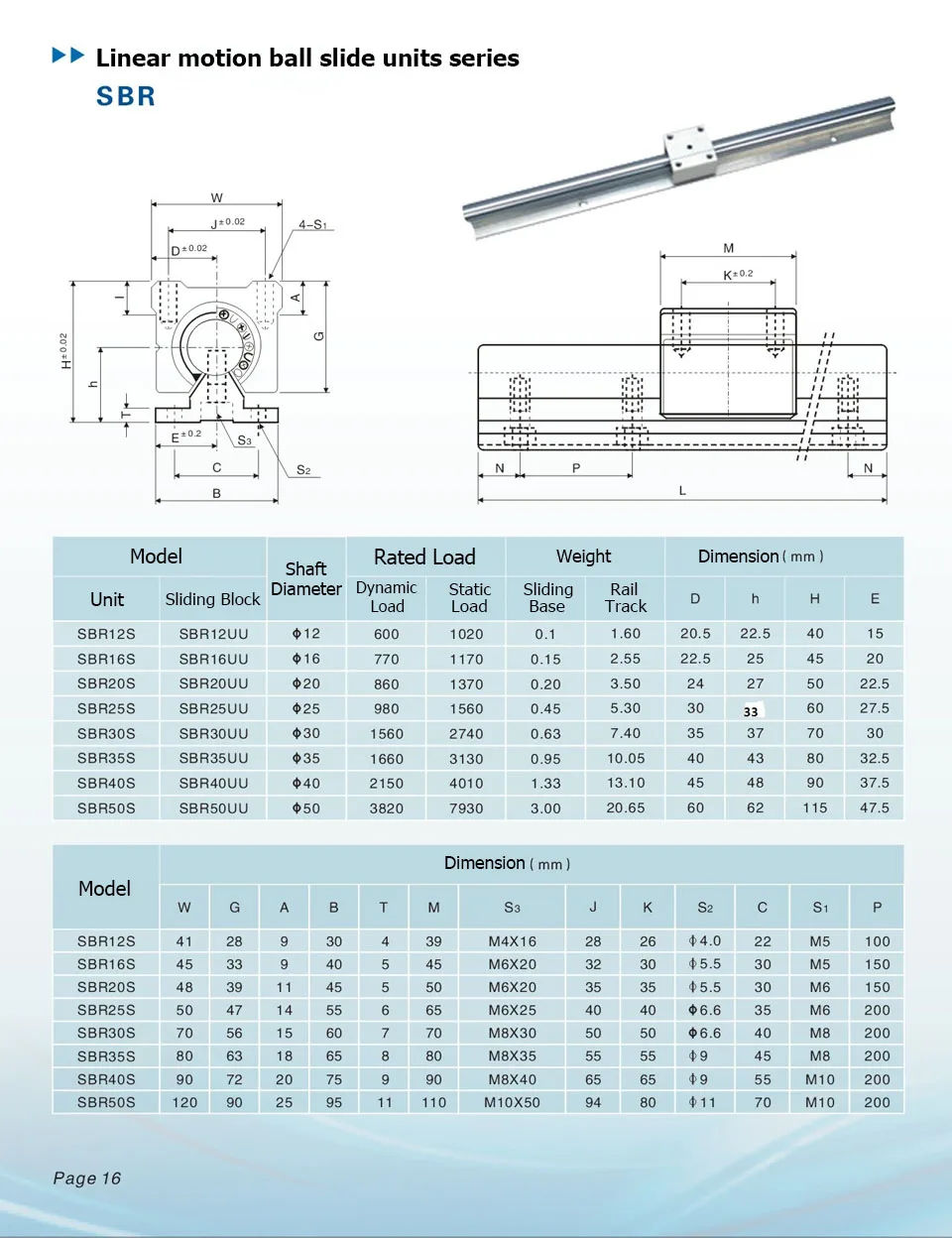

Model : SBR16
Color: Silver
Material: Metal
Length: 300-1500MM

Packing list
2 X SBR16FULLY SUPPORTED LINEAR RAIL

4 X SBR16UU Motion Router Solide Block Bearing
