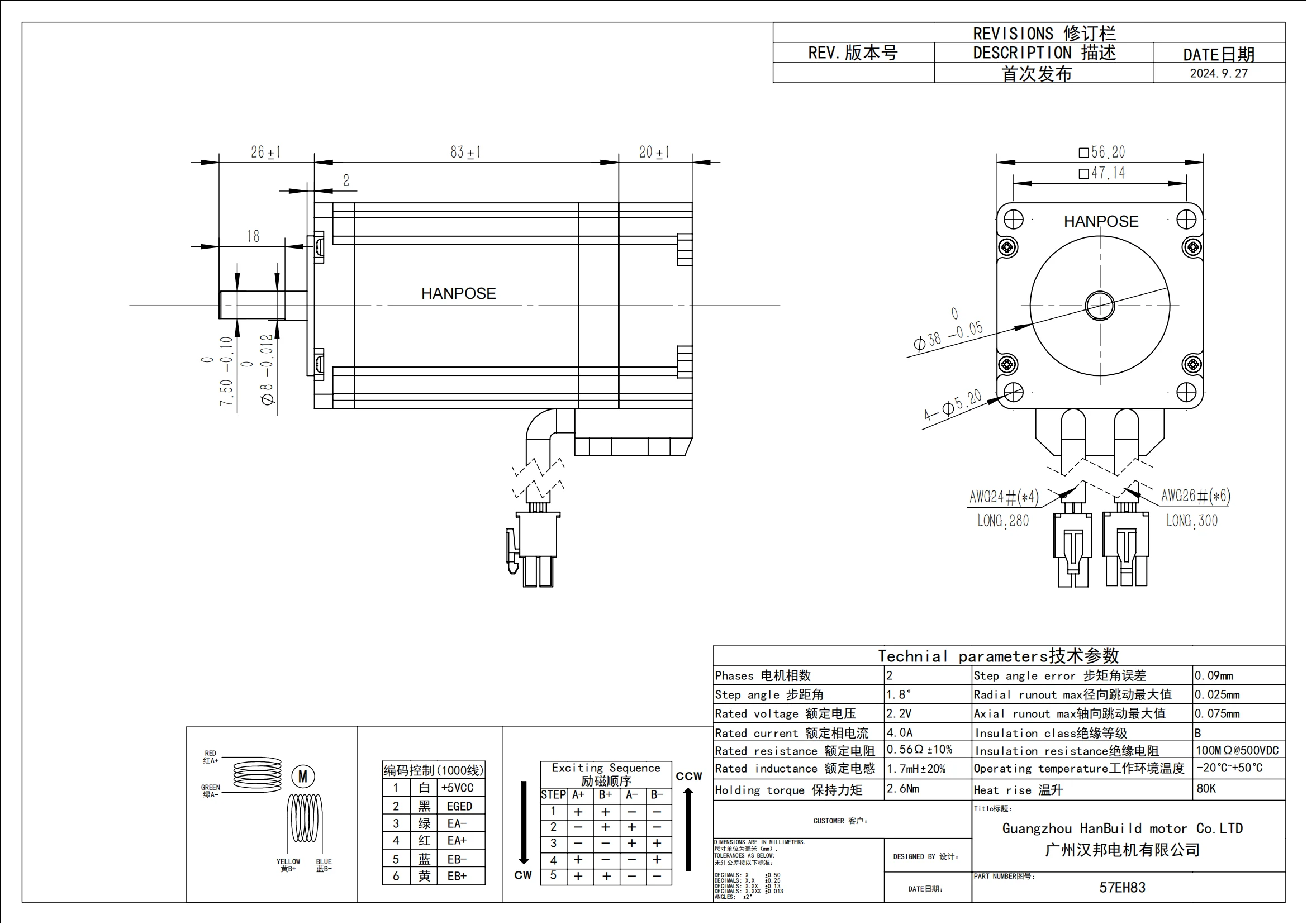

Nema23 57EH83A4001 Hybrid Stepper Motor CL57 Driver Kit 57X83mm Closed Loop 4.0A 2.6N.M 57CME26 Stepper Motor for CNC

1pcs  57EH83A4001 Closed Loop motor

1pcs  CL57  Drive

1PCS  1M Cable line

RS232 connection is only used for factory debugging,

Do not open connections, Hope to understand

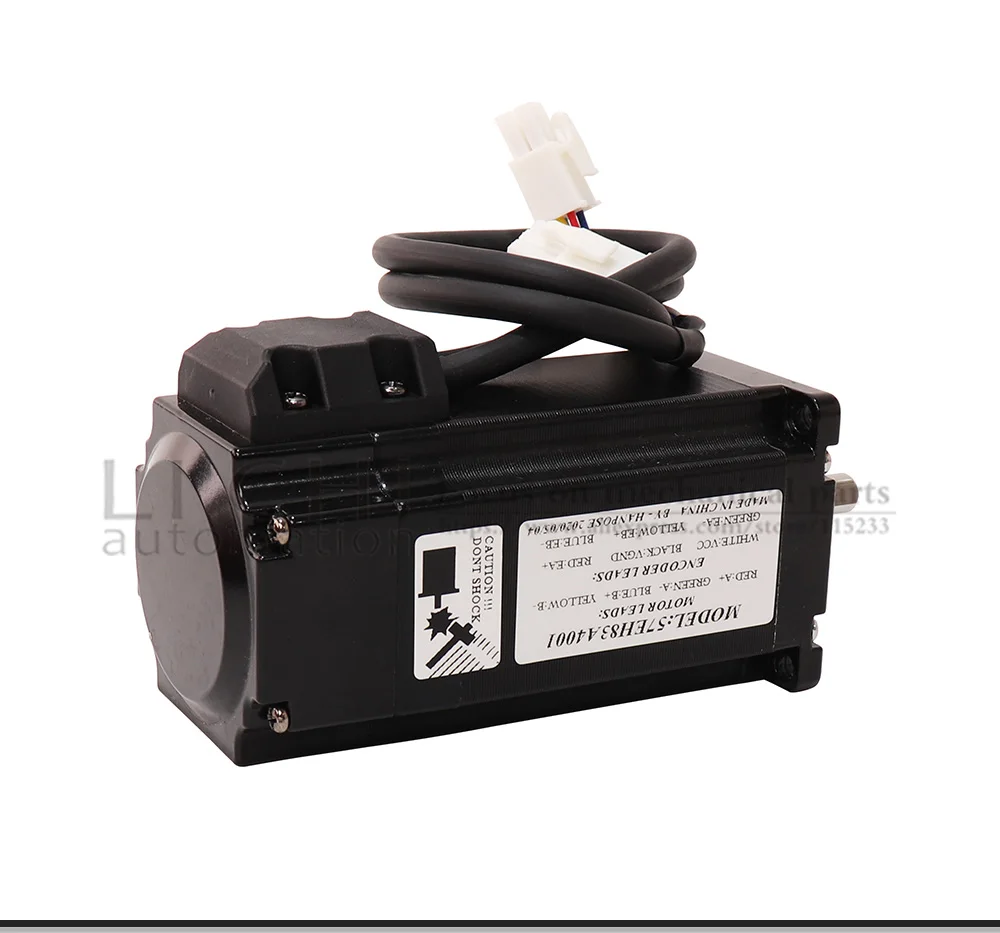

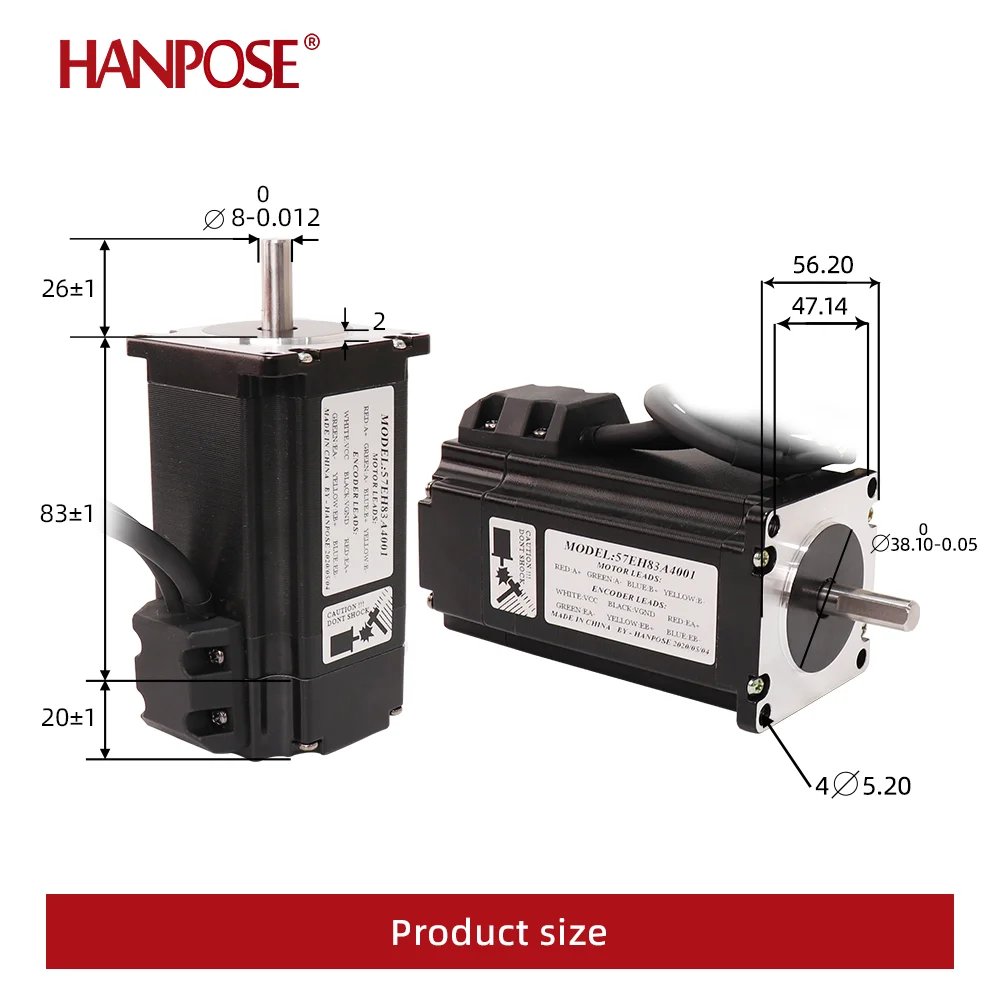

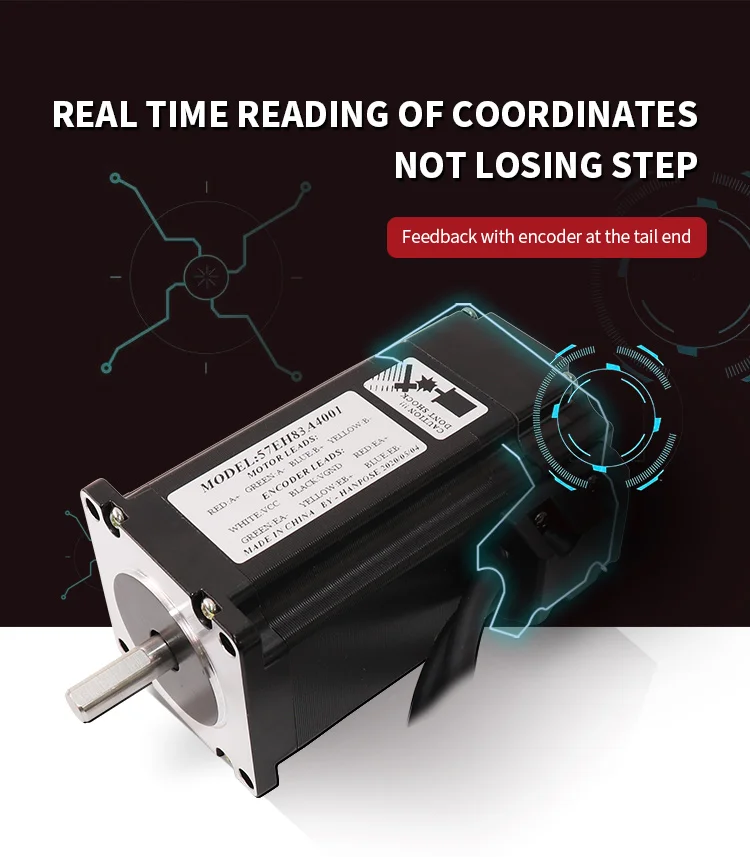

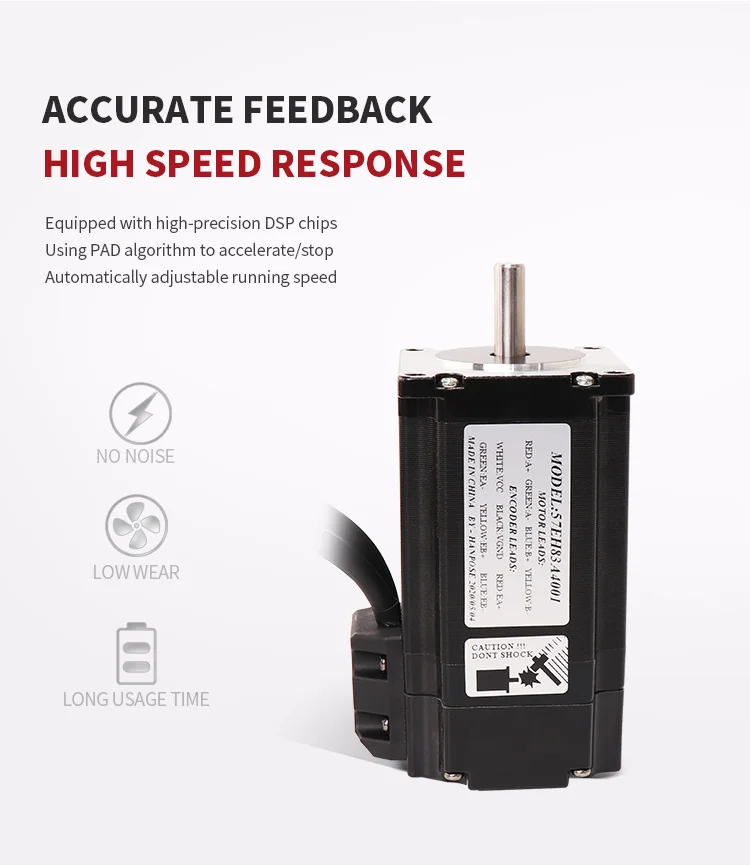

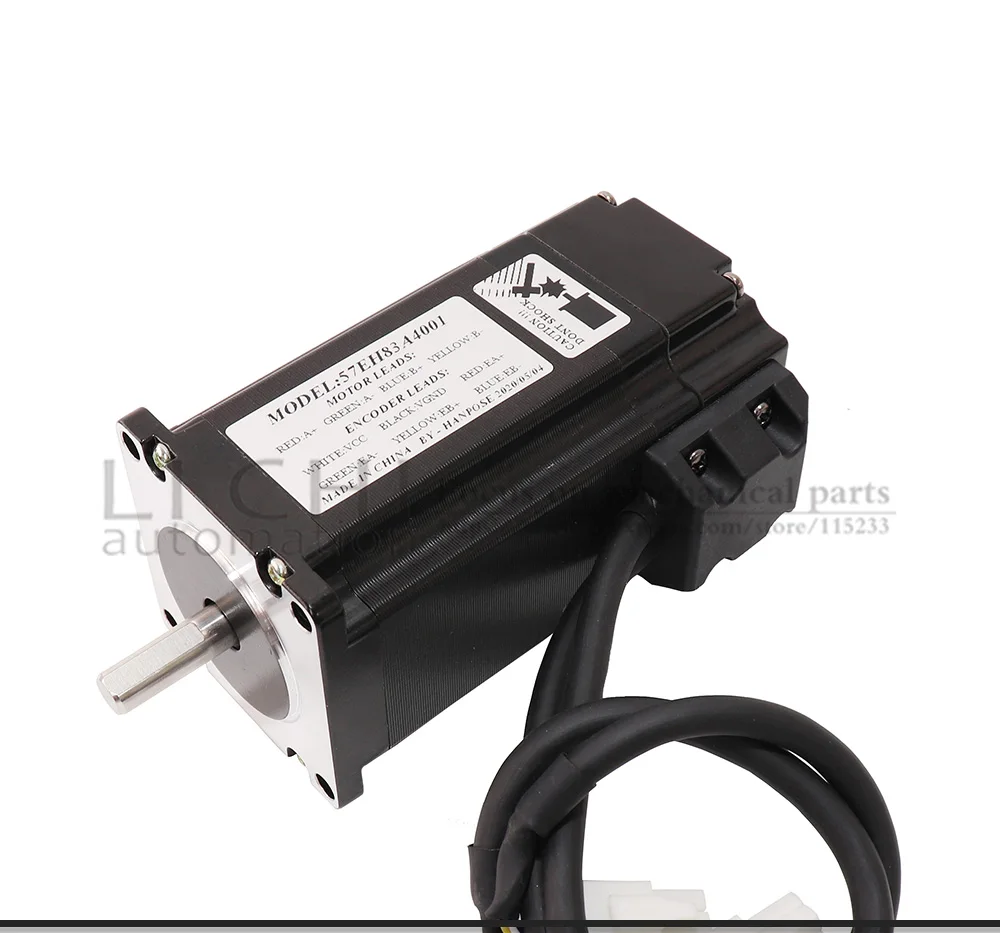

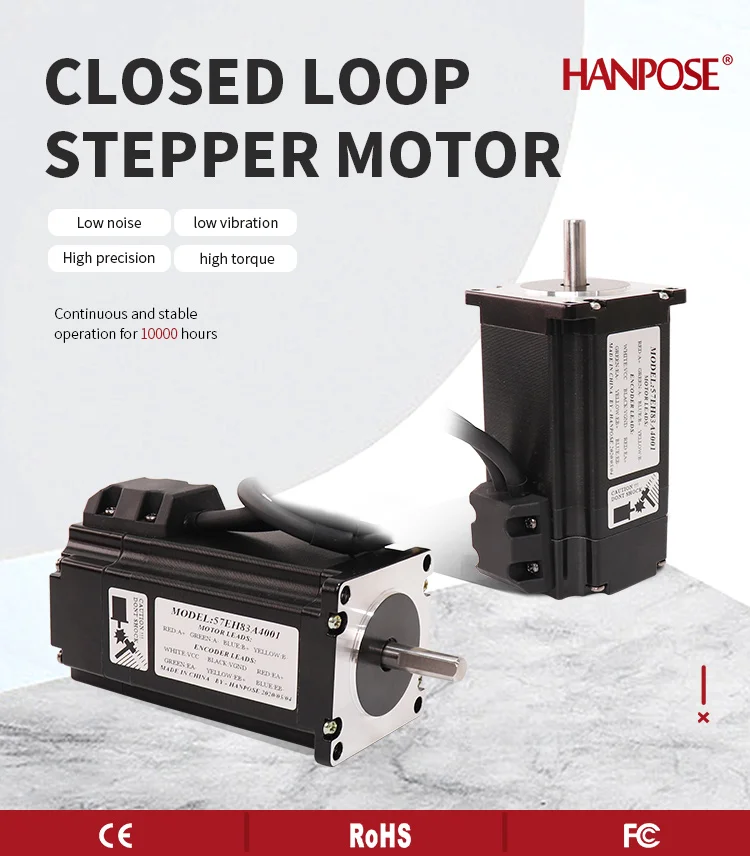

57 closed loop motor

57CME13 current 4A, 57EH56   torque: 1.3N.m shaft diameter: 8mm

57CME22 current 4A, 57EH76   torque: 2.2N.m shaft diameter: 8mm

57CME26 current 4A, 57EH83   torque: 2.6N.m shaft diameter: 8mm

57CME33 current 4A, 57EH100 torque: 3.3N.m shaft diameter: 8mm

Rated speed: 1000 rpm, idling speed 3000 rpm

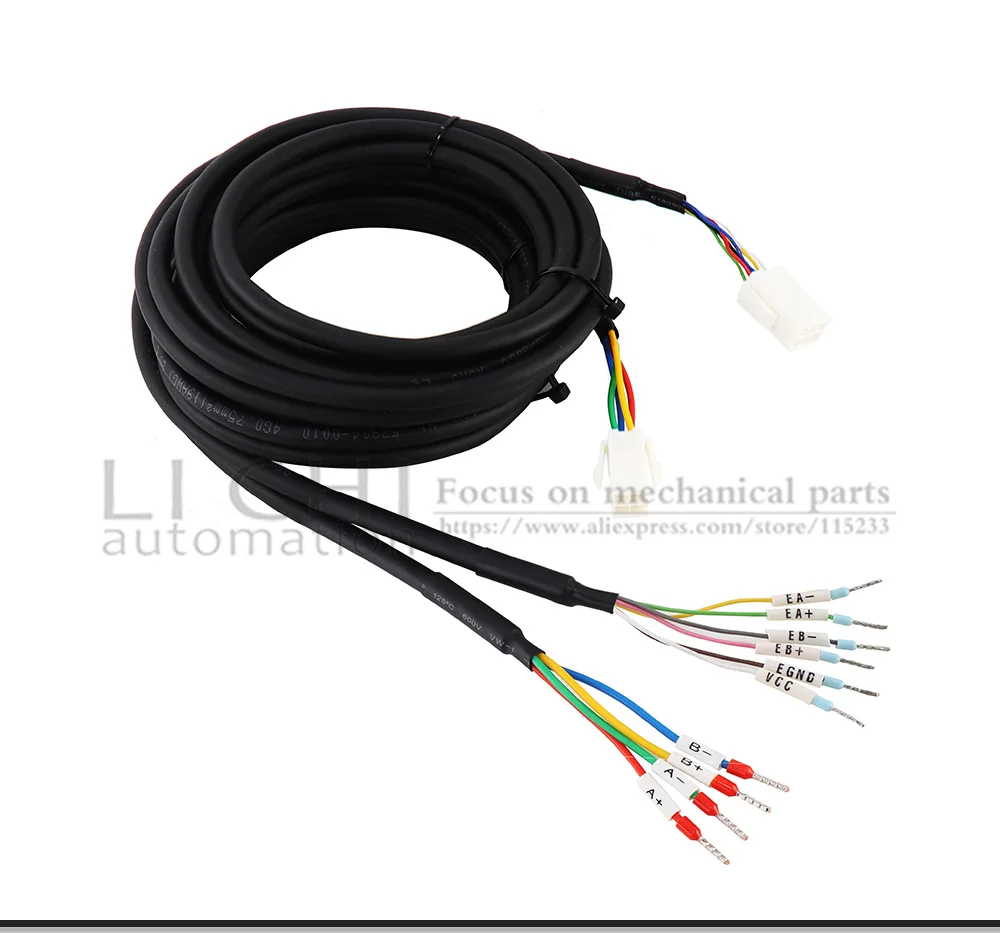

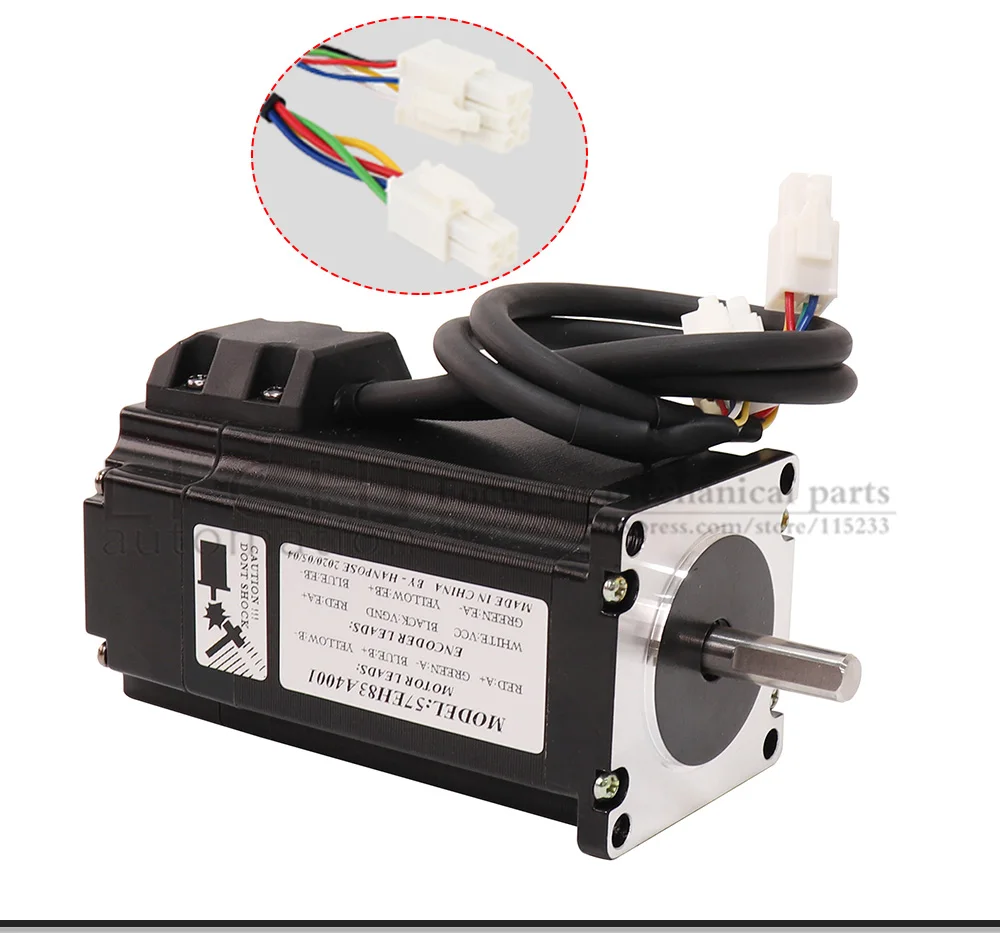

The motor line outlet and encoder outlet default to 1 meters.

Motor line and encoder line are extended by 1 meter = 3USD, which

issold at a low price.

Both the motor line and the encoder line use high-end super-soft

towline cables, which are resistant to cold, water, oil and bending.

10 million TRVVP.

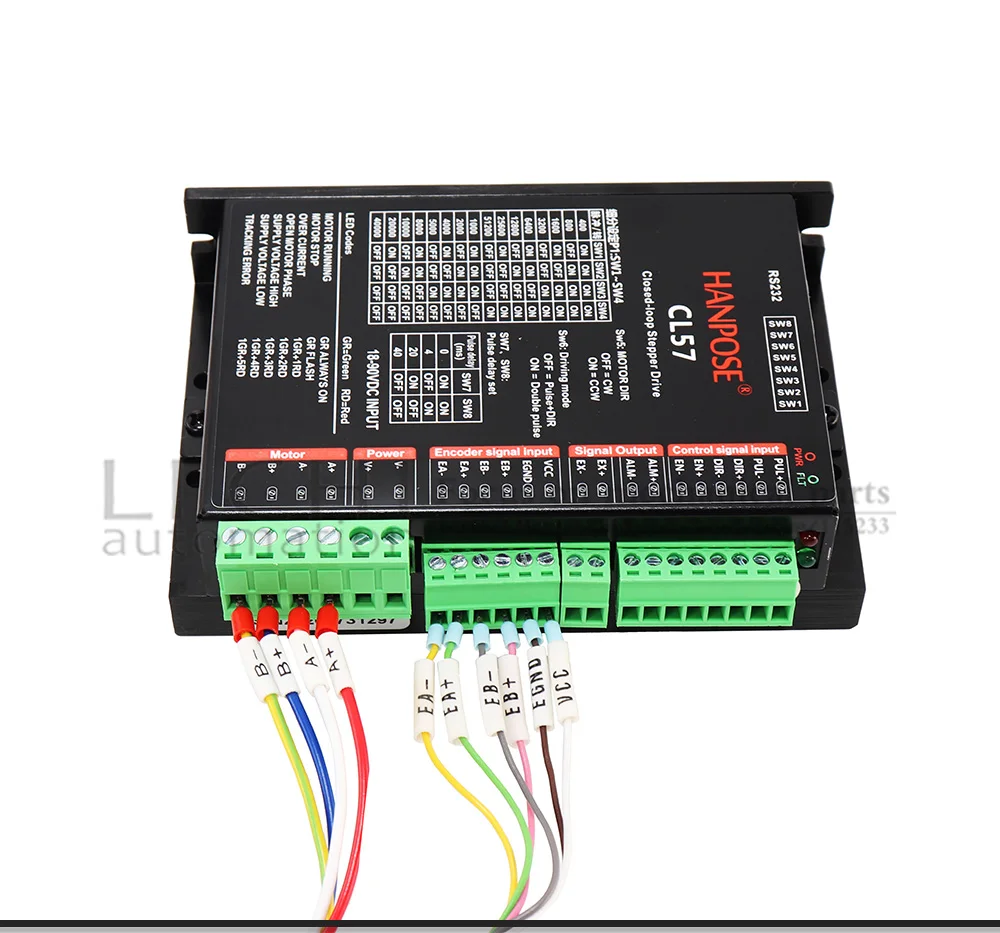

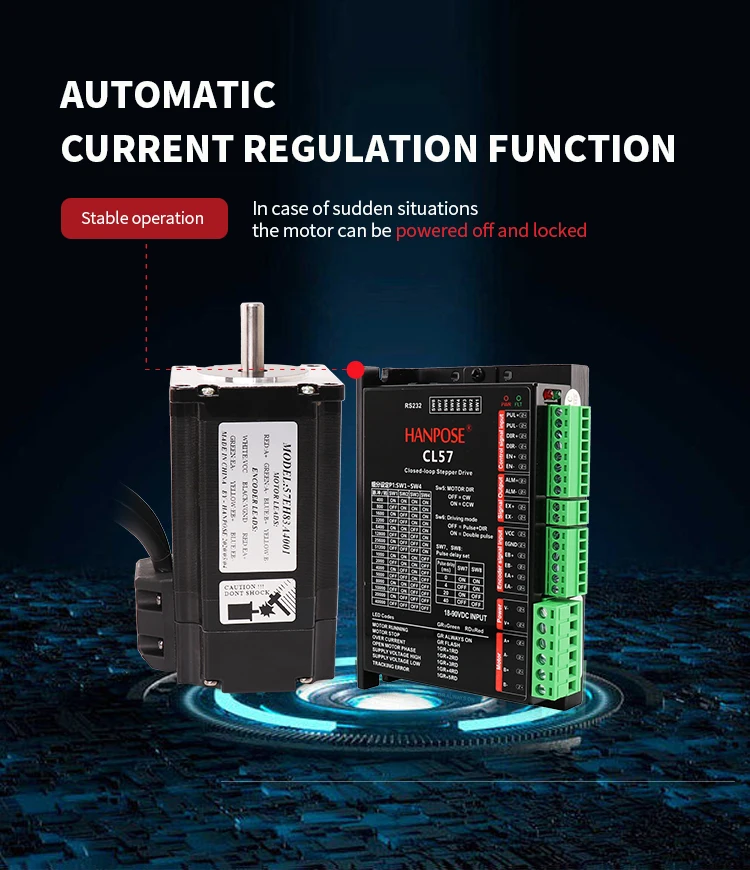

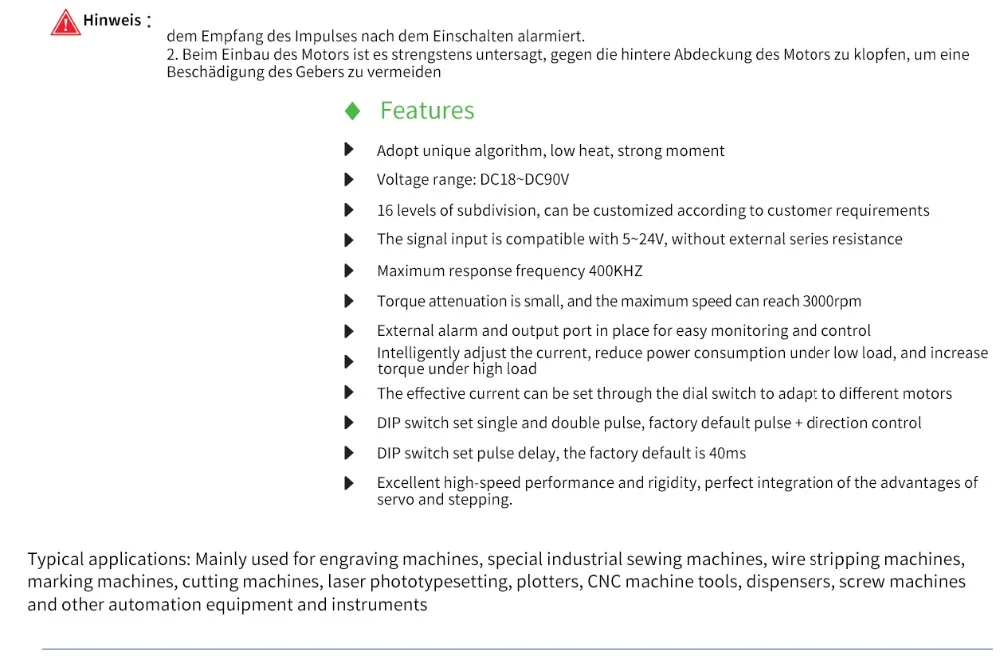

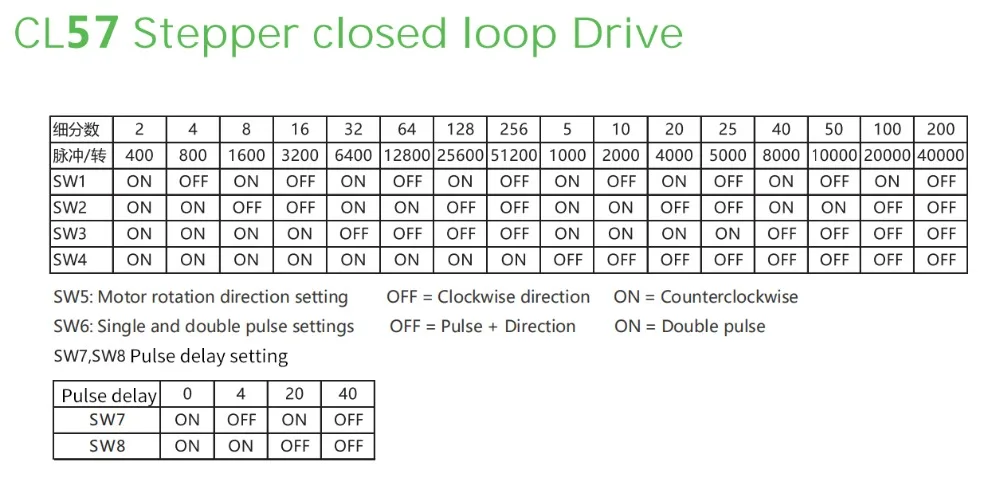

CL57 Driver

New 32-bit DSP digital 57 closed-loop stepper motor driver, engraving

machine, CNC

equipment available. PWM current control, low noise, high speed torque is

40% larger

than ordinary drives.

Drive: CL57

Voltage: DC18-90V

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)
