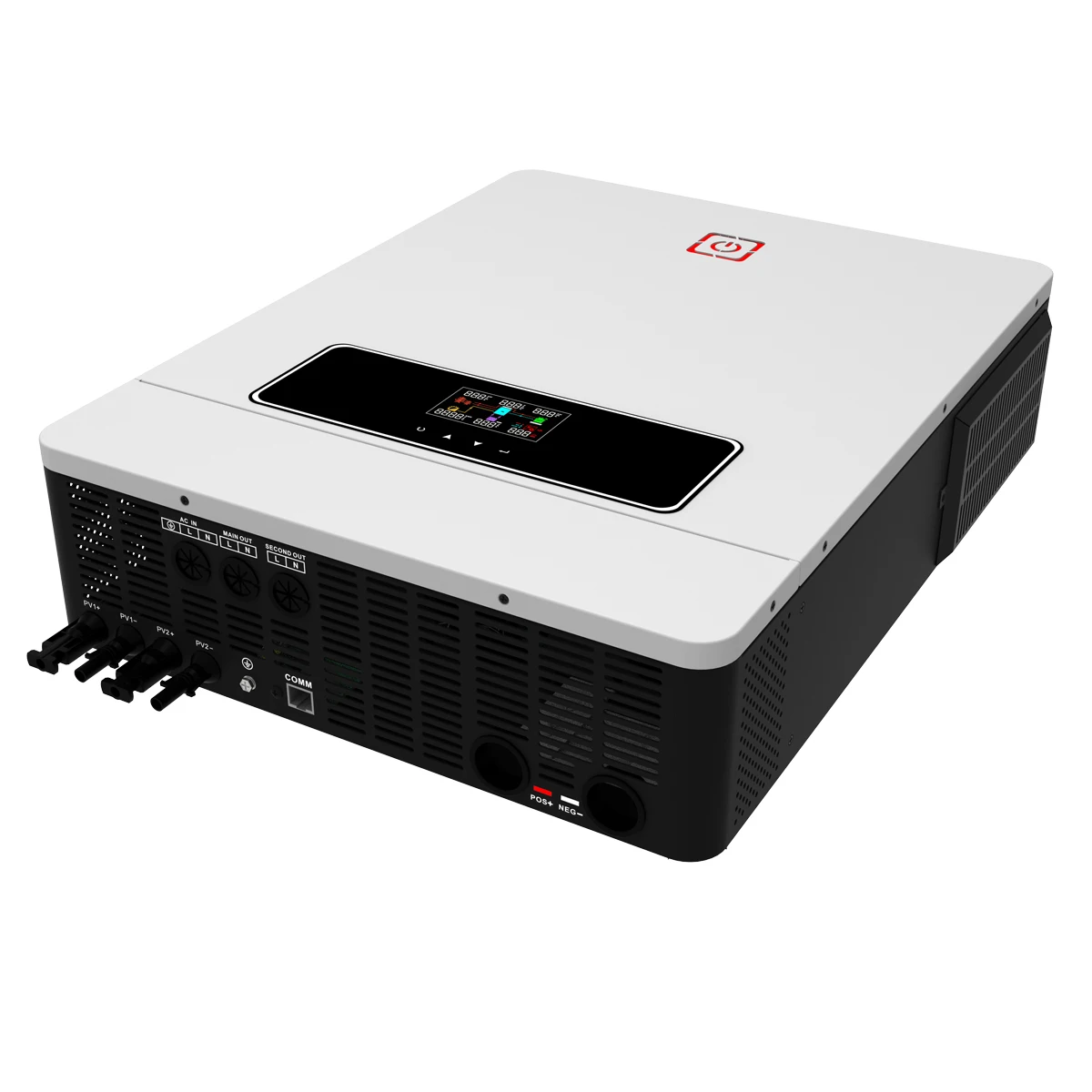

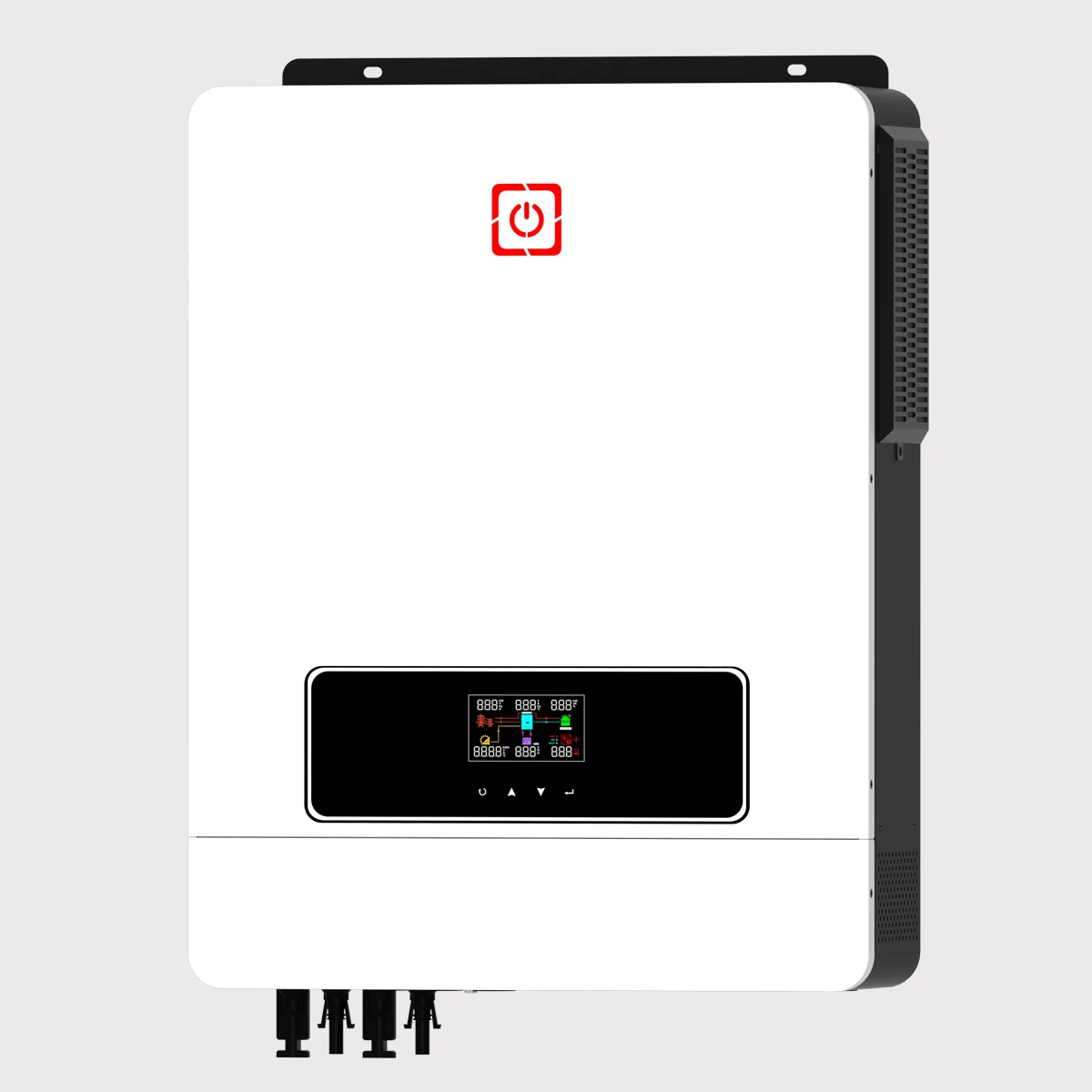

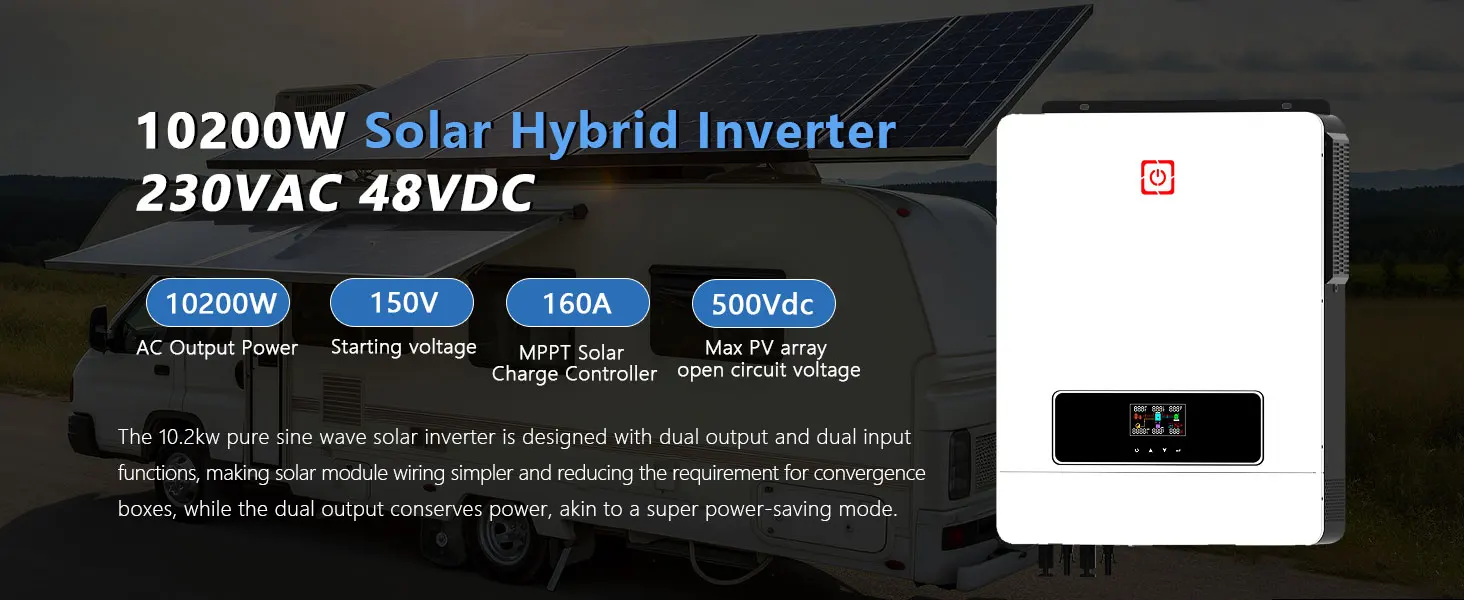

Y&H 10.2KW Hybrid Solar Inverter 48V 230V Pure Sine Wave Off Grid On Grid Inverter MPPT 160A Solar Charger for Lithium Battery Home Energy Storage System with BMS WiFi(Optional), Local Warehouse Fast Delivery

Do not turn on each input at the same time. It is recommended to work for 3 minutes. The inverter is working sufficiently and stably

Inverter startup sequence:
1: Battery 2: AC input or PV input 3: Load

The inverter exits the system sequence:
1: Load 2: AC input or PV input 3: Turn off the inverter Exit battery

Note：DO NOT CONNECT THE SECOND OUTPUT TO THE GRID,IT WILL DAMANGE YOUR INVERTER

Dual AC output: under normal conditions, the main circuit and secondary circuit outputs are used normally. When there is no PV and mains power input and the battery voltage is too low, the main circuit is disconnected and only the secondary circuit output is retained to save power.

Otherwise, you don't need to connect to the second output.

Features of 48V DC solar power inverter：

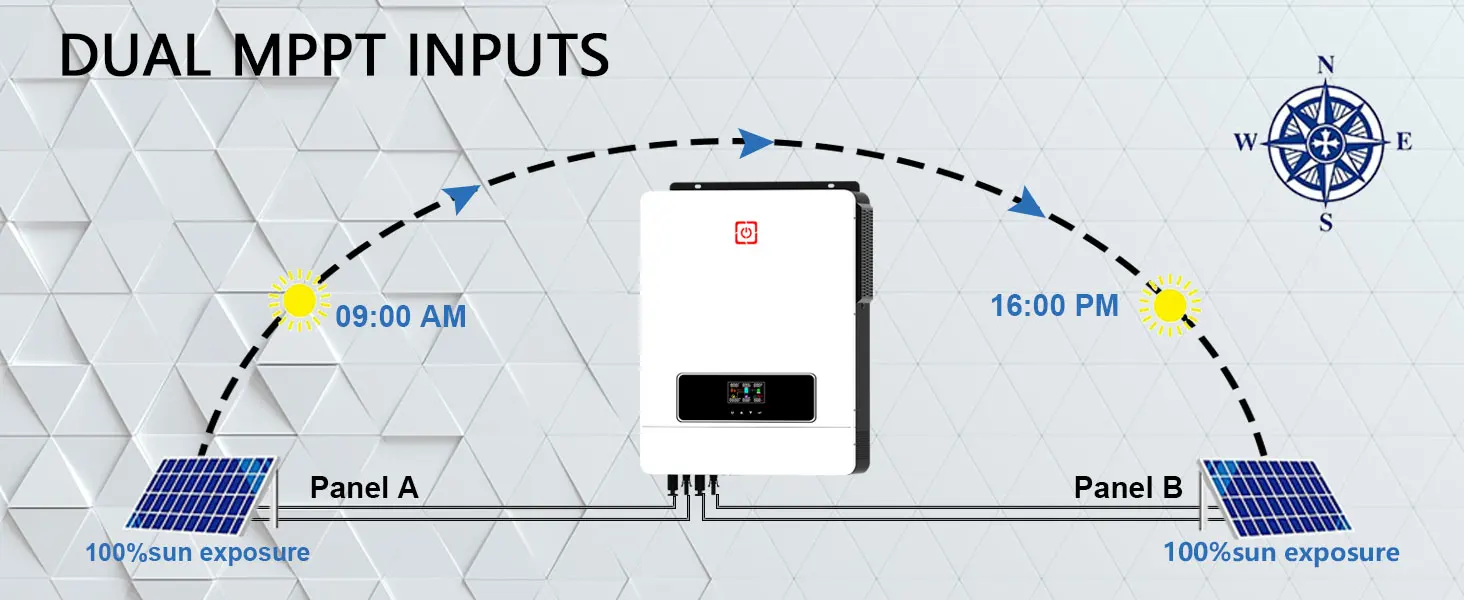

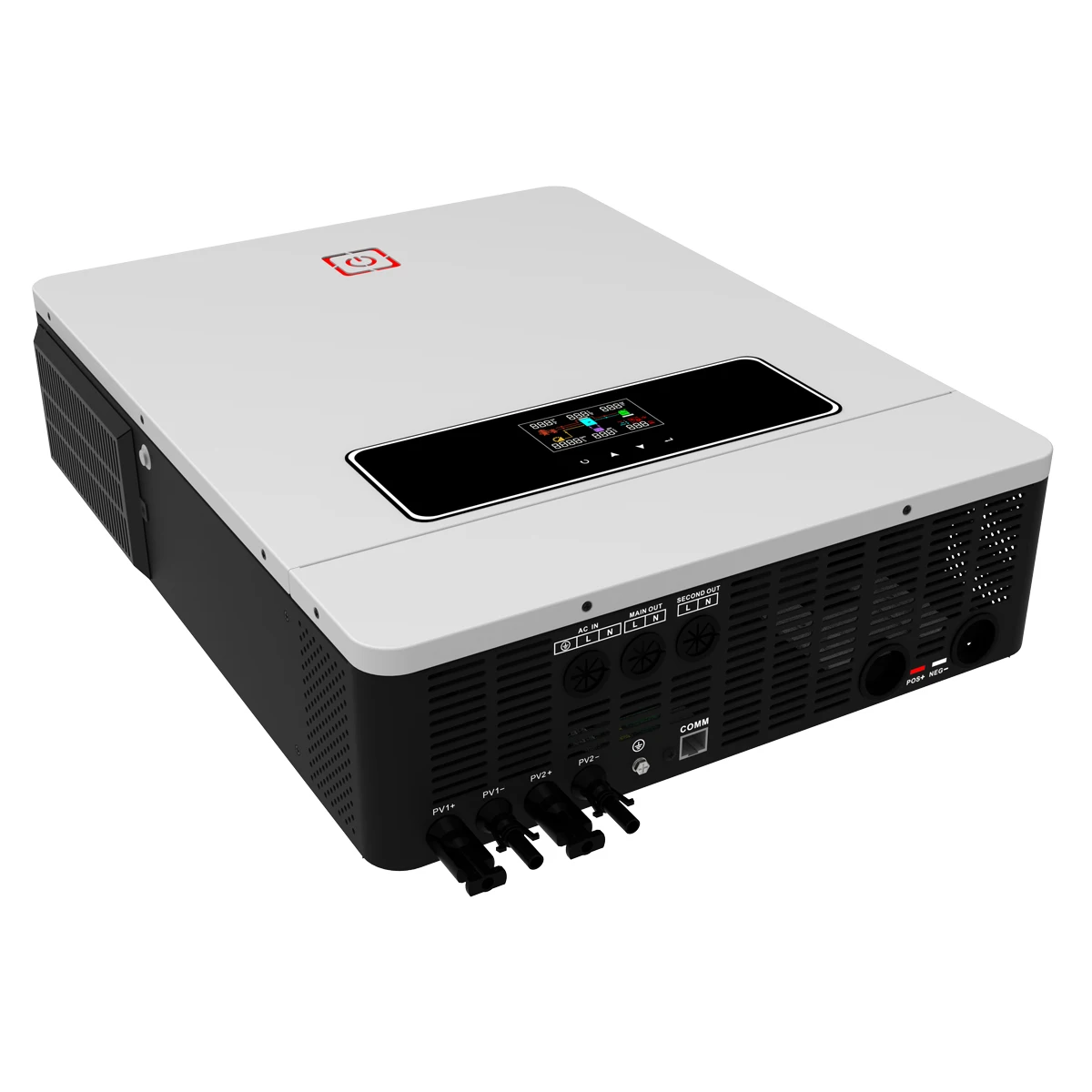

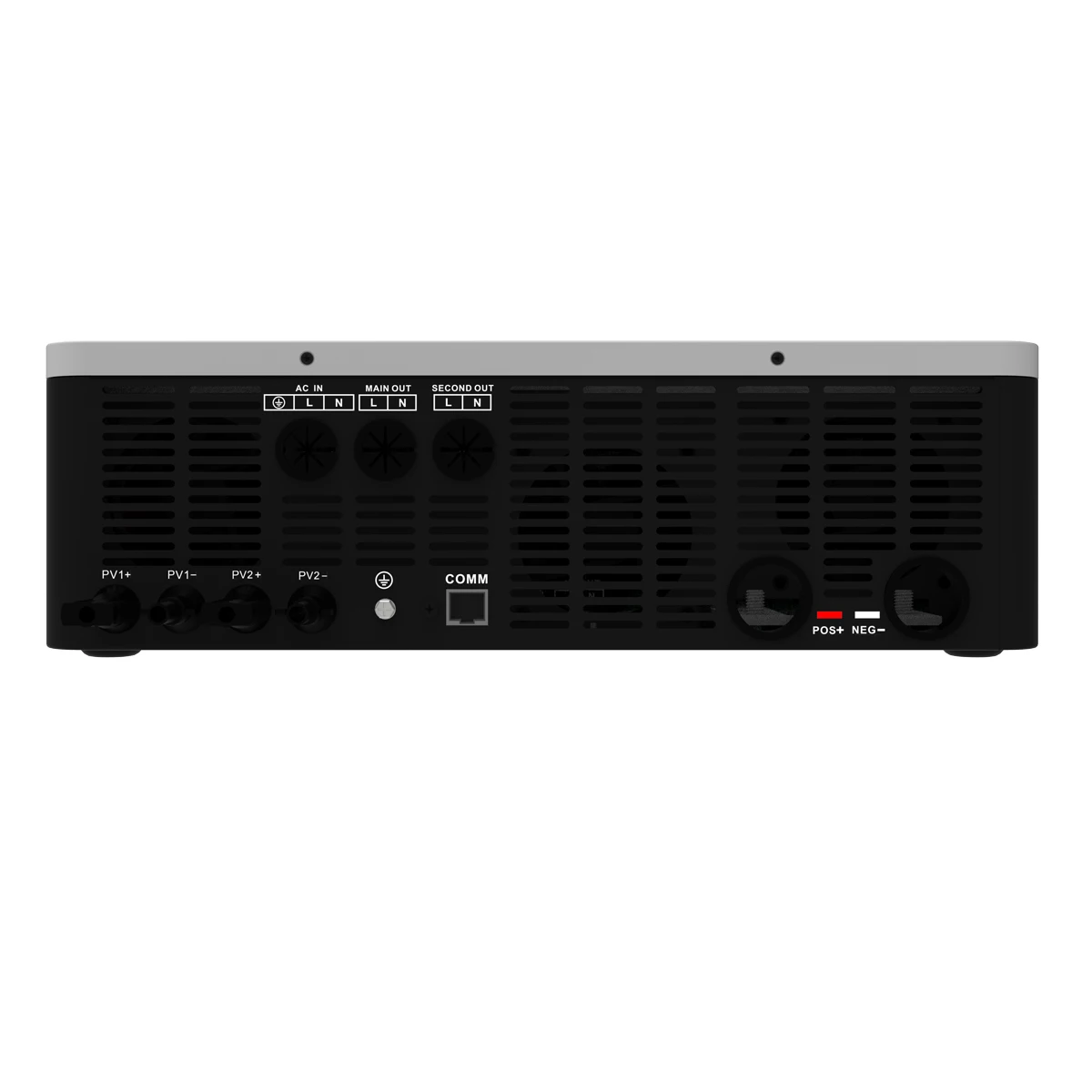

Daul PV In-Put and Second Output

160A 10.2KW on/off Grid Inverter

1.Pure sine wave solar inverter（on/off Grid）

2.Inverter running without battery

3.Output power factor 1.0

4.High PV input voltage range(90~500VDC)

5.WIFI&GPRS available for IOS and Android

6.Built-in anti-dusk kit for harsh environment

7.Built-in 160A（for 10.2KW）MPPT solar charge

8.Smart battery charge design to optimize battery life

9.One-click restoration to factory Settings

10.Dual output

11.Built-in Lithium battery automatic activation

12.Touch buttom

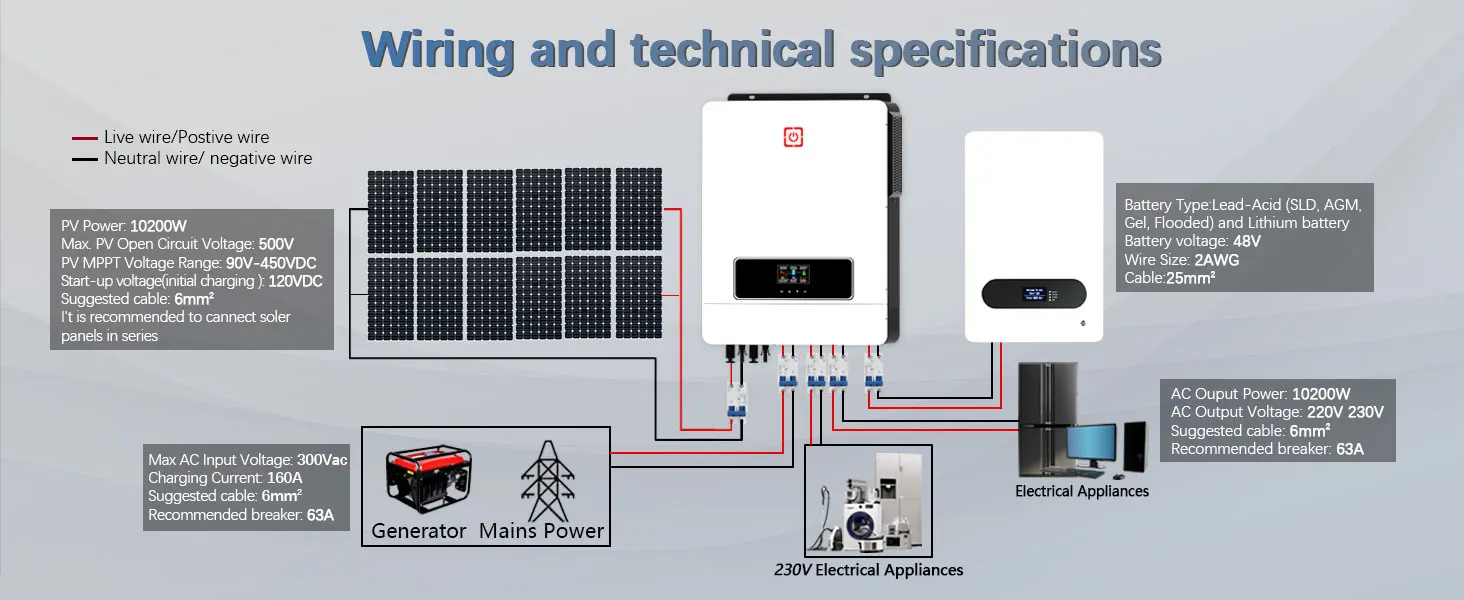

Basic System Architecture:

The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:

1.Generator or Utility.

2.PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube lights, fans, refrigerators, and air conditioners.

Pure sine Wave Inverter:

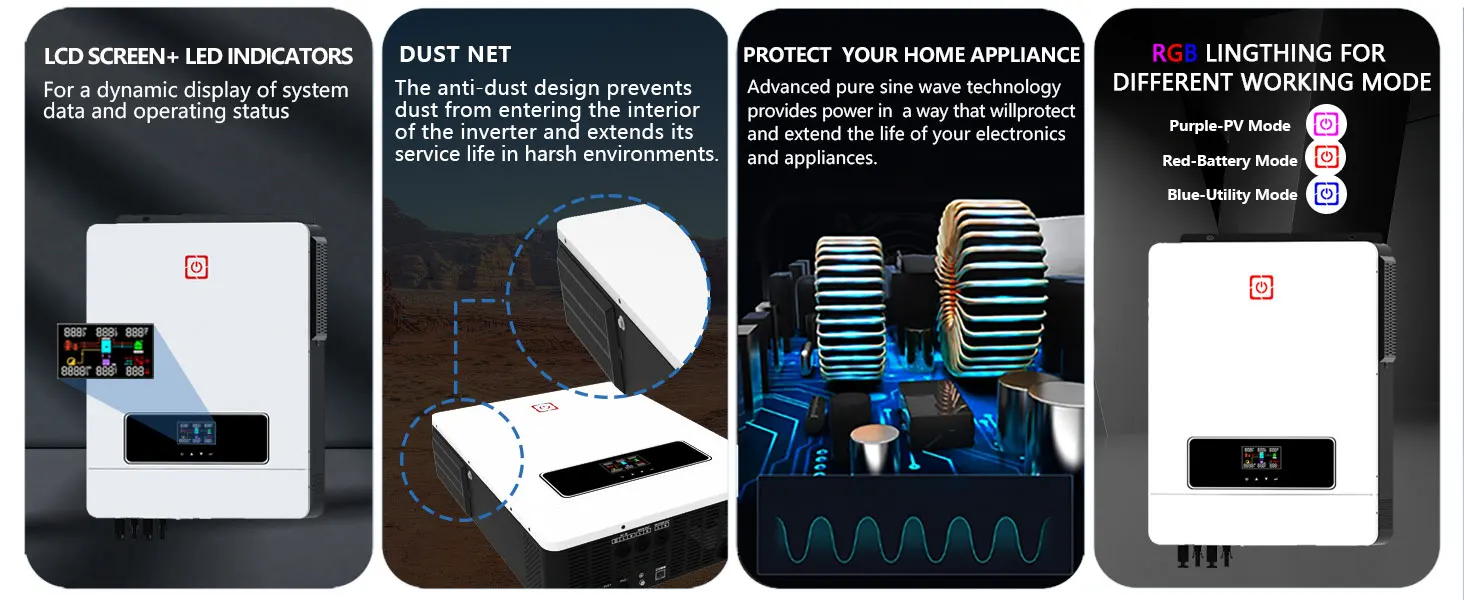

10200KW Pure sine Wave Inverter is a new all-in-one hybrid solar inverter charger, Support dual PV input, MPPT voltage tracking.RGB lingthing for different working mode(Purple-PV Mode;Red-Battery Mode;Blue-Utility Mode)
