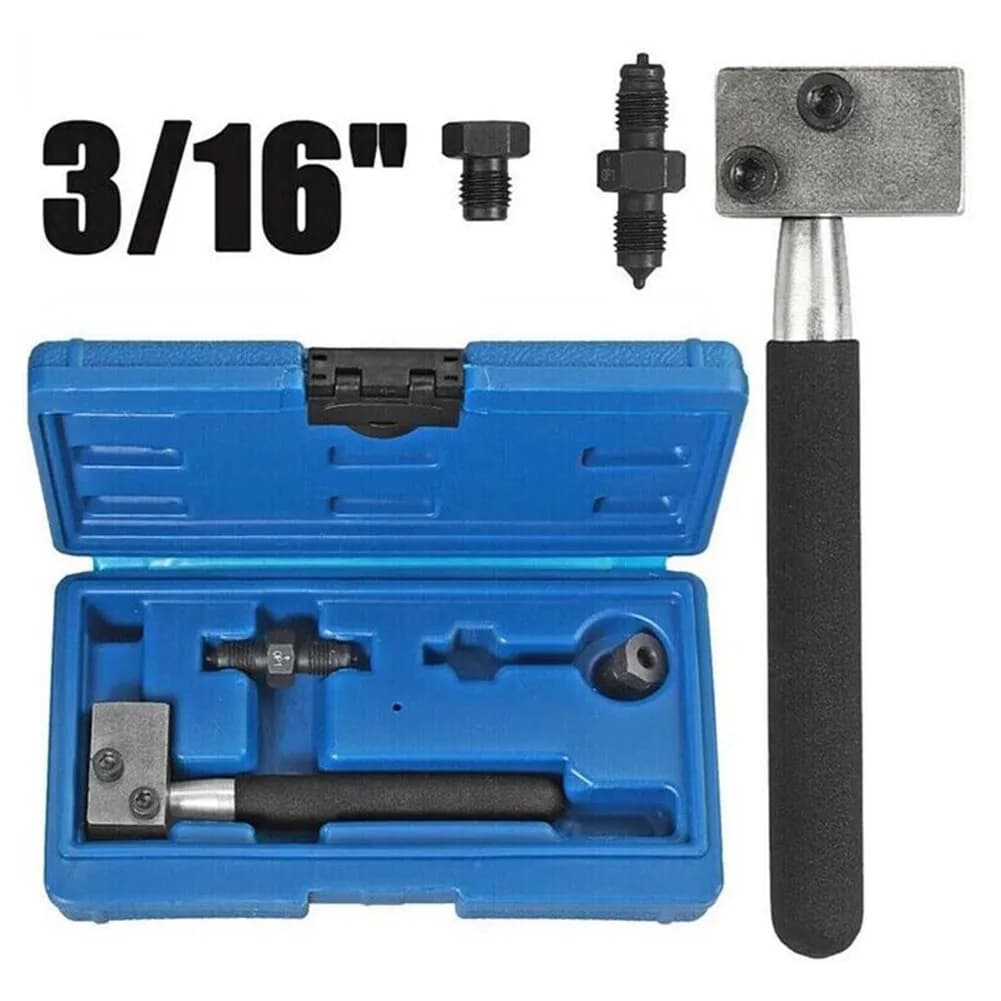

3/16 Brake Line Compact SAE Double Flare Flaring Tool for Auto Repair Brake Pipe

Specifications:

Color: Blue

Type: Brake pipe flaring tool

Material: Steel

Dimension: As shown in the figure

Features:

[For vehicles] Professional brake pipe flaring tool for 3/16 "SAE flaring. Handheld, designed for vehicle site use.

It is very suitable for repairing old pipes. The solid metal tool head keeps the pipe perfectly square to achieve the perfect pipe flaring.

[Under the vehicle or on the workbench] The compact design allows you to work easily in narrow places or under the vehicle to fix the brake pipeline.

The handle can be removed so that you can install the chuck on the vise for other 3/16 inch (0.5cm) flaring operations, such as water, gas or refrigeration lines.

[Durable] The brake flaring tool chuck and double flaring joint are made of heat treated steel to reduce friction and rust.

Note: 17mm and 10mm wrenches are required (not included); Brake fluid may be used instead of mold lubricant.

Package includes:

1 set of brake pipe flaring tools (excluding lubricating oil)

Usage methods:

Place the connector on the prepared 3/16 brake pipeline.

Loosen the two clamping bolts, slide the tube into the mold and tighten the clamping bolts by hand.

Insert the pipe depth adjusting bolt into the mold until it is fully seated.

Tighten the two clamping bolts and remove the depth fixing bolts.

Lubricate the punch and insert it into the die until it is fully seated, then remove it.

Loosen the two clamping bolts and check the flaring.
