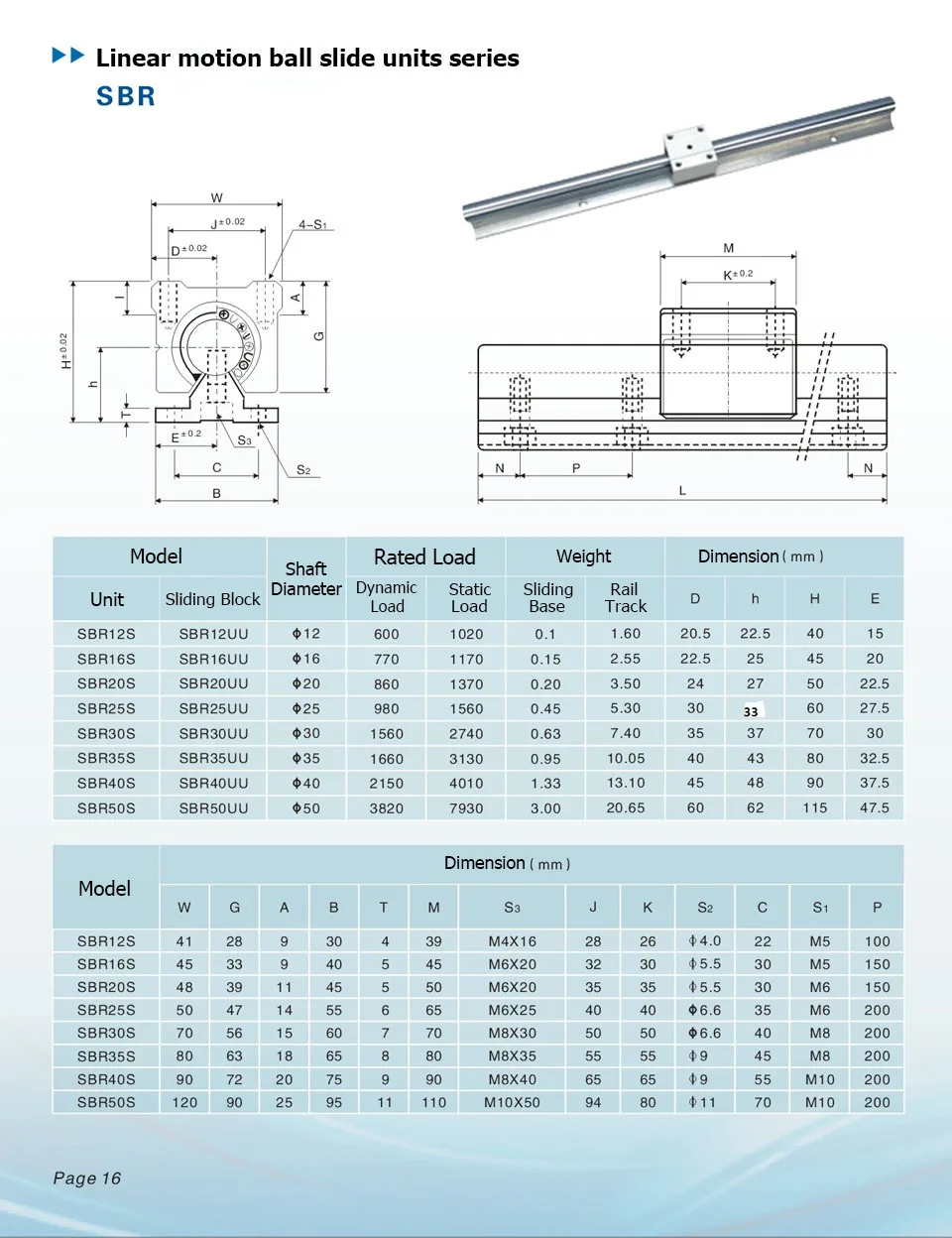

2pcs SBR20 200-1500mm Linear Guide Rail and 4pcs SBR20UU Linear Bearing Blocks for CNC Parts 20mm Linear Rail

2pcs SBR20 200-1500mm Linear Guide Rail and 4pcs SBR20UU Linear Bearing Blocks for CNC parts 20mm Linear Rail


We can customize the lengh whatever you want, pls contact us before buying.Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Because of point contact between ball and straight axis, so the load is small. The ball is spinning with the smallest friction, it can run a high precision and smooth motion. Flange linear bearings can be divided into: round flange type, oval flange, guide wheel flange, guide the oval flange type, plus long round flange type.

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy. The support rail unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.


Package Included :
2pcs SBR20 Linear rail
4pcs SBR20UU Bearing Blocks
(By the way, If your
postal code belongs to a remote address, please contact us before
placing an order to confirm if the logistics can deliver to your
address!)
Model :SBR20
Color: Silver
Material: Metal
Length:200MM,300MM,400MM,500MM,600MM,800MM,1000MM,1200MM,1500MM
