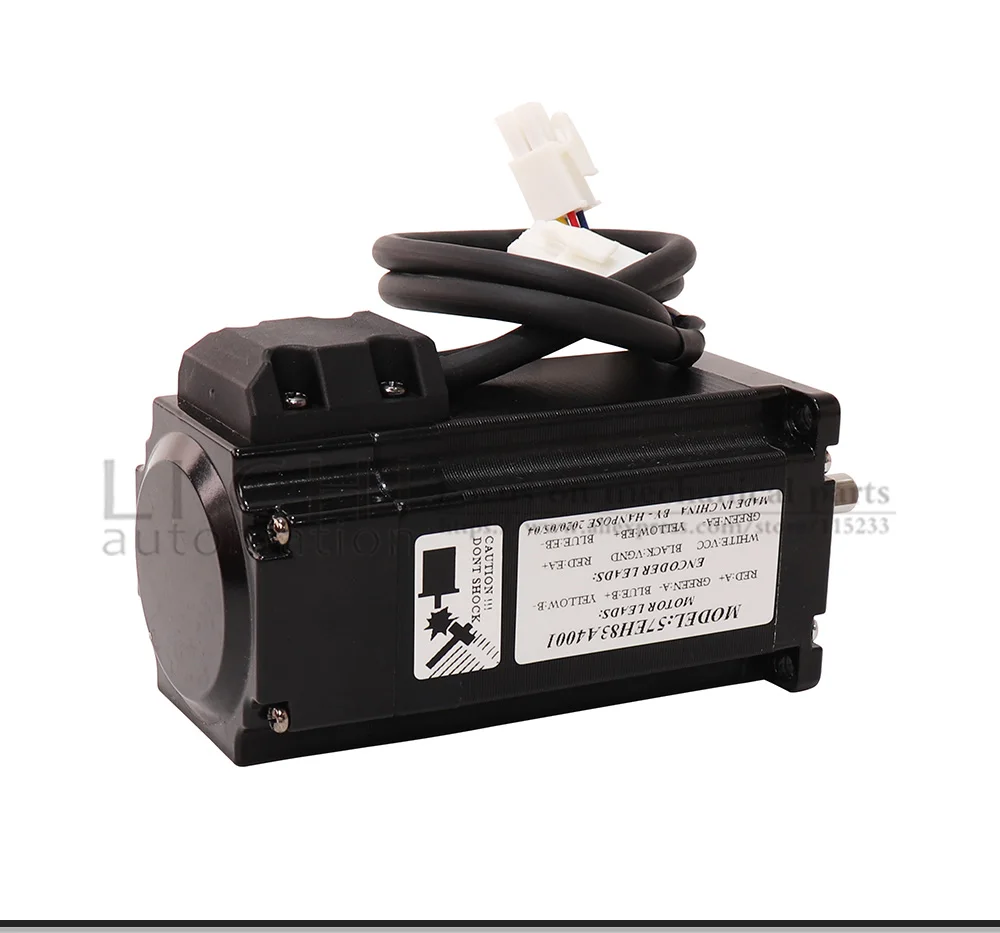

57CME26 Servo motor Stepper Motor 57EH83-56/100MM Hybrid Step-servo motor Nema23 Closed Loop 4A 2.6N.M +CL57 for CNC Router

1PCS  57EH83A4001+CL57 Kit Closed Loop motor

1PCS  57EH56A4001 Closed Loop motor

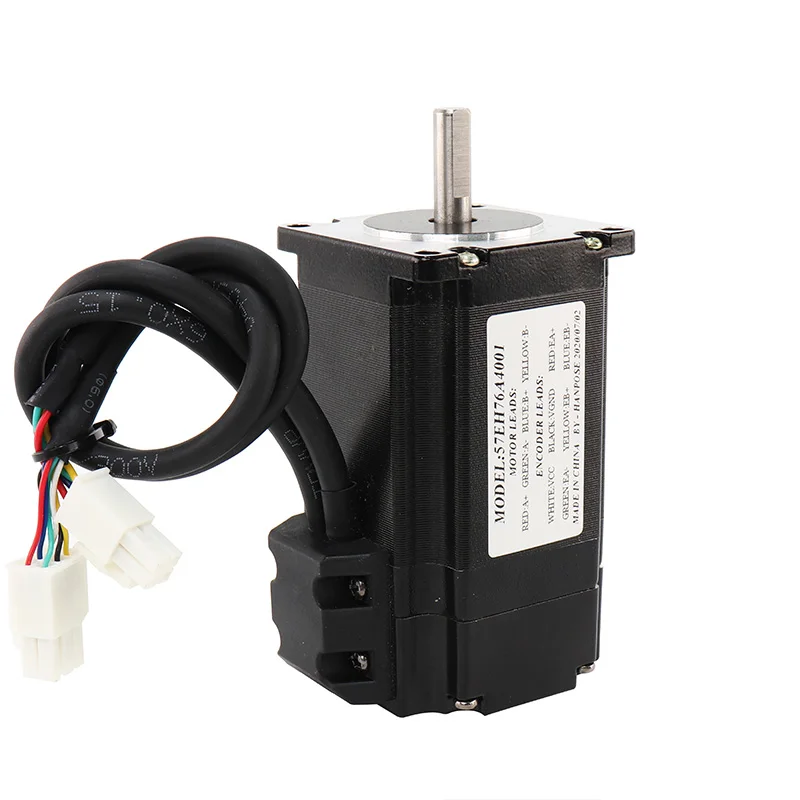

1PCS  57EH76A4001 Closed Loop motor

1PCS  57EH83A4001 Closed Loop motor

1PCS  57EH100A4001 Closed Loop motor

1PCS  CL57  driver

1PCS  1M Cable line

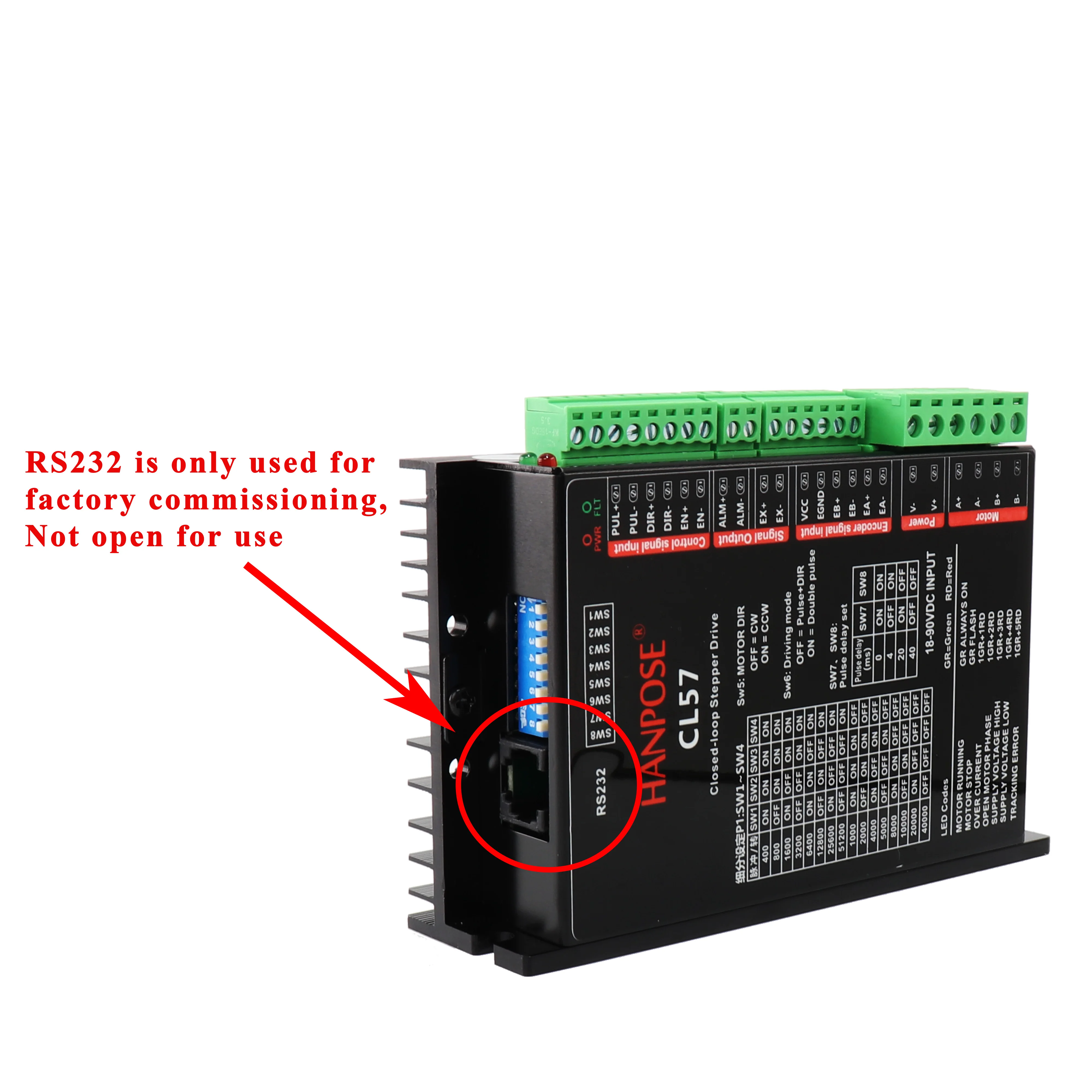

RS232 connection is only used for factory debugging,

Do not open connections, Hope to understand

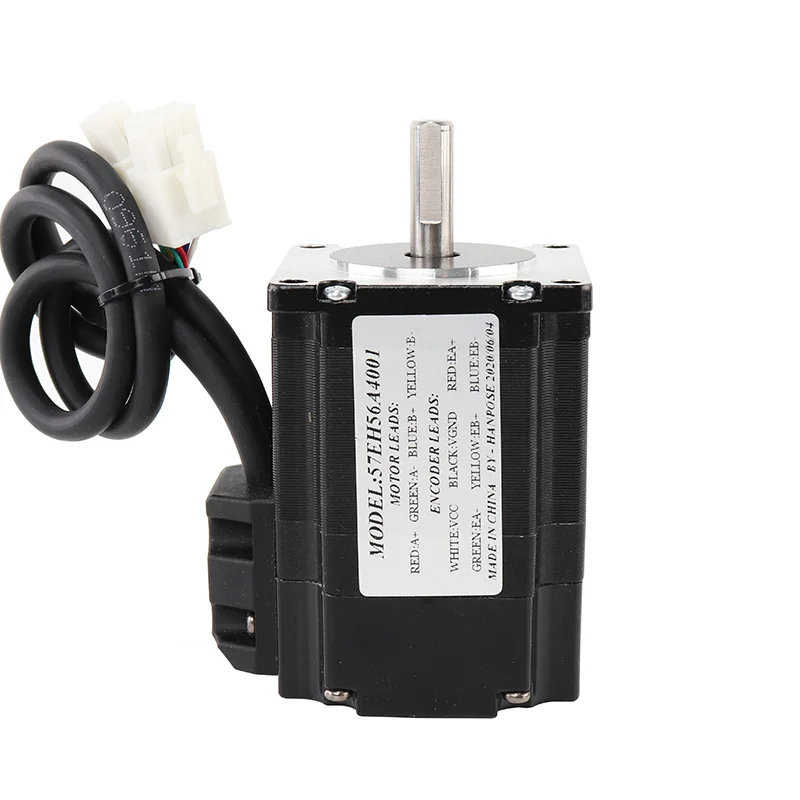

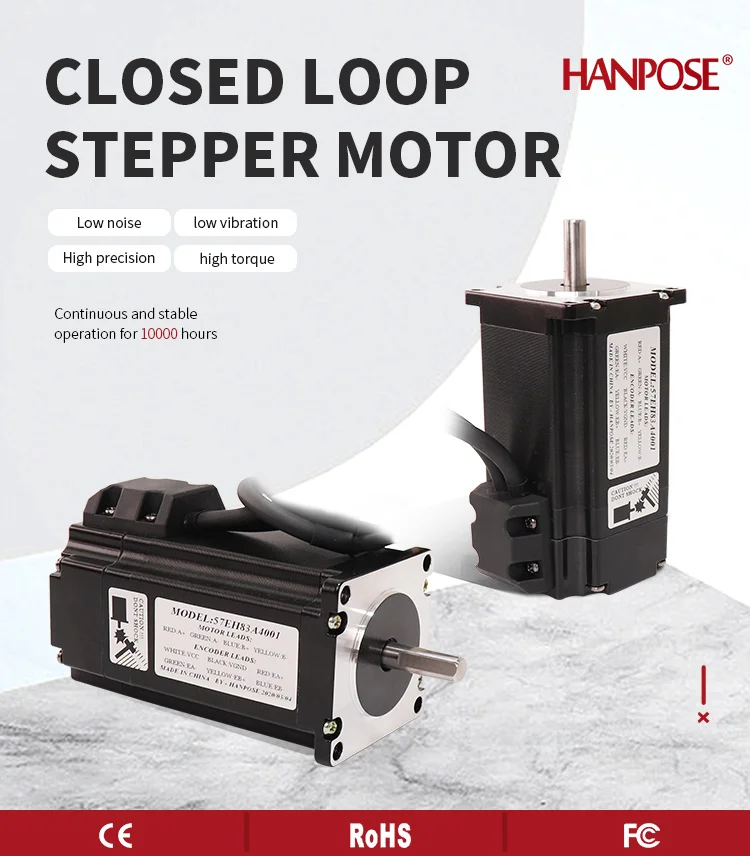

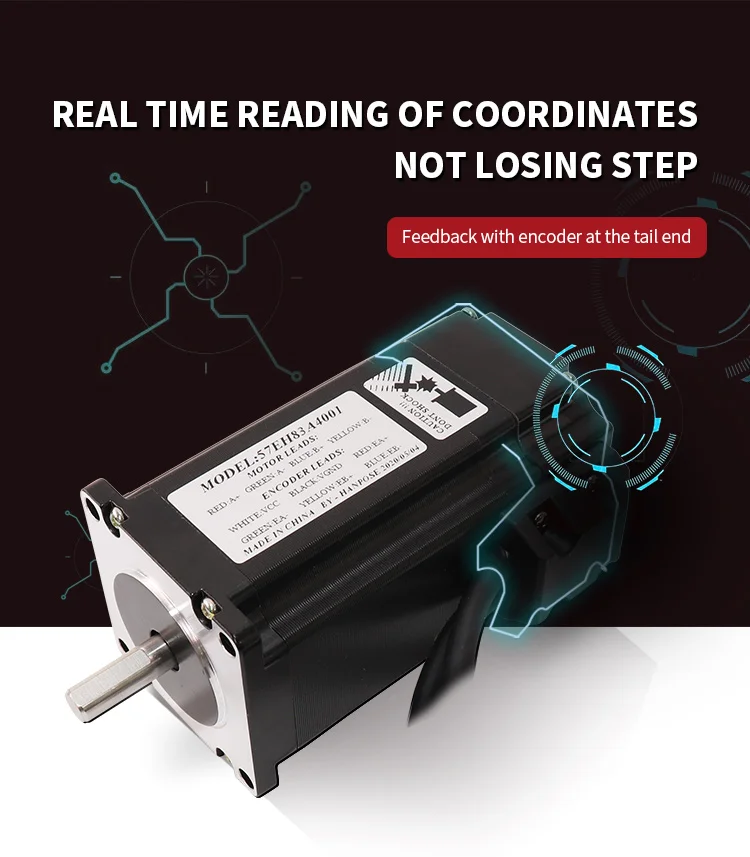

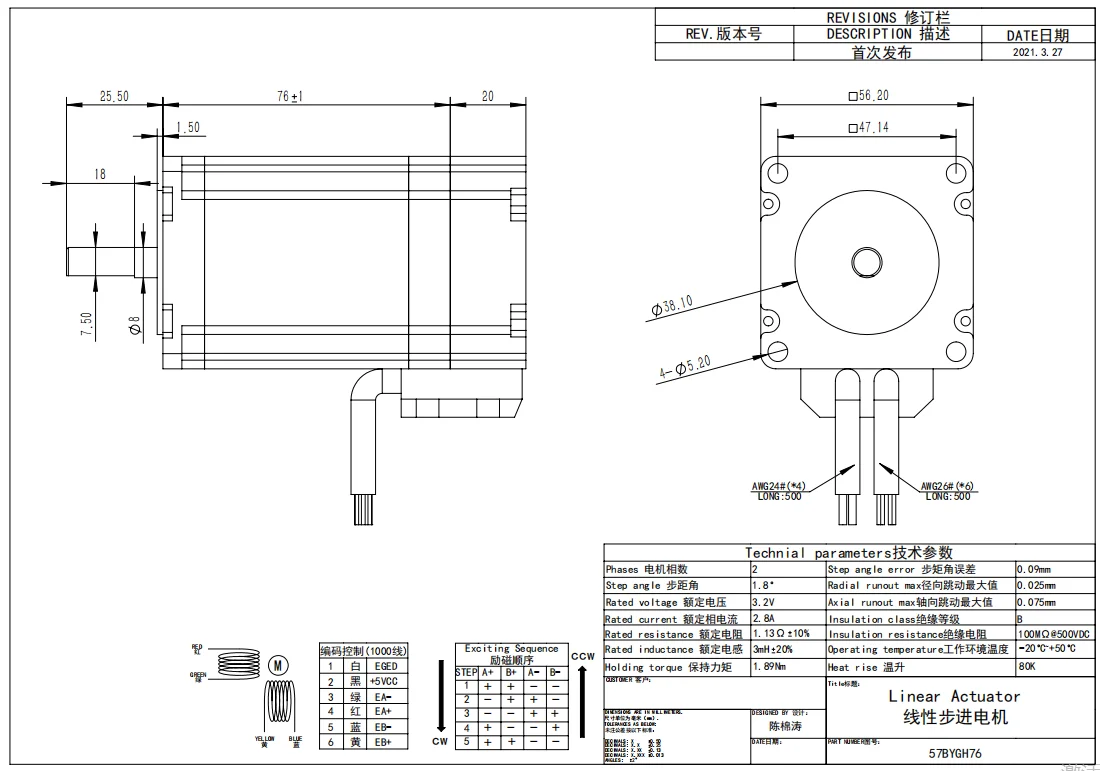

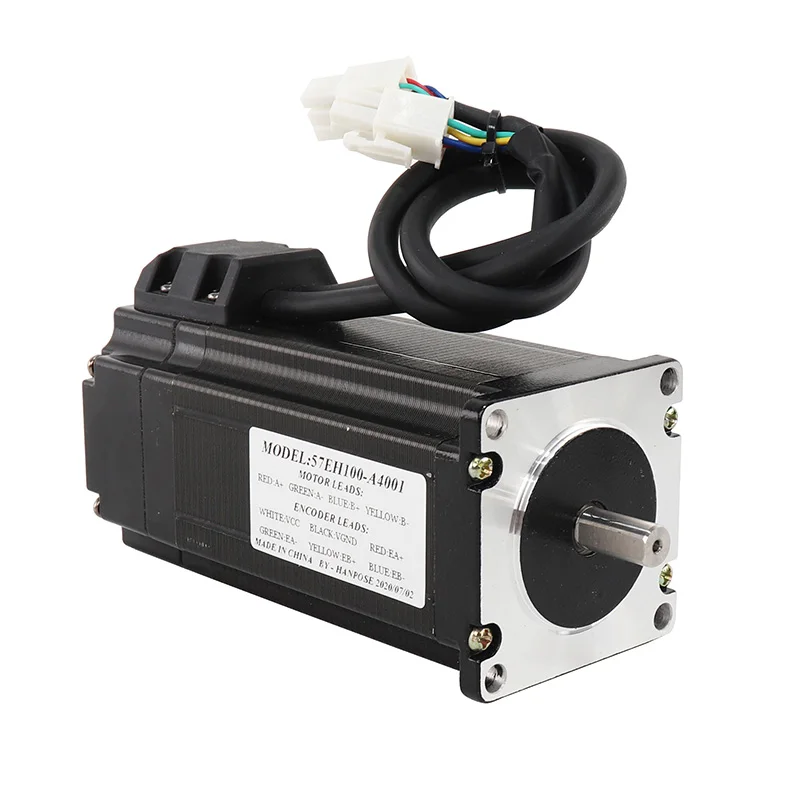

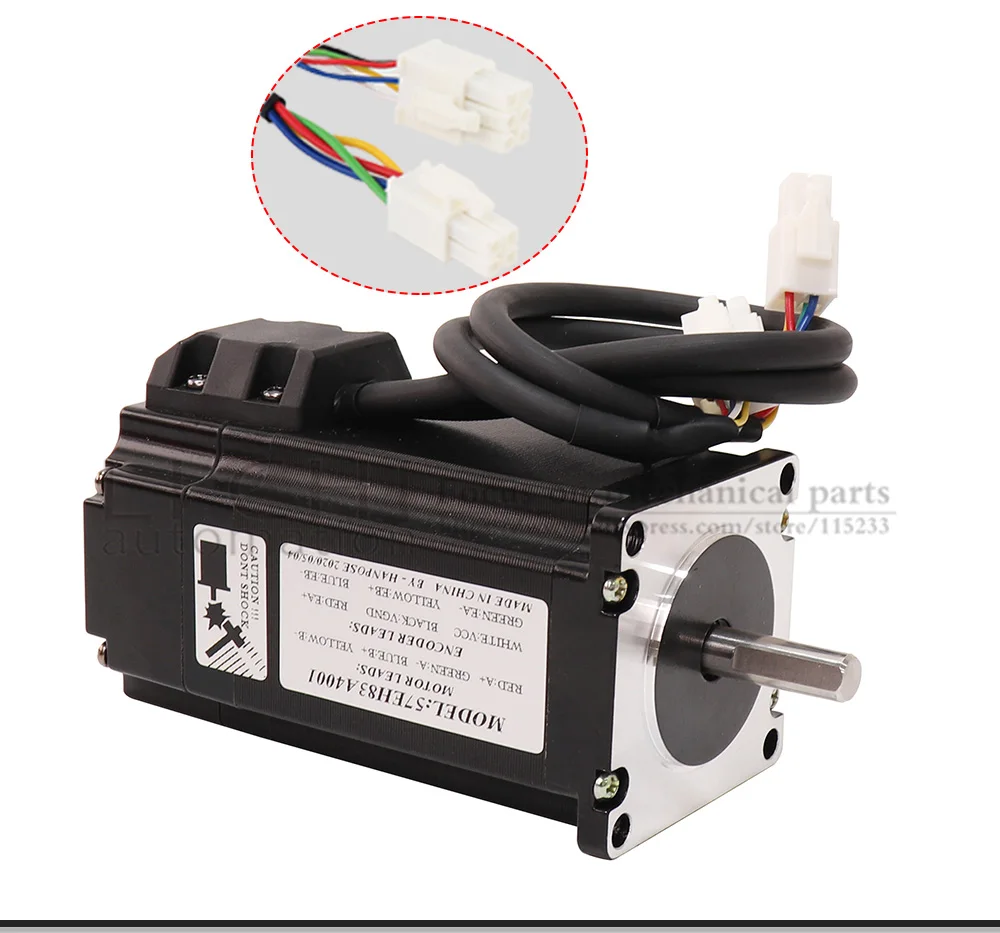

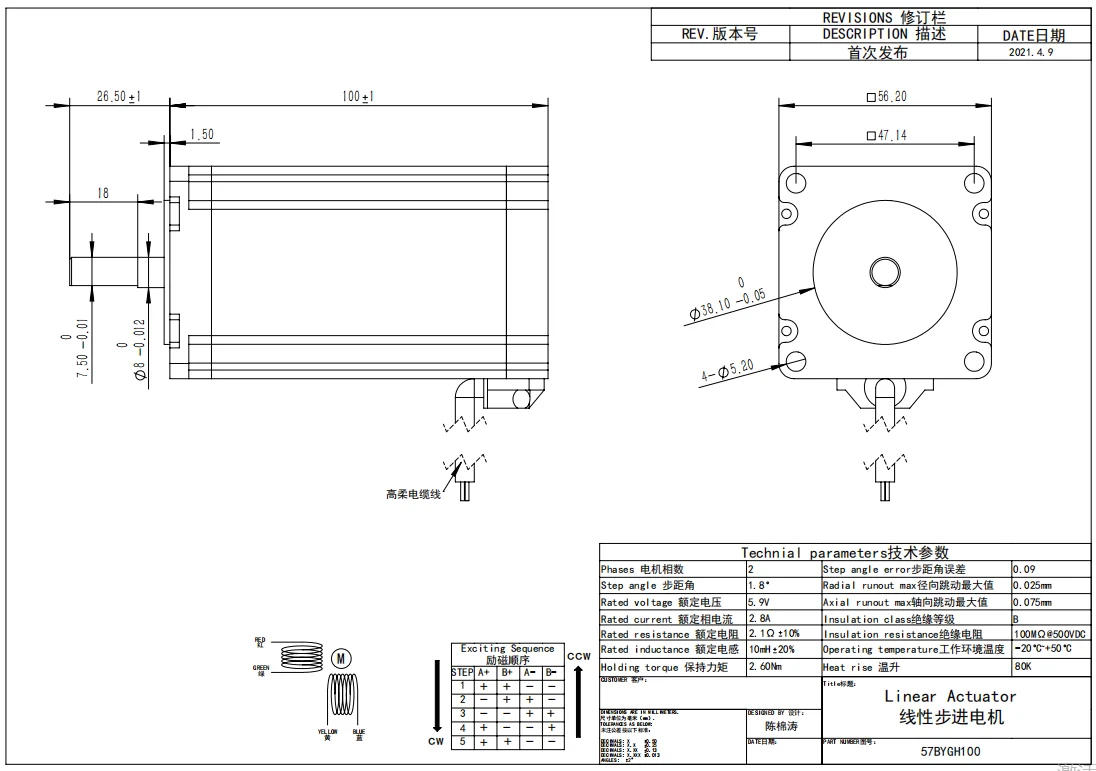

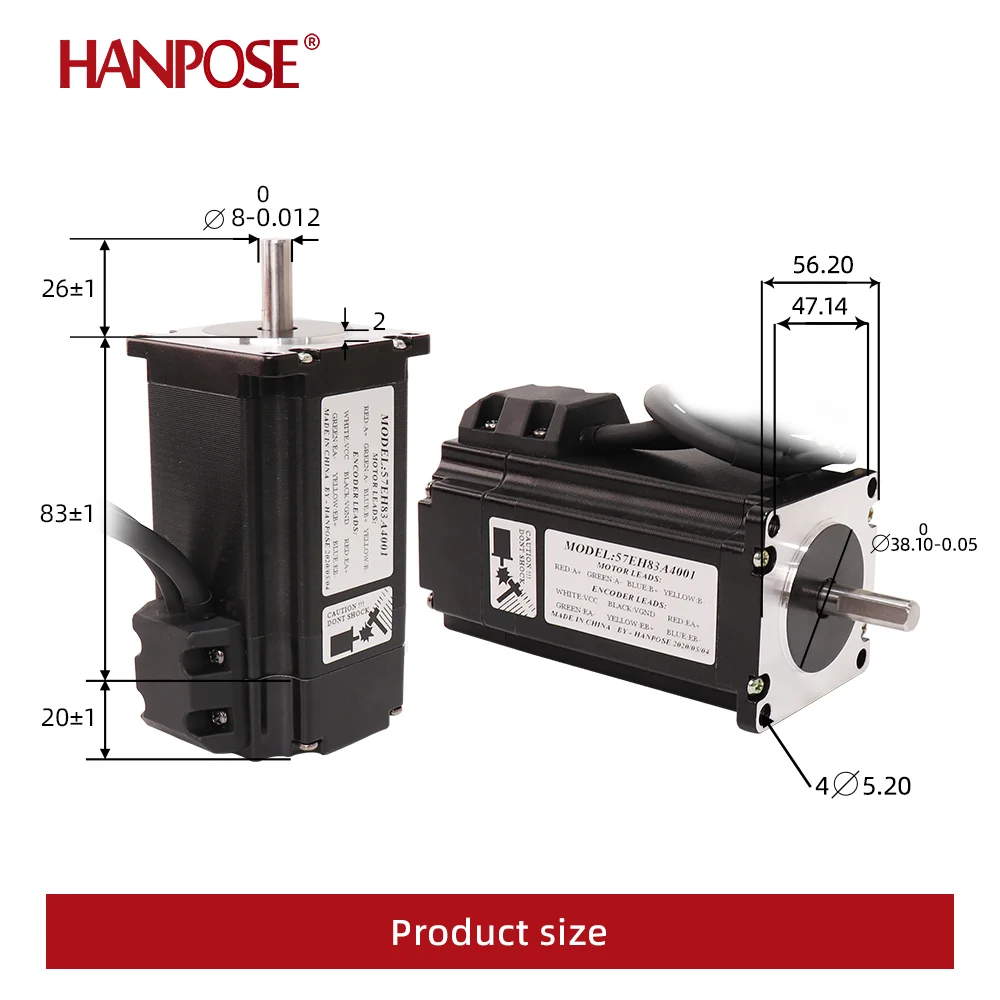

57 closed loop motor

57CME13 current 4A, 57EH56   torque: 1.3N.m shaft diameter: 8mm

57CME22 current 4A, 57EH76   torque: 2.2N.m shaft diameter: 8mm

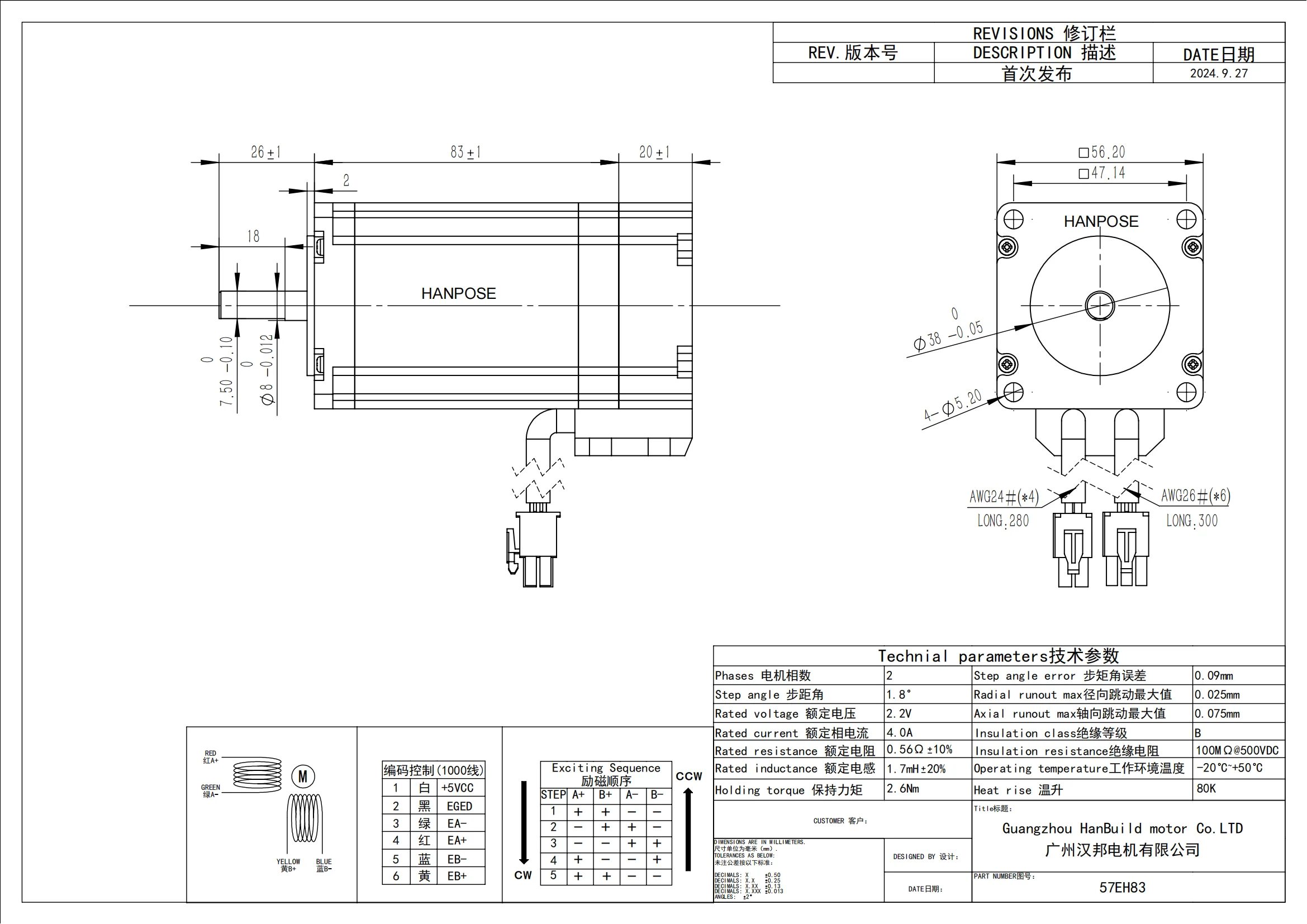

57CME26 current 4A, 57EH83   torque: 2.6N.m shaft diameter: 8mm

57CME33 current 4A, 57EH100 torque: 3.3N.m shaft diameter: 8mm

Rated speed: 1000 rpm, idling speed 3000 rpm

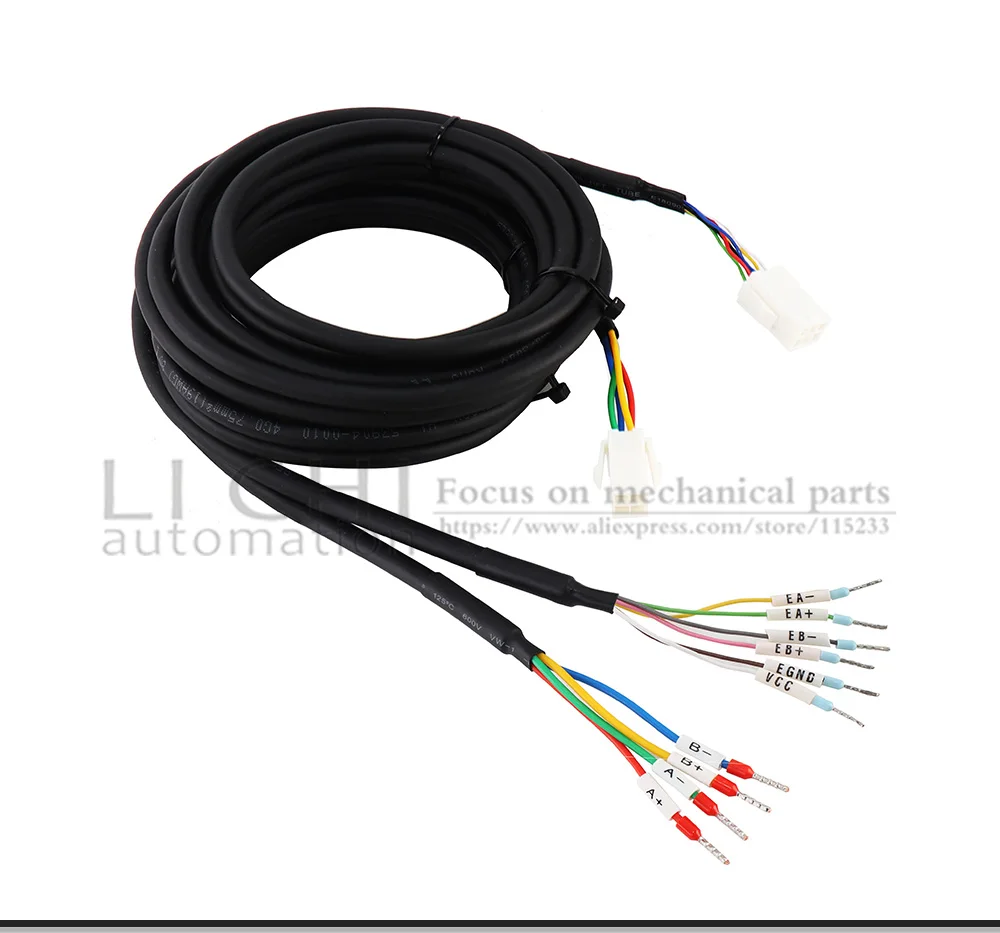

The motor line outlet and encoder outlet default to 1 meters.

Motor line and encoder line are extended by 1 meter = 3USD, which

issold at a low price.

Both the motor line and the encoder line use high-end super-soft

towline cables, which are resistant to cold, water, oil and bending.

10 million TRVVP.

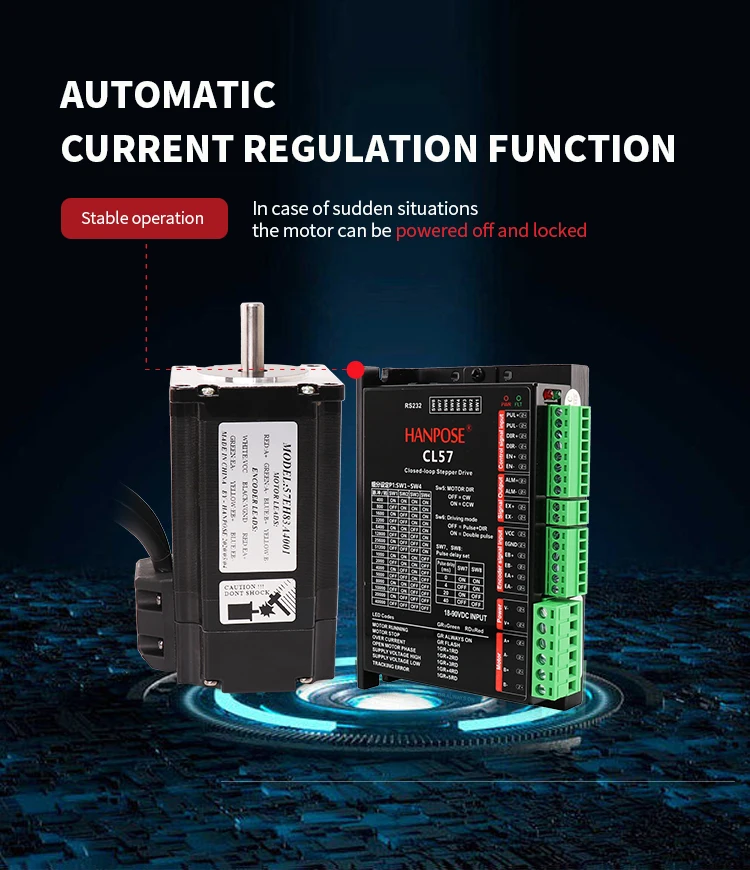

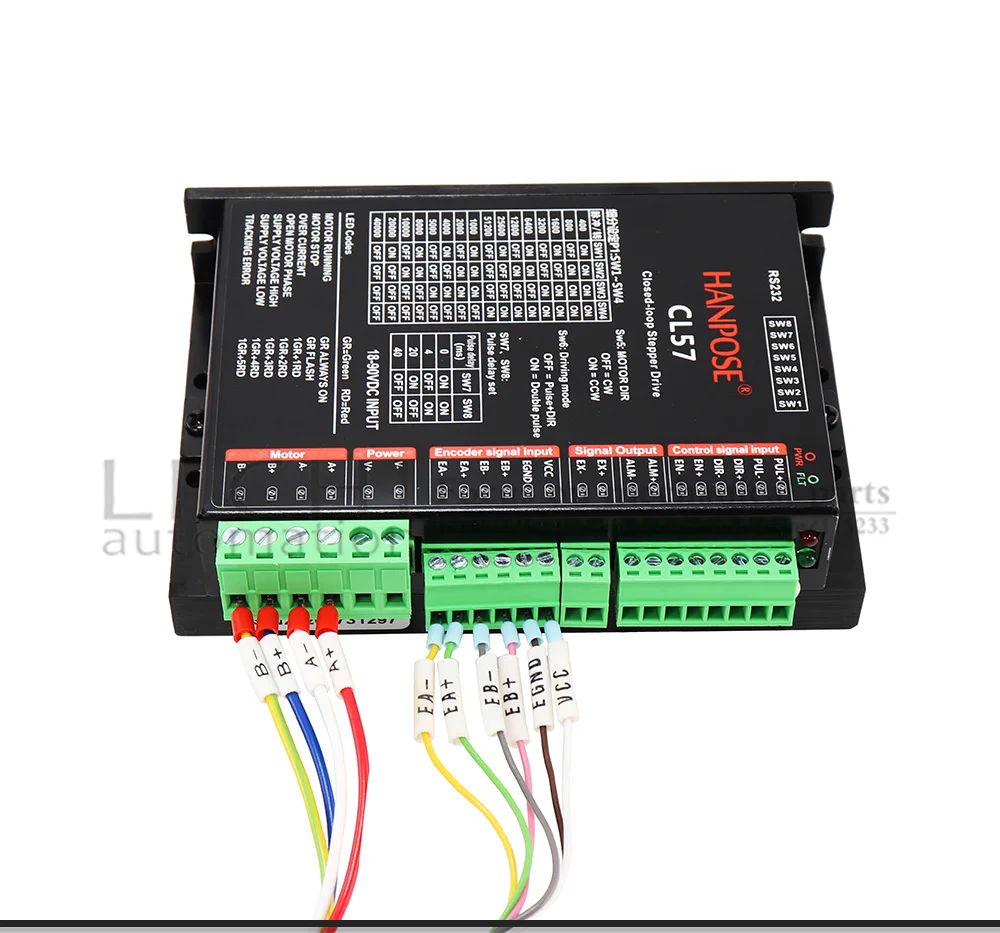

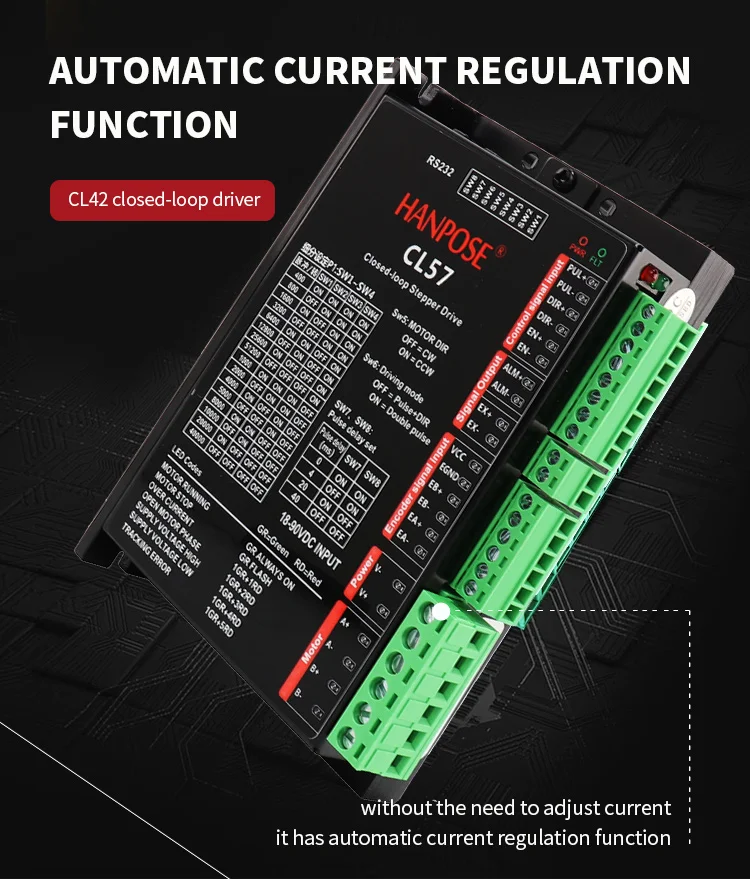

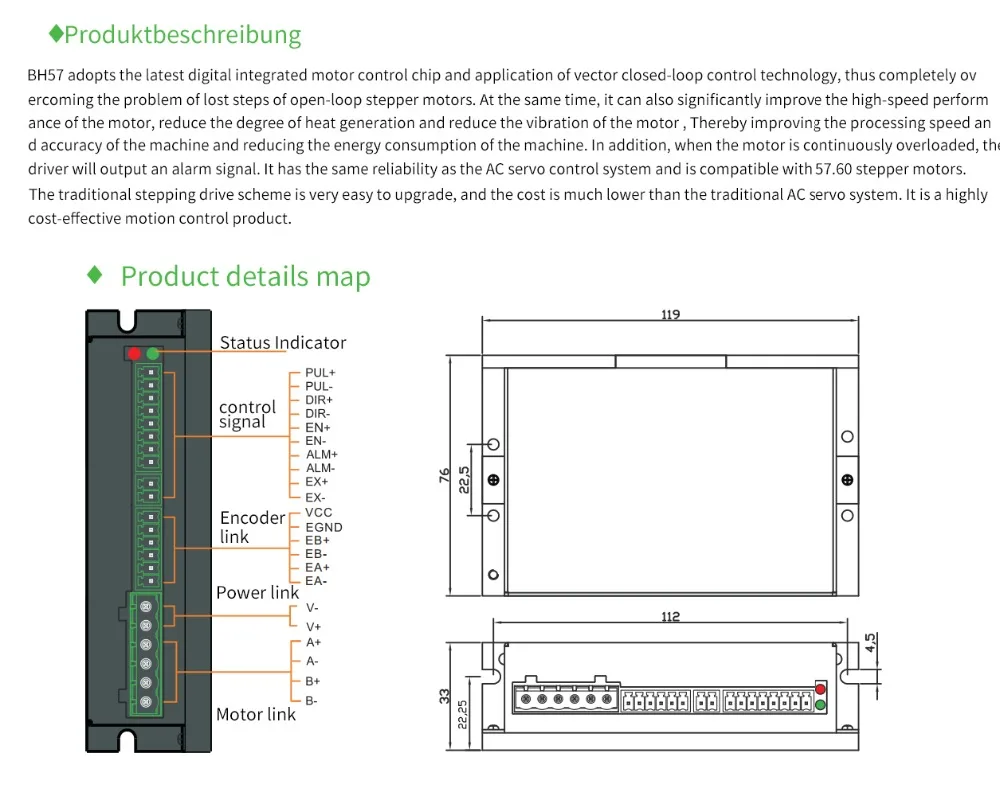

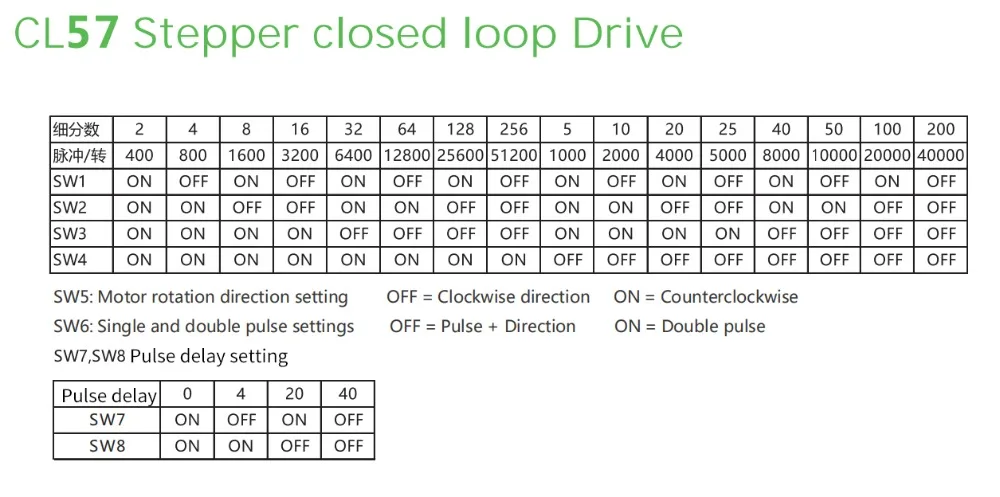

CL57 Driver

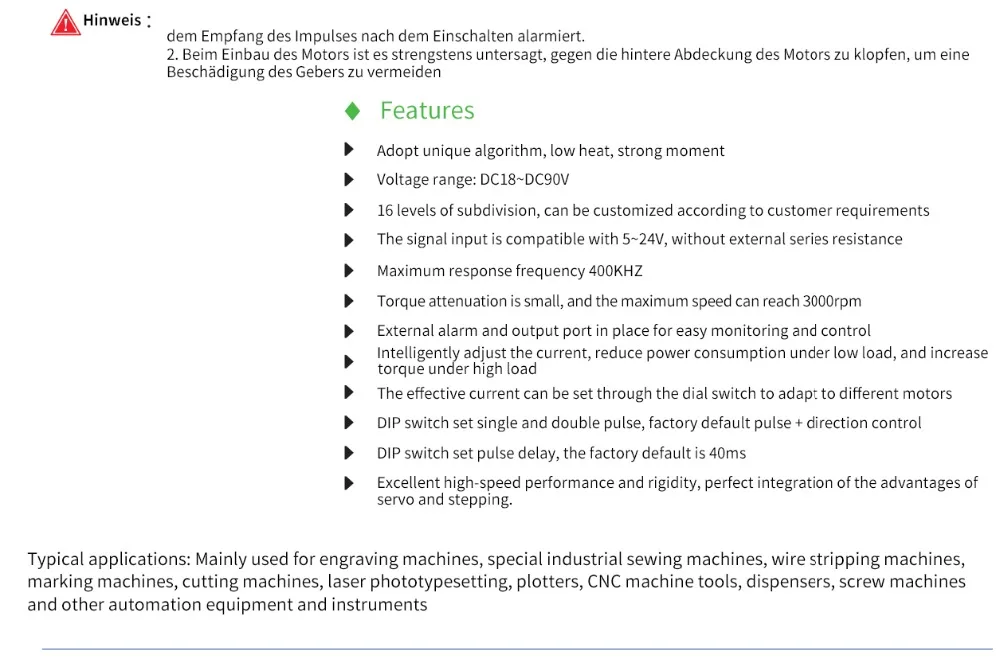

New 32-bit DSP digital 57 closed-loop stepper motor driver, engraving machine, CNC

equipment available. PWM current control, low noise, high speed torque is 40% larger

than ordinary drives.

Drive: CL57

Voltage: DC18-90V

Step angle accuracy: + - 5%(full step,not load)

Resistance accuracy: + - 10%

Inductance accuracy: + - 20%

Temperature rise: 80deg Max(rated current,2 phase on)

Ambient temperature ----------—20deg ~+50deg

Insulation resistance:100MΩ Min,500VDC

Insultion Strength--------500VAC for one minute

6.35mm OR 8mm diameter shaft

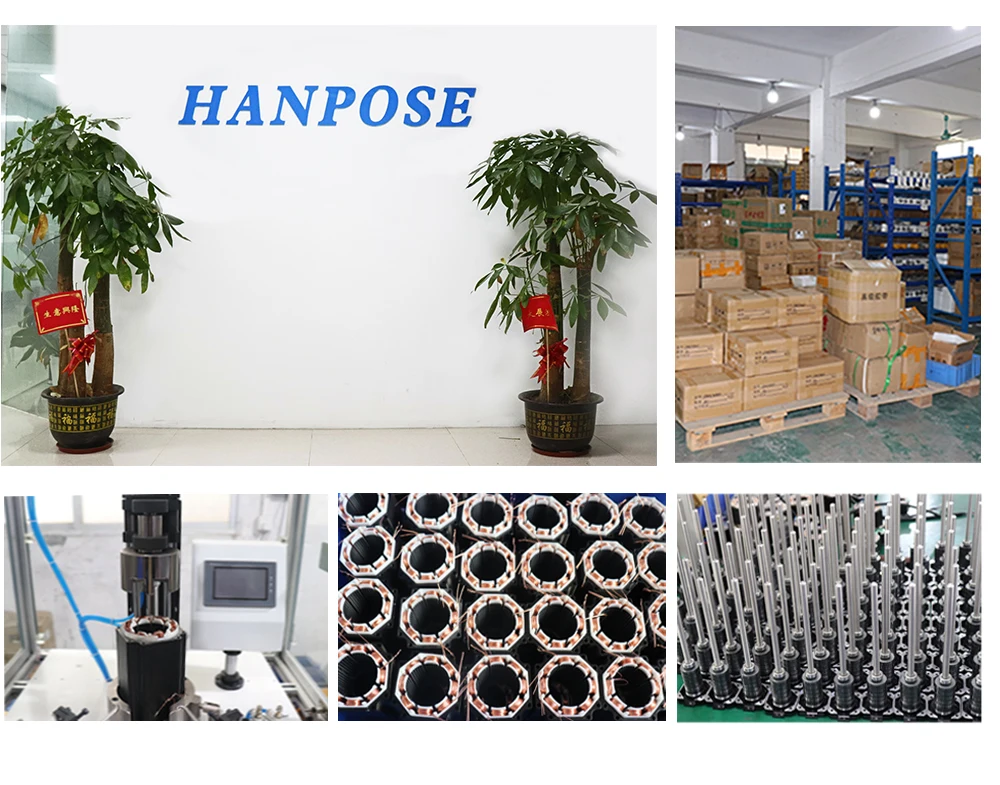

Guangzhou HANPOSE 3d technology co.ltd,
