Bi-directional,150A,Din Rail,Home-Assistant,Zabbix,NodeRed,Solar PV,CE,Three Phase Energy Meter,MQTT,WiFi,NEM,Modbus TCP/RTU

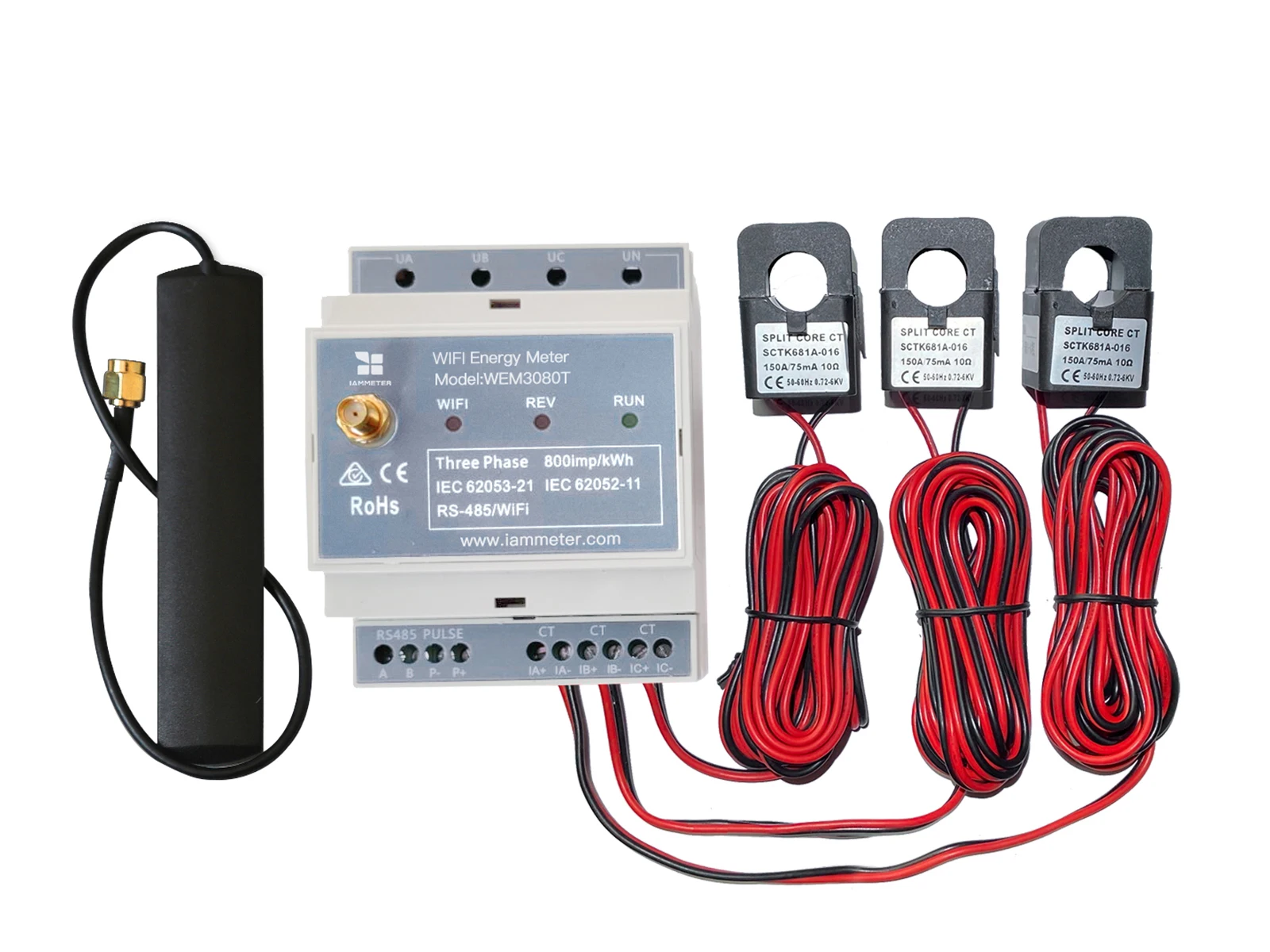

Standard Package

1. Bi-directional WiFi Energy Meter;
2. φ16mm, 150A Split Core Current Transformer;
3. Wi-Fi Antenna

Applicable in the different fields

● Solar PV System Monitoring
● Electricity Usage Monitor/ Energy Monitoring System
● Home Automation

1. Solar PV System

● Exported/imported energy vs solar inverter production
● Electricity bill and solar PV system income statistics

Note: You need two single-phase meters (WEM3080) or a 3-phase meter (WEM3080T) to monitor the entire energy flow of a single phase solar PV system.

For more highlights, please visit https://www.iammeter.com/home/autologin/aliexpress_wem3080T?type=2 to see the system or App demo

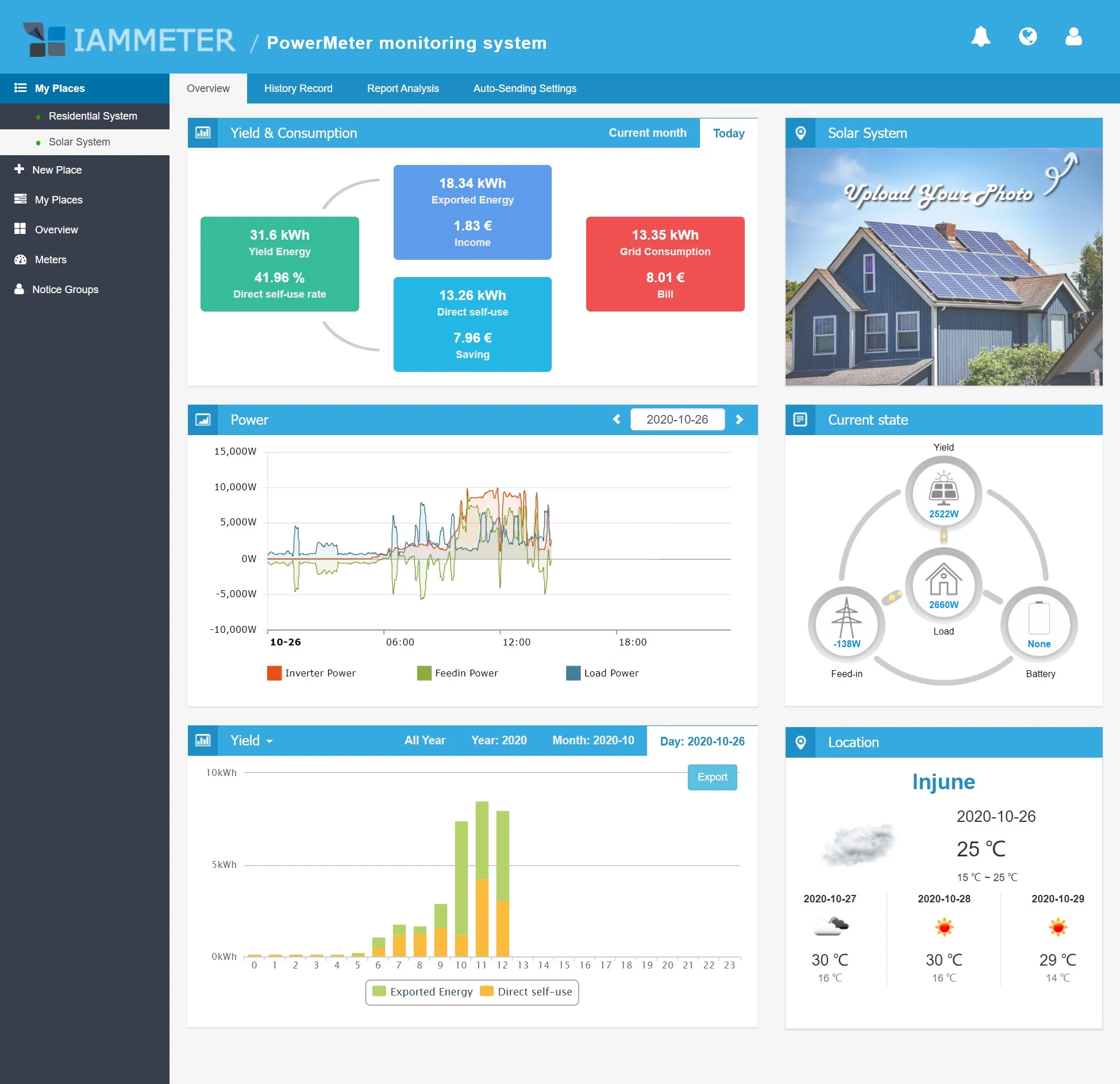

OVERVIEW OF SOLAR PV SYSTEM

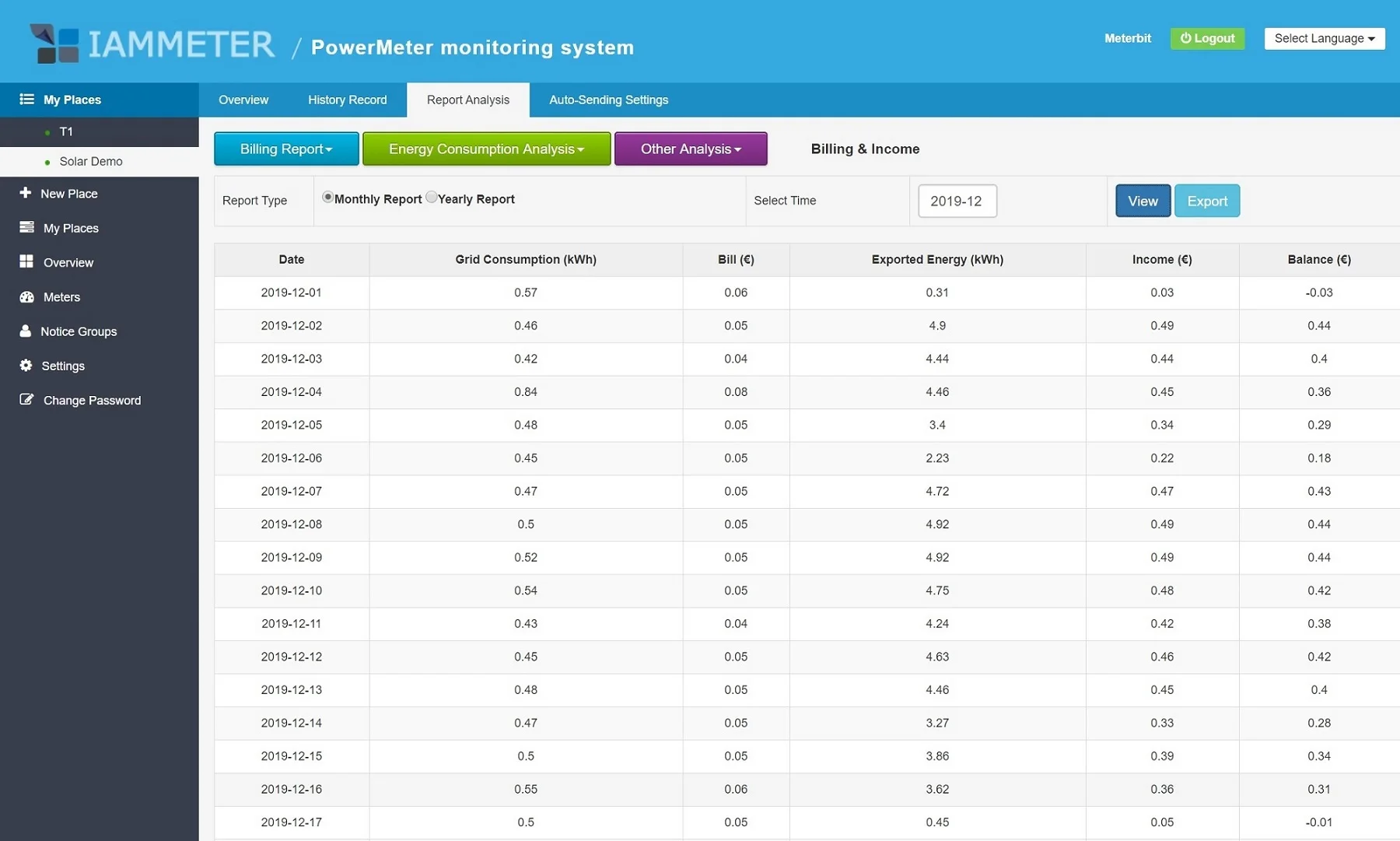

BILLING AND INCOME REPORT
This report shows both total Grid Consumption & Electricity Bill, total Energy Exported & Income, and Balance, on daily/monthly/yearly basis.

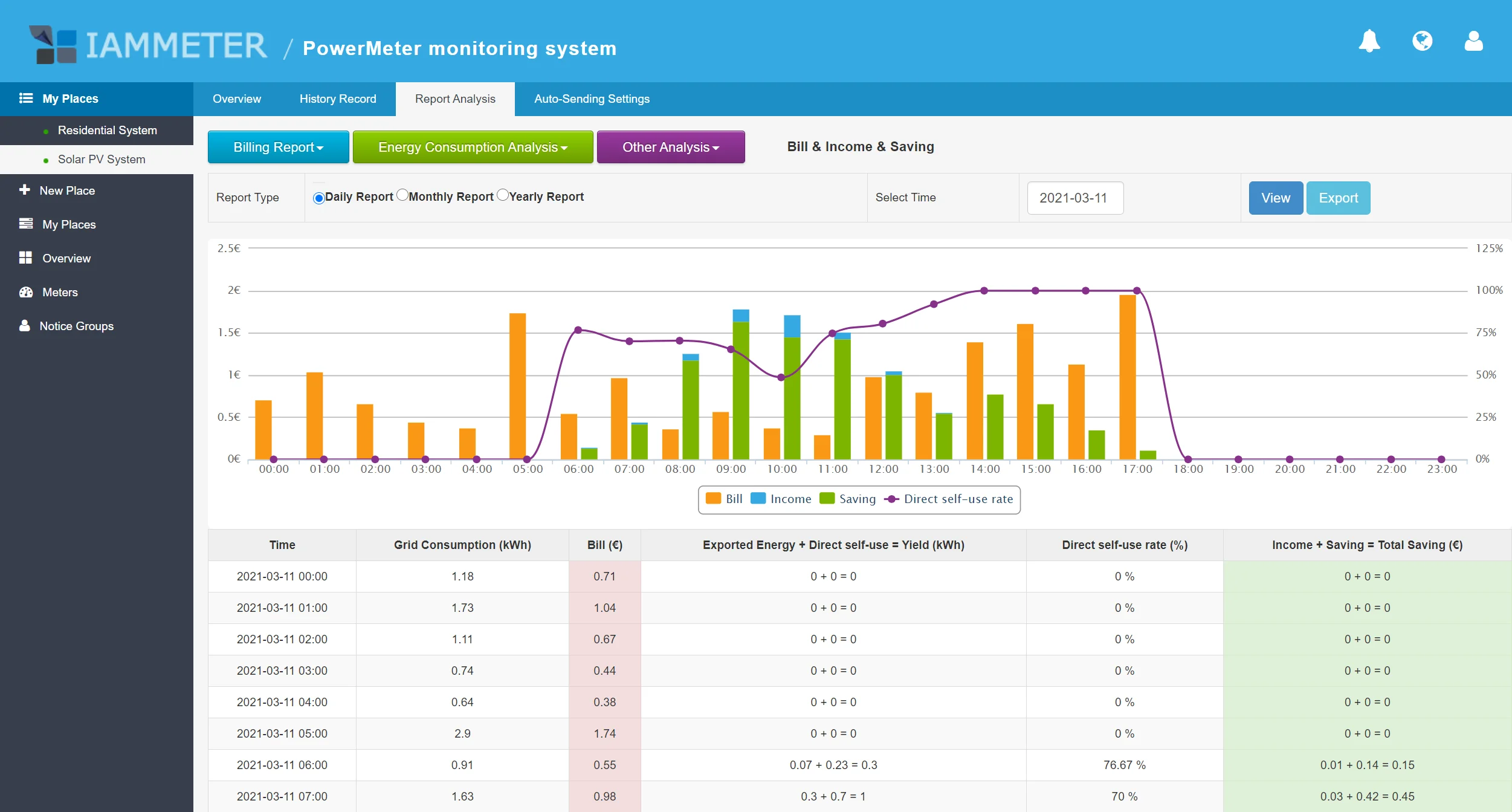

TOTAL SAVINGS REPORT
This report shows Direct Self-use Rate and Total Saving(Money saved by consuming direct self-use energy instead of grid energy + income of exported energy to grid) of your solar PV system.

2. Electricity Usage Monitor/ Energy Monitoring System

● Real-time monitoring of electricity usage
● Electricity bill calculation on the hourly/daily/monthly basis

For more highlights, please visit https://www.iammeter.com/home/autologin/aliexpress_wem3080T?type=3 to see the system or App demo

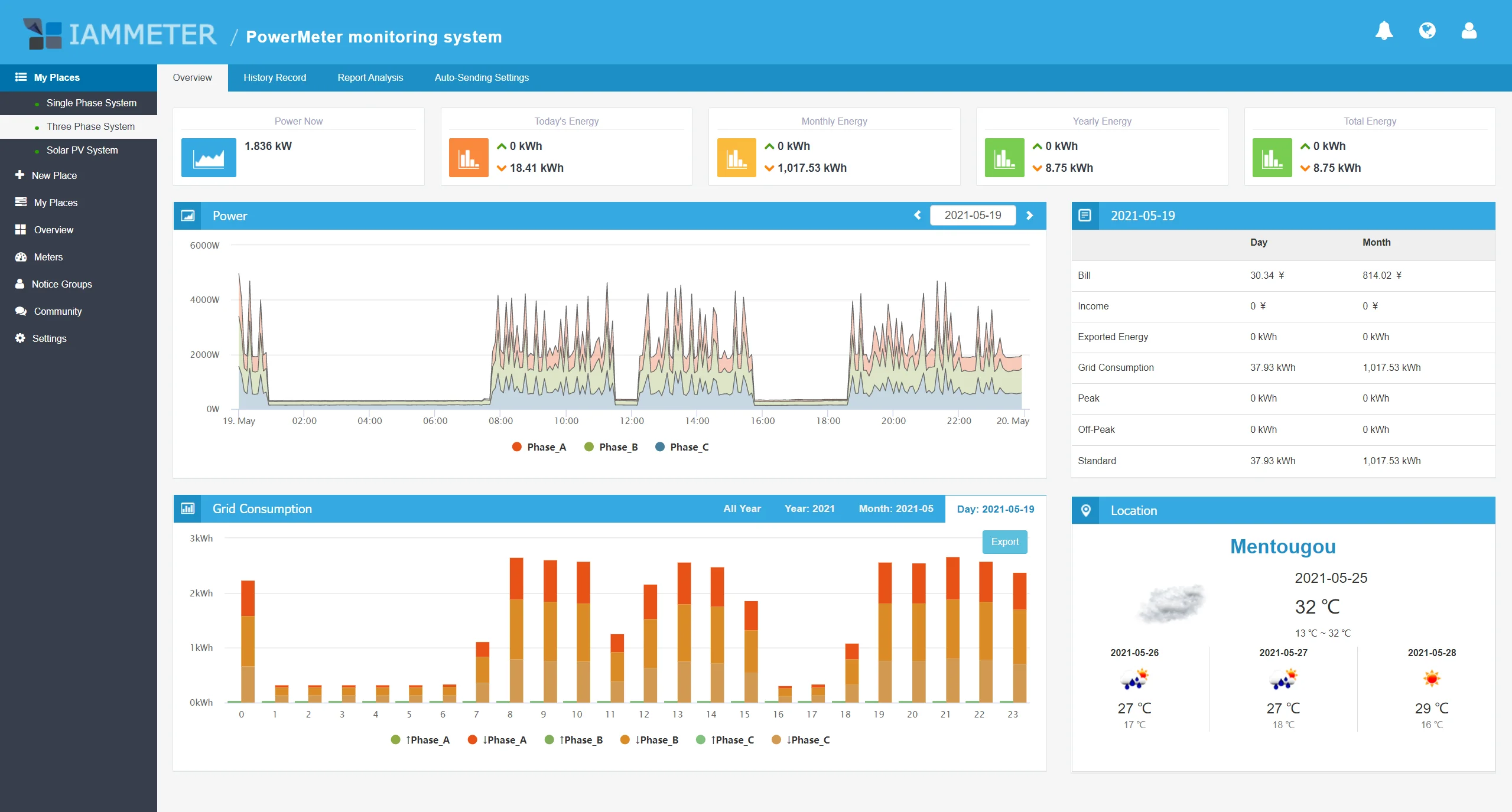

OVERVIEW OF THREE PHASE ELECTRICITY SYSTEM

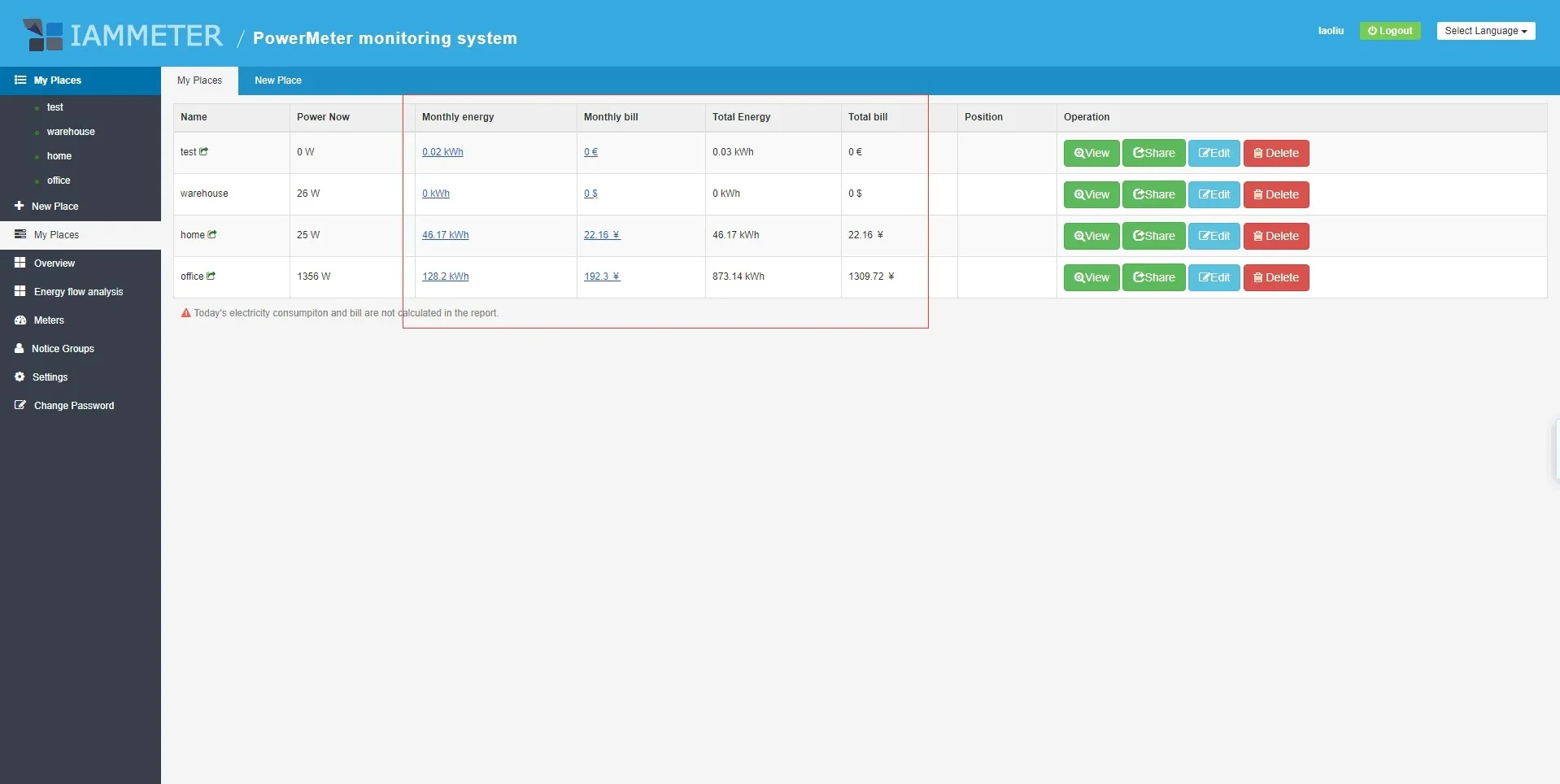

LIST OF POWER CONSUMPTION AND BILL

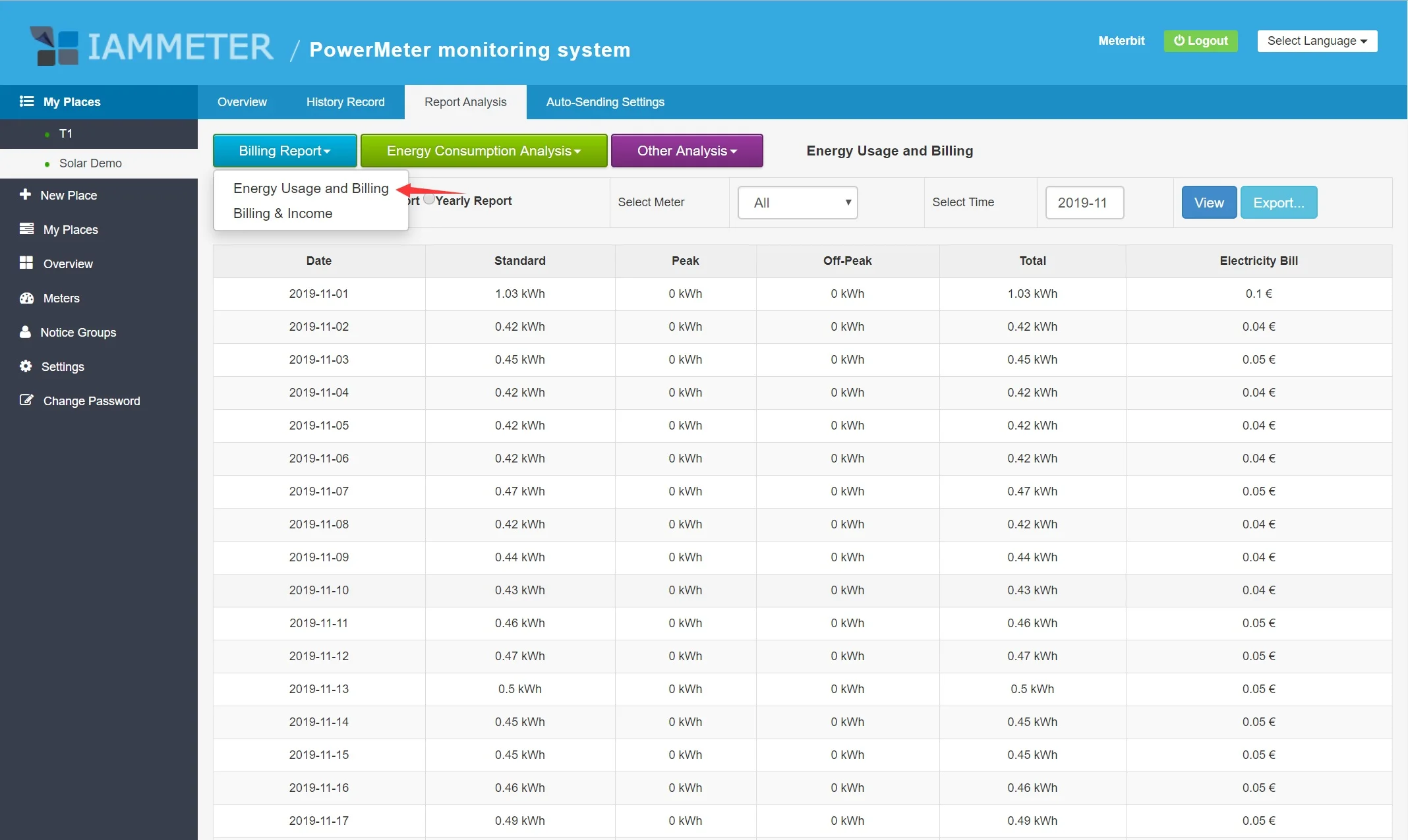

ENERGY USAGE AND BILLING REPORT
This report shows the statistics of Grid Consumption(kWh) and Electricity Bill on different time period (peak-to-valley) on the daily/monthly/yearly basis.

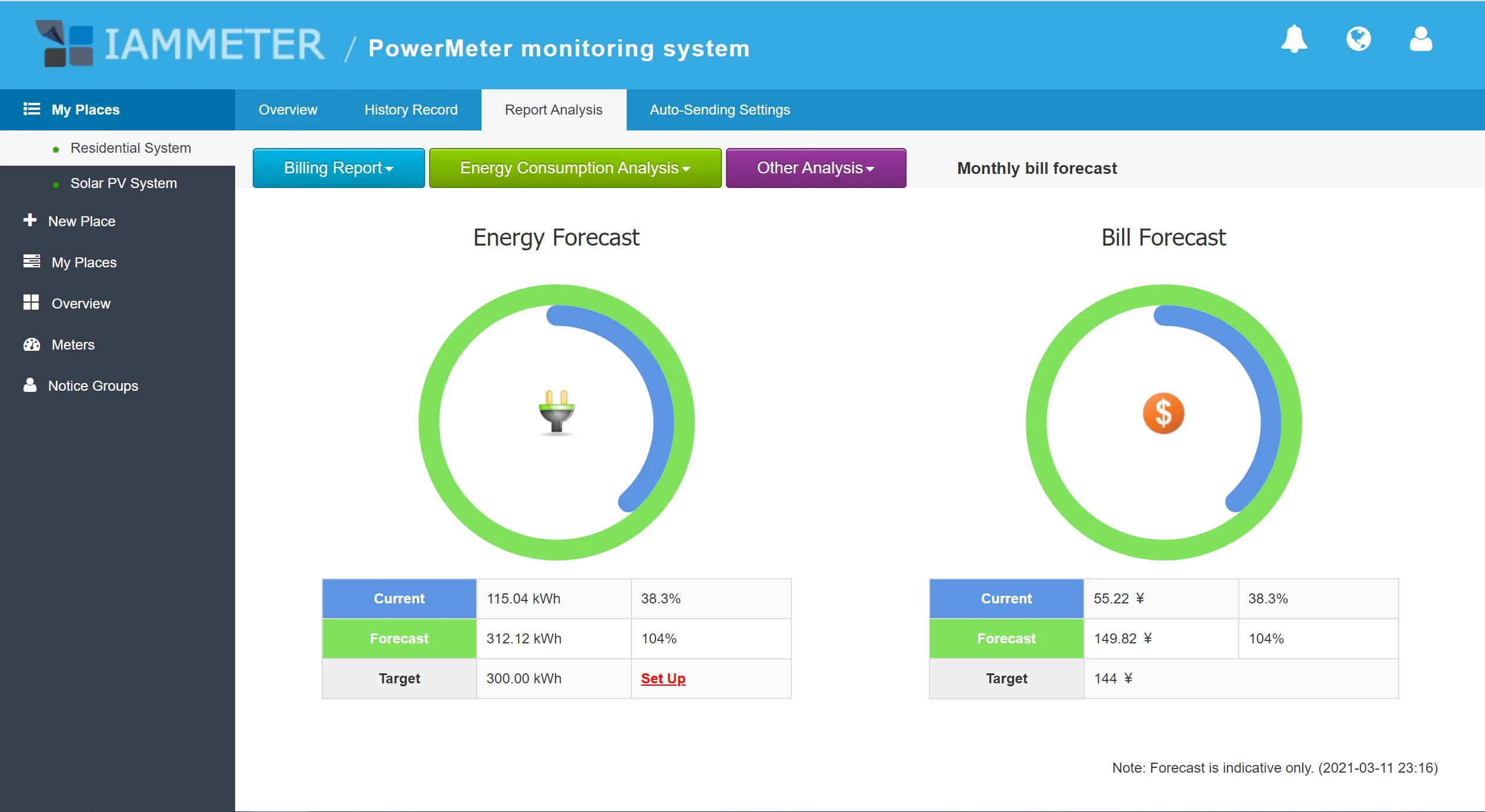

ENERGY CONSUMPTION AND BILL FORECAST
Our system can give you the Energy Consumption and Electricity Bill forecast on monthly basis by learning from your historical energy consumption and the billing method you set.

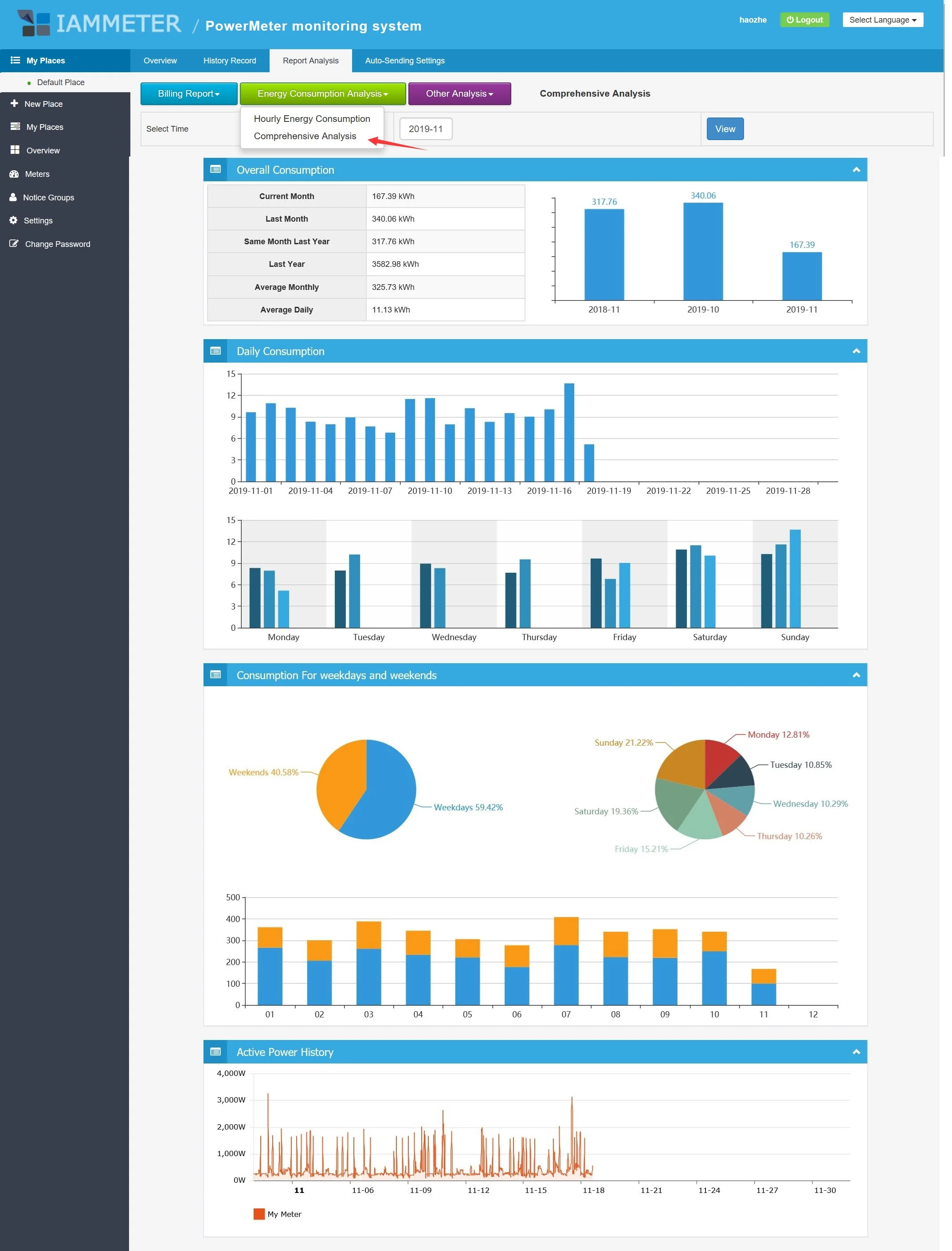

ADVANCED ENERGY CONSUMPTION ANALYSIS REPORT

3. Home Automation

Our Wi-Fi energy meter provides an open API interface for perfect data integration with the home automation system from the third party, such as HomeAssistant, openHAB etc. We will also merge the meters to other platforms soon.

Key Features

1. Bi-directional meter to track the two-way energy ("from grid" and "to grid")
2. DIN-rail mounting fits neatly in the meter box
3. Open API enables perfect integration into third party server (HomeAssistant, PVoutput, your own server...)
4. Web-based Cloud Service and Android/IOS app available on Google Play and Apple Store

5. Three phase meter can be installed in the single phase system (as 3 x single phase meters), or the three phase system, or the split phase system.

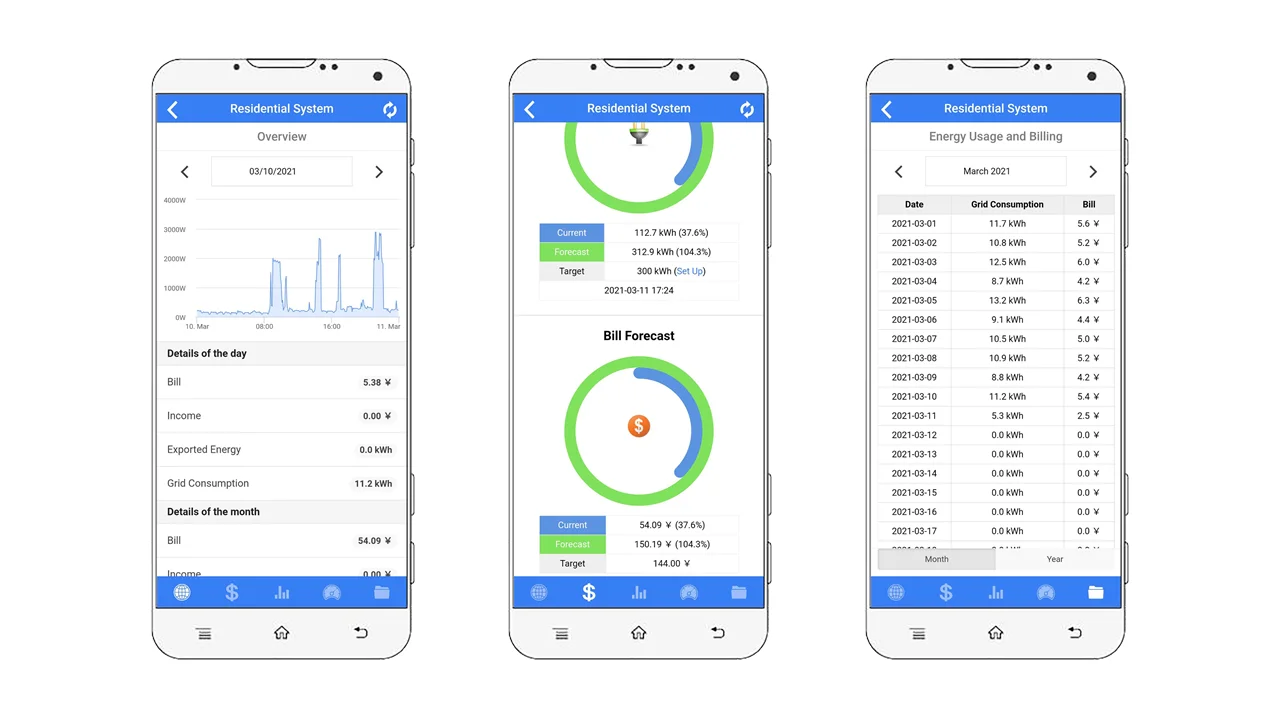

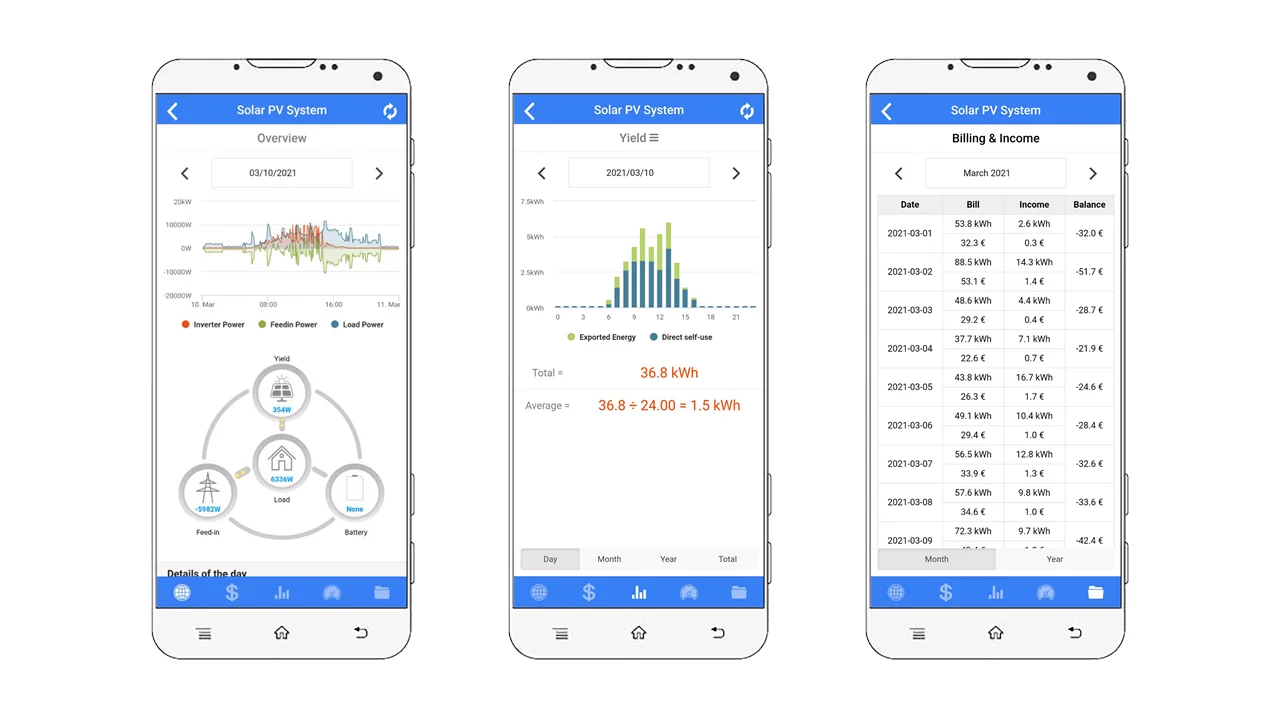

Mobile App

SOLAR PV SYSTEM

RESIDENTIAL ELECTRICITY SYSTEM

APP DOWNLOAD

Certificates

1. CE
2. FCC
3. RCM
4. RoHS

FAQ

Q: Do you charge the cloud service fee?
A: No, the price already includes the permanent cloud service fee.

Q: How can I get the detailed product documents?
A: Please visit https://www.iammeter.com to get all the documents and latest updates.

Q: Other Frequently Asked Questions.
A: Please refer to https://www.iammeter.com/doc/iammeter/FAQ.html for other frequently asked questions.

Note

For environmental protection, no paper instruction is provided in our package. We only provide the online documents on https://www.iammeter.com.
