Heltec HT-BCT50A Lithium Lifepo4 Car Battery Capacity Tester/Charge and Discharge Electric Load Test Machine 5V 50A 250W

HT-BCT50A

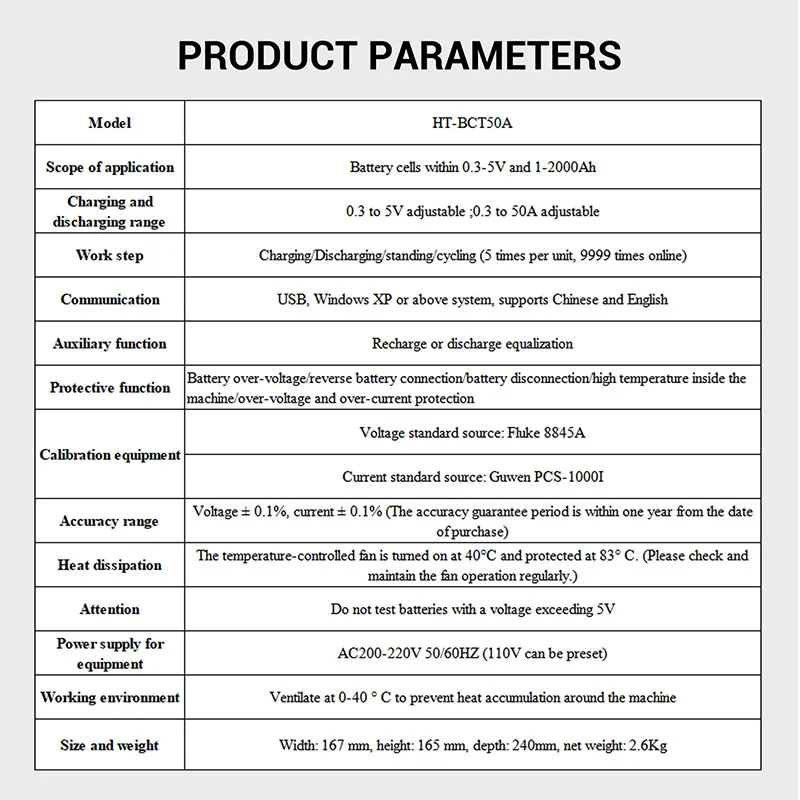

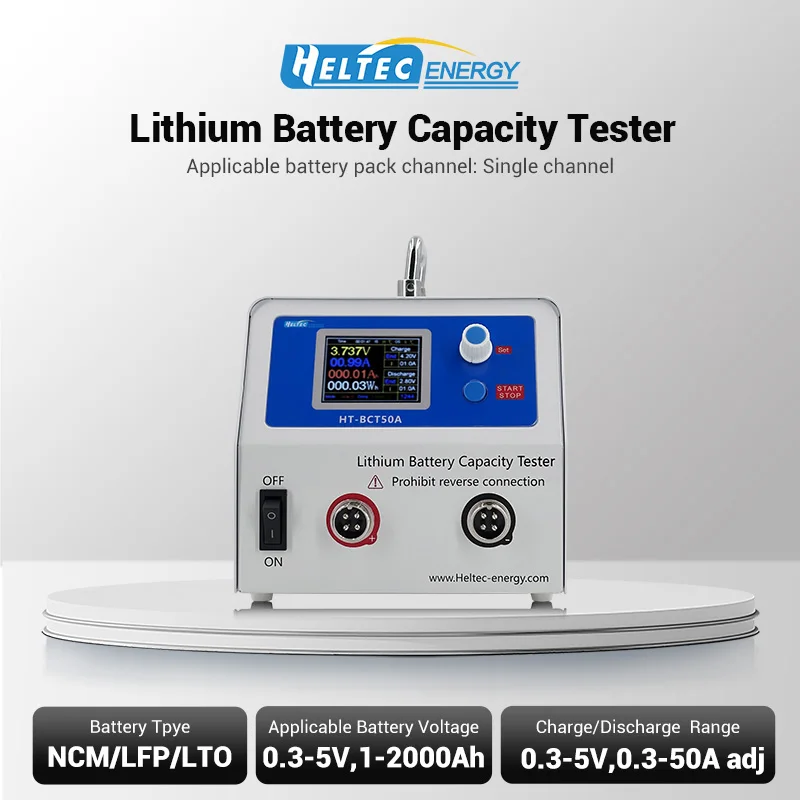

Scope of use:0.3-5V, Battery cell within 1-2000Ah

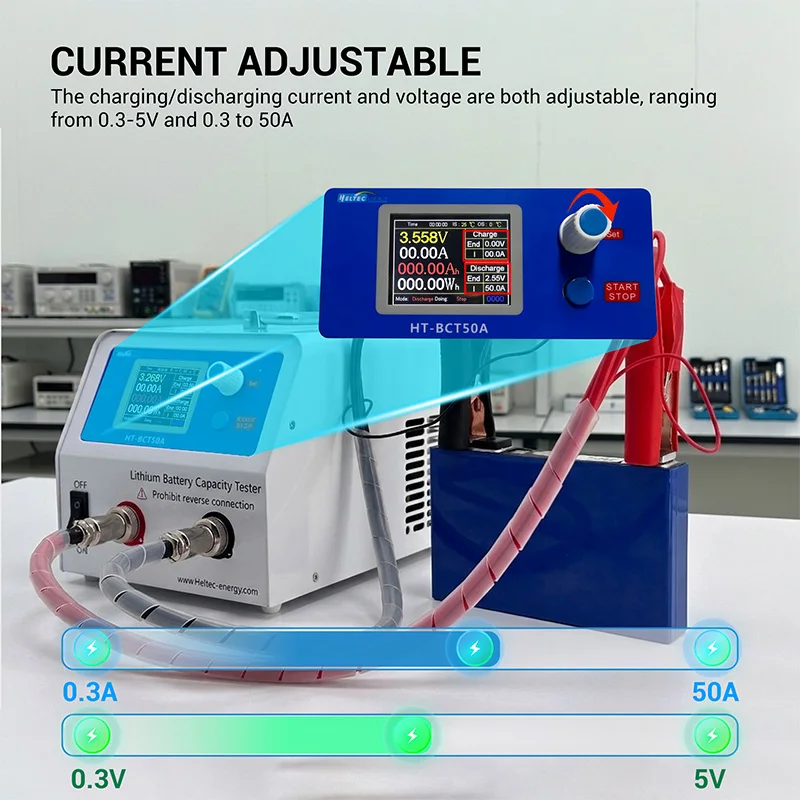

Charging range: 0.3-5V/0.5-50A Adj,CC-CV

Discharge range: 0.3-5V/0.5-50A Adj,CC(No spikes and pulses)

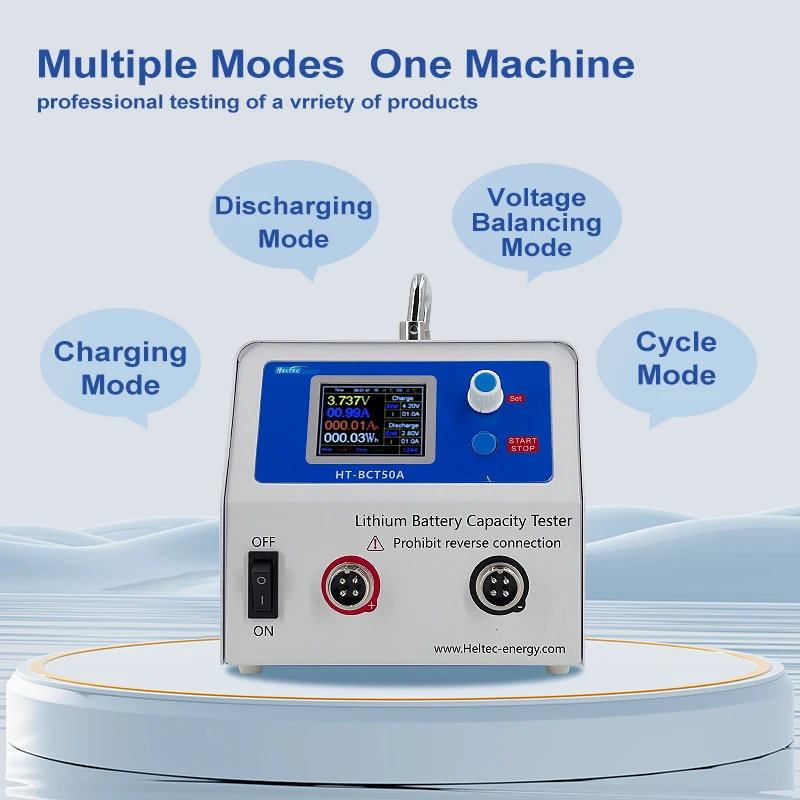

Work step: Charge/Discharge/Rest/Cycle

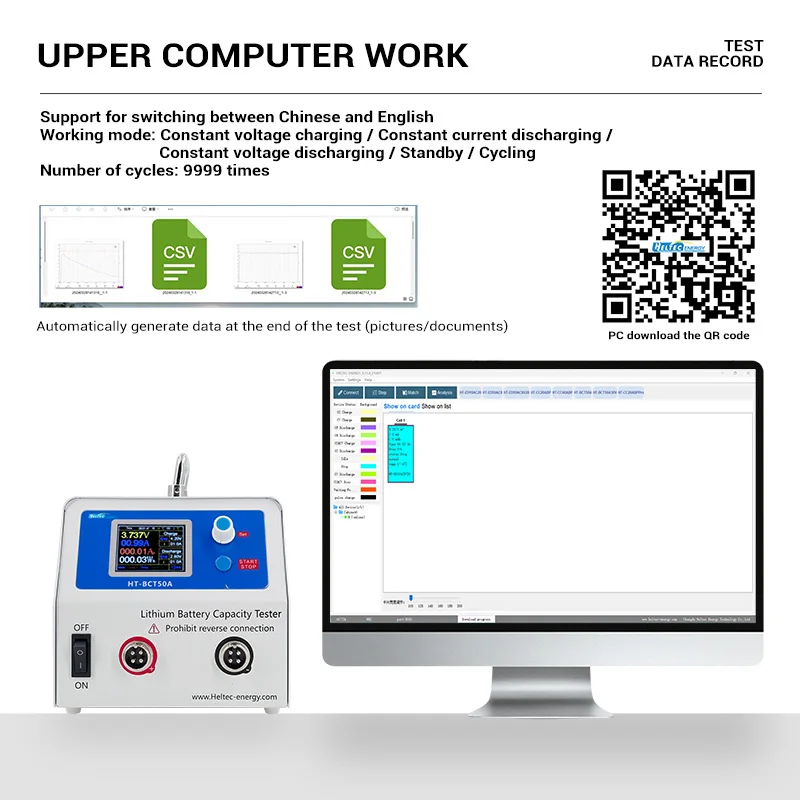

Communication: USB, WIN XP or above systems, Chinese or English

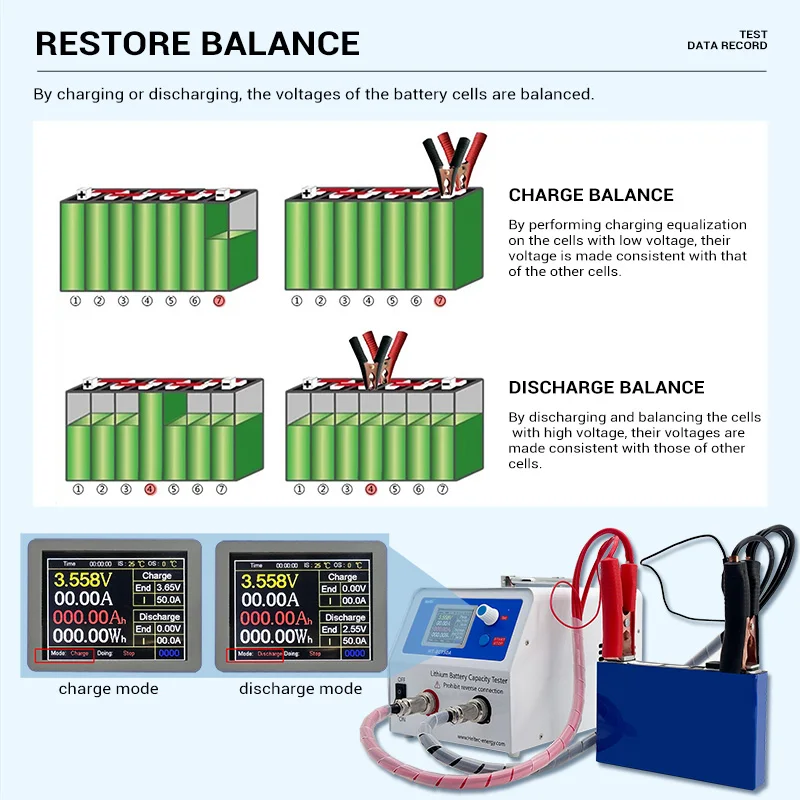

Auxiliary functions :Voltage balancing(Discharge)

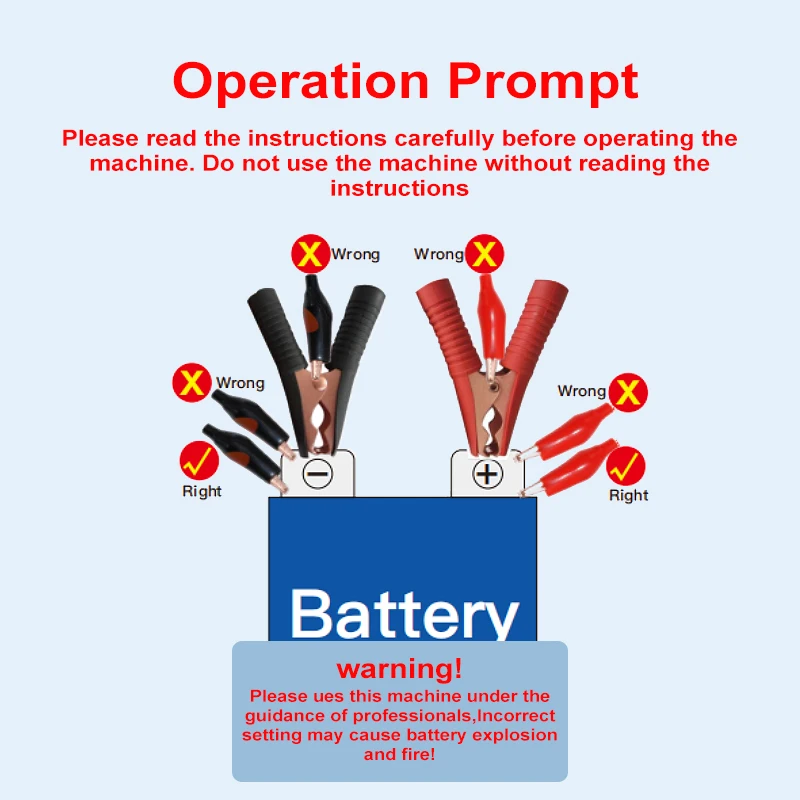

Protective function: Battery overvoltage/Battery reverse connection/

Battery disconnection/Fan not running

Calibration equipment: V: Fluke 8845A , A: Gwinstek PCS-1000I

Accuracy :V±0.1%,A±0.1%(The accuracy is valid for one year from the date of purchase)

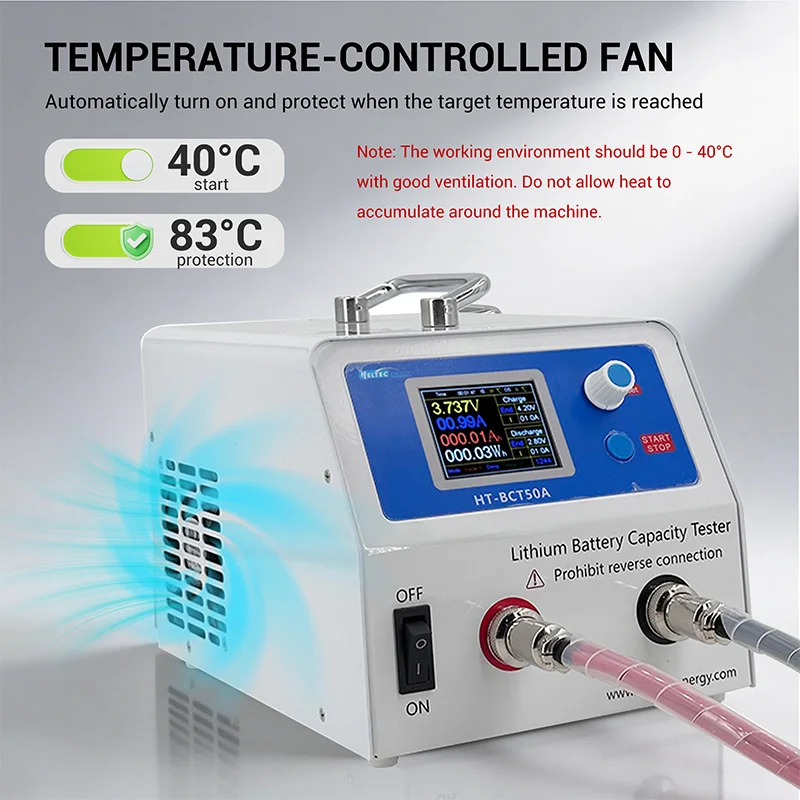

Cooling: Cooling fans open at 40°C, protected at 83°C

Working environment: 0-40°C, air circulation, do not allow heat to accumulate around the machine

Warning:It is forbidden to test batteries over 5V

Power: AC200-240V 50/60HZ AC110V for US plug

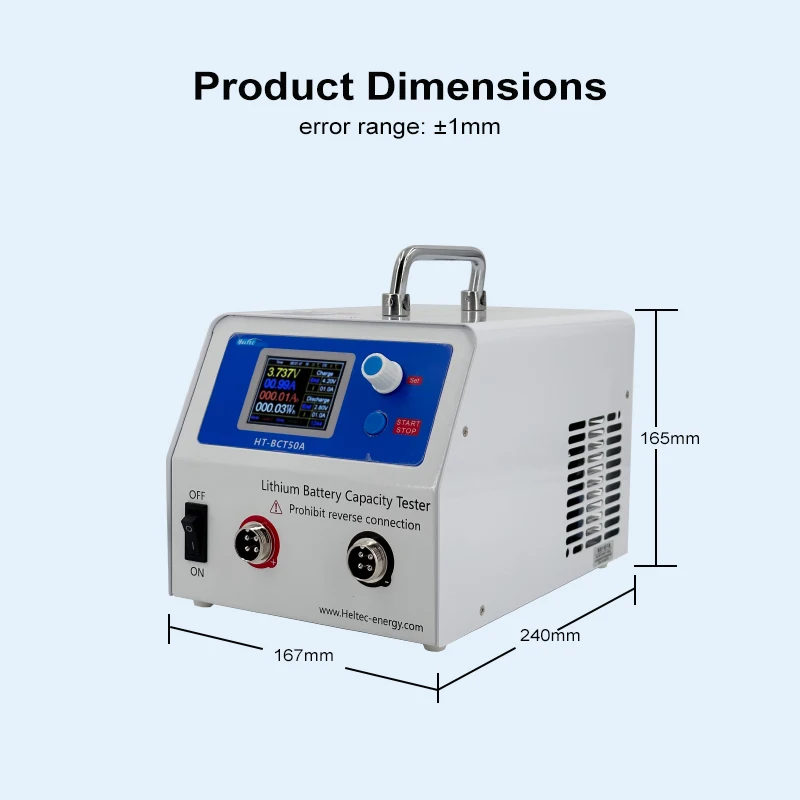

Size and weight Product Size 167 165*240mm,Weight 2.5Kg

Feature

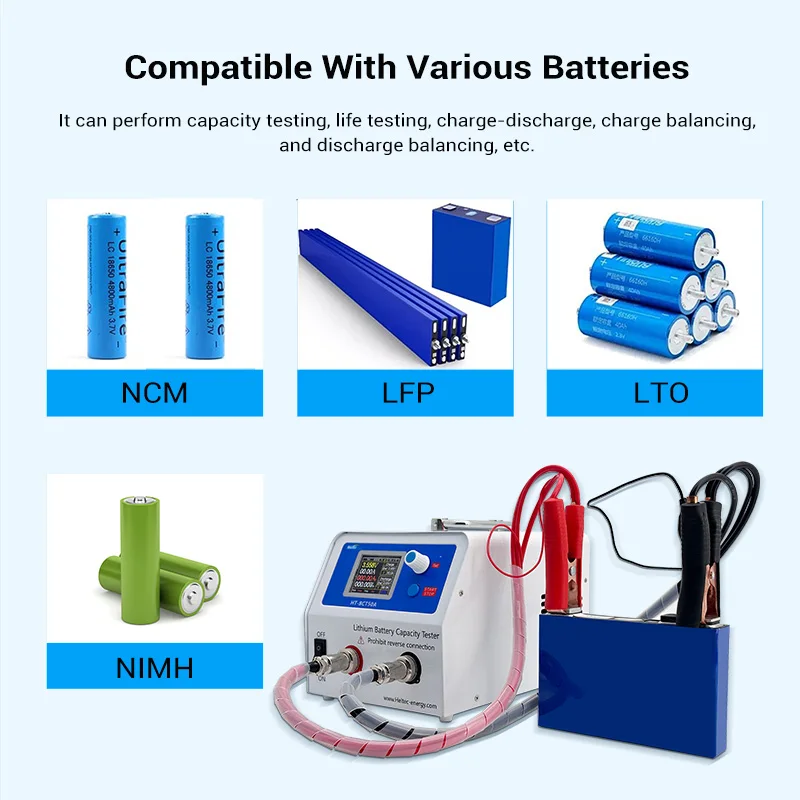

1. Compatible with Multiple Battery Types

Supports NMC Li-ion, LiFePO4, NiMH, and lead-acid cells under 5V, suitable for various testing needs.

2.All-in-One Testing Functions

Offers charge/discharge capacity test, recharging, discharging, voltage balancing, and aging test — all in one device.

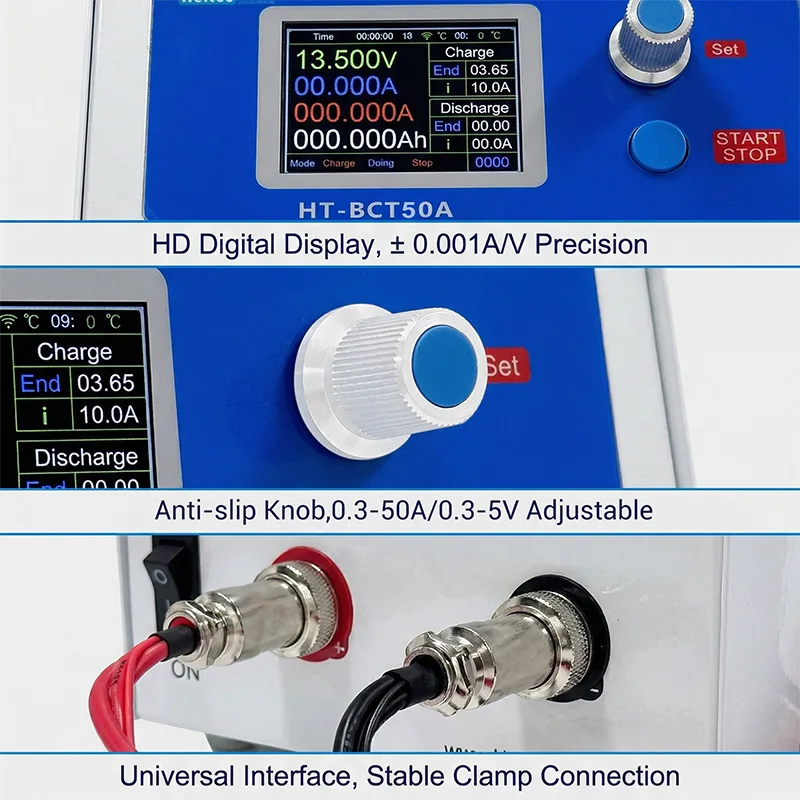

3.High-Precision Measurement

Equipped with high-accuracy sampling circuitry, ensuring reliable and consistent test results for both R&D and production.

4.Compact and Lightweight Design

Small footprint and portable design make it easy to use in labs or production environments.

5.CE Certified for Safety

CE-certified for safety and quality assurance, providing peace of mind during operation.

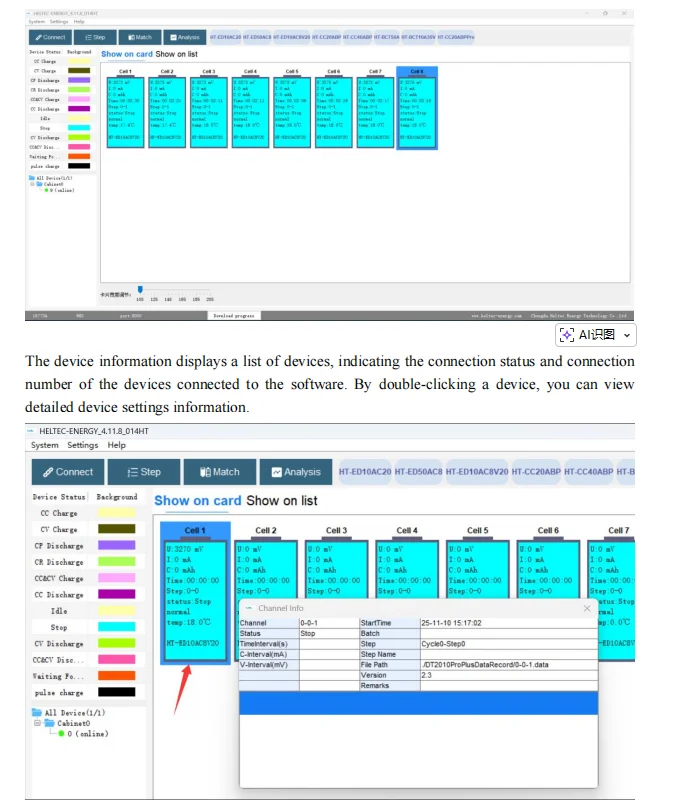

Software

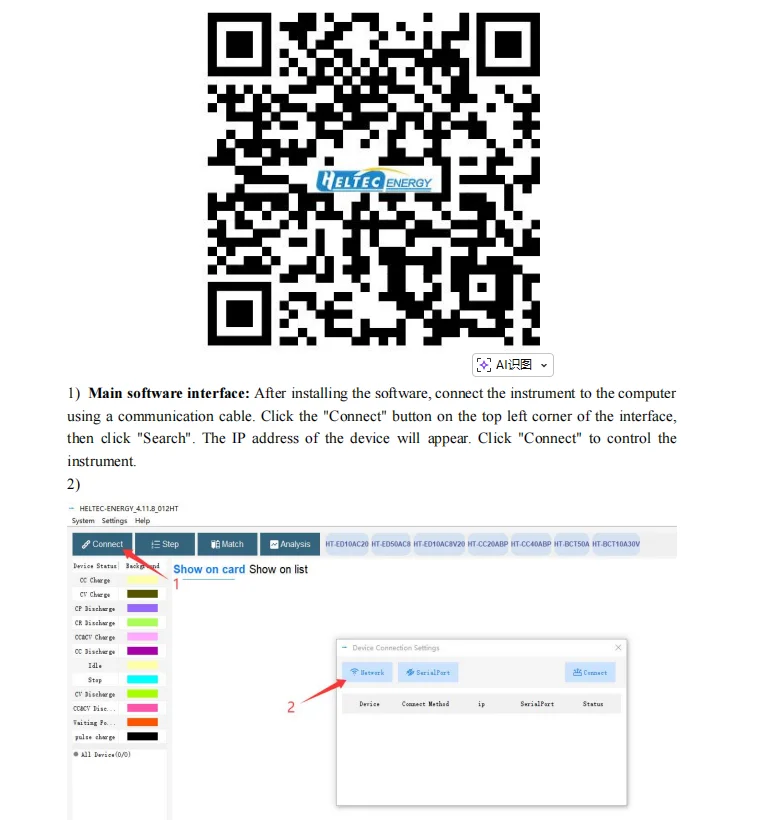

Scan the code to download the software
