Heltec Energy HT-SW01H Spot Welding Machine 21KW High Current Pulse Battery Welding Machine for 18650/LiFePO4 Battery AT/MT

Description

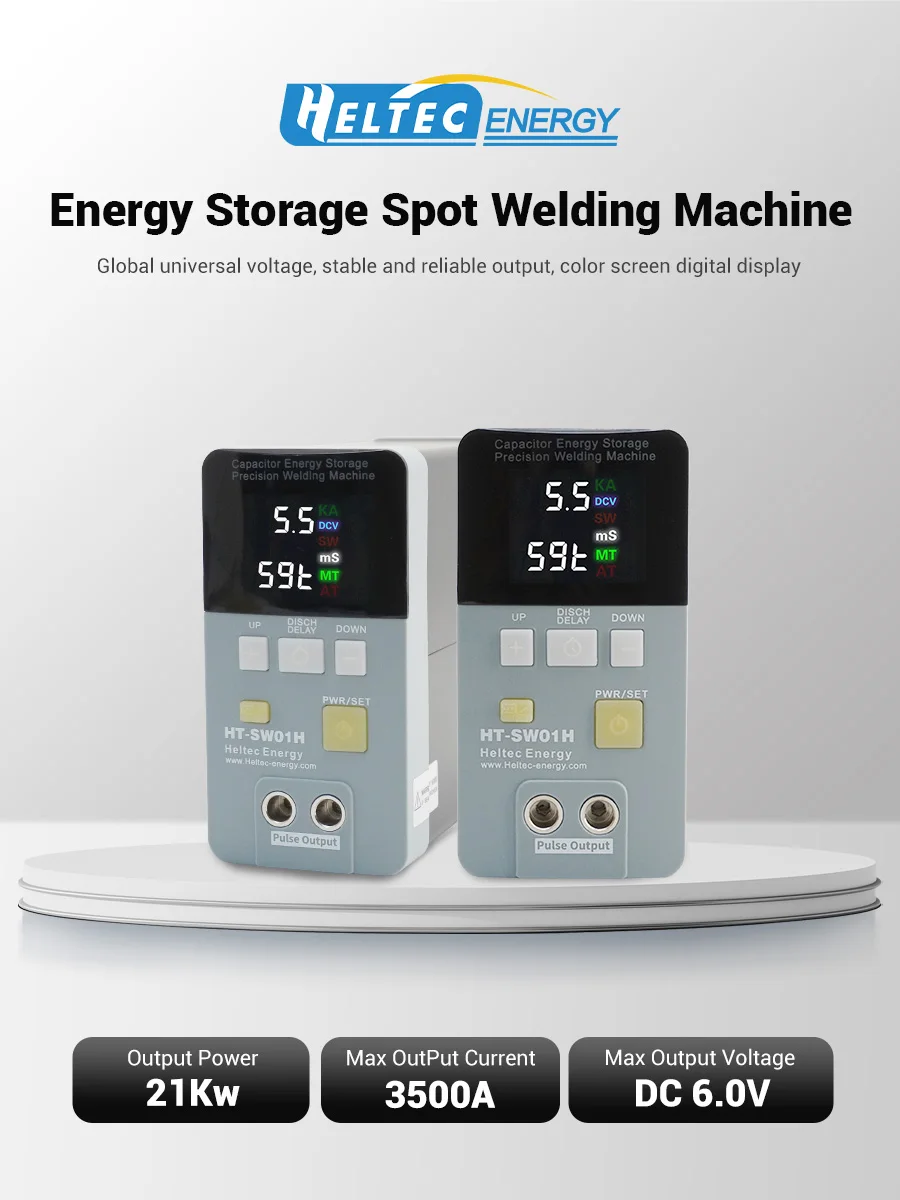

HT-SW01H Capacitive Spot Welder | Detailed Description

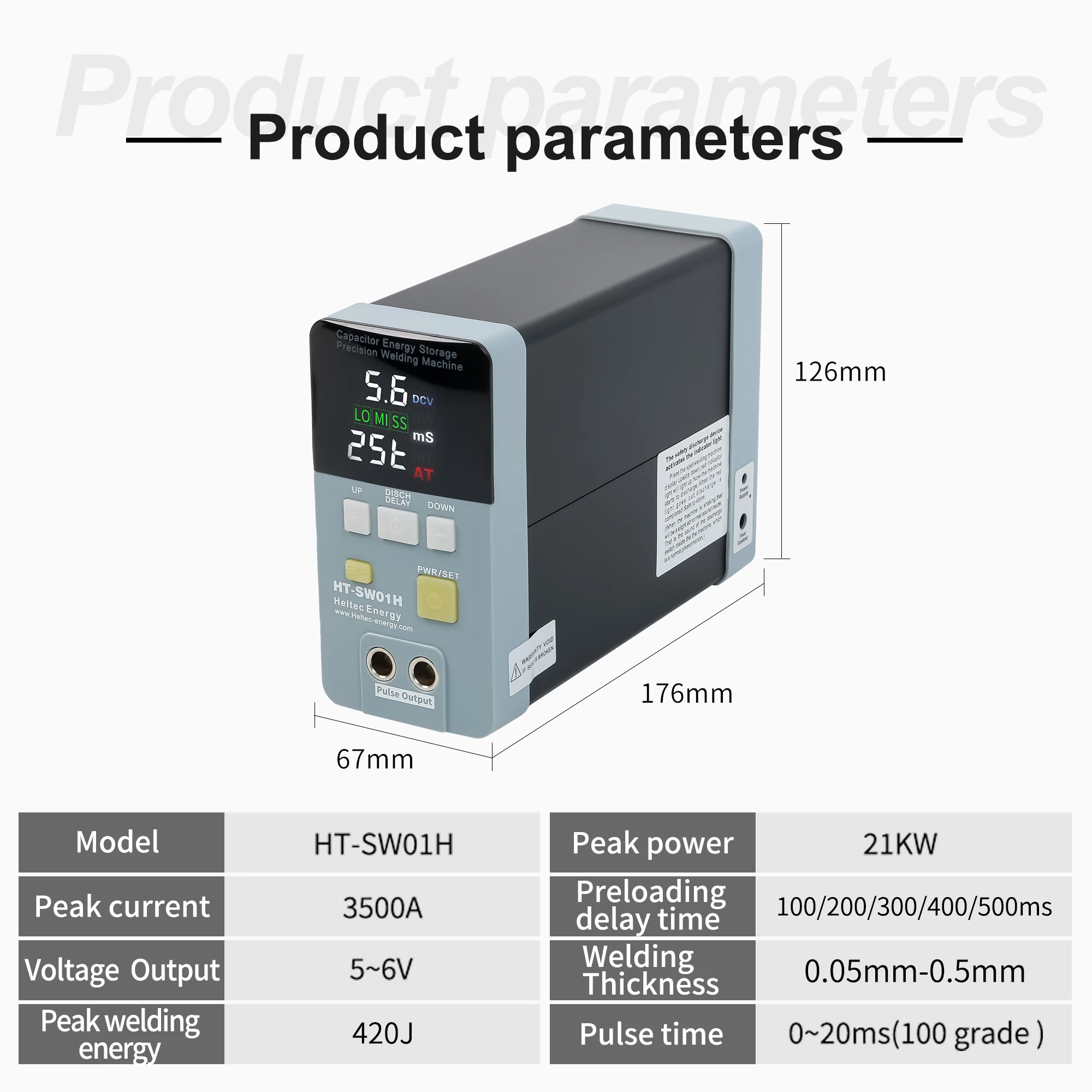

📋 Core Parameters

Model: HT-SW01H

Peak Current: 3500A

Peak Power: 21KW

Voltage Output: 5-6V

Welding Thickness: 0.05mm-0.5mm (pure nickel/nickel-plated sheet)

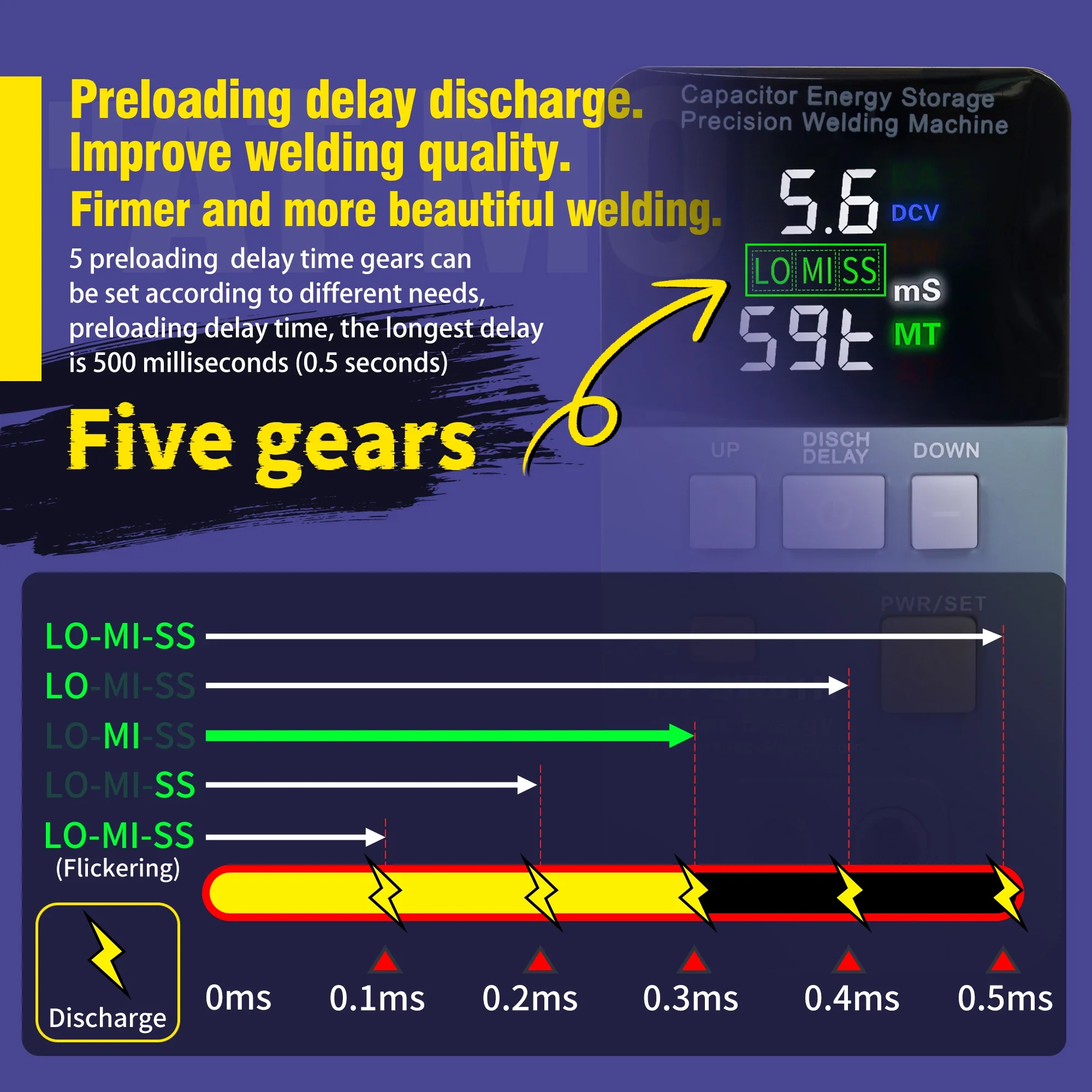

Preloading Delay: 5 gears (100/200/300/400/500ms)

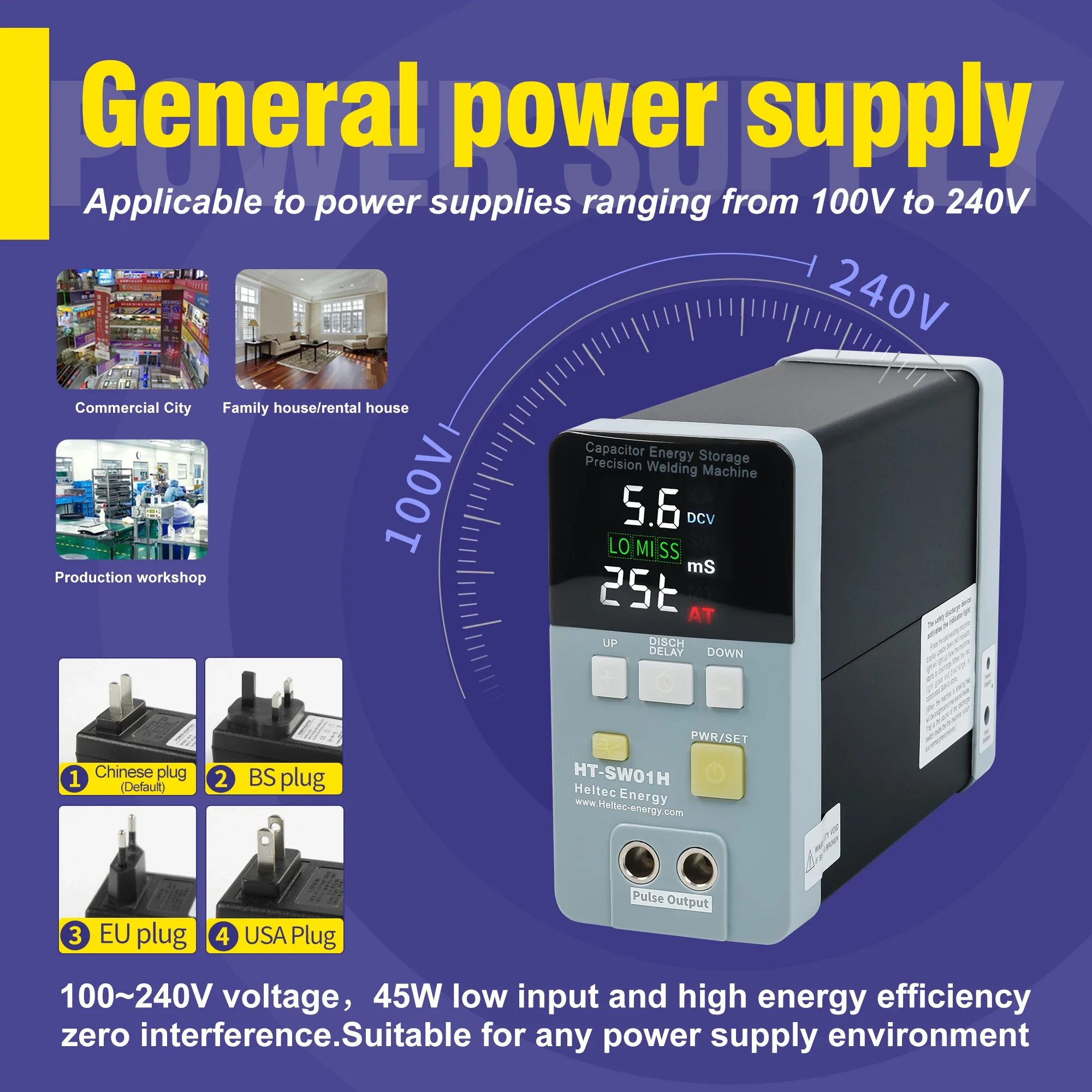

Power Supply: 100-240V universal (with Chinese/BS/EU/USA plugs)

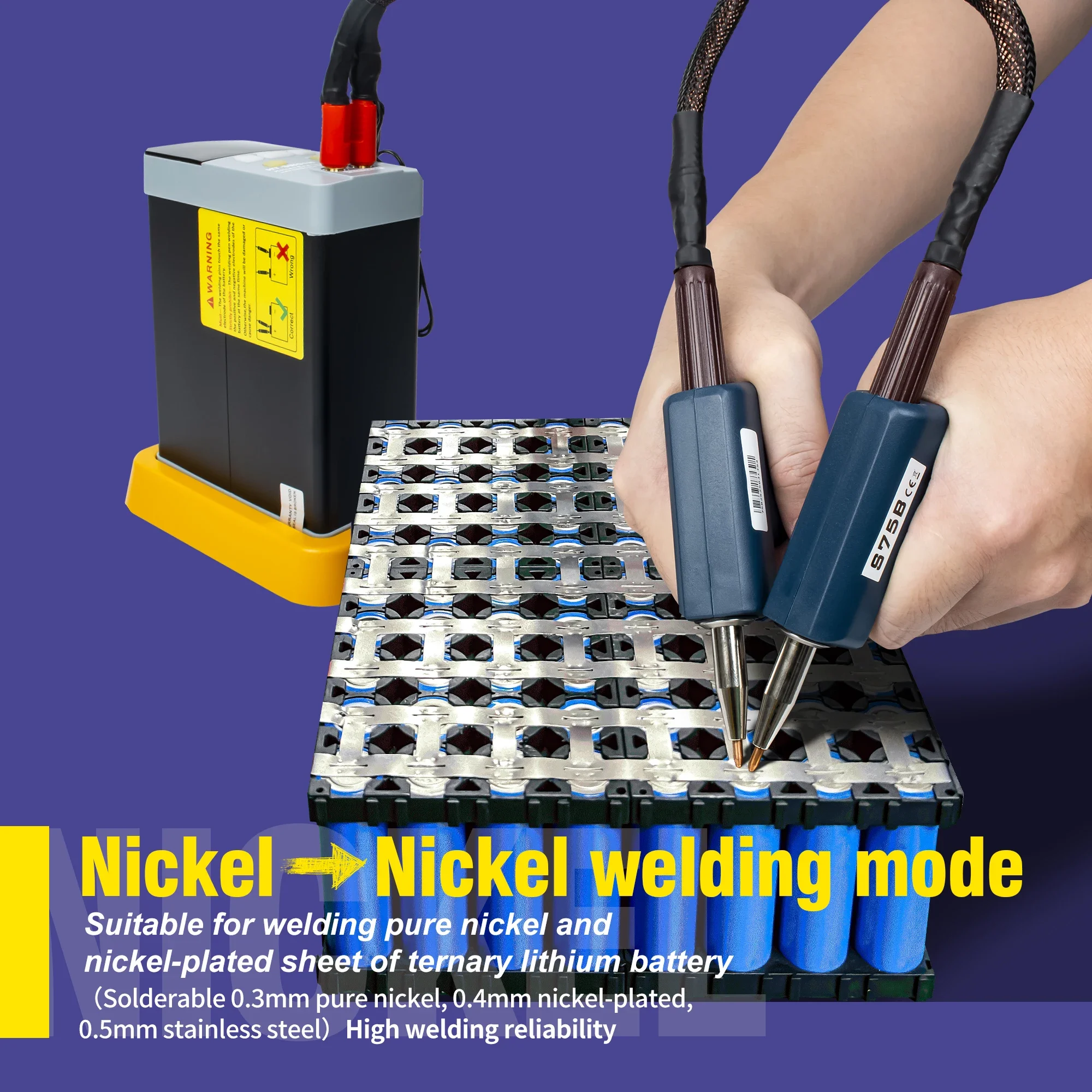

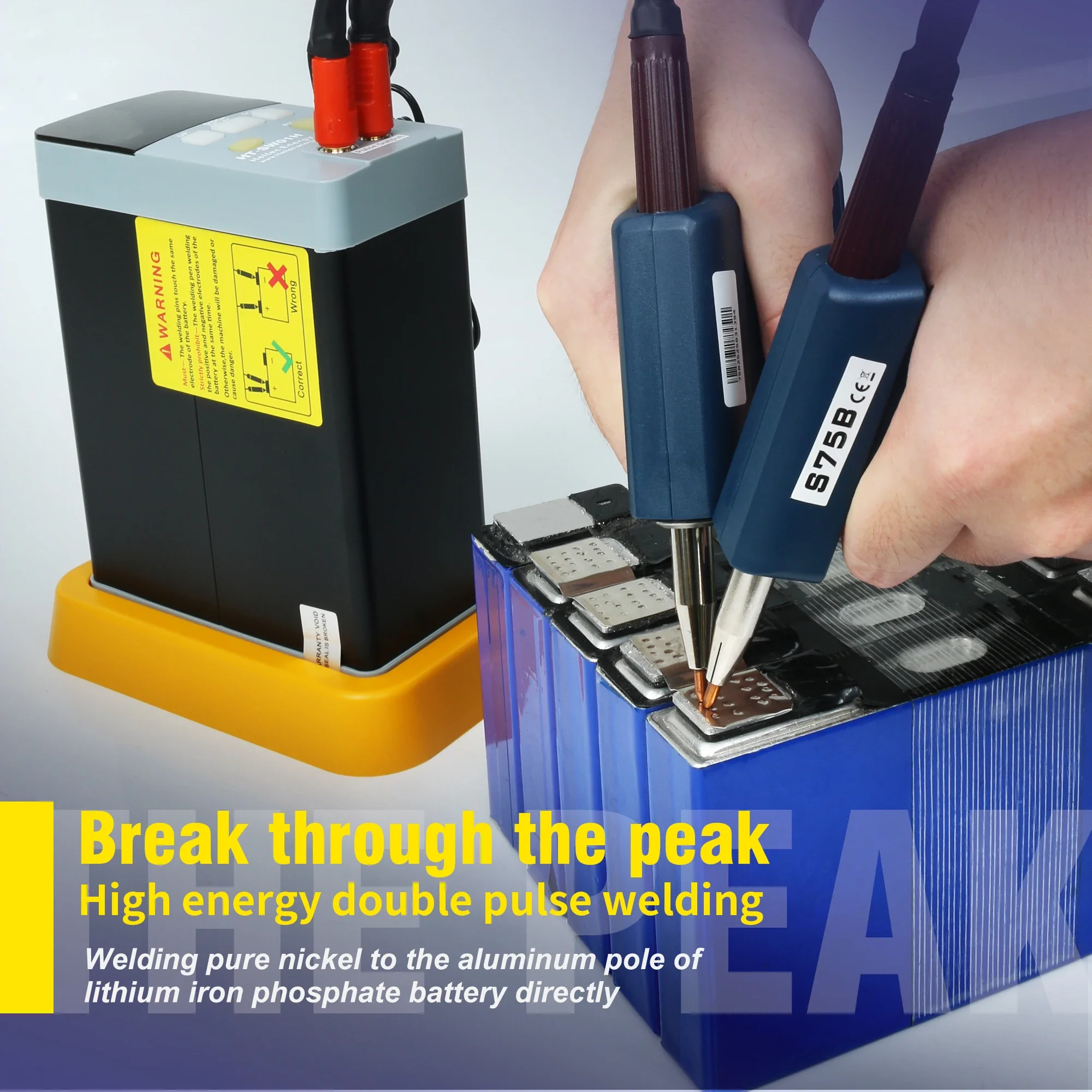

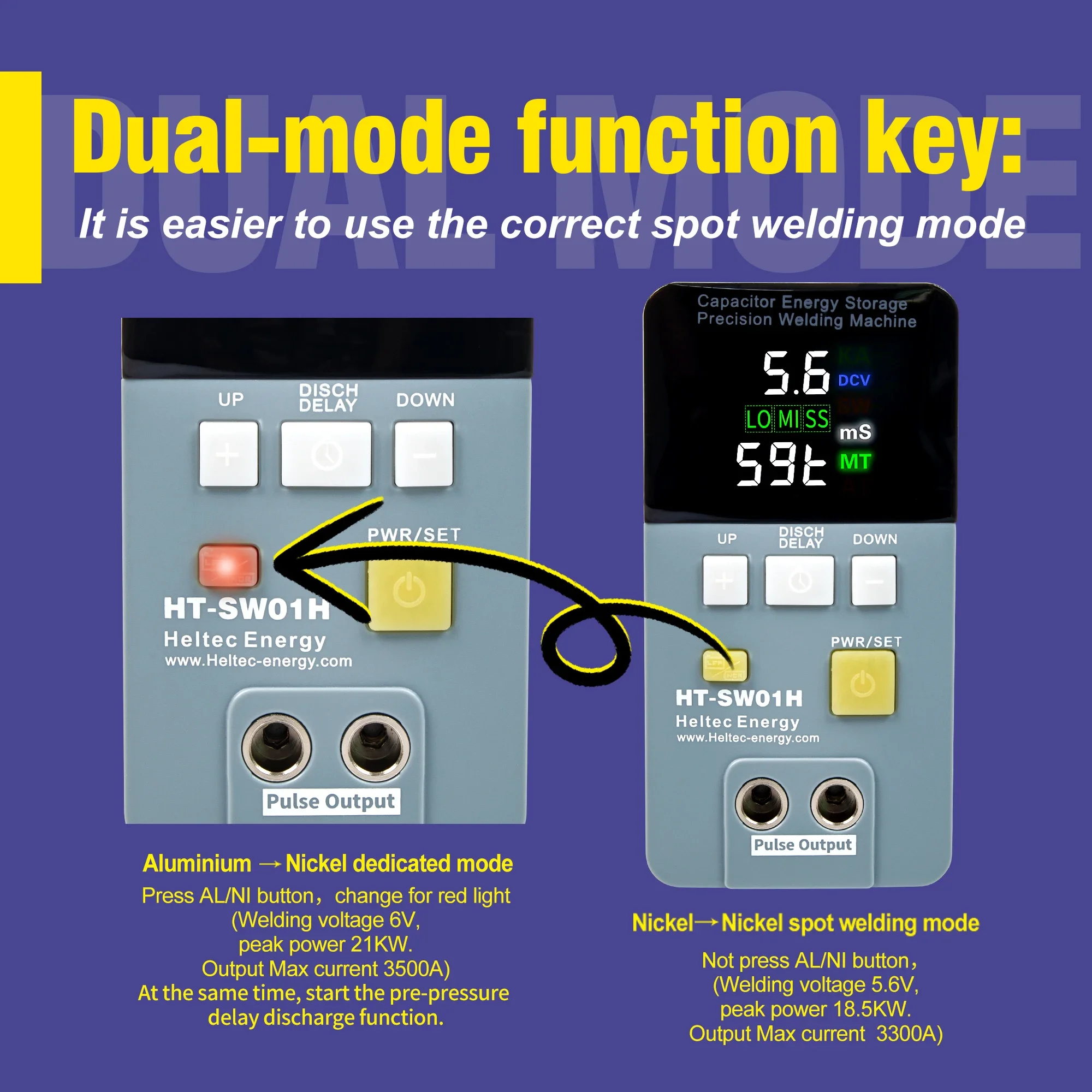

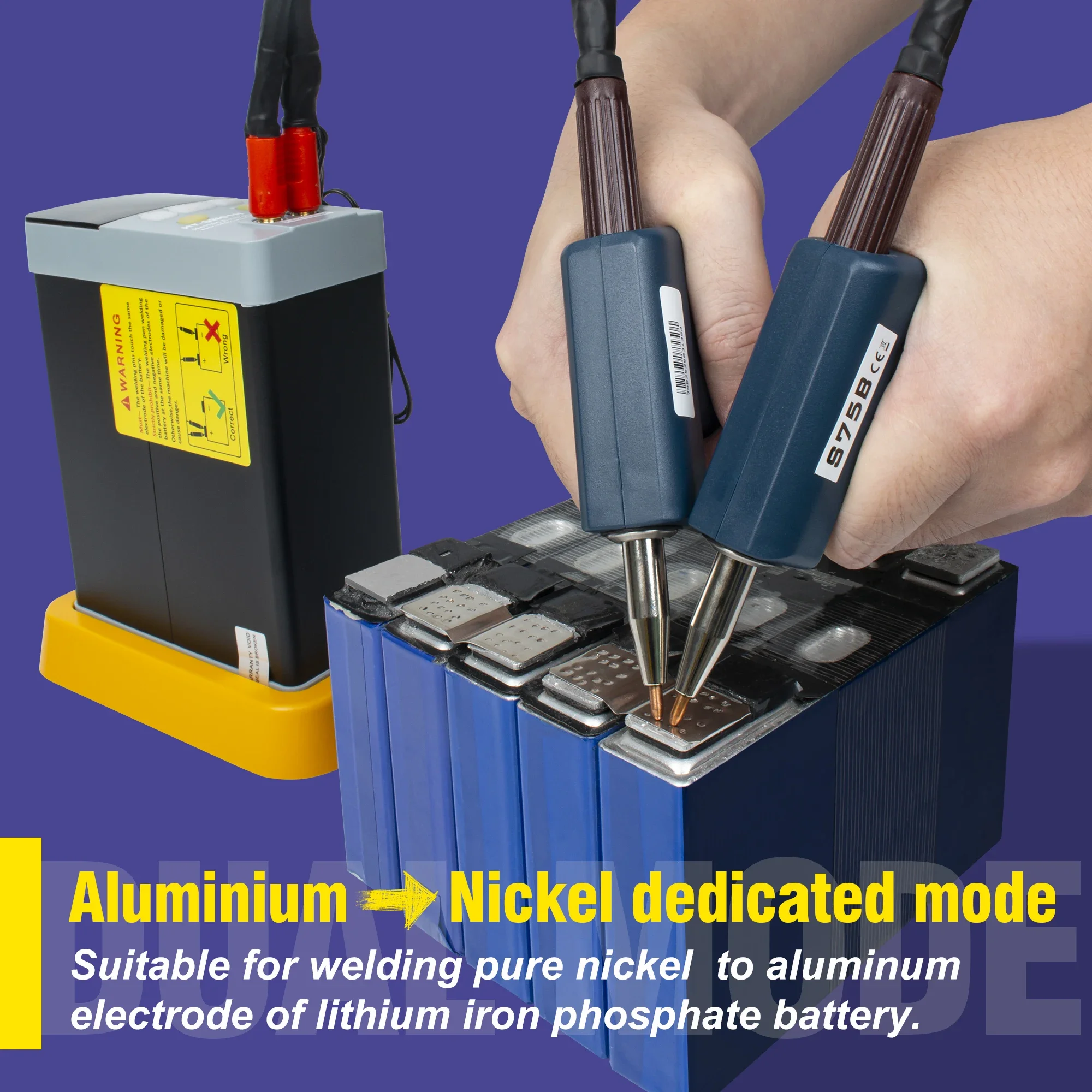

Welding Modes: Aluminum→Nickel (LiFePO4), Nickel→Nickel (ternary battery)

Battery clamp

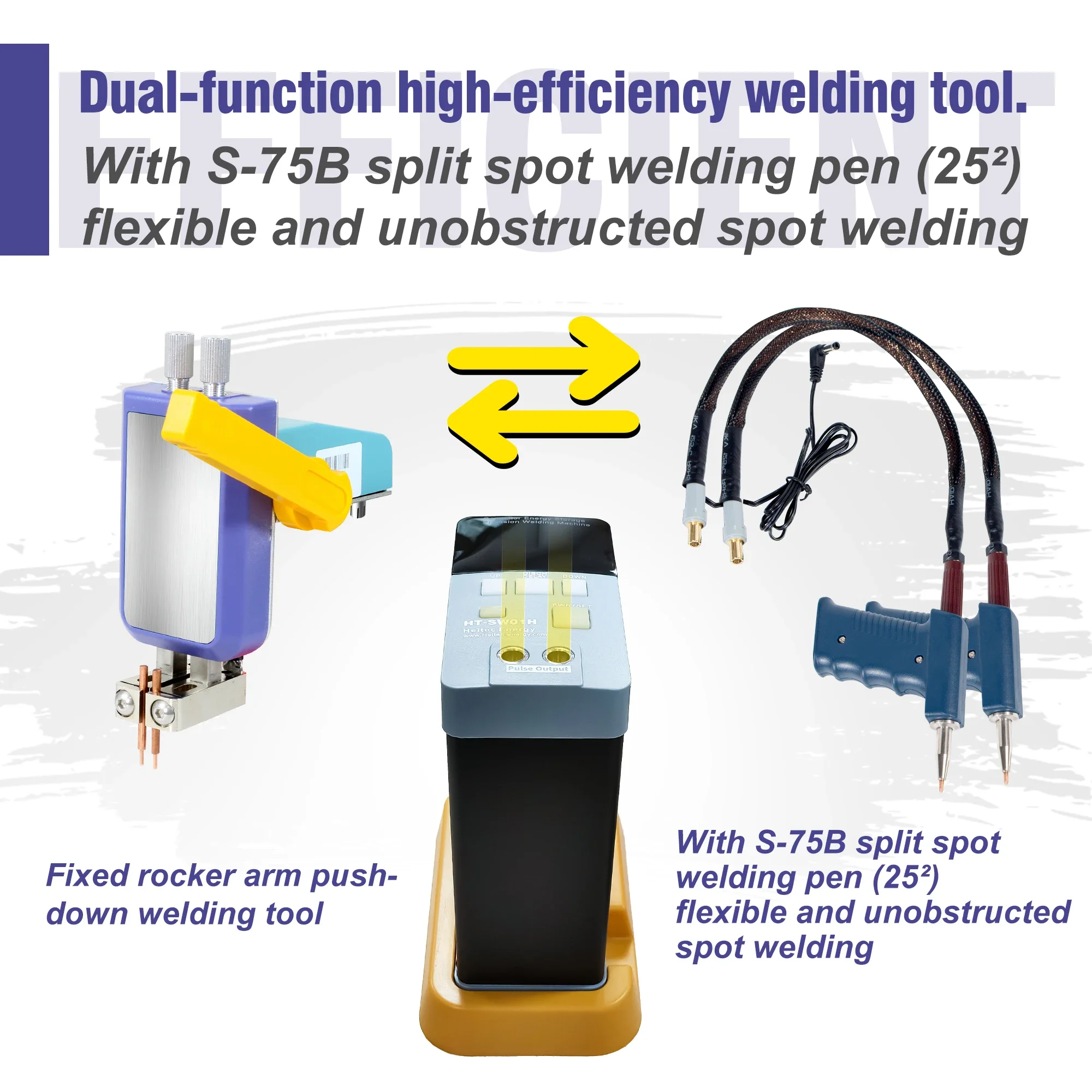

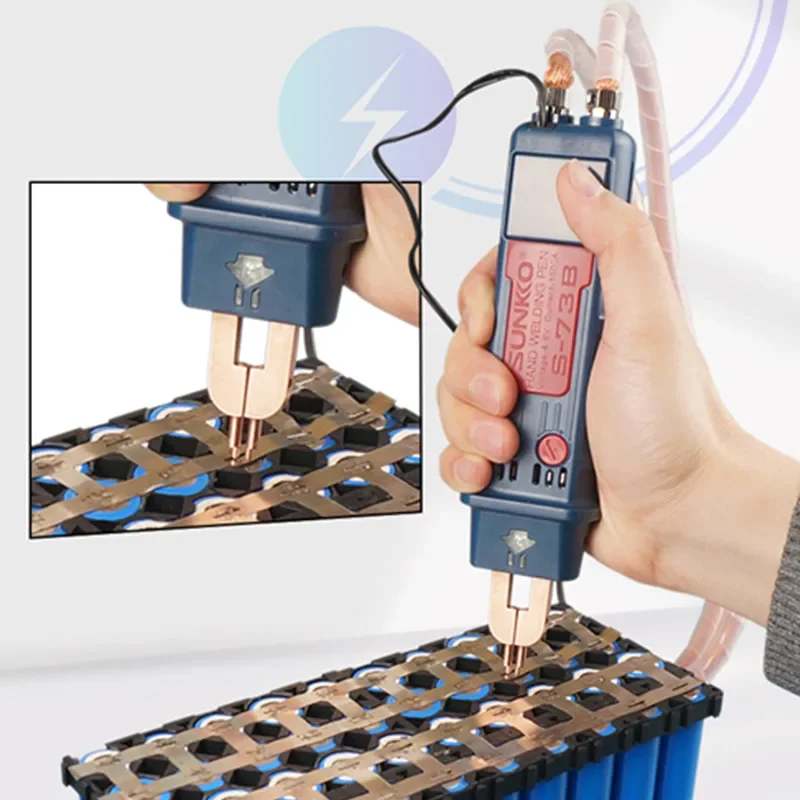

2040M25 Spot Welding Pen

Product model: S-73B

Adjustable solder pin spacing: 3~7mm

Soldering pin size: 35mm x 3mm

Load voltage: 4~6V

Load current: 1500A

Handle size: 50mm x 33mm x 180mm

Spot welding thickness range: 0.05mm~0.35mm

Recommended spot welding machine: HT-SW01D,HT-SW01H, HT-SW02A,HT-SW02H

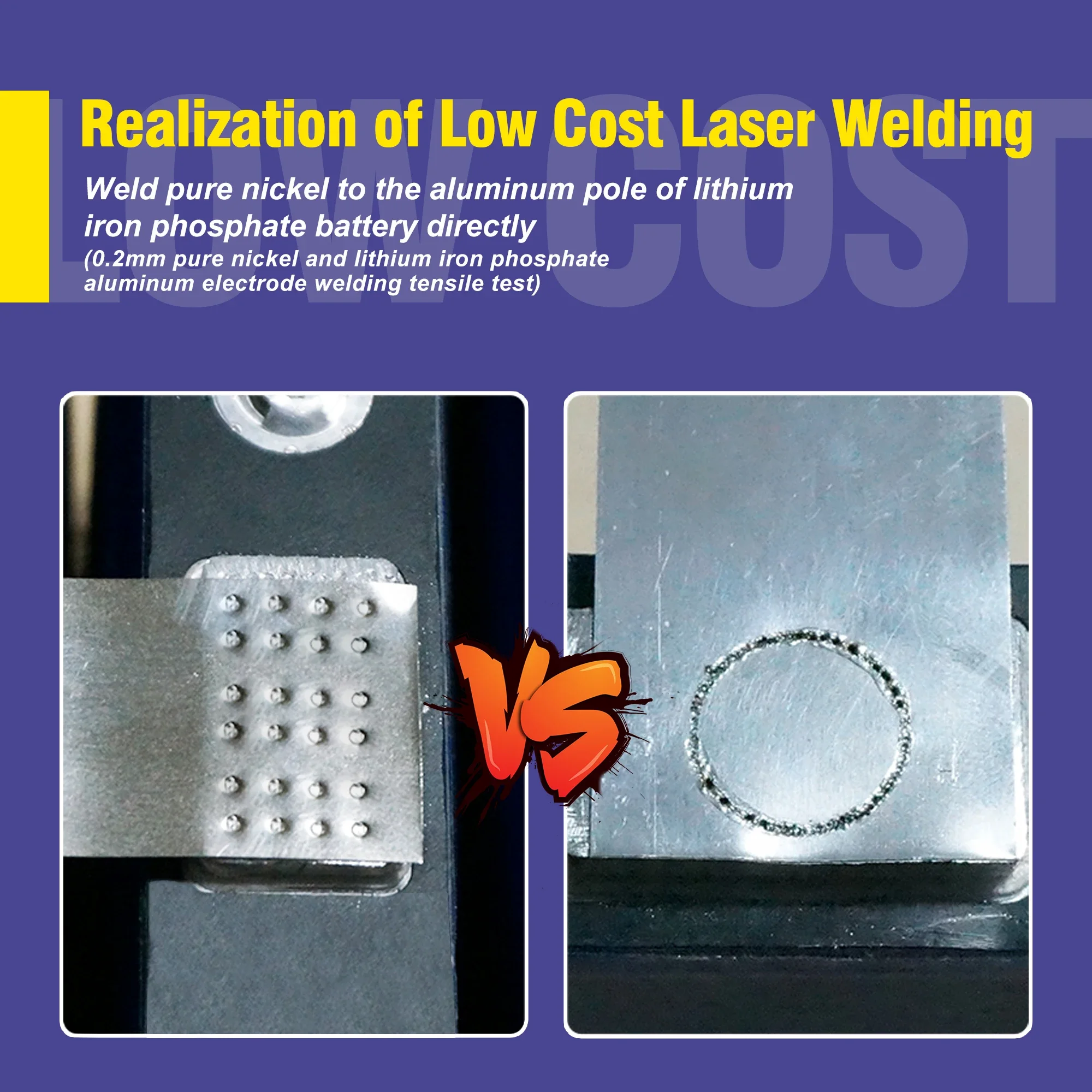

0.05~0.35 Nickel sheet spot welding experiment of lithium battery

Support high-power spot welding / precision spot welding

HT-SW01H

🎯 Application Scenarios

Battery Pack Assembly

Ideal for assembling lithium iron phosphate (LiFePO4) battery packs and ternary lithium battery packs.

Battery Maintenance

Suitable for daily repair and modification of new energy vehicle batteries, energy storage batteries, and handheld batteries.

DIY & Professional Use

Meets the needs of battery DIY enthusiasts and professional battery processing workshops.

✨ Key Advantages

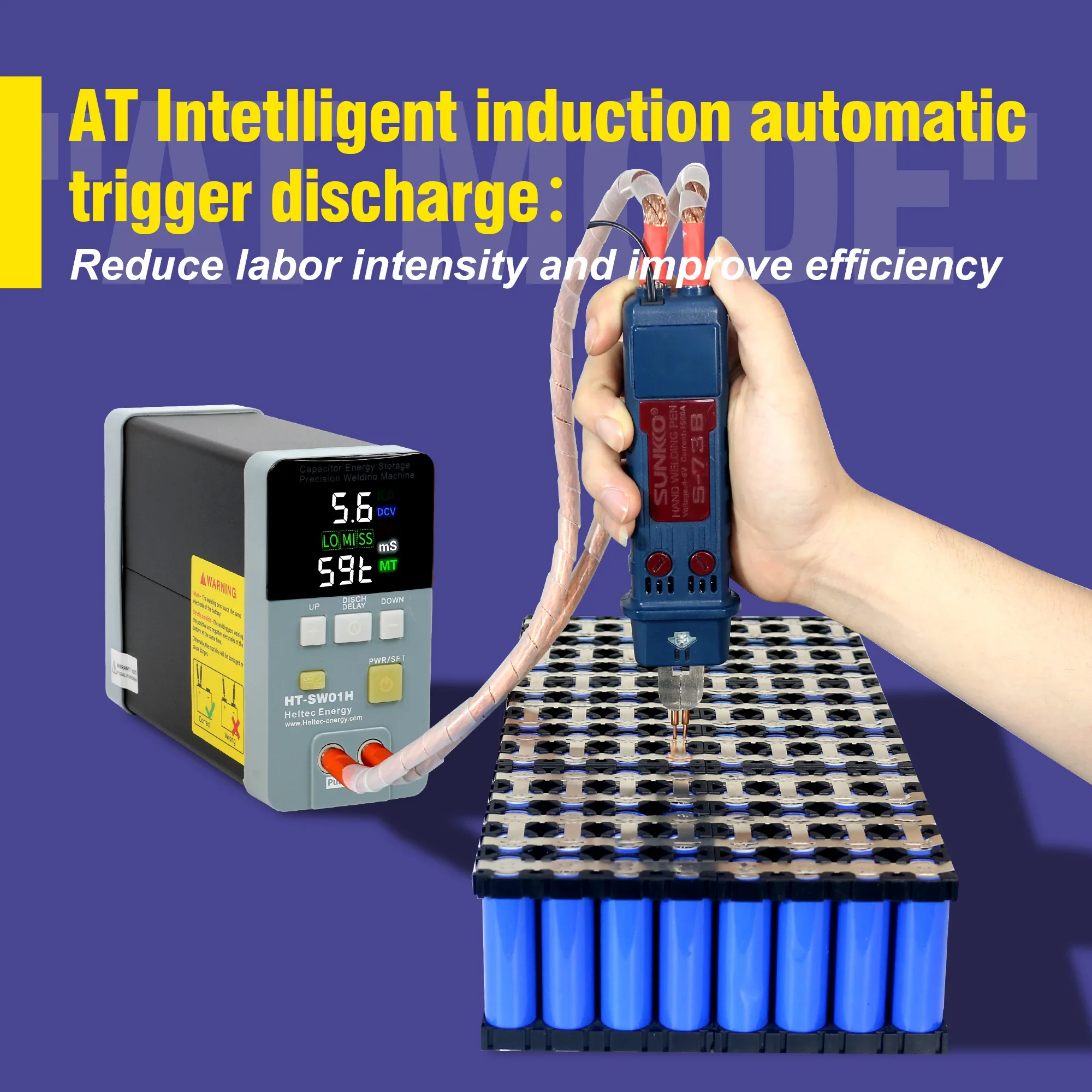

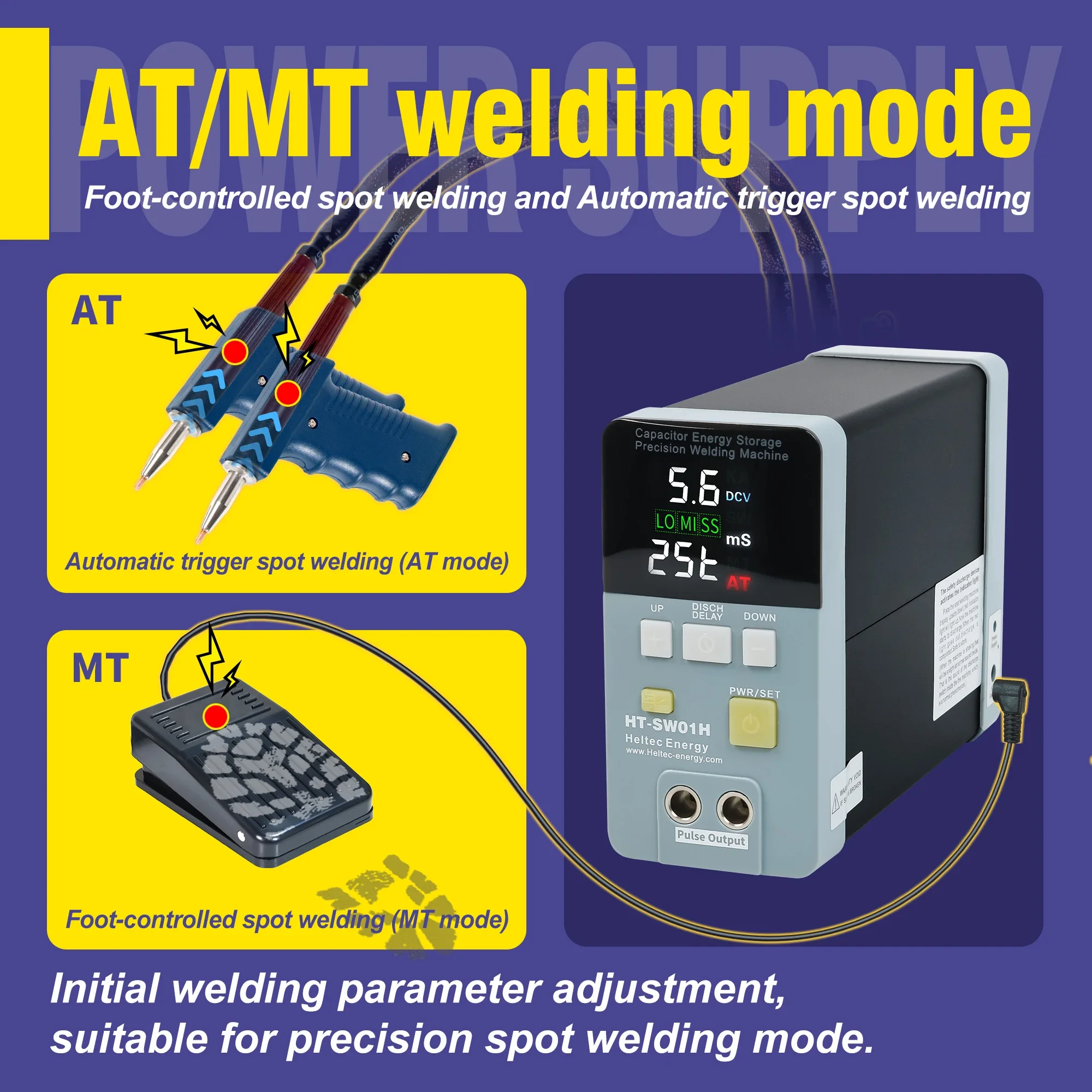

Dual modes (AT automatic induction/MT foot control) for flexible operation.

5-speed preloading delay for firmer, more beautiful welds.

High-energy double-pulse welding delivers laser-level welding effect at low cost.

Low heat design: welding pen remains cool during long-time use.

⚠️ Usage Notes

Power Safety: Use the matching plug according to local power standards; ensure stable power input to avoid equipment damage.

Welding Material: Confirm the welding material type (aluminum pole/nickel sheet) and switch the corresponding mode in advance.

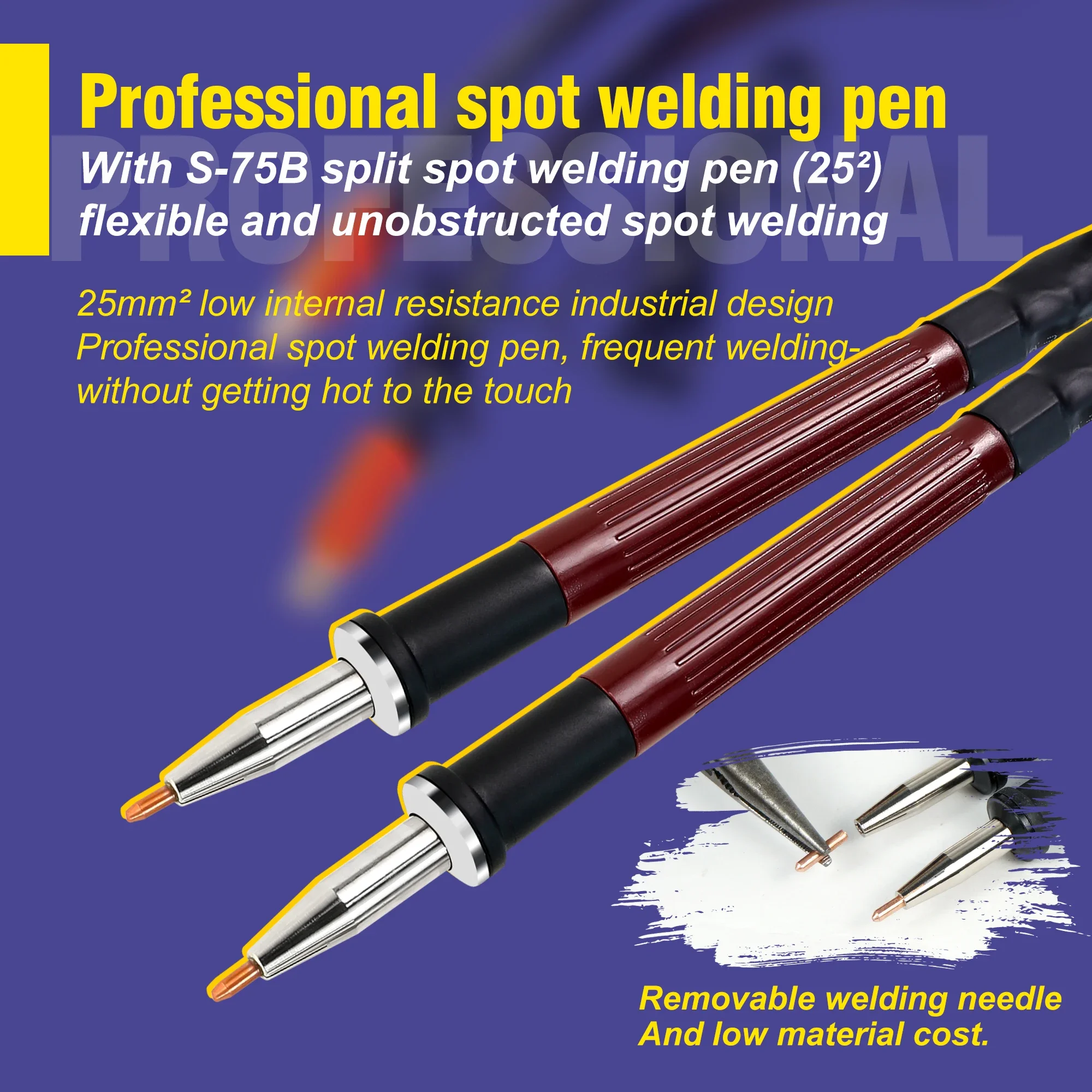

Welding Pen Care: The S-75B welding pen is for special use only; avoid non-professional modification. Replace the welding needle regularly to ensure welding quality.

Operation Environment: Work in a dry and ventilated place; keep away from flammable and explosive materials to prevent safety hazards.

Parameter Adjustment: Adjust preloading delay and pulse time based on the thickness of the welded material for optimal results.
