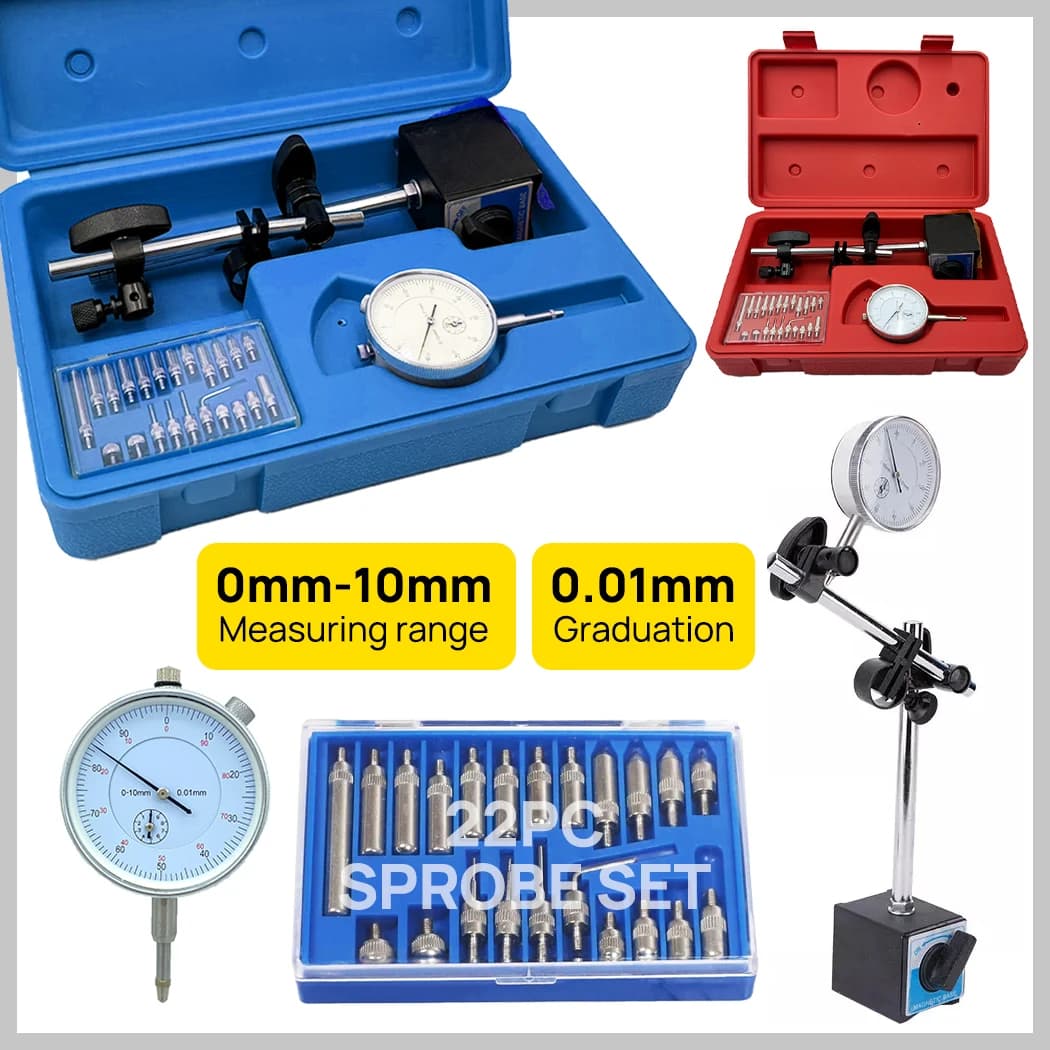

0-10mm Dial Indicator Gauge With Magnetic Base 60KG Pull 22 Indicator Point Set

This Dial Indicator Gauge will help you to measure all manner of parts in your car, machine tools, apparatus & other measuring devices. The Dial Indicator Gauge is ideally suited for all kinds of comparative measurements in the workshop & inspection room.

Use the magnetic clamp to latch your magnetic dial indicator onto a ferrous surface. The plunger should be at right angles to whatever you are measuring. Test and then make all the measurements you need. Accurate measurements require absolute stability. Your dial gauge with magnetic stand can pull with 60kg of force. The small gauge can take very fine measurements. You can pick between 22 measurement probes. Use the shortest one for the measurement you need to produce the highest accuracy. And you can carry them all in the handy travel case.

Features

Suitable for measuring across a variety of surfaces. Measure surface flatness, parallelism of bars.

Detect the differences between identical objects and more. Applicable to various comparative measurements in the workshop and inspection room.

0-10mm range, 0.01mm accuracy.

Fine-tune the cross arm for multi-angle adjustment. With fine adjustment knob for precise positioning.

Strong magnetic with an on-off magnet switch.

Used with machine tools, equipment, and other measuring equipment.

22 Various sizes probes.

Specifications

Measuring range: 0-10mm

Reading: 0.01mm

Material: Metal

Dial diameter: (Approx.) 60mm

Dial length: (Approx.) 100mm

Magnetic Base Dimension: (Approx.) 50mm*55mm*65mm

Vertical rod+ Adjustment rod (Height):180mm+150mm

Carrying case size(Approx.):29cm*20cm*7cm

Weight: 2.2kg

Package Content

Dial Indicator      x 1

Magnetic Base    x 1

22-piece Indicator Point Set   x 1

Carrying case     x 1
