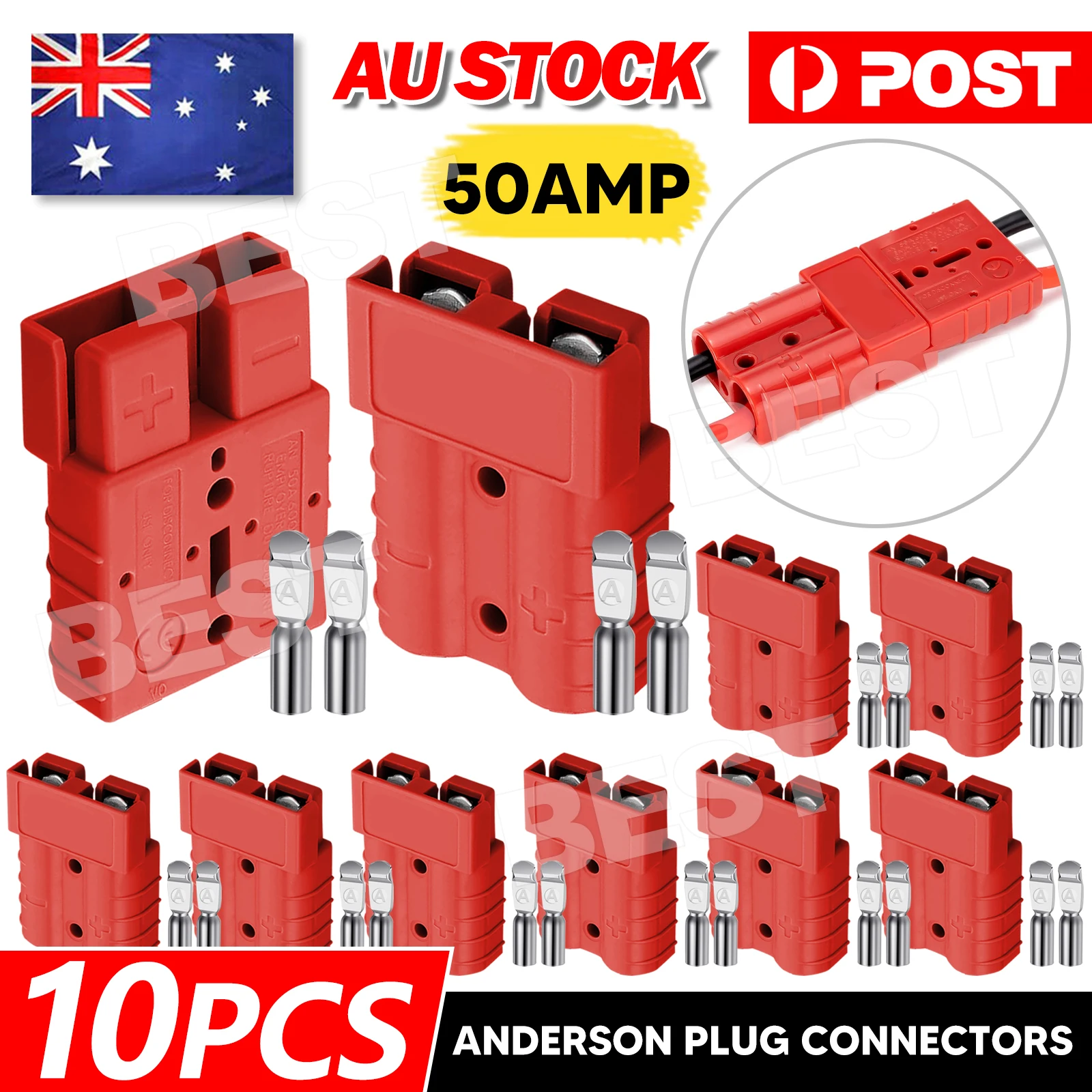

10PCS Anderson Style Plug 50 AMP 6AWG Red Connectors Caravan Mounting DC 12V 24V

- 100% Brand New High Quality

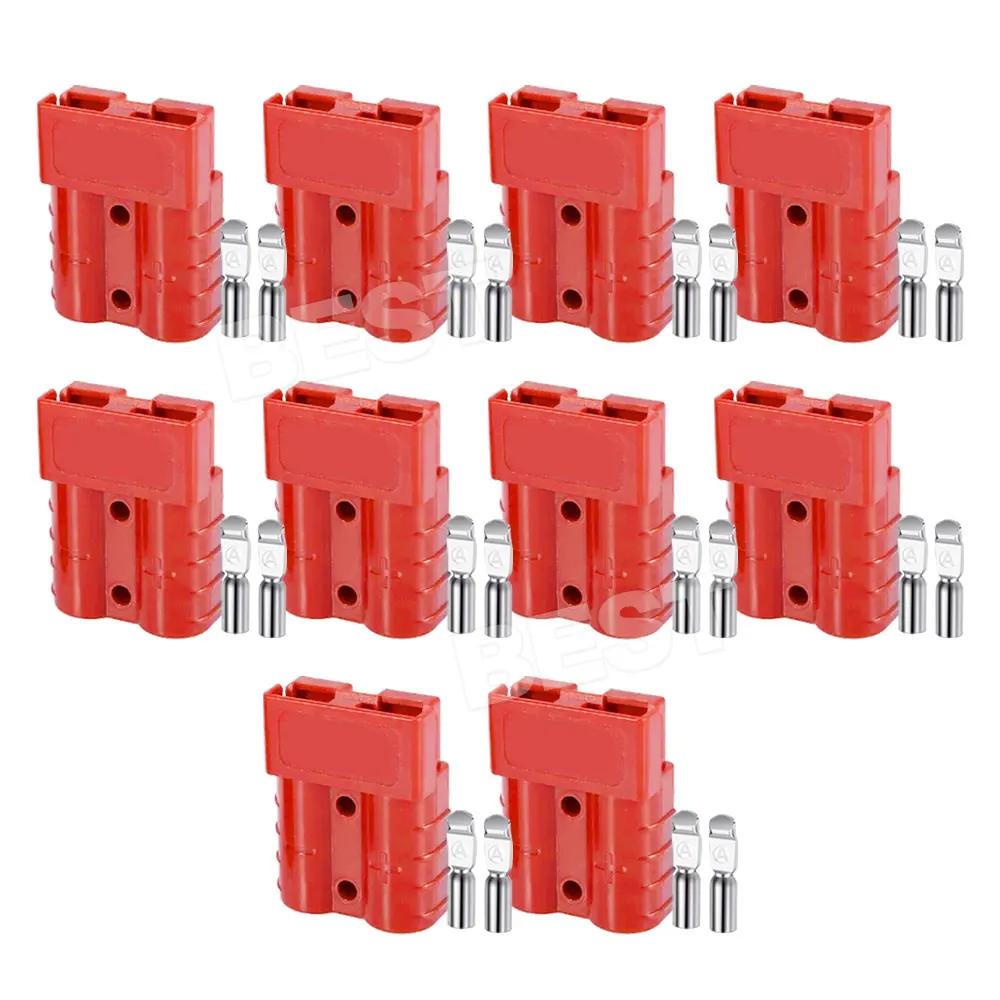

- 10PCS 50Amp Anderson Compatible Plugs

- Feature

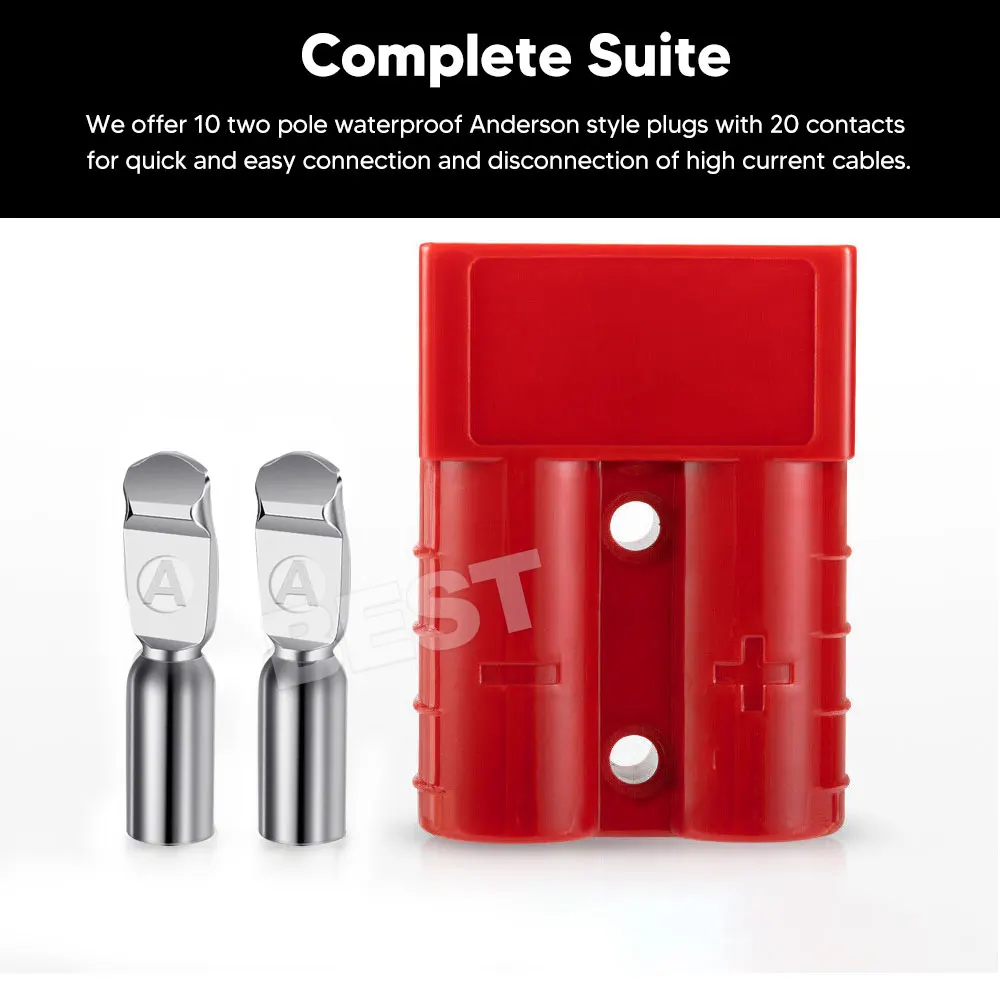

- Complete Suite: We offer 10 two pole waterproof Anderson style plugs with 20 contacts for quick and easy connection and disconnection of high current cables.

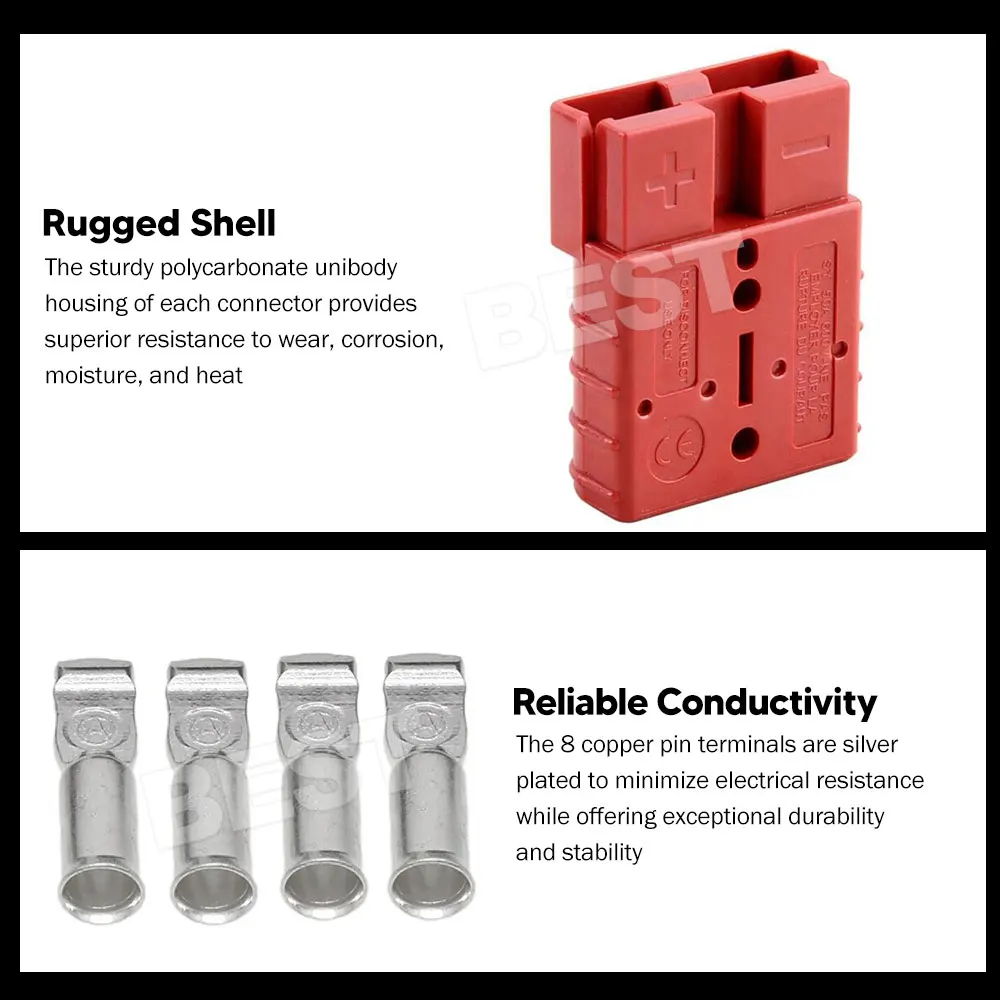

- High Durability: The Anderson style plugs are made of sturdy polycarbonate and ready to withstand impact, vibration, solvents and hydro carbons, etc.

- Antioxidant Contacts: Silver plated copper contacts that feature a sacrificial tip allow high current circuit interrupt as well as offering low resistance.

- Outstanding Performance: The genderless plugs can handle up to 50 amperes per pole and accommodate wire ranges of #16 to #6 AWG (1.5 to 13.3 mm²).

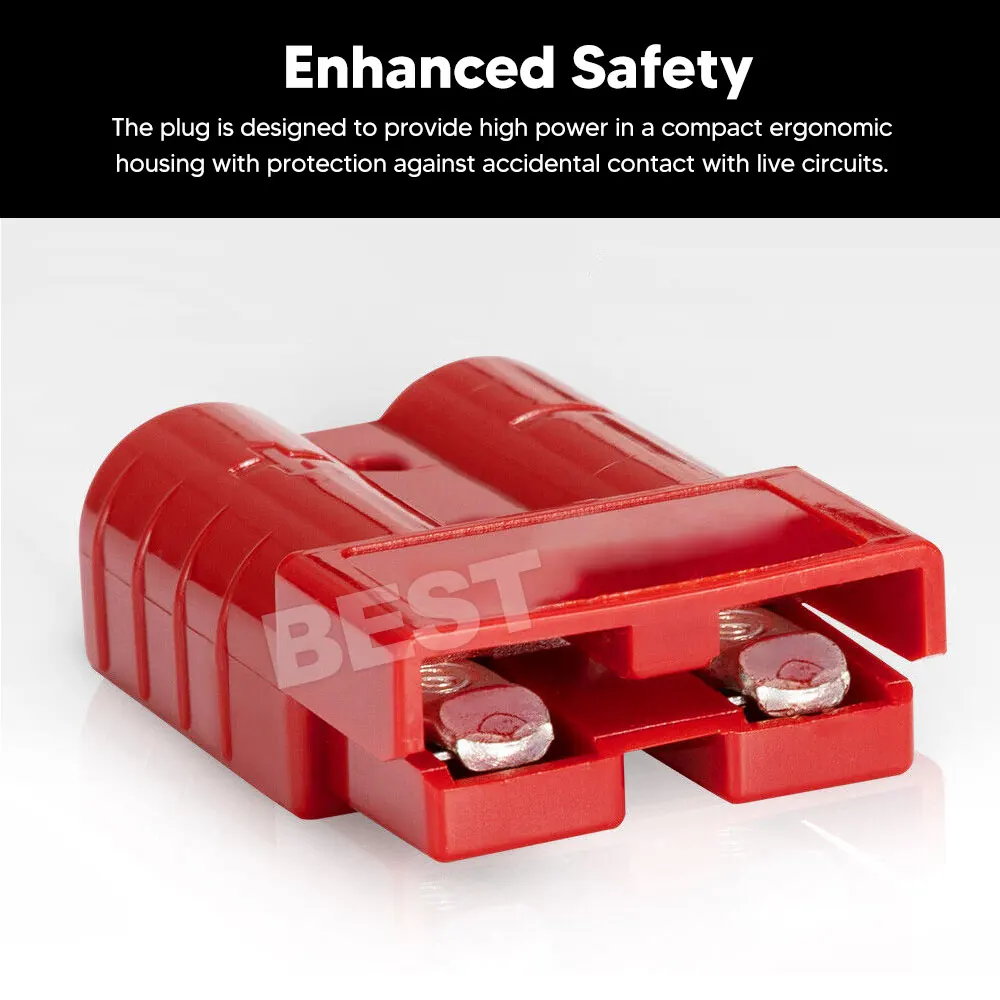

- Enhanced Safety: The plug is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.

- Super Versatility: Compatible with a 12V or 24V DC power source, this suite is suitable for solar panels, dual battery systems, caravans, 4WD, fridges, etc.

- Terminal Insertion: Observing the polarity markings, insert the terminal that can be crimped or soldered into the connector housing until a sharp click is heard.

- Terminal Removal: Press the sprung metal tabs inside the connector housing fully flat by using a suitable tool and withdraw the terminal.

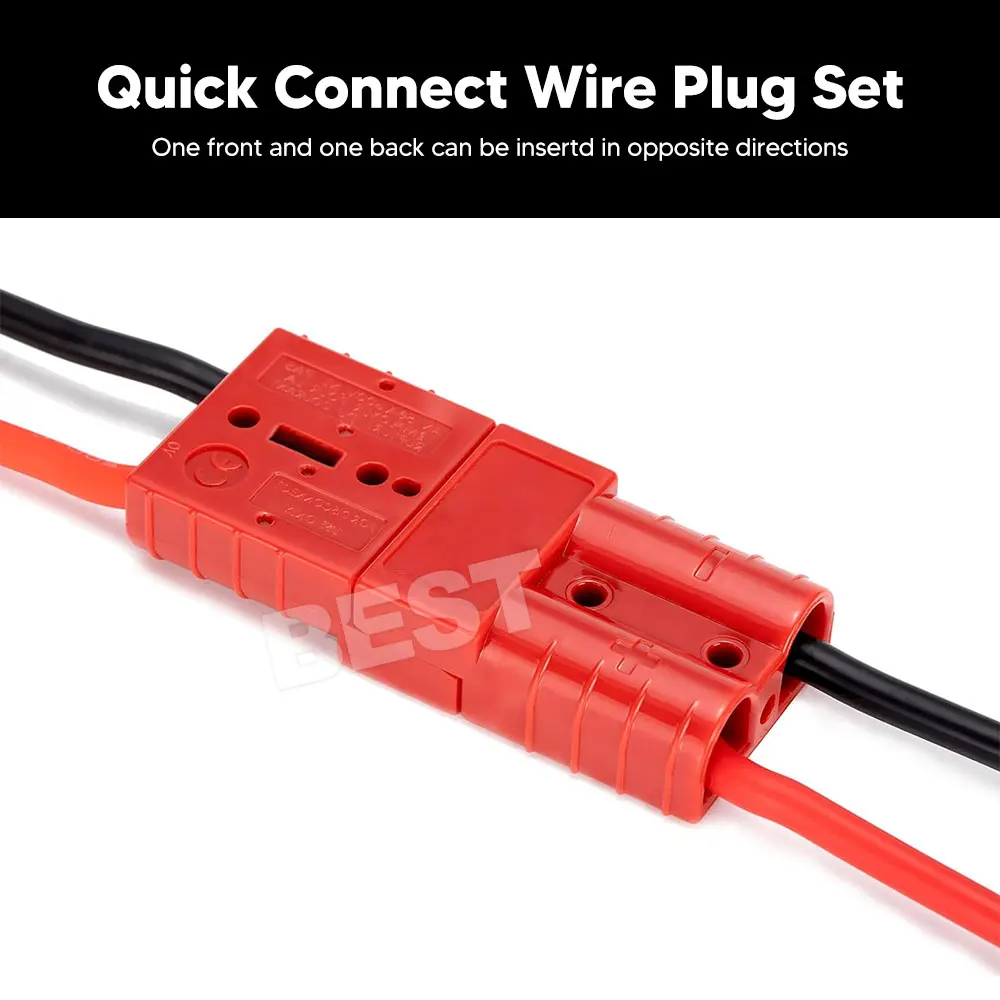

- Flat Wiping: Allowing for minimal contact resistance at high current, the self-wiping action cleans contact surfaces during connection/disconnection.

- A red Anderson plug will only fit into a red Anderson plug. Please do not connect a red to a grey.

- Specification

- Colour:Red

- Current Rating:50A

- Voltage Rating:600V

- Voltage:For 12V or 24V use

- Amperage Rating:50A

- Voltage:600V (Maximum)

- Operating Voltage:12V-24V

- Contact Barrel Wire Size:#16 to #6 (AWG), 1.5 to 13.3(mm²)

- Operating Temperature:-20°C ~105°C

- Gross Weight: 0.227kg

- Sydney local Stock, Fast deliver!

Package

- 10X Anderson Plugs

- 20X Terminals
