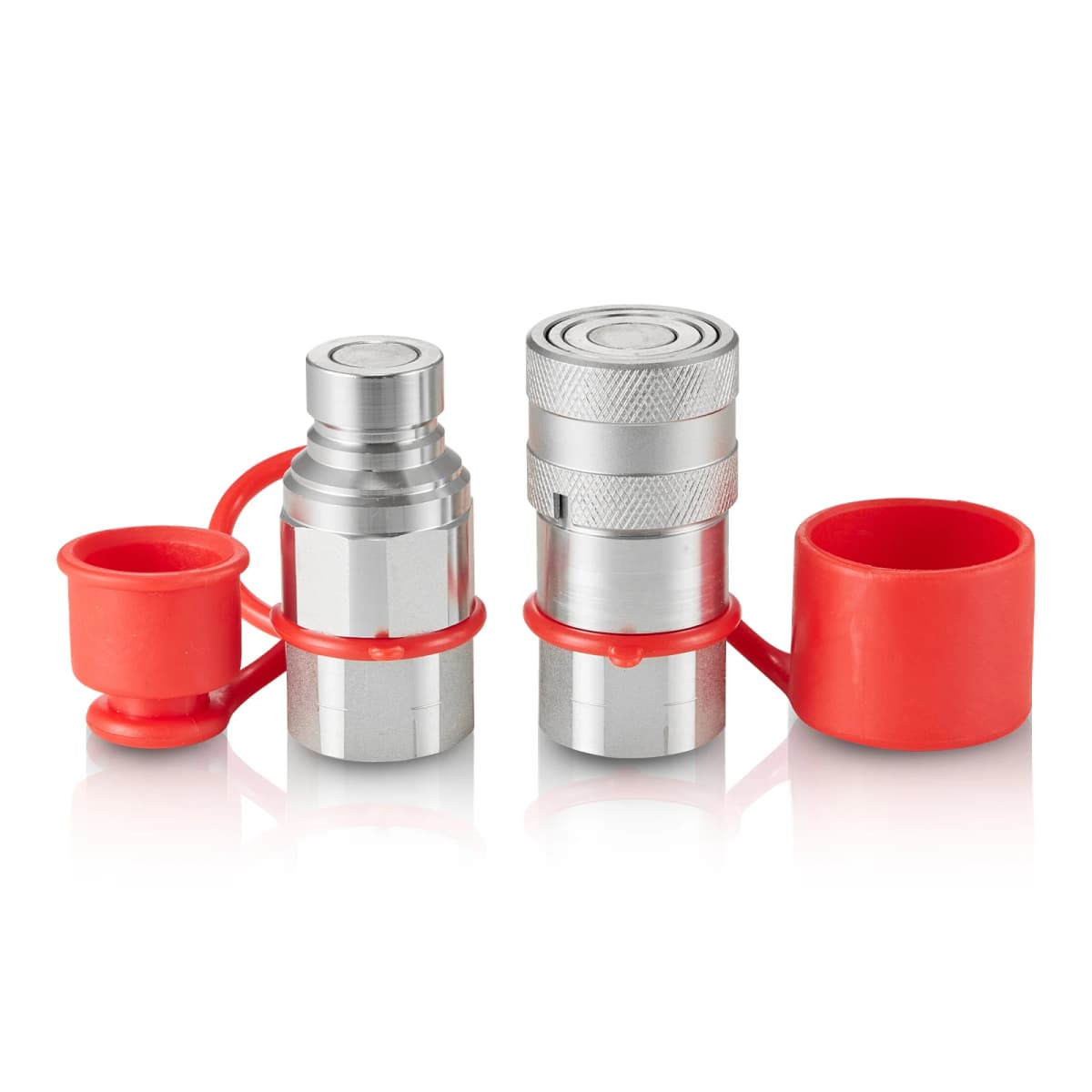

SucceBuy 1/2" Flat Face Hydraulic Couplers 1/2"NPT Skid Steer Hydraulic Quick Connect Couplers with 2 Dust Caps, Seal Dust Caps

Compliant with Standards

Our hydraulic couplers has passed impact, high pressure, and high temperature tests to ensure compliance with ISO 16028 standards. Our dedication to high quality makes our product the wise choice for you.

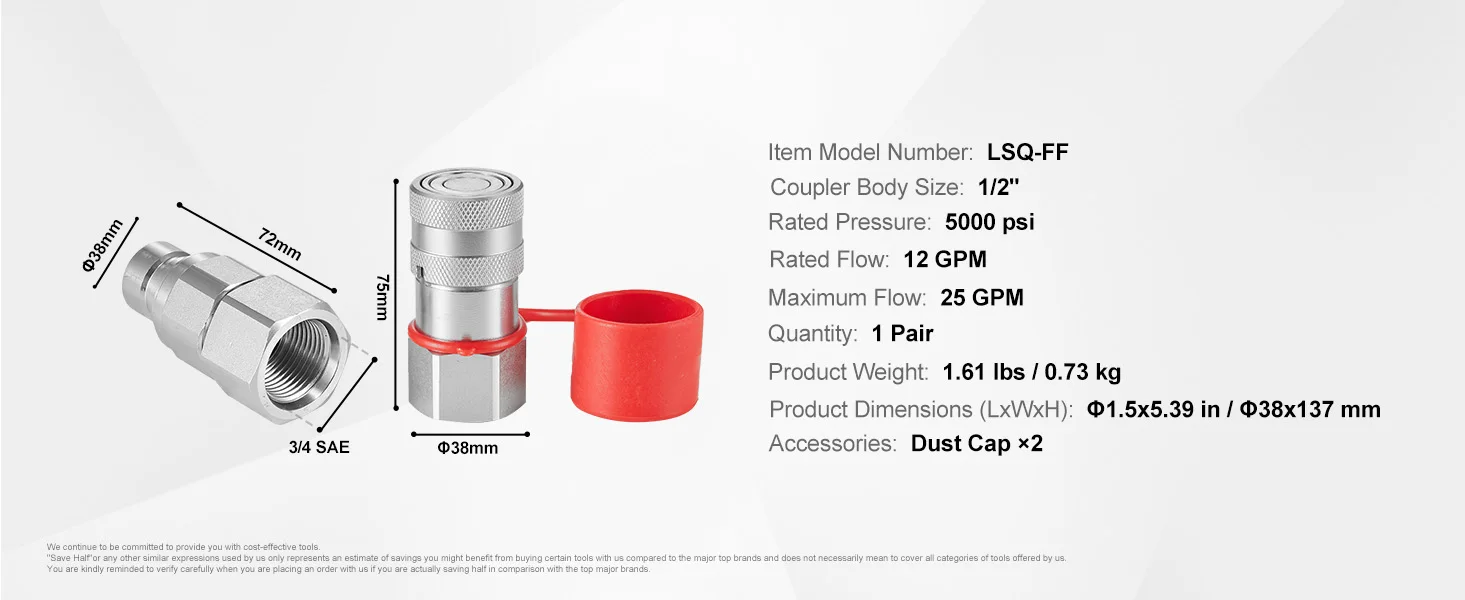

The flat face hydraulic couplers feature 1/2" NPT threads, with a newly improved valve design providing a high flow rate of 25GPM and a rated pressure of 5076 PSI, significantly enhancing lifespan.

Our skid steer hydraulic couplers are made from high-quality carbon steel and coated with zinc for high rust and corrosion resistance, ensuring durability.

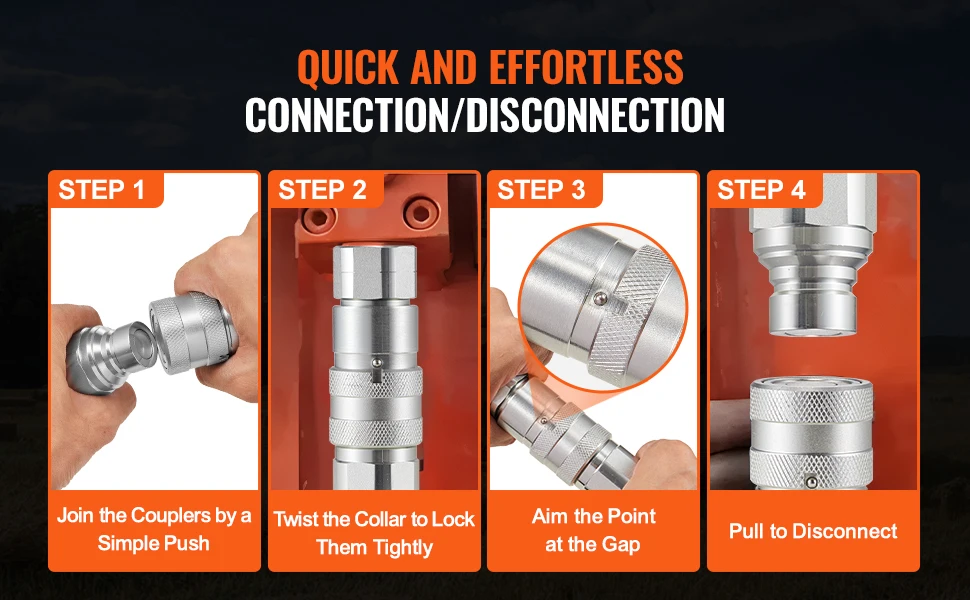

The sleeve lock design of hydraulic quick couplers allows for easy connection with a simple push. The rotating sleeve locks it securely, preventing accidental disconnection. To disconnect, align the tip with the gap and pull, making connection simple and easy.

Designed for applications where hydraulic leaks may occur, the hydraulic couplings are interchangeable with most types of skid steer loaders, suitable for agriculture, construction, forestry, and more.

Features & Details

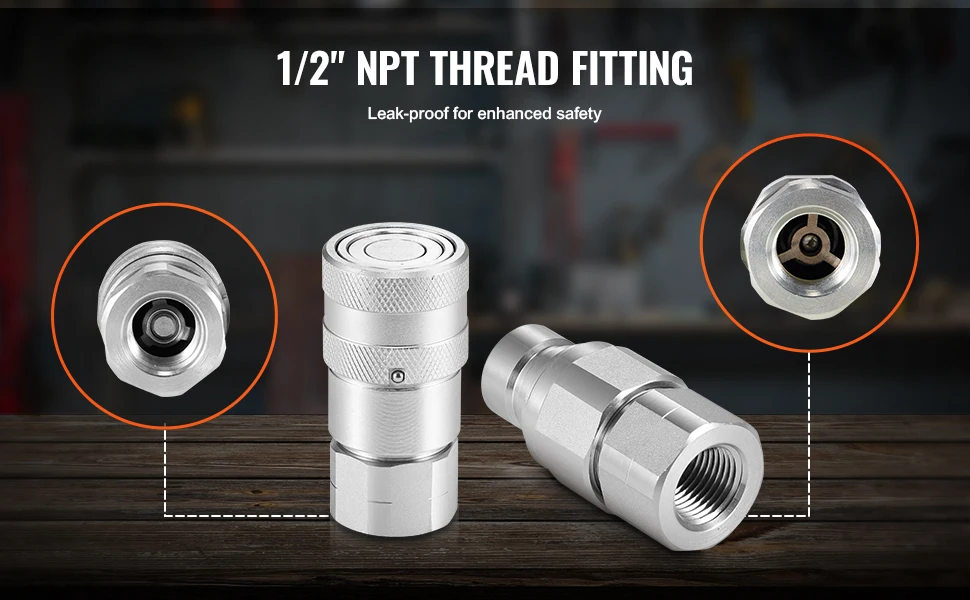

Standards Compliant: This hydraulic coupler features a 1/2" body size, with 1/2" NPT thread size for both the male and female couplers, adhering to ISO 16028 standards, making it ideal for connecting hydraulic lines.

Sleeve Locking Design: The flat face hydraulic couplers employs a sleeve locking design, allowing for easy connection with just a simple push. The flat-faced design of the coupler facilitates easy cleaning and prevents dust from entering the hydraulic system during connection and disconnection.

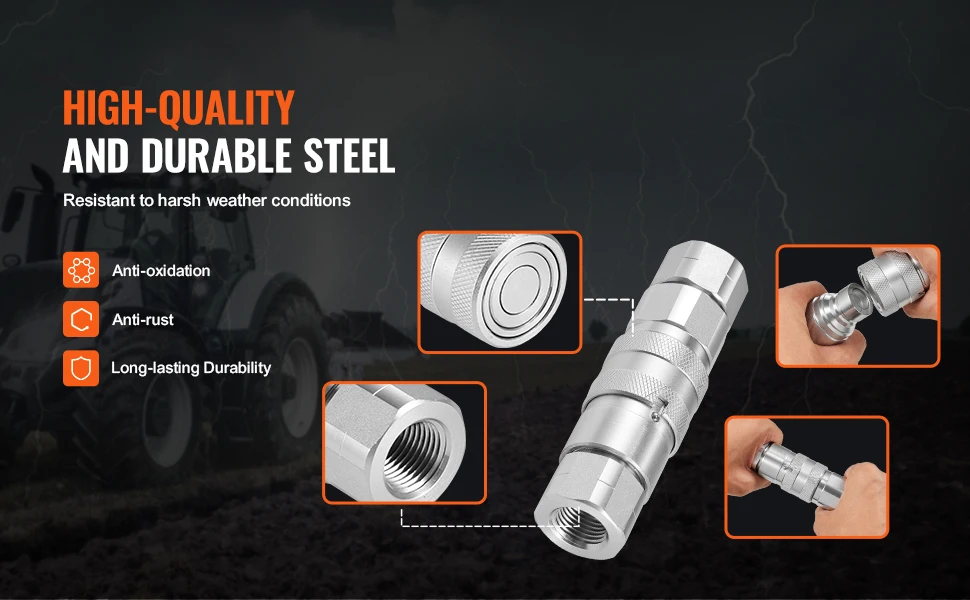

Hardened Steel Construction: The hydraulic quick connect couplers is constructed from hardened carbon steel, rated for pressures up to 5076 PSI and a high flow rate of 25 GPM, capable of withstanding high flow rates and pulse pressures, ensuring durability for years of continuous use.

Seal Dust Caps: It comes with dust caps to prevent dirt from damaging the connection system, reducing the risk of failures, and keeping the skid steer hydraulic couplers clean when not in use. Internal dust seals also ensure that the sleeve locking system operates smoothly without interference.

Non-slip Knurling: Heavy-duty knurled sleeves on the surface of the hydraulic fitting provide a non-slip grip. This valve design allows for minimal pressure drop and single-handed operation, and it can be interchanged with most types of skid steer loaders, such as Bobcat, John Deere, CAT, Case/New Holland, Kubota, etc.
