YIZHAN Full 4K Microscopio Digital Electronic Welding Microscope 48MP HDMI USB Camera 60FPS 1/2.8" Sensor 150x Telephoto Lens

Microscope software download address:

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

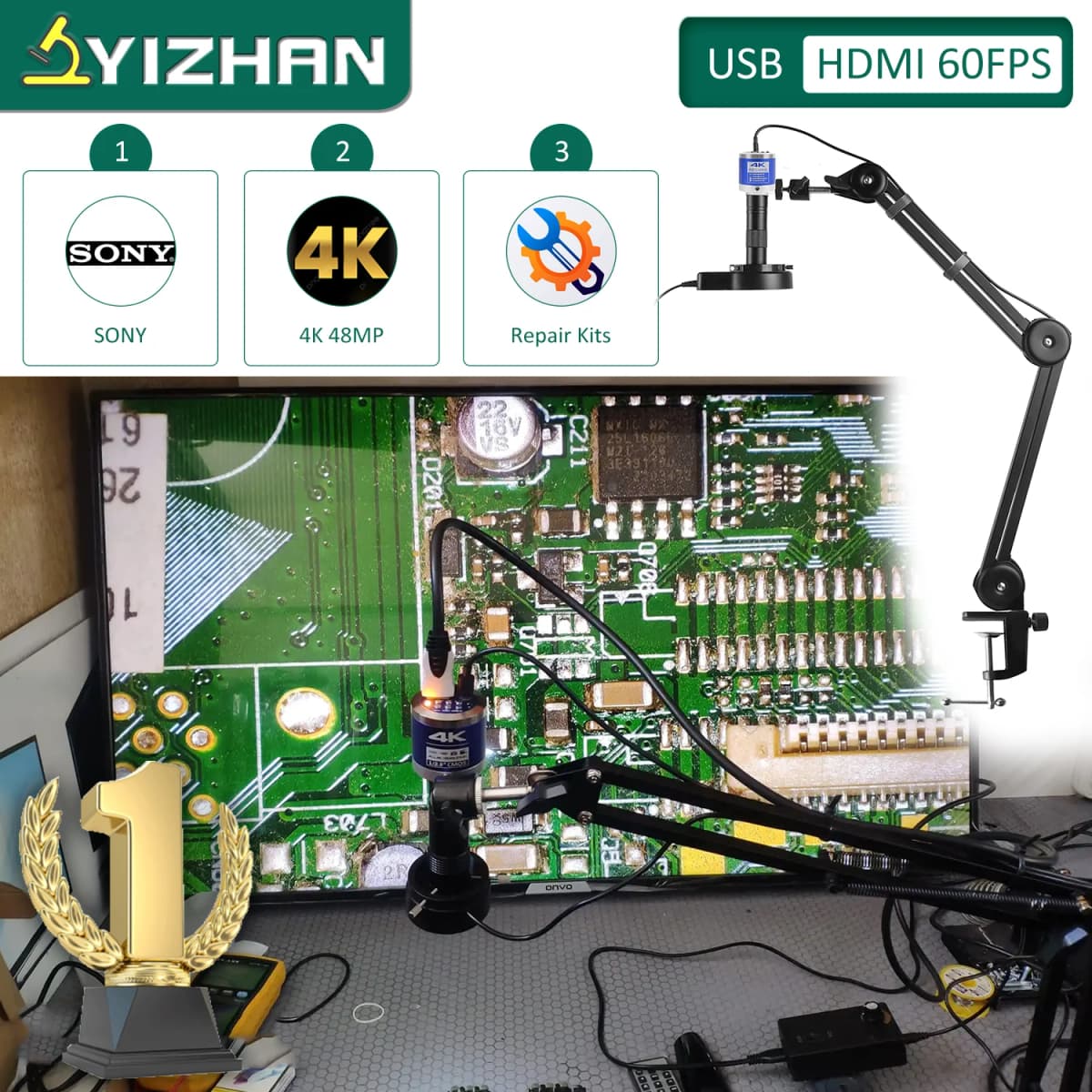

YIZHAN precision electronic repair microscope applicable scenarios:

1️⃣ Precision electronic repair

✔ Mobile phone/computer motherboard chip welding ✔ Micro circuit board defect detection ✔ SMT patch component precise positioning

▸ The lens magnification is optional, and it can be matched with a ring LED cold light source to easily capture micron-level defects such as solder joint cracks and component cold soldering, and say goodbye to the blurred vision of traditional magnifying glasses.

2️⃣ Industrial equipment maintenance

✔ Mechanical parts wear analysis ✔ Precision mold detection ✔ Micro gear set assembly calibration

▸ Long working distance design, no obstruction of operating space, single-handed adjustment of focal length, helping engineers to quickly complete troubleshooting.

3️⃣ Watch and jewelry finishing

✔ Swiss movement gear calibration ✔ Jewelry claw fine-tuning ✔ Antique cultural relics restoration

▸ Rotatable + metal shockproof bracket, meet the needs of sitting/standing multi-posture operation, 24-hour continuous observation without fatigue, so that the 0.1mm gem setting error can be seen.

4️⃣ Quality inspection and scientific research

✔ PCB gold wire quality inspection ✔ Material surface microstructure observation ✔ 3D printed finished product defect screening

5️⃣ Medical equipment maintenance and calibration

6️⃣ Automotive/aviation precision manufacturing

7️⃣ Teaching and skills training

8️⃣ Artwork restoration and miniature model making

XHU4003 Connectable software

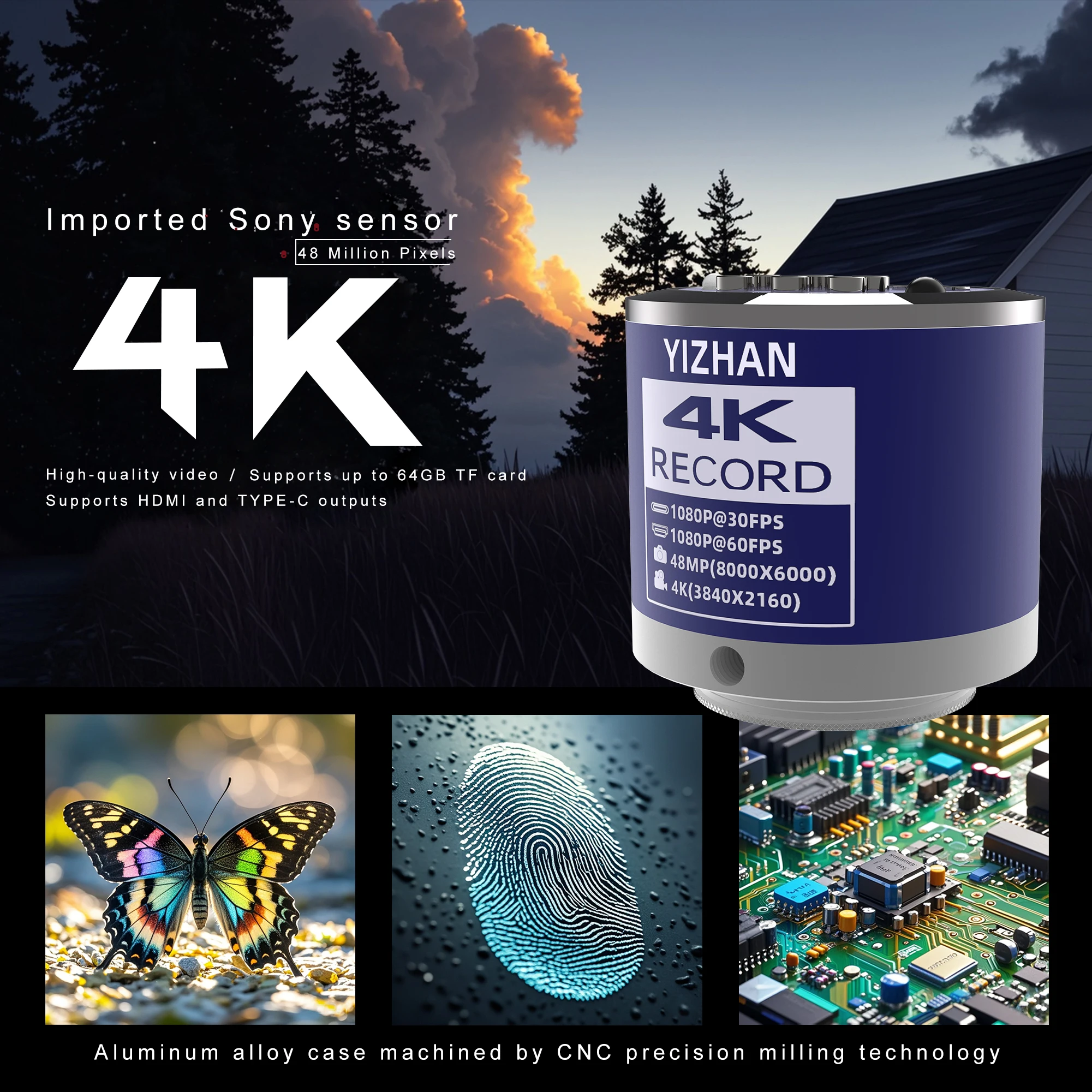

◆Using imported SONY sensor;
◆With a 1 / 2.8 inch image sensor, the perspective is wider than 1 / 3 inch;
◆HDMI 1080P 60FPS image output ；
◆TYPE-C no-drive output 1080P 30-frame image output;
◆4K video recording;
◆48 Million photos, JPG format, photo size 8000x6000;
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆Electronic scaling function;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;
◆Support remote control operation, take photos without shaking the image clearer;
◆Support for Chinese and traditional Chinese and English menu languages;
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;

Specification parameters
sensor:1 / 2.8 SONY sensor
Pixel size:2.9µm × 2.9µm
HDMI output:1920*1080 60FPS
TYPE-C output:1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface:C/CS
exposure:Automatic / manual
exposure compensatio:support
white balance:Automatic / manual, support for RGB adjustable
memory Max. support is 64GB
input voltage :DC: 5V
lineation 16 lines, with adjustable color, thickness, and position
centre line:support
menu language :English / Chinese
telecontroller:Support for the remote control operation
net weight:150g
rough weight :350g
product size:66*66*49mm
packing measurement:145*130*70mm

1X-150X Zoom C-mount Lens

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

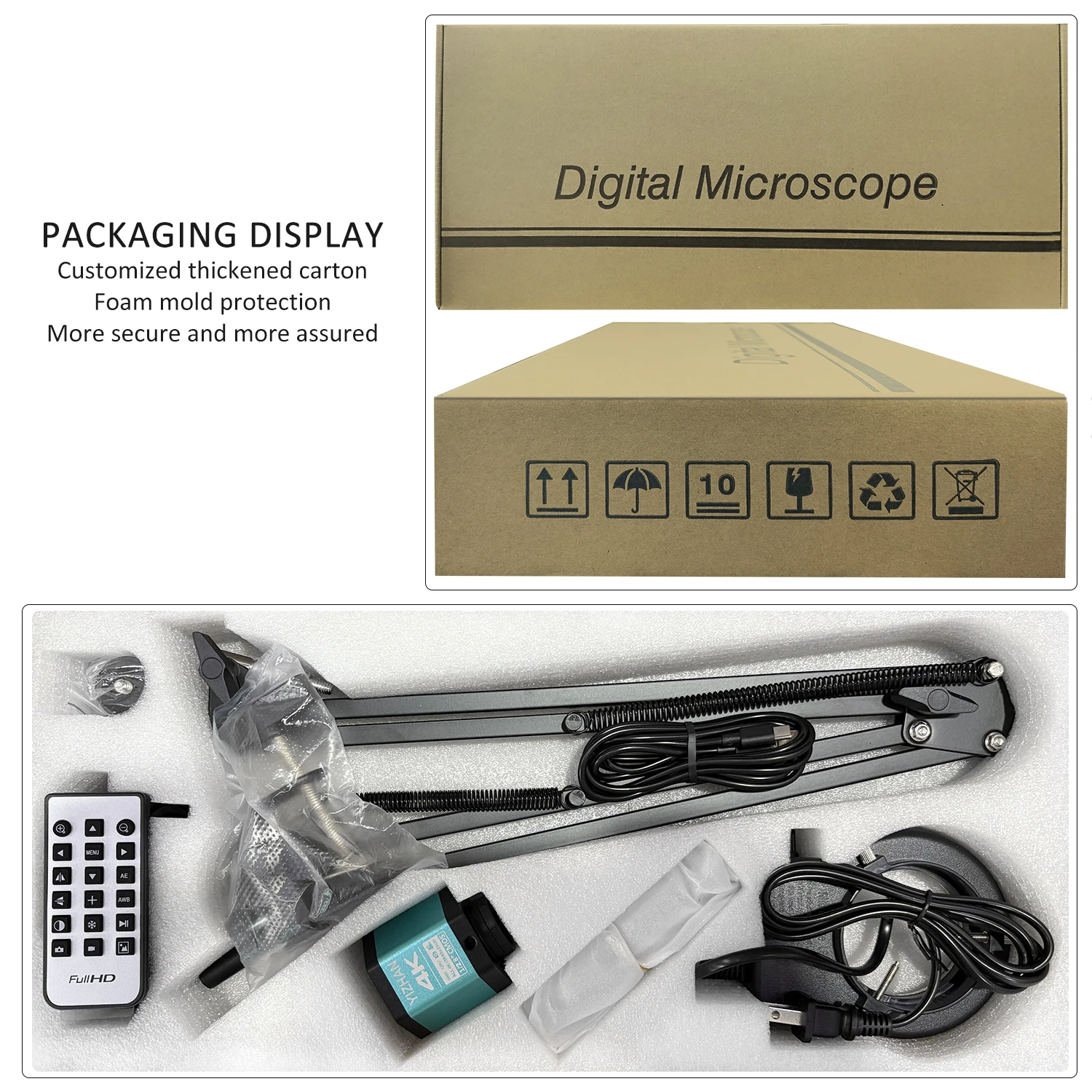

Professional microscope set packaging:

effectively protect the precision instruments in the package, no need to worry during transportation!

Comparison between thickened and standard brackets.

Package list

1*camera set
1*Lens
1*fill light
1*Bracket
