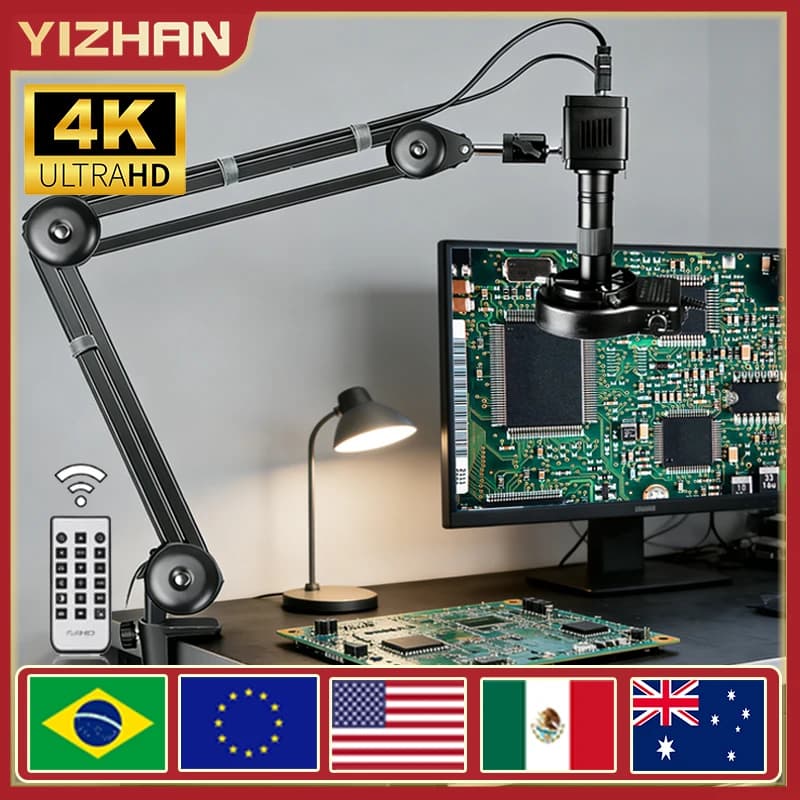

YIZHAN 150X Digital Microscope for Soldering 13MP/48MP/60MP Camera Adjustable Metal Folding Bracket Tools For Phone PCB Repair

💥Note:

The XVH2003 (13MP IMX323) camera cannot be used with the computer software; it can only display images in real-time. The other three cameras can be used with the computer software. They can be connected to a computer via USB cable for measurement, photography, video recording, etc.!

Computer software download link: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1

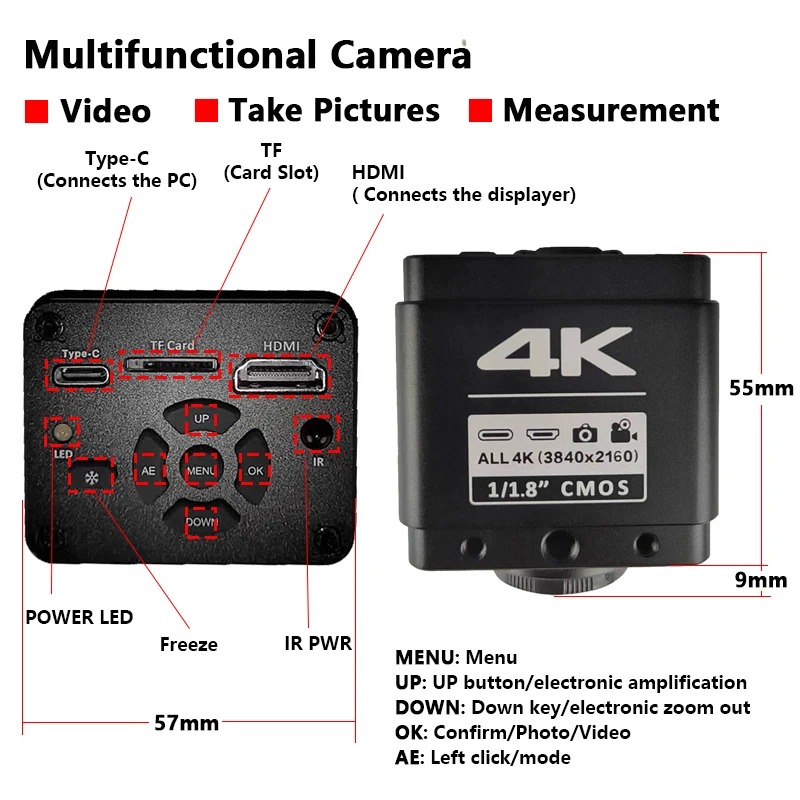

1️⃣ UHD 4K IMX678 Camera Description:

◆ Employs an 8.29 million pixel Sony CMOS image sensor;
◆ Employs a 1/1.8-inch image sensor;
◆ HDMI 3840*2160 30fps/1080P 60fps image output;
◆ USB 2.0 driverless output 3840*2160 30fps image output;
◆4K video recording;
◆4K photo capture;
◆One-click freeze/thaw function;
◆Electronic zoom function;
◆Supports manual/automatic exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance, red, green, and blue adjustable;
◆Provides 16-line drawing function, line color, thickness, and position adjustable;
◆Provides center crosshair display/disable;
◆Supports TF card storage, maximum support 64GB;
◆Supports remote control operation, shake-free and clearer images;
◆Supports Chinese and English menu languages ​​(English by default);
◆Supports saving settings parameters when powered off;
◆Rugged metal casing;

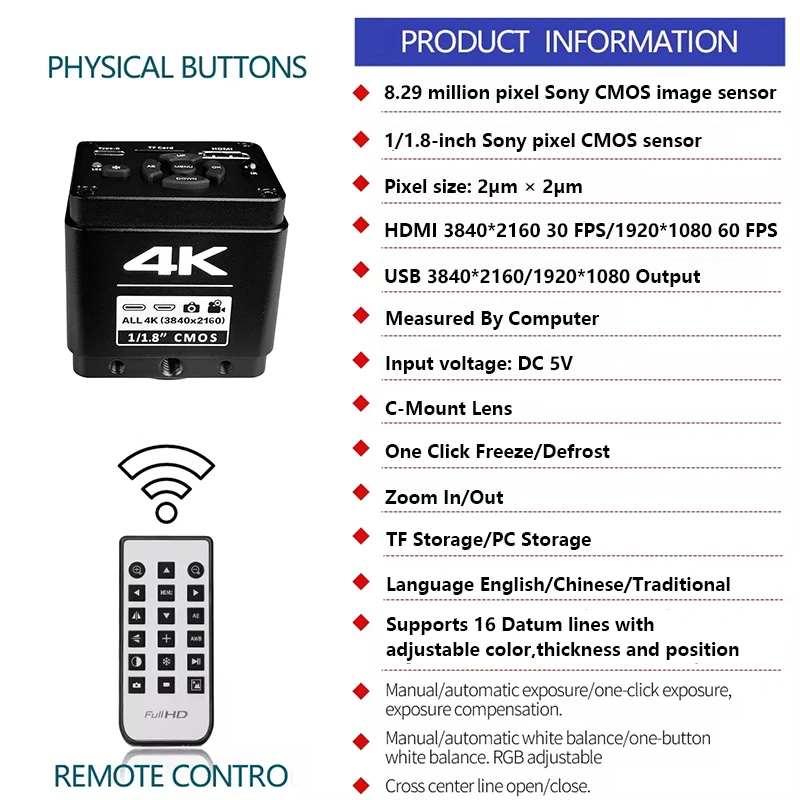

Specifications:
Sensor: 1/1.8-inch Sony 8.29MP CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30fps / 1920*1080 60fps
USB Output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens Interface: C/CS
Exposure: Auto/Manual
Exposure Compensation: Supported
White Balance: Auto/Manual, R, G, B adjustable
Storage: Maximum 64GB
Input Voltage: DC 5V
Swipe Lines: Supports 16 straight lines, color, thickness, and position adjustable
Center Line: Supported
Menu Language: English/Chinese/Traditional
Remote Control: Supported
Packaging Dimensions: 145*130*70mm

Packaging Includes:
1*XH3011 Camera
1*US/EU Plug
1*HDMI Cable
1*Type-C Cable
1*Remote Control

2️⃣ 60MP 4K IMX415 Camera Specifications:

Interfaces: HDMI + Type-C
Dimensions: 42*42*46mm
Sensor Size: 1/2.7"
Power Supply: 12V/USB
HDMI Output Resolution: 4K @30FPS / 1080P @60FPS
USB-PC Output Resolution: 4K @30FPS / 1080p@30FPS
Photo Resolution: 60MP (10368*5888)
Video Resolution: 4K @30FPS / 1080P @30FPS
Menu Language: 11 languages
Modable Crosshairs: Supports 32 horizontal and vertical lines; color/line width adjustable
Lens Interface: CS
Operating Current: 190mA
Effective Pixels: 4K (3840*2160)
Scanning Method: Progressive Shutter Type: Electronic Shutter
Dynamic Range: 69dB
Signal-to-Noise Ratio: 40dB
White Balance Mode: Single White Balance/Manual/Auto
Reduced Reflection Adjustment: Adjustable
Black & White: Allowed
Negative: Allowed
Mirroring: Allowed
Freeze/Thaw: Allowed
Adjustable Image Brightness/Contrast/Sharpness/Saturation: Allowed

Package Includes:
1*XHU4012
1*HDMI Cable
1*Type-C Cable
1*EU/US Plug
1*Remote Control
1*Instruction Manual

3️⃣ 48MP 4K IMX327 Camera Description:

◆ Employs a 2-megapixel imported Sony CMOS image sensor;
◆ Uses a 1/2.8-inch image sensor, offering a wider field of view compared to a 1/3-inch sensor;
◆ HDMI 1080P 60fps image output;
◆ USB 2.0 driverless output 1080P 30fps image output;
◆4K video recording;
◆Maximum 4800MP photo capture, JPG format, photo size 4608x3456;
◆One-key freeze/thaw function;
◆Electronic zoom function;
◆Supports manual/automatic exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance, red, green, and blue adjustable;
◆Provides 8-line drawing function, line color, thickness, and position adjustable;
◆Provides center crosshair display/disable;
◆Supports TF card storage, maximum support 64GB;
◆Supports remote control operation, shake-free and clearer images;
◆Supports Chinese and English menu languages ​​(English by default);
◆Supports saving settings parameters when powered off;
◆Rugged metal casing;

Specifications:
Sensor: 1/2.8-inch imported Sony CMOS image sensor
Dimensions: 2.9µm × 2.9µm
HDMI Output: 1920*1080 60FPS
USB Output: 1920*1080/30, 1280*720/30, 640*480/30, 320*240/30 (MJPG)
Camera Interface: C/CS
Exposure: Auto/Manual
Exposure Compensation: Supported
White Balance: Auto/Manual, RGB Adjustable
Storage: Maximum Support 64GB
Input Voltage: DC 5V-12V
Lines: Supports 8 straight lines with adjustable color, thickness (h), and position
Center Line: Supported
Menu Language: English/Chinese
Remote Control: Supported
Model: XHU4002
Color: Blue
Net Weight: 250g
Gross Weight: 450g
Product Dimensions: 60*60*70mm
Packaging Dimensions: 145*130*70mm
Output Interface: HDMI USB
Resolution: 1920*1080P
Remote Control: Yes

Package Includes:
1*XHU4002 Microscope Camera
1*Adapter
1*HDMI Cable
1*USB Communication Cable
1*Remote Control
1*Instruction Manual

4️⃣13MP IMX323 Camera Description:

◆ 2-megapixel back-illuminated CMOS image sensor
◆ 1/3-inch image sensor;
◆ HDMI/VGA 1080P 30fps image output;
◆ Supports manual/auto/one-touch exposure, with adjustable exposure compensation;
◆ Supports manual/auto/one-touch white balance, with adjustable red, green, and blue;
◆ Provides 8-line drawing functionality, with adjustable line color, thickness, and position;
◆ Center crosshair display/off;
◆ Supports Chinese and English menu languages ​​(English by default); 10 languages
◆ Supports saving settings even when the camera is off;

Camera Specifications:
Sensor: SONY IMX323
Dimensions: 75*50*50mm
Video Interface: HDMI VGA Lens: CS
Operating Voltage: 12V
Operating Current: 150mA
Optical Format: 1/3''
Pixel Size: 2.8µm*2.8µm
TV Cable: 1200TV Cables
Maximum Frame Rate: 60FPS
Scanning Method: Progressive Scan
Shutter Type: Electronic Shutter
Dynamic Range: 65dB
Radio Signal-to-Noise Ratio: 45dB
OSD Language: English/Chinese
AWB Mode: Single White Balance/Manual/Auto
HDR: Adjustable
Crosshai: Supports 8 Colors/Adjustable Line Width
Black & White: Allowed
Negative: Allowed
Mirror Flip: Supports Left/Right/Top/Down
Freeze: Allowed
Comparison: Allowed
Manual Adjustment of Brightness, Contrast, Sharpness, Saturation: Allowed
Output Display Resolution: HDMI: 16:9, 4:3 VGA: 1920*1080P or higher
Remote Control: Yes
Features: Remote control function

Package includes:
1*XVH2003 microscope camera
1*Power cord
1*Remote control
1*Instruction manual

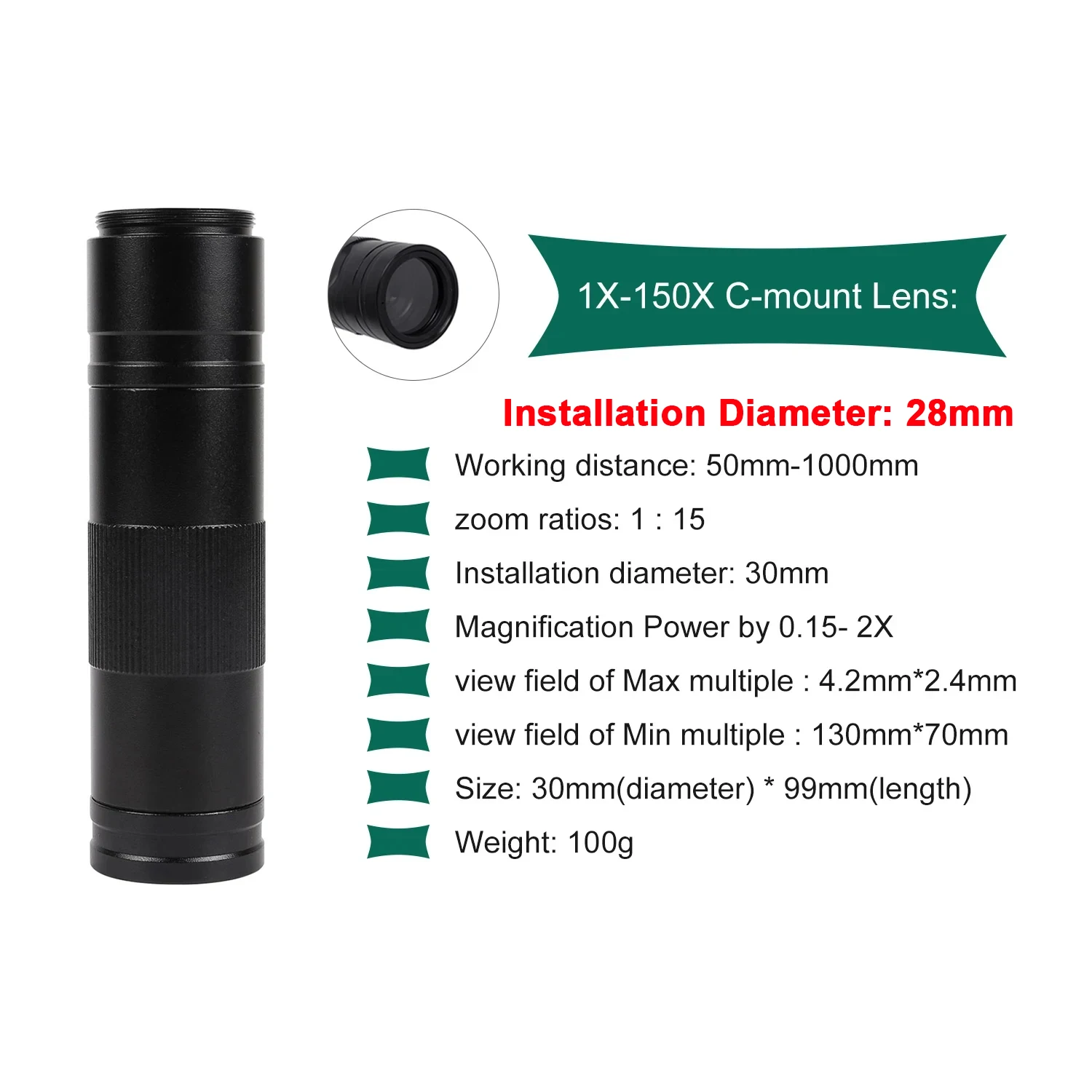

150X 28mm Lens Specifications:

Mounting diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approximately 1-150X on the display)
Maximum field of view: 4.2mm*2.4mm
Minimum field of view: 130mm*70mm
Dimensions: 99mm (length)
Weight: 100g
Compatible camera size: 25mm

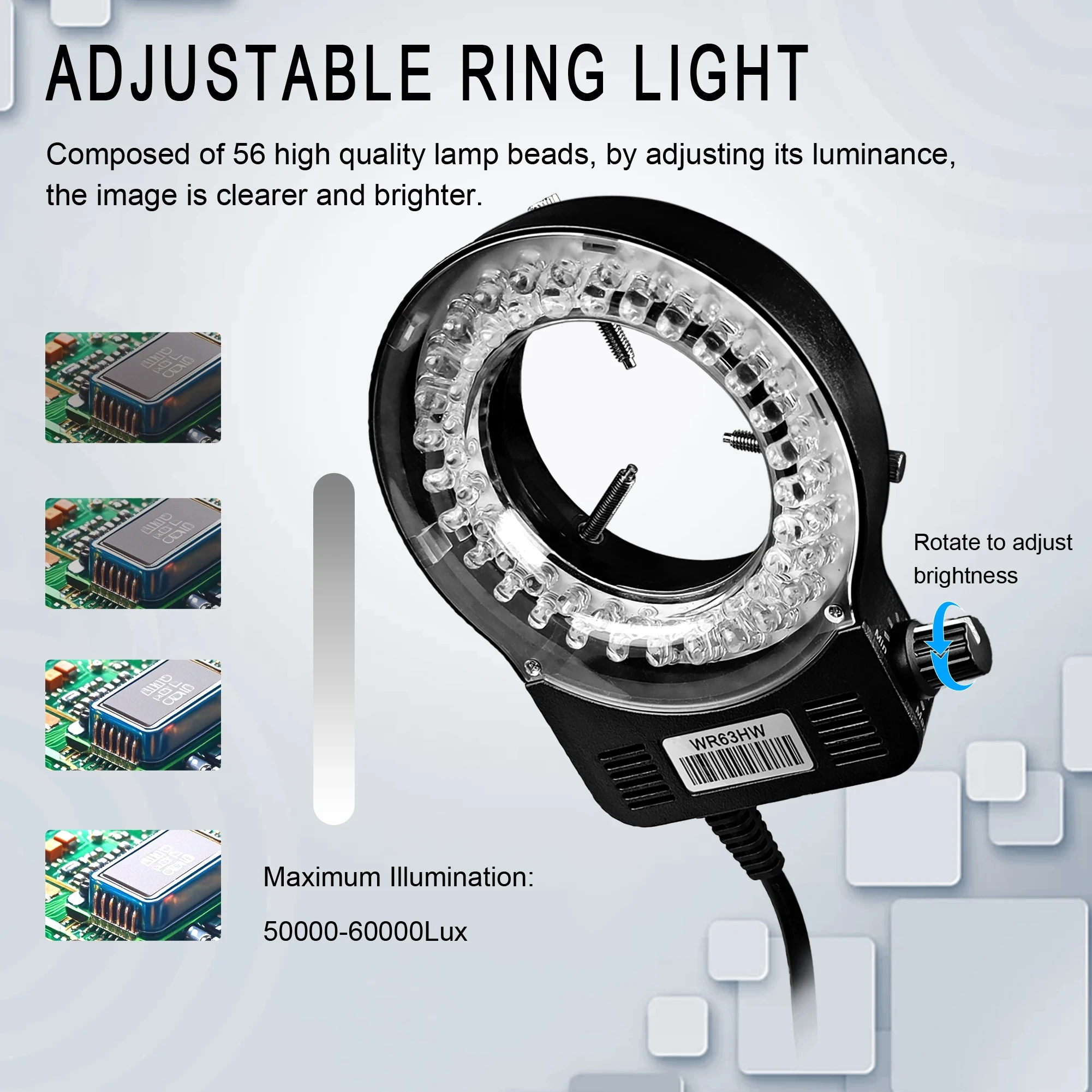

Ring Light Specifications:

Material: Plastic
Color: Black/White
Dimensions: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power Input: 110V-220V
Output Voltage: DC12V/1A
Number of LEDs: 56
Operating Lifespan: 100,000 hours
Color Temperature: 6500K
Effective Distance: 50-300mm
Inner Diameter: 63mm
Outer Diameter: 97mm
Light Color: White

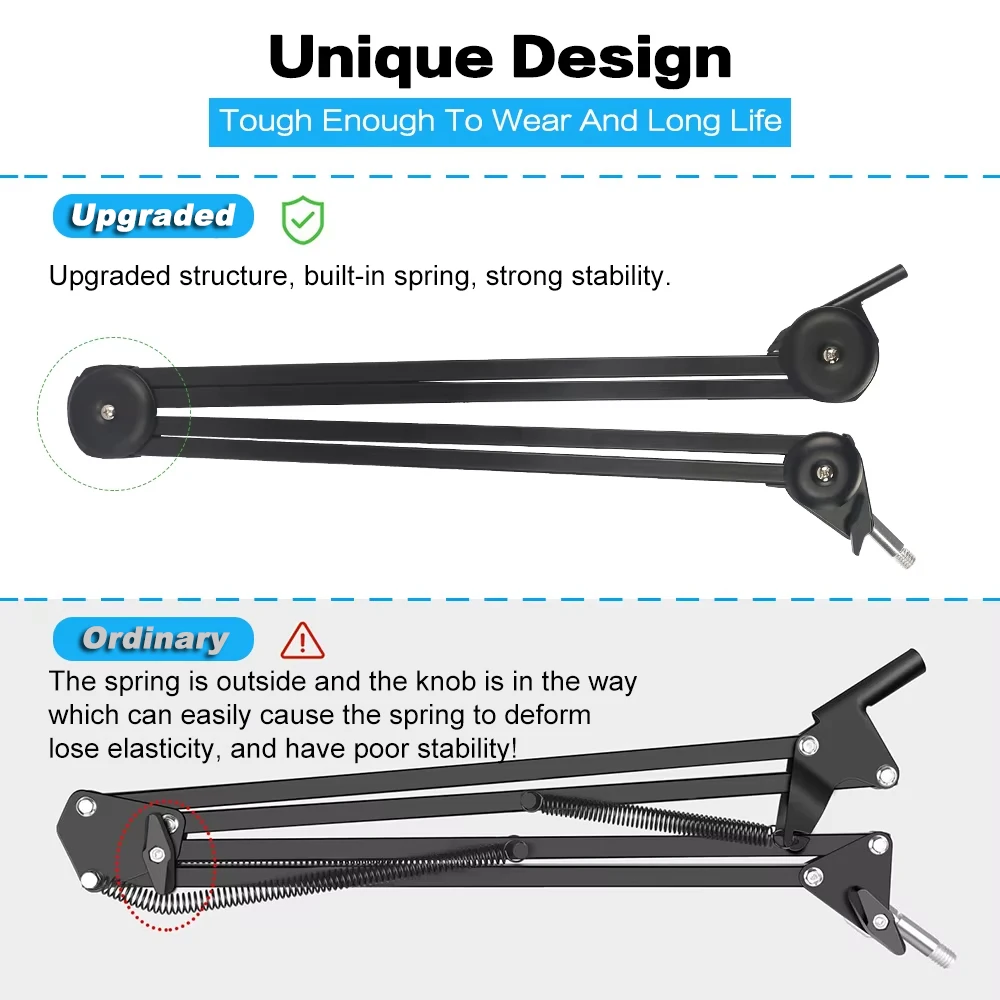

A (Upgraded) Folding Stand Description

【Enhanced Flexibility】Experience a whole new level of flexibility in your digital microscope with our upgraded flexible arm stand. With its comprehensive adjustability, including 360° rotation, 135° extension, 180° movement, and 270° metal adapter, you can easily position the microscope for optimal viewing angle and precise imaging. This makes it ideal for soldering PCBs. The perfect companion for microscopes, it provides the flexibility and precision you need for intricate work.

[Rugged and Reliable] Rest assured, our stand is built to withstand the weight of your microscope, providing a stable and secure platform for your valuable equipment. Its rugged construction ensures durability and long-lasting performance, even under extended use. Trust in the reliability of our stand, knowing it will support your microscope with the stability and security you need for precise observation and experimentation.

[Easy Storage and Setup] Designed with convenience in mind, our stand offers easy storage and setup options. When not in use, simply fold the stand and store it compactly, saving valuable space in your lab or workspace. When you're ready to begin your microscopy tasks, setup is quick and easy, ensuring preparation time is minimized. This streamlined approach allows you to focus more on your microscopy tasks, maximizing efficiency and productivity.

[Precise Positioning] Experience unparalleled microscope positioning accuracy with our stand's advanced adjustability. Whether you need to fine-tune the height, angle, or orientation of your microscope, our stand provides maximum flexibility to meet your specific needs. This level of precision ensures optimal conditions for detailed inspection and imaging, allowing you to confidently and accurately capture every intricate detail.

B (Ordinary) Folding Stand Specifications:

Material: Aluminum Alloy
Dimensions: 47*46cm
Weight: 808g
Maximum Working Distance: 70cm
Loop: 50mm
Function: Microscope Stand, Microphone Stand, and Phone Holder
