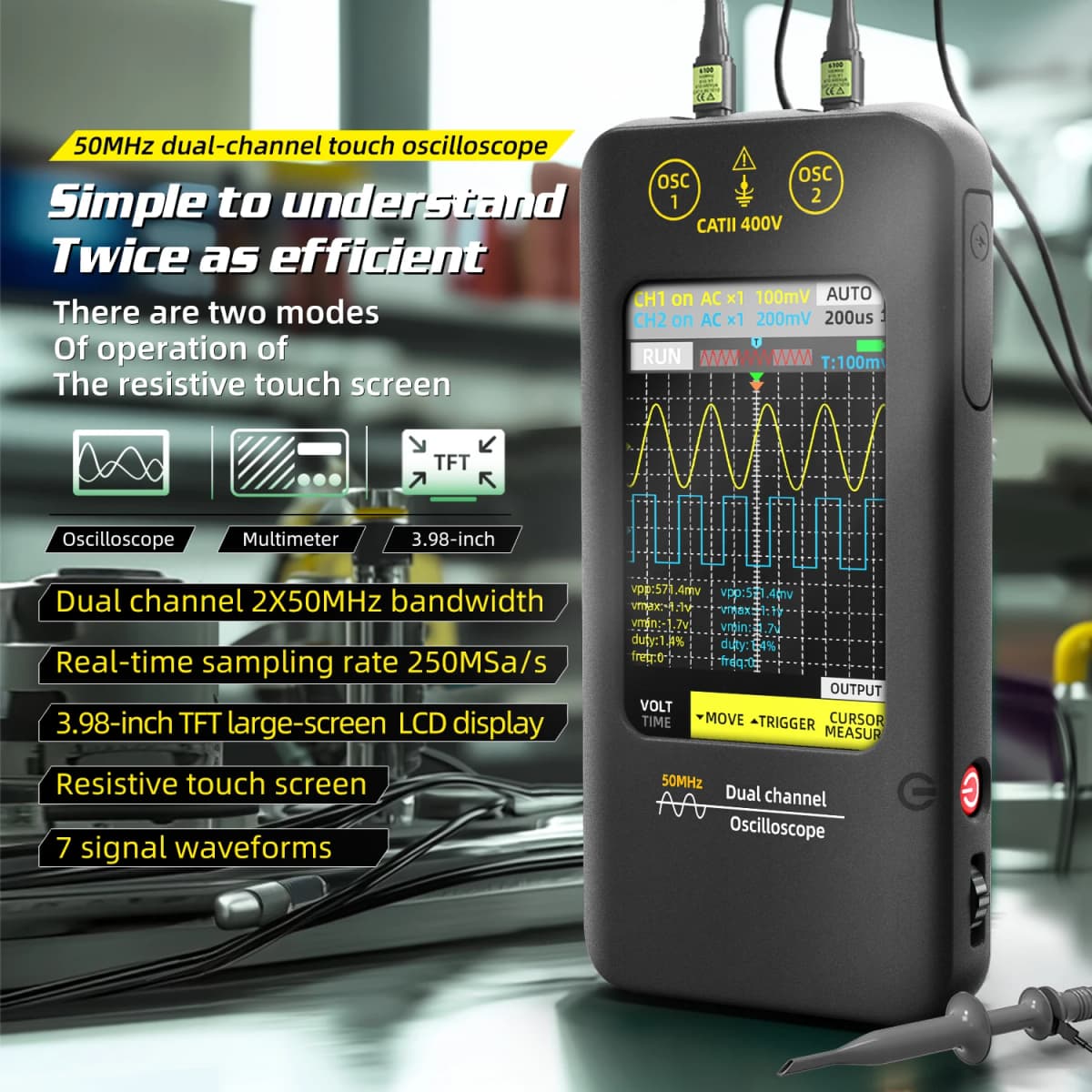

NEW Touch Screen Digital Oscilloscope+Signal Generator Dual Channel Bandwidth: 50MHz Sampling Rate: 250MSa/s 3.98 inch TFT

BSIDE O2 is the latest Dual-channel touch-screen oscilloscope signal generator from BSIDE brand.

With comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.

This device has two major functions: oscilloscope and signal generator. The oscilloscope adopts FPGA+MCU+ADC hardware architecture.

It has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and supports a maximum peak voltage measurement of ±400V; supports waveform screenshots. Save and view to facilitate secondary analysis.

Inside Set up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 2MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle Adjustable.

It uses a 3.98-inch touch display and a built-in 3000mAh rechargeable lithium battery with a standby time of up to 7 hours.

With small size，Provide users with more and stronger practical functions, while also having good portability.

Oscilloscope:

Channel：Dual channel.

Analog bandwidth：50MHz.

Real-time sample rate：250MSa/s.

Storage depth：Up to 128kByte.

Input mpedance：1MΩ.

Time base range：10ns/div - 20s/div.

Vertical sensitivity：10mv/div - 20v/div.

Time base accuracy：20ppm.

Maximum measured voltage：±400V.

Probe：1x/10x.

Bandwidth limitSupport 20MHz limit.

Trigger mode：AUTO/Normal/Single.

Trigger type：Rising edge, Falling edge.

Waveform display mode：XY/YT/Scroll.

Coupling method：AC/DC.

Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width.

Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT.

Save waveform screenshot：Yes.

Export waveform images from computer：Yes.

Signal Generator:

Channel：Single channel.

Frequency：0-2MHz（Sine wave: 10MHz, other waveforms 5MHz）

Amplitude：0.1V-3.0V.

Square wave duty cycle0-99%.

Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse.

Basic Parameters.

Screen size & resolution：3.98 Inch (480*272 pixels).

Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + TFT color screen.

Backlight brightness can be set：30%/50%/80%/100%.

Power supply：TYPE-C（5V/2A）

Battery：4000mAh lithium battery.

Language：English/Chinese.

Product size：about 170x81x24mm.

Product net weight：about 268g.
