Anern 6.2KW 4.2KW 3KW 1.6KW Hybrid Inverter Off Grid Dual AC Output MPPT 120A on Grid Solar Inverter 48V 24V 12V 230V PV 500Vdc

Inverter use notice:
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

Please find an electrician to install the inverter. Installing it yourself can cause danger or damage to the equipment.

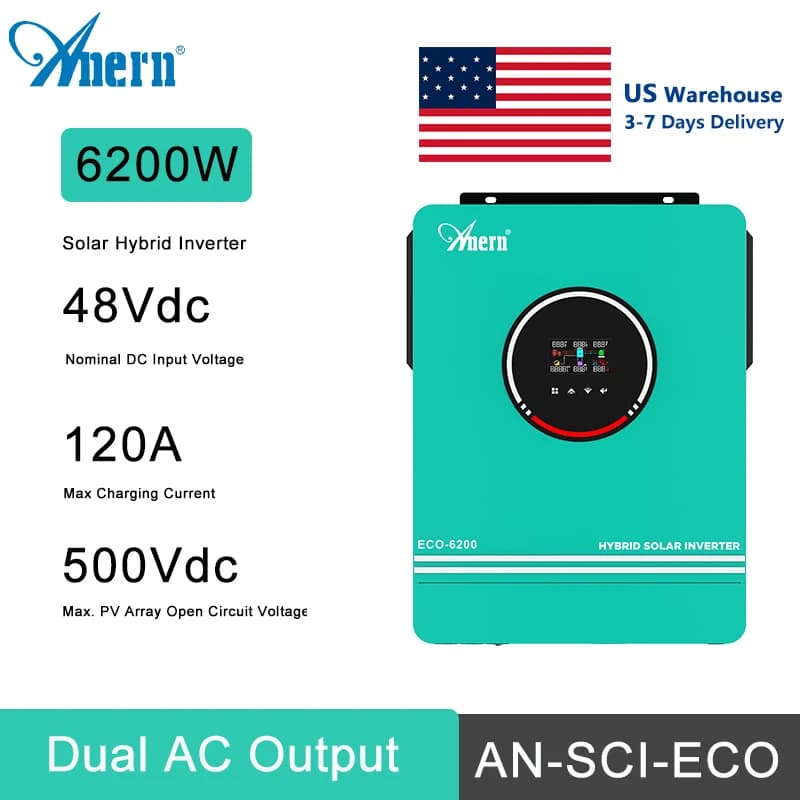

ECO 6200W 48V & 4200W 24V

1. Dual AC Output.
2. It is a hybrid inverter that can be both off-grid and on-grid connected. Whether or not it can sell electricity into the grid depends on local government policy. But our solar inverters do not have VDE certification and may not be on-grid connected in some countries.
3. It can work with or without battery. However, without battery, the solar panel voltage has to exceed 360 Vdc. It is recommended that batteries are connected.

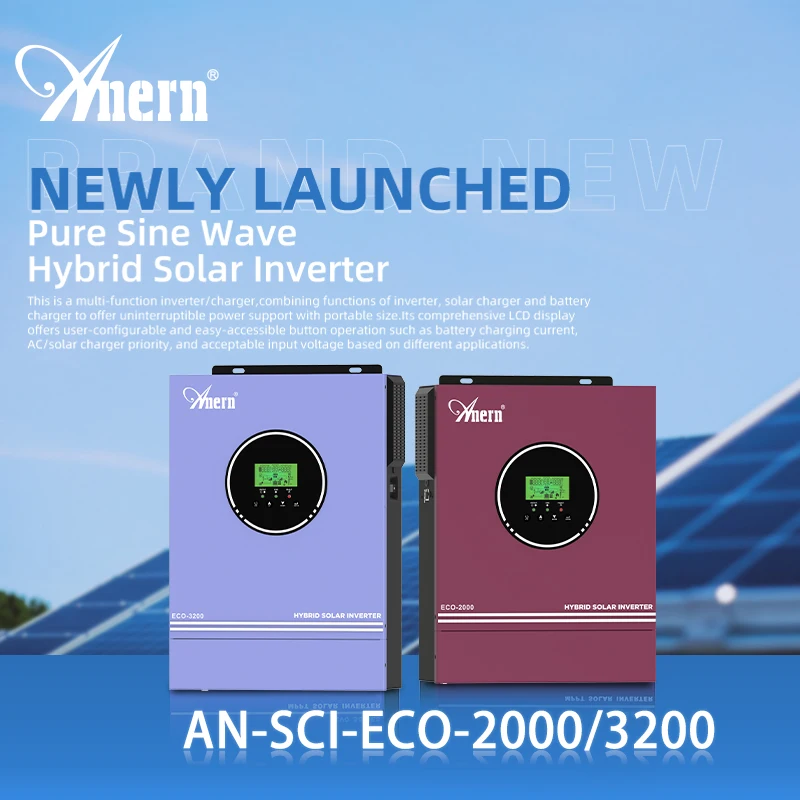

3000W 24V & 1600W 12V

1. It needs to be connected to the battery.
2​. It is recommended to be used without WIFI module.
3​. It is a hybrid inverter that can not be on-grid connected.

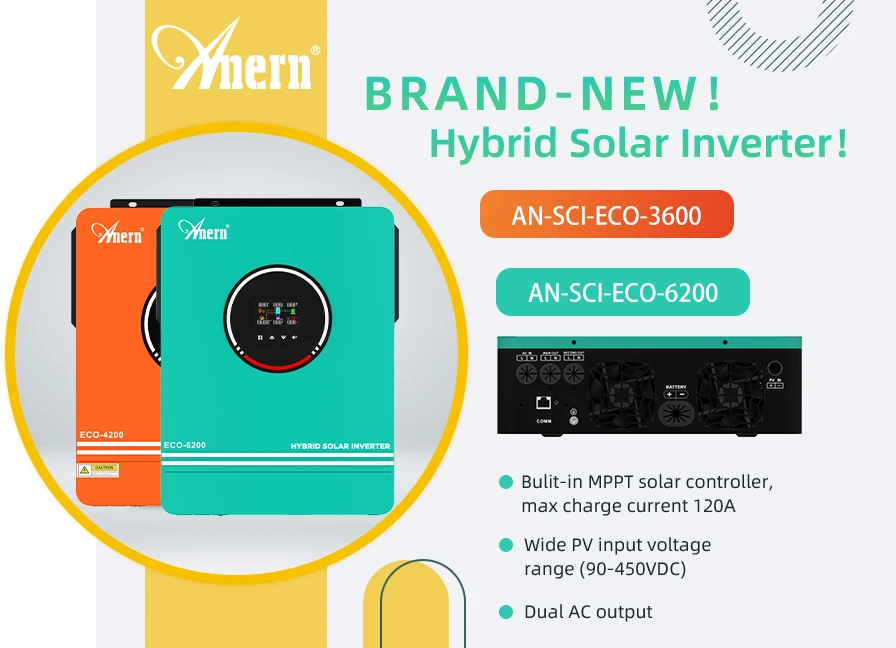

Key Features:

◆ Pure Sine Wave Solar Hybrid Inverter;
◆ Be able to run without battery;
◆ One-key restoring to factory default settings;
◆ PV automatically activates lithium batteries;
◆ Bulit-in MPPT solar controller, max charge current 120A;
◆ Max 6200W & 6500W solar input power respectively;
◆ Wide PV input voltage range (90-450VDC);
◆ Built-in anti-dusk kit for harsh environment.
◆ Smart battery charge design to maximize battery lifespan
◆ Dual AC output;
◆ WIFI available for IOS and Android systems.

Advantages of dual output:

In a power generation system using lithium batteries for storage, when the inverter is under full load or high-power load, due to the characteristics of lithium batteries, the battery voltage tends to drop too quickly, which shall make the battery voltage too low and disconnect the battery while the battery bank still keeps 50% of rated power.
With the dual output function, user can connect some important loads to the secondary output. When the battery voltage is low (typically lower than 44V, with a minimum setting of 41V), the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load.

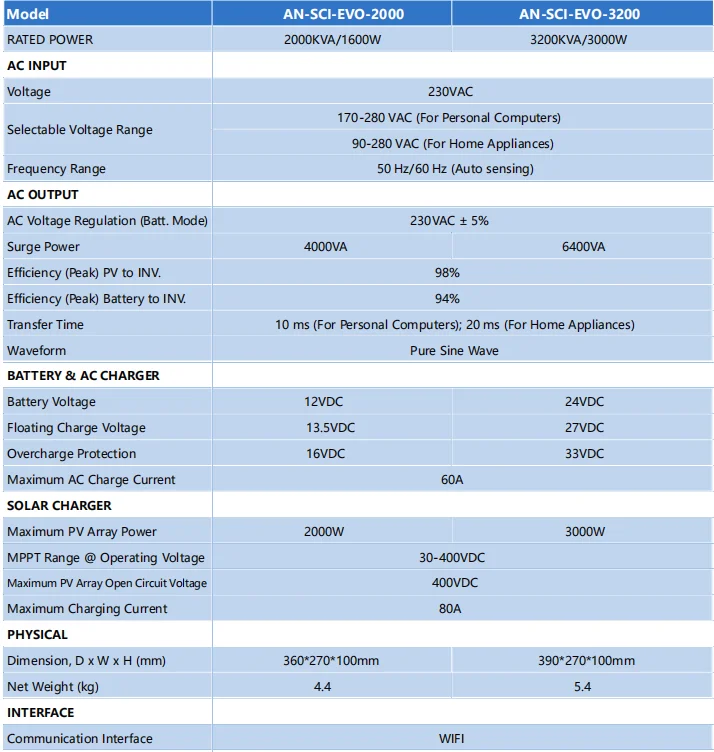

Key Features:

◆ Pure Sine Wave Solar Hybrid Inverter;
◆ Output Power Factor 1.0
◆ Bulit-in MPPT solar controller, max charge current 80A;
◆ Max 2000W & 3000W solar input power respectively;
◆ Wide PV input voltage range (30-400VDC), lowest voltage only 30V;
◆ Built-in anti-dusk kit for harsh environment;
◆ Smart battery charge design to maximize battery lifespan;
◆ Compatibe with lithium battery;
◆ WIFI available for IOS and Android systems.
