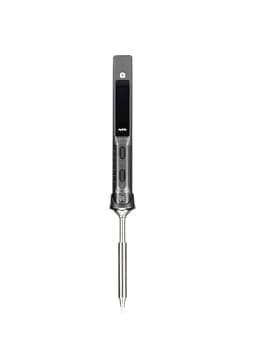

TS101 Soldering Iron Smart Adjustable Portable Mini Type-C USB Electric Temperature Digital Solder Iron Station PD3.0

Main Features

1.TS100 upgraded with more ergonomic appearance design: anti-slip plastic handle and pluggable ball-nut tip installation, larger LED screen display more information

2. Embedded smart MCU processor chip to control soldering iron and monitor the soldering iron tip timely ensure stable heating temperature support auto sleep, auto standby, and intelligent temperature compensation, and also support firmware update

3. Internal Heating design with dual temperature sensor and acceleration extreme cooperate ensure fast heating speed, reaching the set temperature in only a few seconds

4. Support 3 group default heating temperature and one key turbo boost heating mode to speed up your soldering project and save time

5. 9V-24 low working voltage with DC5525 and USB Type C dual power jack support DC 9-24V and PD3.19V-28V power supply can be powered by the laptop power supply, the power bank, or smartphone quick power charger directly

6. comes with soft silicone rubber USB type C cable with high-temperature resistance

7. Compact size with pen shape design and only 33g lightweight easy to handle and carry

Specifications

-Model: TS101-Max. Output power: 65W(DC),90W(PD)*

-Input Voltage: DC9-24V, PD3.1 9-28V

-Power Jack: DC5.5 * 2.5, USB Type C

-Temperature Heating Adjustable Range: 50C-400C/122F -752F

-Temperature Stability Range: +/-2%

-Soldering Iron Handle Size:16.8X95mm(D*L)

-Soldering Iron Tip Size: 15.5X105mm(D*L, TS-BC2)

-Overall Length:168mm(tip installed)

-Net Weight:33g

*For this voltage level, please use a PD3.1 28V power supply and a USB-C power cable supporting 50V 5A 240W EPR At the same time, set menu PDP wmax as off.

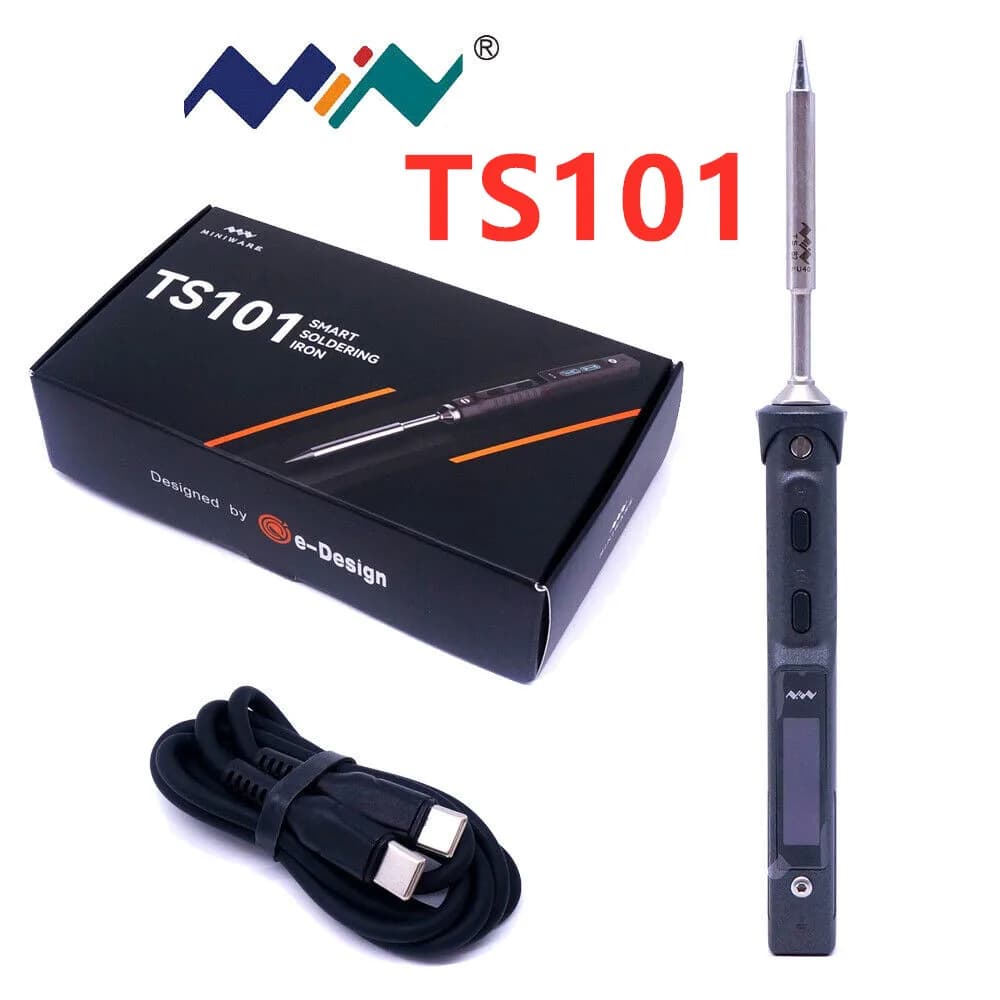

Package list

TS101 Controller Gray*1

Soldering Tip *1（Option）

USB-C Silicone Cable*1

User Manual*1
