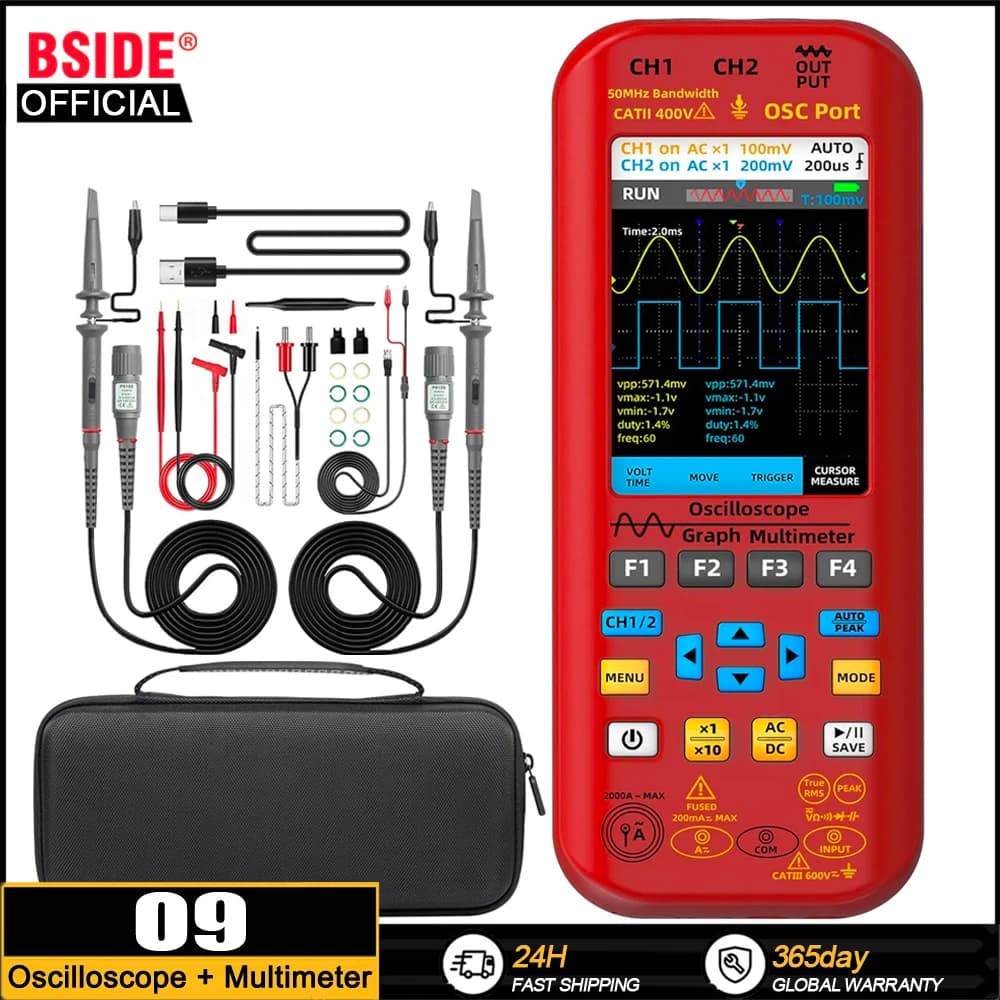

BSIDE 50MHz Digital Oscilloscope Multimeter 4-IN-1 Dual Channel 50MHz Bandwidth AC DC Voltage Current OHM Multifunction Teste

BSIDE O9 4-IN-1 Professional Digital Oscilloscope Multimeter Dual Channel 50MHz Bandwidth AC DC Voltage Current OHM Multifunction Teste

BSIDE O9 NEW Portable Oscilloscope adopts FPGA+MCU+ADC hardware architecture, Dual-channel with a sampling rate of 250MS/s, 50Mhz analog bandwidth, built-in high-voltage protection module, maximum support measurement of peak voltage of ± 400V.

Using a 3.98 inch 480*320px resolution high-definition TFT display screen with a built-in 5000mAh rechargeable lithium battery（18650 battery*2）, the Standby for 10 H in Oscilloscope mode and 24 H in Multimeter mode.

Can be used with Flexible current clamp. It can test 6000A current.

The digital multimeter mode has 20000 Digit, True-RMS, Supports AC/DC Voltage、Current、Temperature、Capacitance、Resistance、Diode、NVC、Continuity other measurement functions. Properties such as auto power off, low battery alert, etc.

Equipped with a built-in DDS function signal generator, it can output 7 types of function signals, with a maximum output of 2MHz for all signals and a step of 1Hz; The output frequency, amplitude, and duty cycle are adjustable.

Product Introduction:

[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

[Rechargeable]: The handheld oscilloscope multimeter comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.

[Carrying case]: The digital oscilloscope multimeter comes with a high-quality EVA carrying case, which is perfect for use on the go.

Specification:

Maximum display: 20000counts

Screen size: 3.9 inches.

Bandwidth: 50MHz

Real-time scan rate: 250MSa/s

Input impedance: 1MΩ

Maximum Input Voltage: ×1 Range<150V, ×10 Range<300V (DC+AC Peak)

Horizontal seconds range: 100ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

DC voltage: 60mV 0.01mV ± (1%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±（0.8%+3）; 600V/1000V 0.1V/0.1V ±（1%+5）

AC voltage: 60mV 0.01mV ± (1.2%+5); 600mV/6V/60V 0.1mV/0.001V/0.01V/ ±（1%+3）; 600V 0.1V ±（1.2%+5）; 750V 1V ±（1.2%+5）

DC current: 60mA/600mA 0.01mA/0.1mA ±(1%+3)

AC Current: 60mA/600mA 0.01mA/0.1mA ±(1.2%+5)

Flexible Current Clamp AC Current: 200A/2000A 0.1A/1A ±(1%+5)

Resistance: 600Ω 0.1Ω ± (1.2% + 5); 6K Ω/60K Ω/600K Ω 0.001K Ω/0.01K Ω/0.1KΩ ±（1.0% + 3）; 6MΩ 0.001MΩ ±（1.2% + 5）; 60MΩ 0.01MΩ ±（1.5% + 5）

Capacitance: 999.9nF/9.999 μF/999.9 μF 0.1nF/0.001 μF/0.1 μF ± (4.5% + 5); 99.99mF 0.01mF ±（5.0%+10）

Temperature: -20~1000°C/-4~1832°F 1°C/1°F ±(2.5% + 5)

Diode: Yes

Continuity: Yes

Power supply: 18650 battery*2 (rechargeable)

Size: 216.6x84.5x36mm

Weight: 384g

Package includes:

1 x Handheld Oscilloscope Multimeter
1 x EVA suitcase
1 x oscilloscope probe
1 x oscilloscope probe(Optional)
1 x Oscilloscope Accessory
1 x multimeter pen
1 x Crocodile Clip
1 x charging cable
1 x Instruction Manual
1 x Warranty Card
1 x charging cable
1 x User Manual
1 x K-Type Thermocouple
1 x box
