YIZHAN 4K HD Electronic Microscope HDMI USB 1080P Industrial Digital Microscope 150X Zoom For PCB Soldering/Jewelry Repair

Microscope software download address: Please note: This microscope software is not suitable for Apple computers! Regarding the software download address, please contact customer service after purchase. (Download link cannot be filled in the product details)

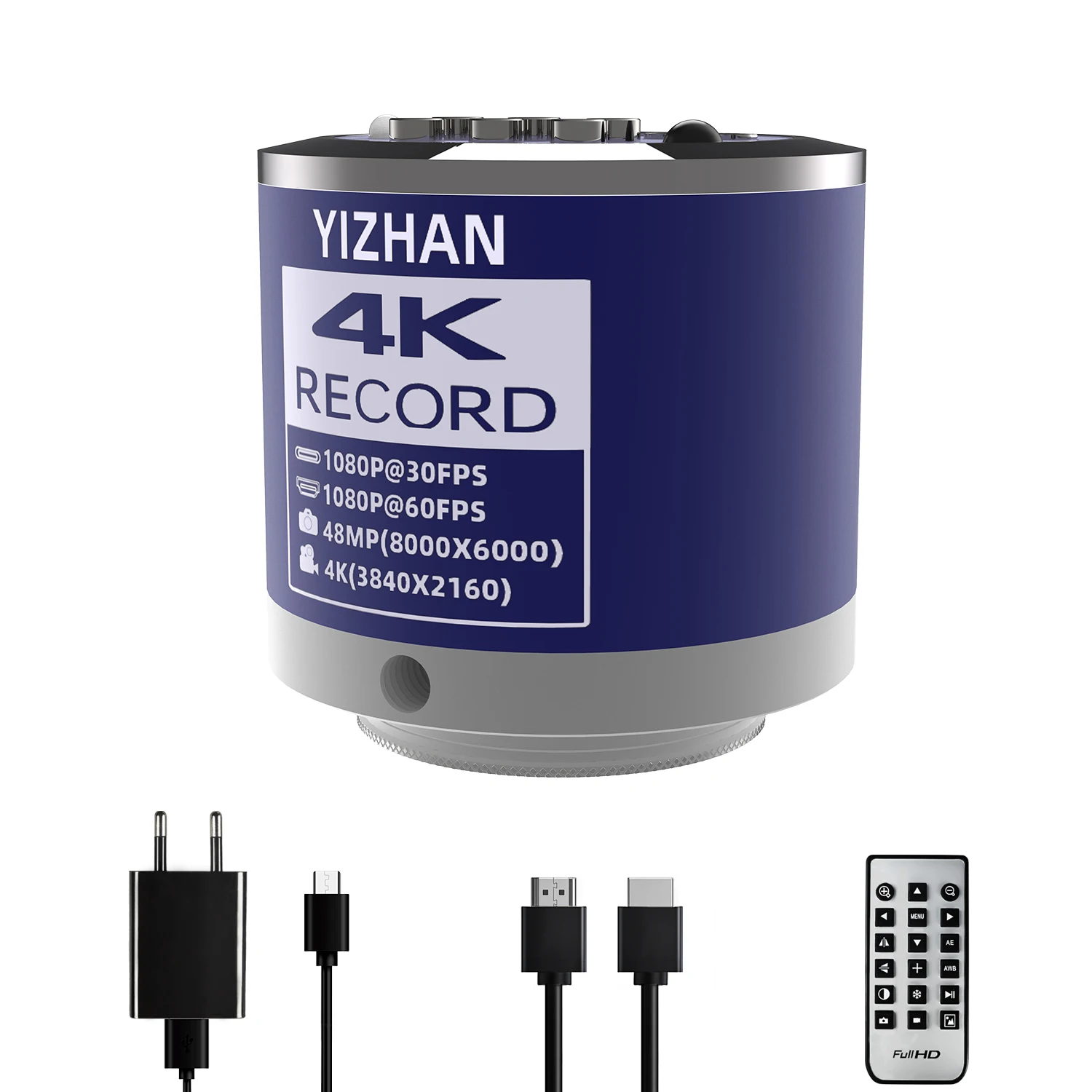

Packing List:

1*camera set

1*Lens (Black)

1*fill light

1*Bracket (Small, medium and large optional)

NOTE：

Some countries need to split a single package into two packages due to weight restrictions. If you only receive part of it, don’t worry, there is another part on the way!

Different pixel quality and output interface for you to choose:
Interface options: USB/HDMI/VAG
Pixel quality can be selected: 13MP/48MP (4K)
The number of frames transmitted per second: 30Fps/60Fps
Please pay attention to the picture and the parameter description in the packing list when purchasing!

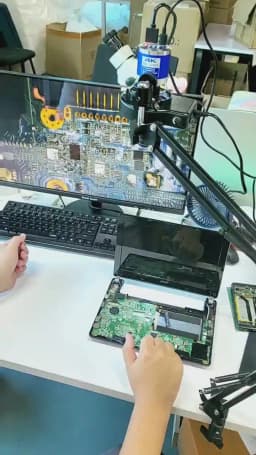

Applicable scenarios: mobile phone repair/computer repair/watch repair/jewelry repair/various circuit board repair/various motherboard repair/any scene that needs to be enlarged can be used!

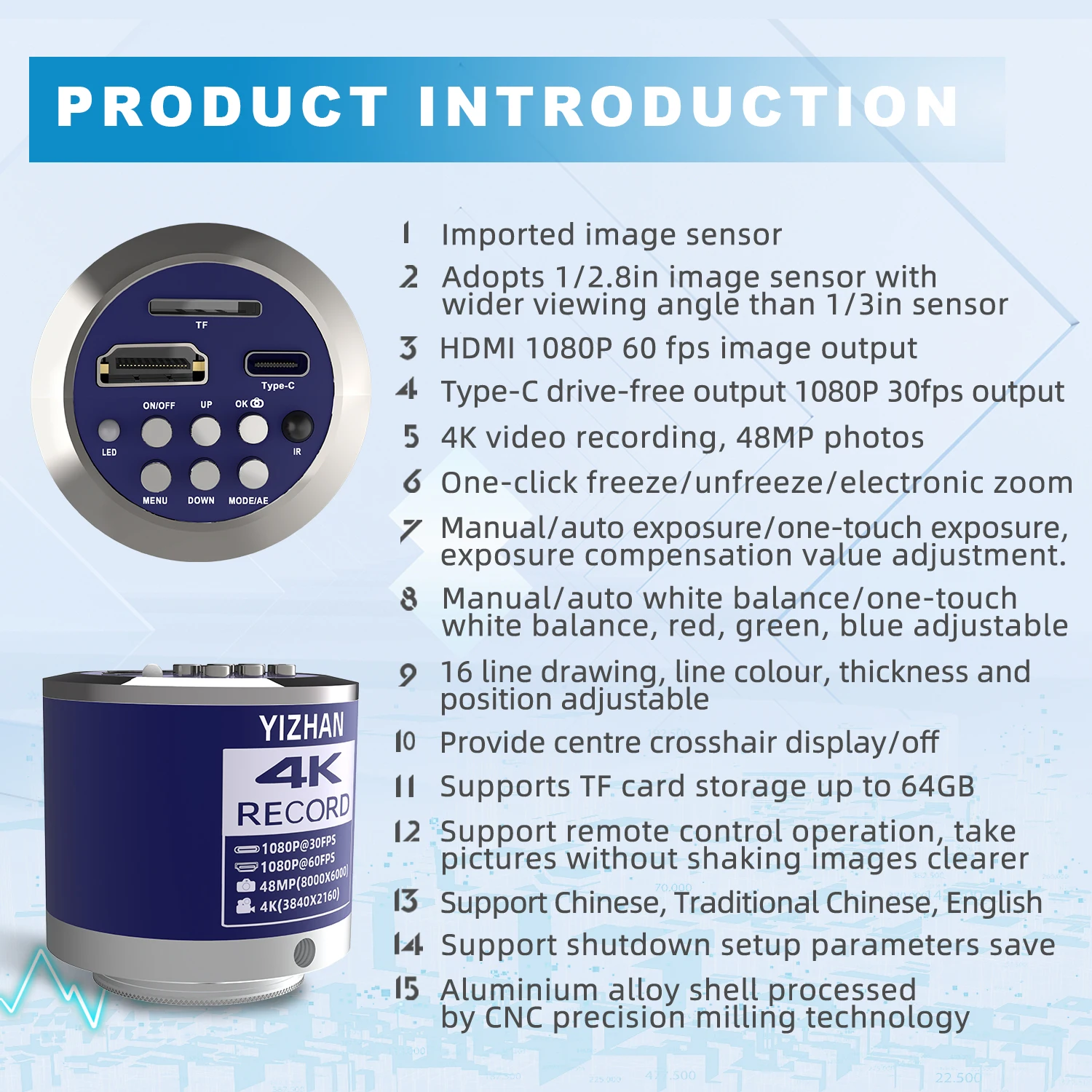

4K HDMI USB Camera Feature:

◆Using imported SONY IMX415 sensor;
◆With a 1 / 2.8 inch image sensor, the perspective is wider than 1 / 3 inch;
◆HDMI 1080P 60FPS image output ；
◆TYPE-C no-drive output 1080P 30-frame image output;
◆4K video recording;
◆48 Million photos, JPG format, photo size 8000x6000;
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆Electronic scaling function;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;

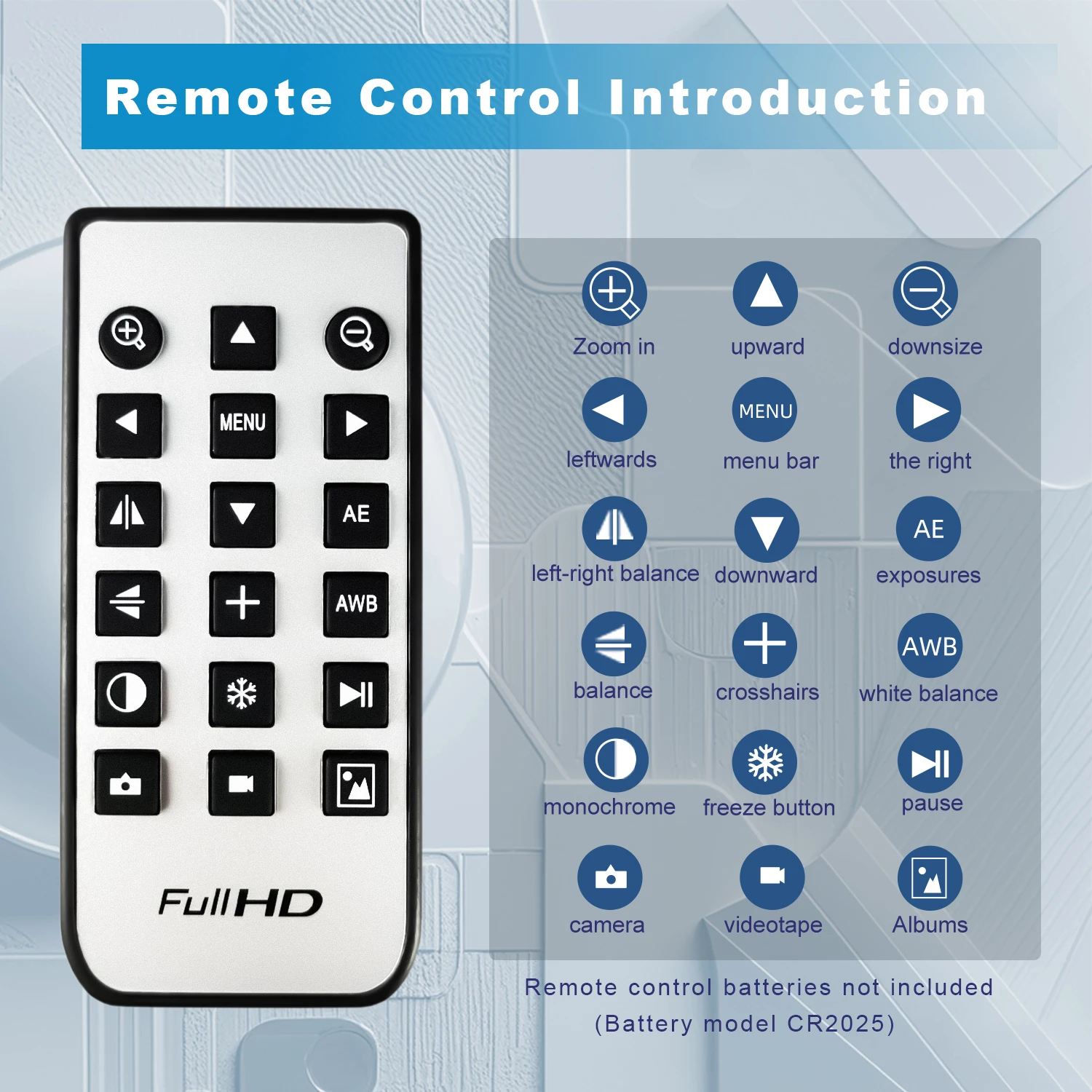

◆Support remote control operation, take photos without shaking the image clearer;
◆Support for Chinese and traditional Chinese and English menu languages;
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;
Specification parameters
sensor:1 / 2.8 SONY sensor
Pixel size:2.9µm × 2.9µm
HDMI output:1920*1080 60FPS
TYPE-C output:1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface:C/CS
exposure:Automatic / manual
exposure compensatio:support
white balance:Automatic / manual, support for RGB adjustable
memory Max. support is 64GB
input voltage :DC: 5V
lineation 16 lines, with adjustable color, thickness, and position
centre line:support
menu language :English / Chinese
telecontroller:Support for the remote control operation
net weight:150g
rough weight :350g
product size:66*66*49mm
packing measurement:145*130*70mm

13MP HDMI VGA Camera

ixel array:13MP
The sensor: sony imx323
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

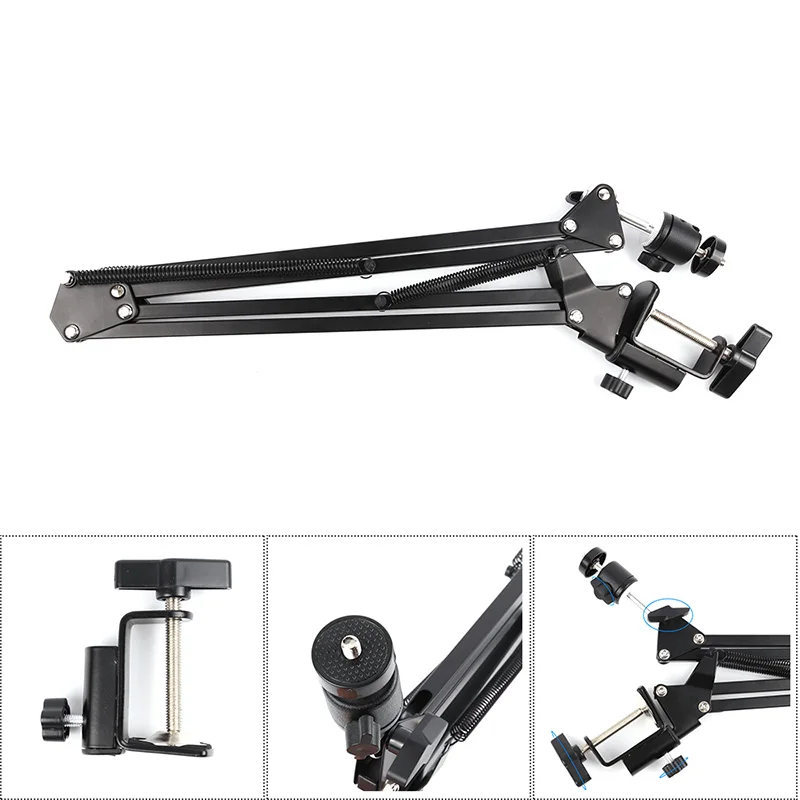

Folding Adjusted Arm:

1X-150X Microscope Zoom C-mount Lens:

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Installation diameter: 40/50mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 LED Adjustable Microscope Ring Lamp:

Provides intense and focused shadow-free illumination
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination 100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
