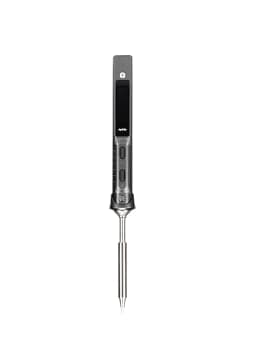

MINIWARE TS101 High Power Digital Display Electric Soldering Iron Welding Pen Internal Heating for Household Welding Repair

Main Feature

TS100 upgraded with more ergonomic appearance design: anti-slip plastic handle and pluggable ball-nut tip installation, larger led screen display more information

Embedded smart MCU processor chip to control soldering iron and monitor the soldering iron tip timely ensure stable heating temperature support auto sleep, auto stanby and intelligent temperature compensation and also support firmware update

Internal Heating design with dual temperature sensor and acceleration extreme cooperate ensure fast heating speed,reach the set the temperature only few seconds

Support 3 group default heating temperature and one key turbo boost heating mode to speed up your soldering project and save time

9V-24 low working voltage with DC5525 and USB Type C dual power jack support DC 9-24V and PD3.1 9V-28V power supply which can be powered by laptop power supply, the power bank or smart phone quick power charger directly

Comes with soft silicone rubber USB type C cable with high temperature resistance

Compact size with pen shape design and only 33g light weight easy to handle and carry

Specifications

Model: TS101

Max. Ouput Power: 65W(DC), 90W(PD)*

Input Voltage: DC9-24V, PD3.1 9-28V

Power Jack: DC5.5*2.5, USB Type C

Temperature Heating Adjustable Range: 50C-400C/122F -752F

Temperature Stability Range: +/-2%

Soldering Iron Handle Size:16.8X95mm(D*L)

Soldering Iron Tip Size: 15.5X105mm(D*L, TS-B2)

Overall Length:168mm(tip installed)

Net Weight:33g

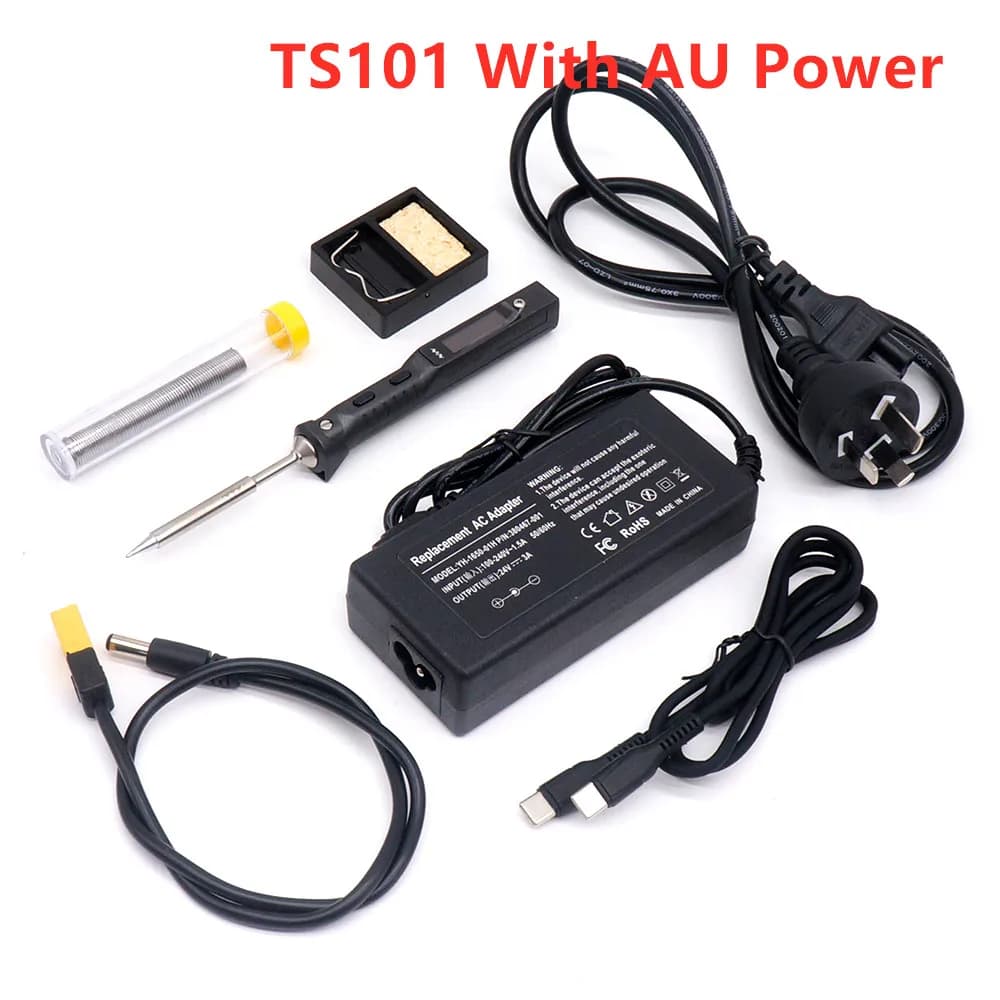

Package list:

TypeA:

TS101 Controller Gray*1

Soldering Tip *1（Option）

USB-C Silicone Cable*1

User Manual*1

TypeB:

TS101 Controller Gray*1

Soldering Tip *1（Option）

USB-C Silicone Cable*1

User Manual*1

AU Plug*1

TypeC:

Soldering Tip*1（Option）
