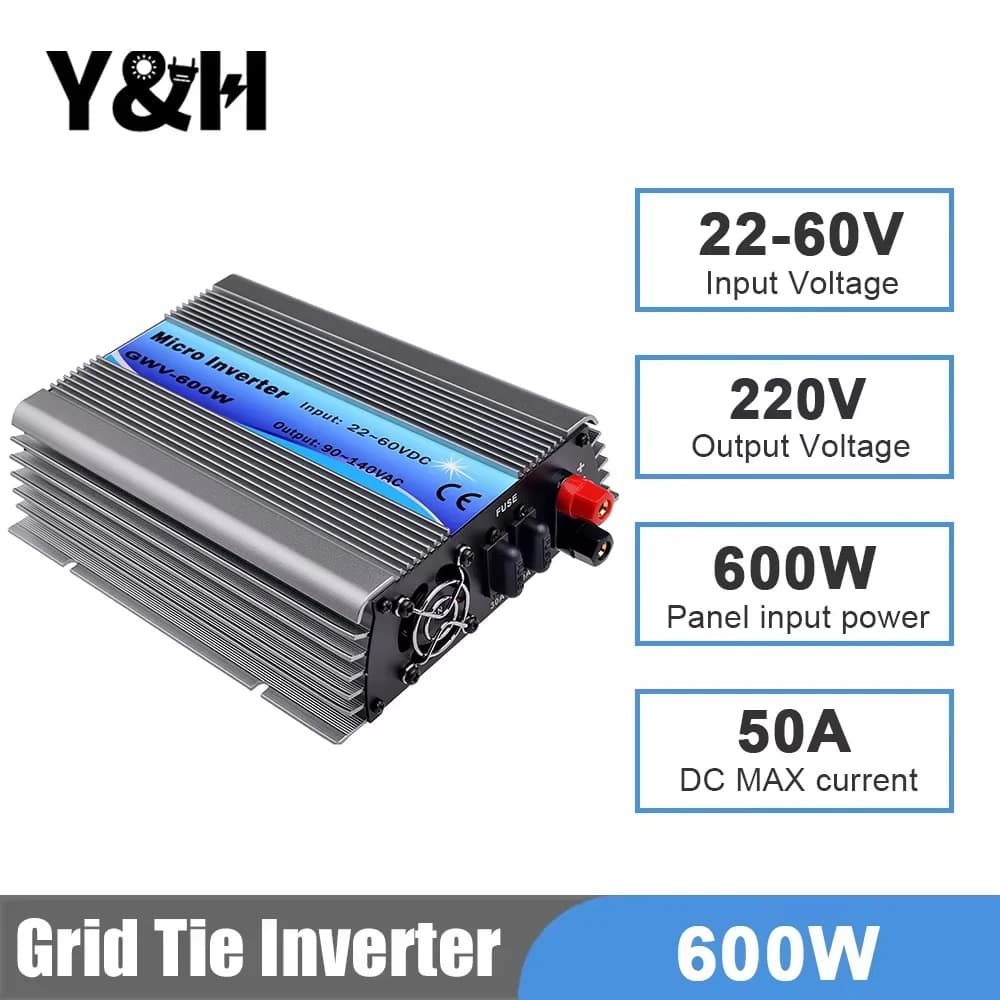

Y&H 600W Grid Tie Solar Inverter MPPT Micro Inverter Converter DC 30-55V to AC 220V for Battery Discharge Mode/Solar Panels

600W Grid Tie Solar Inverter MPPT Pure Sine Wave Micro Inversor DC30-45V PV Input AC120V/220V for 36V Solar Panel Home System

Description:

Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Microinverter is synchronized and in-phase with the utility grid.

Technical Parameters:

Solar panels:150W-600W The Voltage of Matched solar panel:Vmp: 26-39V, Voc: 34-46V AC Output Voltage: 120VAC(90-140VAC) or 230VAC(190-260VAC) Frequency Range: 48Hz ~ 62Hz Auto DC Input: 22V-60V MPPT range: 28V - 39V.Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency Certification:CE RoHS

Note:

1.It will perfect compatible with panels at 30V or 36V (Vmp) Please note that this inverter is designed for solar panels, which can be suitable for 24V, 30V Solar Panels, Vmp is 26-30V and Voc is 34-38V；36V Solar Panels,Vmp is 35-39V and Voc is 42-46V. If customers want to use this inverter for battery, please connect 36V battery for this inverter. If your battery is 24V, you can choose 11-32VDC version. However, we still suggest customers don't use battery for this inverter, it will influence product life-span. there's always a loss in power in conversion from DC to AC. Also through Heat loss of energy. So if you're expecting to get you're 100 % out of the machine it won't give you that. solar panel has the loss too, so please don't calculate the efficiency as inverter output power/solar panel specification. because solar panel and invergter all have own efficiency.

2.Please use a 10 square cable, the cable length is not recommended to exceed 4M. Tighten the DC terminal wiring. If the cable is too thin or the connection is loose, the inverter will be damaged.

How to easily set up Grid Tie Inverter?

1: Use 150W-600W Solar Panel, Vmp: 28-39V, Voc: 34-46V. 2: Red terminal: Connect DC positive, black terminal: Connect DC negarive.. Be sure to tighten! ! ! Otherwise it will be short circuited.

AC The output need to be connected to the grid power.

3:AC socket: Connection to the mains. The AC cord to the inverter 3 foot outlet, then the AC cord to home 3 pin AC outlet. 4:The switch of the home outlet must be turned on.

Stackable connection (The purpose is let small power inverter become high-power inverter.)

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid inverters 600W of stack used is equal to 2400W, and the number of open stacks (No Quantitative Restrictions).
