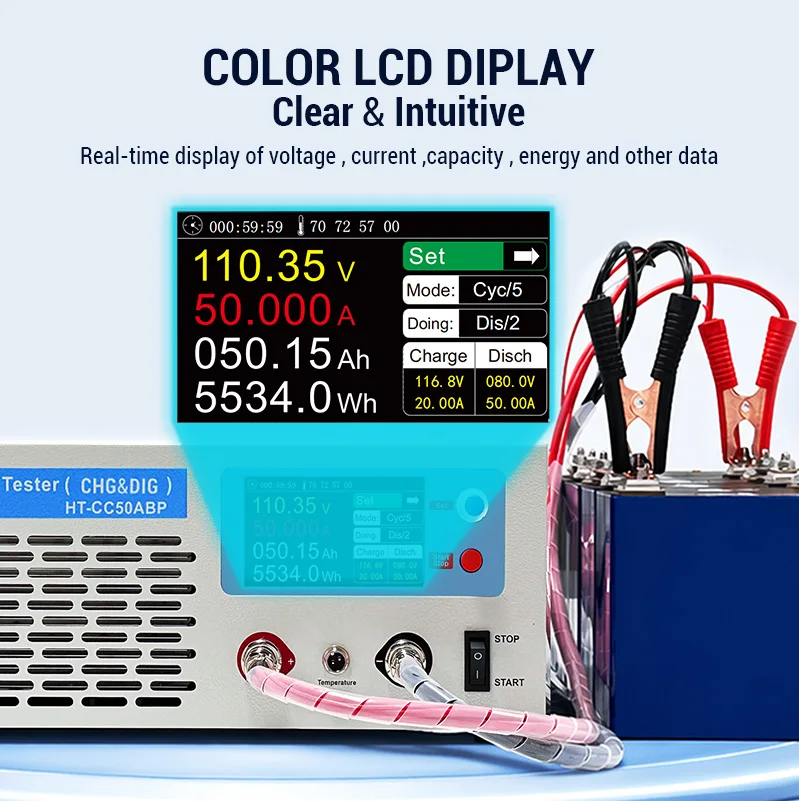

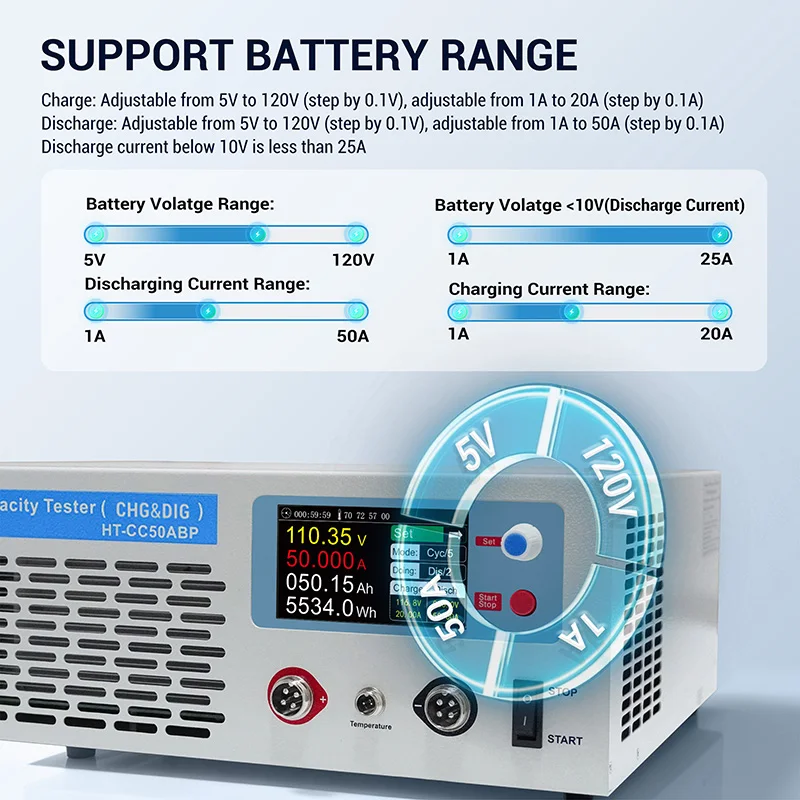

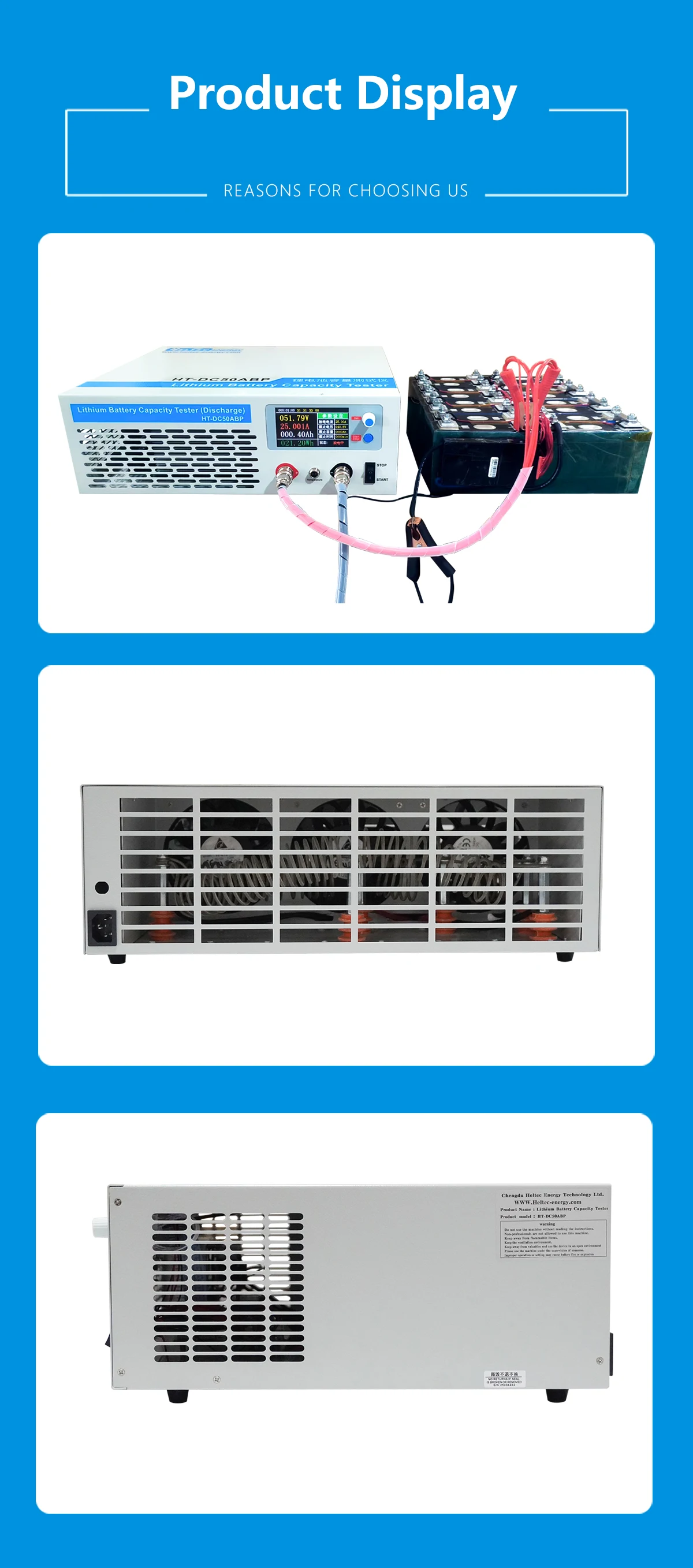

Whole Group 5-120V Battery Capacity Tester Charge/Discharge 1-50A Aging Test for Lead-acid/Ni-MH/LiFePO4/Li-NMC Battery

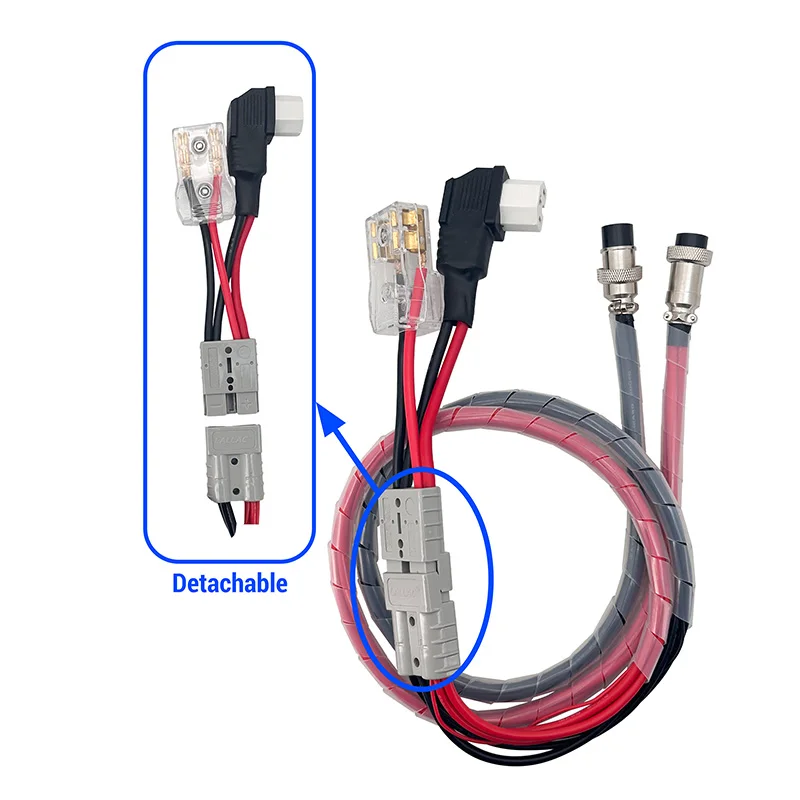

Anderson interface cable, dedicated interface for electric vehicle batteries

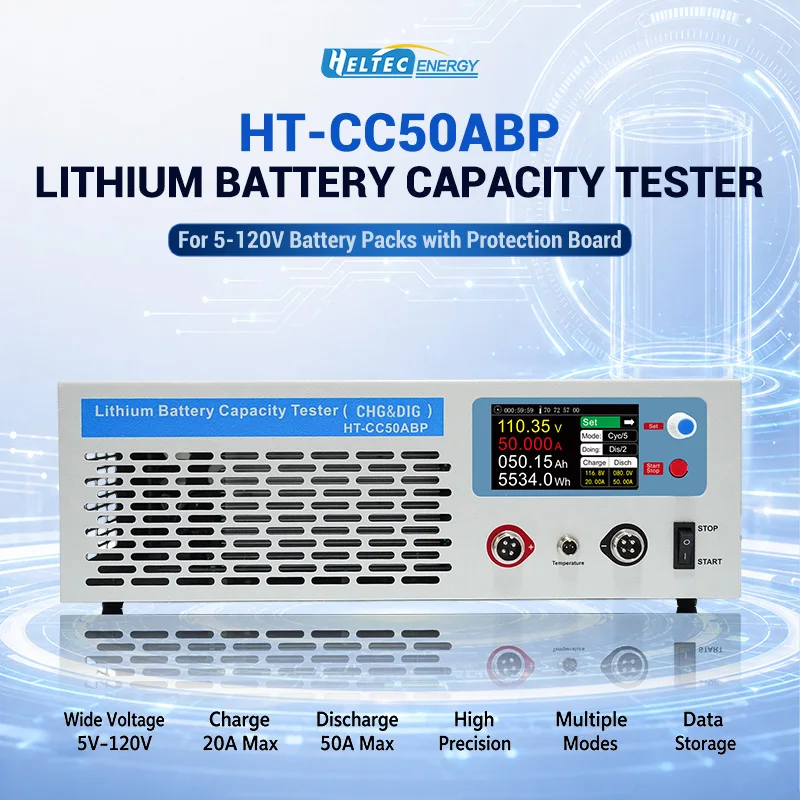

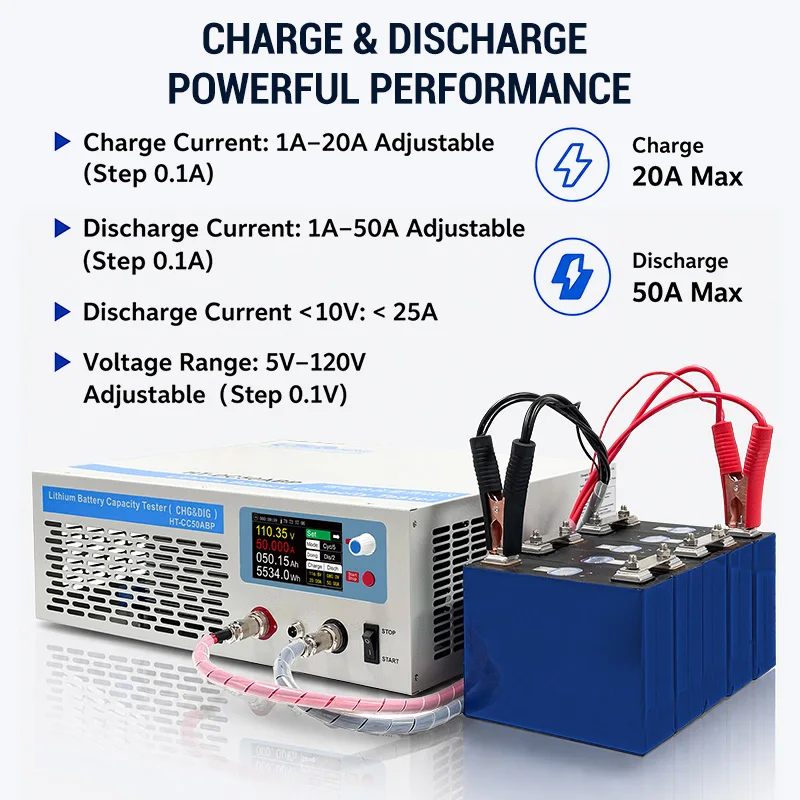

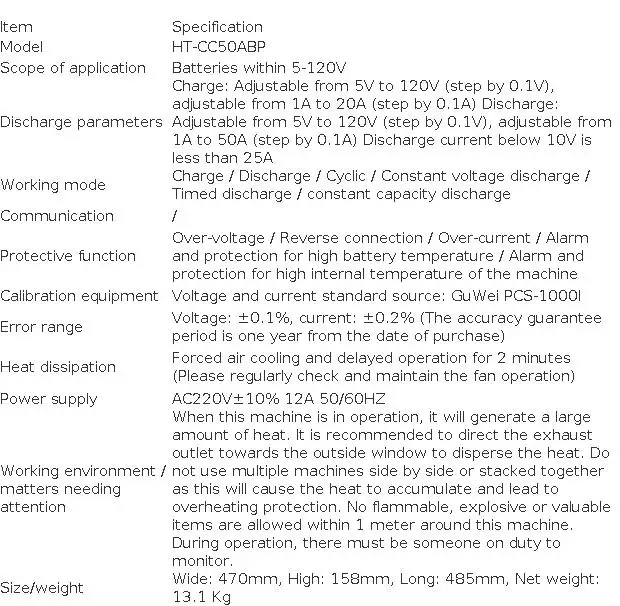

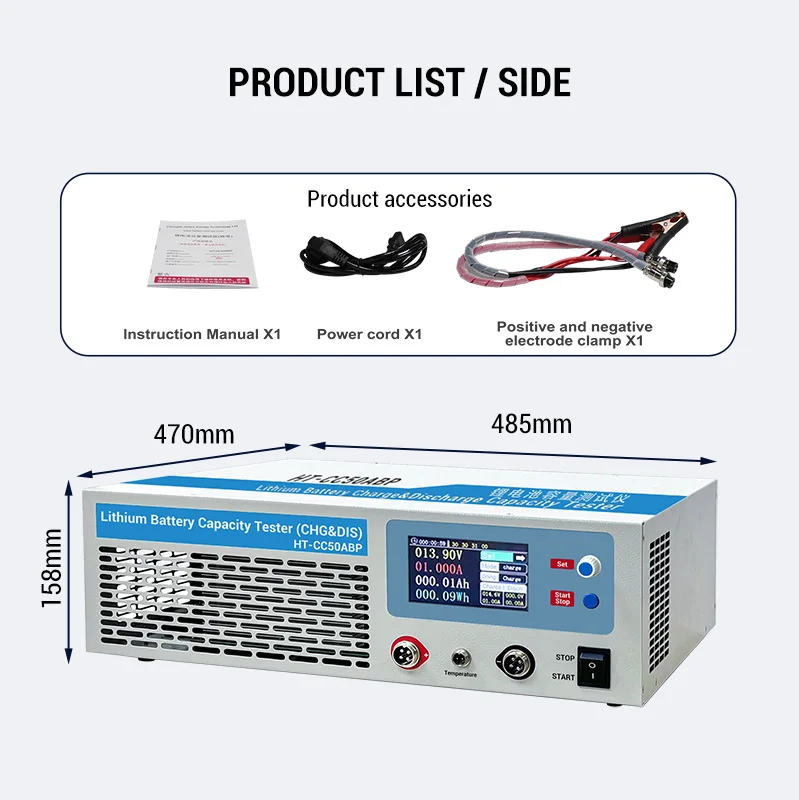

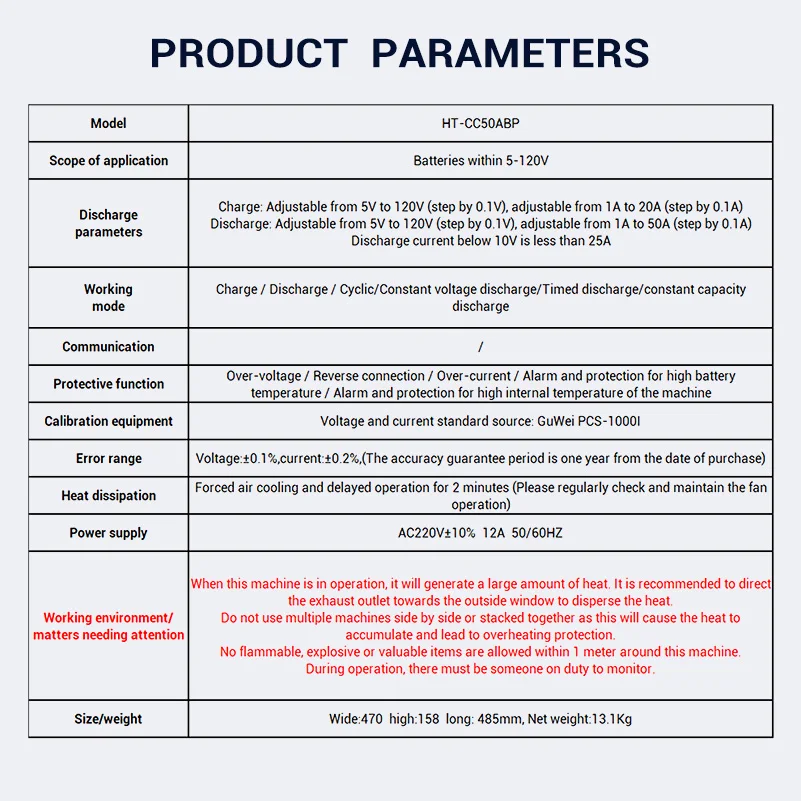

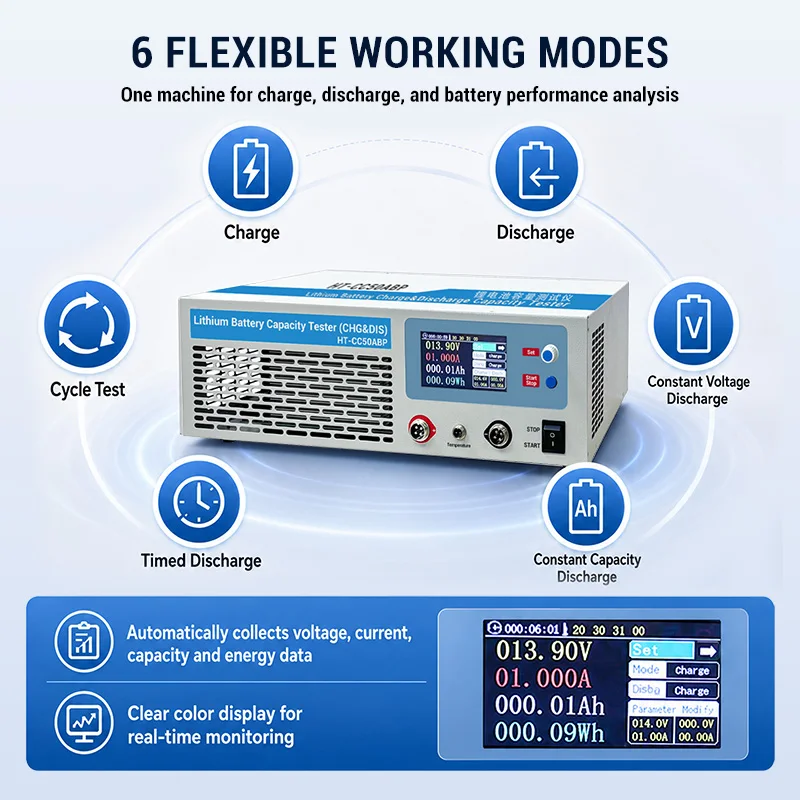

HT-CC50ABP Battery charge and discharge capacity tester

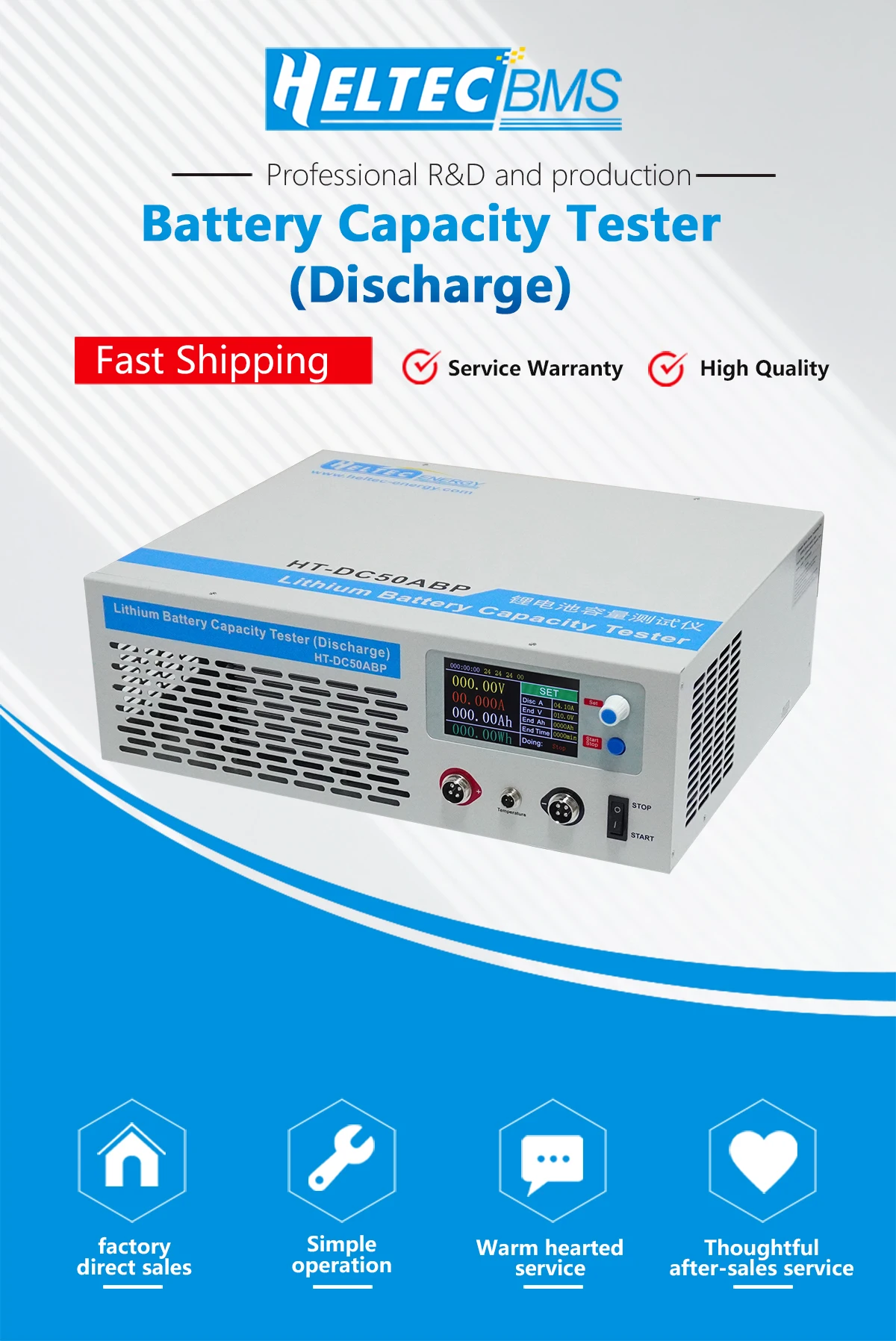

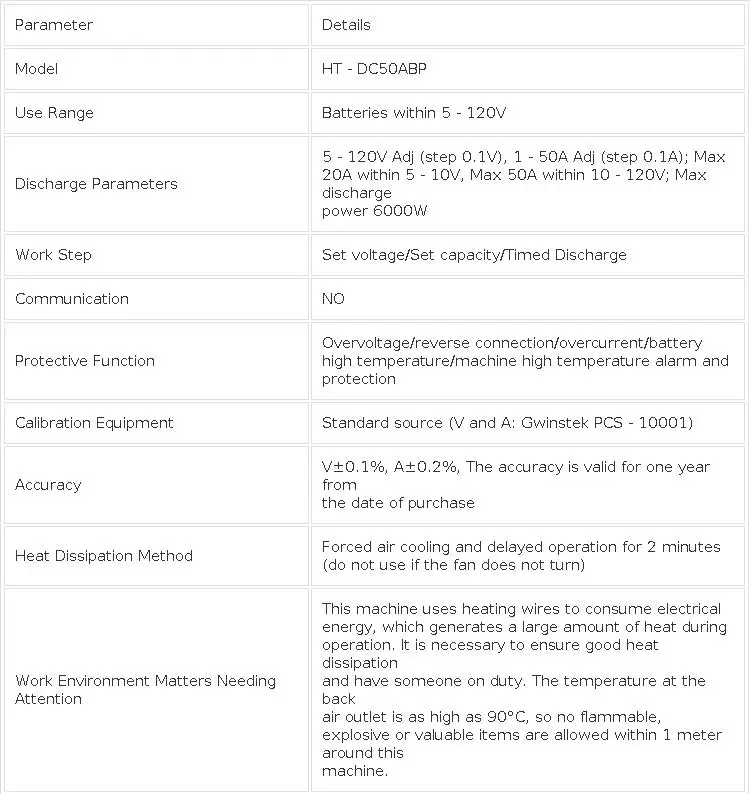

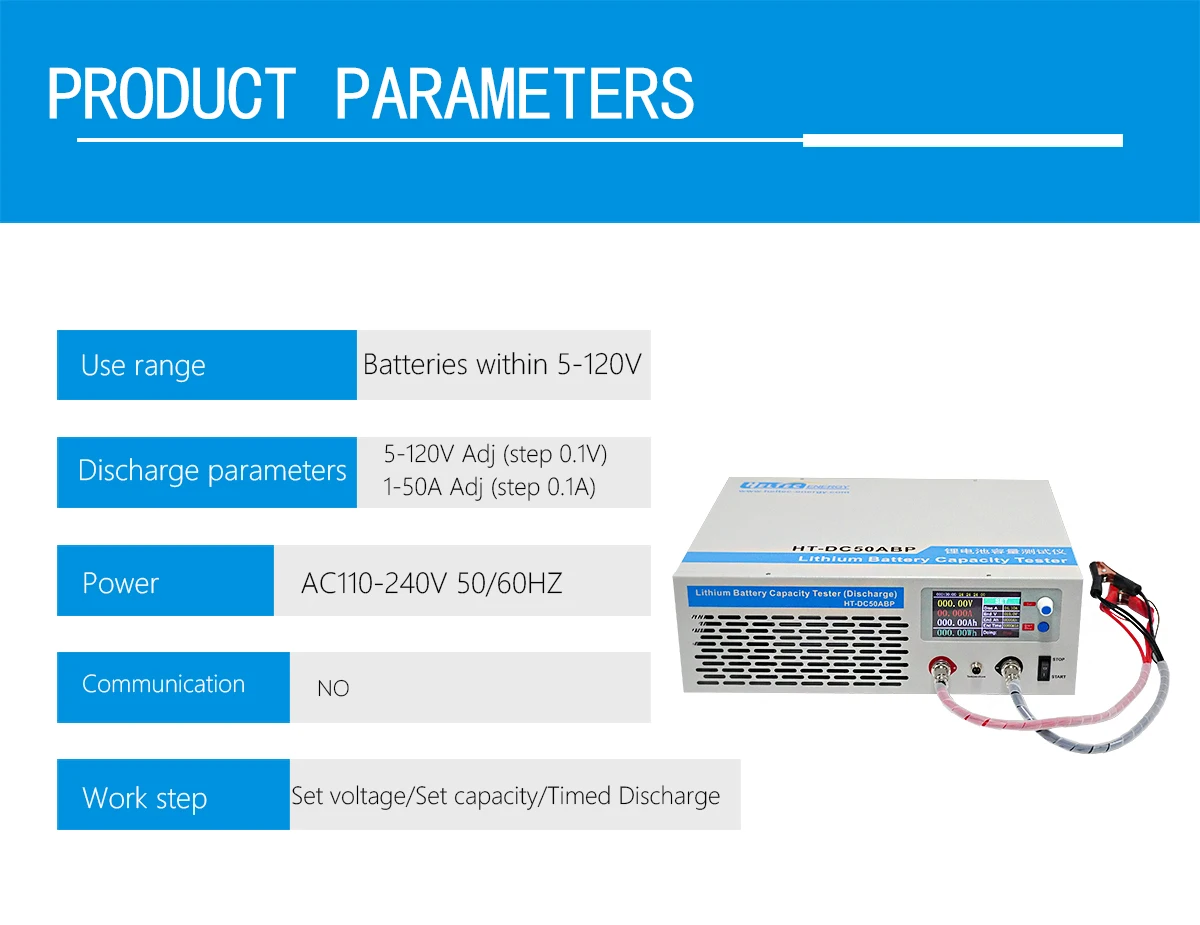

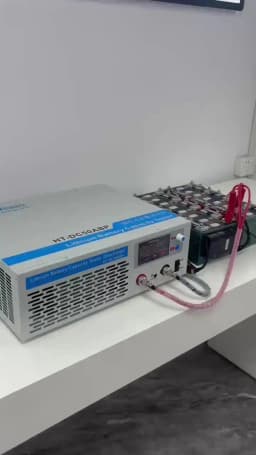

HT - DC50ABP Battery discharge capacity tester

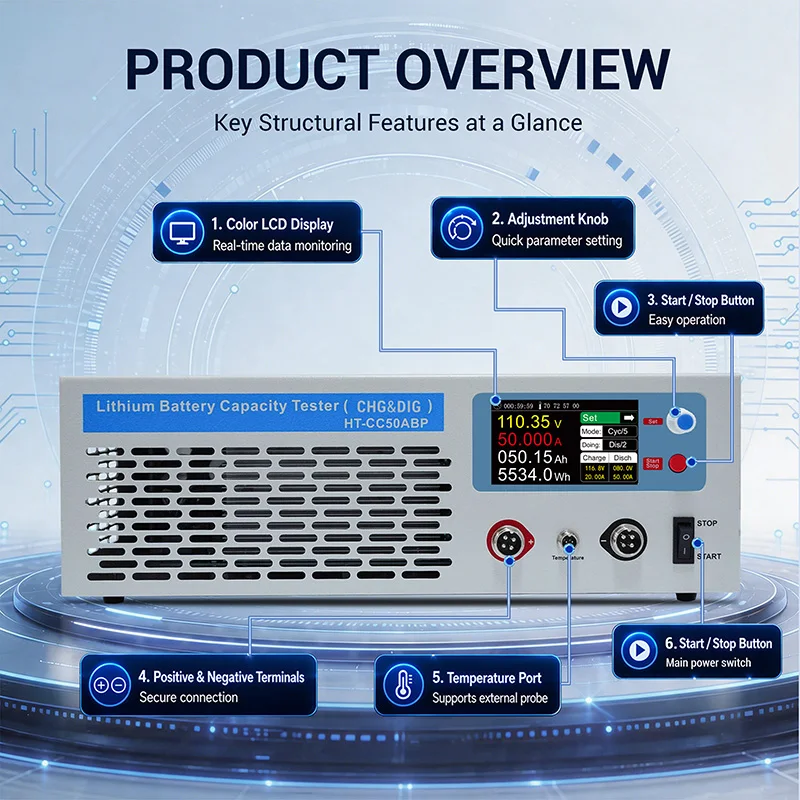

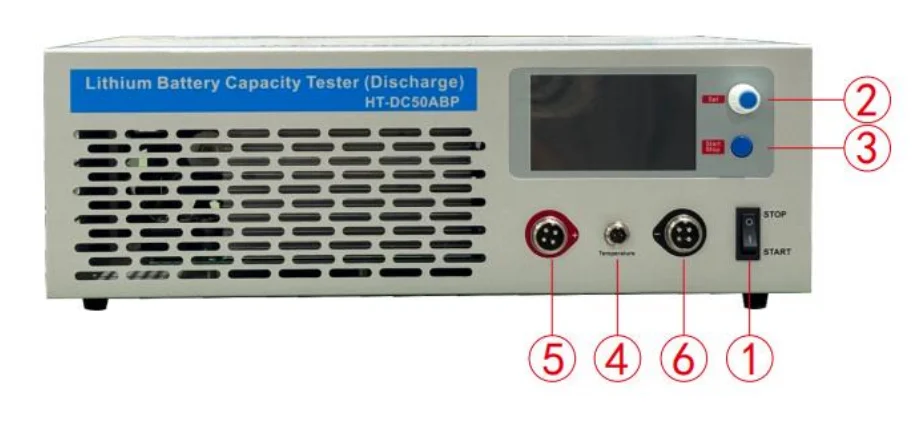

Power switch:

During the testing process, the power cannot be turned offotherwise the test data cannot be saved. After the test is completed, do notimmediately turn off the power switch, as the cooling fan will delay workingfor 2 minutes.

Encoding switch:

Press to enter the settings page, rotate to adjust parameter

Start/Stop button: any operation in running state must be paused first

External battery temperature probe interface (optional)

Battery positive input:1-2-3 pin through current, 4 pin voltage detection

Battery negative input: 1-2-3 pin through current, 4 pin voltage detection

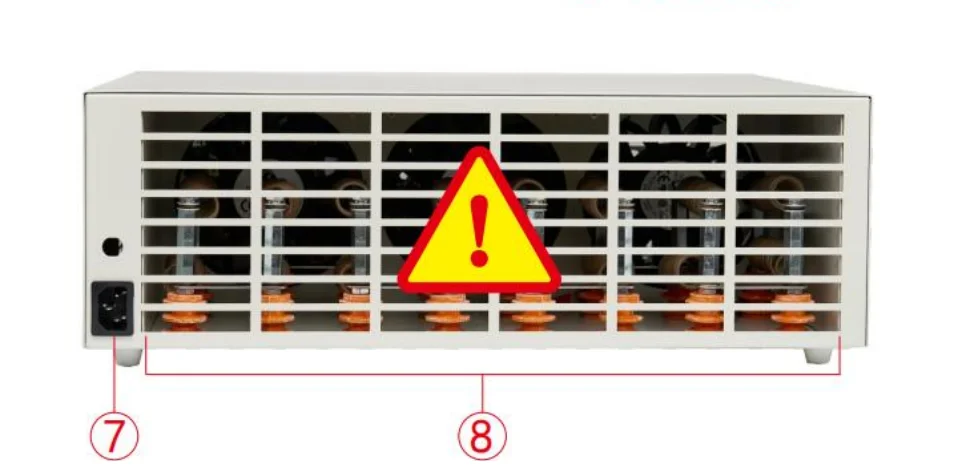

AC110-220V Power socket

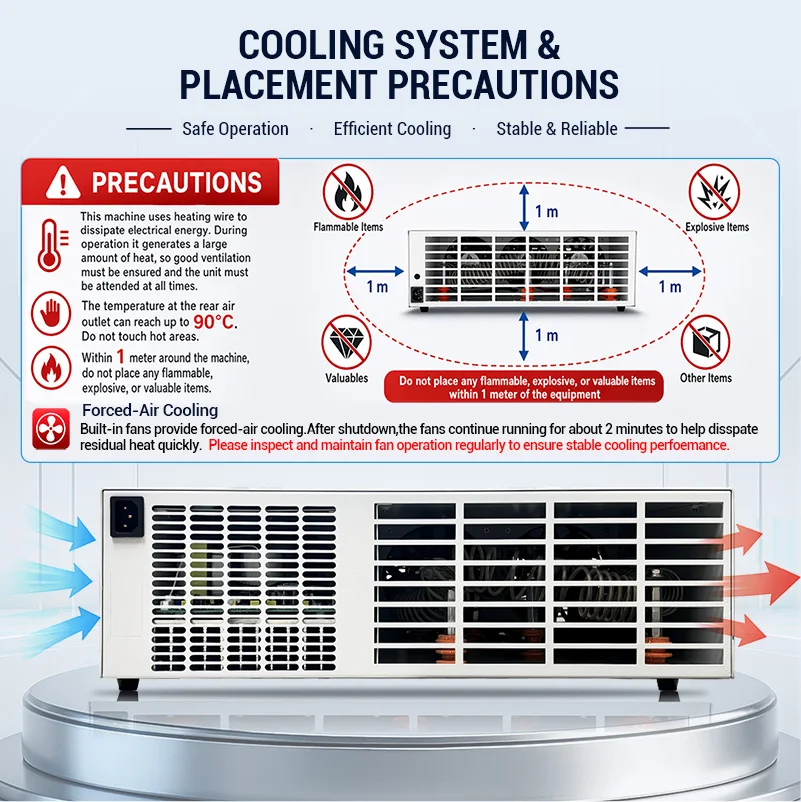

Air outlet, the highest temperature in this area can reach 90 C, and thereshould be no objects within l meter to prevent burns or fires (it isrecommended to dissipate heat to the outside facing the window)!

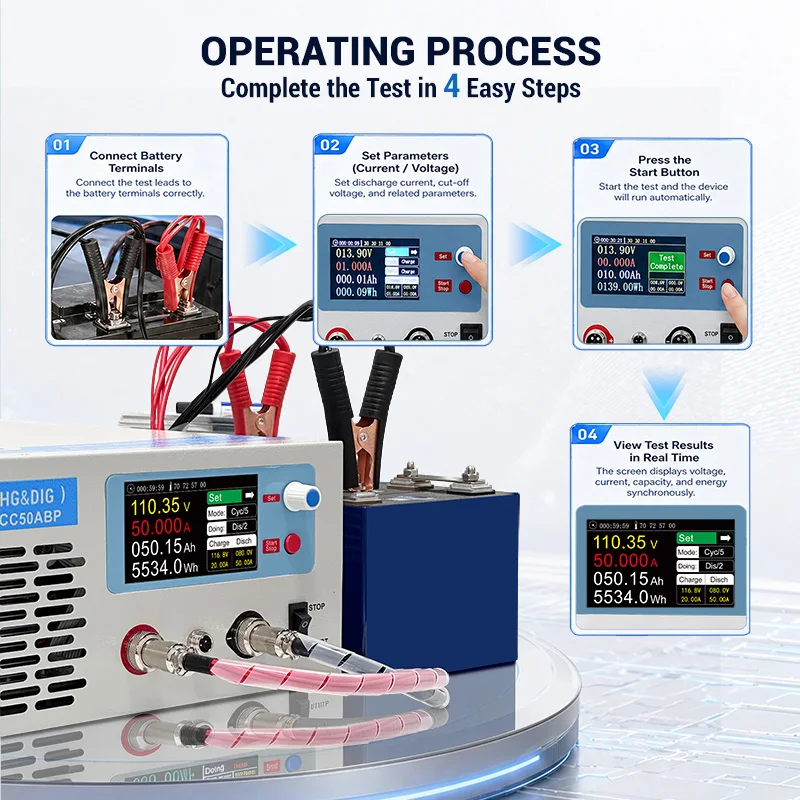

Use method.

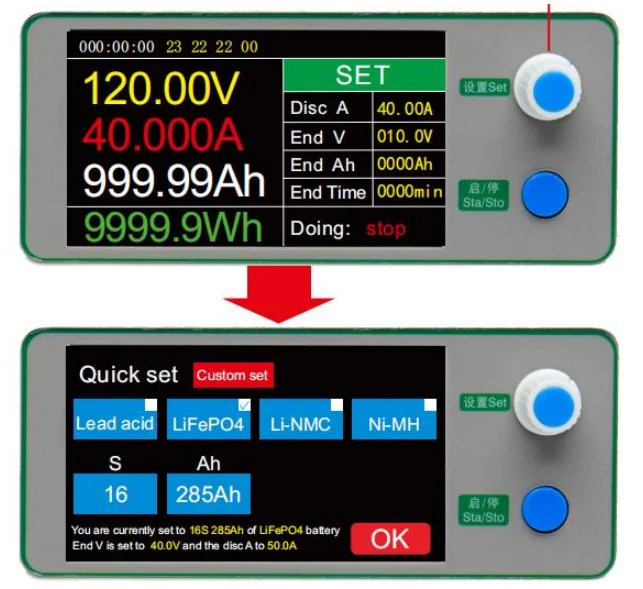

1. Turn on the power, clip in the battery, and press the settings knob to enter thequick or custom settings page.

2. Enter this page (rotate left and right to Adj parameters, press to confirm).

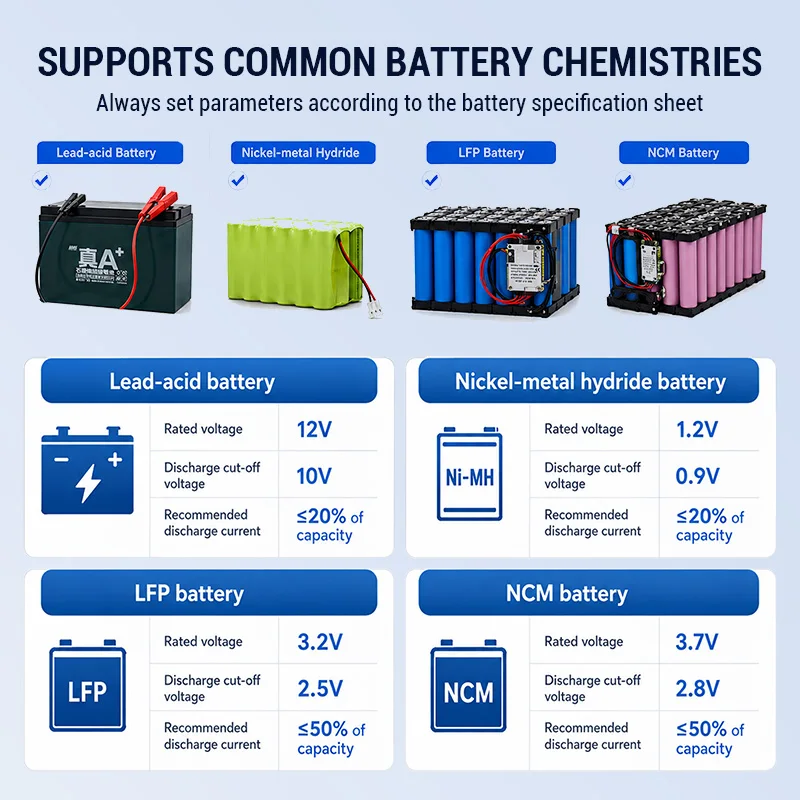

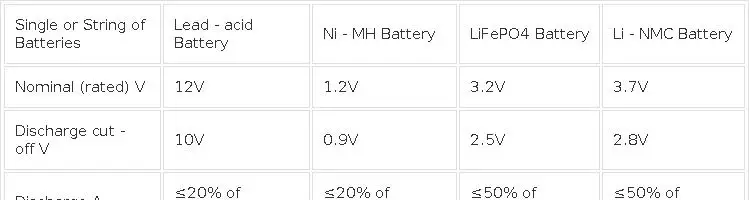

If youchoose custom settings, then proceed to the next page. If you do not want to calculatethe discharge cut-off voltage and current, you can select the battery type/stringnumber/battery capacity to be tested on this page and let the system automaticallycalculate it. The system calculation is based on common cell information (as shown inthe table below), which may not be comprehensive or accurate, and requires yourcareful confmmation.

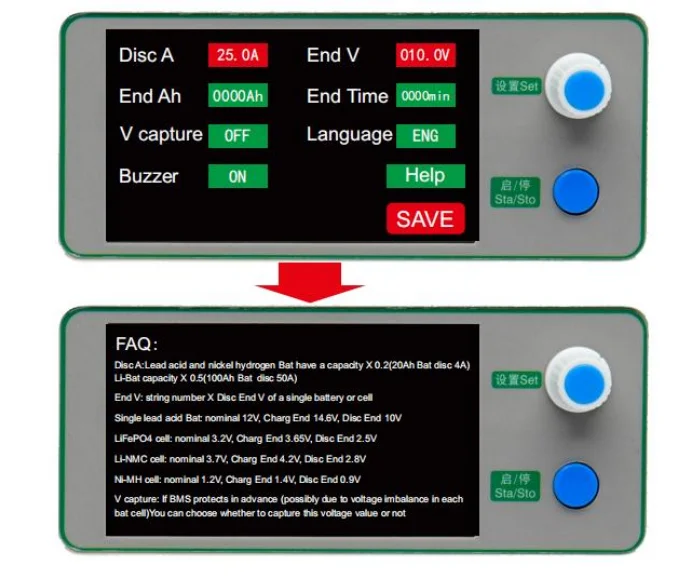

3. When you select custom settings, you will enter this page where you can set thedischarge method as needed.

Discharge A:It is recommended to set according to the battery specification book,generally set at 20-50% ofthe battery capacity.

End V: Stop discharging when the voltage is below this level. It is recommended toset it according to the battery specifications or refer to the table above for calculation

End Ah: Set the discharge capacity (set 0000 to disable ). If you need to discharge100Ah, set the End Ah capacity to 100Ah, and it will automatically stop when thedischarge reaches 100Ah.

End time: Set the discharge time (set 0000 to disable ). If you need to discharge for90 min, set the deadline to 90 min, and it will automatically stop when the dischargereaches 90 min.

V capture:Whether to capture the battery voltage at the moment of BMS shut down.

Use help: This page records some common battery cell data that can help you quickly

use the product.

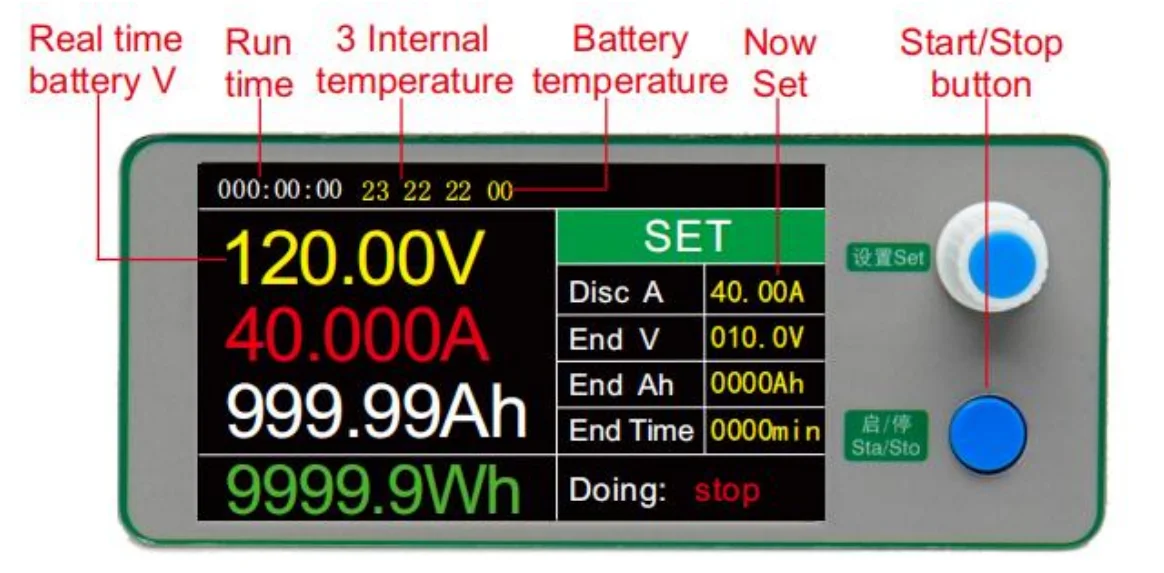

4. After setting the above parameters, select Save to retum to the main page. On thepage you can see the Battery V/Run time/Machine temperature/Current Set. Afterconfirming that they are correct, press the start stop button to start discharging. If youneed to pause halfway, press the start stop button again (but do not turn off the power)If no one operates within 3 min, the display screen will automatically decreasebrightness and any button can wake it up.

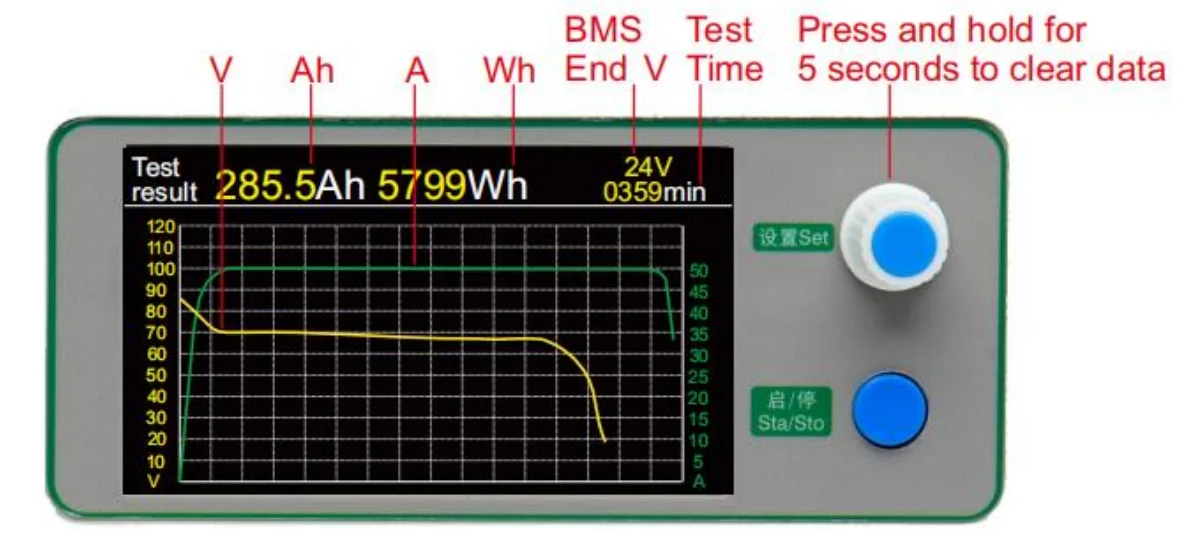

5. When the discharge reaches the termination condition you set, it will automaticallystop and emit a buzzing sound, and the test result page shown in the following figurewill pop up. This page will display the Ah/Wh/Time/BMS End V/V A curve.

Do not immediately turn off the power after the discharge is completed, as thecooling fan will continue to operate for 2 minutes

Matters need attention

Data must not be generated until the native machine ends the operationautomatically.

Do not power off or switch over the working mode during the machine operation,otherwise the data will not be saved

The machine runs for 2 minutes before starting recording the data (whileoverwriting the previous data).

Any operation on the running machine must first press the pause key.

Do not test batteries that are not rechargeable or zero voltage or have damagedbulges.

There is high temperature at the air outlet on the back of the machine, and noobjects are allowed within 1 meter.

Do not test batteries over 120V, otherwise no warranty.Discharge off voltage / current must be set correctly and reasonably according tothe battery specifications.

Testing must be conducted in a supervised open environment, without hightemperature flammable and explosive valuables around.

The product shall not be leased / transferred / donated to a third party, otherwisethe consequences shall be borne and the after-salesservice shall be terminated.

Use a well-grounded socket (otherwise there may be leakage or minor induction)This product is only a tool, and is entirely used by you, and our company refusesto accept any responsibility.
