YIZHAN Digital Microscope With HDMI USB-C 0-150X Lens Mount 4K 48MP 60MP 13MP Industrial Microscope Camera For Soldering/Dentist

Microscope software download address:  Please note: This microscope software is not suitable for Apple computers!Regarding the software download address, please contact customer service after purchase. (Download link cannot be filled in the product details)

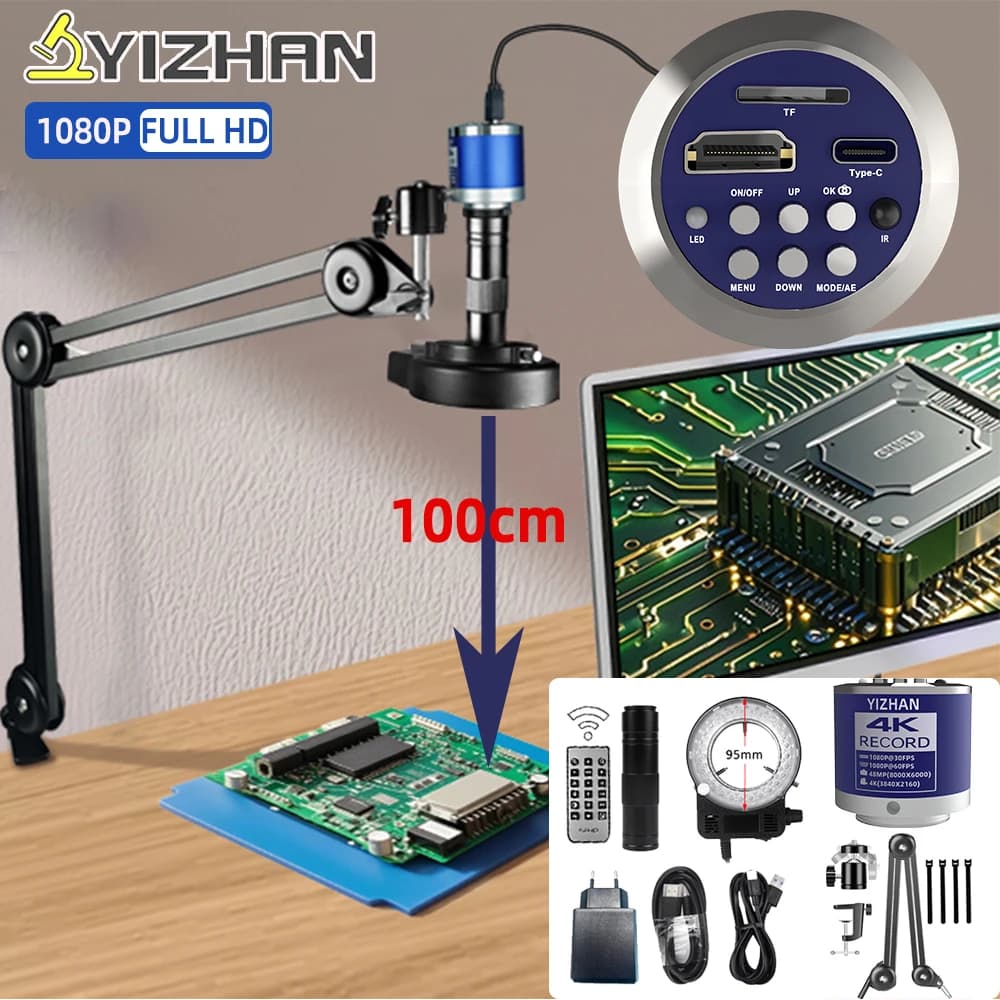

Complete set includes:

1 x Industrial Camera
1 x power supply
1 x C-mount Lens
1 x articulated microphone arm
1 x 56 LED Ring Light

Please note that the package does not contain remote control battery.

Maximum working distance of lens 100CM!

Contact customer service to get the camera usage software.

Be sure to use the microscope in a bright environment, otherwise the image will not be clear.

2 Different Folding Adjusted Arm for your choice:

Upgrade Folding Adjusted Arm:

Folding Adjusted Arm:

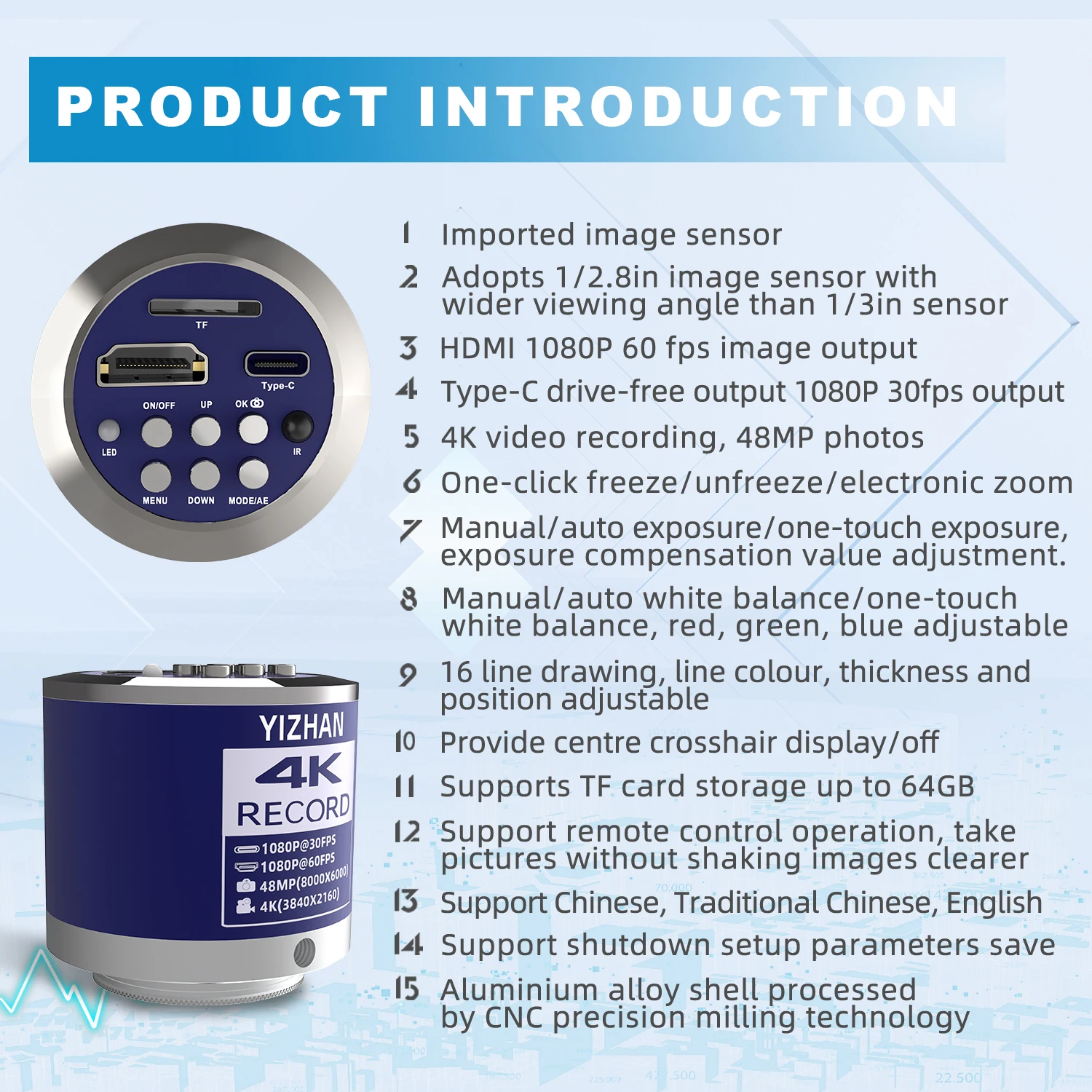

4K 48MP HDMI USB-C Camera:

◆ Ultra HD 4K Camera 3840*2160
◆ Using Sony sensor;
◆ Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
◆ HDMI 1080P 60 frames image output;
◆ TYPE-C driver-free output 1080P 30 frames image output;
◆ 4K video recording;
◆ 48 million photos, JPG format;
◆ One-click freeze/thaw function;
◆ 1080P video recording;
◆ Electronic zoom function;
◆ Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆ Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;
◆ Provides 16 line functions, with adjustable line color, thickness and position;
◆ Provide center crosshair display/off;
◆ Support TF card storage, up to 64GB;

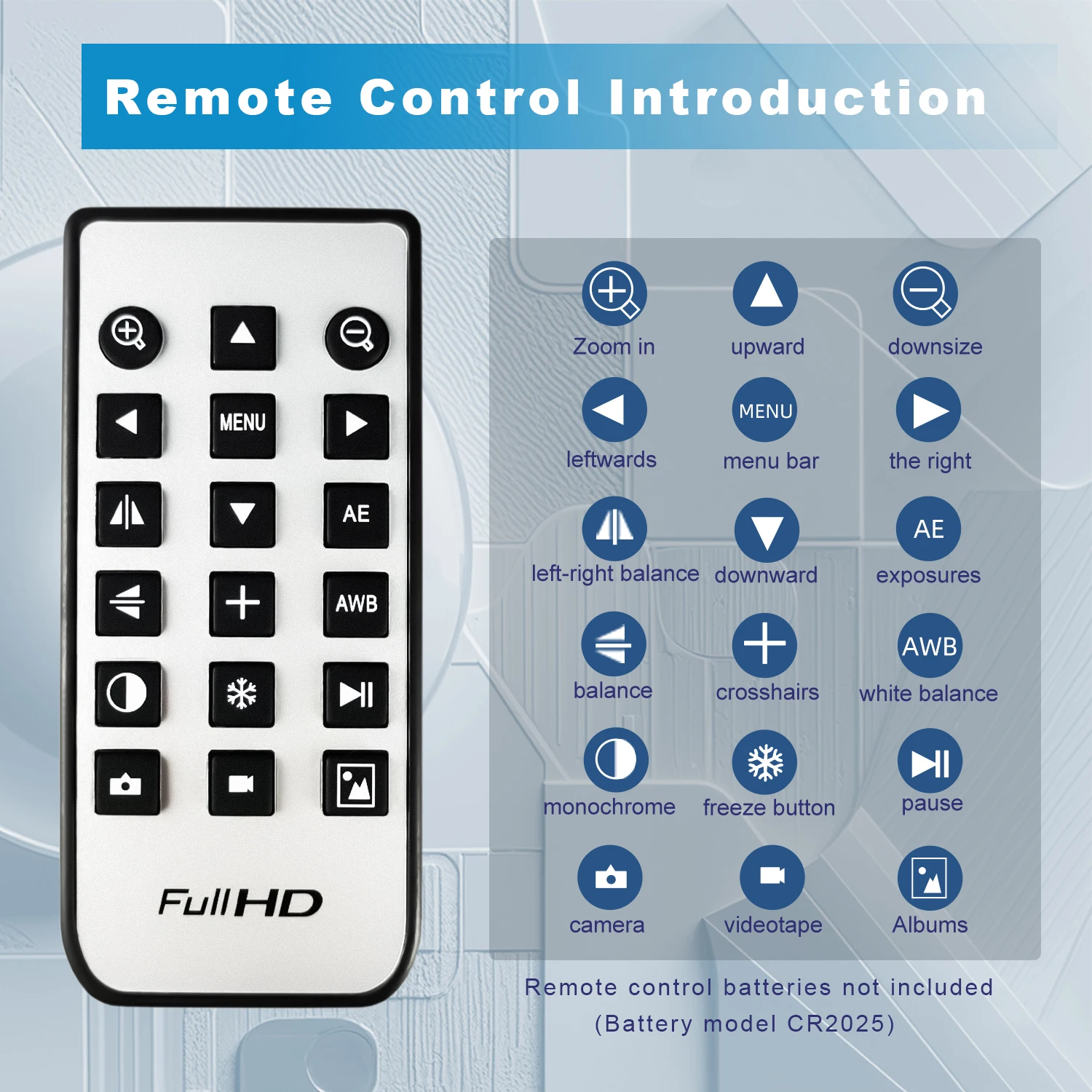

◆ Support remote control operation, take pictures without shaking and the image will be clearer;
◆ Support Chinese, Traditional Chinese, and English menu languages;
◆ Supports saving shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;

160x 8MP HDMI USB Digital Microscope Camera:

◆ Utilizes a true 8.29-megapixel Sony imx415 CMOS image sensor;
◆ Utilizes a 1/2.8-inch image sensor;
◆ HDMI output: 3840 x 2160 at 30 frames per second / 1080p at 60 frames per second;
◆ USB 2.0 connection to a computer: driver-free output: 3840 x 2160 at 30 frames per second;
◆ 4K video recording;
◆ 4K still photography;
◆ One-touch freeze/thaw function/on-screen comparison;
◆ Remote focus for smooth, jitter-free operation;
◆ Electronic zoom function;
◆ Supports manual/auto exposure and exposure compensation adjustment;
◆ Supports manual/auto white balance with adjustable red, green, and blue;
◆ Supports USB flash drive storage up to 64GB;
◆ Supports remote control for smooth, jitter-free photography and clearer images;
◆ Supports 9 menu languages (default English): English, Chinese, Arabic, Italian, Russian, Japanese, Spanish, French, and Portuguese
◆ Integrated design with built-in camera, light source, and microscope lens
◆ Supports power-off parameter saving;

13MP HDMI VGA Industrial Microscope Camera:

◆ Adopting 8.42 million pixel Sony's new generation high dynamic range CMOS image sensor;
◆ Using 1/2.8 inch image sensors;
◆ Supports taking photos in JPG format;
◆ Supports manual one click exposure
◆ Support manual one click white balance, adjustable in red, green, and blue;
◆ Provide 8 line drawing functions, with adjustable line colors and positions;
◆ Support mouse operation;
◆ Take photos without shaking, resulting in clearer images;
◆ Support Chinese/English/Traditional languages (default English);
◆ Support saving shutdown settings parameters;
◆ Using CNC precision milling technology to process aluminum alloy shells;

60MP HDMI USB Video microscope Camera:

Sony Chip: IMX415L
Video Interface：HDMI USB-PC TF Card
Record：4K/1080p
Photo：Max 60MP(10368x5888)/4K
HDMI:4K/1080p
USB:4K/2K/1080p
Lens:CS
working voltage:12V
working current:190mA
optical format:1/2.7"
pixel size:1.5um*1.5um
scanning mode:progressive
shutter mode:electronic shutter"
dynamic range:69dB
S/N radio:40dB
OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic
AWB mode:One-shot white balance/manual/auto
Cross:Support 4 groups: 32 horizontal and vertical lines
line:Color/line width adjustable"
B/W:√
negative:√
mirror flip:√
Freeze:√

1X-150X Microscope Zoom C-mount Lens:

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Installation diameter: 40/50mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

56 LED Adjustable Microscope Ring Lamp:

Provides intense and focused shadow-free illumination
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination 100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
