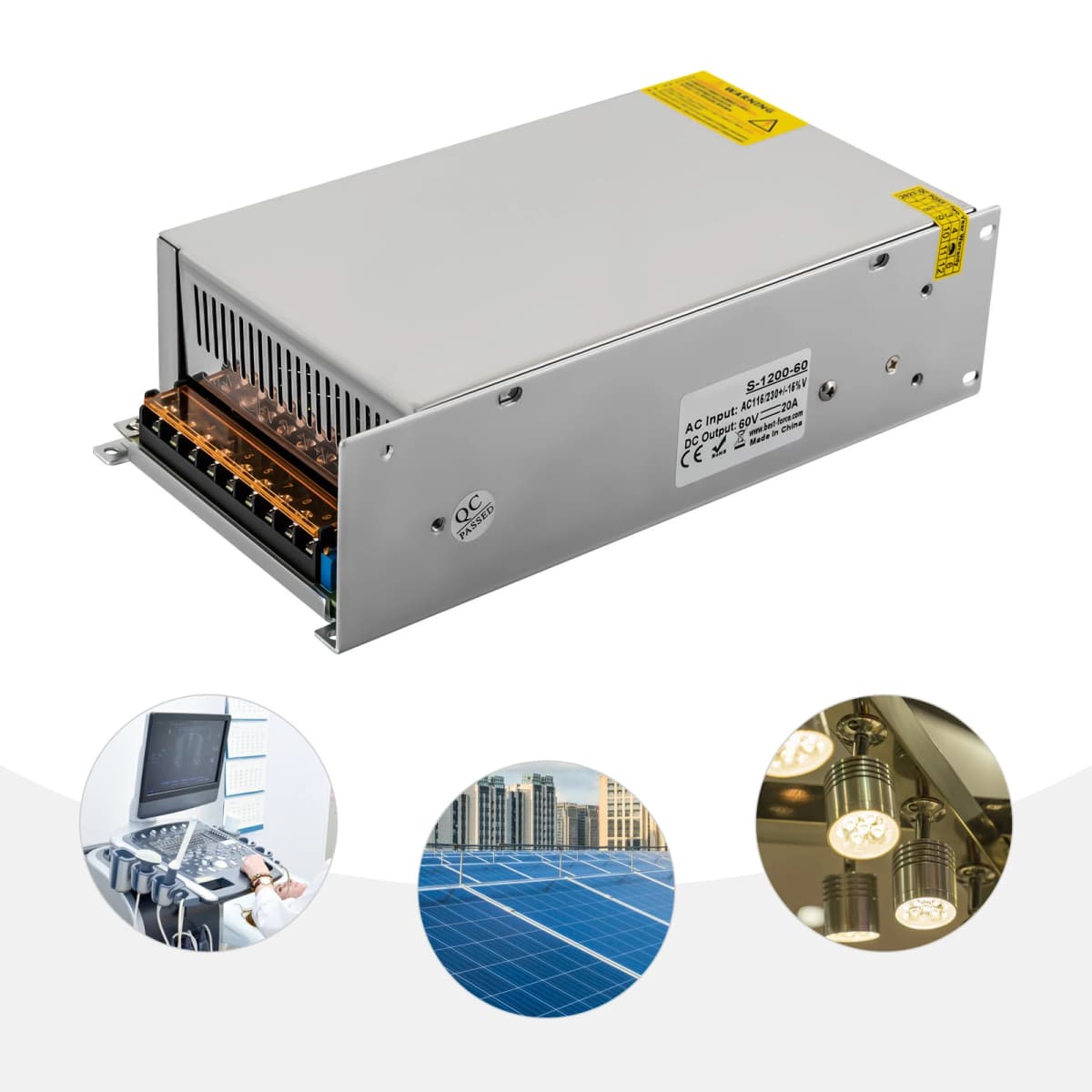

9.65*4.92*2.56inch Modern AC220V Wall Mount Rectangular Silver Switch Power Supply for Display Screen Power Supplies

Description
If you are troubled with situations such as poor safety performance of electrical appliances, frequent tripping due to unstable voltage, and electrical appliances brought back from abroad cannot be used normally, then you should get our switch power supply that can effectively realize voltage convert from 220V to 60V. It uses high-quality aluminum and pure copper coils, ensuring durable use and stable performance. It is widely applicable for various appliances to meet your daily needs.
Key Features
Stable Output: Using the pure copper coils, EMI filter capacitor, premium chip, high-performance IC, and the soft start current design, this switch power supply has stable performance converting AC voltage to stable DC voltage while effectively reducing electromagnetic interference. It has 2 output ports and each port outputs 0~20A automatically to match your device. The default output voltage is 60V, but it can be regulated by 5%.
Premium Material: The high-quality aluminum housing and premium interior materials such as PCB fiberglass board and pure copper make this product strong, wear-resistant, and durable. The wiring terminal has anti-rust and anti-corrosion functions.
High Safety: Adopting a cooling fan with heat-sink holes, temperature detector, pure copper transformer, high-temperature-resistant capacitor, auto-reset or fuse function, surge protection, over-voltage protection, short-circuit protection, over-current protection, and overload protection, this product is safe to use.
A Great Helper: Once in operation, it can effectively convert AC 220V to DC 60V and provide different currents per watt for multiple devices, which is a great helper in your daily life.
Compact Size: The compact size(9.65*4.92*2.56 inches) means this machine won't occupy your space,  so you can put it in any small corner.
Simple Installation: The simple structure and pre-drilled holes allow for easy and convenient installation.
Protective Package: To prevent the product from being damaged and bumped during transportation, we packed it with foam cotton to protect your products to the maximum extent possible.
Buy with Confidence: We have been working hard to provide better service and quality for our customers, which is our goal. If there is any problem with our products. Please contact us in time.
Details
Indicator Light: The indicator light shows the normal work condition of this switch power supply when it works for your convenience.
Clear Cover: The safety protection cover is dustproof and better avoids accidental electric shock during power operation.
Application
It is suitable for LED power supplies, medical power supplies, display screen power supplies, industrial control systems, power equipment, instruments, solar photovoltaic power supplies, stepper motors, PLC control systems, surveillance cameras, LED light boxes, LED lamps, luminous characters, communication equipment, home appliances, industrial equipment, building lighting, medical equipment, traffic signal control, etc.
How to Calculate Support Max. LED Strip Length
Assumption: Your LED strip is 60LEDs/m and each LED 0.2W, then calculate max LED strip length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m.
So, it supports the LED strip(60LEDs/m, 0.2W/LED) length (Max)=2m light.
Wiring Description
L, N: AC Power Input
GND: Ground Wiring
-V: DC Power Output "-"
+V: DC Power Output "+"
ADJ: Adjust the Output Voltage(±5%)
Specifications
Model: S-1200-60
Color: Silver
Style: Modern
Shape: Rectangular
Mounting Type: Wall Mount
Housing Material: Aluminum
Power Source: Corded Electric
AC Input: AC220V
DC Output: 60V, 20A
Power: 1200W
Frequency: 50-60Hz
Error Accuracy: ±1%
Efficiency: ＞80%
Output Adjustable Voltage Range: ±5%
Leakage Current: <1mA/230V
Temperature Coefficient: ±0.03%/℃(0~50℃/32~122°F)
Operating Temperature&Humidity: -10℃～+60℃/14~140°F, 20%～90%RH
Environment Temperature&Humidity: -20℃～+85℃/-4~185°F,10%～95%RH
Start/Up/Maintain Time: 200ms, 50ms, 20ms
Shock Resistance: 10～500Hz, 2G 10min /Period, 60min, Each Axis
Pressure Resistance Between Input and Output: 1.5KvAC Input and Shell; 1.5KvAC Output and Shell; 0.5KvAC
Installation Hole Diameter: 2.5mm/0.01inch
Product Size: 24.5*12.5*6.5cm/9.65*4.92*2.56inch
Package Size: 26*13*8cm/10.23*5.12*3.15inch
Gross Weight: 1.5kg/3.3 lbs
Package Included
1* Switch Power Supply
Notes
This item does not include the power cord and screws.
Please pay attention to the reminder on the machine. Please refer to the corresponding model "output voltage, current, and power". It does not apply to the battery, speed-regulating motor, heater, and engraving machine.
The testing condition for the parameter above is 220VAC input, rated load, 25℃ temperature, and 70% RH. The error includes the setting error, ling stability, and load stability(The test of the load is from 0% to 100%.).
The wave test adopts A12 double wires for 30MHZ and 0.1uF847uF capacitor short-circuit for interrupting.
The inlet voltage stability test: when it is overloaded, the lowest voltage of the inlet is up to the highest voltage.
Please calculate the actual power before using the product to make sure of its lifespan. It‘s suggested that the total power consumption of the loads to be connected be not more than 75% of the rated power of the product. Please make sure your device has a voltage of 60V and uses power less than 1200W. If it runs 24*7 hours, the power consumed should not exceed 40% of the full load.
Applied to the motor: 2 times the power of the device = the nominal power of the transformer unit.
Please switch to a suitable voltage before use. When working at 110V, please keep the load under 70%; When working at 220V, the load can reach 100%.
Professional installation by a licensed electrician is highly recommended. Please check if the wiring is correct before wiring.
It supplies less than 20A. For example, if your device draws 7.5A, then 7.5A will be supplied. If draws more than 10A, only 10A will be supplied and the power supply will be damaged soon. The output current depends on the requirements of the power-consuming equipment, Power multiple devices with different Currents/ Watts,
(Nominal Peak not equal to the maximum load current/power).
Because this item is not waterproof, it is for indoor use only. It is not suggested for use in the bathroom.
This product has a cooling fan, and a little sound at work is normal. Please do not disassemble the power box without authorization.
The equipment will generate heat during use. Please pay attention to heat dissipation and ventilation during use without foreign objects blocking the cooling holes, and keep away from high temperature, humidity, inflammable, and explosives. It should be placed in a dry and well-ventilated area at all times.
To ensure safety, please power on the transformer for 15 minutes before connecting it to your appliance for use.
For capacitive load, just leave enough allowance on the rated power capacity of the unit to avoid overloading.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
