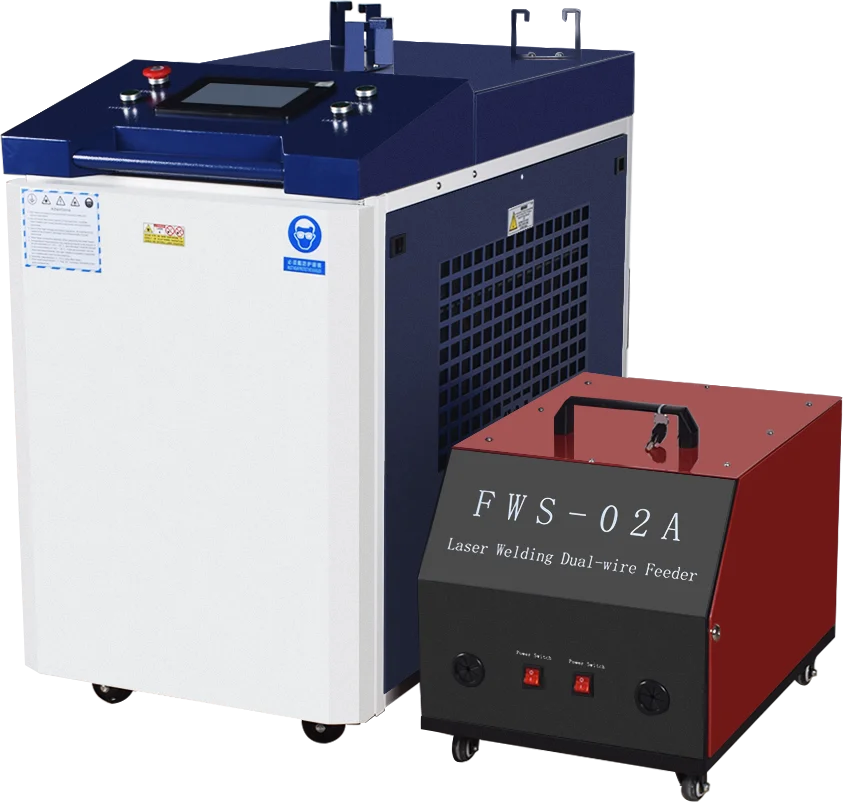

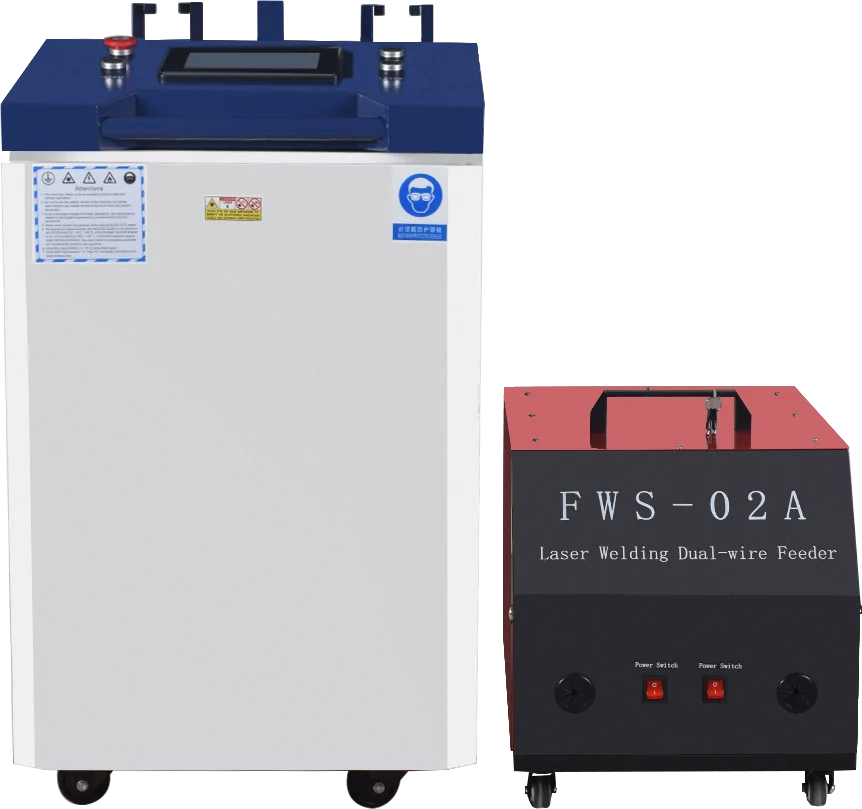

4 IN 1 Raycus Laser Welder 1500W/2000W/3000W 380V Fiber Laser Welding Cleaning Cutting Machine Double Pendulum Model EU Stock

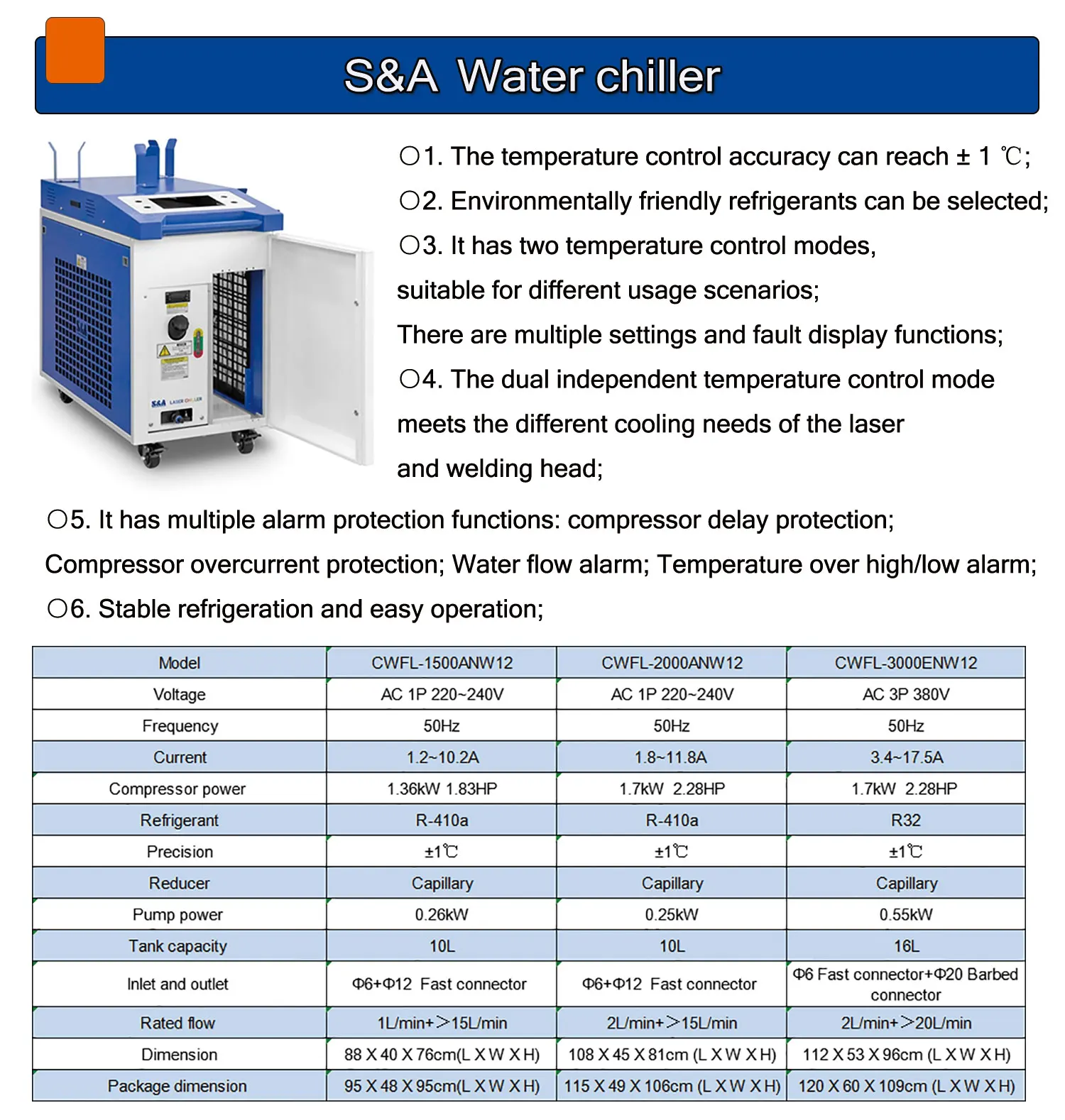

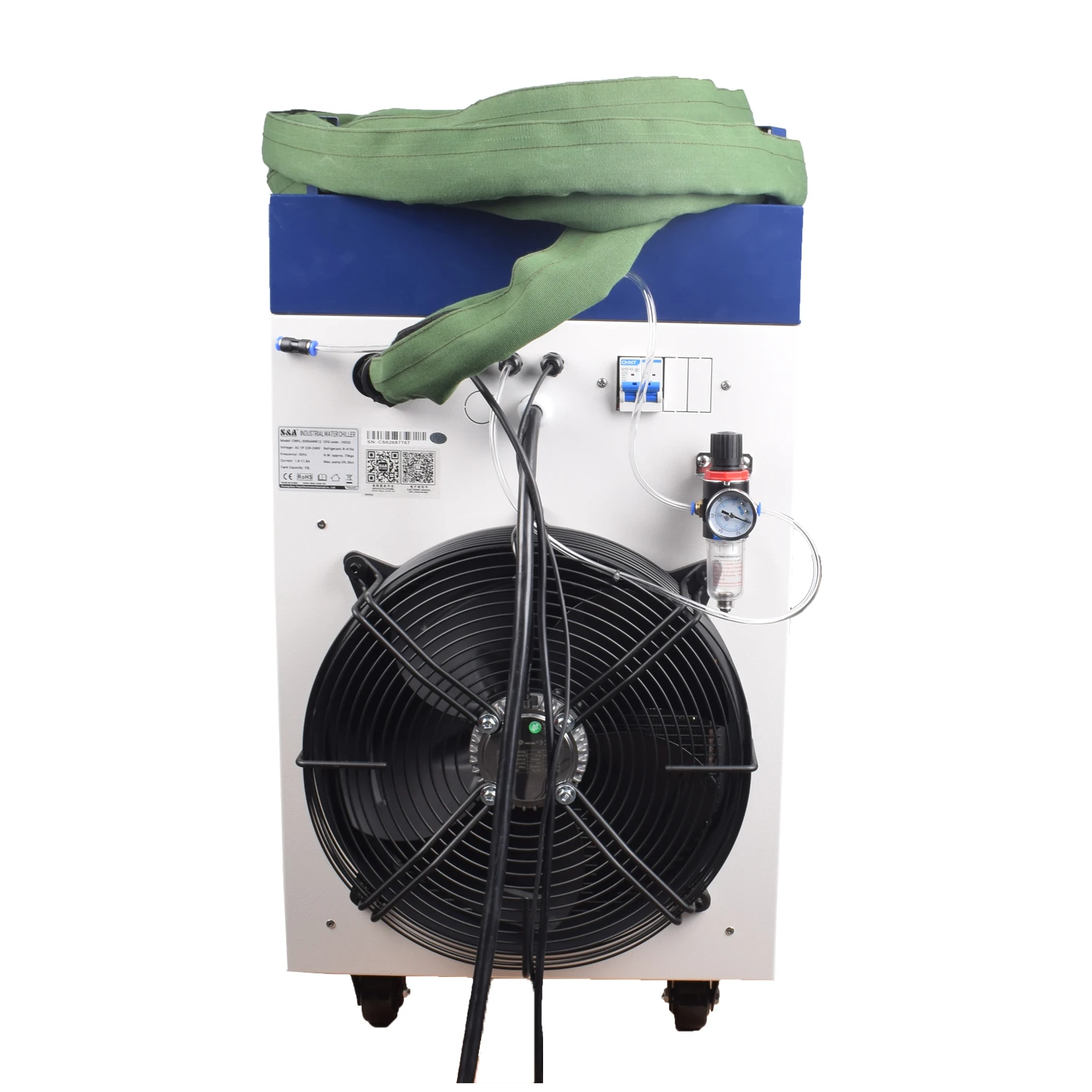

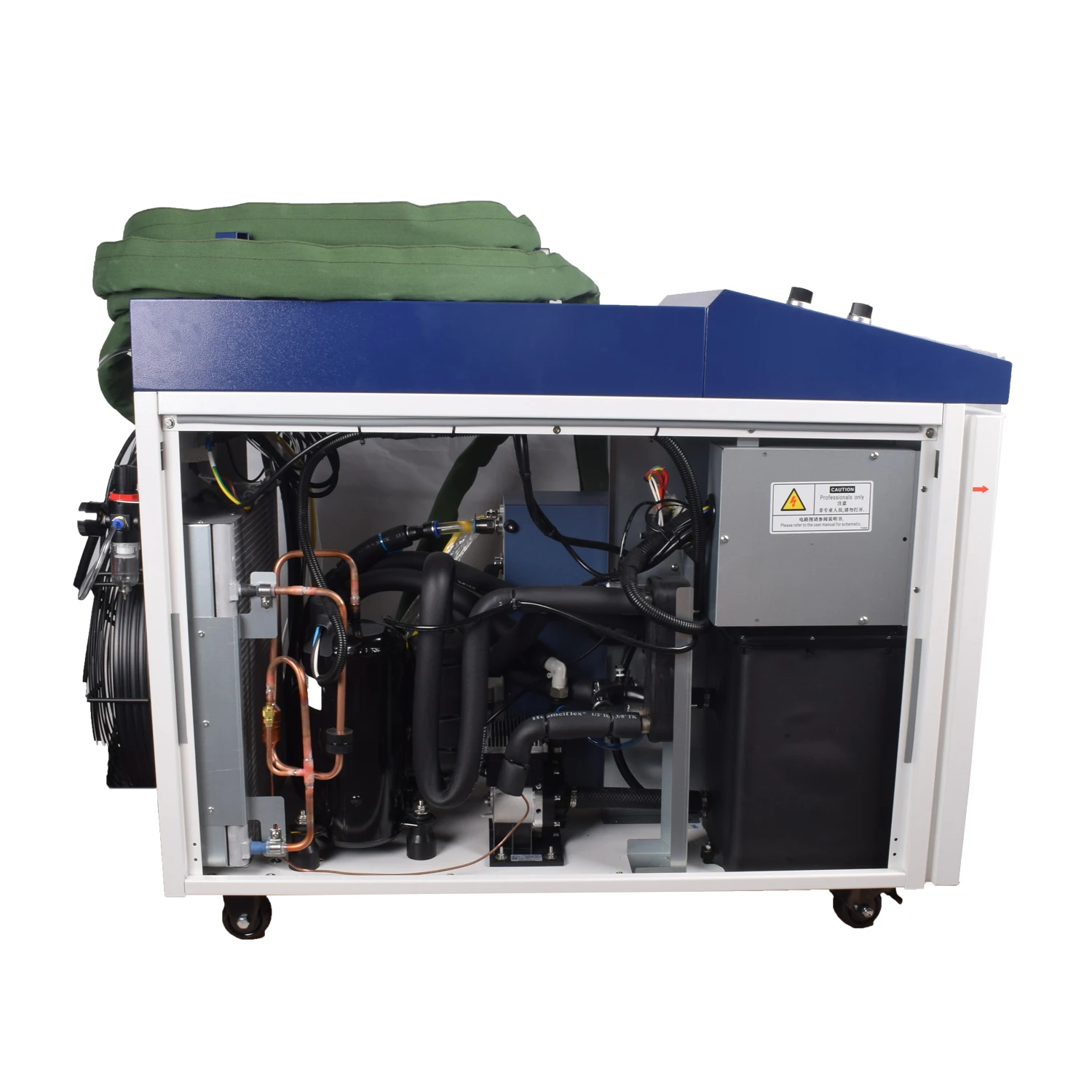

Relfar Double pendulum 4 IN 1 Raycus Laser welder 1500W/2000W/3000W Fiber Laser Welding Cleaning Cutting Machine Weld Seam Clean Machine S&A water chiller

4 IN1——LASER WELDING

More Material: Suitable for aluminum,high-speed welding of steel, copper, titanium, nickel alloy and other materials and thicknesses.

EASY: Optimized presets reduce learning curve. half hour - 2 hrs, from beginner to expert.

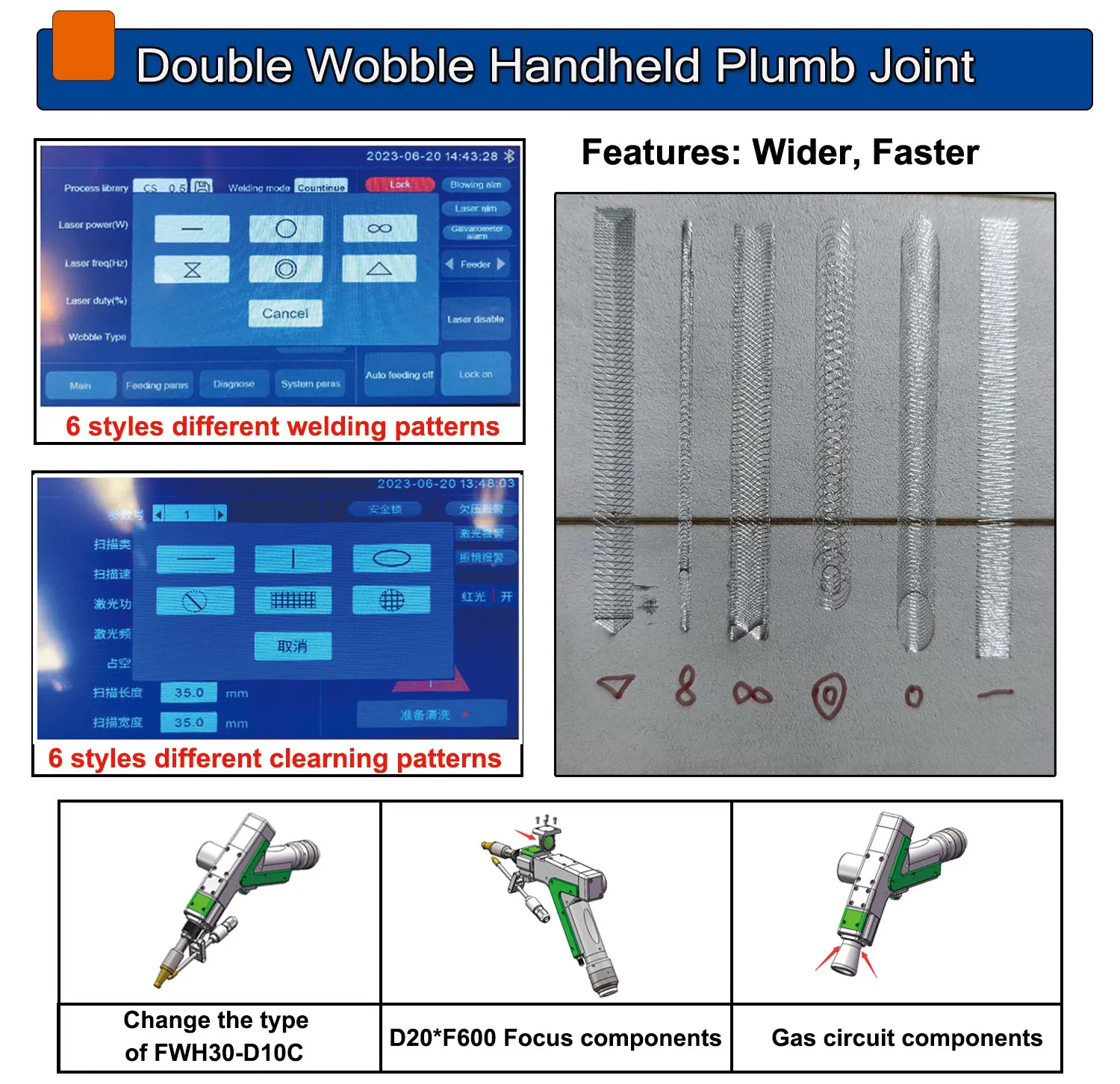

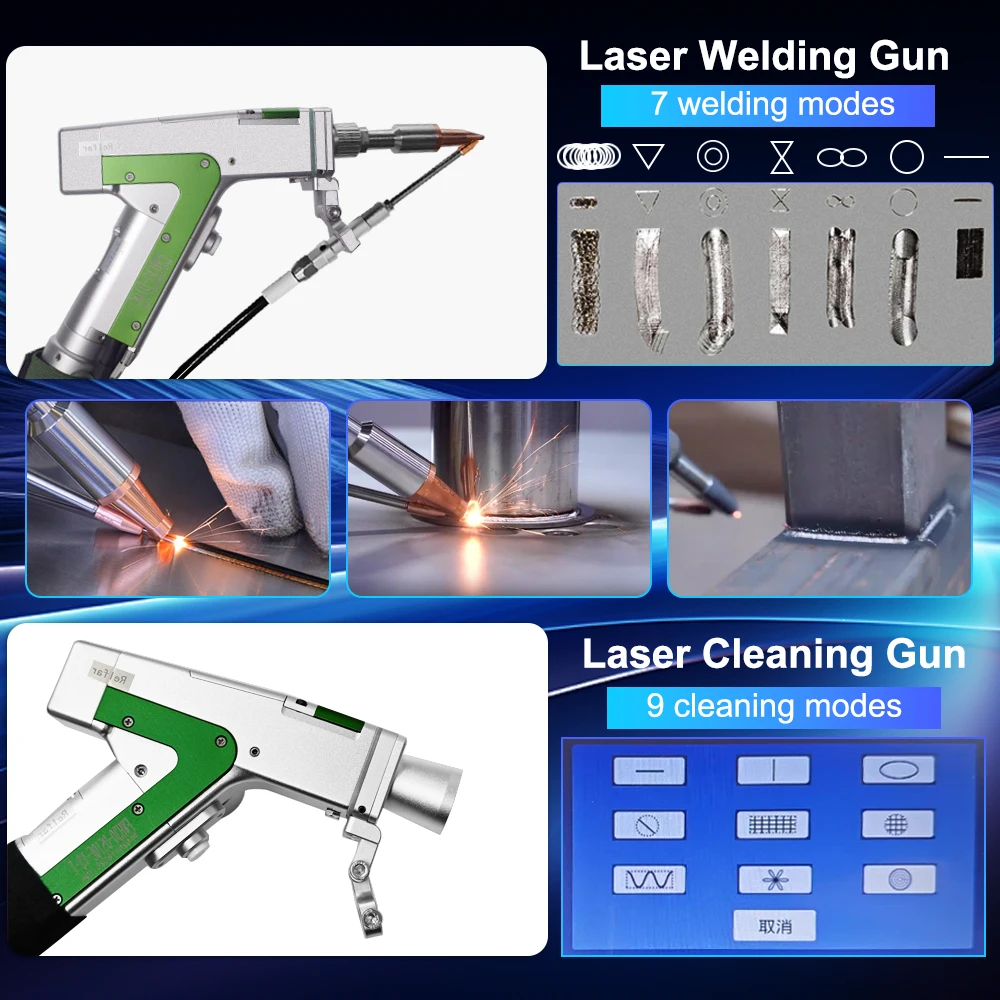

Double Swing Welding: 7 patterns available,Wobble welding controls for 8 mm of additional weld width.

Low Heat：Low heat input for minimal part distortion or deformation.

4IN1——WELD SEAM CLEANING

Up to 15 mm of adjustable cleaning width in one pass.

Create visually appealing welds while eliminating need for post-grinding.

Specially designed welding and cleaning nozzle tips for any joint configuration.

Dramatically reduces time, cost and scrap

4IN1——LASER CLEANING

In cleaning mode, the wobble function provides adjustable cleaning scan widths up to 15 mm

Six cleaning patterns are available, suitable for different scenarios. The cleaning marks are smaller than those of a single swing.

Specially designed cleaning nozzle head equipped with F800 cleaning lens to improve cleaning efficiency

4IN1——LASER CUTTING

Can cut aluminum, stainless steel, carbon steel and other types of metals.

Disconnect from the wire feeder and select a swing width of 0.1mm in welding mode to start cutting.

Cutting thickness up to 3mm.

4 In 1 Welder Laser Soldering Machine Combo Laser Metal Cleaning Main Features

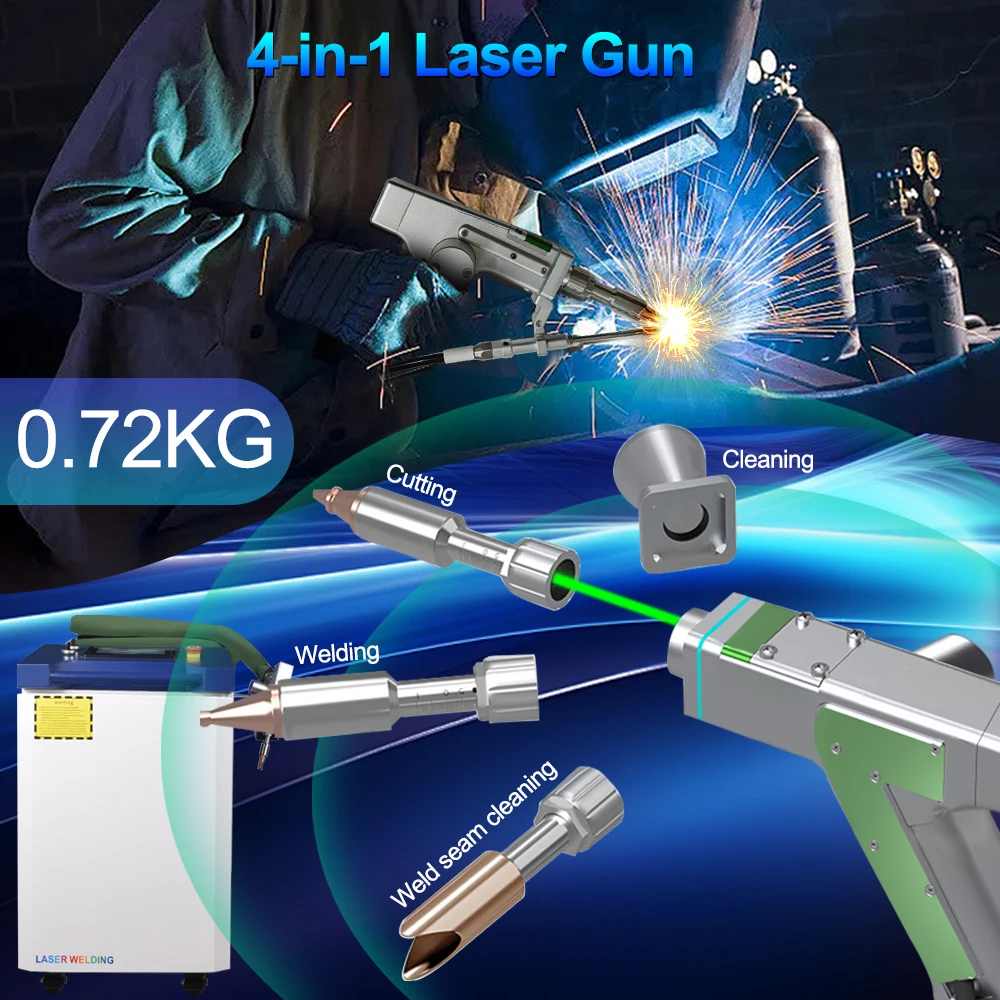

1. Three working modes, welding + cutting + cleaning. Simple switching, only need to replace the copper nozzle,

switch the system

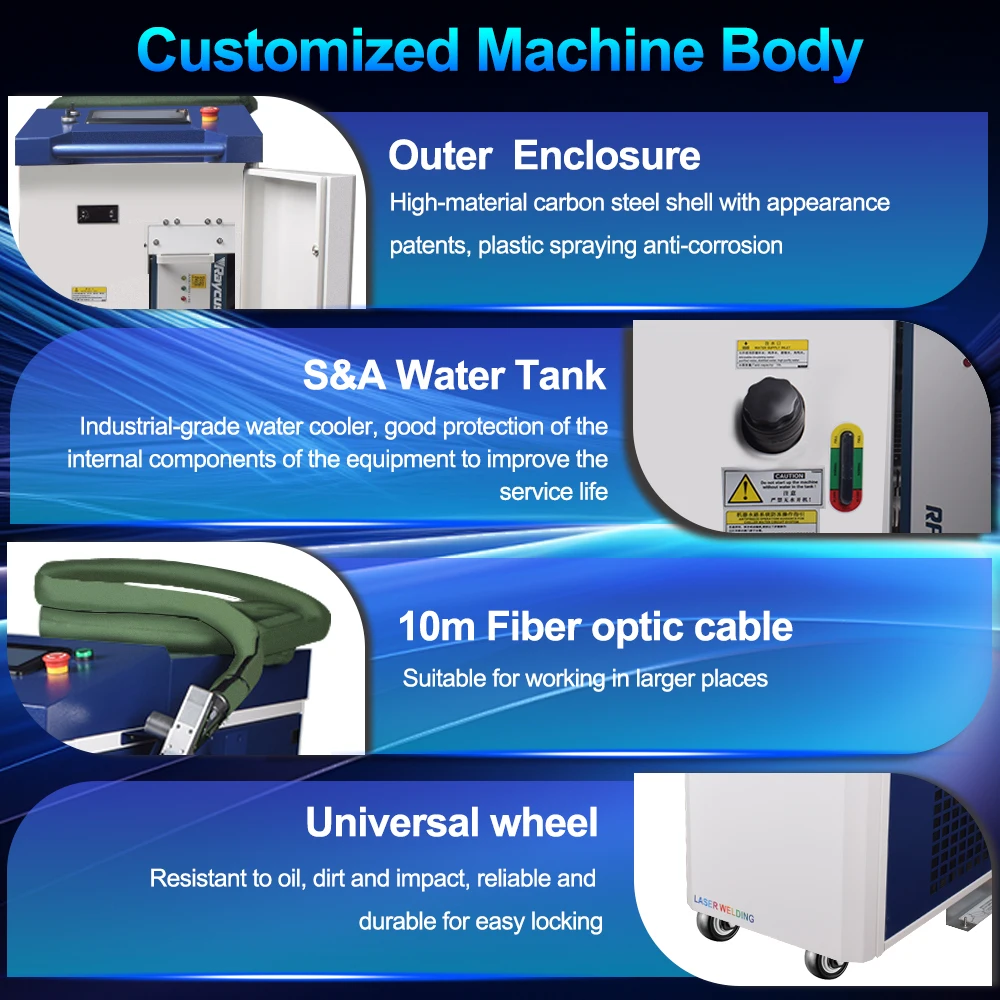

2. About fiber cable length

Standard length is 10m, if you have other needs, we support shortening or lengthening.

3. Auxiliary gas: nitrogen or argon

If the welding surface effect is required to be white and bright, nitrogen or argon is required

If there is no requirement for the welding surface, add compressed air freeze Dryer, air is OK.

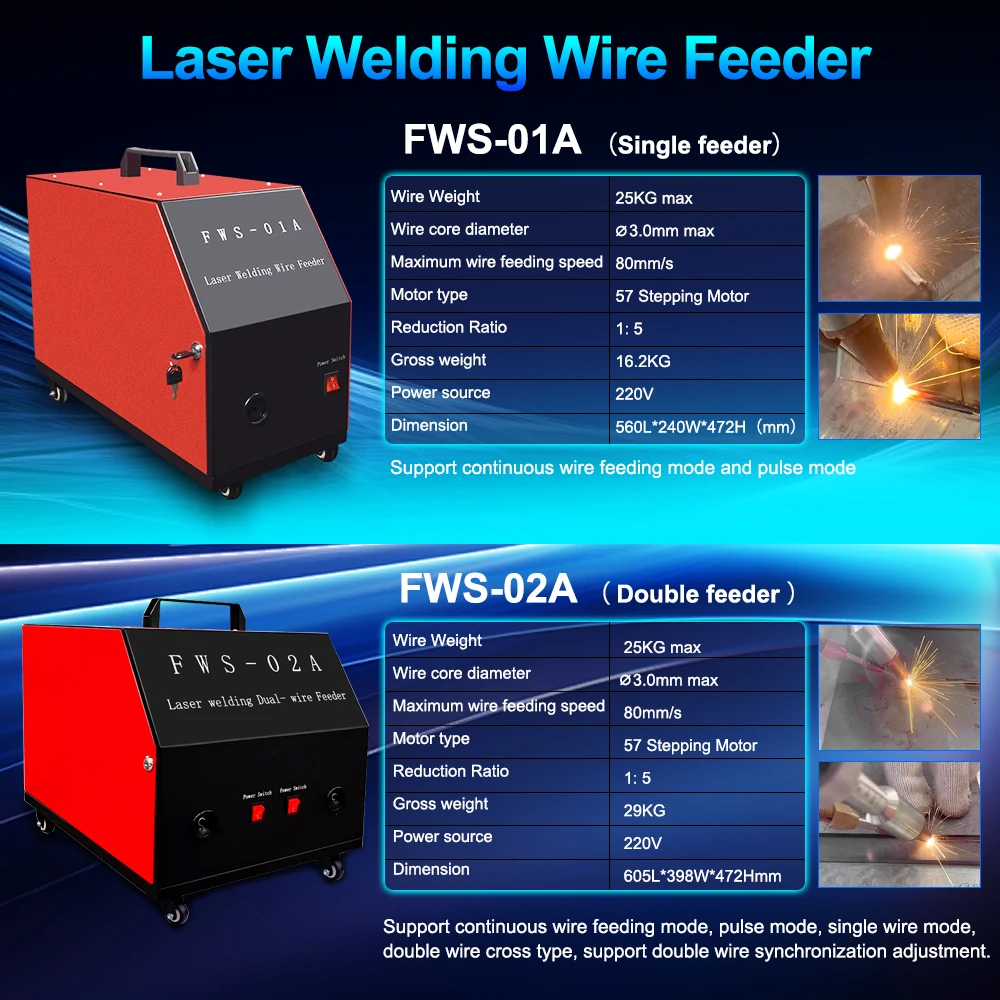

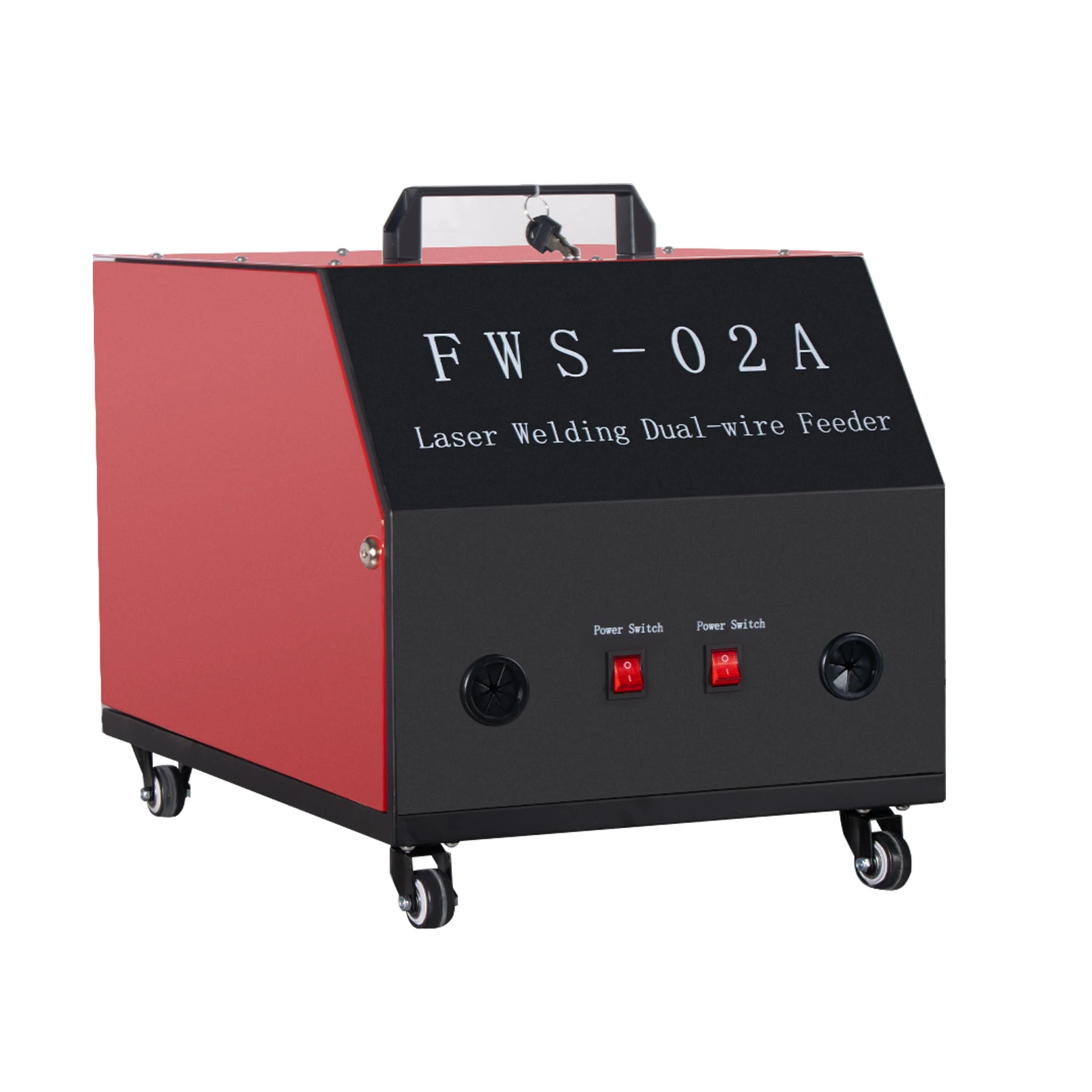

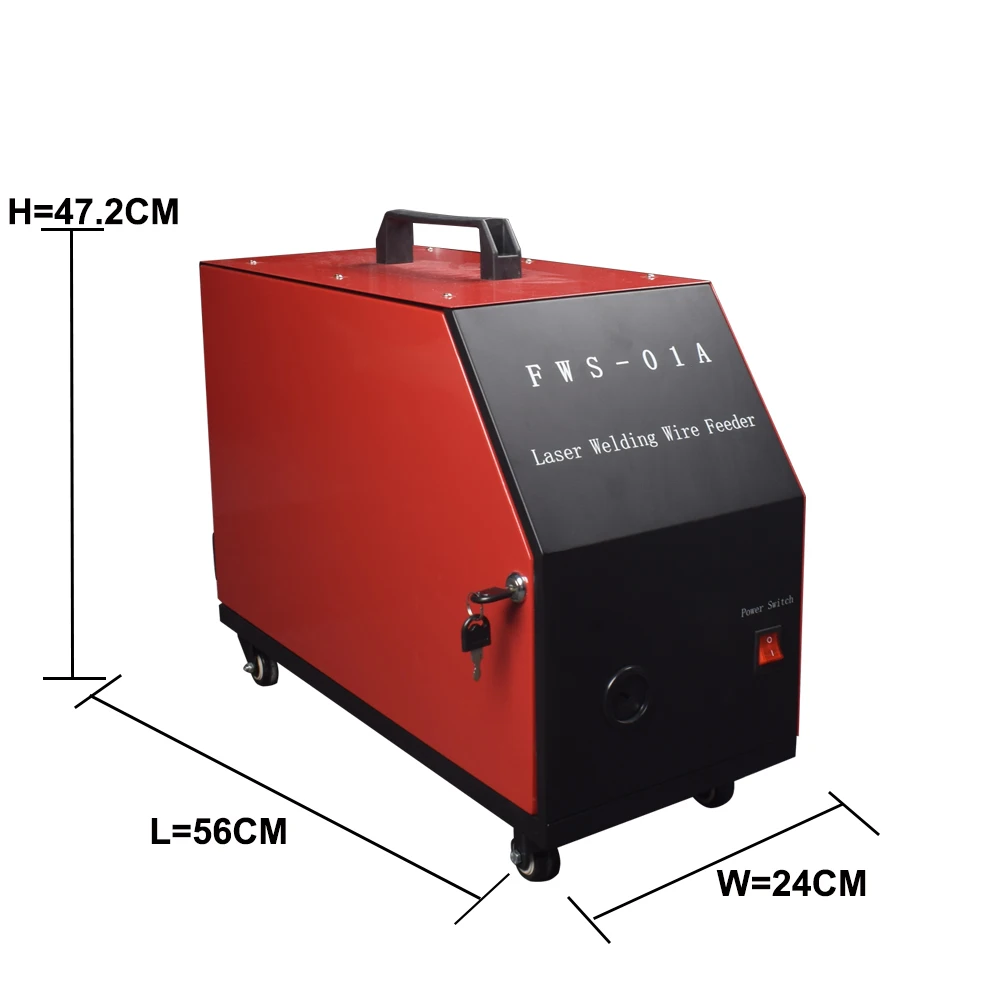

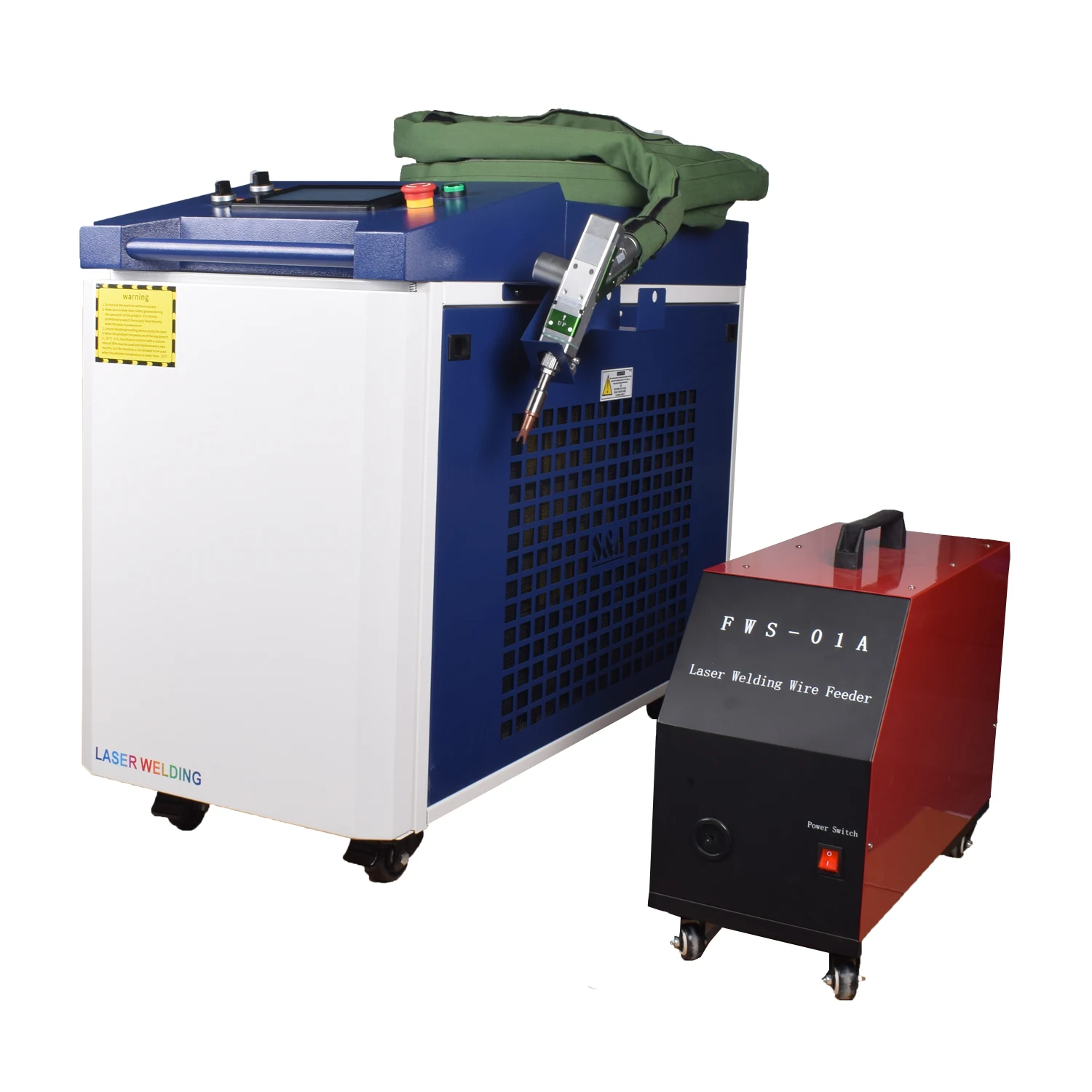

4. About wire feeder

It's the machine standard configuration, we will send to you together with the whole machine.

5. Machine warranty: 3 years for whole machine, 2 years for laser source.

Laser Welding

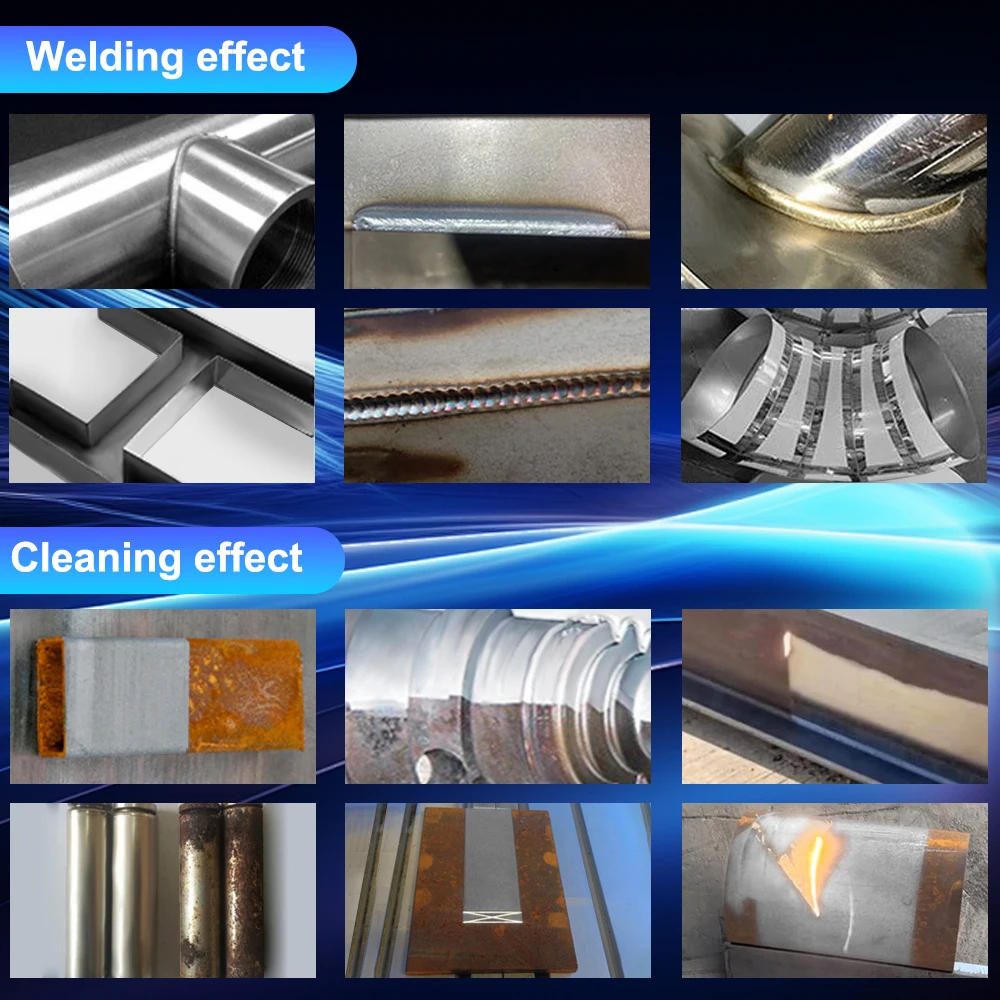

1) The weld seam is smooth and beautiful,The welding workpiece has no deformation, the welding is firm, and no

subsequent grinding process is required, which saves time and cost.

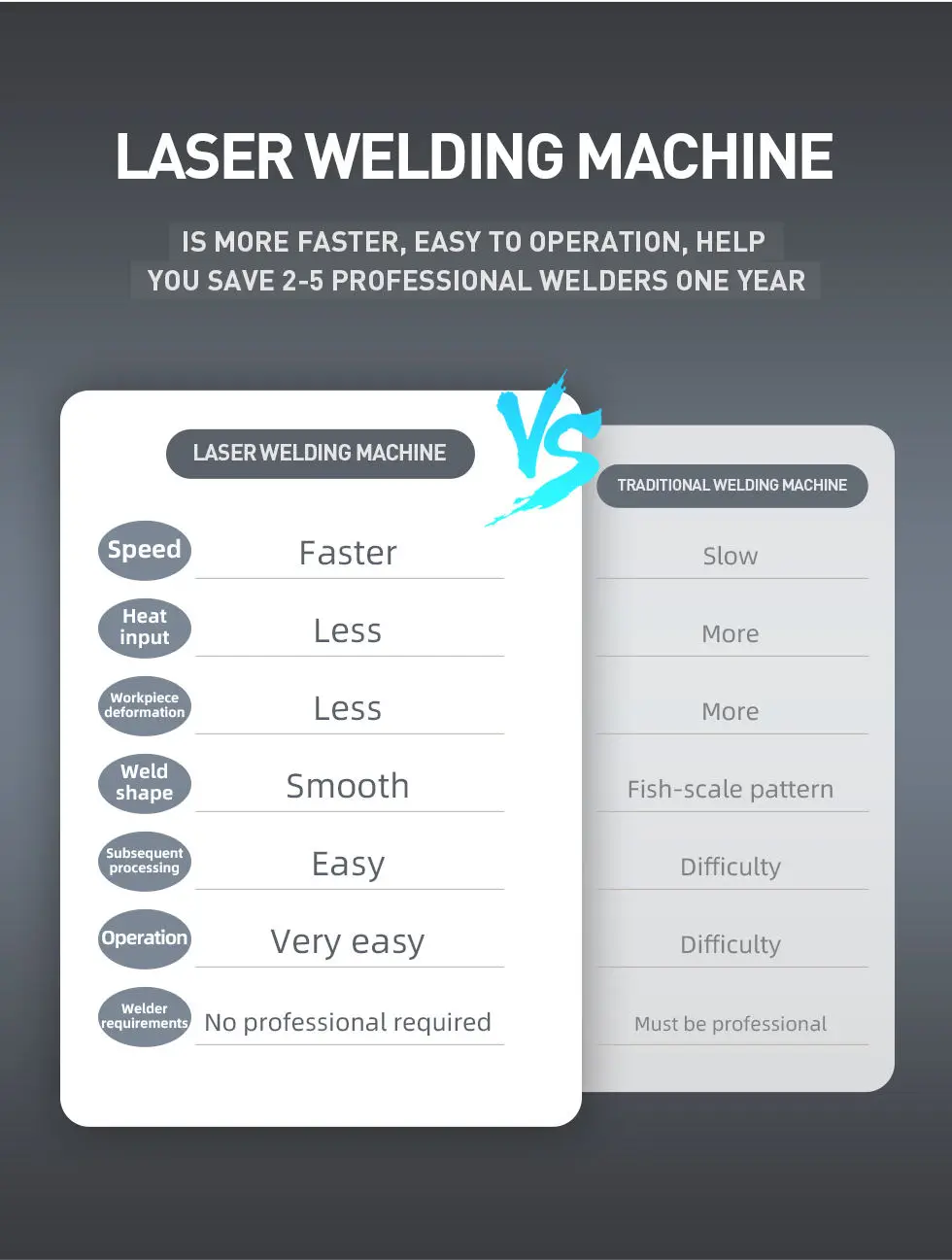

Fast welding speed, 2~10 times faster than traditional welding.

2) Easy operating need no training

Welding seam beautiful smooth and beautiful, don’t need polish, save your time

No deformation or welding scar, firm welding of the workpiece.

3) Easy Maintenance

Laser welding has less consumables and long service life. Safer, more environmentally friendly.

4) Wildly used in cabinet kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window

guardrail, distribution box, stainless steel home.

Laser cleaning

1) Laser Rust Removal: Laser light can easily remove rust, after removal, the surface is restored to a bright metallic color or restoration of the original base color.

2) Laser Oil Removal: Metal surface oil cleaning (can remove oxide film at the same time)

3) Laser Paint Removal: removes various paints including auto Duco on various substrates and automobiles

4) Stripping coating (galvanized layer, aluminized layer, protective coating, etc.)

5) Removal of aluminum alloy, titanium alloy, copper alloy oxide film

6) Pre-Weld Pretreatments: After laser cleaning pretreats the aluminum alloy, the welding porosity defects are effectively suppressed

7) Cleaning after welding: Non-Contact NDT removal of post-weld oxide film and slag residue

8) Aluminium alloy pulsed lasers remove dirt and oxide film before welding

Q&A:

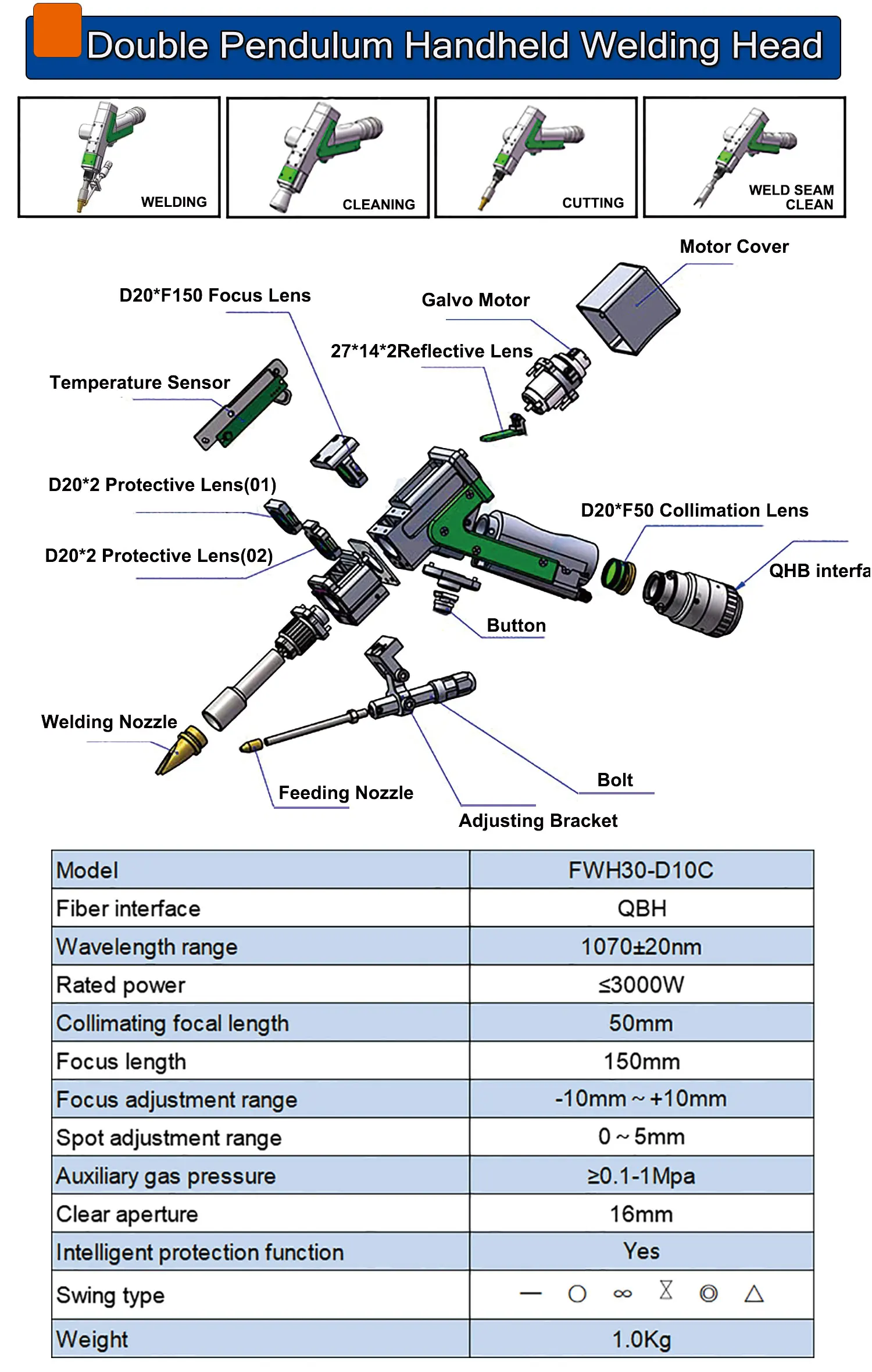

Q: What is double pendulum welding?

A: The welding head is driven by dual motors, Wobble welding oscillates the beam back-and-forth at various frequencies to produces wider seams and more aesthetic welds.With 7 swing patterns, which are more tolerant than single horizontal line swings.

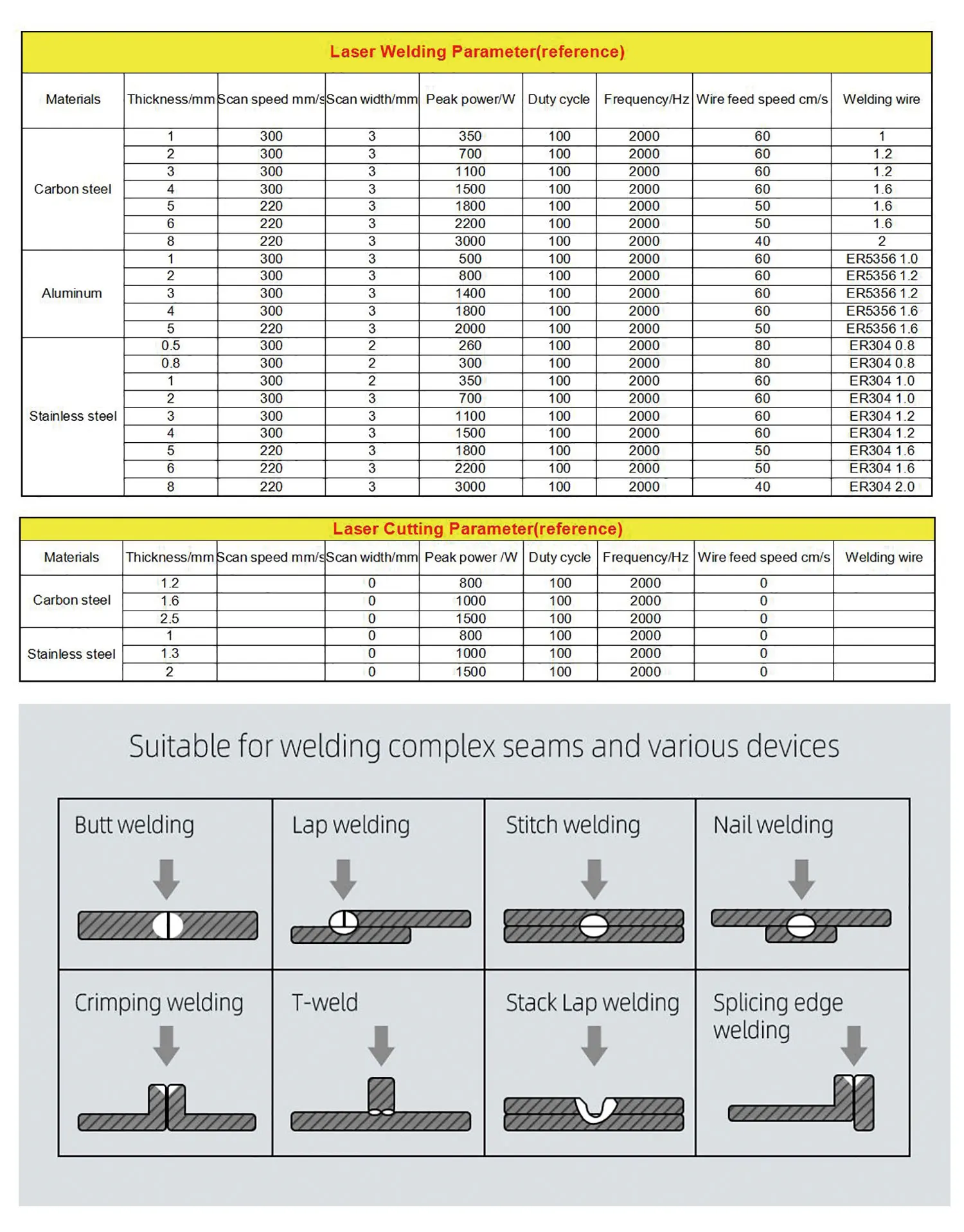

Q:What is the maximum material thickness that can be welded?A: Aluminum 3 & 5 Series, Stainless Steel, Galvanized Steel, Mild Steel, Carbon Steel, Iron, welding thickness up to 8mm, Aluminum 6 Series welding up to 5mm thickness

Q:Is LASER WELD really faster than MIG and TIG welding?A: Yes,LASER WELD travel speed is up to four times faster than traditional methods,fixturing is simpler or not necessary,and post-weld grinding or sanding is not needed or significantly reduced,all of which increases productivity while minimizing rework

Q: Is LASER WELD really that easy to learn?A: Yes, compared with MIG and TIG welding, either of which can take a lifetime to master, LASER WELD is quick to learn, allowing new users to make high-quality welds in just a few hours.
