Yizhan 4K Digital Electronic Microscope HDMI USB-C IMX415 1/2.8" Sensor UHD Microscope 150X 215X C-Mount Lens For PCB Soldering

Camera software download address:

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

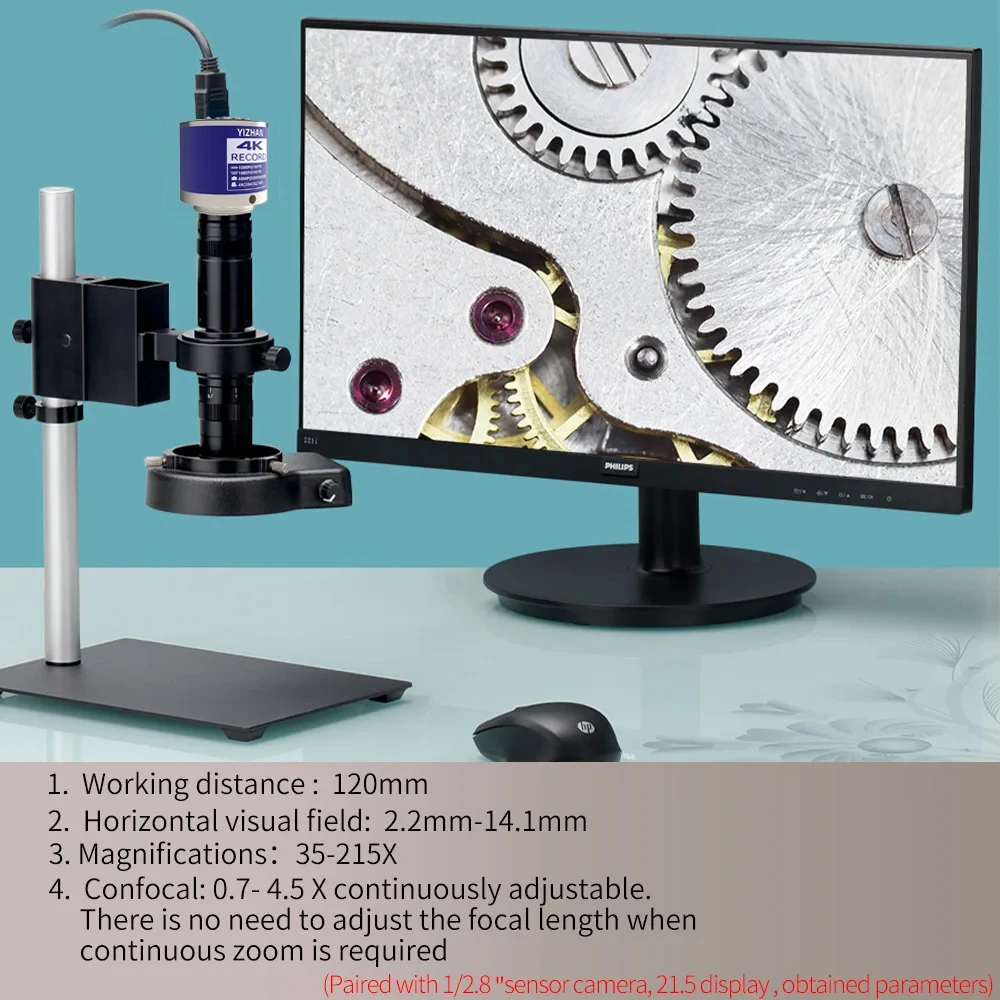

HD digital microscope, the bracket can be rotated Lifting to suit your needs,
while the lens supports 35-215X continuous zoom. It can definitely be a fine helper
for your daily work.
Application: QC inspection, Education purpose inspection, Print industrial,
Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial,
Biological inspection. Electronics Repair, Luxuries Identification, Video microscopes
are easy to operate and widely used.

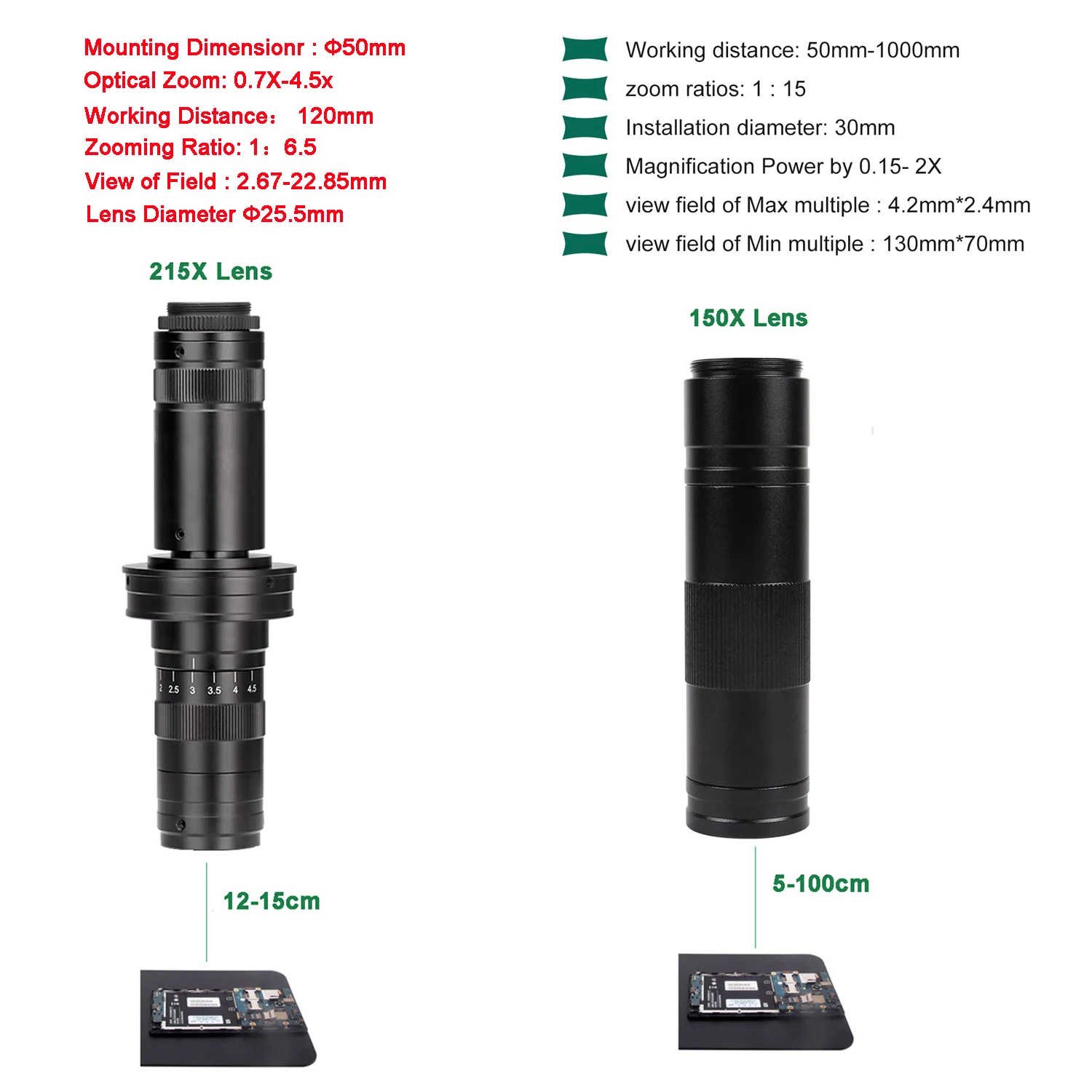

35X-215X Zoom C-mount Lens

Mounting diameter: φ50mm
Lens diameter: φ25.5mm
Working distance: 100mm
Optical zoom: 0.7X-4.5x
Magnification: 35-215X
Zoom ratio: 1:6.5
Horizontal field of view: 2.67-22.85mm
Net weight: 260g

5X-215X Zoom C-mount Lens

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)

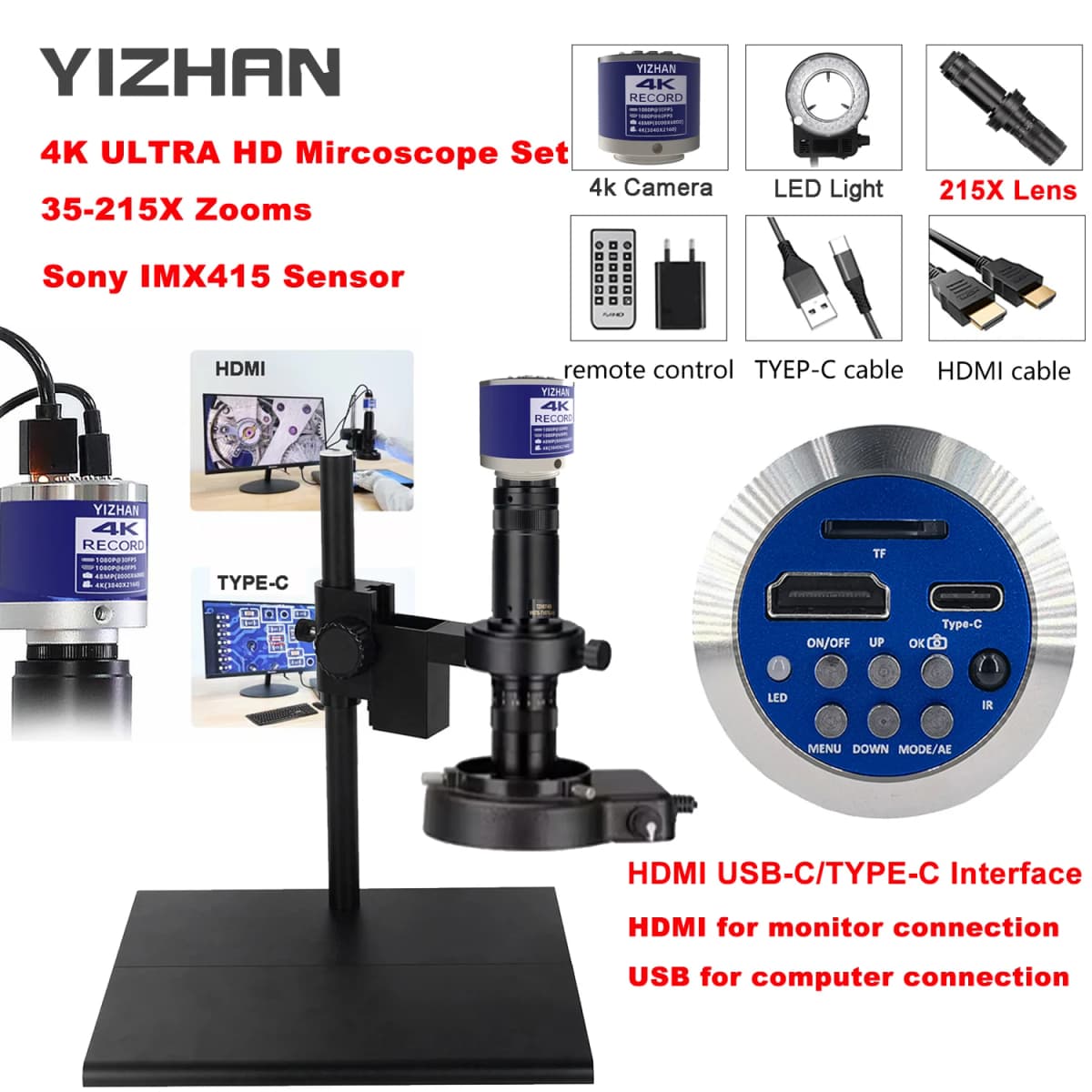

4K 48MP HDMI USB-C ULTRA HD VIDEO MICROSCOPE CAMERA:

◆Using a 2-megapixel imported SONY sensor;
◆With a Sony IMX415 (1 / 2.8 inch) image sensor, the perspective is wider than 1 / 3 inch;
◆HDMI 1080P 60FPS image output ；
◆TYPE-C no-drive output 1080P 30-frame image output;
◆4K video recording;
◆48 Million photos, JPG format, photo size 8000x6000;
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆Electronic scaling function;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;
◆Support remote control operation, take photos without shaking the image clearer;
◆Support for Chinese and traditional Chinese and English menu languages;
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;

Specification parameters:
Sensor：A 1 / 2.8 SONY 2-megapixel import sensor
Pixel size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: Automatic / manual
Exposure compensation: Support
White balance: Automatic / manual, support for RGB adjustable
Memory card: Max. support is 64GB
Input voltage: DC: 5V
Lineation: 16 lines, with adjustable color, thickness, and position
Centre line: Support
Menu language: English / Chinese
Telecontroller: Support for the remote control operation
Camera net weight: 150G
Size: 66*66*49mm

CONNECTION:

HDMI connects to the display:
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

USB connection to computer:
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
