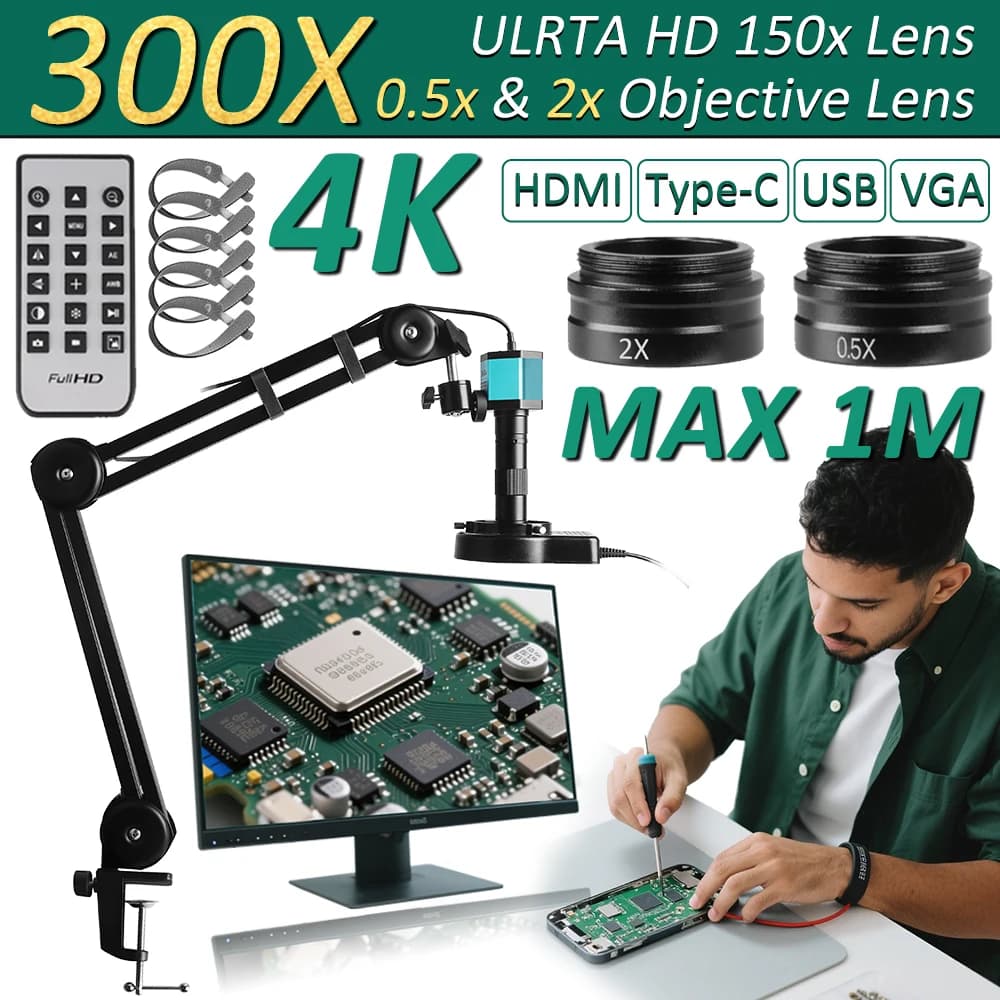

IMX415 4K 300x Digital Microscope For Soldering Recording 48MP Industrial Electronics Microscope Phone Repair Jewelry Repair

Brand new reinforced stand, refuses to shake!

Microscope software download address: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing


Be sure to use the microscope in a bright environment, otherwise the image will not be clear.

YIZHAN precision electronic repair microscope / microscope camera applicable scenarios:
1️⃣ Precision electronic repair
✔ Mobile phone/computer motherboard chip welding ✔ Micro circuit board defect detection ✔ SMT patch component precise positioning
▸ The lens magnification is optional, and it can be matched with a ring LED cold light source to easily capture micron-level defects such as solder joint cracks and component cold soldering, and say goodbye to the blurred vision of traditional magnifying glasses.
2️⃣ Industrial equipment maintenance
✔ Mechanical parts wear analysis ✔ Precision mold detection ✔ Micro gear set assembly calibration
▸ Long working distance design, no obstruction of operating space, single-handed adjustment of focal length, helping engineers to quickly complete troubleshooting.
3️⃣ Watch and jewelry finishing
✔ Swiss movement gear calibration ✔ Jewelry claw fine-tuning ✔ Antique cultural relics restoration
▸ Rotatable + metal shockproof bracket, meet the needs of sitting/standing multi-posture operation, 24-hour continuous observation without fatigue, so that the 0.1mm gem setting error can be seen.
4️⃣ Quality inspection and scientific research
✔ PCB gold wire quality inspection ✔ Material surface microstructure observation ✔ 3D printed finished product defect screening
5️⃣ Medical equipment maintenance and calibration
6️⃣ Automotive/aviation precision manufacturing
7️⃣ Teaching and skills training
8️⃣ Artwork restoration and miniature model making

Note:
For all models with remote control, batteries are not included due to logistics reasons. The battery model is CR2025. The buttons of the remote control and microscope camera can only be used in HDMI mode. When USB output is used, the default software operates the microscope.

Product description:

SONY IMX415 Ultra HD Camera 4K 48MP HDMI USB
◆Sensor: 1 / 2.8 inch ,Sony imx415 megapixel CMOS sensor the perspective is wider than 1 / 3 inch;
◆HDMI：1920*1080P 60FPS image output ；
◆TYPE-C：1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
◆4K video recording;
◆48 Million photos, JPG format,
◆5x electronic magnification!
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;
◆Support remote control operation, take photos without shaking the image clearer;
◆OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;
Pixel size:2.9µm × 2.9µm
HDMI output: 60FPS
Lens interface:C/CS
exposure:Automatic / manual
exposure compensatio:support
white balance:Automatic / manual, support for RGB adjustable
memory Max. support is 64GB
input voltage :DC: 5V
lineation 16 lines, with adjustable color, thickness, and position
centre line:support
menu language :English / Chinese
telecontroller:Support for the remote control operation
net weight:150g
rough weight:350g

Product description:

SONY IMX323 Camera HDMI VGA
The sensor: Sony imx323
Pixel array:13MP
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

1X-150X Zoom C-mount Lens:

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Installation diameter: 42/50mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

YIZHNA 150x lens dedicated 0.5/2.0x objective lens (25mm)

The magnification of the lens can be changed and it also provides comfortable viewing. It allows you to look more closely.
The coated optical lens provides high-quality observation without additional chromatic aberration, making the image clearer and sharper.
Aluminum alloy body, black anodized surface, precision machining, stable and durable, suitable for long-term use.
Magnification: 0.5/2.0X
Material: aluminum alloy
Interface size: 25mm (exclusively for YIZHAN-150x lens)

Reinforced bracket

Spring-less design, thicker material, larger weight, more stable, will not shake easily!It is recommended that when the working distance exceeds 40cm, please use a work desk lamp to fill in the light.

Standard bracket (A)
Reinforced bracket (B)

List of packing：：

1* Microscope Camera Set [IMX415 HDMI USB] and [IMX323 HDMI VGA] are two options
1* 150X lens
1* 56 led ring light
1* Stand [A] and [B] are two options
1* 0.5x objective lens [included with the Plus set]
1* 2.0x objective lens [included with the Plus set]
