GOYOJO Thermal Imaging Camera 2in1 Super IR 640x480 Handheld Thermal Imager Electrical Test for HVAC Electrical Detect

About this item

【Super Resolution, Ultimate Thermal Imaging Experience】

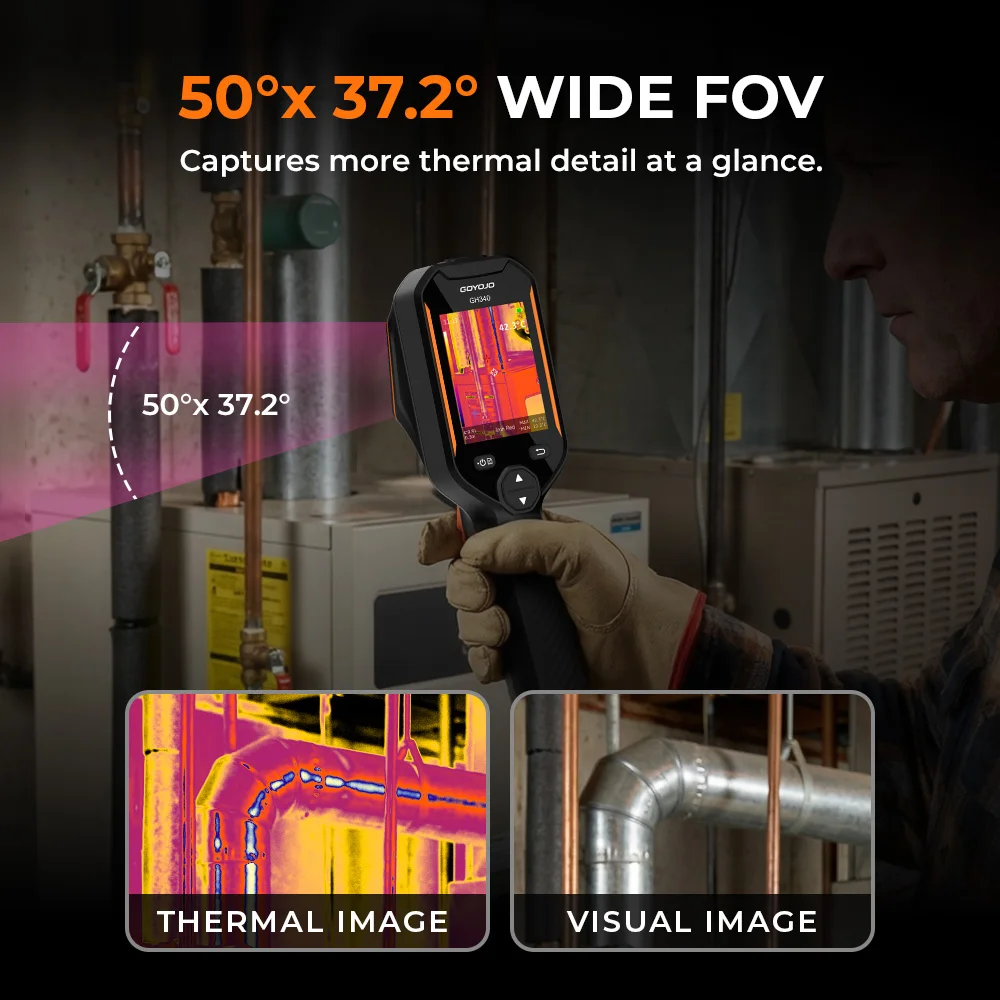

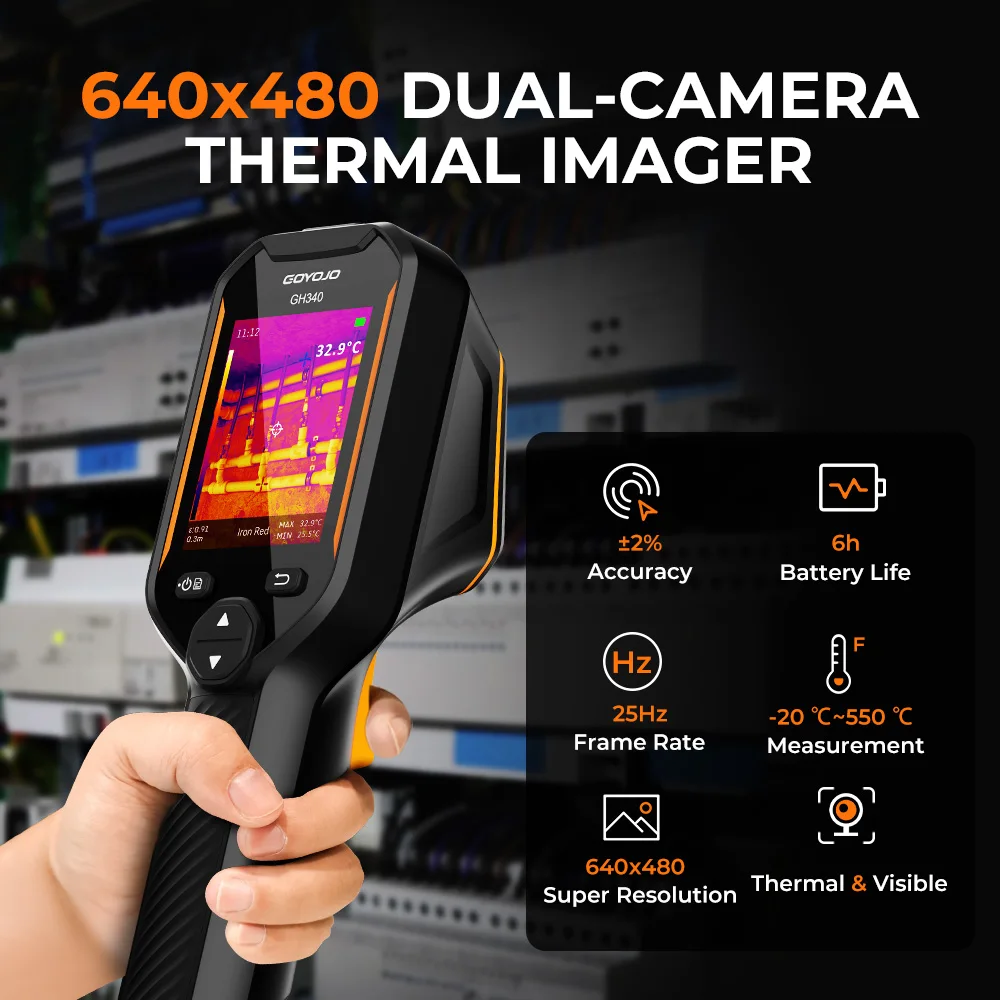

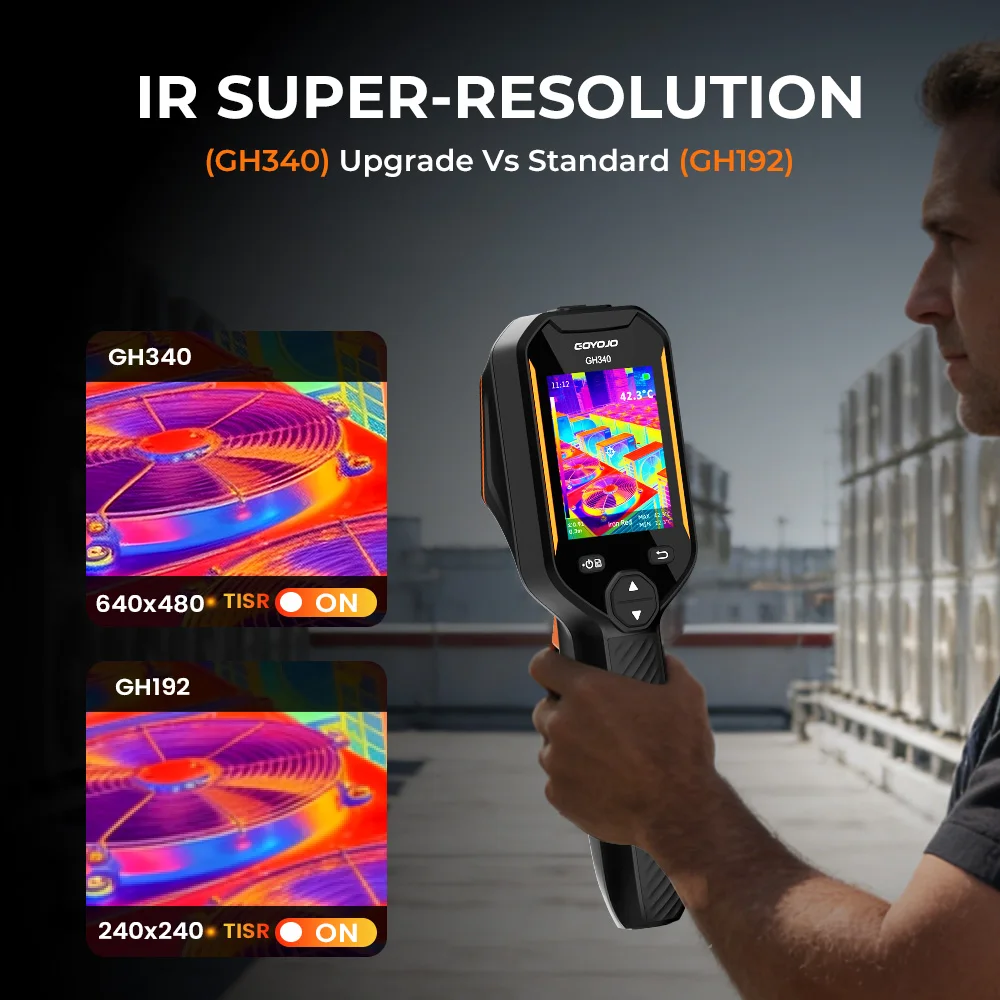

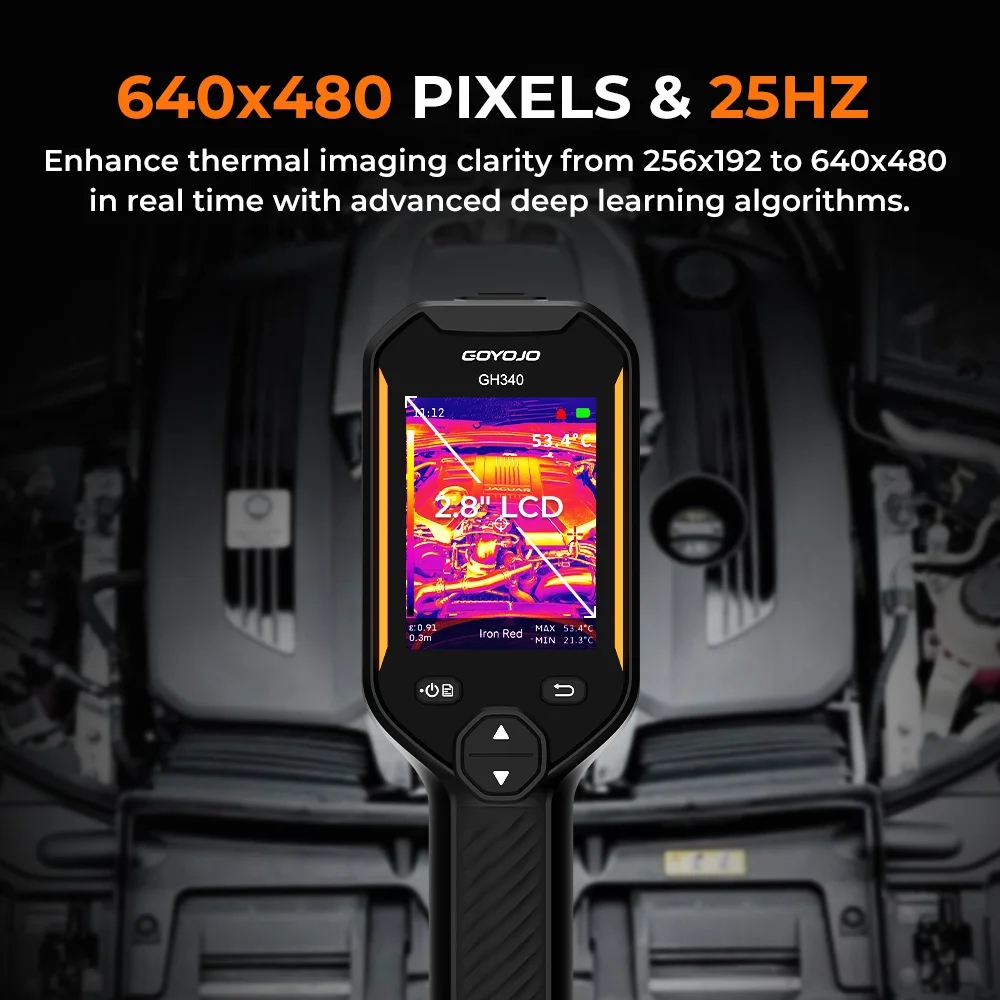

Featuring the Live Super Resolution algorithm, the GH340 thermal imager takes real-time thermal image enhancement as the resolution jumps from 256x192 detector resolution to an impressive 640x480 imaging resolution (far better than GH192- 240x240 standard). Provide smooth and vivid viewing on the 2.8" LCD screen, thanks to the high frame rate of 25 Hz. With an exceptional thermal sensitivity below 40 mK, this thermal imager captures high-definition details like never before.

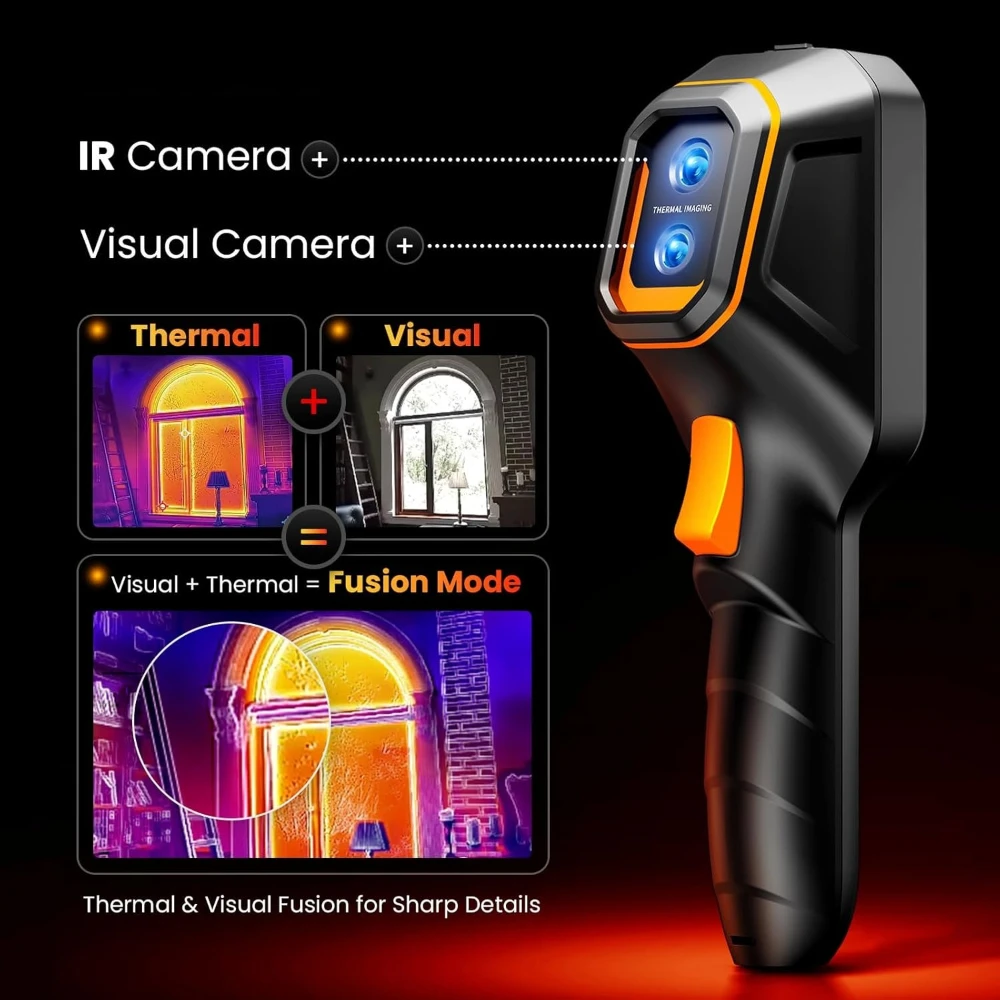

【Dual Camera, Efficient Troubleshooting】Equipped with a built-in IR and Visual Camera, GH340/GH192 thermal imaging camera provides Visual/Thermal/Fusion 3 image modes that allow you to experience previously unreadable label information and invisible image edge details. Switching between 3 image modes is effortless with the Up button, and you can switch between 6 color palettes with a single click using the Down button. This versatility allows you to meet your specific needs in various scenarios.

【Fast Anomaly Recognition】

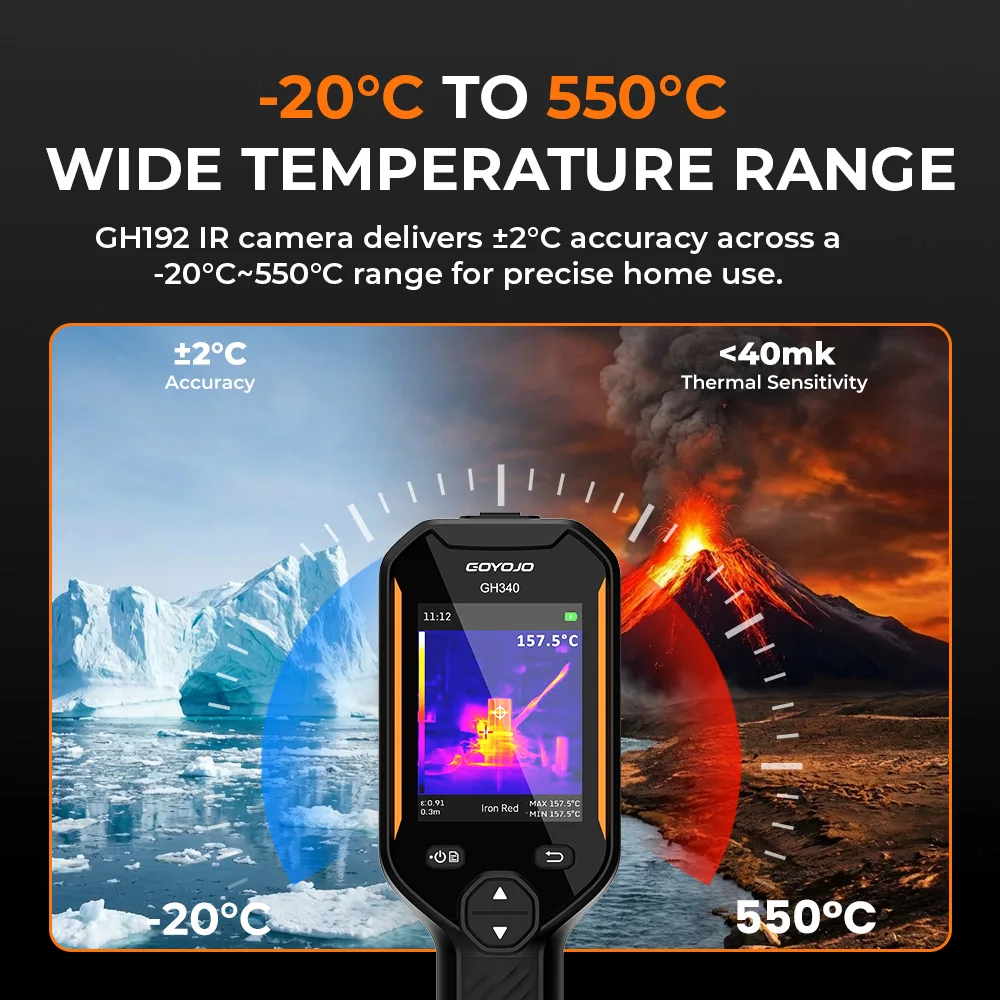

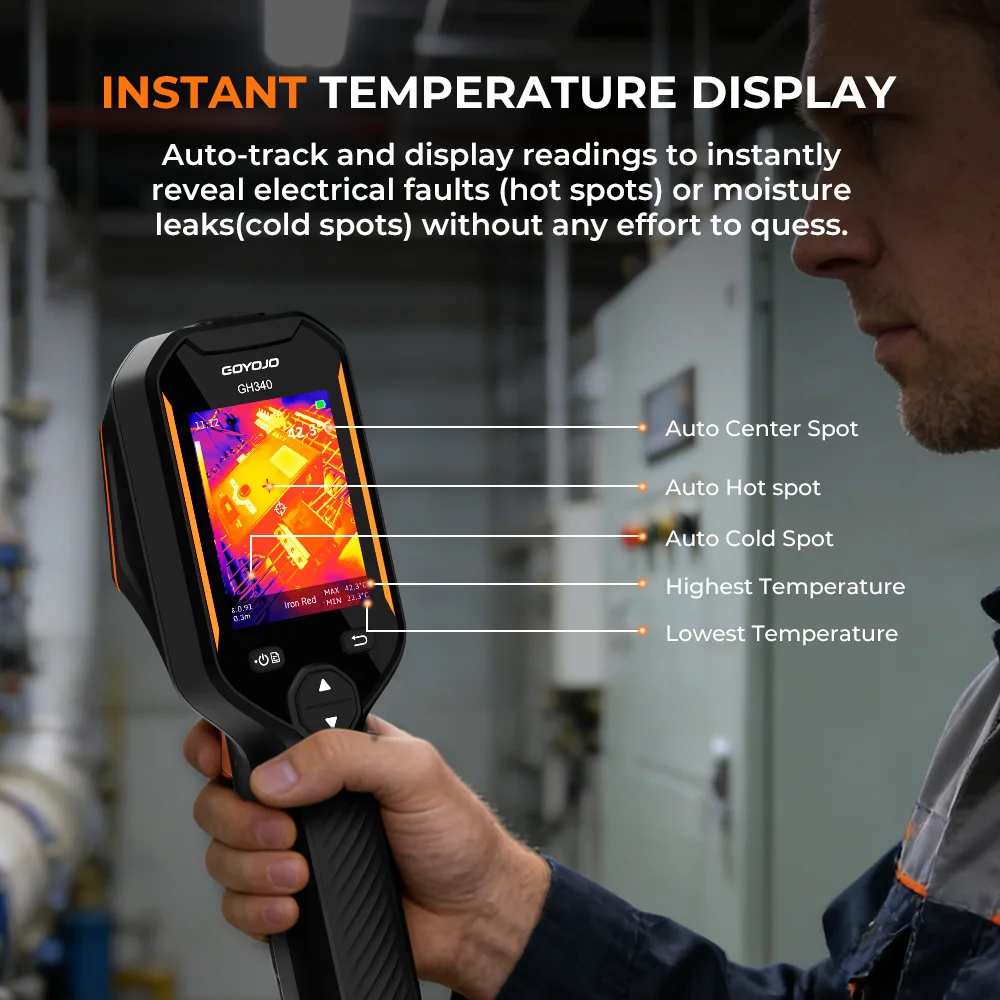

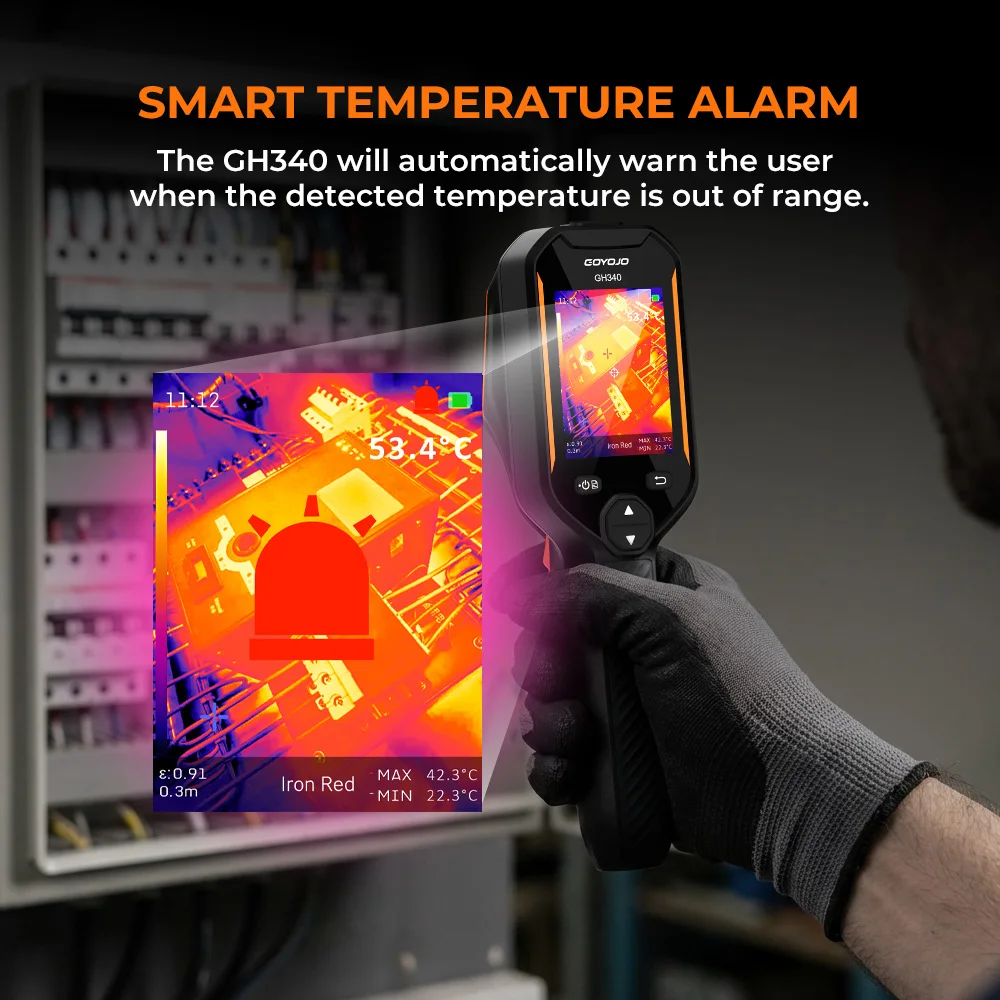

The GH340/GH192 features a wide temperature range of -20 ℃ to 550 ℃. It automatically tracks the hottest, coldest, High-temperature and low-temperature alarms: When any target on the viewing interface meets the alarm criteria, a clear alert appears at the top of the screen

【Accurate Temperature Measurement】

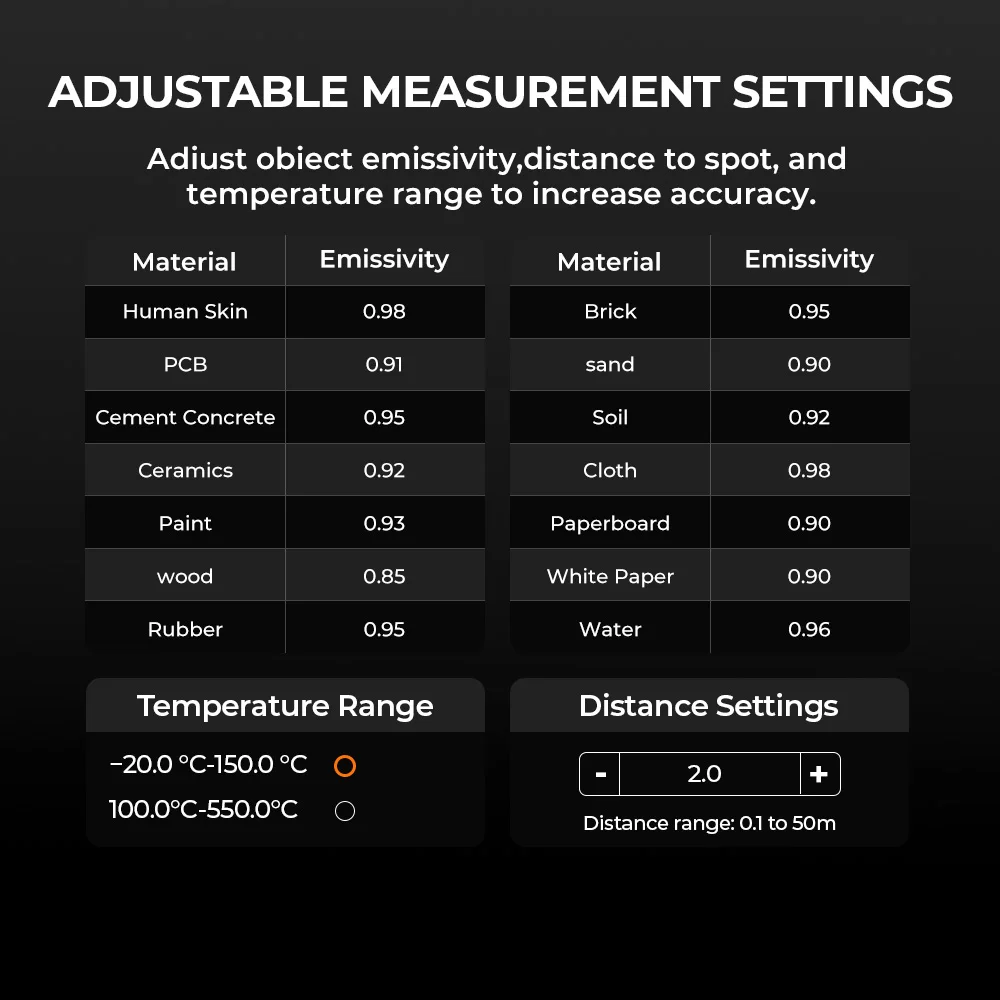

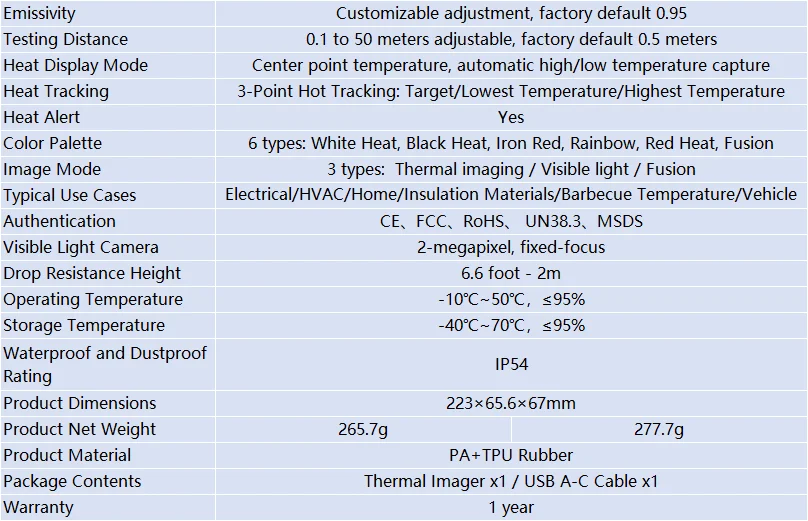

The GH340/GH192 thermal scanner adopts an advanced VOx detector, which enables it to detect temperature differentials as small as 0.05℃ and ensure that the temperature readings discrepancy is within max(±3.6°F, ±2%). Additionally, the thermal imager allows users to change emissivity settings based on specific materials and adjust the distance to objects, ensuring more accurate temperature measurements on a variety of substances, including wood, bricks, and more.

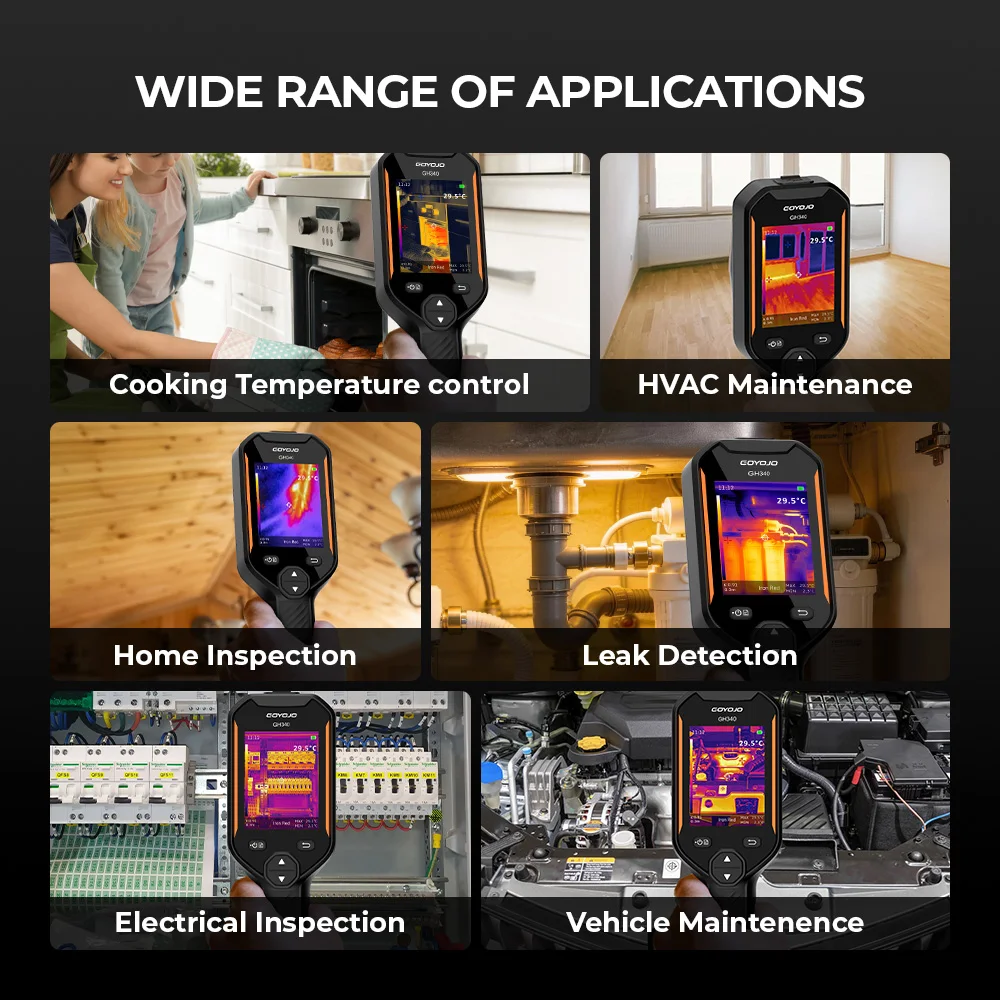

The GOYOJOG series is suitable for building inspection, HVAC and electrical applications. Intelligent image enhancement modes effectively detect temperature changes and accurately measure target temperatures in the environment.

Multi-image based temperature measurement modes: Thermal, Fusion and Visible modes are available to meet different application requirements in a variety of scenarios.

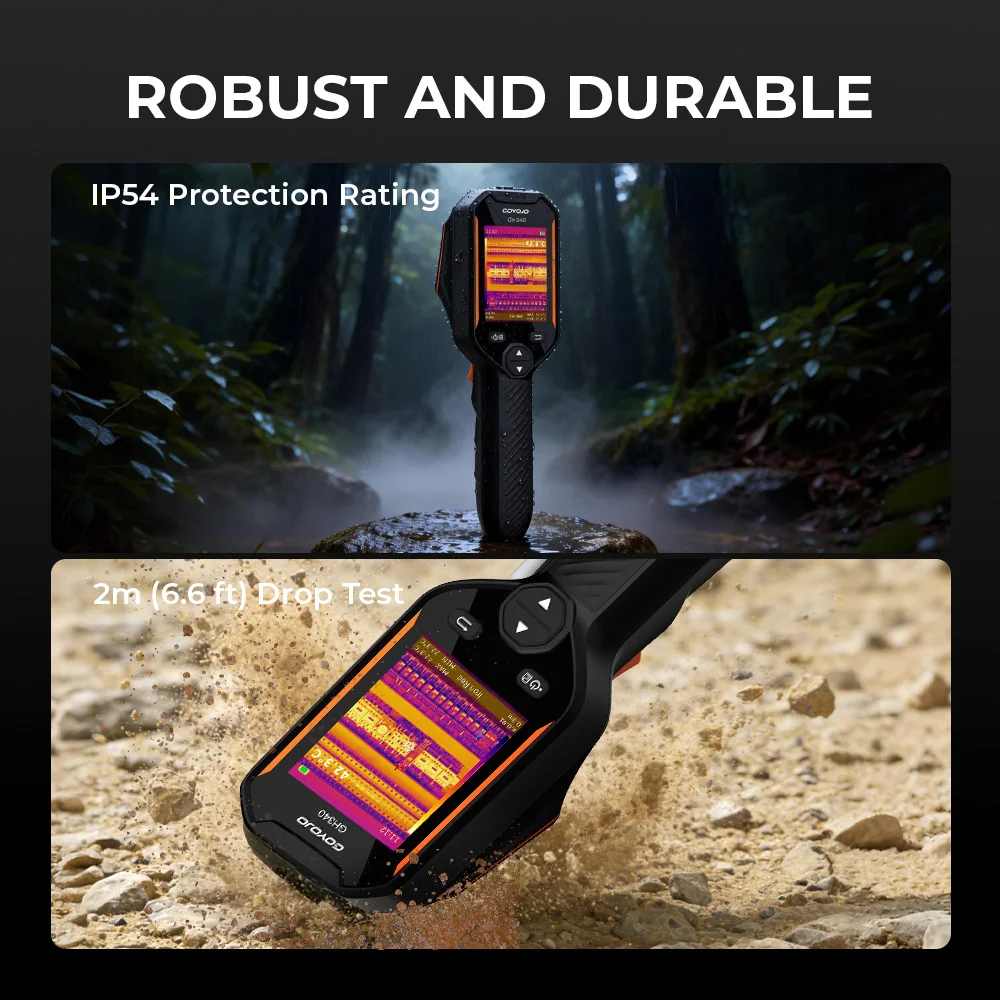

IP54 rated for use in a variety of harsh environments and to withstand rain.

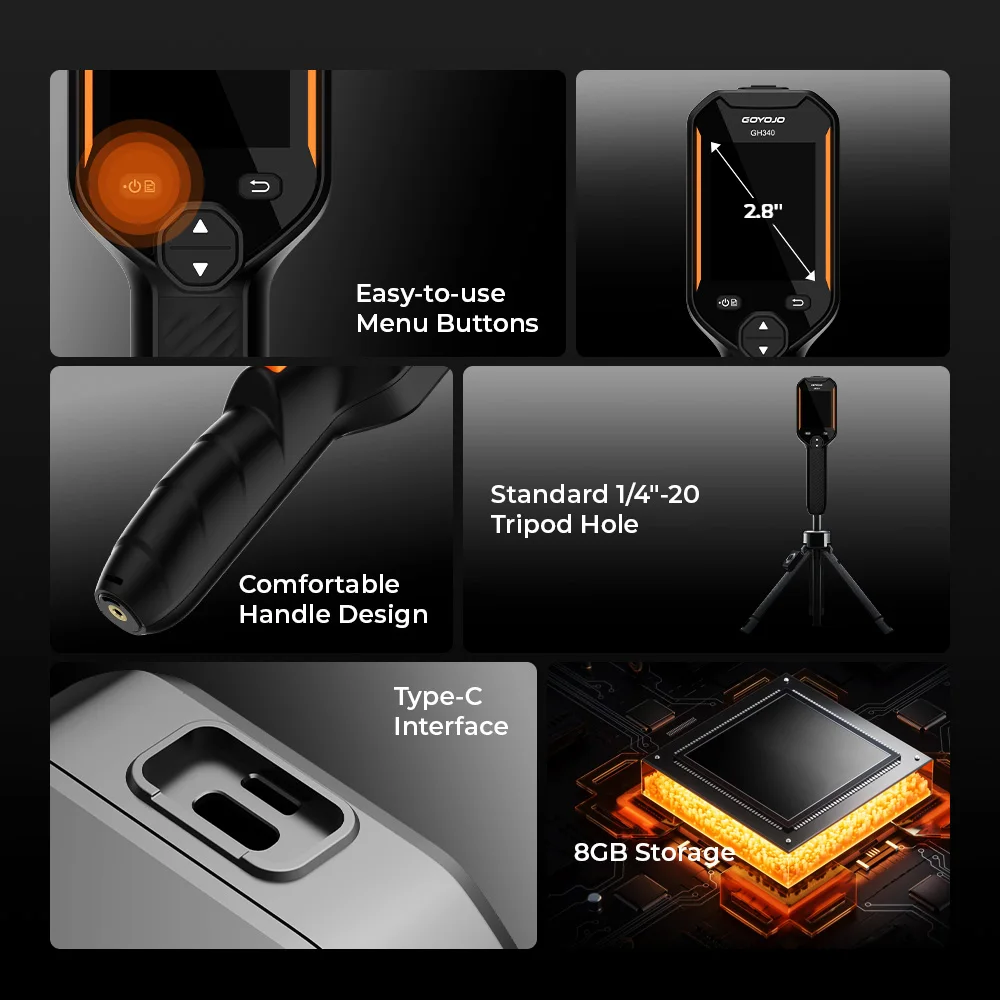

Large Display: 2.8-inch LCD provides clear temperature readings for comfortable viewing.

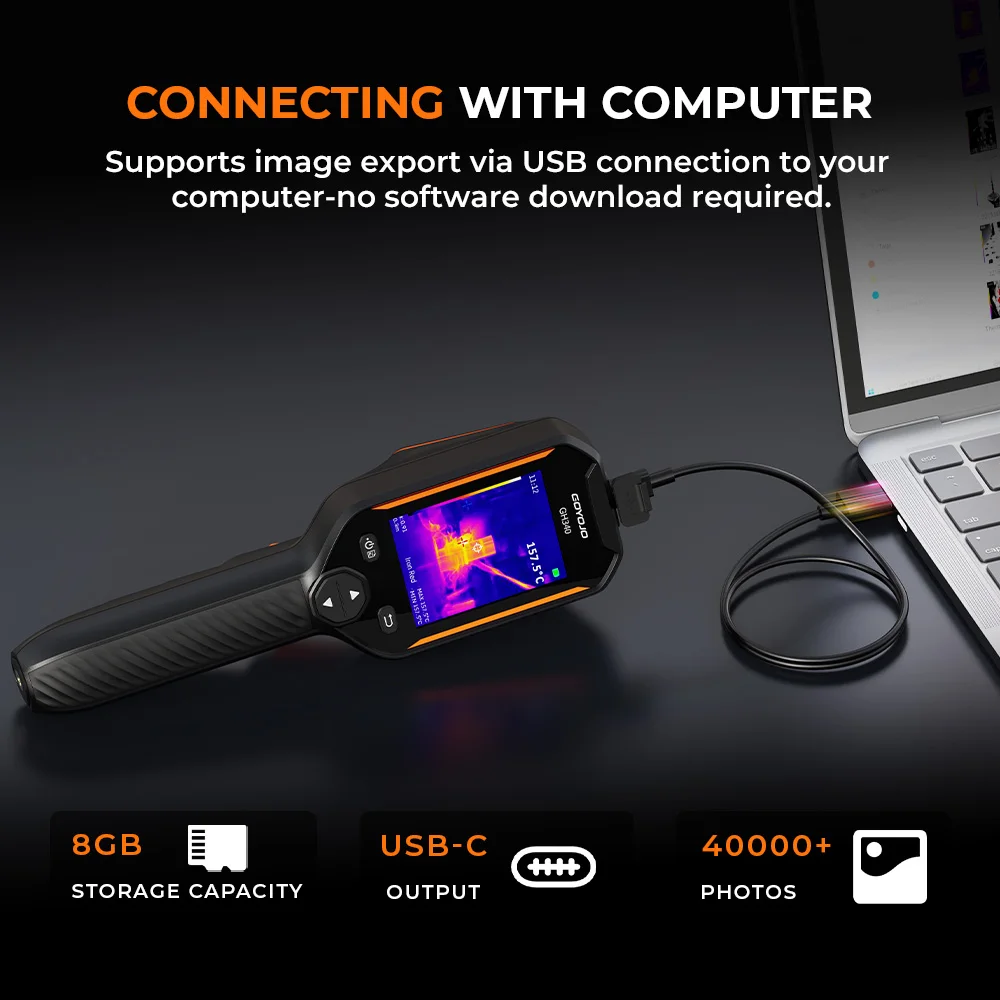

Photo function: Supports manual photo taking and recording of temperature measurement data.

Temperature Measurement Function: Continuously monitors the ambient temperature and displays the results on the screen.

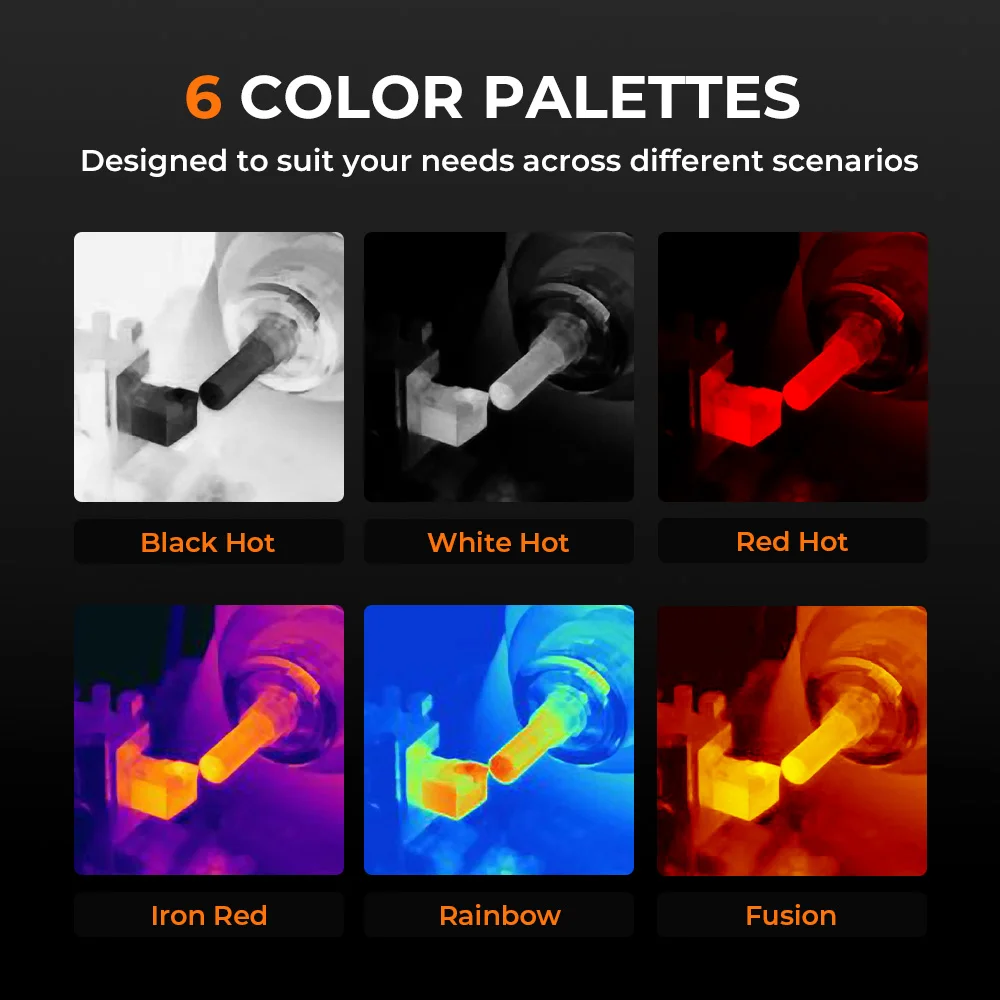

Color Palette: Supports multiple color palette options to display different visual effects.
