BSIDE O2 Touchscreen Oscilloscope Signal Generator Handheld 3.98-Inch 50MHz Dual Channel Digital Oscilloscope Waveform Tester

BSIDE O2 Handheld Touch Screen Oscilloscope + Multimeter + Signal Generator, 3.98 inch Dual Channel 50MHz Digital Oscilloscope

Product Descriptio

This handheld oscilloscope is a digital storage oscilloscope measuring instrument, which is powered by batteries, and the handheld oscilloscope is a practical new instrument in the field of electronic measurement.

The handheld oscilloscope has a beautiful design, small size, easy to carry, flexible operation, superior performance, powerful functions, can be used in a variety of measurement scenarios, the function buttons, menu interface is clear and intuitive, the screen adopts 3.98-inch TFT LCD screen/with resistive touch; It can be used in a variety of measurement scenarios, in the form of battery power, handheld oscilloscope is a practical new instrument in the field of electronic measurement, to meet the needs of users more measurement, can bring convenience to many users.

Product Parameters

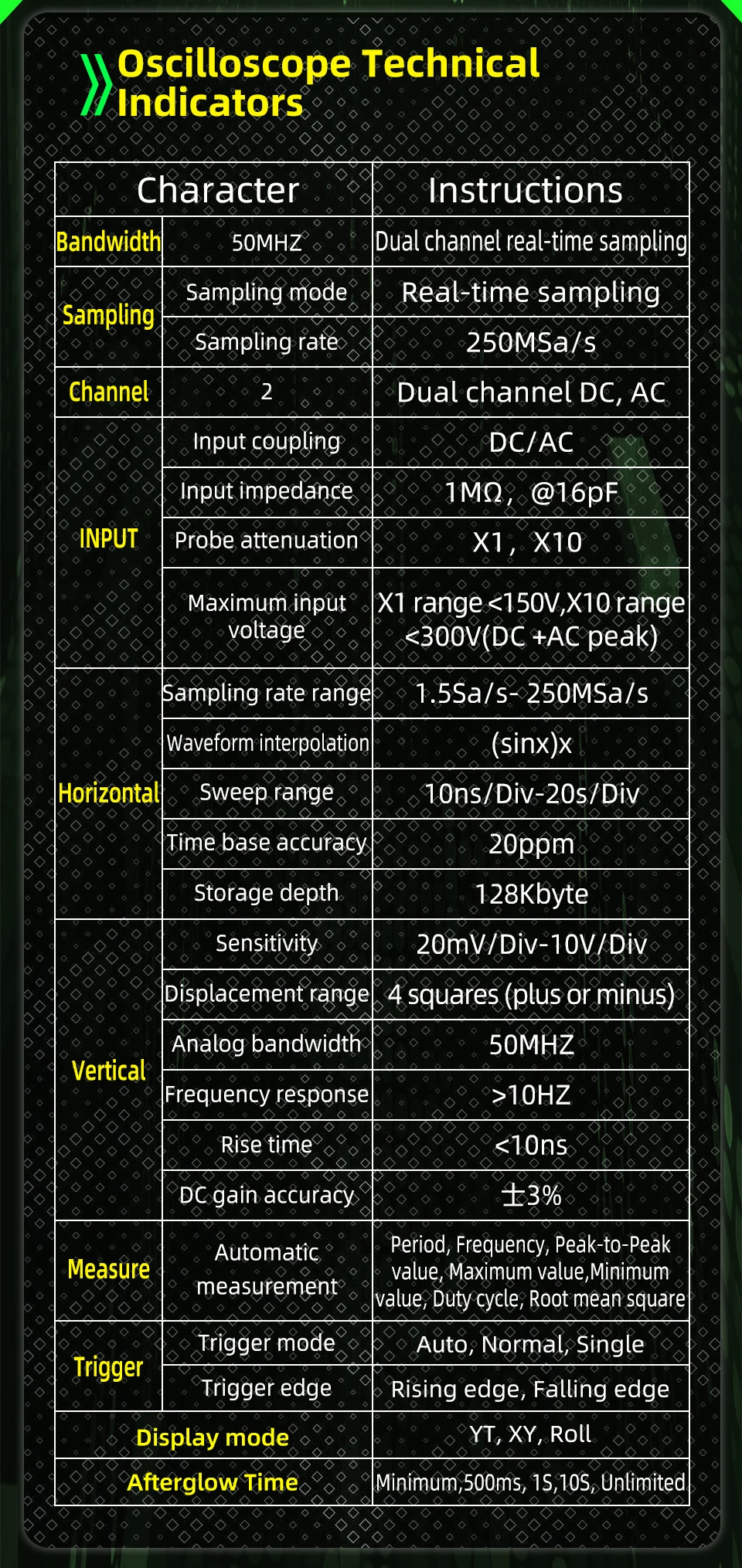

Oscilloscope：

Channel: Dual channel
Analog bandwidth: 50MHz
Real-time sampling rate: 250MSa/s
Storage depth: up to 128kBytes
Input impedance: 1MΩ
Time base range: 10ns/div - 20s/div
Vertical sensitivity: 20mV/div - 10v/div
Probe attenuation: ×1/×10
Trigger mode: AUTO/Normal/One-time
Trigger type: rising edge, falling edge
Waveform display mode: XY/YT/Scroll
Coupling mode: AC/DC
Measurement data: period, frequency, peak-to-peak, maximum, minimum, duty cycle, root mean square
Save waveform screenshot: Yes
Exporting a waveform image from a computer: Yes.

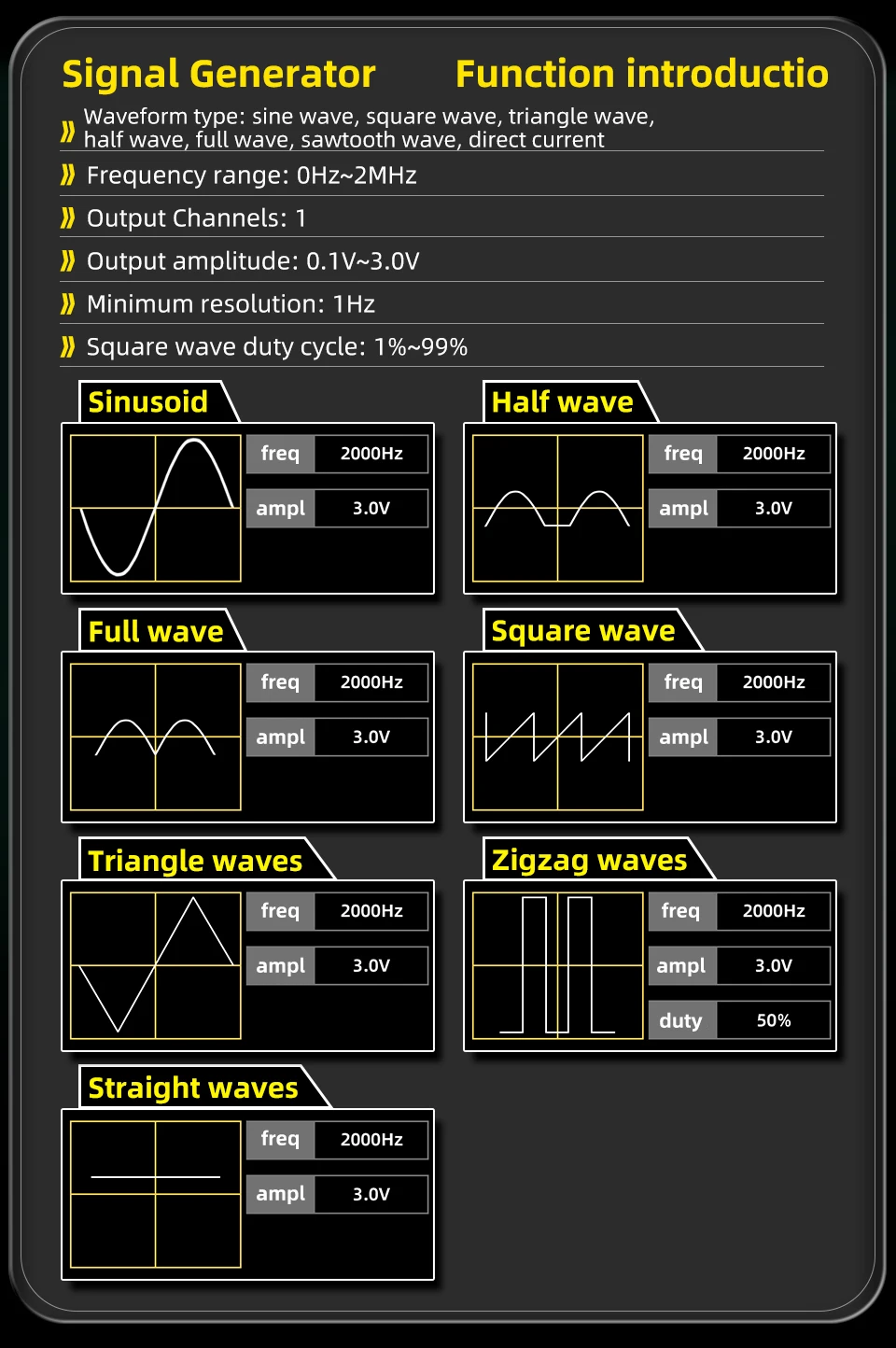

Signal Generator：

Signal type: sine wave, square wave, triangle wave, half wave, full wave, sawtooth wave, DC

Frequency: 0Hz-2MHz

Channel: Single channel

Amplitude: 0.1V-3.0V

Minimum resolution: 1Hz

Square wave duty cycle: 1-99%

Basic Parameters：

Screen size: 3.98 inches
BacklightThe brightness of the backlight can be set
Battery: 3000mAh lithium battery
Operating temperature: 0-40C
Storage temperature: -20-60C
Product size: about 170x80.9x23.9mm
Product net weight: about 268g (including battery)

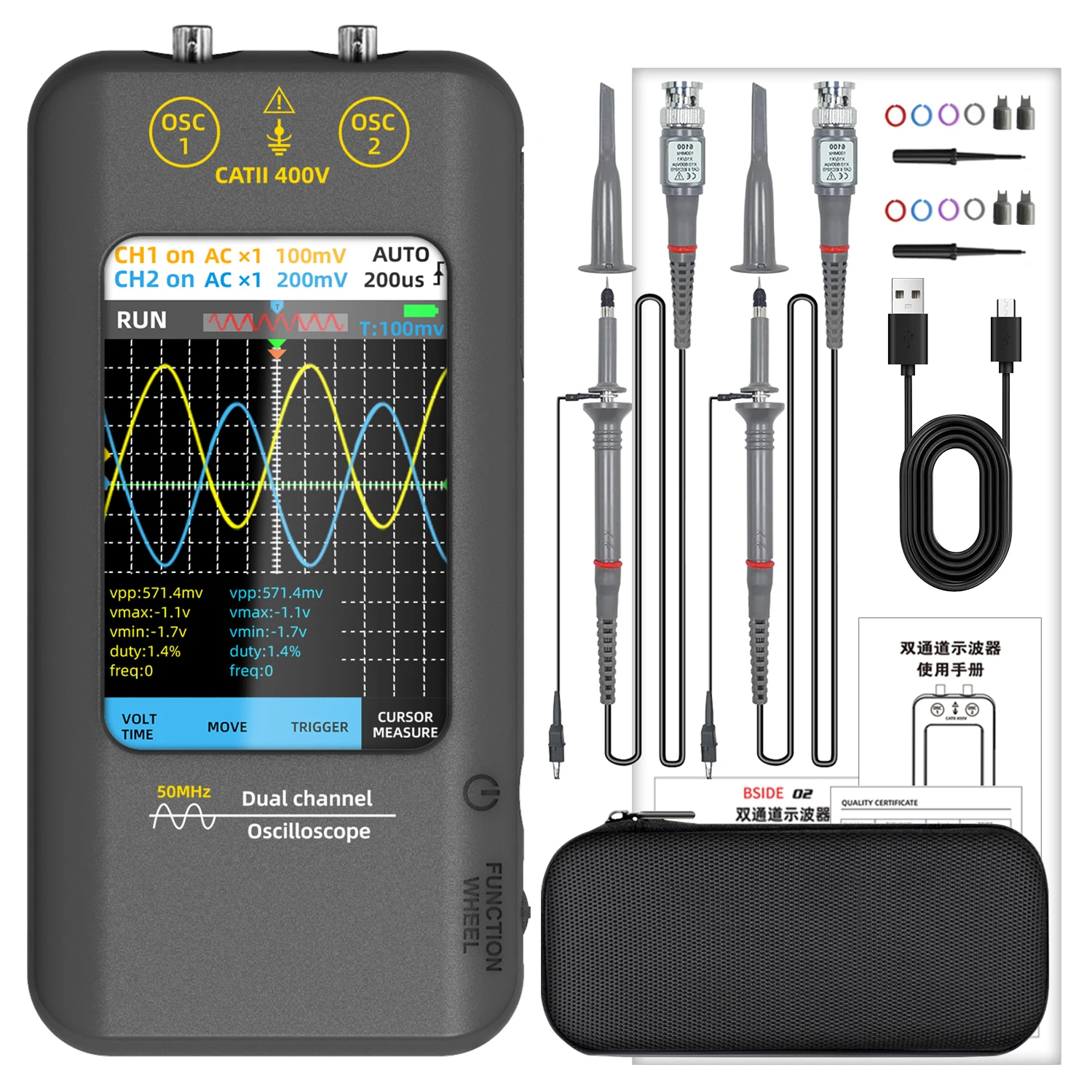

Package includes:

1 x Handheld Oscilloscope
1 x EVA bag
1 x Oscilloscope Probe
1 x Oscilloscope Probes (Kits)
1 x Oscilloscope Accessory
1 x color box
1 x charging cable
1 x Instruction Manual
1 x warranty card
