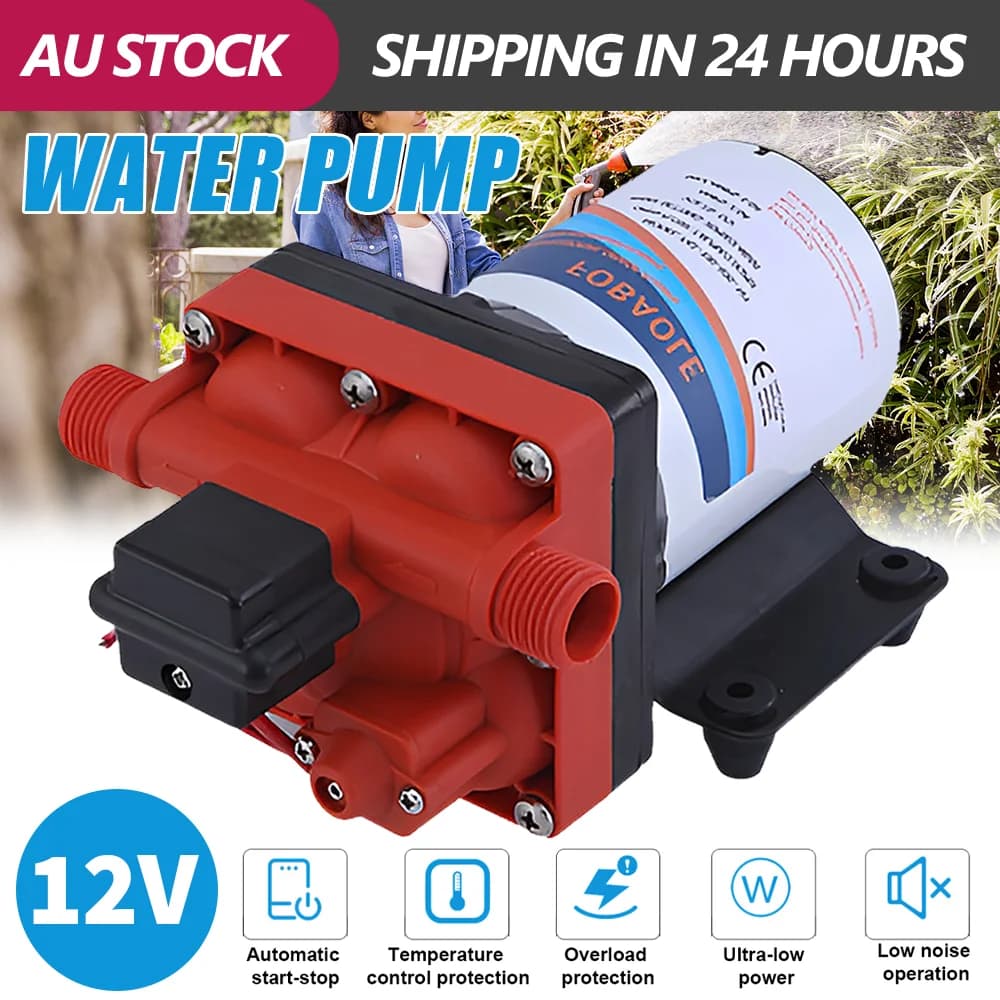

DC electric 12V water heater bathroom booster car wash diaphragm pump water pump

-Characteristics

1. Professional design: Water pumps designed for RV water supply, agricultural irrigation, etc., 12V low voltage, safer;

2. 100% brand new and of high quality.

3. Application scenario: In the field of conveying and pressurized water.

4. Precision manufacturing, excellent quality. Small size, high pressure; Low noise operation; Can be quickly installed, with temperature control protection and overload protection.

5. Low power consumption, high performance, and more stable operation.

-Specifications

Color: Red and White

Product Material: Rubber+Alloy

1. The four chamber DC diaphragm pump needs to be connected to the neutral wire and powered on for operation.

2. Working voltage 12V, rated power 96W, working current 3.5A, maximum current 8A, suction stroke 3M, maximum head 38M, flow rate 11.3L/min (3.0GPM), automatic stop working pressure 55PSI/3.8BAR.

3. Control mode: pressure/reflux switch, interface mode: 1/2 inch -13 external thread interface, valve ERDM (rubber) material, diaphragm material (three-way flat/rubber);

-Accessories

Filter x1, connector x2

Packaging List

Pump x1

Filter x1, connector x2
