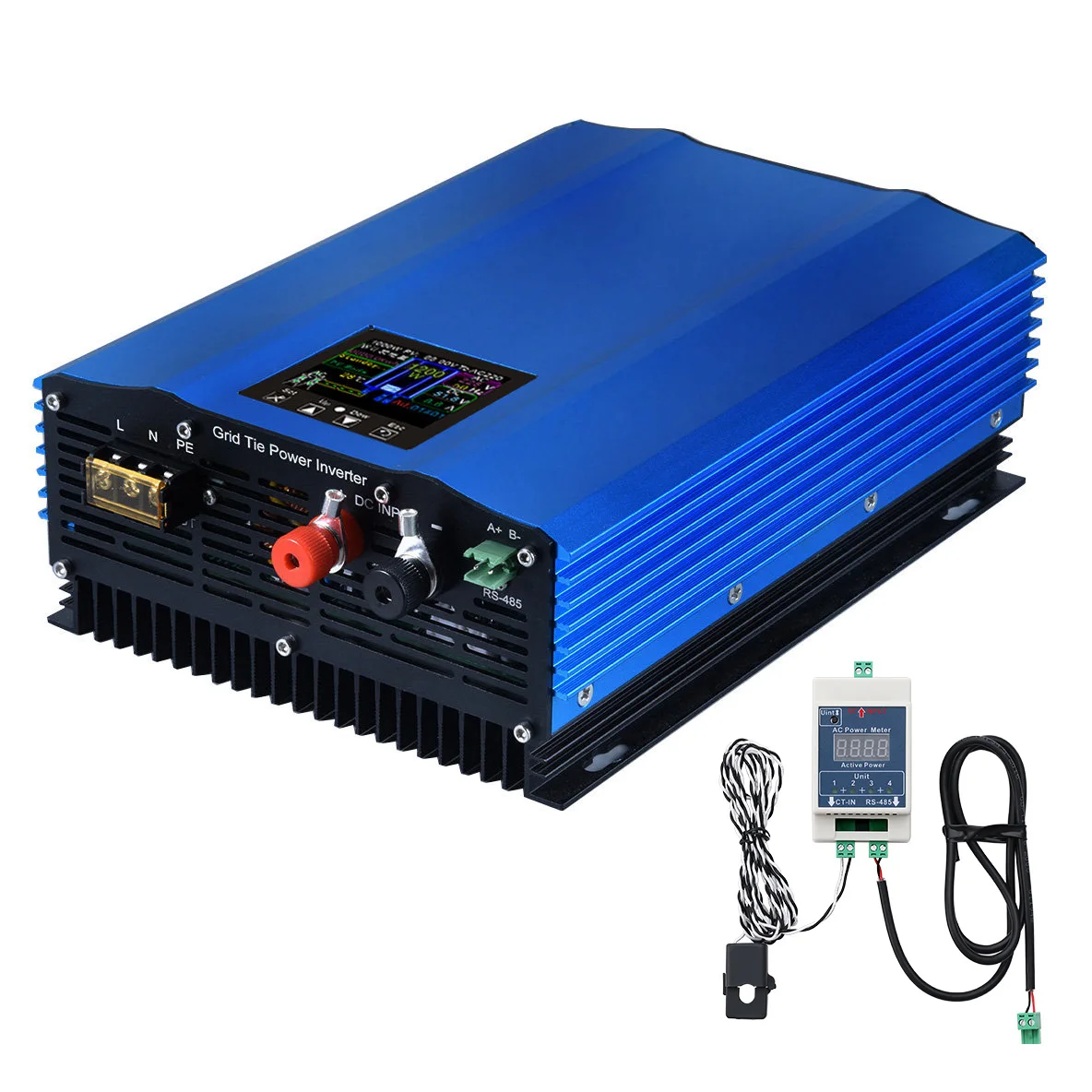

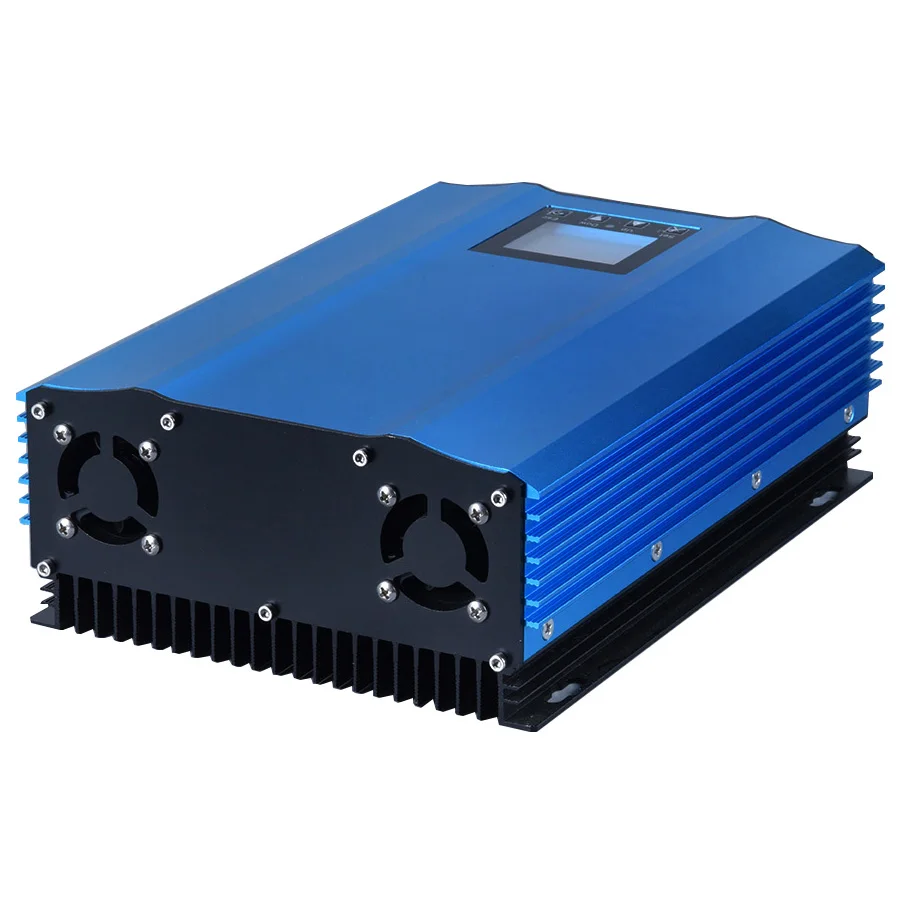

Y&H Grid Tie Inverter 1.2KW 1KW with Limiter Pure Sine Wave Solar Inverter for Solar Panels/Battery Discharge Mode Optional WiFi

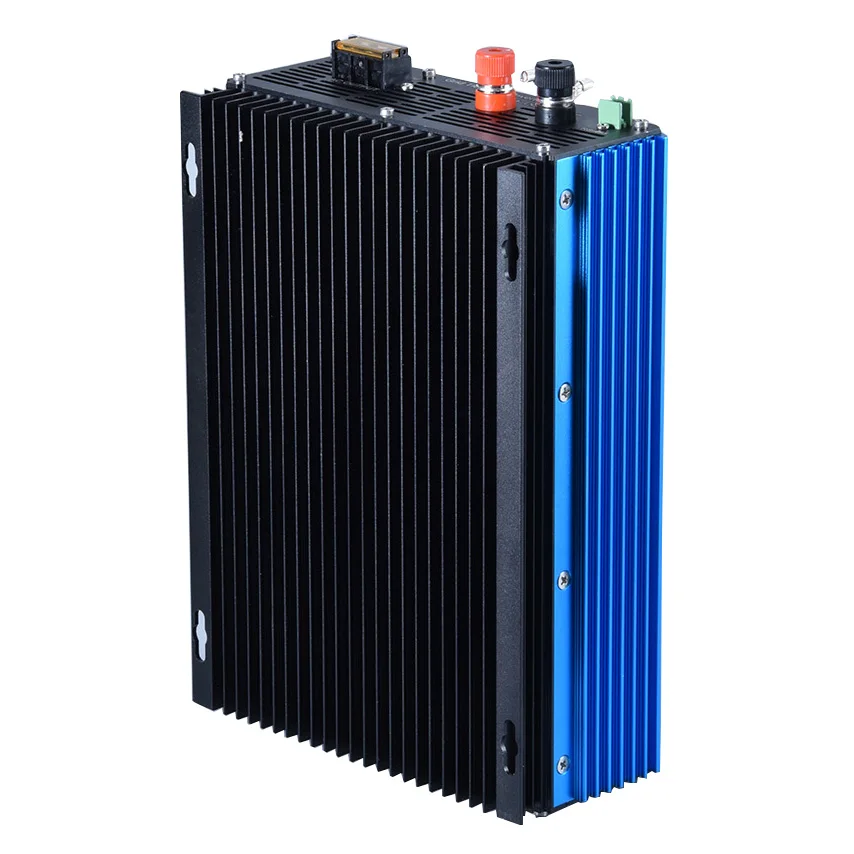

Y&H GTN-1200W Grid Tie inverter It only delivers the power needed by the load and prevents providing excess power therefore avoids excess power in goes back to the Grid.

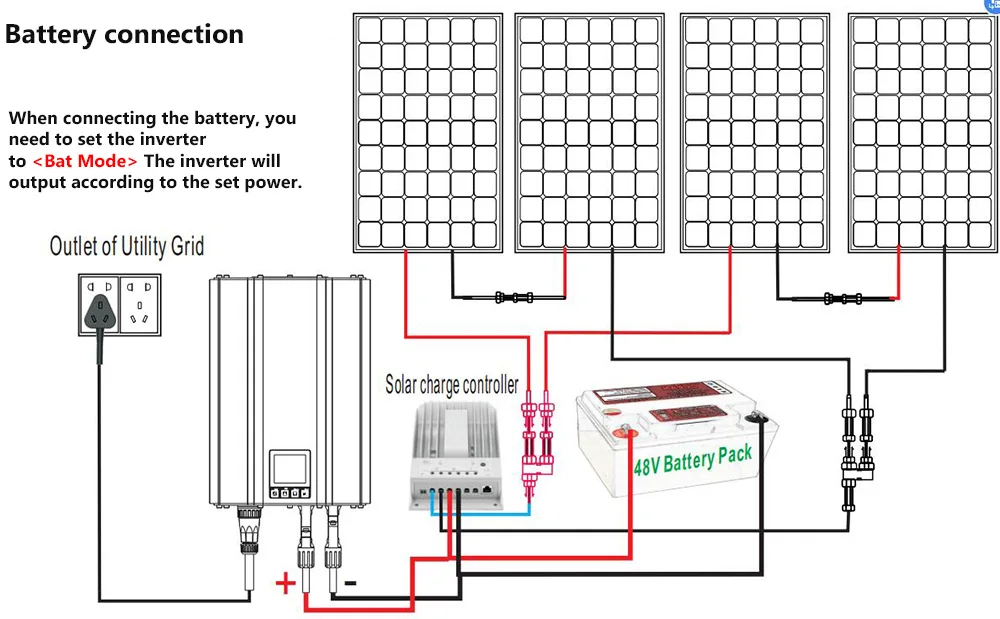

In addition to the PV power generation mode, we have a battery energy storage grid tie power generation mode. During the daytime solar panels generate electricity for household loads, and excess electricity is stored in batteries. The inverter can still work normally at night. And you can set the battery to work at low voltage to better protect the battery life

Feature:

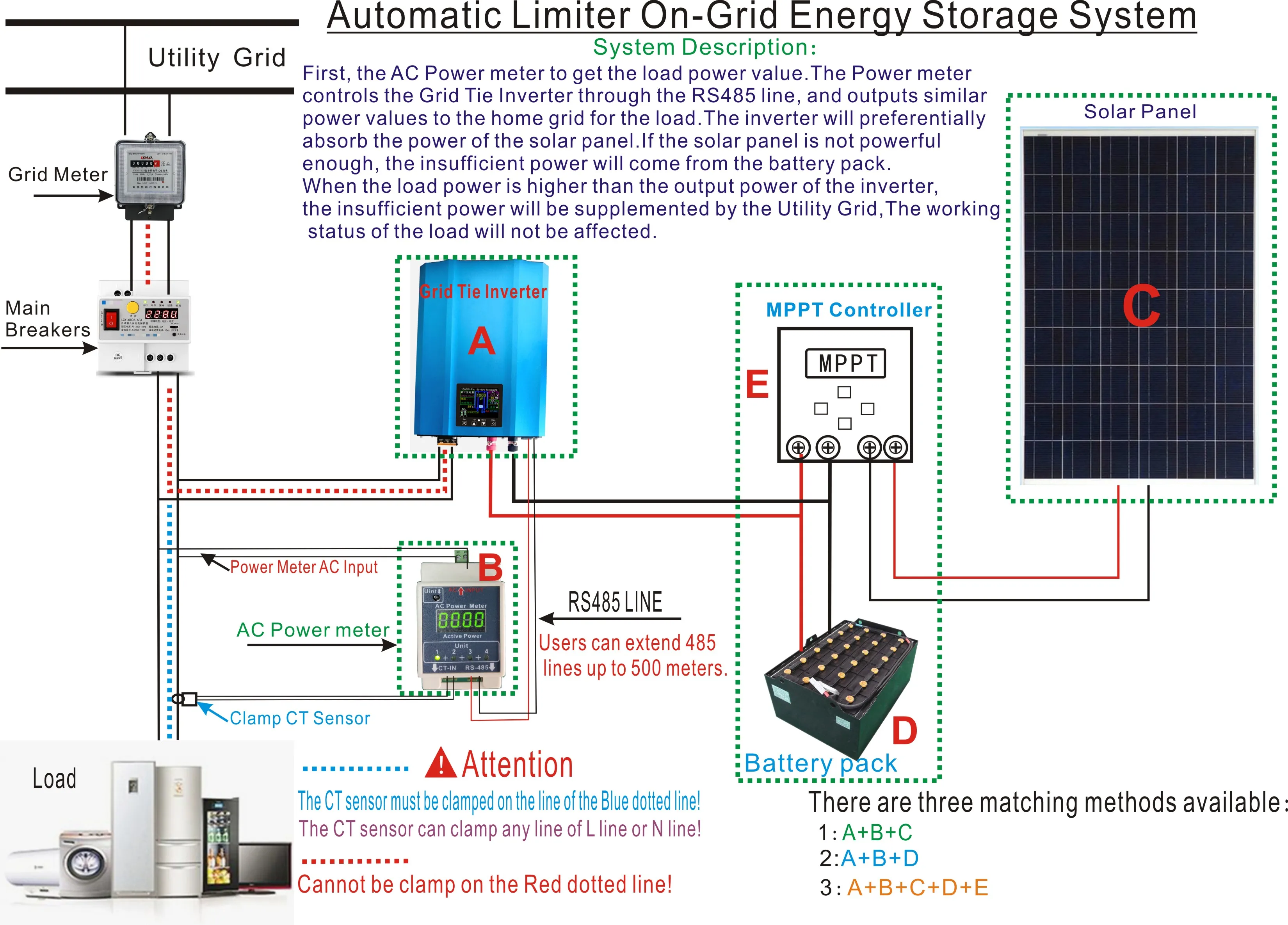

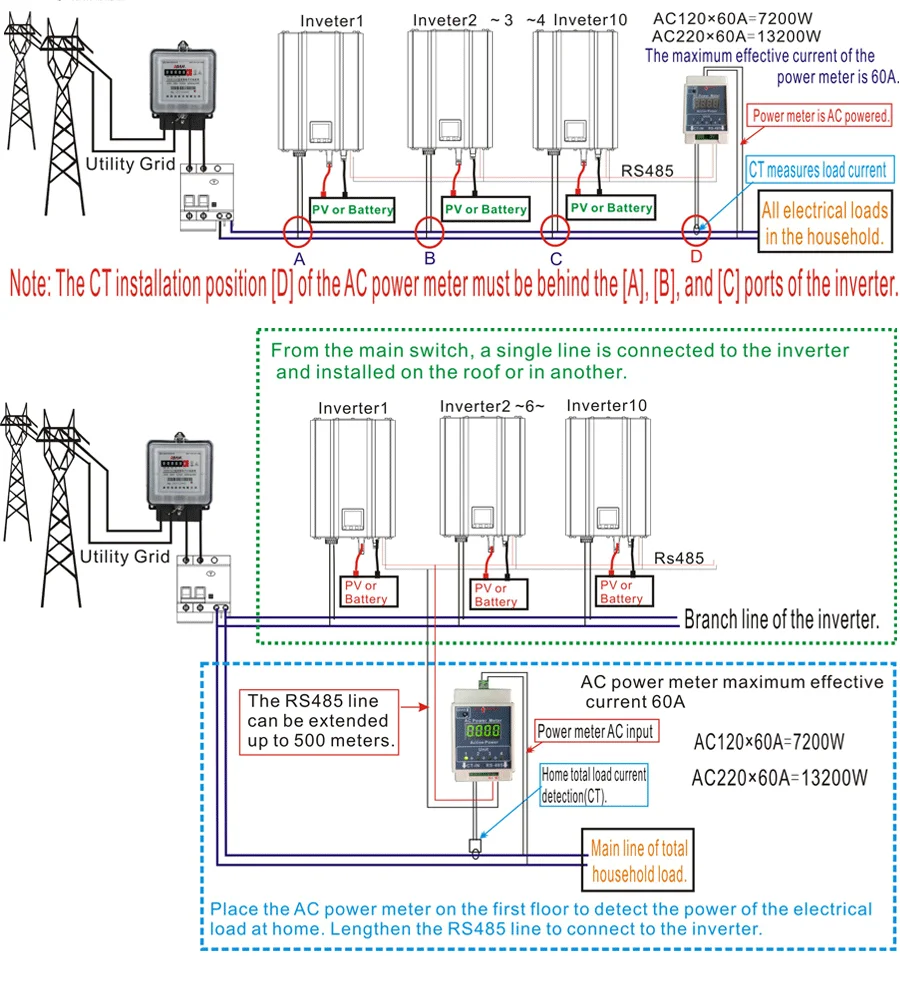

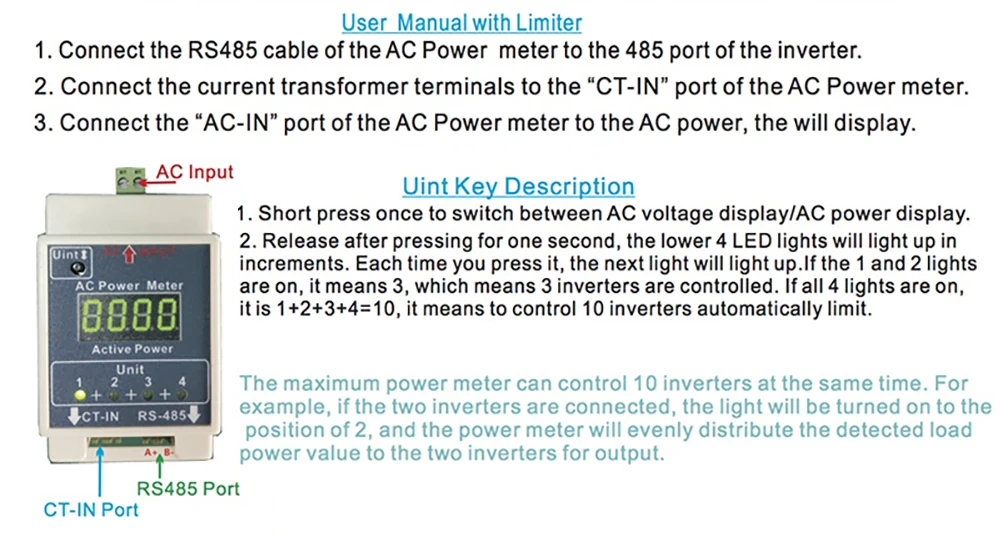

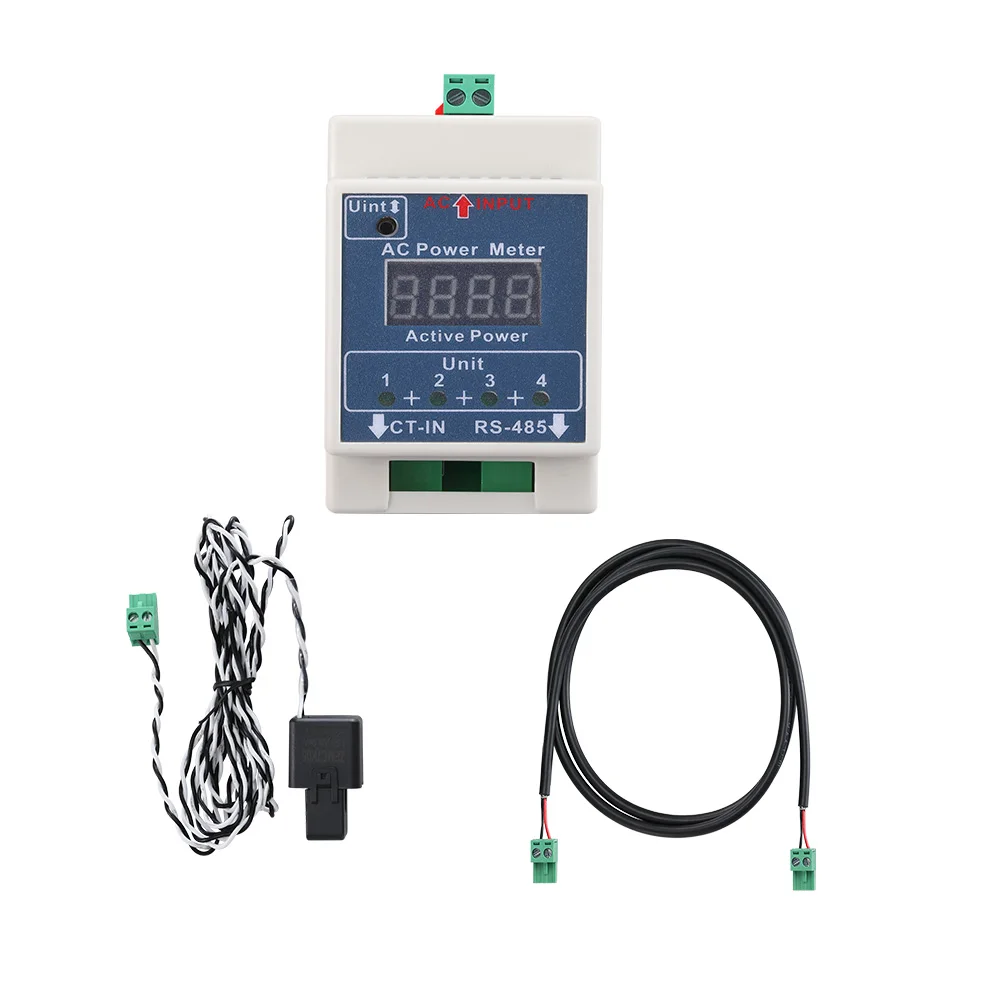

1.Grid Tie Inverter with Limiter Sensor. Delivers only the power needed by the load.

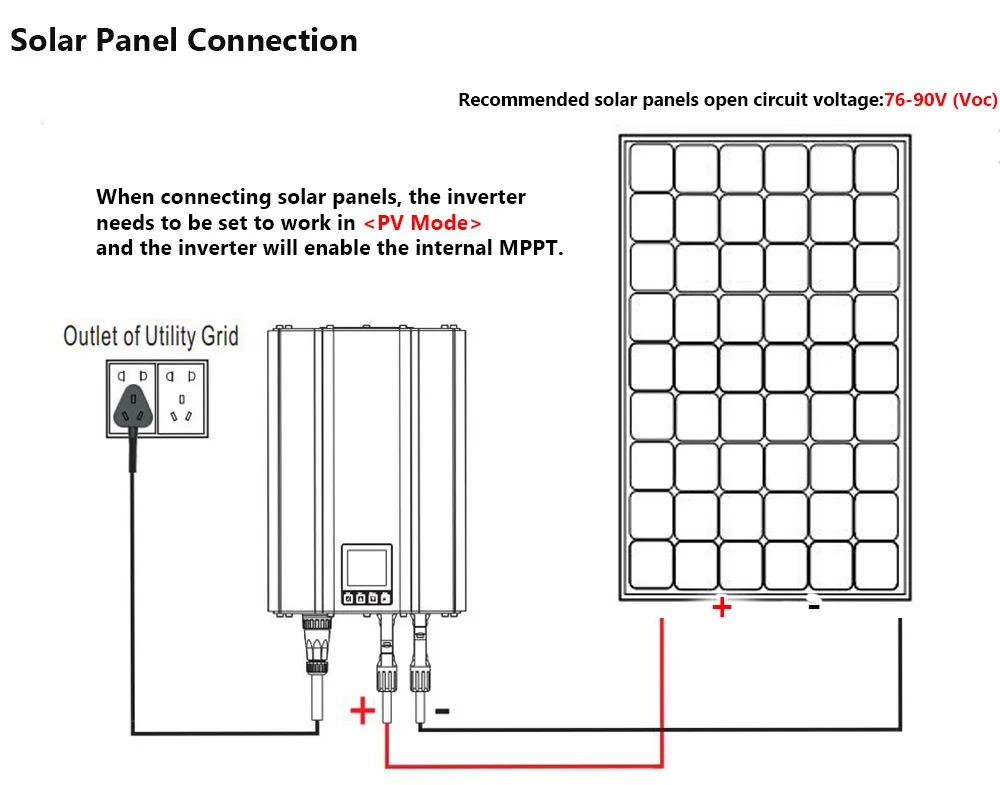

2.Vmp (from a solar panel) must be in the MPPT range to ensure the good output efficiency. fit for Solar panel open circuit voltage 76-90V (Voc)

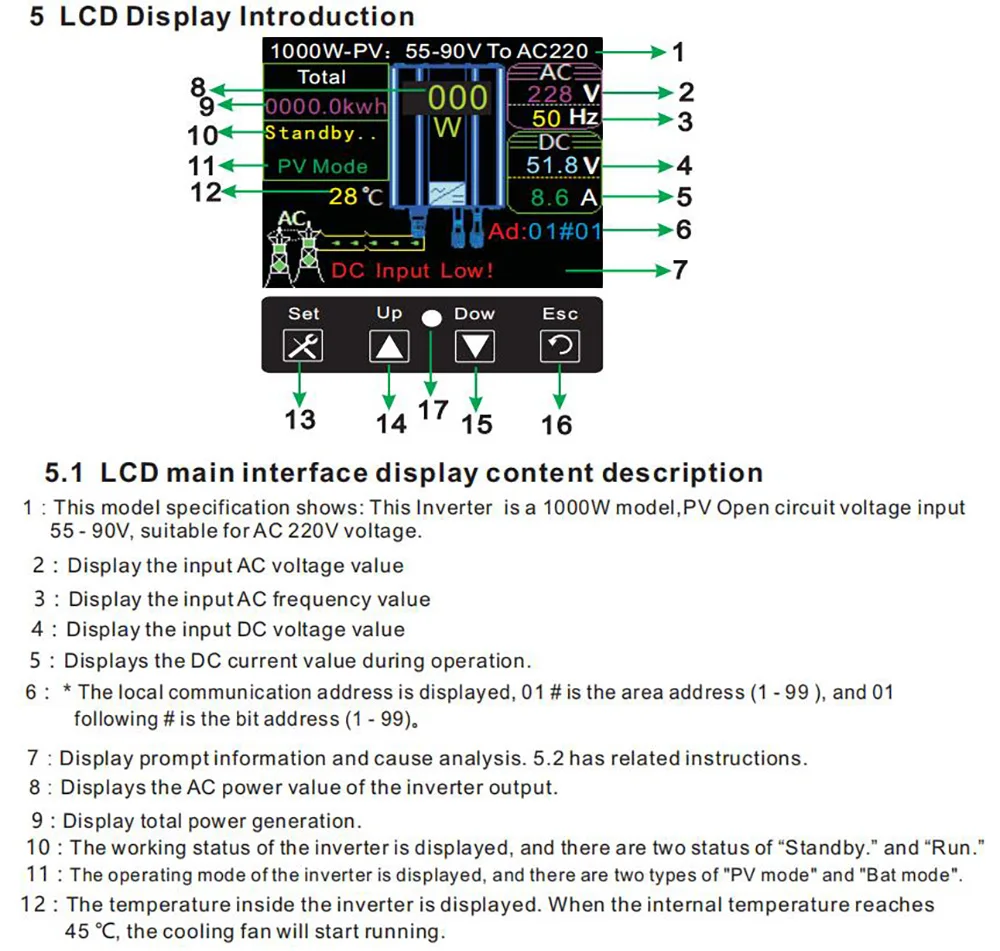

3. The LCD shows the working status of the inverter, and can display the photovoltaic/battery mode. The error prompts working status information.

4. The solar grid tie inverter is suitable for 48V/60V battery and has the function of battery constant power. The battery power (80-800W) can vary depending on the user's required household power output power. In addition, it has battery low voltage protection to avoid battery capacity depletion, thus better extending battery life.

5.DC overvoltage/overcurrent protection, AC overvoltage/overcurrent/frequency protection protection, over temperature protection, islanding protection.

Specification:

Model: GTN-1200W-48V-220V-L

PV no-load input voltage Voc:55V-90V

MPPT tracking range: 44~70V

Recommended solar panels open circuit voltage: 76-90V (Voc)

Battery voltage: 48V/60V

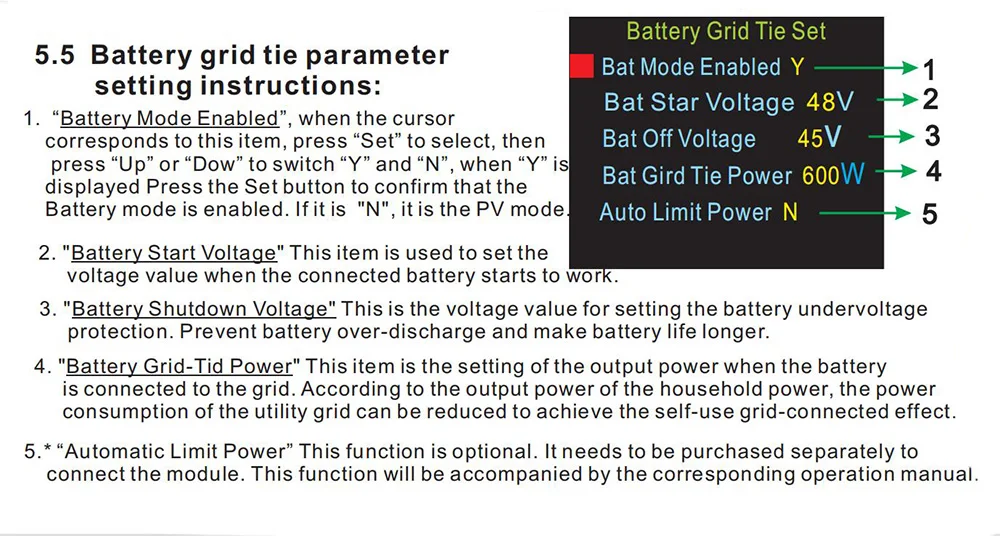

Battery low voltage shutdown can be set range: 44-69V

Battery start voltage setting range: 46-70V

Maximum input protection current: 30A

Rated AC output power:1200W

Battery mode constant power: 80W-800W

Battery limit mode maximum output power:800W

AC voltage: 230V(180-260VAC)

AC Frequency: 50HZ/60HZ

Package: 40*26*17CM

Weight: 4.5kg

Certification: CE
