4 Way RCA Switch 4 In 3 Out AV Switch RCA Switcher Box Video L/R Stereo Audio AV Selector Box 4X3 Composite Switcher For DVD

4 Way RCA Switch 4 In 3 Out AV Switch RCA Switcher Box Video L/R Stereo Audio AV Selector Box 4X3 Composite Switcher For DVD

Specifications

Video:

Input Video Signal: 0.8-1.0 volts p-p

Input Impedance: 75Ohm

Output Video Signal: 0.8-1.0 volts p-p

Output Impedance: 75Ohm

Bandwidth: 50Hz-5.5MHz

Supports 1080P, 720P and lower resolutions

Audio:

Input Audio Signal: 2V(RMS)

Input Impedance: 47kOhm

Output Video Signal: 2V(RMS)

Output Impedance: 1KOhm

Frequency: 10Hz-20KHz, 0db

Power Supply: DC5V1A(Included 5V Power adapter)

Feature:

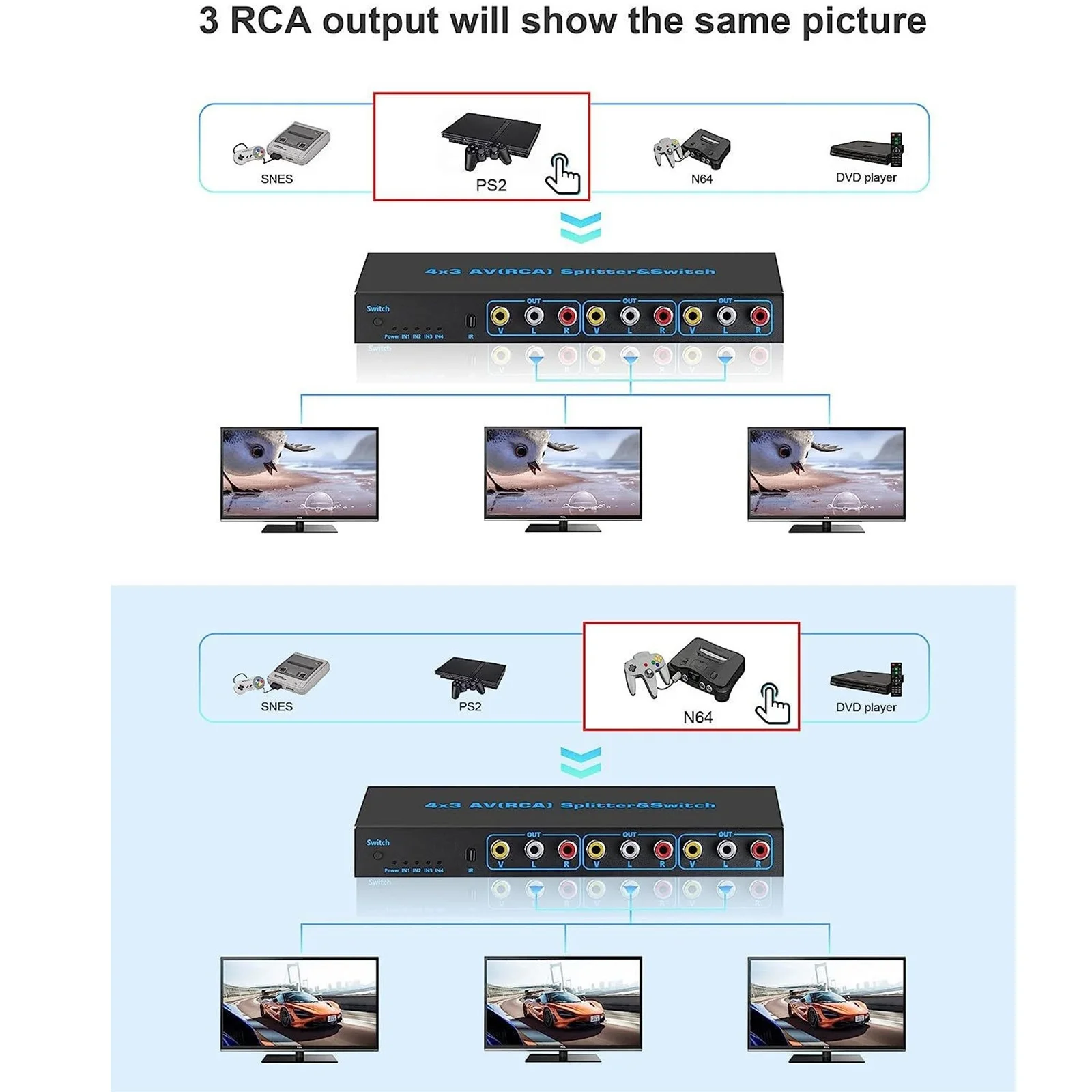

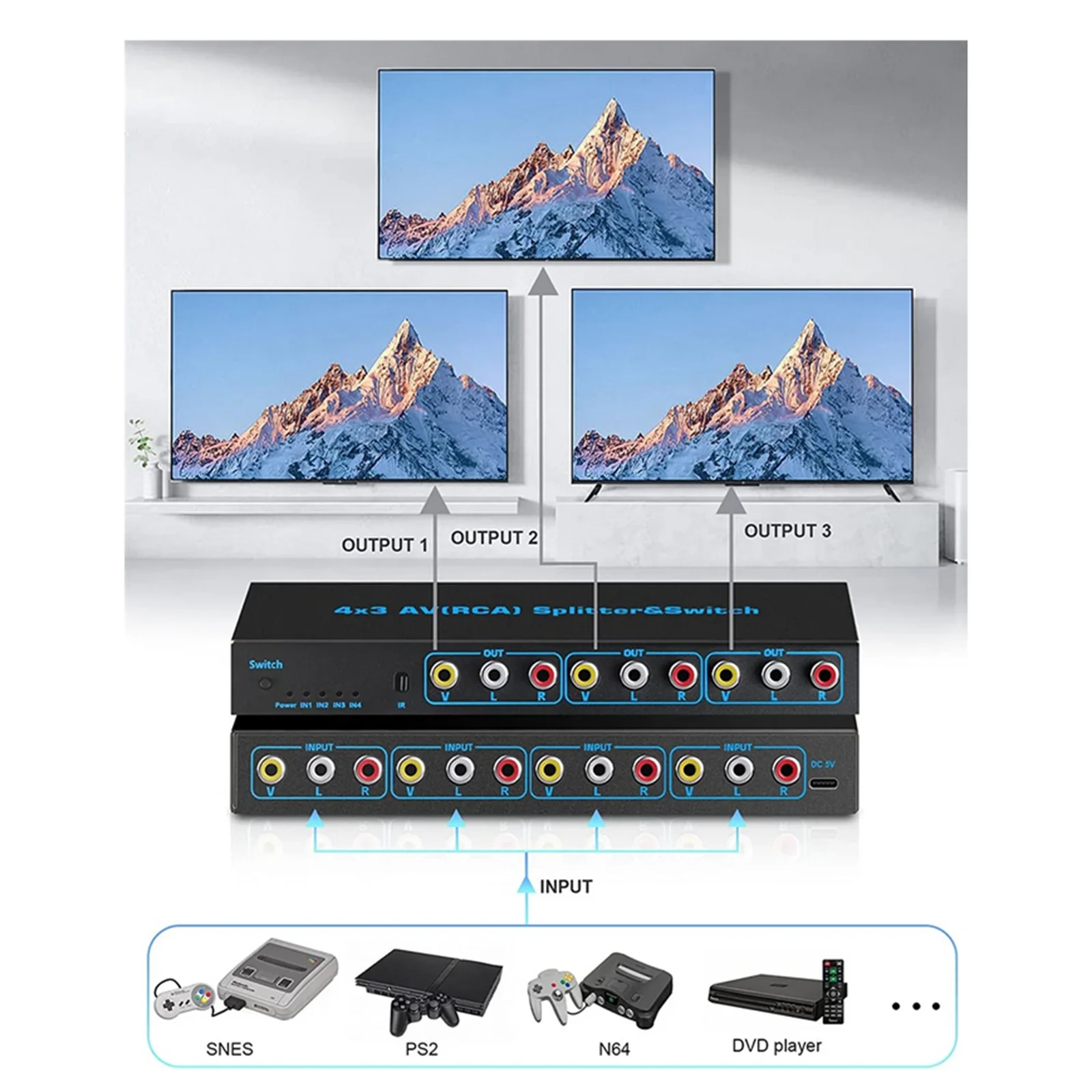

1. 4X3 RCA Splitter: The video switch enables you to connect up to 4 RCA devices to three TV set which has a RCA port. Enjoy high-quality video output from, gaming consoles, or other compatible devices.

2. Plug and Play: The audio video switcher selector allows you to connect multiple devices and easily switch between them with the push of a remote control. Eliminates the need for separate cables.

3. 4 In 3 Out Composite Video: RCA switch boxz support video output from compatible devices, enjoy high quality video from different input devices and immerse yourself in the home theater experience.

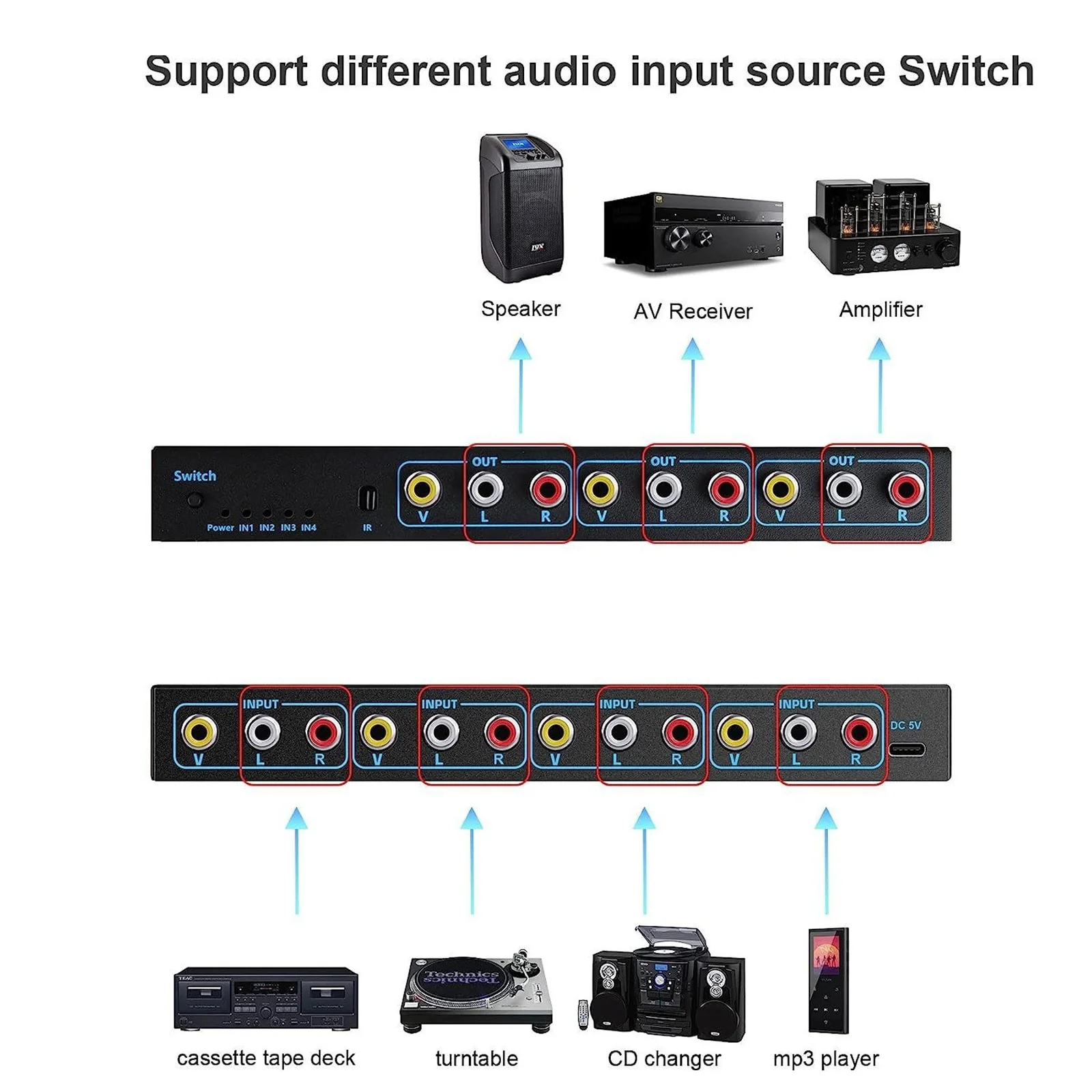

4. RCA Splitter With 4-way Audio： This video L/R stereo audio AV selector box supports both left and right audio channels for crystal-clear sound. Effortlessly control your sound source.

Product List:

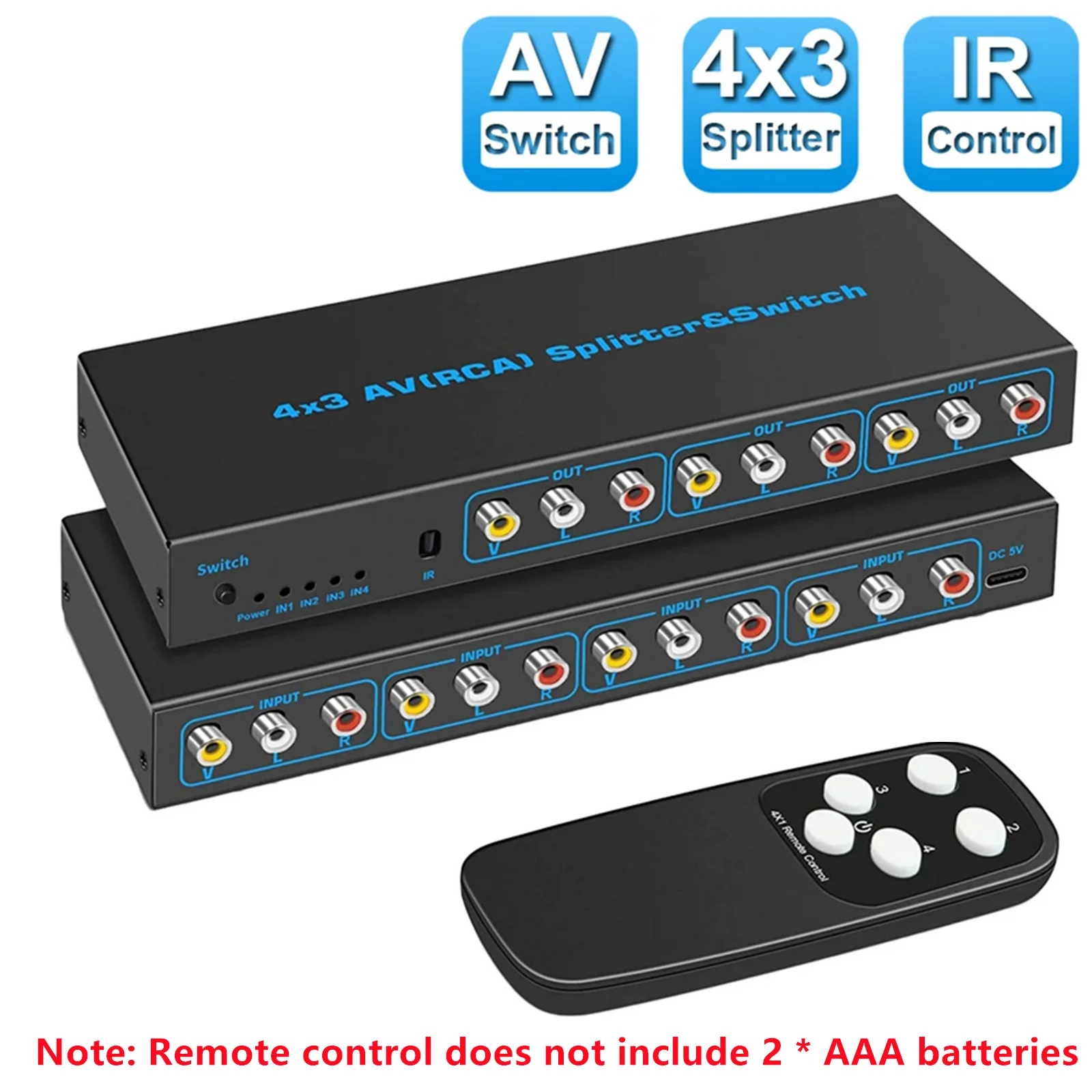

1* AV RCA Switcher

1* User Manual

1* USB Power cable

1* 5V/1A Power Adapter

1* Remote Control(Not included 2* AAA Batteries)

Note:

RCA composite video splitter does not support expansion, yellow plug for video, white/red port for L/R audio, metal housing makes for good heat dissipation and longer life
