1500W Raycus Relfar Handheld Laser Welder 4-IN-1 Fiber Laser Welding Cleaning Cutting Machine Single/Double Pendulum for Metal

Raycus Relfar 4-IN-1 Laser welder 1500W/2000W/3000W Fiber Laser Welding Cleaning Cutting Machine Single/Double Pendulum Model

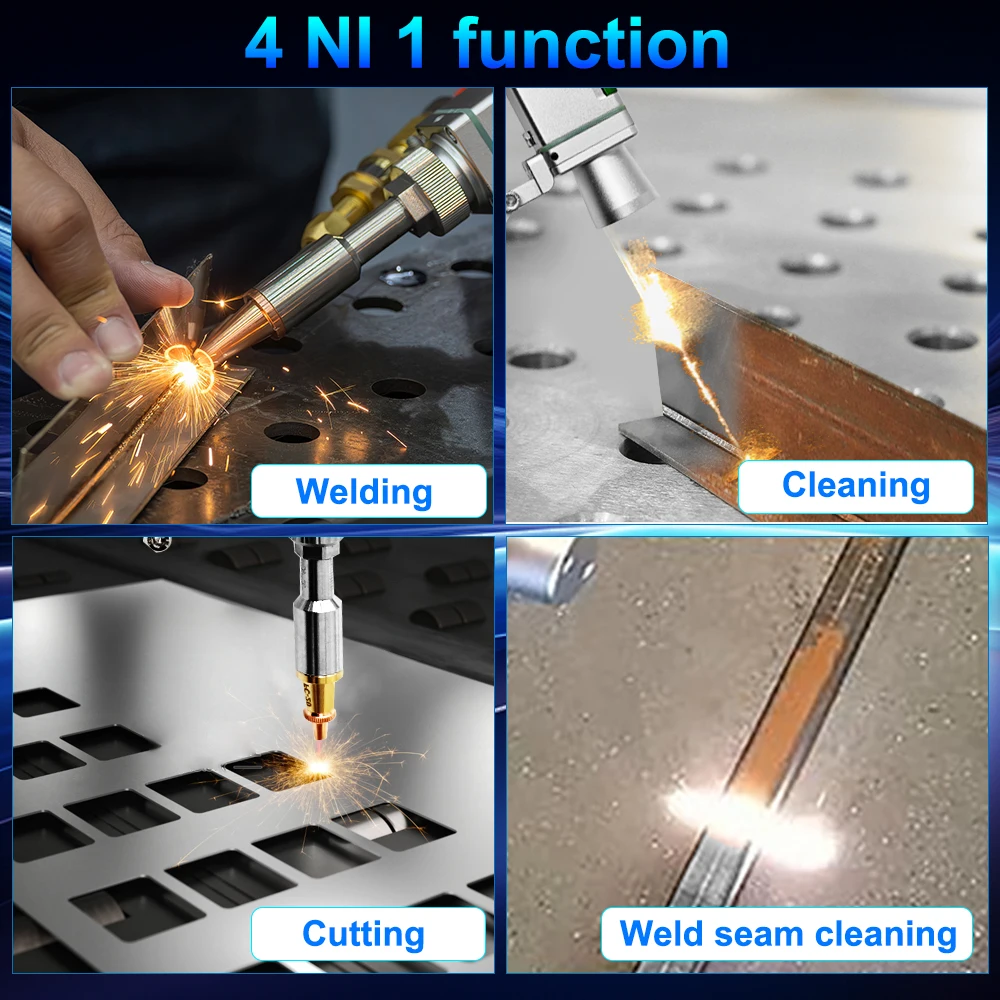

4 IN1——LASER WELDING

More Material: Suitable for aluminum,high-speed welding of steel, copper, titanium, nickel alloy and other materials and thicknesses.

EASY: Optimized presets reduce learning curve. half hour - 2 hrs, from beginner to expert.

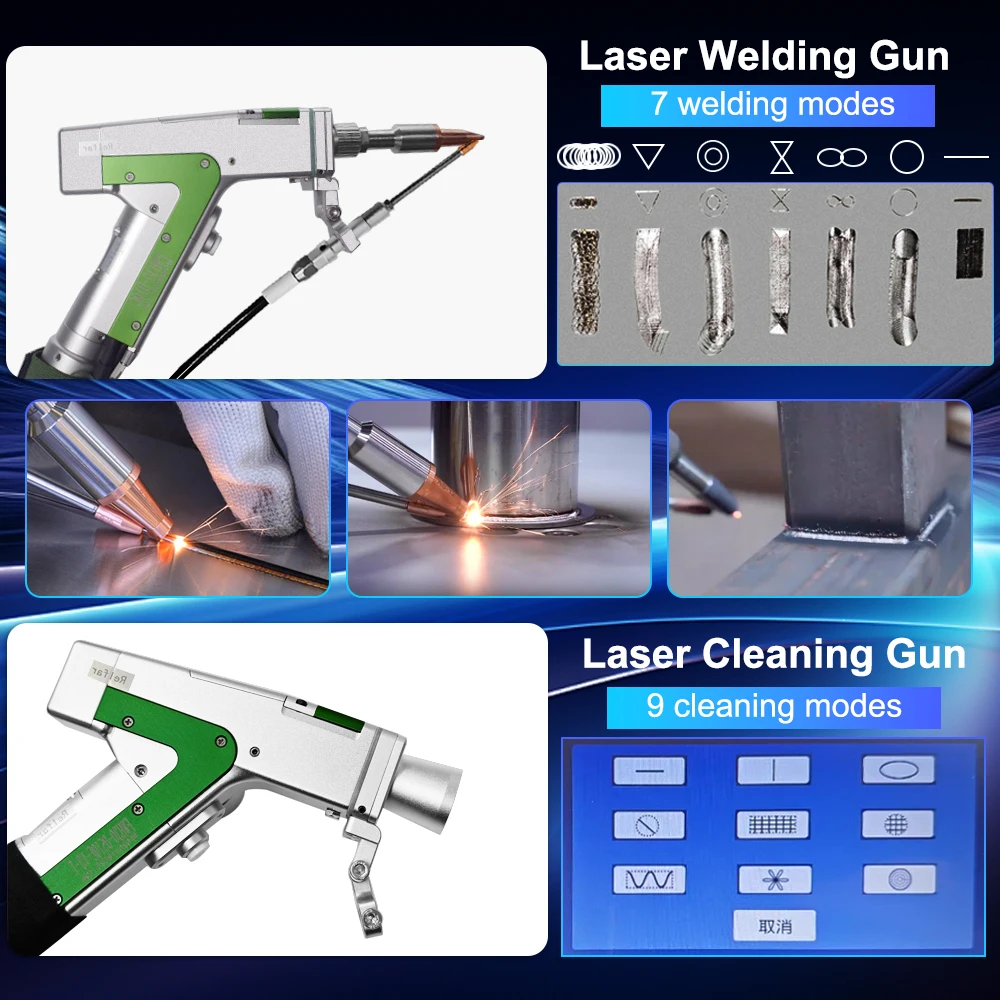

Double Swing Welding: 7 patterns available,Wobble welding controls for 8 mm of additional weld width.

Low Heat：Low heat input for minimal part distortion or deformation.

4IN1——WELD SEAM CLEANING

Up to 15 mm of adjustable cleaning width in one pass.

Create visually appealing welds while eliminating need for post-grinding.

Specially designed welding and cleaning nozzle tips for any joint configuration.

Dramatically reduces time, cost and scrap

4IN1——LASER CLEANING

In cleaning mode, the wobble function provides adjustable cleaning scan widths up to 15 mm

Six cleaning patterns are available, suitable for different scenarios. The cleaning marks are smaller than those of a single swing.

Specially designed cleaning nozzle head equipped with F800 cleaning lens to improve cleaning efficiency

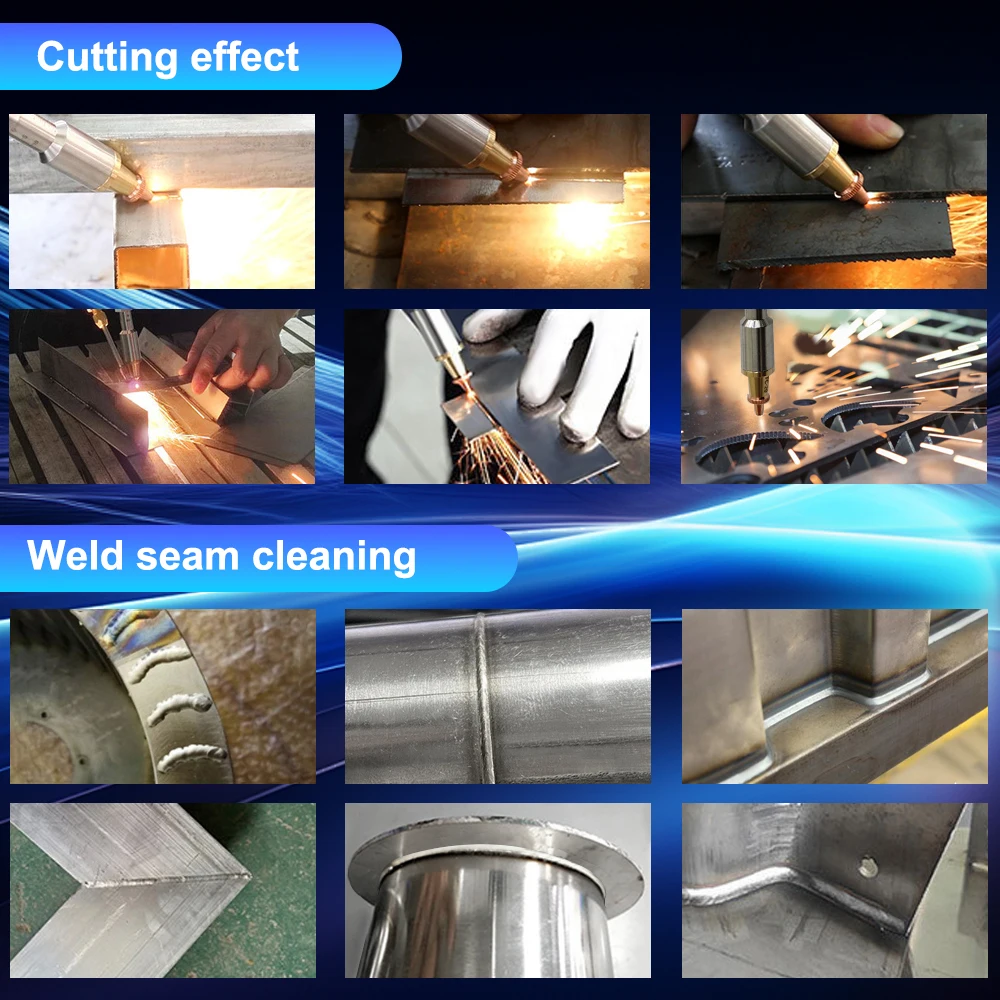

4IN1——LASER CUTTING

Can cut aluminum, stainless steel, carbon steel and other types of metals.

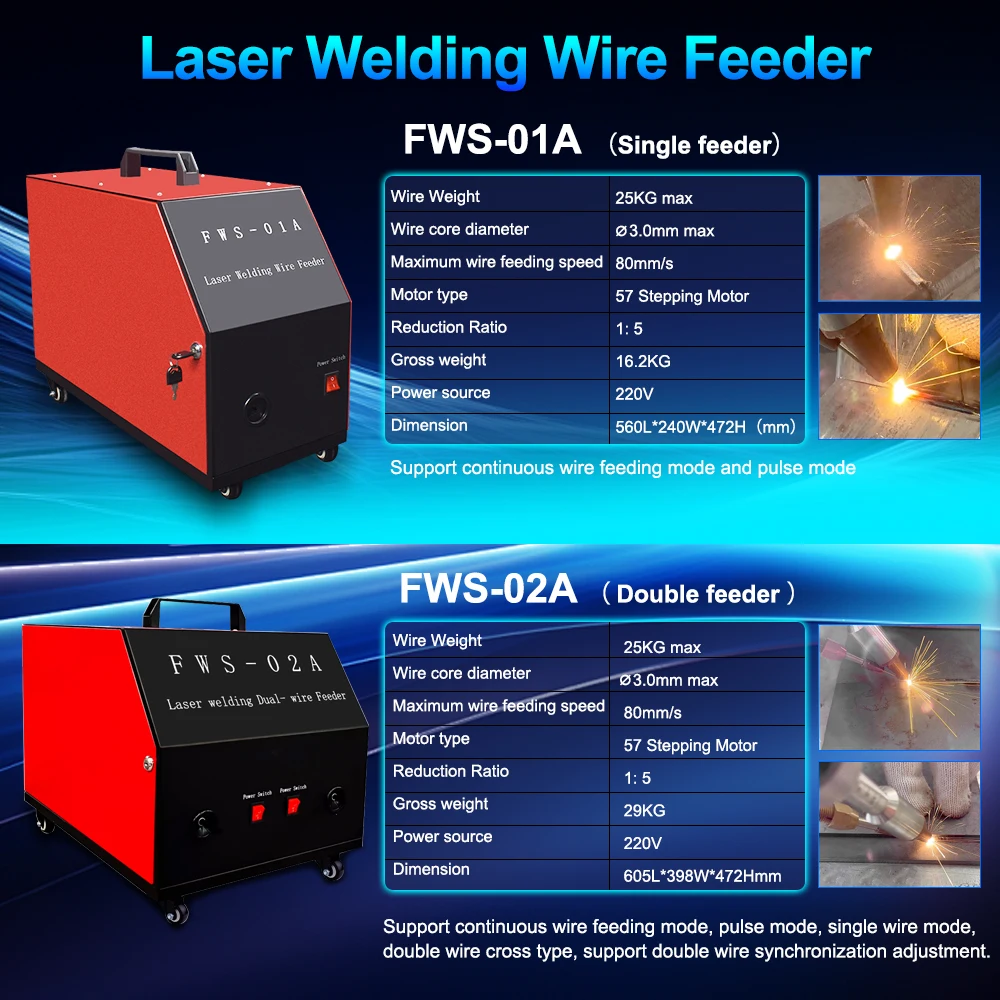

Disconnect from the wire feeder and select a swing width of 0.1mm in welding mode to start cutting.

Cutting thickness up to 3mm.

Q&A:

Q: What is double pendulum welding?

A: The welding head is driven by dual motors, Wobble welding oscillates the beam back-and-forth at various frequencies to produces wider seams and more aesthetic welds.With 7 swing patterns, which are more tolerant than single horizontal line swings.

Q:What is the maximum material thickness that can be welded?A: Aluminum 3 & 5 Series, Stainless Steel, Galvanized Steel, Mild Steel, Carbon Steel, Iron, welding thickness up to 8mm, Aluminum 6 Series welding up to 5mm thickness

Q:Is LASER WELD really faster than MIG and TIG welding?A: Yes,LASER WELD travel speed is up to four times faster than traditional methods,fixturing is simpler or not necessary,and post-weld grinding or sanding is not needed or significantly reduced,all of which increases productivity while minimizing rework

Q: Is LASER WELD really that easy to learn?A: Yes, compared with MIG and TIG welding, either of which can take a lifetime to master, LASER WELD is quick to learn, allowing new users to make high-quality welds in just a few hours.
