Anern 4200W 6200W Hybrid Inverter 24v Mppt on Grid Off Grid Inverter 48v 230V PV Input Max 500vdc MPPT 120A Charger

For European Union customers：
ECO 4200W 24V & ECO 6200W 48V Solar Inverter is now available in overseas warehouse! You can select shipping from China, We will ship from EU warehouse. You don't pay extra money. Please feel free to contact us if you have any questions.

Inverter use notice:

1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
5. It is recommended that batteries are connected. If no batteries are connected and you rely solely on the solar panel to power the load, this approach is unstable and unreliable.
6. It is a hybrid inverter that can be both off-grid and on-grid connected. Whether or not it can sell electricity into the grid depends on local government policy. But our solar inverters do not have VDE certification and may not be on-grid connected in some countries.

Please find an electrician to install the inverter. Installing it yourself can cause danger or damage to the equipment.

Features

Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

New Upgrade:

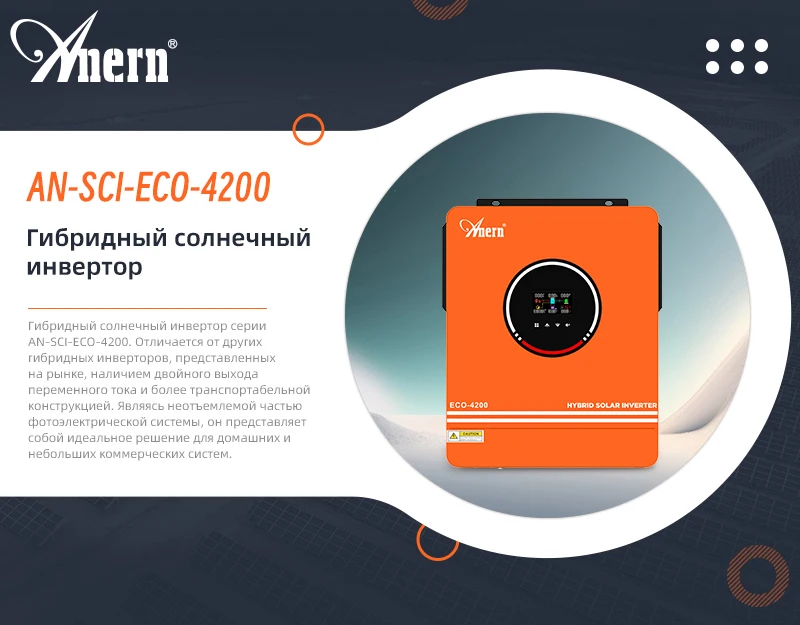

AN-SCI-ECO4200&6200 series, as the new upgraded solar inverter of PRO series, the main difference is that on the basis of the same parameters of PRO series solar inverter, AN-SCI-ECO4200&6200 series solar inverter has dual AC output, and MC4 connector on the PV side is cancelled (logistics perishable).

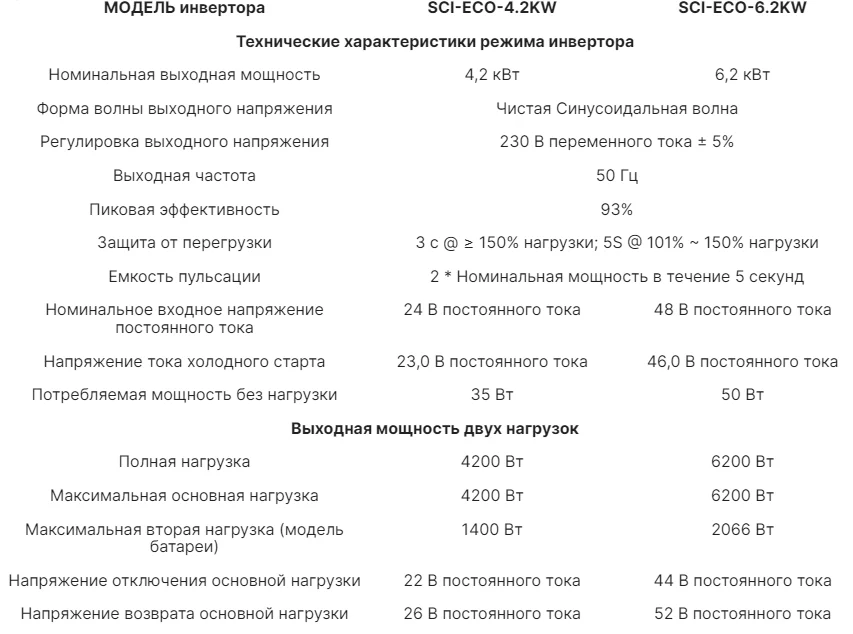

Dual AC Output:

The primary output can be connected to the rated power load, and the secondary output can be connected to one-third of the rated power load (specifications shall prevail).

Dual output function description:

The primary and secondary outputs are used normally under regular conditions, but when the following 2 conditions are met, the primary circuit is disconnected and only the secondary output is retained:
◆ There is no solar and utility input;
◆ Battery voltage is lower than 44V (minimum 41V can be set);

Features

Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
RS485 is used to communicate with BMS and adjust the charging current of inverter according to battery demand
It can work with or without batteries
Intelligent fan speed adiustment, which adjusts the fan speed according to temperature, load and charging current

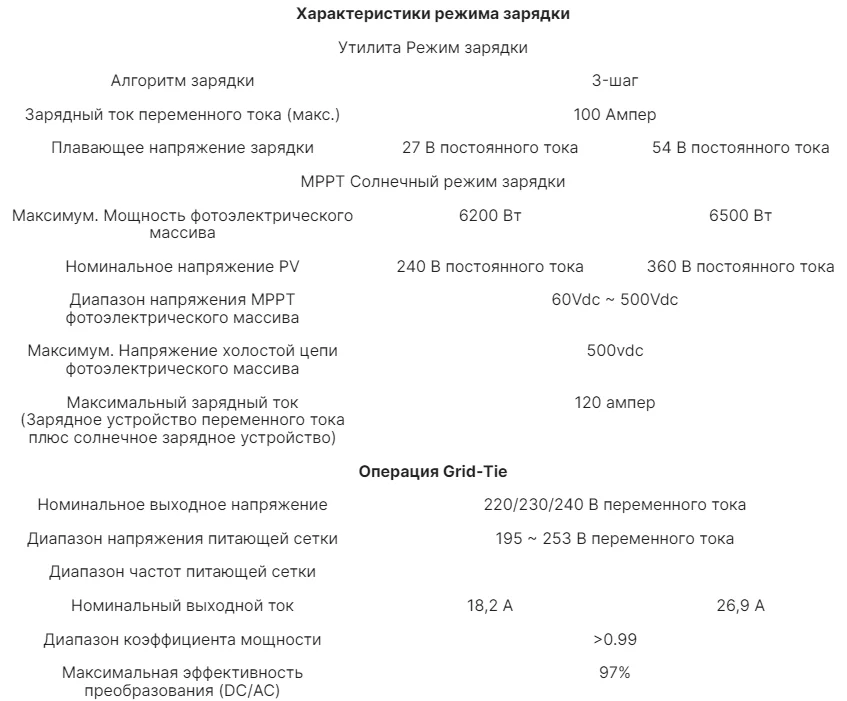

Built-in MPPT, operating voltage range 55V~450V, open circuit voltage 500Voc

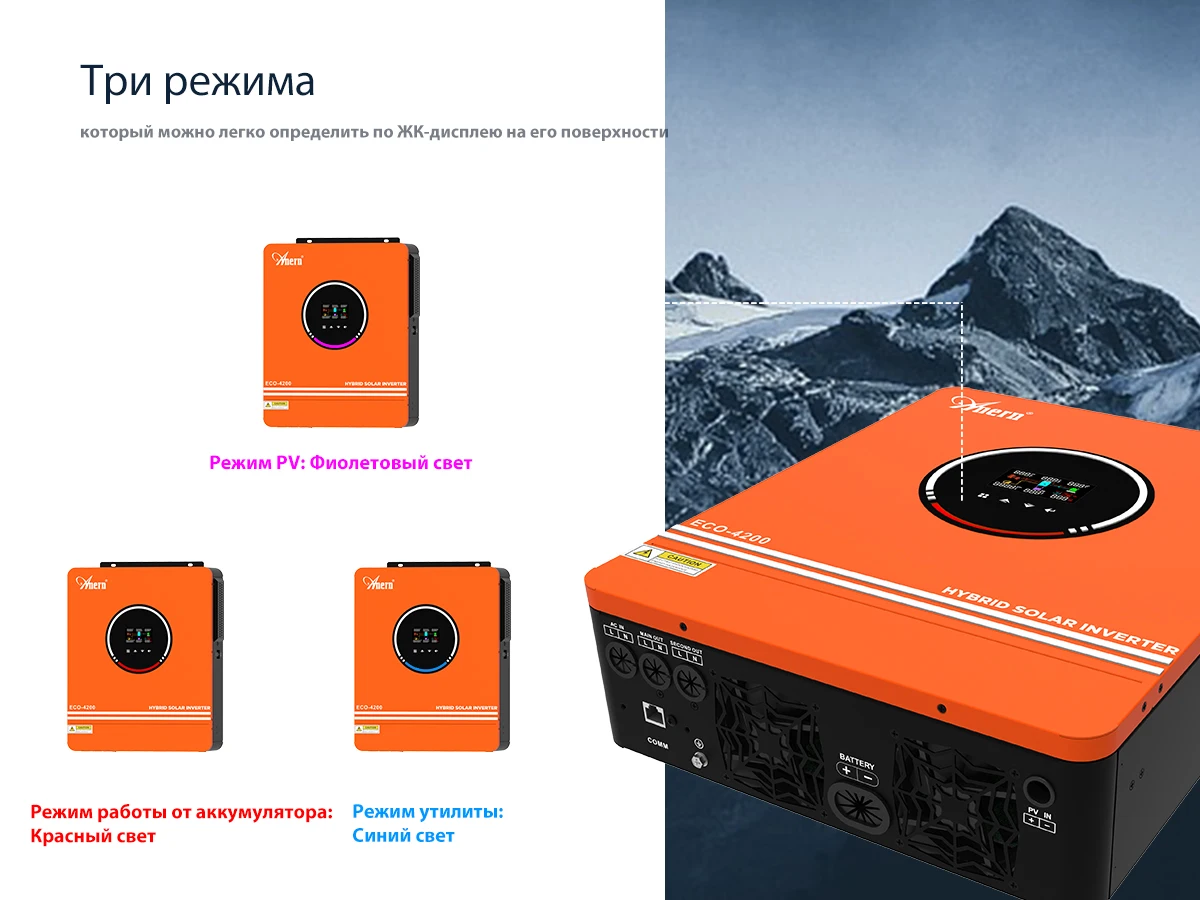

RGB lamp, which displays different colors according to inverter status
WIFI remote monitoring (optional)
Offline upgrade function,firmware can be upgraded through COM port
Built-in anti-dust kit for harsh environment
In battery-free mode,PV systems deliver a better user
experience when powering loads
Equipped with lithium battery activation function
