Yizhan 4K Digital Microscope For Soldering 1080P HDMI USB Industrial Microscope Camera, 150X Zoom Lens, 5-100cm Working Distance

Camera software download address:

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

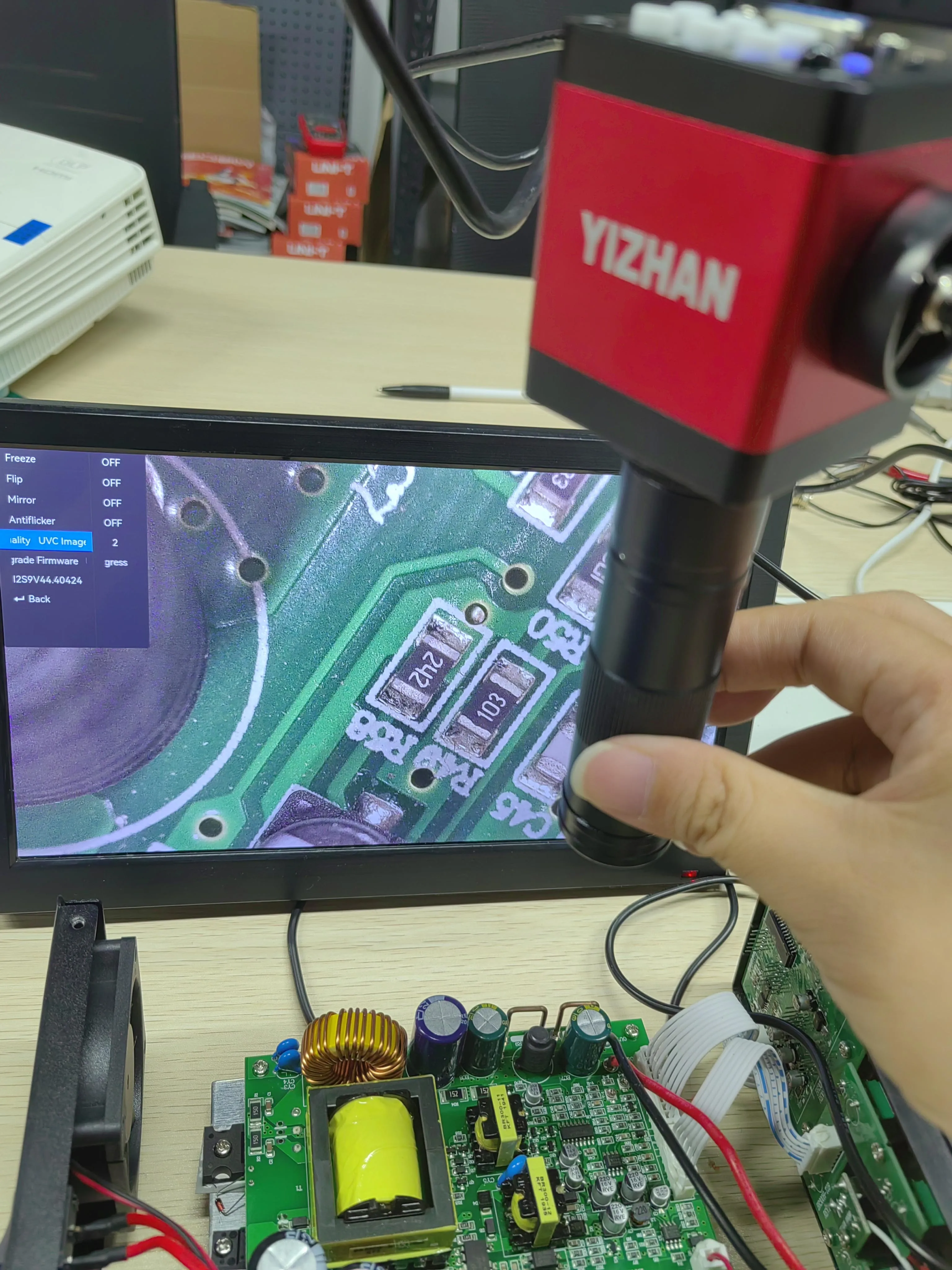

HD digital microscope, the bracket can be rotated Lifting to suit your needs,
while the lens supports 150 continuous zoom. It can definitely be a fine helper
for your daily work.
Application: QC inspection, Education purpose inspection, Print industrial,
Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial,
Biological inspection. Electronics Repair, Luxuries Identification, Video microscopes
are easy to operate and widely used.

1X-150X Zoom C-mount Lens

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

XHU4002 Camera

Sensor: 1/2.33-inch SONY imx327 sensor
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Pixel size : 1.335µm × 1.335µm
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese

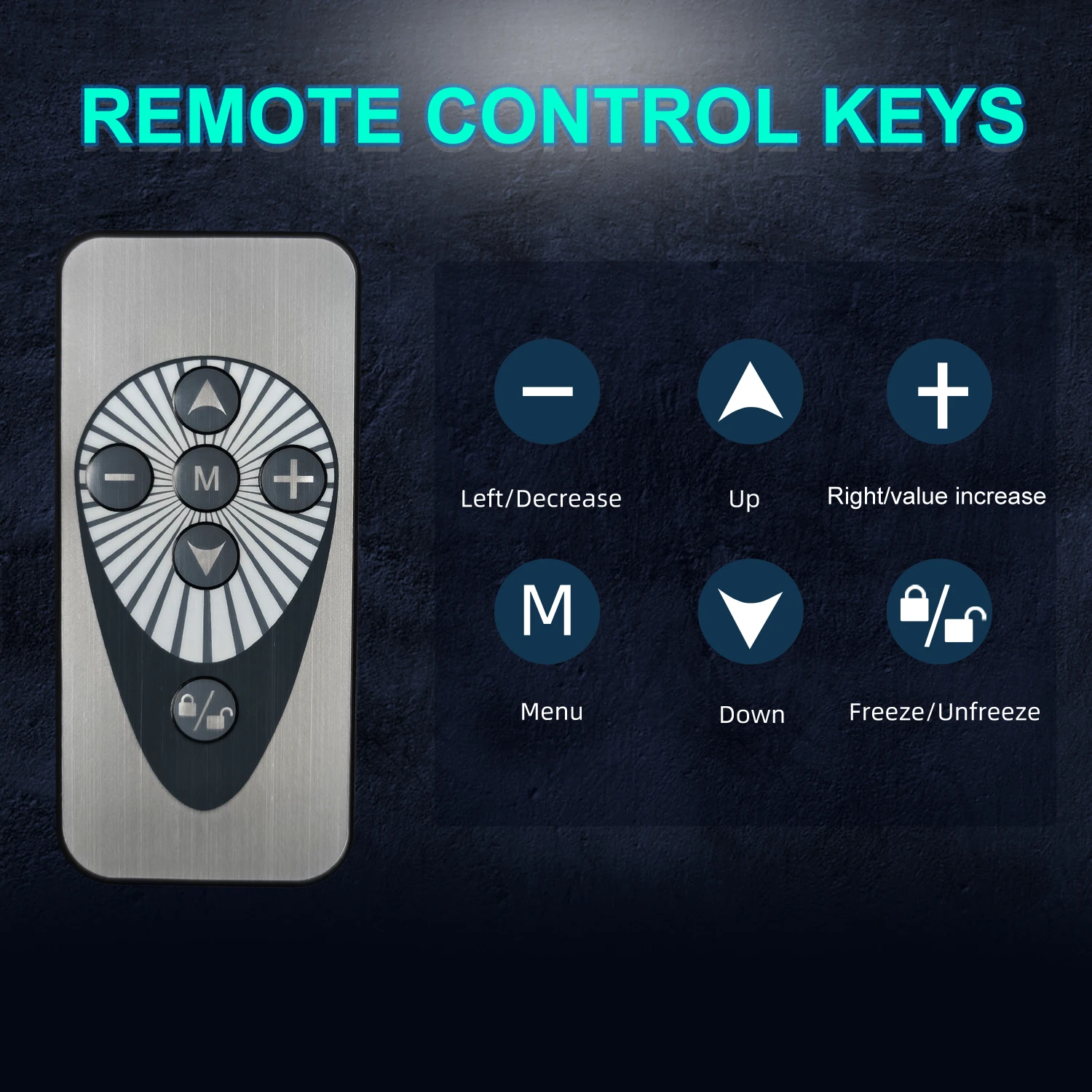

Remote control : Support remote control operation

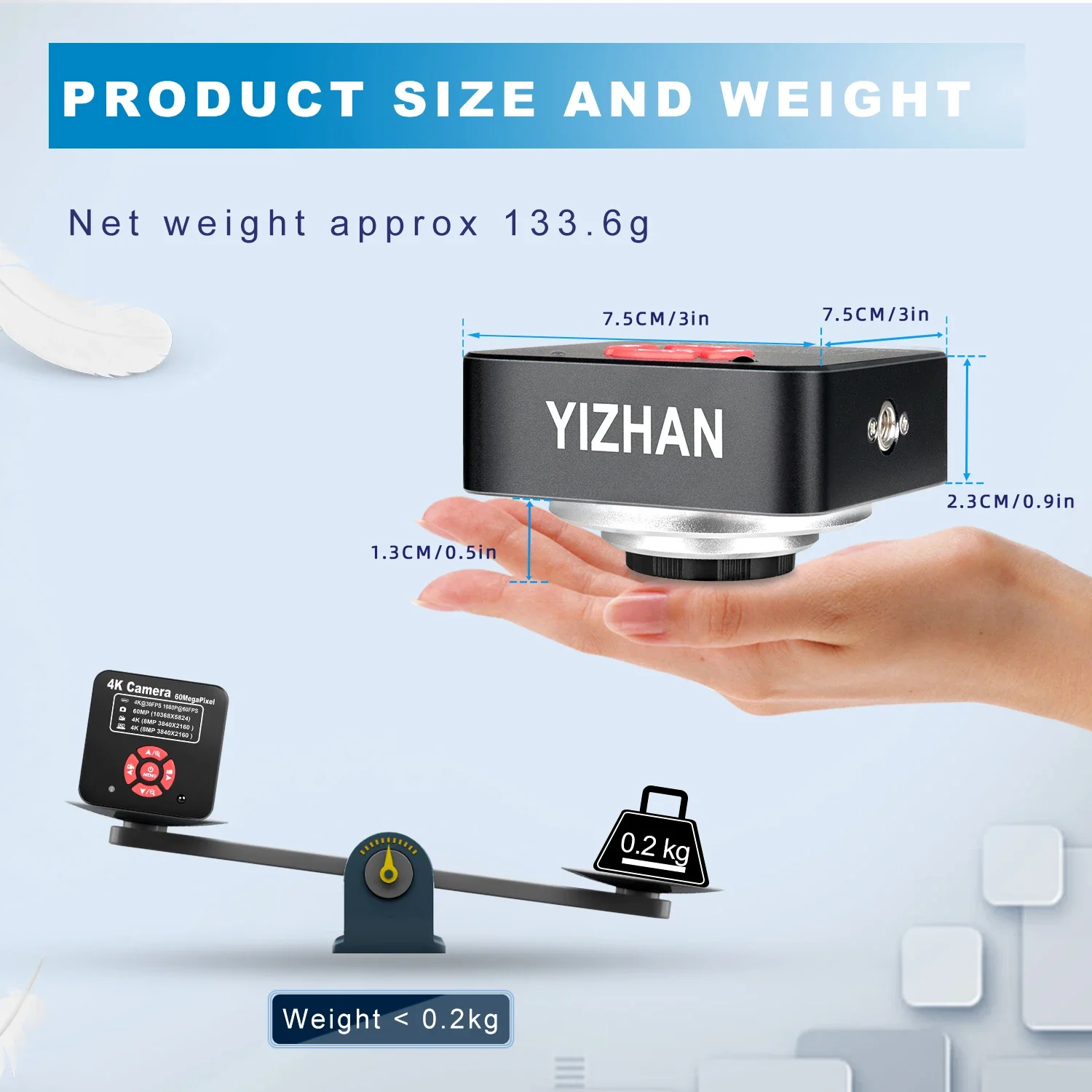

Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

Packing List of camera set:
1 * Camera body
1 * Power adapter
1 * HDMI cables
1 * USB cable
1 * Remote control (no battery due to logistics requirements)
1 * Paper instruction manual
1 * Driver software (you need to leave your email address)

XHU4011 Camera

Sony Chip: IMX415L
Video Interface：HDMI USB-PC TF Card
Record：4K/1080p
Photo：Max 60MP(10368x5888)/4K
HDMI:4K/1080p
USB:4K/2K/1080p
Lens:CS
working voltage:12V
working current:190mA
optical format:1/2.7"
pixel size:1.5um*1.5um
scanning mode:progressive
shutter mode:electronic shutter"
dynamic range:69dB
S/N radio:40dB

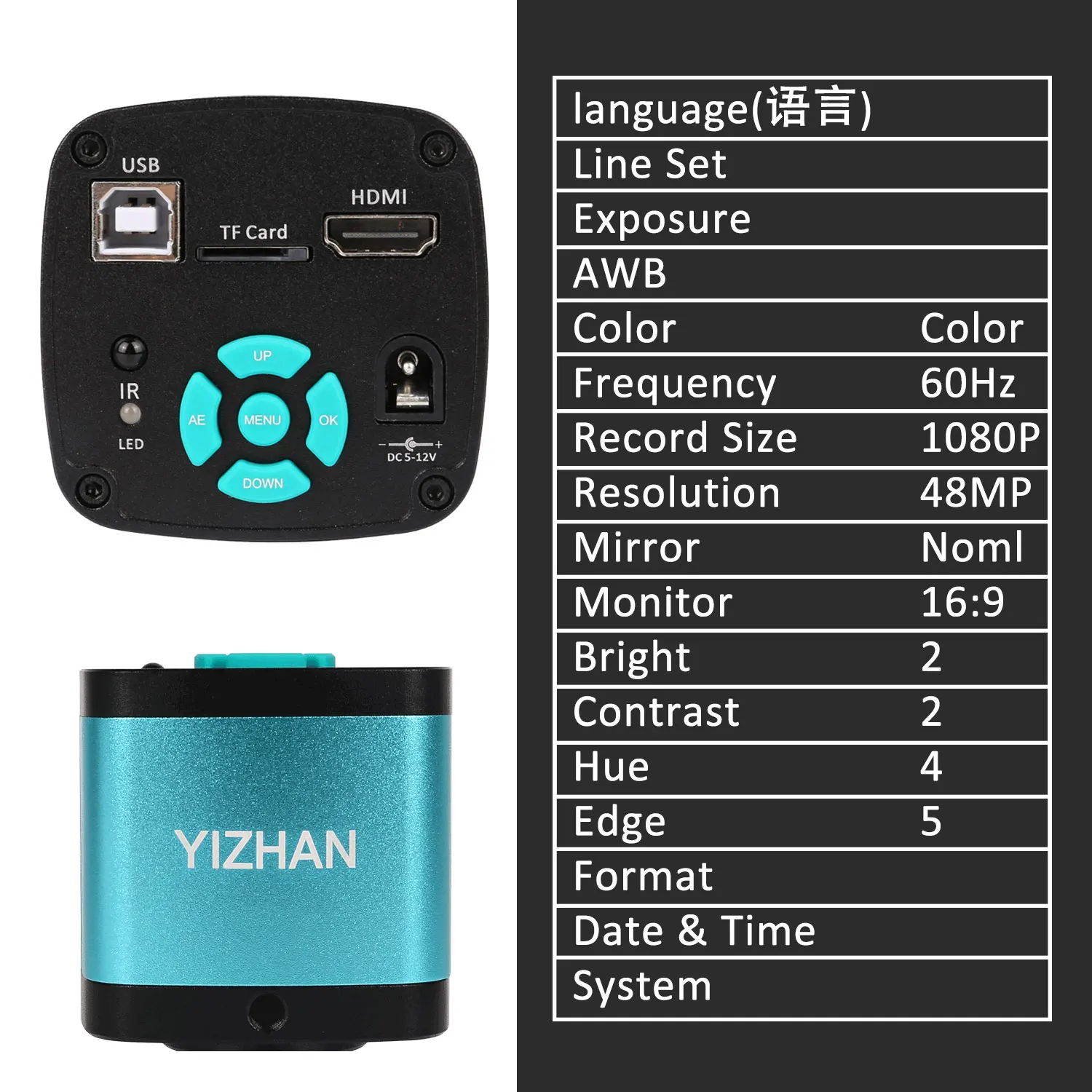

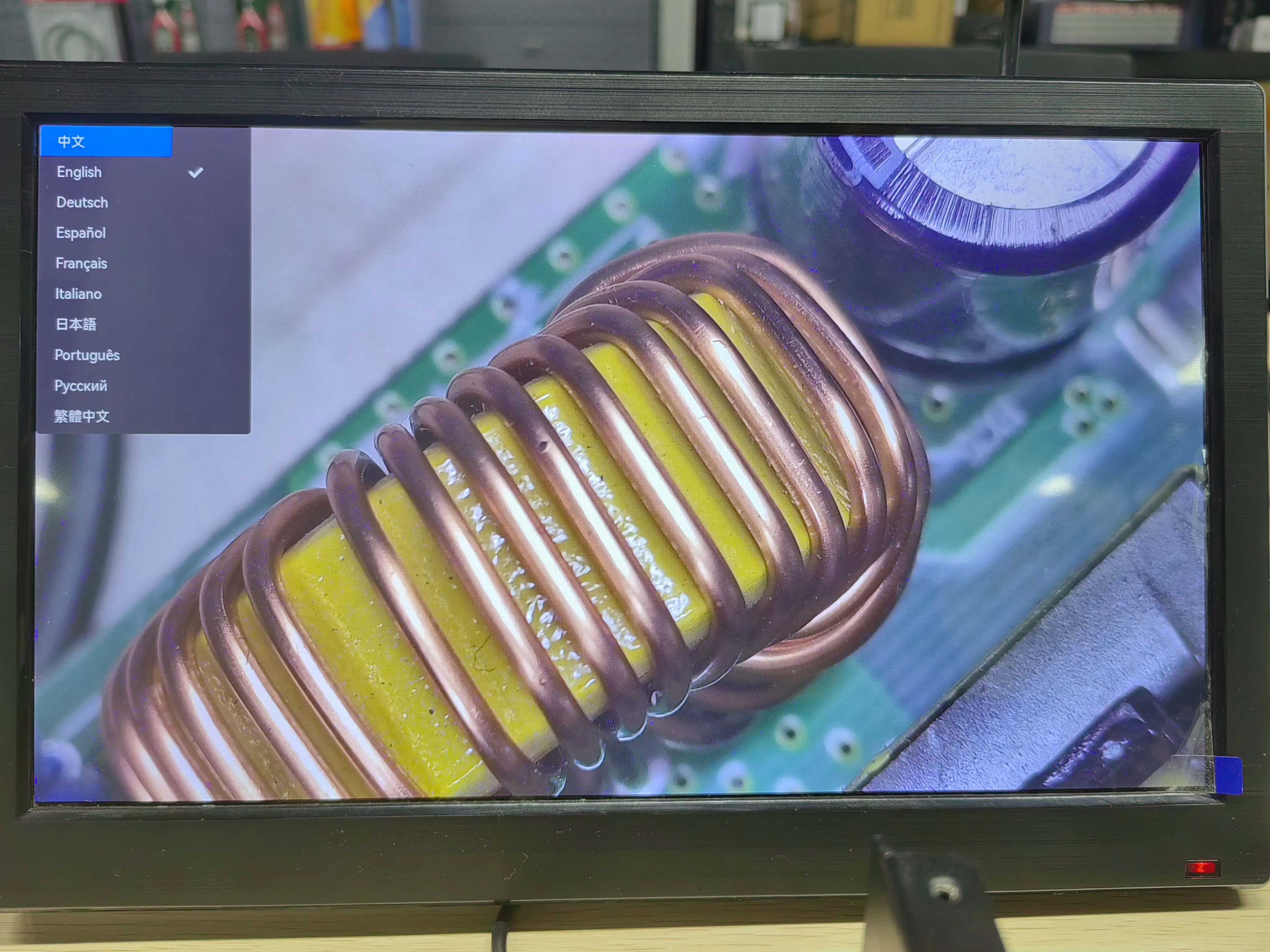

OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic
AWB mode:One-shot white balance/manual/auto
Cross:Support 4 groups: 32 horizontal and vertical lines
line:Color/line width adjustable"
B/W:√
negative:√
mirror flip:√
Freeze:√

Feature:

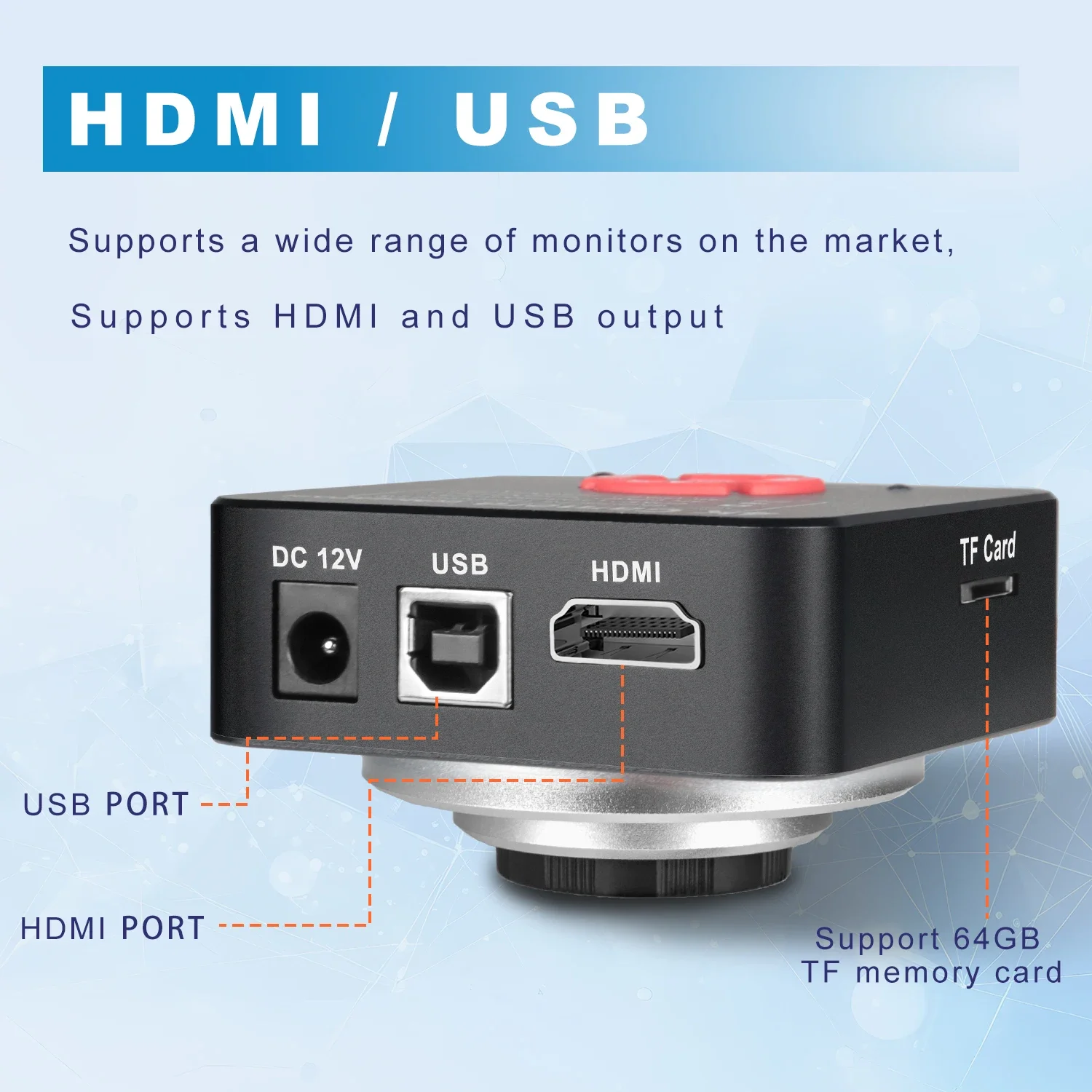

Output Interface:HDMI USB two output
Sensor: Sony 1/2.7 Inch CMOS Sensor
Housing:Aluminum Alloy
Image Resolution:16MP/21MP/36MP/48MP/60MP/4K/1080P/720P(Use TF card)
Video Display:HDMI Monitor or USB PC
Video Record Resolution:4K/3840x2160@30FPS 1080p/1920x1080@60FPS 720p/1280x720@60FPS(Use TF card)
USB2.0(Drivefree) Record Resolution:1920*1080@30FPS/1280*720@30FPS/640*480@30FPS
HDMI Video Resolution:1920*1080@60F/S 3840x2160@30F/S 1280x720@60F/S
HDMI Scale:Support 4:3,16:9,16:10,Screen
Image and Video Storage:Support
Image and Video Playback:Support
Exposure:Auto Exposure and Manual Exposure(AE value set 0-12)
TF Card Flash Drive:MAX 128GB
Digital Zoom:1-4X
Video Format:MP4
Image Format:JPG
Camera Interface Mounting Diameter:25mm
Camera Interface Standard:C Mount
Lens Interface:25mm C/CS mount
White balance:One key white balance,Manual balance
Color:Black and White/Color
Dynamic Range:69dB
S/N Radio:40dB

Scanning Mode:Progressive
Shutter Mode:Electronic Shutter
Negative:Support
Mirror:Horizontal Mirror and Vertical Mirror
B&W Pictures:Support
Image Freezing:Support
R.G.B Adjustment:Support
Avoid Flicker:50Hz 60Hz
TF Card Formatting:Support
Remote:Infrared Remote Control
Cross Lines:4 Group ,32 Lines.Can set color& width& position,direction
Crosshair:Can adjust color, line size
Power:DC 12V/1A

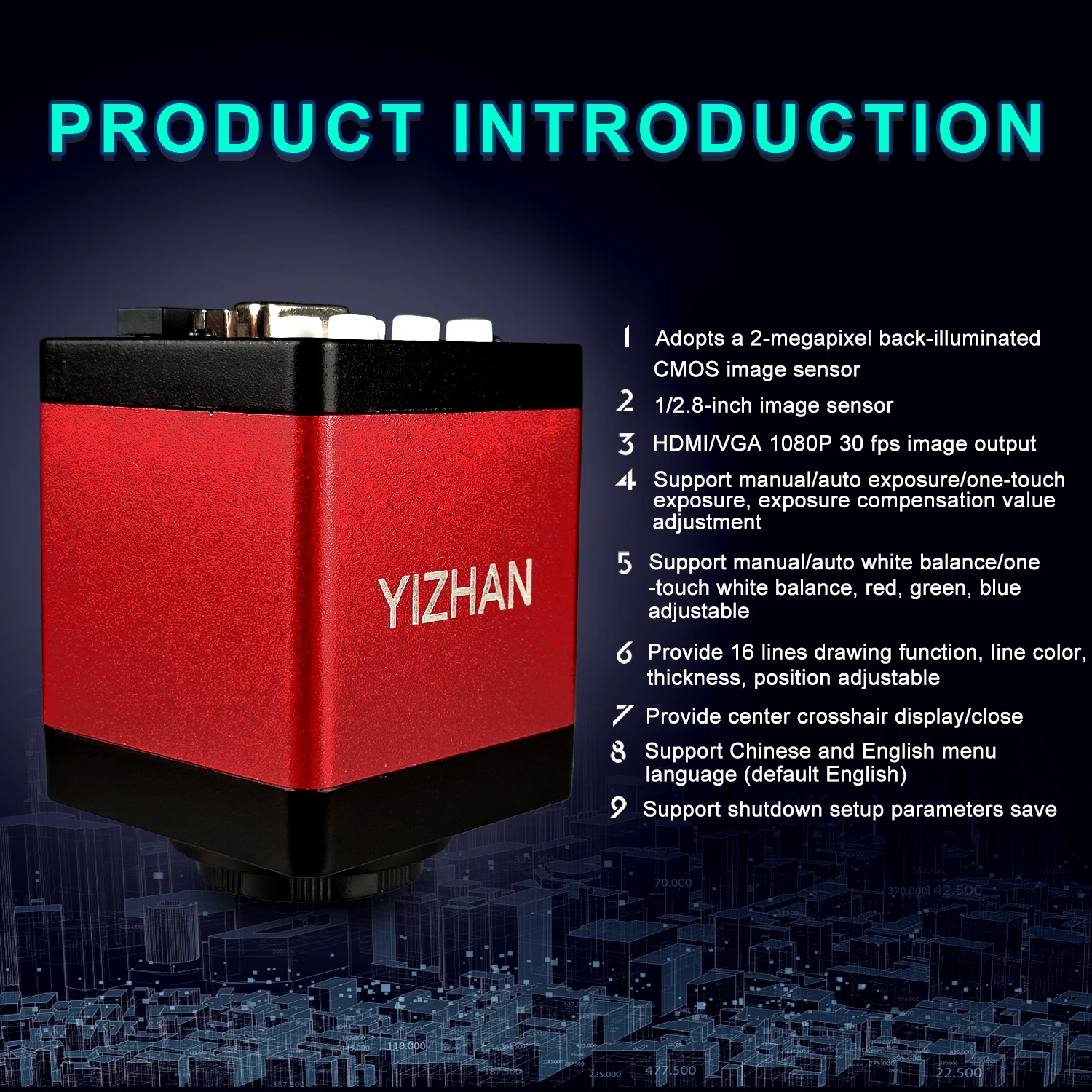

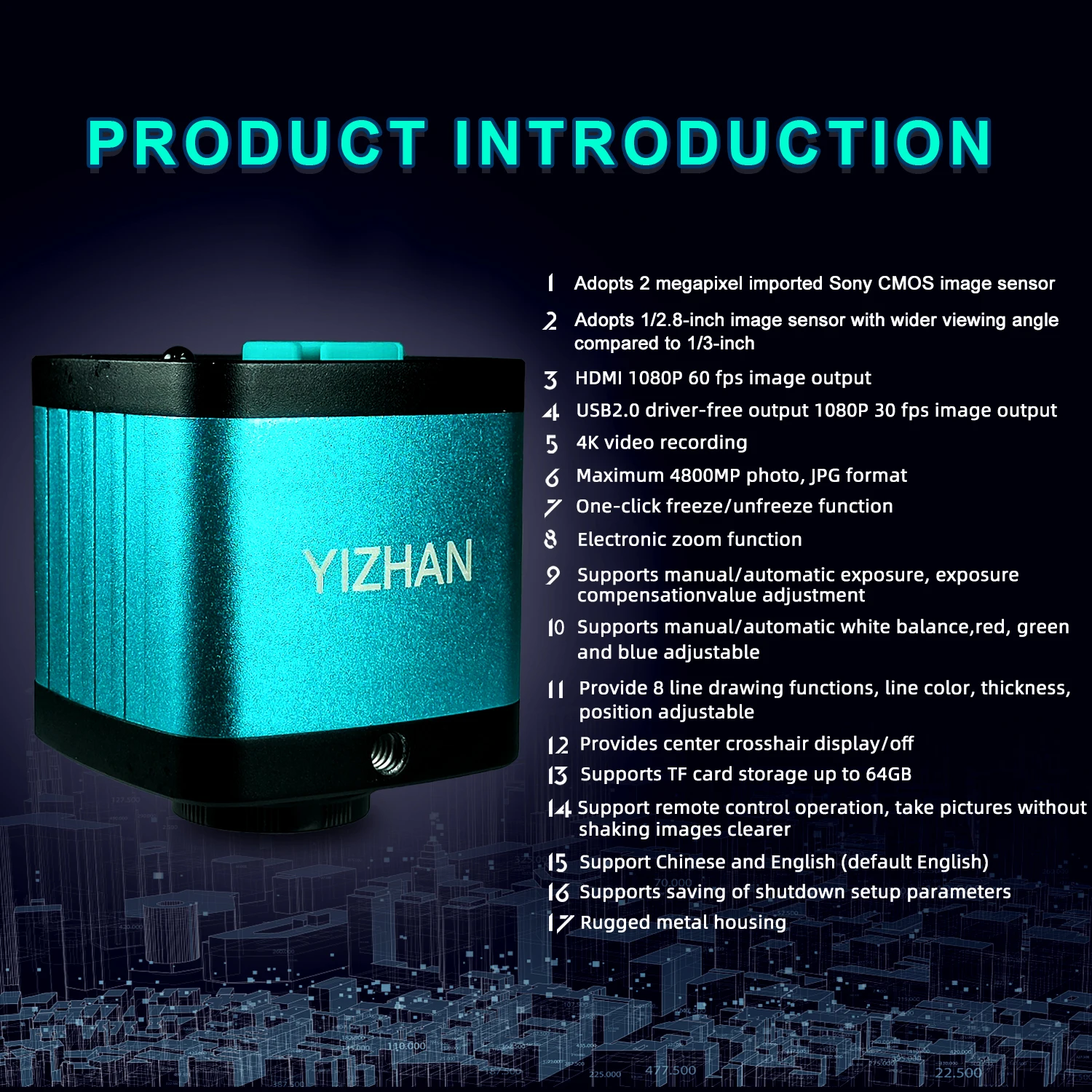

XHU4003 Camera

◆Using a 2-megapixel imported SONY sensor;
◆With a 1 / 2.8 inch image sensor, the perspective is wider than 1 / 3 inch;
◆HDMI 1080P 60FPS image output ；
◆TYPE-C no-drive output 1080P 30-frame image output;
◆4K video recording;
◆48 Million photos, JPG format, photo size 8000x6000;
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆Electronic scaling function;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;
◆Support remote control operation, take photos without shaking the image clearer;
◆Support for Chinese and traditional Chinese and English menu languages;
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;

Specification parameters:
Sensor：A 1 / 2.8 SONY 2-megapixel import sensor
Pixel size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
TYPE-C output: 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Lens interface: C/CS
Exposure: Automatic / manual
Exposure compensation: Support
White balance: Automatic / manual, support for RGB adjustable
Memory card: Max. support is 64GB
Input voltage: DC: 5V
Lineation: 16 lines, with adjustable color, thickness, and position
Centre line: Support
Menu language: English / Chinese
Telecontroller: Support for the remote control operation
Camera net weight: 150G
Size: 66*66*49mm

Package includes:
1*Camera body
1*US/EU plug
1*HDMI cable
1*Type-C cable
1*remote control

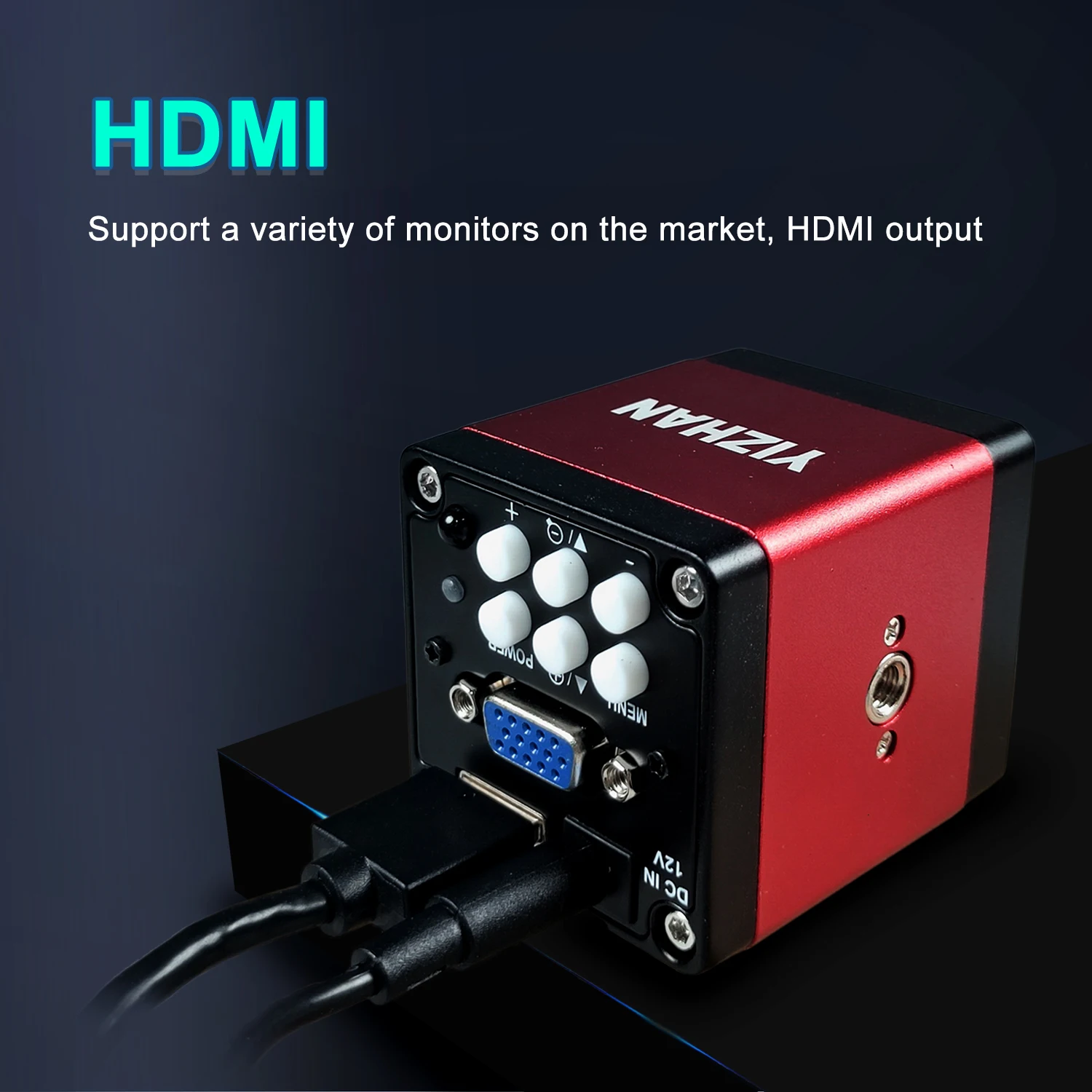

XVH2001 Camera

The sensor: sony IMX323 sensor
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

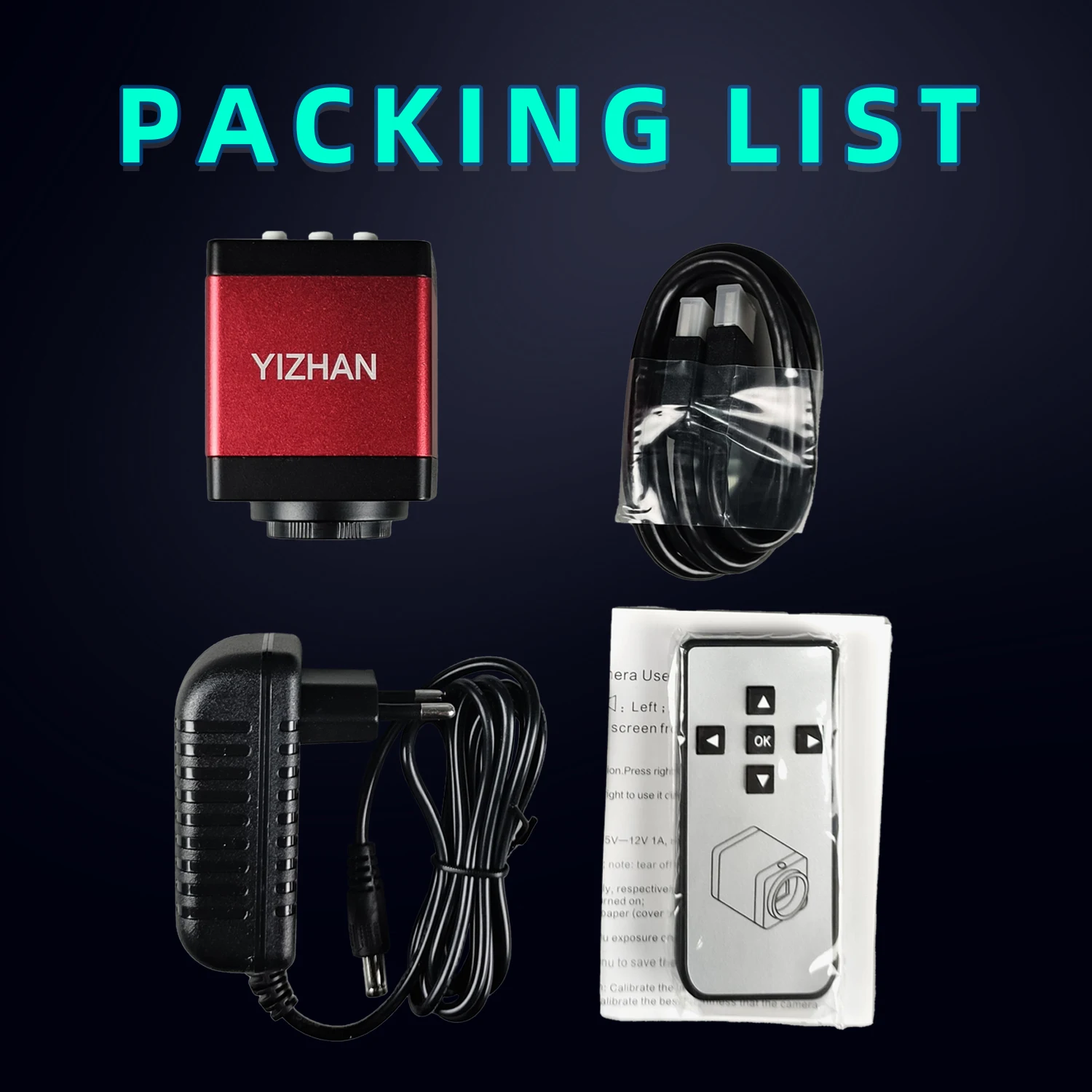

Package incluede
1 x 13MP Camera（HDMI VGA ）Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x Paper manual

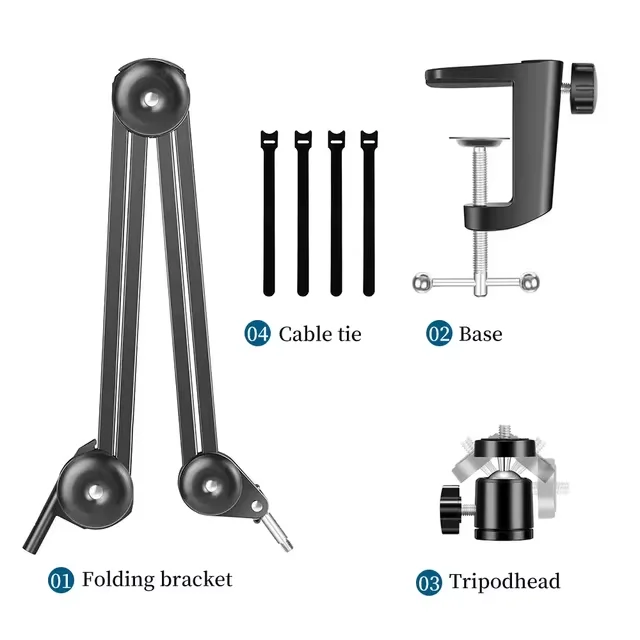

Flexible articulated arm:
