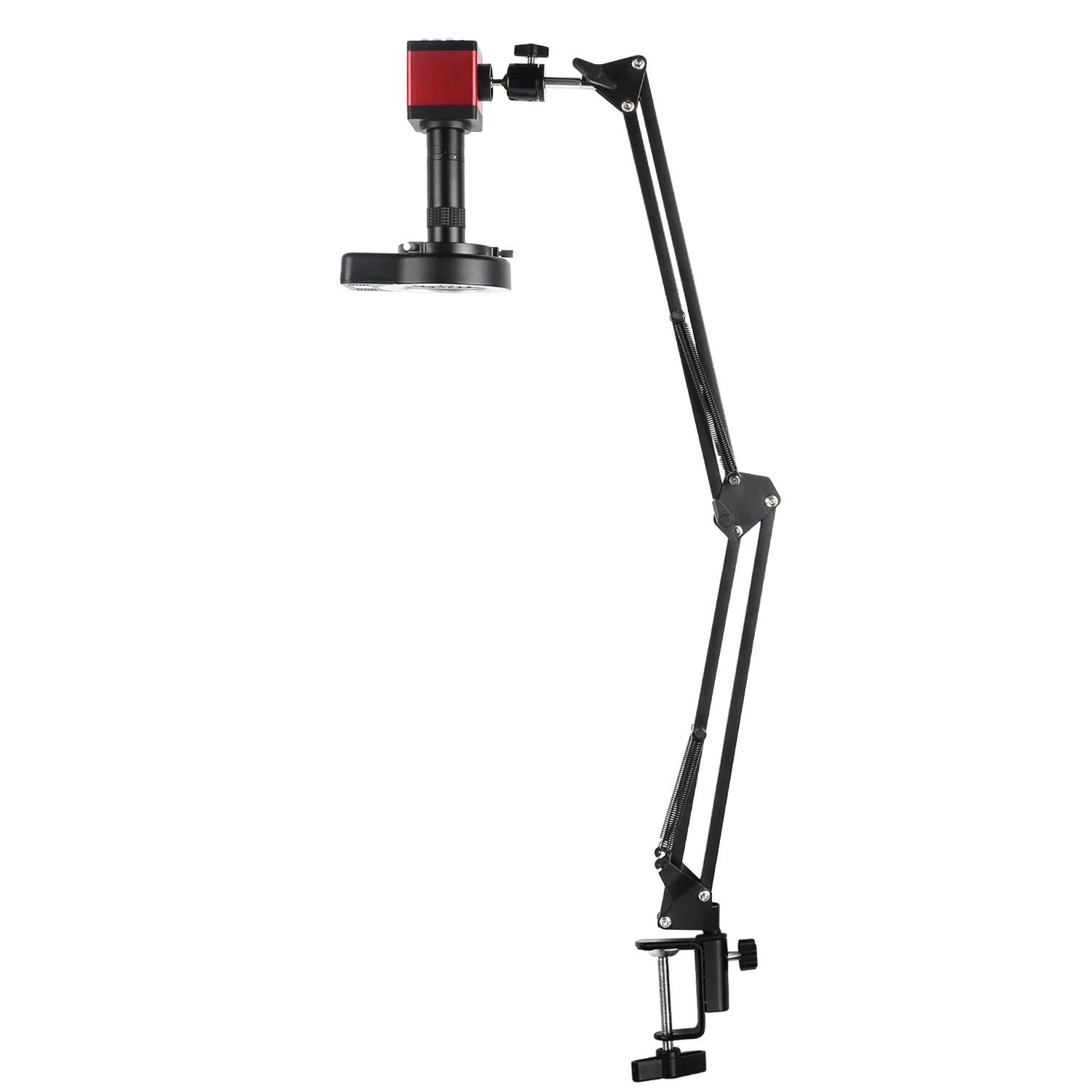

YIZHAN 13MP Full HD HDMI Camera VGA Port Industrial Microscope Zoom 150X Lens Adjustable Metal Arm Stand Bracket For Soldering

HD digital microscope, the bracket can be rotated Lifting to suit your needs, while the lens supports 1-150X continuous zoom. It can definitely be a fine helper for your daily work. QC inspection, Education purpose inspection, Print industrial, Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial, Biological inspection

Video microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

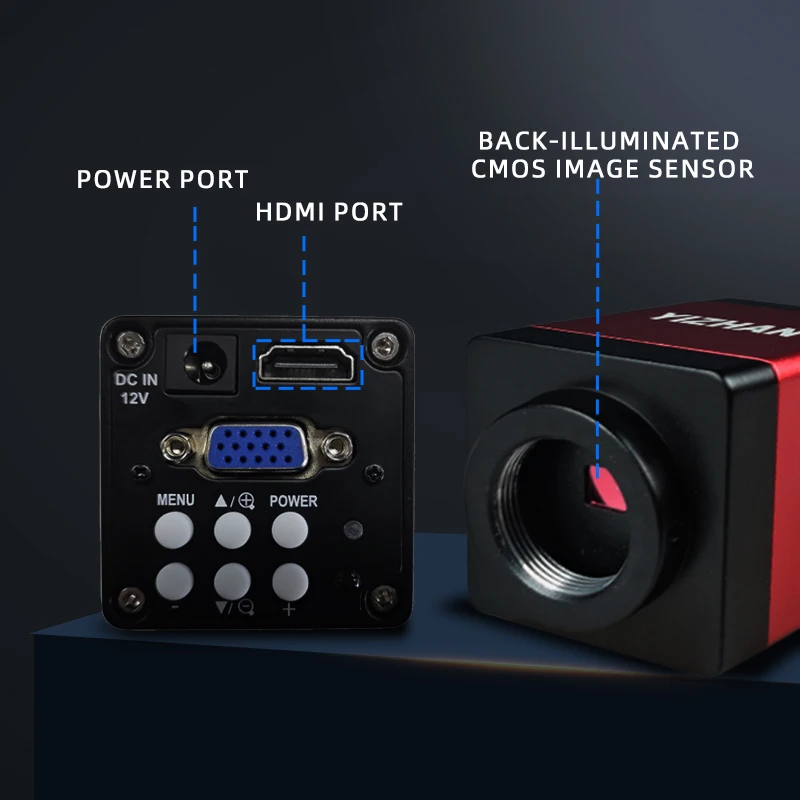

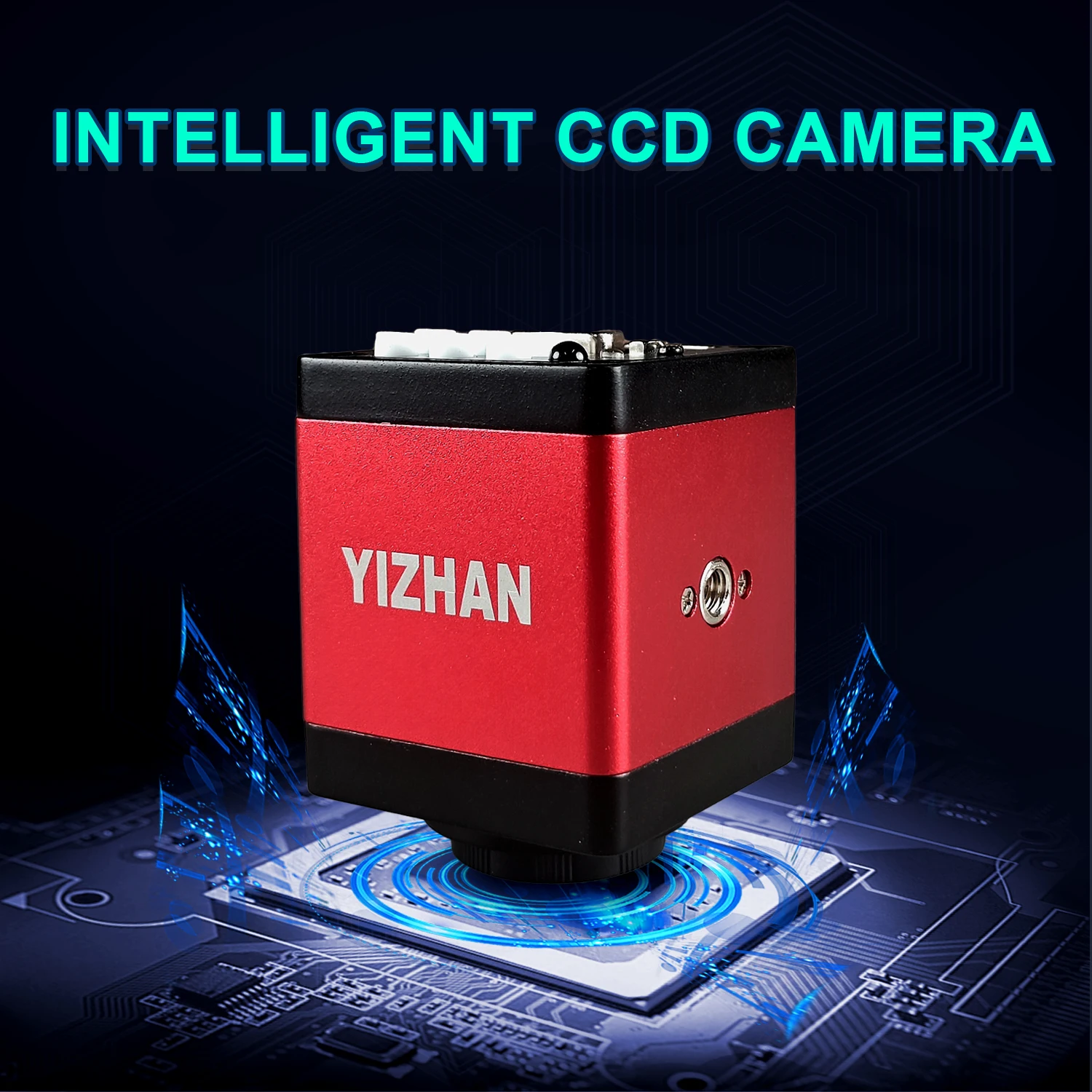

HDMI VGA 1080P Camera Feature:

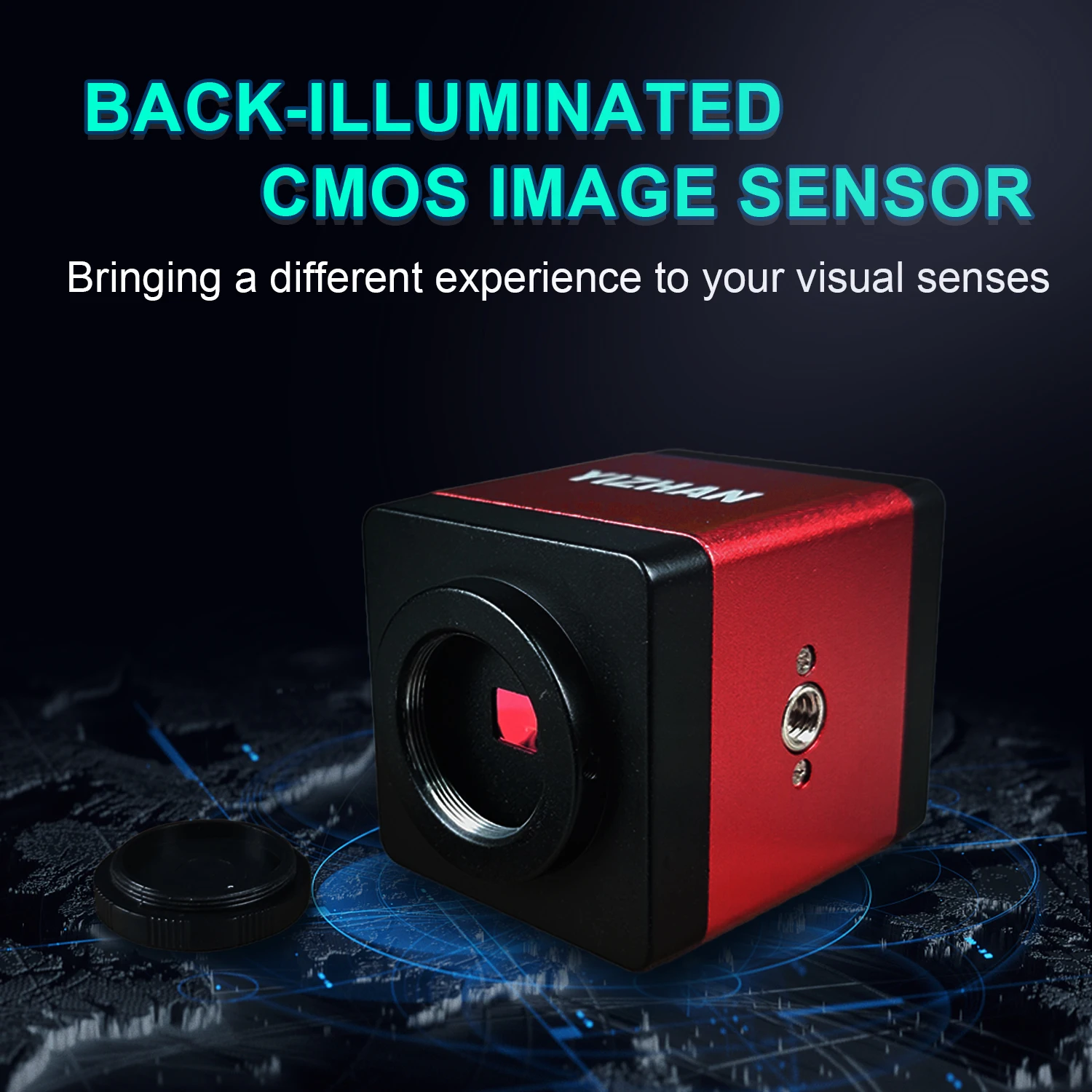

The sensor: gc2053
Overall dimension: 75*50*50mm

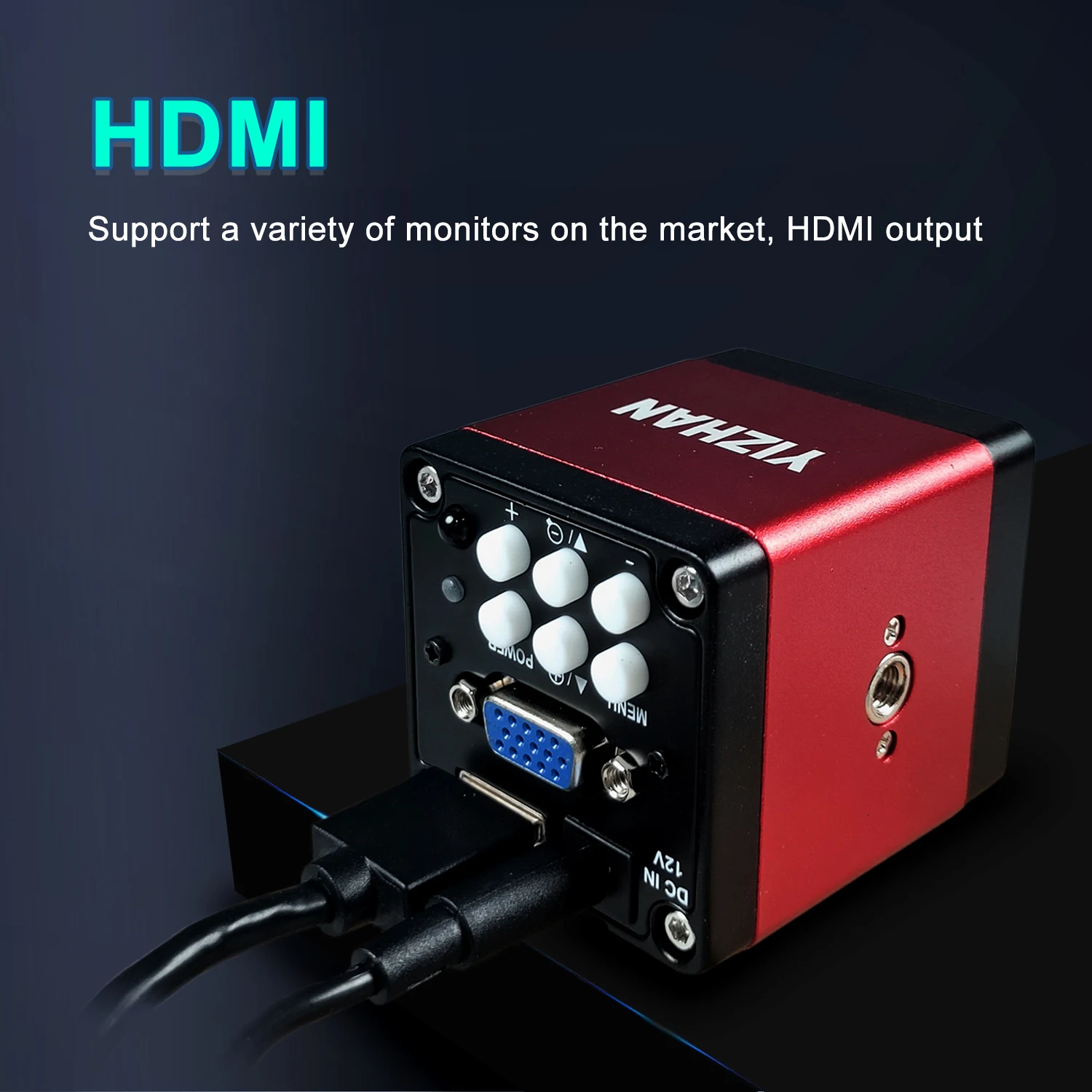

Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

Package incluede：
1 x 13MP Camera（HDMI VGA ）Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）

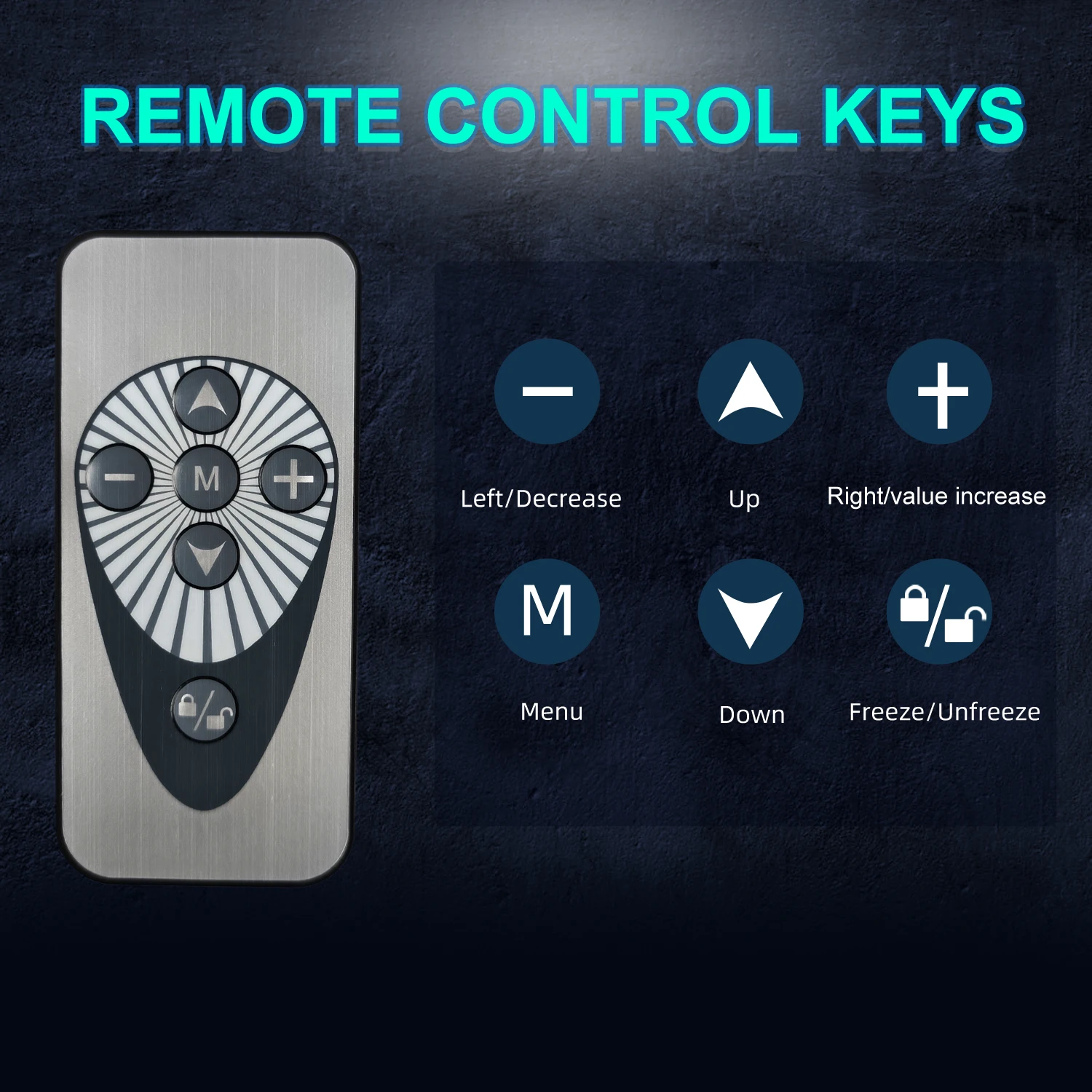

1 x Camera remote
1 x Paper manual

1X-150X Zoom C-mount Lens
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

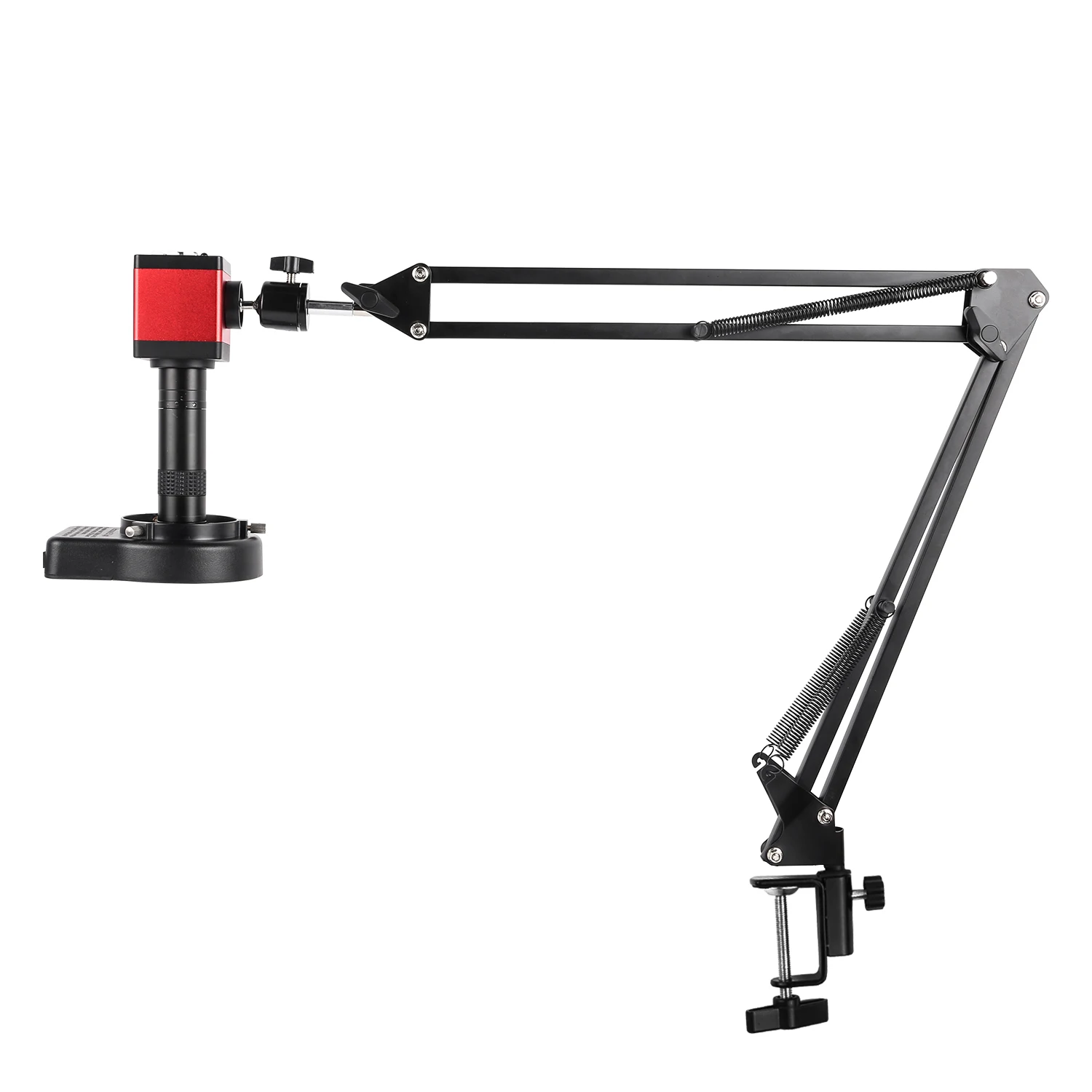

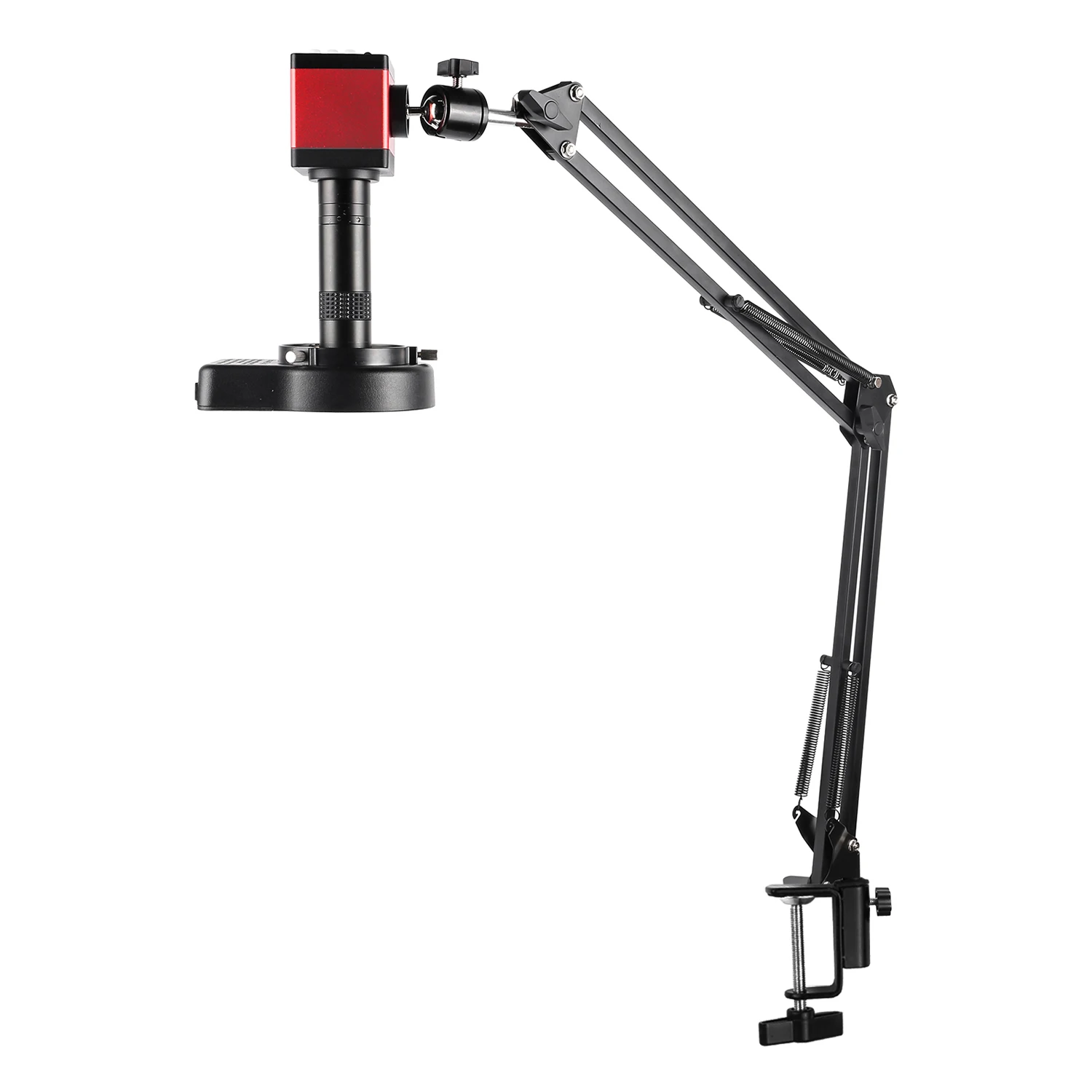

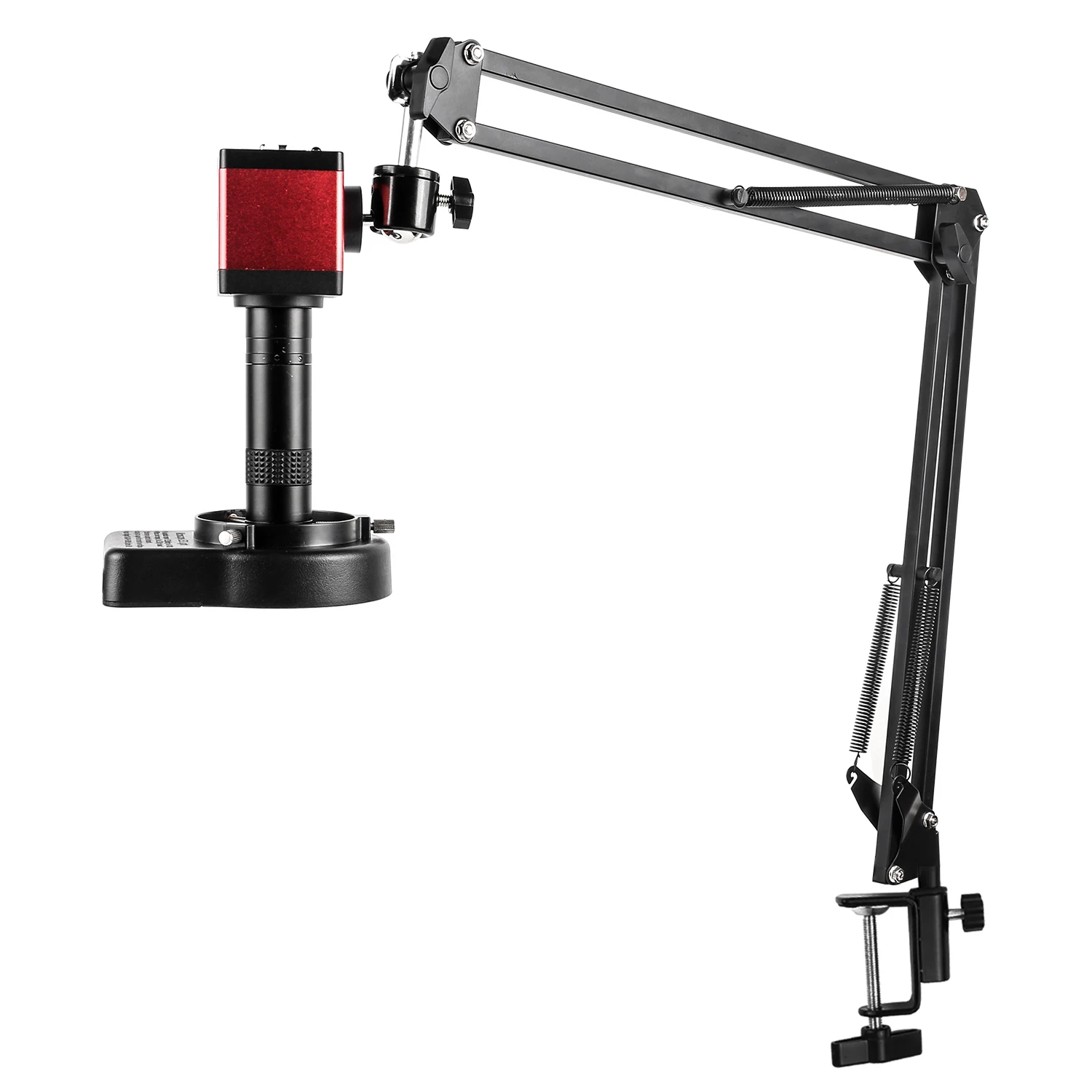

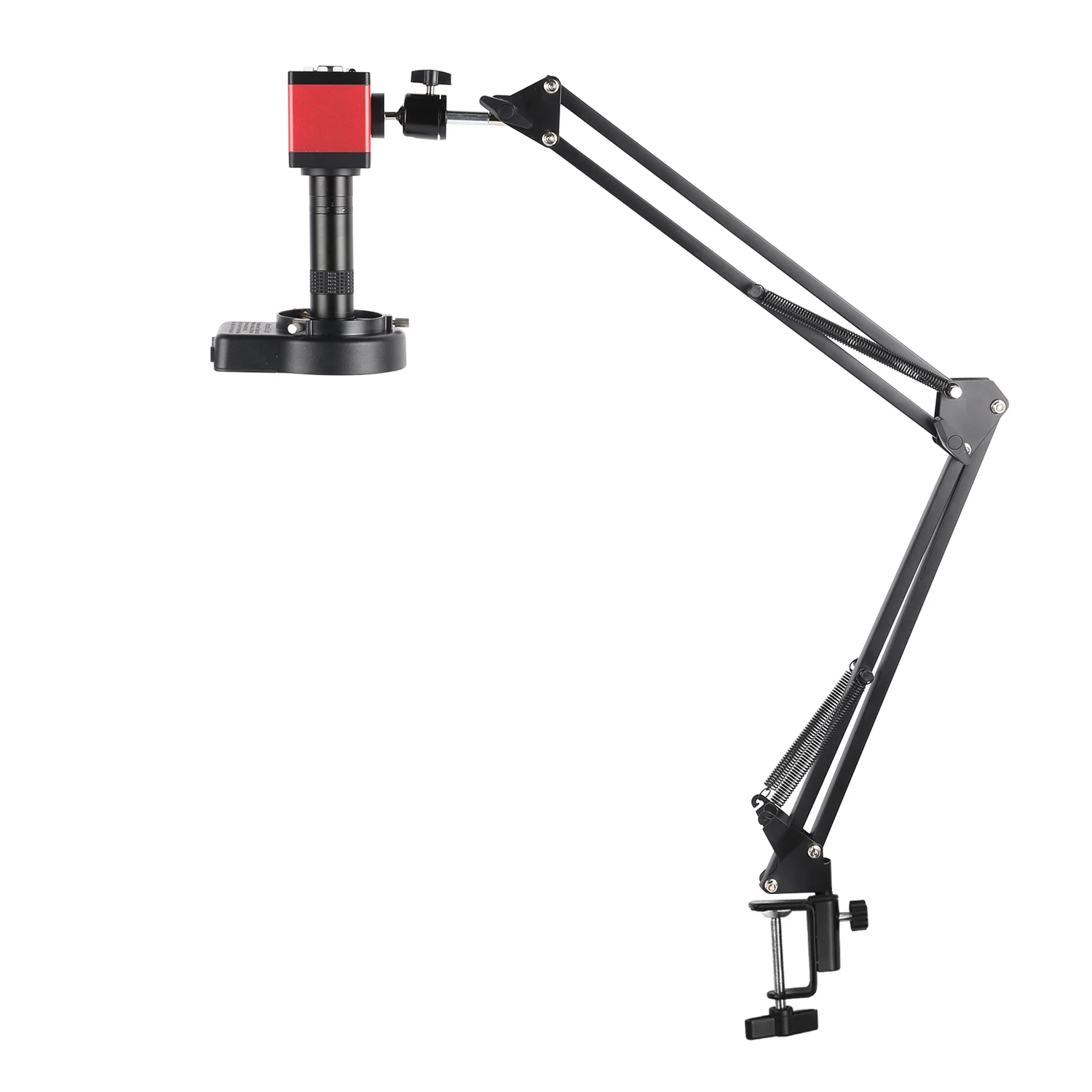

Collapsible support Feature：
Multi-directional folding optional installation, multi-purpose.
Size: 400 mm * 390 mm
Maximum bottom mounting size: 50mm

Package list

HDMI VGA Full Set
1*  Corresponds to camera set
1* 1-150x zoom lens
1* Light
1* Folding bracket

Camera with Lens
1*  Corresponds to camera set
1* 1-150x zoom lens

About Shipment

We will ship your package within 1-2 working days.
We may change the shipping method: Consider of the customs, remote address and shipping speed.

Warranty &Return

Our store provides free replacement for orders within 30 days from delivery date. For orders from 1 to 12 months, you have to pay some parts of order value to get replaced. For order older than 12 months, we will give small discounts.

Our Service time

Our Working time is Monday to Friday 9:00 AM to 6:30 PM BeiJing Time.
All orders will not be processed at the weekend and holidays.

Feedback

Please contact us first if you have any problem,i will reply you within 30 minutes during working time.We promise you to solve your problem within 24 hours.
