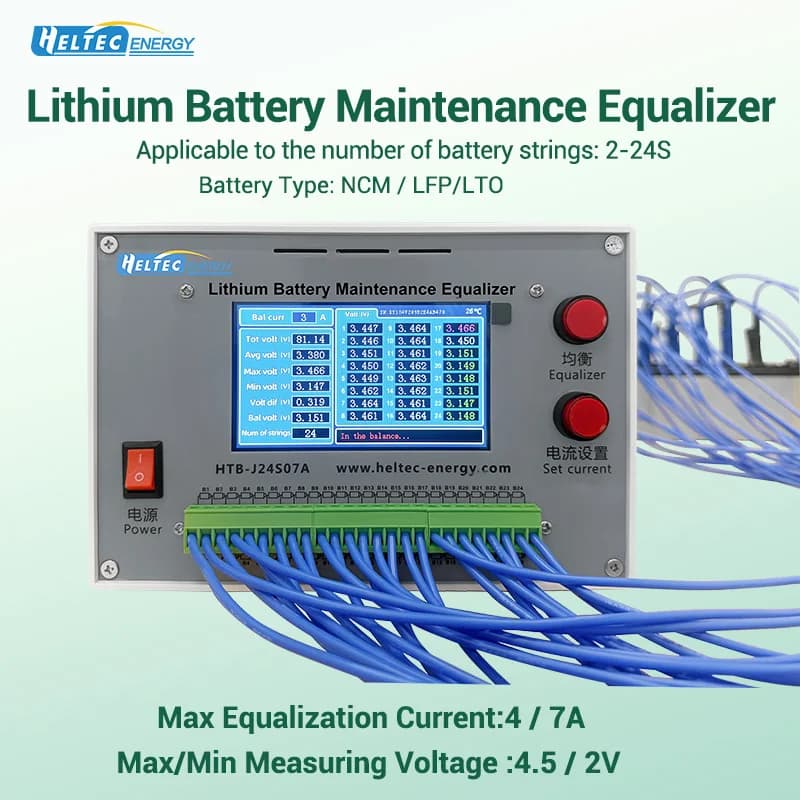

Heltec 24S Automatic Equalizer Li-ion LiFePO4 Battery Voltage Tester & Repair 3A 4A 7A Lithium Cell Discharge Balancer

Product Overview

The Heltec Energy 2~24S 3A/4A Intelligent Battery Equalization Instrument is a smart balancing device suitable for 2-24 series lithium batteries (NCM, LFP, LTO, etc.). It can automatically recognize the number of battery strings and utilizes a constant resistance discharge method for balancing, ensuring voltage consistency and enhancing battery lifespan and performance.

Product Features

Compatible with Multiple Battery Types: Supports lithium batteries with a nominal voltage of 2V~4.5V.

Automatic Recognition of Battery Strings: Smart detection of the number of battery pack strings, eliminating manual configuration.

Efficient Balancing: Utilizes a constant resistance discharge method, with a maximum balancing current of 4A for NCM batteries and 3A for LFP batteries.

Real-Time Monitoring and Alerts: Supports alarms for reverse connection, over-voltage (4.5V), and low voltage (2V). The device automatically stops once balancing is complete.

Comprehensive Voltage Display:

Voltage of each cell

Total voltage

Average voltage

Maximum/minimum voltage

Maximum voltage difference

Balanced voltage

Number of battery pack strings

Safe and Reliable: Supports a single-cell battery input interface voltage range of -100V~+100V, with an external power supply of 12V 5A to ensure stable operation.

Feture

Power supply: DC12V 4A/7A

Single channel voltage measurement range: 1-5V

Single channel voltage display accuracy: 0.001V

Single channel voltage acquisition accuracy :±(0.05%+0.003v)

Single channel voltage operating range: 2.0-4.5V

Adjustable balance current: 1A-7A(The smaller the voltage, the larger the impedance, the smaller the balance current)

Applicable battery type: ternary lithium, lithium iron phosphate and other battery voltage between 2.0v-4.5v

Operating temperature: 0°C-50°C

Working humidity: 20%-80%RH

Working environment: no corrosion, explosive and damage insulation gas and conductive dust

Usage Steps

Power On: Connect to the power source and start the device.

Connect the Battery: Properly connect the battery according to the markings on the instrument or wiring board.

Check Voltage: Confirm that the displayed voltage and number of battery strings are correct. If incorrect, check the wiring.

Start Balancing: Initiate the balancing process and monitor the balancing voltage. The device will automatically stop once balancing is complete.

Battery Maintenance Guide

Faulty Battery Detected: Replace the faulty cell → Fully charge → Balance → Fully charge → Maintenance complete.

No Faulty Cells: Fully charge → Balance → Fully charge → Maintenance complete.

Insufficient Balancing Effect: Repeat the balancing process multiple times for optimal results.

Precautions

Due to the high balancing current, ensure that the connecting wires are thick enough to prevent burnout or damage.

B- refers to the battery pack’s negative pole, B1 is the first string from the negative pole. Adding more batteries during balancing is prohibited.

Ensure insulation protection and avoid touching exposed wires during the balancing process.

Double-check all connections before connecting the instrument to prevent equipment damage.

Packing List

2~24S 3A/4A Intelligent Battery Equalization Instrument ×1

Connection cables ×1

User manual ×1

(Note: The green wiring board has been changed to a black appearance.)
